TABLEOFCONTENTS
WASHER SAFETY ......................................................................... 3
INSTALLATION REQUIREMENTS ................................................ 4
Tools and Parts ............................................................................ 4
Location Requirements ................................................................ 5
Drain System ................................................................................ 5
Electrical Requirements ............................................................... 6
INSTALLATION INSTRUCTIONS .................................................. 7
Before You Start ........................................................................... 7
Remove Shipping Base and Packing Ring .................................. 7
Connect Drain Hose ..................................................................... 7
Connect the Inlet Hoses............................................................... 8
Secure the Drain Hose ................................................................. 9
Level the Washer.......................................................................... 9
Complete Installation ................................................................. 10
BENEFITS AND FEATURES ........................................................ 11
Benefits ....................................................................................... 11
Features ...................................................................................... 11
WASHER USE ............................................................................... 12
Starting Your Washer ................................................................. 12
Pausing or Restarting the Washer ............................................. 13
Stopping the Washer ................................................................. 13
Changing Cycles, Modifiers and Options .................................. 13
Status Lights .............................................................................. 13

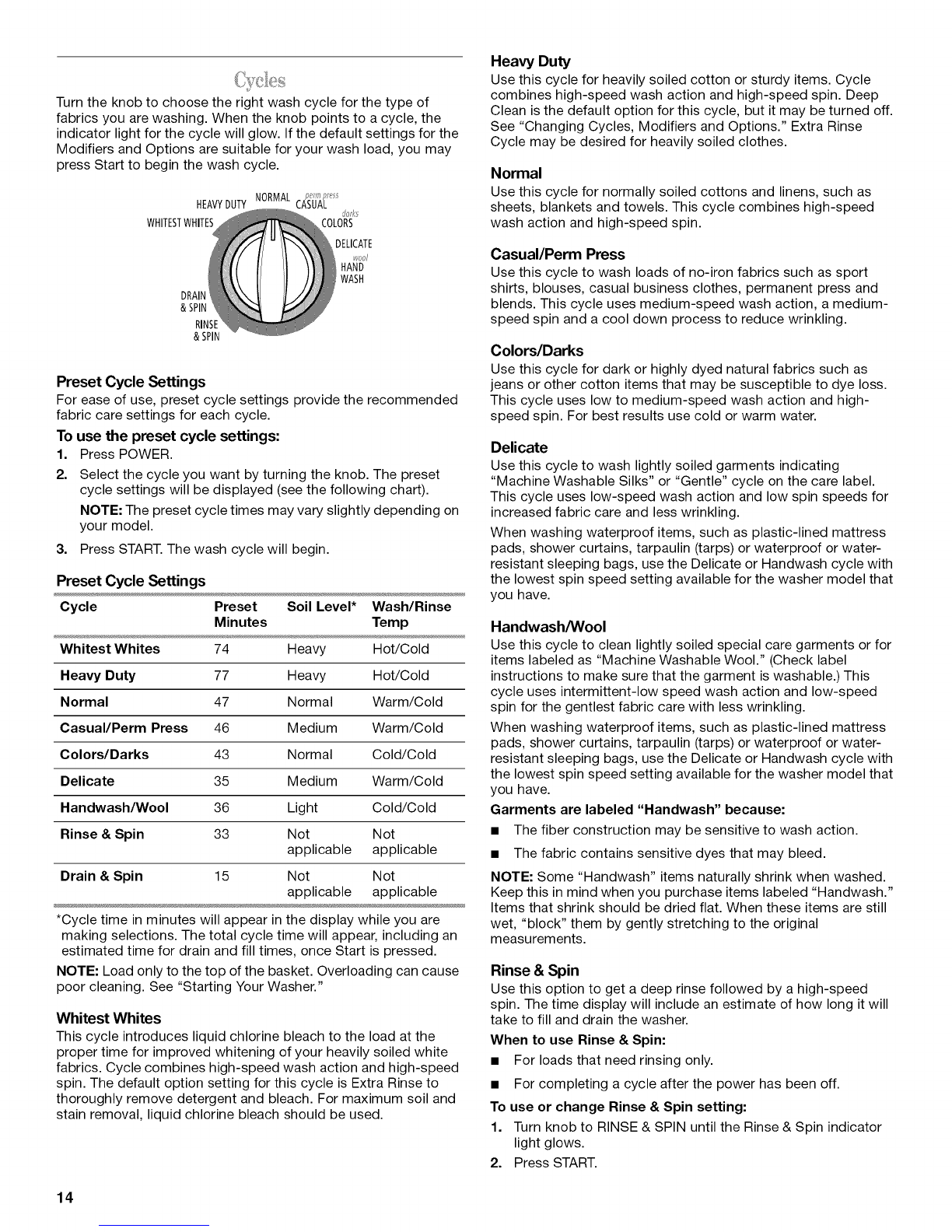

Cycles ......................................................................................... 13
Modifiers ..................................................................................... 15
Options ....................................................................................... 16
Operating Controls ..................................................................... 16
Normal Sounds .......................................................................... 16
LAUNDRY TIPS ............................................................................ 17
WASHER CARE ............................................................................ 17
Cleaning Your Washer ............................................................... 17
Water Inlet Hoses ....................................................................... 17
Vacation, Storage and Moving Care .......................................... 17
TROUBLESHOOTING .................................................................. 18
ASSISTANCE OR SERVICE ......................................................... 22
WAR RANTY .................................................................................. 23
TABLEDESMATIERES
SECURITE DE LA LAVEUSE ........................................................ 24
EXIGENCES D'INSTALLATION ................................................... 25
Outillage et pieces ...................................................................... 25
Exigences d'emplacement ......................................................... 26
Systeme de vidange ................................................................... 26
Specifications electriques .......................................................... 27
INSTRUCTIONS D'INSTALLATION ............................................. 28
Avant de commencer ................................................................. 28
Retrait de la base d'expedition et de I'anneau d'emballage .....28
Raccordement du tuyau de vidange .......................................... 28
Raccordement des tuyaux d'alimentation ................................. 29
Immobilisation du tuyau de vidange .......................................... 30
Reglage de I'aplomb de la laveuse ............................................ 30
Achever I'installation .................................................................. 31
AVANTAGES ET CARACTERISTIQUES ..................................... 32
Avantages ................................................................................... 32
Caracteristiques ......................................................................... 32
UTILISATION DE LA LAVEUSE ................................................... 33
Mise en marche de la laveuse.................................................... 33
Pause ou remise en marche de la laveuse ................................ 34
Arr_t de la laveuse ...................................................................... 34
Changement des programmes, modificateurs et options .........34
T6moins lumineux ...................................................................... 35
Programmes ............................................................................... 35
Modificateurs .............................................................................. 36
Options ....................................................................................... 37
Fonctionnement des commandes ............................................. 38
Sons normaux ............................................................................ 38
CONSEILS DE LESSIVAGE .......................................................... 39
ENTRETIEN DE LA LAVEUSE ..................................................... 39
Nettoyage de la laveuse............................................................. 39
Tuyaux d'arrivee d'eau ............................................................... 39
Precautions a prendre avant les vacances, un
entreposage ou un dem6nagement ........................................... 39
DI_PAN NAGE................................................................................. 41
ASSISTANCE OU SERVICE ......................................................... 46
GARANTIE ..................................................................................... 47
2

WASHERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions,
including the following:
[] Read all instructions before using the washer.
[] Do not wash articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline,
dry-cleaning solvents, other flammable, or explosive
substances as they give off vapors that could ignite or
explode.
[] Do not add gasoline, dry-cleaning solvents, or other
flammable, or explosive substances to the wash water.
These substances give off vapors that could ignite or
explode.
[] Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been used
for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. Ifthe hot water system has not been
used for such a period, before using the washing
machine, turn on all hot water faucets and let the water
flow from each for several minutes. This will release
any accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open flame during
Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is used
near children.
Before the washer is removed from service or discarded,
remove the door or lid.
mDo not reach into the washer if the drum, tub or agitator is
moving.
mDo not install or store the washer where it will be exposed to
the weather.
mDo not tamper with controls.
mDo not repair or replace any part of the washer or attempt any
servicing unless specifically recommended in this manual or in
published user-repair instructions that you understand and
have the skills to carry out.
mSee "Electrical Requirements" for grounding instructions.
this time. SAVE THESE INSTRUCTIONS

INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation.
The parts supplied are in the washer basket.
Tools needed for connecting the drain hose and water
inlet hoses:
• Pliers that open to 1%e" • Flashlight (optional)
(3.95 cm)
NOTE: Replace inlet hoses after 5 years of use to reduce the risk
of hose failure. Record hose installation or replacement dates for
future reference.
Parts supplied:
A B C D
A. Drain hose form
B. Water inlet hoses (2)
C. Flat water inlet hose washers (4)
D. Beaded tie strap
Tools needed for securing the drain hose and leveling
the washer:
• Adjustable or open end • Wood block
wrench %e" (14 mm) • Ruler or measuring tape
• Level
Alternate Parts
Your installation may require additional parts. If you are interested
in purchasing one of the items listed here, call the toll-free
number on the cover or in the "Assistance or Service" section.
If You Have: You Will Need to Buy:
Laundry tub or
standpipe taller
than 96" (2.4 m)
Sump pump system (if not already
available)
1" (2.5 cm)
diameter standpipe 2" (5 cm) diameter to 1" (2.5 cm) diameter standpipe adapter,
Part Number 3363920 and connector kit
Part Number 285835
Overhead sewer Standard 20 gal. (76 L) 39" (99 cm) tall
drain tub or utility sink, sump pump and
connectors (available from local
plumbing suppliers)
Floor drain Siphon break, Part Number 285834;
additional drain hose,
Part Number 8318155 and connector kit,
Part Number 285835
Water faucets 2 longer water fill hoses:
beyond reach of fill 6 ft (1.8 m) Part Number 76314,
hoses 10 ft (3.0 m) Part Number 350008
Lint clogged drain Drain protector, Part Number 367031

Selectingtheproperlocationforyourwasherimproves
performanceandminimizesnoiseandpossiblewasher"walk."
Yourwashercanbeinstalledinabasement,laundryroom,
closet,orrecessedarea.See"DrainSystem."
IMPORTANT:Donotinstallorstorethewasherwhereitwillbe
exposedtotheweather.
Properinstallationisyourresponsibility.
You will need:
• A water heater set to deliver 120°F (49°C) water to the
washer.
• A grounded electrical outlet located within 4 ft (1.2 m) of
where the power cord is attached to the back of the washer.
See "Electrical Requirements."
• Hot and cold water faucets located within 3 ft (90 cm) of the
hot and cold water fill valves, and water pressure of
20-100 psi (138-690 kPa) for best performance.
• A level floor with a maximum slope of 1" (2.5 cm) under entire
washer. Installing the washer on carpeting is not
recommended.
• A sturdy floor to support the washer weight (washer, water
and load) of 315 Ibs (143 kgs).
Do not store or operate your washer in temperatures at or below
32°F (0°C). Some water can remain in the washer and can cause
damage in low temperatures. See "Washer Care" for information
on winterizing.
Installation spacing for recessed area and closet
installations
The following spacing dimensions are recommended for this
washer. This washer has been tested for installation with spacing
of 0" (0 cm) clearance on the sides. Recommended spacing
should be considered for the following reasons:
• Additional spacing should be considered for ease of
installation and servicing.
Additional spacing should be considered on all sides of the
washer to reduce noise transfer.
• For closet installation with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
• Companion appliance spacing should also be considered.
3. _
(7.6crn)
J_ 3"*
(7.6cm)
7
C
A. Front view
B. Side view
C. Closet door with vents
*Required spacing
The washer can be installed using the standpipe drain system
(floor or wall), the laundry tub drain system, or the floor drain
system. Select the drain hose installation method you need. See
"Tools and Parts."
Standpipe drain system--wall or floor (views A &B)
The standpipe drain requires a minimum diameter standpipe of
2" (5 cm). The minimum carry-away capacity can be no less than
17 gal. (64 L) per minute. A 2" (5 cm) diameter to 1" (2.5 cm)
diameter standpipe adapter kit is available. See "Tools and
Parts."
The top of the standpipe must be at least 39" (99 cm) high and no
higher than 96" (244 cm) from the bottom of the washer.
39"
(99 ore')
B
Laundry tub drain system (view C)
The laundry tub needs a minimum 20 gal. (76 L) capacity. The top
of the laundry tub must be at least 39" (99 cm) above the floor
and no higher than 96" (244 cm) from the bottom of the washer.
Floor drain system (view D)
The floor drain system requires a siphon break that may be
purchased separately. See "Tools and Parts."
The siphon break must be a minimum of 28" (71 cm) from the
bottom of the washer. Additional hoses might be needed.
C D
