Whirlpool Duet WFW9200SQ02 User manual

461970236271
,/8183090
\
FRONT.LOADING
AUTOMATICWASHER
For questions about features, operation/performance,
parts, accessories or service call: 1-800-253-1301
In Canada, call: 1-800-807-6777
or visit our website at
www.whirlpool.com or www.whirlpool.ca
].AYADORA
AUTOMATICADECARGA
FRONTAL
_}e_50 yC X}_;£(0
Si tiene preguntas respecto alas caracteristicas, funcionamiento,
rendimiento, piezas, accesorios o servicio t6cnico, Ilame al:
1-800-253-1301
En Canadh, lame al: 1-800-807-6777
o visite nuestro sitio web en
www.whirlpool.com owww.whirlpool.ca
LAVEUSE
AUTOMATIQUEA
CHARGEMENTFRONTAL
I,Xl, 1i(]0 (,I _, {S ISISIO:I: (:'_8 (I (_)}A,, @{I@I}
Au Canada, pour assistance, installation ou service, composez le :
1-800-807-6777
ou visitez notre site internet h
www.whirlpool.ca

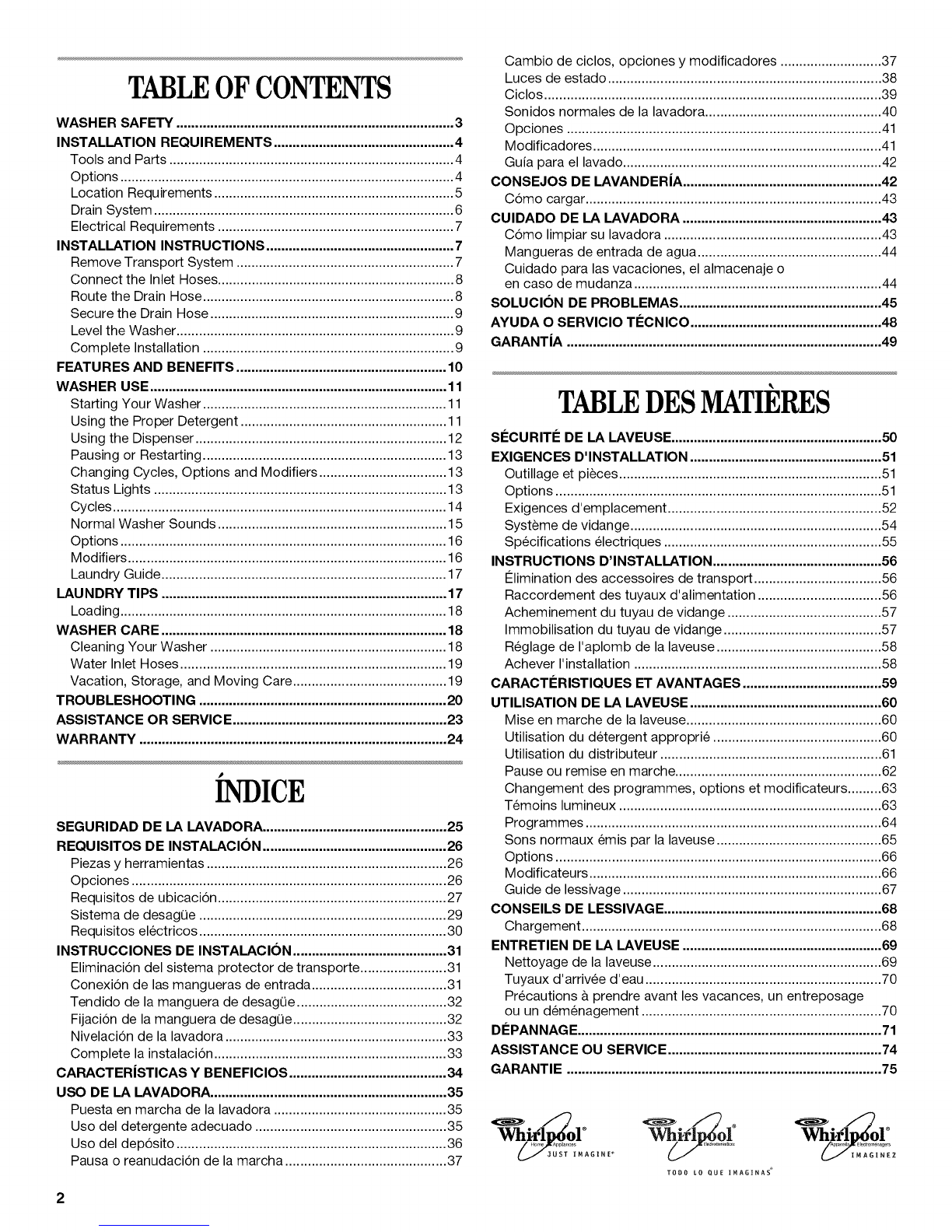

Table of Contents/Jndice/Table des matieres ....... 2
Designed to use only HE
High Efficiency Detergent
DiseRada para utilizar
solamente detergente de
alto rendimiento
Con cue pour I'utilisation
d'un d6tergent haute
efficacit6 seulement

TABLEOFCONTENTS
WASHER SAFETY .......................................................................... 3
INSTALLATION REQUIREMENTS ................................................ 4
Tools and Parts ............................................................................ 4
Options ......................................................................................... 4
Location Requirements ................................................................ 5
Drain System ................................................................................ 6
Electrical Requirements ............................................................... 7
INSTALLATION INSTRUCTIONS .................................................. 7
Remove Transport System .......................................................... 7
Connect the Inlet Hoses............................................................... 8
Route the Drain Hose................................................................... 8
Secure the Drain Hose ................................................................. 9
Level the Washer.......................................................................... 9
Complete Installation ................................................................... 9
FEATURES AND BENEFITS ........................................................ 10
WASHER USE ............................................................................... 11
Starting Your Washer ................................................................. 11
Using the Proper Detergent ....................................................... 11
Using the Dispenser ................................................................... 12
Pausing or Restarting ................................................................. 13
Changing Cycles, Options and Modifiers .................................. 13
Status Lights .............................................................................. 13
Cycles ......................................................................................... 14
Normal Washer Sounds ............................................................. 15
Options ....................................................................................... 16
Modifiers ..................................................................................... 16
Laundry Guide ............................................................................ 17
LAUNDRY TIPS ............................................................................ 17
Loading....................................................................................... 18
WASHER CARE ............................................................................ 18
Cleaning Your Washer ............................................................... 18
Water Inlet Hoses ....................................................................... 19
Vacation, Storage, and Moving Care ......................................... 19
TROUBLESHOOTING .................................................................. 20
ASSISTANCE OR SERVICE ......................................................... 23
WAR RANTY .................................................................................. 24
P
INDICE
SEGURIDAD DE LA LAVADORA ................................................. 25
REQUlSITOS DE INSTALACION ................................................. 26
Piezas y herramientas ................................................................ 26
Opciones .................................................................................... 26
Requisitos de ubicaci6n ............................................................. 27
Sistema de desagQe .................................................................. 29
Requisitos electricos .................................................................. 30
INSTRUCCIONES DE INSTALACION ......................................... 31
Eliminaci6n del sistema protector de transporte....................... 31
Conexi6n de las mangueras de entrada .................................... 31
Tendido de la manguera de desagQe ........................................ 32
Fijaci6n de la manguera de desagQe ......................................... 32
Nivelaci6n de la lavadora ........................................................... 33
Complete la instalaci6n .............................................................. 33
CARACTERJSTICAS Y BENEFICIOS .......................................... 34
USO DE LA LAVADORA ............................................................... 35
Puesta en marcha de la lavadora .............................................. 35
Uso del detergente adecuado ................................................... 35
Uso del dep6sito ........................................................................ 36
Pausa o reanudaci6n de la marcha ........................................... 37
2
Cambio de ciclos, opciones y modificadores ........................... 37
Luces de estado ......................................................................... 38
Ciclos .......................................................................................... 39
Sonidos normales de la lavadora ............................................... 40
Opciones .................................................................................... 41
Modificadores ............................................................................. 41
Guia para el lavado ..................................................................... 42
CONSEJOS DE LAVANDERJA ..................................................... 42
C6mo cargar ............................................................................... 43
CUlDADO DE LA LAVADORA ..................................................... 43
C6mo limpiar su lavadora .......................................................... 43
Mangueras de entrada de agua ................................................. 44
Cuidado para las vacaciones, el almacenaje o
en caso de mudanza .................................................................. 44
SOLUCION DE PROBLEMAS ...................................................... 45
AYUDA O SERVICIO TleCNICO ................................................... 48
GARANTJA .................................................................................... 49
TABLEDESMATIERES
SI_CURITI_ DE LA LAVEUSE ........................................................ 50
EXIGENCES D'INSTALLATION ................................................... 51
Outillage et pieces ...................................................................... 51
Options ....................................................................................... 51
Exigences d'emplacement ......................................................... 52
Systeme de vidange ................................................................... 54
Specifications electriques .......................................................... 55
INSTRUCTIONS D'INSTALLATION ............................................. 56
€:limination des accessoires de transport .................................. 56
Raccordement des tuyaux d'alimentation ................................. 56
Acheminement du tuyau de vidange ......................................... 57
Immobilisation du tuyau de vidange .......................................... 57
Reglage de I'aplomb de la laveuse ............................................ 58
Achever I'installation .................................................................. 58
CARACTI_RISTIQUES ET AVANTAGES ..................................... 59
UTILISATION DE LA LAVEUSE ................................................... 60
Mise en marche de la laveuse.................................................... 60
Utilisation du detergent approprie ............................................. 60
Utilisation du distributeur ........................................................... 61
Pause ou remise en marche ....................................................... 62
Changement des programmes, options et modificateurs .........63
T6moins lumineux ...................................................................... 63
Programmes ............................................................................... 64
Sons normaux emis par la laveuse ............................................ 65
Options ....................................................................................... 66
Modificateurs .............................................................................. 66
Guide de lessivage ..................................................................... 67
CONSEILS DE LESSlVAGE .......................................................... 68
Chargement ................................................................................ 68
ENTRETIEN DE LA LAVEUSE ..................................................... 69
Nettoyage de la laveuse............................................................. 69
Tuyaux d'arrivee d'eau ............................................................... 70
Precautions hprendre avant les vacances, un entreposage
ou un dem6nagement ................................................................ 70
DI_PANNAGE ................................................................................. 71
ASSISTANCE OU SERVICE ......................................................... 74
GARANTIE .................................................................................... 75
1°

WASHERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions,
including the following:
[] Read all instructions before using the washer.
[] Do not wash articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline,
dry-cleaning solvents, other flammable, or explosive
substances as they give off vapors that could ignite or
explode.
[] Do not add gasoline, dry-cleaning solvents, or other
flammable, or explosive substances to the wash water.
These substances give off vapors that could ignite or
explode.
[] Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been used
for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been
used for such a period, before using the washing
machine, turn on all hot water faucets and let the water
flow from each for several minutes. This will release
any accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open flame during
Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is used
near children.
Before the washer is removed from service or discarded,
remove the door or lid.
mDo not reach into the washer if the drum, tub or agitator is
moving.
mDo not install or store the washer where it will be exposed to
the weather.
mDo not tamper with controls.
mDo not repair or replace any part of the washer or attempt any
servicing unless specifically recommended in this manual or in
published user-repair instructions that you understand and
have the skills to carry out.
mSee "Electrical Requirements" for grounding instructions.
this time. SAVE THESE INSTRUCTIONS

INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation.
The parts supplied are in the washer drum.
Parts needed (not provided with washer):
• Inlet hoses • Flat washers
To order:
• Call the dealer from whom you purchased your washer.
• Reference the toll-free number on the front page of the Use
and Care Guide.
• Visit the website on the front page of the Use and Care Guide.
NOTE: Replace inlet hoses after 5 years of use to reduce the risk
of hose failure. Record hose installation or replacement dates for
future reference.
Parts supplied:
A
Pedestal
You have the option of purchasing pedestals of different heights
separately for this washer. You may select a 10" (25.4 cm) or a
15.5" (39.4 cm) pedestal. These pedestals will add to the total
height of the washer for a total height of approximately
48" (121.9 cm) or 53.5" (135.9 cm).
A B I
BI ) cq::>
A. Drain hose form
B. Transport bolt hole plug (4)
C. Beaded strap
Tools needed for installation:
• Open end wrenches • Ruler or measuring tape
17 mm and 13 mm • Pliers (that open to
• Level 1%e" [39.5 mm])
• Wood block • Flashlight (optional)
Alternate Parts
Your installation may require additional parts. Ifyou are interested
in purchasing one of the items listed here, call the toll-free
number on the cover or in the "Assistance or Service" section.
If You Have You Will Need to Buy
Laundry tub or
standpipe taller
than 96" (2.4 m)
Sump pump system (if not already
available)
Overhead sewer Standard 20 gal. (76 L), 30" (76.2 cm) tall
drain tub or utility sink and sump pump
(available from local plumbing suppliers)
Floor drain Siphon break, Part Number 285834;
additional drain hose
Part Number 8318155; and connector kit,
Part Number 285835
Drain hose too 4 ft (1.2 m) drain hose extension kit,
short Part Number 285863
Water faucets 2 longer water fill hoses:
beyond reach of fill 6 ft (1.8 m) Part Number 76314,
hoses 10 ft (3.0 m) Part Number 350008
4
A. 10" (25.4 cm) pedestal
B. 15.5" (39.4 cm) pedestal
To order, call the dealer from whom you purchased your washer
or refer to the "Assistance or Service" section of this manual.
Pedestal Color Part Number
Height
10" (25.4 cm) White WHP1000SQ
15.5' (39.4 cm) White WHP1500SQ
Stack Kit
Are you planning to stack your washer and dryer? To do so you
will need to purchase a Stack Kit.
To order, call the dealer from whom you purchased your dryer or
refer to the "Assistance or Service" section of this manual. Ask
for Part Number 8541503.

Selectingtheproperlocationforyourwasherimproves
performanceandminimizesnoiseandpossiblewasher"walk."
Yourwashercanbeinstalledunderacustomcounter,orina
basement,laundryroom,closet,orrecessedarea.See"Drain
System."
Companionappliancelocationrequirementsshouldalsobe
considered.Properinstallationisyourresponsibility.
Youwillneed
Awaterheatersettodeliver120°F(49°C)watertothe
washer.
Agroundedelectricaloutletlocatedwithin6ft(1.8m)of
wherethepowercordisattachedtothebackofthewasher.
See"ElectricalRequirements."
Hotandcoldwaterfaucetslocatedwithin4ft(1.2m)ofthe
hotandcoldwaterfillvalves,andwaterpressureof
20-100psi(137.9-689.6kPa).
Alevelfloorwithamaximumslopeof1"(2.5cm)under
entirewasher.Installingthewasheronsoftfloorsurfaces,
suchascarpetsorsurfaceswithfoambacking,isnot
recommended.
• Asturdyandsolidfloortosupportthewasherwithatotal
weight(waterandload)of400Ibs(180kg).
Donotoperateyourwasherintemperaturesbelow32°F(O°C).
Somewatercanremaininthewasherandcancausedamagein
lowtemperatures.
Installation clearances
• The location must be large enough to allow the washer door
to be fully opened.
• Additional spacing should be considered for ease of
installation and servicing.
• Additional clearances might be required for wall, door, and
floor moldings.
• Additional spacing of 1" (2.5 cm) on all sides of the washer is
recommended to reduce noise transfer.
Companion appliance spacing should also be considered.
Washer Dimensions
27"
50W' (08.6cm)
(128.3cm)
38"
90.5cm)
Recommended installation spacing for custom
undercounter installation
The dimensions shown are for the recommended spacing.
Custom undercounter installation -Washer only
t
39" rain.
(99.0 cm)
1" _ 27"---._ 1"
(2.5 cm) (68.6 cm) (2.5 cm)
Recommended installation spacing for recessed or
closet installation, with or without a pedestal
The dimensions shown are for the recommended spacing.
Recessed area or closet installation
T
34,,_ 48 in.2. -
(86.4cnl) (310crn2)
24 JR.2. -
(155crn2)
I1"_ 31W'-_14"I*-
(2.5crn)(80cm) (10.2crn)
_f 3"
(7.6cm)
3,,
(7.6cm)
A B
A. Side view -closet or confined area
B. Closet door with vents
*Min. top and bottom air openings for closet door.
Recessed or closet installation -Washer on pedestal
(2.5cnl) 27" ---_ _-- 1" (08.6crn) (2.5cnl)
A
I1"_ 31V2"_1 4"
(2.5cm) (80 crn)(10.2crn)
B
A. Recessed area
B. Side view -closet or confined area
31W'
(80.0cm)

Recommended installation spacing for recessed or
closet installation, with stacked washer and dryer
The dimensions shown are for the recommended spacing.
46 in.2 *
(310cm2)
±
o
V
3" (7.6cm)
JL
i3"(7.6cm)
24 in.2. "_
(155crn2) _ 1" (2.5crn)
76"
(193crn)
•_- 1..... --_
(2.5era)
51/2''** _ _27"_ _ 1.....
(14cm) (66.6cm) (2.5cm)
*Min. top and bottom air openings for closet door.
**External exhaust elbow requires additional space.
***Wall, door and floor molding may require additional spacing.
Recommended installation spacing for cabinet
installation
The dimensions shown are for the recommended spacing.
For cabinet installation, with a door, the minimum ventilation
n I 19,,
(22.9cm)
(10.2cm) (80.0cm) (2.5cm) (2.5cm) (68.6cm) (2.5cm)
openings in the top are required.
" . ) 7" (17.8cm)
4" 31W' 1"
The washer can be installed using the standpipe drain system
(floor or wall), the laundry tub drain system, or the floor drain
system. Select the drain hose installation method you need. See
"Tools and Parts."
Standpipe drain system - wall or floor (views A &B)
The standpipe drain requires a minimum diameter standpipe of
2" (5 cm). The minimum carry-away capacity can be no less than
17 gal. (64 L) per minute.
The top of the standpipe must be at least 30" (76.2 cm) high and
no higher than 96" (2.4 m) from the bottom of the washer.
T
30"rain.
(76.2ira) L
B
Laundry tub drain system (view C)
The laundry tub needs a minimum 20 gal. (76 L) capacity. The top
of the laundry tub must be at least 30" (76.2 cm) above the floor.
Floor drain system (view D)
The floor drain system requires a siphon break that may be
purchased separately. See "Tools and Parts."
The siphon break must be a minimum of 28" (71 cm) from the
bottom of the washer. Additional hoses might be needed.
(71ern) %
C D
6

• Do not ground to a gas pipe.
• Check with a qualified electrician if you are not sure the
washer is properly grounded.
• Do not have a fuse in the neutral or ground circuit.
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
• A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical
supply is required. A time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit
serving only this appliance be provided.
• This washer is equipped with a power supply cord having a
3 prong ground plug.
• To minimize possible shock hazard, the cord must be
plugged into a mating, 3 prong, ground-type outlet, grounded
in accordance with local codes and ordinances. If a mating
outlet is not available, it is the personal responsibility and
obligation of the customer to have the properly grounded
outlet installed by a qualified electrician.
GROUNDING iNSTRUCTiONS
For agrounded, cord=connected washer:
This washer must be grounded. In the event of a malfunction
or breakdown, grounding will reduce the risk of electrical
shock by providing a path of least resistance for electric
current. This washer is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in
doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance - if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
For a permanently connected washer:
This washer must be connected to a grounded metal,
permanent wiring system, or an equipment grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the appliance.
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that the
ground path is adequate.
INSTALLATIONINSTRUCTIONS
Excessive Weight Hazard
Use two or more people to move and install washer.
Failure to do so can result in back or other injury.
IMPORTANT: Position the washer so that the rear of the washer
is within approximately 3 ft (90 cm) of its final location.
There are 4 bolts in the rear panel of the washer that support the
suspension system during transportation. These bolts also retain
the power cord inside the washer until the bolts are removed.
1. Using a 13 mm wrench, loosen each of the bolts.

2= Once the bolt is loose, move it to the center of the hole and
completely pull out the bolt, including the plastic spacer
covering the bolt.
3. Once all 4 bolts are removed discard bolt and spacers. Then
pull the power cord through the opening of the rear panel and
close the hole with the attached cap.
4. Close the bolt holes with the 4 transport bolt hole plugs.
NOTE: If the washer is to be transported at a later date, call your
local service center. To avoid suspension and structural damage
to your washer, it must be properly set up for relocation by a
certified technician.
Make sure the washer drum is empty. The washer must be
connected to the water faucets using new inlet hoses (not
provided). Do not use old hoses.
Insert new flat washers into each end of the inlet hoses. Firmly
seat the washers in the couplings.
A B
A. Coupfing
B. Washer
1. Attach a hose to the hot (left) inlet valve. Attaching to the hot
inlet valve first makes it easier to tighten connection with
pliers. Screw on coupling by hand until it is seated on the
washer.
2. Attach a hose to the cold (right) water inlet valve. Screw on
coupling by hand until it is seated on the washer.
3=
H. Hot water inlet
C. Cold water inlet
Using pliers, check the tightness of the hose couplings
already attached to the washer.
NOTE: Do not overtighten. Damage to the coupling can
result.
4. Attach hot water hose to the hot water faucet. Screw on
coupling by hand until it is seated on the washer.
5. Attach cold water hose to the cold water faucet. Screw on
coupling by hand until it is seated on the washer.
6. Using pliers, tighten the couplings with an additional
two-thirds turn.
7.
NOTE: Do not overtighten. Damage to the coupling can
result.
Turn on the water faucets and check for leaks.
NOTE: Replace inlet hoses after 5 years of use to reduce the
risk of hose failure. Record hose installation or replacement
dates on the hoses for future reference.
Periodically inspect and replace hoses if bulges, kinks, cuts,
wear, or leaks are found.
Proper routing of the drain hose protects your floors from
damage due to water leakage. Read and follow these
instructions.
Remove drain hose from washer cabinet
Gently pull the corrugated drain hose from the shipping clips.
Laundry tub drain or standpipe drain
Connect the drain hose form to the corrugated drain hose.
A B
A. Snap either end of the drain hose form to the drain hose at
the point where the corrugation begins.
B. Bend drain hose over drain hose form and snap into place.
8

To keep drain water from going back into the washer:
• Do not straighten the drain hose, and do not force excess
drain hose into standpipe. Hose should be secure, but loose
enough to provide a gap for air.
• Do not lay excess hose on the bottom of the laundry tub.
Floor drain
You may need additional parts. See Floor drain under "Tools and
Parts."
1.
2. Drape the power cord over the washer top.
Secure the drain hose to the laundry tub leg or standpipe with
the beaded strap provided. (See illustrations A and B.)
A B C
If the washer faucets and the drain standpipe are recessed
(see illustration C), put the hooked end of the drain hose in
the standpipe. Tightly wrap the beaded strap around the
water inlet hoses and the drain hose.
Do not force excess drain hose into the standpipe.
Properly leveling your washer avoids excessive noise and
vibration.
1. Check the levelness of the washer by placing a level on the
top edge of the washer, first side to side, then front to back.
If the washer is against a wall, move the washer out slightly
before tipping back. If the washer is not level, first prop the
front with a wood block and adjust the feet as necessary;
then prop the back and adjust feet as necessary. Repeat this
step until washer is level.
2. Make sure all four feet are stable and resting on the floor.
Then check that the appliance is perfectly level (use a level).
3. After the washer is level, use a 17 mm open-end wrench to
turn the nuts on the feet tightly against the washer cabinet.
IMPORTANT: All four feet must be tightened. If the nuts are
not tight against the washer cabinet, the washer may vibrate.
4. The washer should not move front to back, side to side, or
diagonally when pushed on its top edges.
5. Slide the washer to its final location.
6. Confirm the levelness of the washer.
1. Check the electrical requirements. Be sure that you have the
correct electrical supply and the recommended grounding
method. See "Electrical Requirements."
2. Check that all parts are now installed. If there is an extra part,
go back through the steps to see which step was skipped.
3. Check that you have all of your tools.
4. Dispose of/recycle all packaging materials.
5. Check that the water faucets are on.
6. Check for leaks around faucets and inlet hoses.
7.
8.
9.
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Plug into a grounded 3 prong outlet.
Read "Washer Use."
To test and to clean your washer, measure V2the detergent
manufacturer's recommended amount of HE High Efficiency
detergent for a medium-size load. Pour the detergent into the
detergent dispenser. Select NORMAL/CASUAL, and then
select START.Allow the washer to complete one whole cycle.
Use only HE High Efficiency detergenL

FEATURESANDBENEFITS
Electronic Controls
Flexible electronic controls are easy to use whether you are a
beginner or an expert.
Smart Dispensers
The Smart Dispensers make your washer truly automatic. This
washer provides a three-compartment dispenser which includes
separate compartments for main wash detergent, fabric softener,
and bleach. The dispenser has large pour zones. The dispenser is
self-cleaning, and can be easily removed. Laundry products are
diluted with fresh water and added to the load at the proper time
in the wash cycle.
Auto Water Level
This washer automatically adjusts water level for optimal cleaning
and rinsing performance. Two sensors determine load size, load
composition, and suds level, then the sensors adjust the water
level to the proper setting. This eliminates guesswork. The water
level is just right for every wash load size.
Larger Load Size
Since there is no agitator, you can wash larger, bulkier items such
as a king-sized bedspread. You are also able to wash more
clothes at one time, which means fewer loads.
Stainless Steel Dram
The stainless steel drum eliminates corrosion and enables higher
spin speeds for more water extraction, helping to reduce drying
time compared to traditional top-load washers.
High-Efficiency Wash System
Your new front-loading, high-efficiency washer saves time with
fewer, larger loads. It also lowers your water and energy bills by
helping conserve resources.
Spin Speeds
This washer automatically selects the spin speed based on the
cycle selected. This factory setting can be changed, however.
This washer offers up to five different spin speed choices.
Heating Element
This washer has a heating element that automatically heats the
water to the optimal temperature on select cycles. This enables
stepped cleaning, a process in which warm water is brought in
and mixed with detergent first, then the water is heated. Stepped
cleaning starts the wash cycle with warm water to remove stains
(such as blood and grass).
6th Sense TM Technology
Intuitive intelligence "knows every load" determining load sizes,
water levels and how much cleaning time is needed.
sense _
_o_o_o_
Add A Garment
When this option is available at the beginning of the cycle, the
Add a garment Status Light will glow for the first 8 minutes. This
washer allows an 8-minute period in which other garments may
be added to a load.
Direct Injection Wash System
This washer channels 100% of the water through the dispensers
to assure thorough rinse-out and mixture of all the laundry
products before they touch any garments. The water is then
sprayed from the top front onto the center of the load, providing
even distribution and optimum cleaning performance. It is normal
for small amounts of water to remain in the dispensers when the
wash cycle is complete.
Efficient Detergent System with Aati-Escape Valve
This washer has a specially designed valve that closes during the
wash portion of the cycle so that 100% of the water and
detergent mixture is used on the load. The Efficient Detergent
System ensures that no water or detergent is wasted.
6-Point Suspension System
Shock absorbers, 2 springs and electronic controls are specially
designed to help redistribute the load automatically and minimize
movement of the wash drum during the spin cycle. The 6-Point
Suspension System reduces the amount of force transmitted to
the floor by the washer, resulting in reduced noise and vibration.
10

WASHERUSE
Contlois kock/U fBock
old for 3Seconds
NORMA!.
DWCATE
HAND HEAVYDUTY
WHITEST
HffES
SANITARY
S_[ARf
:UNSE/SPUN ::
DoorLocked
iOAK
EstimatedTimeRemaining
Delay Wash
@
@r High
l Medium
iLow
iNoSpin
®®
WaterTemp Spin
"All Cold Speed
Rinser
iii_ Extra Rinse
Heavy I_¢iLoud Loud
Normal Soft [e; Soft
Light Off _:_Off
®
Soil (yde Button
Level Signal Sound
NOTE: The panel shown above may be different from that of your model.
Fire Hazard
Never place items in the washer that are dampened
with gasoline or other flammable fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any type of oil on
it (including cooking oils).
Doing so can result in death, explosion, or fire.
WARNING: To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this appliance.
The following is a guide to using your washer. Please refer to
specific sections of this manual for more detailed information.
Do not store laundry products on the top surface of this washer.
Vibration is normal during operation.
Use only High Efficiency detergents. The package for this type of
detergent will be marked "HE" or "High Efficiency." This wash
system, along with less water, will create too much sudsing with a
regular non-HE detergent. Using regular detergent will likely result
in washer errors, longer cycle times and reduced rinsing
performance. It may also result in component failures and
noticeable mold or mildew. HE detergents are made to produce
the right amount of suds for the best performance. Follow the
manufacturer's instructions to determine the amount of detergent
to use.
First Wash Cycle Without Laundry
Before washing clothes for the first time, if not completed during
the final installation step, choose the Normal/Casual cycle and
run it without clothes. Use only HE High Efficiency detergent. Use
t/2the manufacturer's recommended amount for a medium-sized
load. This initial cycle serves to ensure the interior is clean before
washing clothes.
For All Wash Cycles
1. Open the washer door by pulling on the handle. Sort laundry
according to color and type of fabric. Place a load of sorted
clothes in the washer. Do not overload washer. Overloading
can cause poor cleaning.
• The washer can be fully loaded, but not tightly packed.
Washer door should close easily.
• Mix large and small items and avoid washing single items.
Load evenly.
• Wash small items, such as infant socks, in mesh garment
bags. It is recommended that more than one garment bag
be used, and that each garment bag be filled with equal
amounts of material.
• When unloading garments, check under the gray colored
seal at the front of the tub for small items.
2, Close the washer door by pushing it firmly until the lock
clicks. The washer door will remain locked during the wash
cycle.
NOTES:
After any wash cycle is completed, the door must be
opened and then closed before a new cycle can begin.
The door can be opened only if PAUSE/CANCEL is
selected while the Add A Garment light is glowing or if the
cycle has been canceled.
See "To cancel a cycle" in "Changing, Cycles, Options
and Modifiers" section.
3. Open the dispenser drawer and add laundry products to the
detergent, bleach, or fabric softener compartments. Close
drawer slowly to avoid spills. See "Using the Dispenser."
Use only HE High Efficiency detergent.
11

4. Turn on the washer by selecting POWER. Select one of the
cycles by turning the cycle selector. The indicator light for the
selected cycle will glow green. When selecting a wash cycle,
the preset options and modifiers (such as Water Temp, Spin
Speed, and Soil Level) for the selected cycle will glow green.
Selectable options will glow amber. If an option or modifier is
unavailable with a selected cycle, the light will not illuminate.
The display shows the estimated time remaining. The preset
settings provide the recommended fabric care for the
selected cycle. See "Cycles."
5. Select the desired Options. Not all options are available with
all cycles. See "Options."
6. Select the desired modifiers such as WaterTemp, Spin Speed
and Soil Level. Not all modifiers are available with all cycles
and options. See "Modifiers."
7. If desired, select the CYCLE SIGNAL. The signal is helpful
when you are washing items that should be removed from the
washer as soon as it stops. Select Loud, Soft or Off.
8. If desired, select the BU-i-i-ON SOUND. This feature makes a
sound each time a button is pressed. Select Loud, Soft or Off.
9. Select and hold START for approximately 1 second.
• If you do not select START within 5 minutes of choosing a
cycle, the washer automatically shuts off.
• When the wash cycle is complete, the DONE status light
glows, the door unlocks, and the wash load can be
removed from the washer. The washer powers down
automatically 60 minutes after the cycle is complete and
the DONE light goes off. To power down the washer
manually after the wash cycle is complete, select PAUSE/
CANCEL once.
10. To use the same cycle again, press POWER first, then select
START.
11. To begin the wash cycle later
Select DELAY WASH until the desired delay time (in hours)
shows in the Estimated Time Remaining display. Select
START. The countdown to the wash cycle will show in the
display window.
IMPORTANT: When delaying a cycle, use only powdered
detergents in the main wash compartment since liquid
detergents may seep out of the compartment during Delay
Wash, before the wash cycle begins.
Choosing the Right Detergent
Use only High Efficiency detergents. The package for this type of
detergent will be marked "HE" or "High Efficiency." This wash
system, along with less water, will create too much sudsing with a
regular non-HE detergent. Using regular detergent will likely result
in washer errors, longer cycle times and reduced rinsing
performance. It may also result in component failures and
noticeable mold or mildew. HE detergents are made to produce
the right amount of suds for the best performance. Follow the
manufacturer's instructions to determine the amount of detergent
to use.
Use only HE High Efficiency detergent.
Tofill dispenser compartments
1. Pull out the dispenser drawer.
2. Add the desired laundry product to the proper compartment.
3. Push in the dispenser drawer slowly and completely (to avoid
a spill).
Your new washer has a dispenser drawer with three separate
compartments for your laundry products--one is for detergent,
one is for liquid chlorine bleach, and one is for liquid fabric
softener. Laundry products are diluted and dispensed
automatically at the proper time during the wash cycle, making it
unnecessary for you to return to the washer during the cycle to
add them.
It is normal for small amounts of water to remain in the
dispensers when the wash cycle is complete.
Do not put laundry products directly into the wash tub. Always
use the proper dispensers when adding laundry products.
Dispenser
A.Detergent type selector
B.Main Washdetergent compartment
C.Dispenser releaselever
D.Chlorine bleach compartment
E.Fabric softener compartment
Main Wash detergent compartment
(Letter B in Dispenser Illustration)
Add liquid or powdered HE detergent to this compartment for
your main wash cycle. The detergent type selector (A) must
always be in the correct position for the detergent type used.
Slide the detergent type selector to the correct position.
IMPORTANT: Ifyou are using the Delay Wash option, powdered
detergent must be used in the Main Wash compartment, since
liquid detergents may seep out of the Main Wash compartment
before the main wash begins.
• Use the detergent manufacturer's recommended amount for
load size.
12

• Liquid or powdered color-safe bleach may be added to the
Main Wash compartment along with the same type of
detergent, liquid or powdered.
•Liquid detergent:
A_ ......
Selector in position for liquid detergent
A. Detergent type selector
•Powdered detergent:
Ol_ DER
U|D L>
Selector in position for powdered detergent
A. Detergent type selector
Chlorine bleach compartment
(Letter D in Dispenser Illustration)
Add no more than 2/3cup (160 mL) liquid chlorine bleach to this
compartment. The bleach will be automatically diluted and
dispensed at the optimum time during the first rinse after the
wash cycle. This compartment cannot dilute powdered bleach.
• Always measure liquid chlorine bleach. Use a measuring cup
with a pour spout; do not guess.
• Do not fill beyond the "MAX" level. Overfilling could cause
garment damage.
Fabric softener compartment
(Letter E in Dispenser Illustration)
Pour measured liquid fabric softener into the fabric softener
dispenser, if desired.
IMPORTANT: Dilute all fabric softener with water for a total of
1/4cup (60 mL).
• Do not overfill. The dispenser holds 1/4cup (60 mL).
• Do not spill or drip any fabric softener onto the clothes.
NOTES:
• Use only liquid fabric softener in this dispenser.
• Do not use fabric softener dispensing balls in this washer.
Dispensing balls will not operate correctly with this washer.
1=
2. To pause the washer at any time, press PAUSE/CANCEL.
To continue the cycle, press START (for approximately
1 second).
Not all Options and Modifiers are available with all cycles.
Available modifiers will glow amber. If an option or modifier is
unavailable with a selected cycle, the light will not illuminate.
Cycles, Options and Modifiers can be changed anytime before
START is selected.
Options and Modifiers can be changed anytime after START is
selected and before the start of the selected Option or Modifier.
To cancel a cycle and select a new cycle
1. Press PAUSE/CANCEL twice.
2. Press POWER.
3. Select desired cycle.
4. Select the desired Options or modifiers such as Water Temp,
Spin Speed and Soil Level.
5. Press START (for approximately 1 second) to restart the
washer at the beginning of the new cycle.
To cancel acycle
1. Press PAUSE/CANCEL twice.
2. The washer powers down, the door unlocks, and clothes can
be removed.
NOTE: If the water level or the temperature is too high, the
washer will drain automatically before the door unlocks.
To change Options or Modifiers after the cycle has
started
1. Press PAUSE/CANCEL once.
2. Select the desired Options or modifiers such as Water Temp,
Spin Speed and Soil Level. Available selections will glow
amber.
3. Press START (for approximately 1 second) to continue the
cycle.
To drain the washer manually
1. Press PAUSE/CANCEL twice.
2. Press POWER.
3. Select DRAIN/SPIN.
4. Press START (for approximately 1 second) to begin the drain.
5. When the spin is complete, the door unlocks. Items can be
removed from the washer.
These lights show which portion of the cycle the washer is
operating. They also indicate when you can add an additional
item to the wash cycle and when the controls are locked.
EstimatedTimeRemaining
13

Add a garment
This washer allows an 8-minute period in which other garments
may be added to the load. You can add items to the washer if the
Add a garment status light is glowing.
To add items when Add a garment light is glowing
1. Select PAUSE/CANCEL once. The washer door unlocks, and
items can be added.
2. To continue the cycle, close the door and select and hold
START (for approximately 1 second).
To add items when the Add a garment light is not glowing
1. Select PAUSE/CANCEL twice. This will cancel the wash cycle
and options. The washer door unlocks, and items can be
added.
2. Close the door, press POWER and select the new cycle and
options. Select and hold START (for approximately 1 second).
Done
The Done status light stays on for 60 minutes after the cycle is
complete, and then the washer shuts off.
Controls Lock/Unlock
The Controls Lock avoids unintended use of the washer. You can
also use the control lock feature to avoid unintended cycle or
option changes during a cycle. When Controls Lock is lit, all
buttons are disabled except for Pause/Cancel and Start. You can
lock the controls while the washer is operating.
To lock the controls
Press and hold CONTROLS LOCK/UNLOCK for 3 seconds.
Cent0IsL0ck/Unl0ck
Holdfor3Seconds
The status light next to the CONTROLS LOCK/UNLOCK button
will glow.
To unlock the controls
Press and hold CONTROLS LOCK/UNLOCK for 3 seconds until
the status light turns off.
NOTE: To lock or unlock the controls when the washer is off,
press and hold CONTROLS LOCK/UNLOCK for 3 seconds.
Door Locked
When the status light glows, the door is locked.
Sensing/Revising Estimated Time
The cycle times vary automatically based on your water pressure,
water temperature, detergent, and clothes load.
The washer will automatically sense the progress in the cycle and
adjust the Estimated Time Remaining display. While sensing, the
estimated time will flash and the Sensing status light will glow.
When the sensing is complete, the flashing stops, the status light
goes off and the Estimated Time Remaining display is updated.
The cycle time will be extended if oversudsing occurs or the load
is unbalanced. The SUD routine removes extra suds and assures
proper rinsing of your garments. See "Troubleshooting." During
the unbalance routine the time displayed may pause until this
activity is complete, then resume with the remainder of the cycle.
Cycles can be selected by turning the Cycle Control knob to the
desired cycle. Each cycle is designed for different types of fabric
and soil levels. The modifier indicator lights, on the right-hand
side of the panel, will change as cycles are selected.
NORMAL
DELHCATE HEAVYDUTY
HAND WHITEST
WASHABLES
WASHCYCLES SANITARY
CLEANWASHER
#*JdJBl_chOdy
DRAIN/SPIN
INSE/SPIN
SOAK
• Each cycle has a preset Soil Level (estimated cycle time),
Water Temperature and Spin Speed, and may have preset
options. The preset settings provide the recommended fabric
care for the selected cycle.
• The preset settings will glow green to show the preselected
options and modifiers, and be changed anytime before START
is pressed. Not all options and modifiers are available with all
cycles. Available selections glow amber. (To change settings
after the cycle has started, press PAUSE/CANCEL once, then
select the desired settings. Press START to continue the
cycle.)
• Powdered detergents may not dissolve well in a slow-speed
cycle. For best results, use liquid detergent in slow-speed
cycles.
Preset cycle settings
Each cycle has a preset Soil Level (cycle time), Water
Temperature, and Spin Speed. The preset settings provide the
recommended fabric care for the selected cycle. See chart.
Cycle Soil Level Water Temp Spin Speed
(cycle time)
Sanitary Normal Super Hot/Cold High
(1:50)
Whitest Normal Hot/Cold High
Whites (1:15)
Heavy Duty Normal Hot/Cold High
(1:05)
Normal/ Normal Warm/Cold High
Casual (0:50)
Delicate Normal Warm/Cold Medium
(0:40)
Hand Normal Cold/Cold Low
Washables (0:30)
Clean N/A High
Washer
Soak Normal Warm/Cold No Spin
(0:30)
Rinse/Spin N/A Cold/Cold High
(0:20)
Drain/Spin N/A N/A High
(0:11)
14

To change the preset cycle settings
Press the selector of each available setting until the desired
setting glows green.
Sanitary
Use this cycle to clean heavily soiled, colorfast fabrics. This
cycle combines a super hot water temperature and fast speed
tumbling to help ensure the removal of heavy soils and stains.
It is recommended that you set your hot water heater to 120°F
(49°C) to ensure proper performance during this cycle. Extra high
speed spin helps shorten drying time.
Whitest Whites
This cycle is especially designed for cleaning loads of soiled
white fabrics with the addition of bleach. Hot washing
temperatures assure optimal bleach activity. An additional rinse
provides optimal rinse performance to avoid chlorine residues on
your laundry. This cycle combines fast-speed tumbling, longer
wash time, and extra high speed spin to shorten drying time.
Heavy Duty
Use this cycle to wash loads of sturdy, colorfast fabrics and
heavily soiled garments. This cycle combines fast-speed
tumbling, longer wash time, and extra high speed spin to shorten
drying times. If the water temperature is lower than needed for
this cycle, the heater will warm the water to the optimum
temperature.
Normal/Casual
Use this cycle to wash loads of no-iron fabrics, such as sport
shirts, blouses, casual business clothes, permanent press
blends, cottons and linens, and synthetic fabrics. This cycle
combines medium-speed tumbling, high-speed spin, and a load
cooling process to reduce wrinkling.
NOTE: For the best energy performance, use the Normal/Casual
Cycle.
Delicate
Use this cycle to clean hand washable and special-care
garments. Similar to the way garments are hand washed in a
sink, the wash action of this cycle combines periods of low speed
tumbling and soaking. CRADLE CLEAN TM motion offers gentle
fabric care for effective cleaning of delicate and hand washable
garments. Low speed spin reduces wrinkling.
• Use mesh garment bags to wash undergarments such as
underwire bras, items with strings, and small items such as
infant socks.
Hand Washables
Use this cycle to clean hand washable and special-care
garments. Similar to the way garments are hand washed in a
sink, the wash action of this cycle combines periods of low speed
tumbling and soaking. CRADLE CLEAN TM motion offers gentle
fabric care for effective cleaning of delicate and hand washable
garments. Low speed spin reduces wrinkling.
Clean Washer
Use the Clean Washer cycle once a month to keep the inside of
your washer fresh and clean. This cycle uses a higher water level
in combination with liquid chlorine bleach to thoroughly clean the
inside of your washing machine. This cycle takes approximately
50 minutes to complete and should not be interrupted. See
"Cleaning Your Washer."
IMPORTANT: Do not place garments or other items in the washer
during the Clean Washer cycle. Use this cycle with an empty
wash drum.
Soak
Use the Soak cycle to help remove small spots of set-in stains on
fabrics. This cycle provides a soak time with warm or cold water
followed by drain. Extra water, a short tumbling phase for equal
distribution of the laundry, and a soaking time without drum
movement improve the removal of set-in stains. Drain without
spin assures gentle treatment, even for delicate articles.
Rinse/Spin
Use this cycle to get a rinse and spin only. This cycle combines
fast-speed tumbling and extra high speed spin. If desired, you
can reduce the spin speed by selecting the speed you want from
the SPIN SPEED modifier.
A Rinse/Spin cycle is useful for
• Loads that need rinsing only.
• Adding fabric softener to a load.
Drain/Spin
Use this cycle to drain your washer or to drain and spin your
wash load. The spin speed is preset to extra high. If desired, you
can reduce the spin speed by selecting the speed you want from
the SPIN SPEED modifier.
NOTE: Loads of synthetics, delicate fabrics, hand washables,
and woolens should be drained with no spin or low spin speed to
avoid fabric stress.
As with any new product, you will hear sounds that you are not
accustomed to. You may hear various sounds when the door is
locked and unlocked, and during the washing, rinsing, and
spinning process. Between changes in wash actions, there will
be momentary pauses. You will hear water spraying and
splashing during the wash and rinse cycles. These new sounds
and pauses are part of normal washer operation.
15

You can customize your wash by adding options to your cycle
selections. You can add or change an option after starting a cycle
anytime before the selected option begins. Not all options are
available with all cycles. Available options will glow amber.
Current selections will glow green. If an option is unavailable with
a selected cycle, the light will not illuminate.
Extra Rinse
DelayWash
@
@
Cycle Button
Si#naU Sound
See the "Laundry Guide" for an overview of possible options
for each Wash Cycle selection.
You can select more than one option for a cycle. Some
options cannot be added to some cycles. If an option is
unavailable with a selected cycle, there will be 3 short tones,
and the light for that option will not glow when selected.
Delay Wash
To begin the wash cycle later, select DELAY WASH until the
desired delay time (in hours) shows in the Estimated Time
Remaining display, and then select START. The countdown to the
wash cycle will show in the display window, and the button
indicator will blink until the cycle begins.
IMPORTANT: When delaying a cycle, use only powdered
detergents in the main wash compartment since liquid detergents
may seep out of the compartment during Delay Wash, before the
wash cycle begins.
Extra Rinse
An extra rinse can be used to aid in the removal of detergent or
bleach residue from garments. This option provides an additional
rinse with the same water temperature as the first rinse.
Cycle Signal
This signal is helpful when you are removing items from the
washer as soon as it stops. Press CYCLE SIGNAL to select Loud,
Soft or Off.
Button Sound
Button sounds are used to notify you of what has been selected
or to let you know when something is not available. Press
BU-I-I-ON SOUND to select Loud, Soft or Off.
Preset cycle settings of Water Temperature, Spin Speed, and Soil
Level can be changed. You can change a modifier after starting a
cycle anytime before the selected modifier begins. Not all
modifiers are available with all cycles and options. Available
options will glow amber. Current selections will glow green. If a
modifier is unavailable with a selected cycle, the light will not
illuminate.
NOTE: The panel shown below may be different from that of your
model.
Hot Medium Heavy
;Warm Low NormaU
Cold No Spin Light
Waterletup Spin S0il
*AllCold Speed Level
Rases
•To change the water temperature, select the WATER TEMP
button until the desired setting glows green.
• To change the spin speed, select the SPIN SPEED button
until the desired setting glows green.
• To change cycle time, select SOIL LEVEL button until the
desired setting glows green.
Wash/Rinse Temp
Select a water temperature based on the type of load you are
washing. Use the warmest wash water safe for fabrics. Follow
garment label instructions.
In wash water temperatures colder than 60°F (15.6°C),
detergents do not dissolve well. Soils may be difficult to remove.
6TH SENSE TM Technology
The 6TH SENSE TM Technology control electronically senses and
maintains a uniform water temperature. 6TH SENSE TM
Technology control regulates incoming hot and cold water. 6TH
SENSE TM Technology control is automatically turned on when a
cycle is selected. See "Preset Cycle Settings" in "Cycles." 6TH
SENSE TM Technology control ensures consistent cleaning.
• 6TH SENSE TM Technology control works for all wash
temperature settings.
sense ,_
16

Refer to this chart for suggested load types and their corresponding cycles. Listed to the right are the options available to each of these
wash cycles.
CYCLE SUGGESTED LOAD TYPE AVAILABLE OPTIONS
Delay Wash Extra Rinse
Sanitary Heavily soiled underwear, towels, work clothes, diapers, etc. _/ _/
Whitest Whites Soiled white fabrics _
Heavy Duty Sturdy, colorfast fabrics and heavily soiled garments. _
Normal/Casual Normally soiled blouses, shirts, overalls, etc., made of polyester, _
nylon, cotton, linen, or cotton blends
Delicate Special-care items marked "Hand Washable" _/ _/
Hand Washables Special-care items marked "Hand Washable" _/ _/
Clean Washer No clothes _/
Soak Fabrics made of cotton, linen, polyester or nylon
Rinse/Spin Fabrics made of cotton, linen, polyester or nylon
Drain/Spin Fabrics made of cotton, linen, polyester or nylon
LAUNDRYTIPS
Preparing clothes for washing
Follow these recommendations to help you prolong the life of
your garments.
• Use only High Efficiency detergents. The package for this type
of detergent will be marked "HE" or "High Efficiency." This
wash system, along with less water, will create too much
sudsing with a regular non-HE detergent. Using regular
detergent will likely result in washer errors, longer cycle times
and reduced rinsing performance. It may also result in
component failures and noticeable mold or mildew. HE
detergents are made to produce the right amount of suds for
the best performance. Follow the manufacturer's instructions
to determine the amount of detergent to use.
Use only HE High Efficiency detergent.
Close zippers, snaps, and hooks to avoid snagging other
items. Remove pins, buckles, and other hard objects to avoid
scratching the washer interior. Remove non-washable trim
and ornaments.
Empty pockets and turn them inside-out.
Turn down cuffs; brush away lint and dirt.
Turn synthetic knits inside-out to avoid pilling.
Tie strings and sashes so they will not tangle.
Mend tears, loose hems, and seams.
Treat spots and stains.
Stained or wet garments should be washed promptly for best
results.
Mix large and small items, avoid washing single items, and
load evenly.
Wash small items, such as infant socks, in a mesh garment
bag. To create a balanced load it is recommended that more
than one garment bag be used, and that each garment bag
be filled with equal amounts of material.
NOTE: If you are washing only small items, it is
recommended that more than one mesh garment bag be
used, and that each garment bag be filled with equal
amounts of material.
17

Sorting
• Separate heavily soiled items from lightly soiled ones, even if
they would normally be washed together. Separate lint-givers
(towels, chenille) from lint-takers (corduroy, synthetics,
permanent press). When possible, turn lint-givers inside-out.
Separate dark colors from light colors, colorfast items from
noncolorfast items.
Sort by fabric and construction (sturdy cottons, knits, delicate
items).
Unloading
• Remove clothes from washer after the cycle is completed.
Metal objects such as zippers, snaps, and buckles may rust if
left in the washer basket for a long time.
• When unloading garments, occasionally check under the gray
colored seal at the front of the tub for small items.
Loading suggestions
Heavy Work Clothes
4 jeans 2 sweatpants
4 workpants 2 sweatshirts
4 workshirts
Towels
10 bath towels 14 washcloths
10 hand towels
Mixed Load
3 sheets (1 king, 2 twin) 9 T-shirts
4 pillowcases 9 shorts
3 shirts 10 handkerchiefs
3 blouses
WASHERCARE
The Washer Maintenance Procedure should be performed on a monthly basis.
Cleaning the door seal Washer Maintenance Procedure
1. Open the washer door and remove any clothing or items from
the washer.
2. Inspect the gray colored seal between the door opening and
the basket for stained areas. Pull back the seal to inspect all
areas under the seal and to check for foreign objects.
This washer has a special cycle that uses higher water volumes in
combination with liquid chlorine bleach to thoroughly clean the
inside of the washer.
NOTES:
• Read these instructions completely before beginning the
cleaning process.
• If necessary, the cleaning cycle may be interrupted by
pressing the Pause/Cancel button. However, this will not
immediately stop the cycle. The machine will display "int"
(interrupt) and continue with several rinse and drain steps to
ensure that all remaining bleach is rinsed from the washer.
A. Seal
3. If stained areas are found, wipe down these areas of the seal,
using the procedure that follows.
a) Mix a dilute solution, using 3/4cup (177 mL) of liquid
chlorine bleach, and 1 gal. (3.8 L) of warm tap water.
b) Wipe the seal area with the dilute solution, using a damp
cloth.
c) Let stand 5 minutes.
d) Wipe down area thoroughly with a dry cloth and let the
washer interior air dry with door open.
IMPORTANT:
• Wear rubber gloves when cleaning for prolonged periods.
• Refer to the bleach manufacturer's instructions for proper
use.
Begin procedure
1. Open the washer door and remove any clothing or items from
the washer.
2. Close the washer door.
3. Open the dispenser drawer and immediately add 2/3cup
(160 mL) of liquid chlorine bleach to the bleach compartment.
NOTE: Do not add any detergent to this cycle. Use of more
than 2/3cup (160 mL) of bleach will cause product damage
over time.
4=
5.
6.
Be sure the dispenser drawer is closed.
Select the CLEAN WASHER cycle.
Press START.
NOTE: The basket will rotate, then the door will unlock, lock
again, and then the cycle will continue.
• The machine will not fill, but the basket will rotate while
the washer runs a short sensing cycle. This will take
approximately 3 minutes.
18

7. The cycle will determine whether clothing or other items are
in the washer.
a)
b)
If no items are detected in the washer, it will proceed to
Step 8.
If any items are detected in the washer, "rL" or "F-34"
will be displayed, and the WASH and CONTROLS
LOCKED lights will remain lit. The door will unlock.
• Press PAUSE/CANCEL to cancel the failure code.
Then repeat steps 1,2 and 6 to start the cycle
again.
8. Once the cycle has begun, allow the cycle to complete.
9. After the cycle is complete, leave the door open slightly, to
allow for better ventilation and drying of washer interior.
Always do the following to maintain washer freshness
• Use only HE High Efficiency detergent.
• Leave the door slightly open after each cycle to allow for
better ventilation and drying of washer interior.
• Repeat the cleaning procedure monthly, using 2/3cup
(160 mL) of liquid chlorine bleach.
• If the procedure does not sufficiently improve the machine
freshness, evaluate your installation and usage conditions for
other causes.
Cleaning the exterior
Use a soft damp cloth or sponge to wipe up any spills.
Occasionally wipe the outside of your washer to keep it looking
new. Use mild soap and water. Do not use abrasive products.
Cleaning the dispenser drawer
The dispenser drawer is removable for easy cleaning.
1. Unlock the dispenser drawer by pressing the Release Lever in
the Prewash compartment. See "Using the Dispenser."
Remove the drawer.
2. Remove the inserts (the siphon from the softener and bleach
compartments and the detergent selector).
3. Wash the parts under running water.
4. Replace the inserts and return the dispenser to the drawer.
W<-I l:I I'"_Ii_" I-
Replace inlet hoses after 5 years of use to reduce the risk of hose
failure. Periodically inspect and replace inlet hoses if bulges,
kinks, cuts, wear or leaks are found.
When replacing your inlet hoses, record the date of replacement.
Install and store your washer where it will not freeze. Because
some water may stay in the hoses, freezing can damage your
washer. If storing or moving your washer during freezing weather,
winterize it.
Non-use or vacation care:
Operate your washer only when you are at home. Ifyou will be on
vacation or not using your washer for an extended period of time,
you should:
• Unplug washer or disconnect power.
• Turn off the water supply to the washer. This helps avoid
unintended flooding (due to awater pressure surge) while you
are away.
• Slightly open door to provide ventilation.
To winterize washer:
1. Put 1 qt (1 L) of R.V.-type antifreeze in the drum.
2. Run washer on a Drain/Spin cycle.
3. Unplug washer or disconnect power.
4. Shut off both water faucets.
5. Disconnect water inlet hoses from faucets and drain.
To use washer again:
1. Flush water pipes. Reconnect water inlet hoses to faucets.
Turn on both water faucets.
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
2. Plug in washer or reconnect power.
3. Run the washer through the Normal/Casual cycle with 1/2the
manufacturer's recommended amount of HE detergent for a
medium-size load, to clean the washer and remove the
antifreeze, if used.
To transport the washer:
1. If washer will be moved during freezing weather, put in
1 qt (1 L) of R.V.-type antifreeze in the drum. Run washer on a
Drain/Spin cycle.
2. Unplug the power cord.
3. Disconnect the drain hose from the drain system and attach
to rear panel clips.
4. Shut off both water faucets.
5. Disconnect the water inlet hoses from faucets, then drain the
hoses and clip them to the rear panel of the washer.
IMPORTANT: Call for service. Do not reuse transport bolts.
Washer must be transported in the upright position. To avoid
suspension and structural damage to your washer, it must be
properly set up for relocation by a certified technician.
Reinstalling the washer
1. Follow the "Installation Instructions" to locate, level and
connect the washer.
2. Run the washer through the Normal/Casual cycle with 1/2the
manufacturer's recommended amount of HE detergent for a
medium-size load, to clean the washer and remove the
antifreeze, if used.
19

TROUBLESHOOTING
Firsttry the solutions suggested here to possibly avoid the cost of a service call...
Washer displaying code message and tone sounds Washer won't start
"F20" (Water Inlet Problem--no water or insufficient
water supply)
Select PAUSE/CANCEL twice to cancel the cycle. Unplug
washer or disconnect power.
Check the following:
Are water faucets completely turned on?
Are screens at inlet hose connection to washer clogged?
Are water inlet hoses kinked?
Are water inlet hoses frozen?
Plug inwasher or reconnect power. Re-select cycle and press
START. If the problem remains, call for service.
"F21" (Drain Problem)
Select PAUSE/CANCEL twice to cancel the cycle. Unplug
washer or disconnect power.
Check the following:
Is the drain hose kinked?
Is the drain hose frozen?
Is the drain hose clogged?
Is the drain hose more than 96" (2.4 m) above the floor?
Plug in washer or reconnect power. Re-select cycle and press
START. If the problem remains, call for service.
"SUD" (Suds Routine)
When excessive suds are detected, a suds routine
automatically starts. This routine removes extra suds and
assures proper rinsing of your garments. "SUD" is displayed
during rinsing and at the end of the cycle to inform you that
Suds Routine was activated. Use only HE (High Efficiency)
detergents.
"F22" (Front door lock)
Select PAUSE/CANCEL twice to cancel the cycle.
Check the following:
Is the washer door firmly shut?
The door must be completely closed for the washer to
operate. The door may look closed, but may not be latched.
Open the door and close firmly.
Were you washing a large load?
Before you close the washer door, check for laundry items
sticking out beyond the door opening. Leave enough space
in the washer to allow the clothes to tumble freely. An
overloaded basket may keep the door from shutting
completely. Reduce your load size if needed.
Press POWER and select START.
"F" codes other than F20, F21 or F22
Select PAUSE/CANCEL twice to cancel the cycle. Select
DRAIN/SPIN if there is excessive water in the washer.
Re-select cycle and press START. If the problem remains, call
for service.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
• Check the following:
Is the power cord plugged into a grounded 3 prong outlet?
Is the washer door firmly closed?
Has a cycle been selected, but START has not been selected
and held for 1 second?
Was the door open after completion of last cycle?
Washer won't fill, wash or rinse
Check the following:
Is the power cord plugged into a grounded 3 prong outlet?
Is there power at the plug? Check electrical source or call an
electrician.
Are the hot and cold water faucets turned on?
Is the water inlet hose kinked?
Are the water inlet valve screens clogged?
Turn off the water and remove inlet hoses from the washer.
Remove any accumulated film or particles. Reinstall hoses,
turn water on and check for leaks.
Washer stops
•Check the following:
Is the power cord plugged into a grounded 3 prong outlet?
Is there power at the plug?
Check electrical source or call an electrician.
Has a household fuse blown, or has a circuit breaker tripped?
Replace the fuse or reset the circuit breaker. If the problem
continues, call an electrician.
Are you using an extension cord?
Do not use an extension cord.
20
