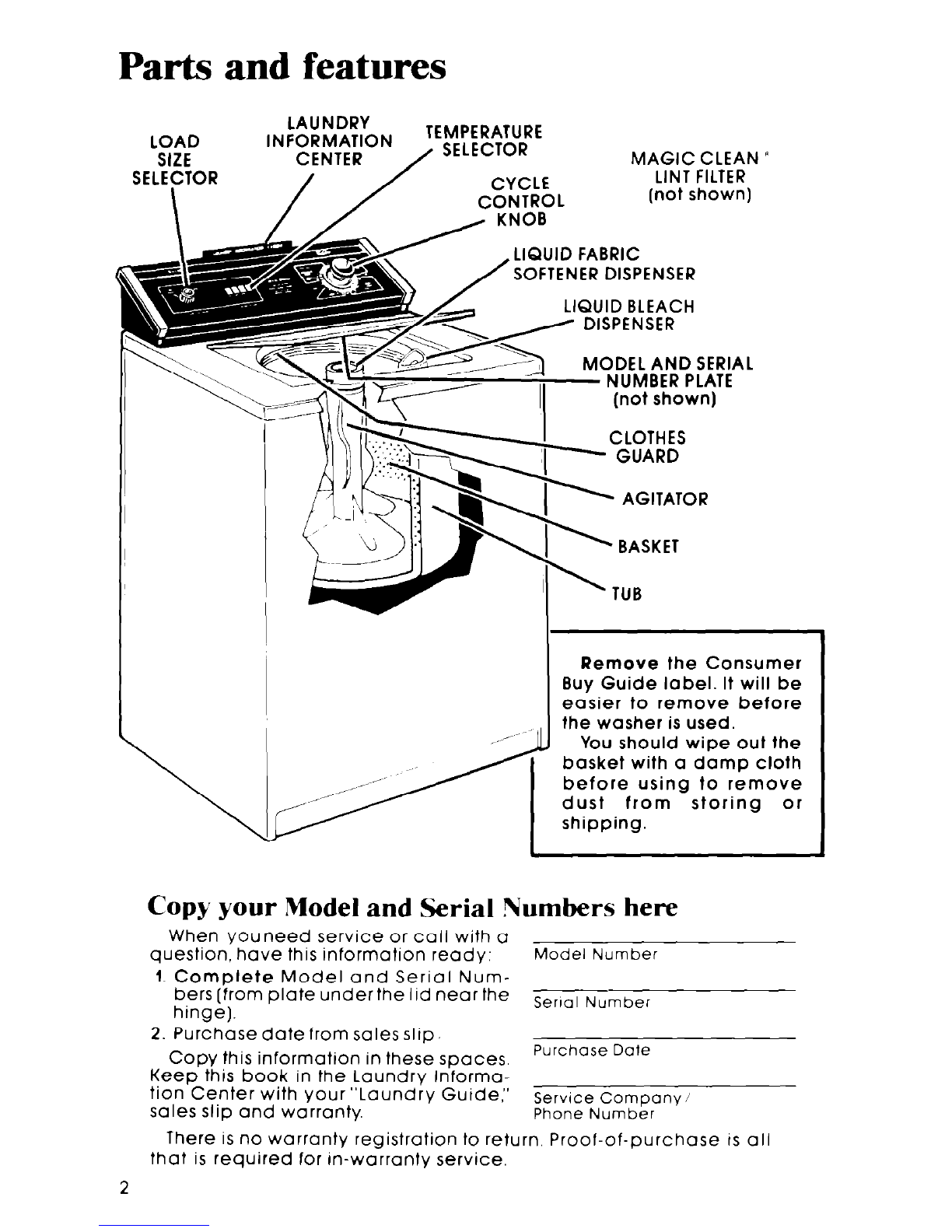

Parts and features
LOAD
SIZE
.ECTOR
LAUNDRY
INFORMATION TEMPERATURE
CENTER / SELECTOR
/ CYCLE MAGIC CLEAN ’
LINT FILTER
(not shown)
LIQUID FABRIC
/SOFTENER DisfwsER
Remove the Consumer
Buy Guide label. It will be
easier to remove before
the washer is used.
You should wipe out the
basket with a damp cloth
before using to remove
dust from storing or
I
shipping.
I
Copy your Model and Serial Numbers here
When youneed service or call with a
question, have this information ready: Model Number
1. Complete Model and Serial Num-
bers [from plate underthe lid near the
hinge). Serlo, Number
2. Purchase date from sales slip,
Copy this information in these spaces. Purchase Da’e
Keep this book in the Laundry Informa-
tion Center with your”Laundry Guide,”
sales slip and warranty. Service Company /
Phone Number
There is no warranty registration to return. Proof-of-purchase IS all
that is required for In-warranty service.
2

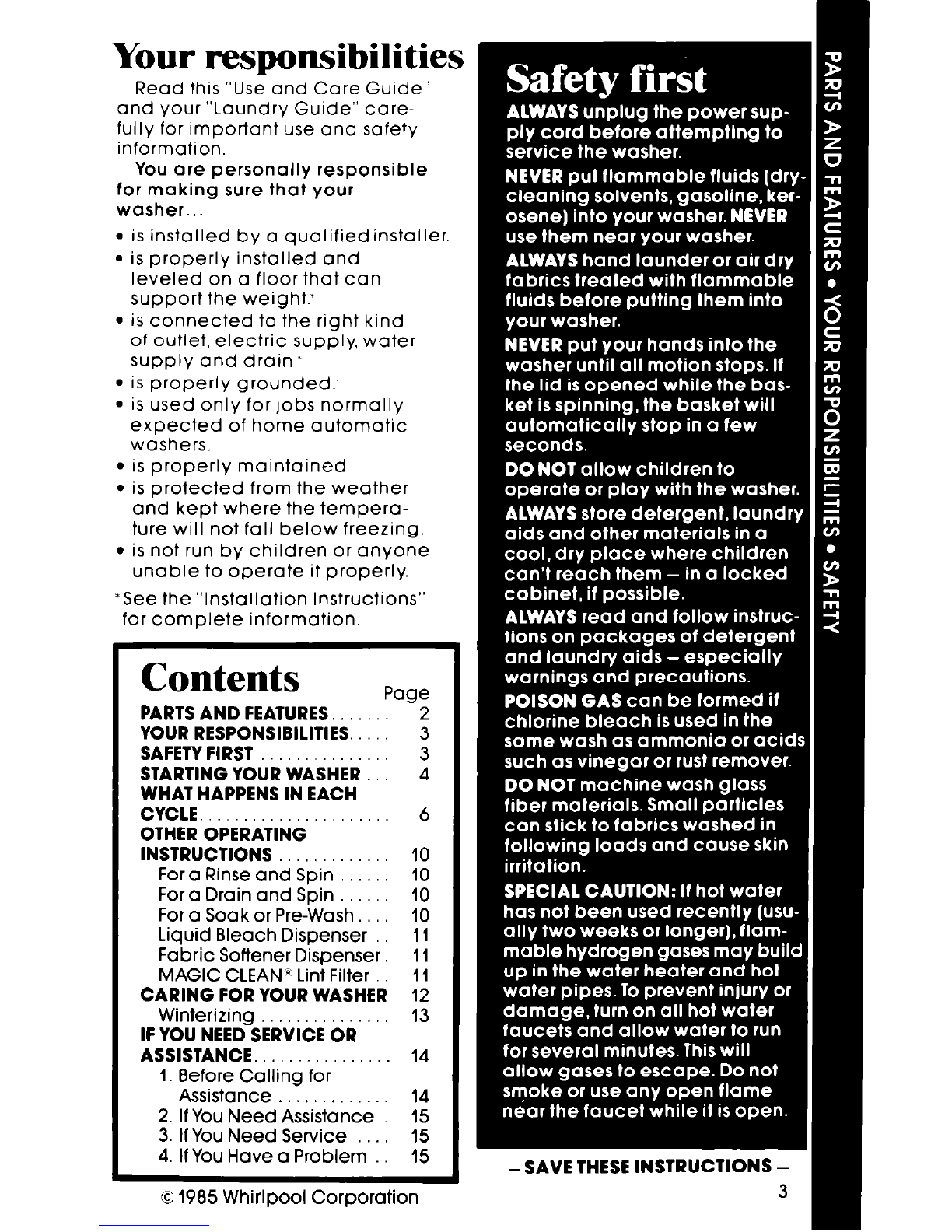

Your responsibilities
Read this “Use and Care Guide”
and your “Laundry Gurde” care-
fully for important use and safety
information.
You are personally responsible
for making sure that your
washer..
. is installed by a qualifiedinstaller.
9 is properly installed and
leveled on a floor that can
support the weight.
l is connected to the right kind
of outlet, electric supply, water
supply and drain.’
l is properly grounded.
l is used only for jobs normally
expected of home automatic
washers.
l is properly maintained.
l is protected from the weather
and kept where the tempera-
ture will not fall below freezing.
l is not run by children or anyone
unable to operate it properly.
*See the “Installation Instructions”
for complete information.
Contents
Page
PARTS AND FEATURES. 2
YOUR RESPONSIBILITIES. 3
SAFETY FIRST 3
STARTING YOUR WASHER 4
WHAT HAPPENS IN EACH
CYCLE. 6
OTHER OPERATING
INSTRUCTIONS 10
For a Rinse and Spin 10
For a Drain and Spin 10
For a Soak or Pre-Wash 10
Liquid Bleach Dispenser It
Fabric Softener Dispenser. 11
MAGIC CLEAN” Lint Filter 11
CARING FOR YOUR WASHER 12
Winterizing 13
IF YOU NEED SERVICE OR
ASSISTANCE.. 14
1. Before Calling for
Assistance 14
2. If You Need Assistance 15
3. If You Need Service 15
4. If You Have a Problem 15
0 1985 Whirlpool Corporation

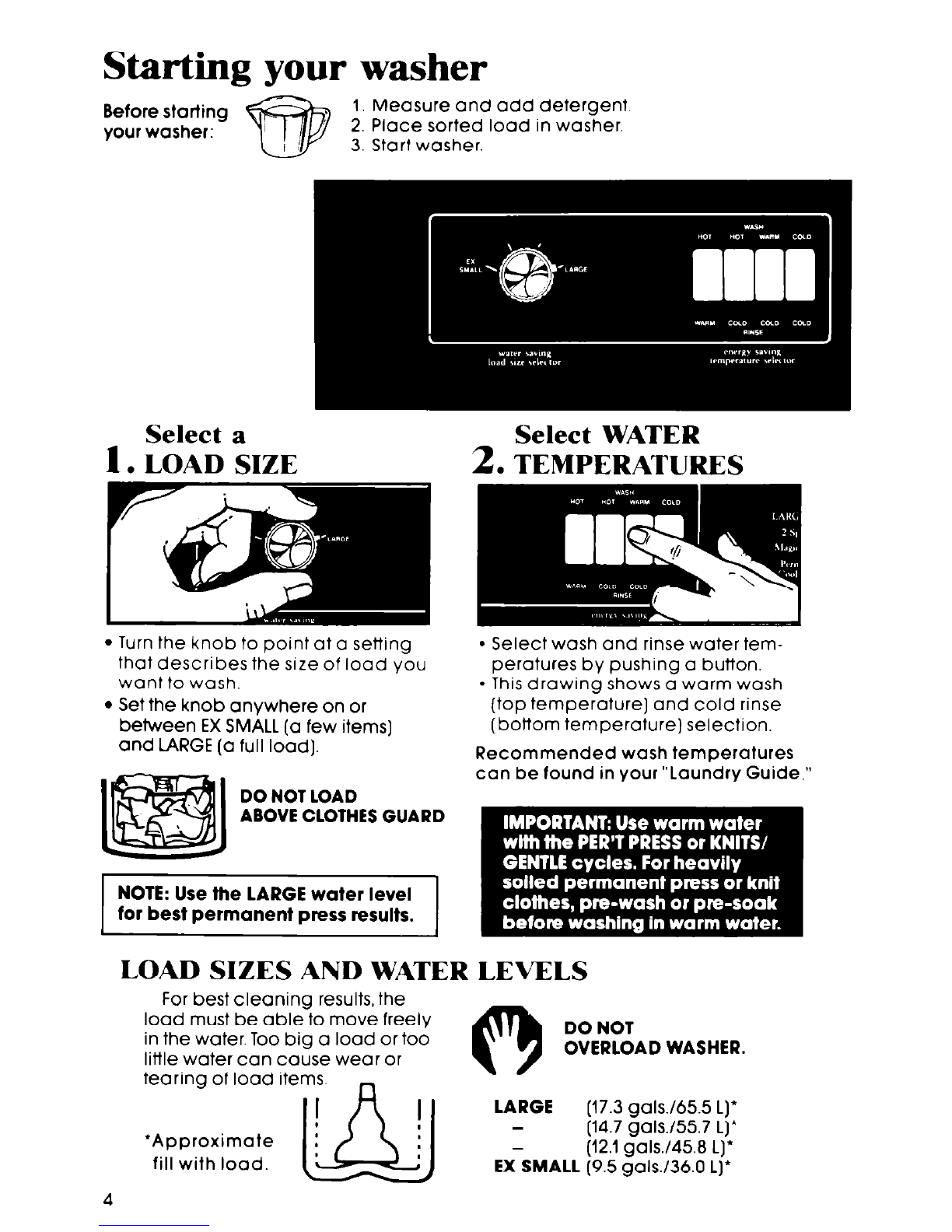

Starting your washer
Before starting m 1. Measure and add detergent
your washer: 2. Place sorted load in washer.
I / 3. Start washer.
Select a Select WATER
1. LOAD SIZE
2. TEMPERATURES
l Turn the knob to point at a setting
that describes the size of load you
want to wash.
l Set the knob anywhere on or
between EX SMALL (a few items]
and LARGE (a full load].
DO NOT LOAD
ABOVE CLOTHES GUARD
NOTE: Use the LARGE water level
for best permanent press results.
l Select wash and rinse water tem-
peratures by pushing a button.
l This drawing shows a warm wash
(top temperature] and cold rinse
(bottom temperature) selection.
Recommended wash temperatures
can be found in your “Laundry Guide.”
LOAD SIZES AND WATER LEVELS
For best cleaning results, the
load must be able to move freely
in the water. Too big a load or too
little water can cause wear or
tearing of load items. 0
DO NOT
OVERLOAD WASHER.
(17.3 gals./655 L)’
*Approximate (14.7 gals./557 L)’
fill with load. (12.1galsJ45.8 L)’
(9.5 gaW36.0 L)’
4

3. Start the washer
A. Push in the Control Knob and
turn it to the right. It must be
pushed in and turned only
clockwise.
B. Stop on a number in the cycle
you want. The numbers are min-
utes of wash time. The drawing
shows 10 minutes of agitation in
the REGULAR Cycle.
C. Start the washer by pulling out
the Control Knob. The washer
will fill to the level you set with
wash water of the selected
temperature. After filling, the
washer will agitate for the
selected number of minutes.
D. To stop the washer at any time
push in the Control Knob. To
restart the washer, pull out the
Control Knob.

What happens in each cycle*
Each cycle has different agitation and spin speeds designed for different
kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH
agitation time.
When the Cycle Control Knob is set to a number and pulled out, the washer
fills before agitation and timing starts. After agitation starts, the knob turns clock-
Wise until it points to OFF and the cycle ends
REGULAR HEAVY Cycle
REGULAR Cycle
A cycle for sturdily con-
structed fabrics that ore
heavily soiled.
A cycle for regular loads of
fabrics that are moderately
soiled.
PERMANENTPRESS Cycle
A special cycle with the
necessary cool down rinse
which helps keep wrinkles
from setting into Permanent
Press and some synthetic
fabrics.
6

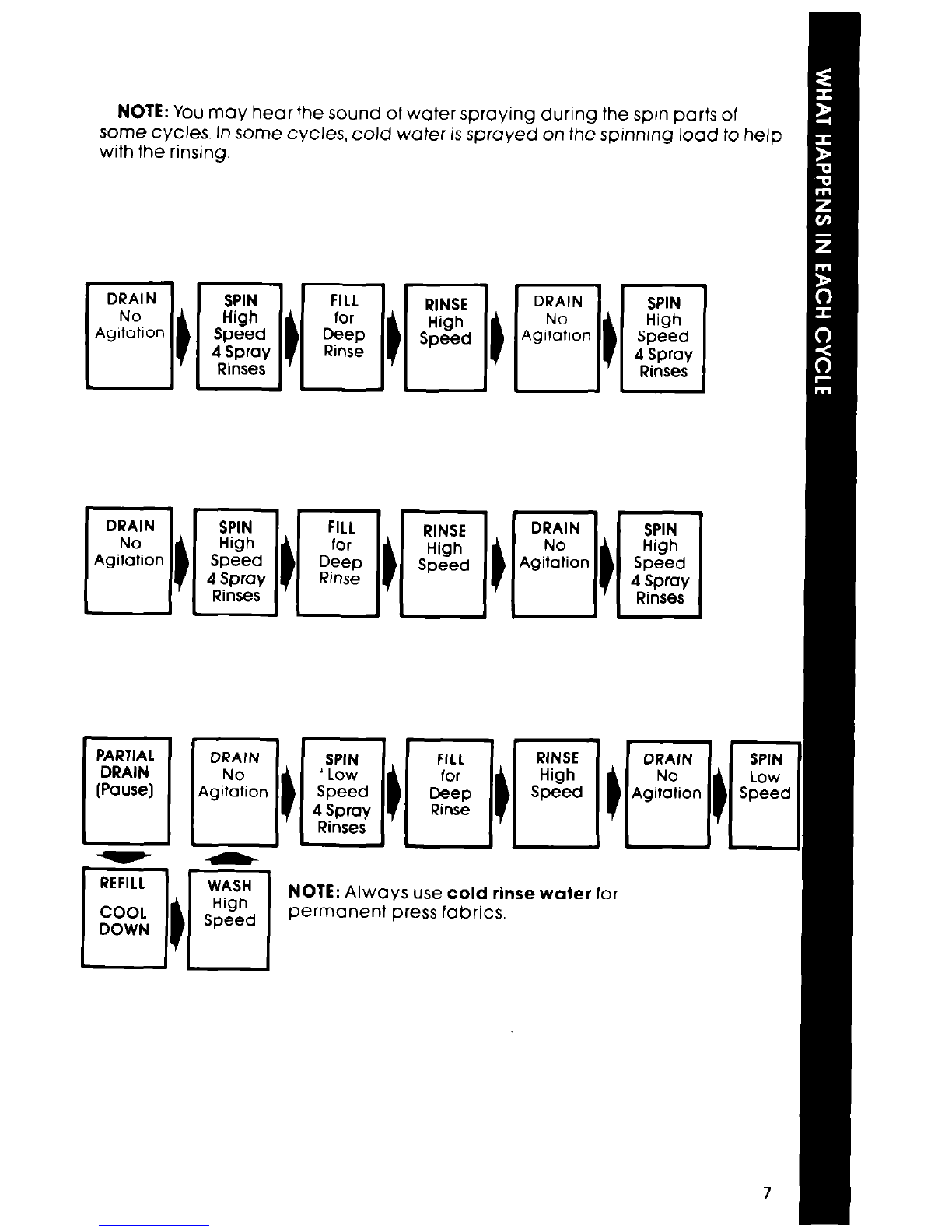

NOTE: You may hec
some cycles. In some
with the rinsing.
Ir the sound of water spraying
cycles, cold water is sprayeci
DRAIN
No
Agitation
DRAIN
No
Agitation
1
PARTIAL
DRAIN
c
(Pause]
during the spin parts of
Ion the spinning load to help I
NOTE: Always use cold rinse
permanent press fabrics.
I-
I
SPIN
High
Speed
4 Spray
Rinses
I 1
water for

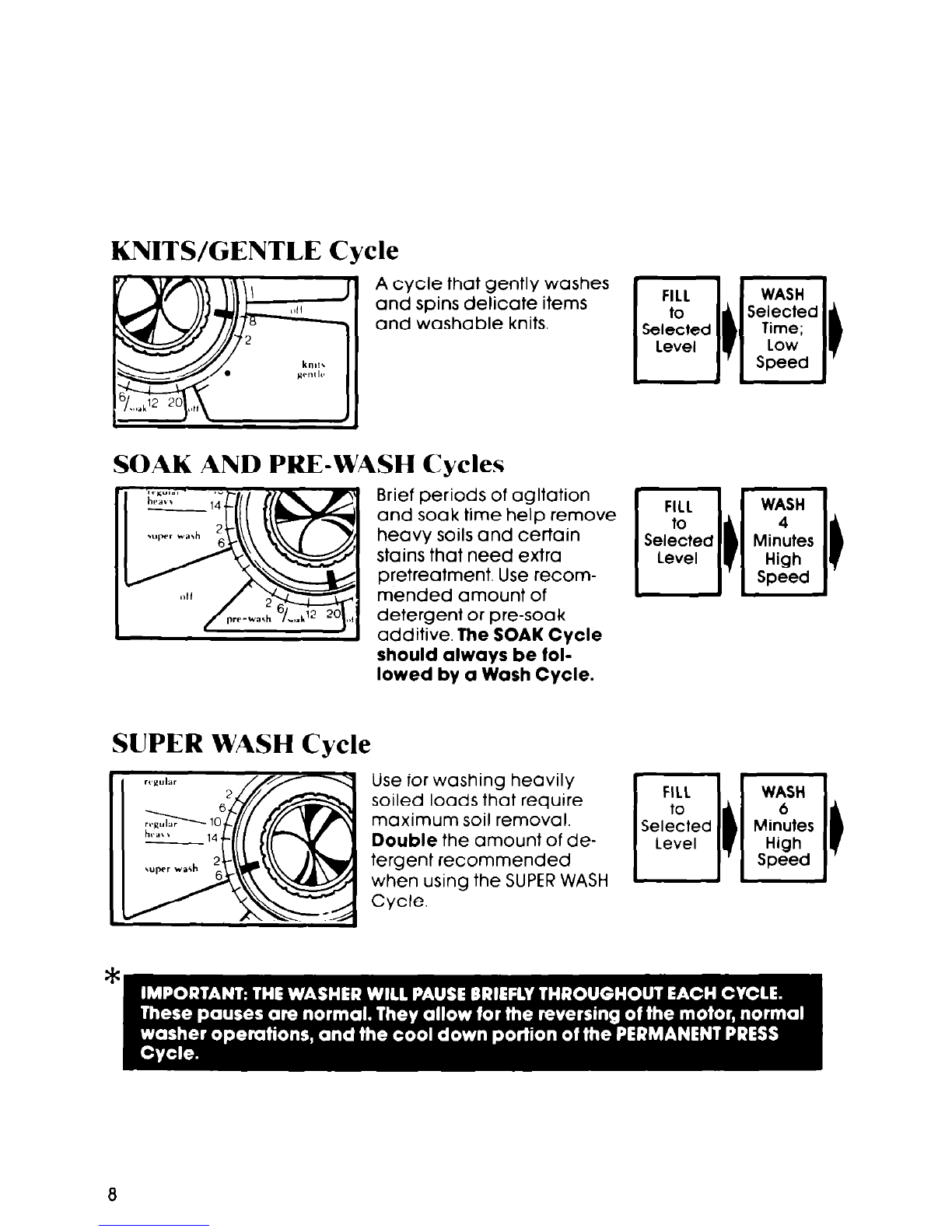

KNITS/GENTLE Cycle
A cycle that gently washes
and spins delicate items
and washable knits.
SOAK AND PRE-WASH Cycles
Brief periods of agltation
and soak time help remove
heavy soils and certain
stains that need extra
pretreatment. Use recom-
mended amount of
detergent or pre-soak
additive. The SOAK Cycle
should always be fol-
lowed by a Wash Cycle.
SUPER WASH Cycle Use for washing heavily
soiled loads that require
maximum soil removal.
Double the amount of de-
tergent recommended
when using the SUPERWASH
Cycle.

I
+ Pre-wash setting begins here,
[see page 10).
Special core is needed when soaking or pre-washing laundry.
See your”Laundry Guide” for proper use ot this cycle.
The washer will proceed to
the Regular/Heavy Cycle. If
you wont a different cycle to
follow Super Wash, push in
the cycle control knob, turn
to the cycle and time you
wont, pull knob out to start.
9

Other operating instructions

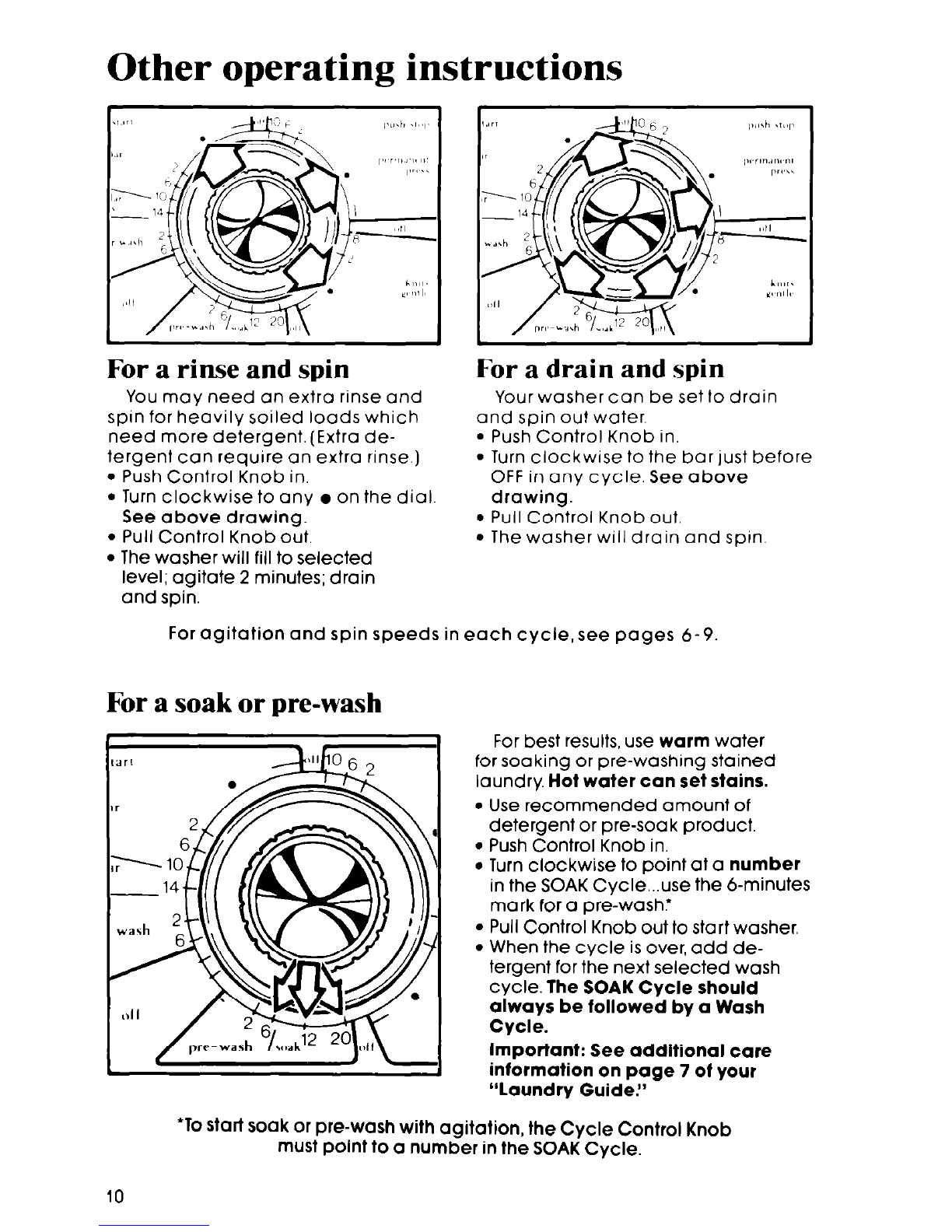

For a rinse and spin
You may need an extra rinse and
spin for heavily soiled loads which
need more detergent. (Extra de-
tergent can require an extra rinse.)
l Push Control Knob in.
l Turn clockwise to any l on the dial.
See above drawing.
l Pull Control Knob out.
l The washer will fill to selected
level; agitate 2 minutes; drain
and spin.
For a drain and spin
Your washer can be set lo drain
and spin out water
. Push Control Knob in.
l Turn clockwise to the bar just before
OFF in any cycle. See above
drawing.
l Pull Control Knob out.
l The washer will drain and spin.
For agitation and spin speeds in each cycle, see pages 6-9.
For a soak or pre-wash
For best results, use warm water
for soaking or pre-washing stained
laundry. Hot water can set stains.
l Use recommended amount of
detergent or pre-soak product.
l Push Control Knob in.
l Turn clockwise to point at a number
in the SOAK Cycle...use the 6-minutes
mark for a pre-wash?
l Pull Control Knob out to start washer.
l When the cycle is over, add de-
tergent for the next selected wash
cycle. The SOAK Cycle should
always be followed by a Wash
Cycle.
Important: See additional care
information on page 7 of your
“Laundry Guide!’
‘To start soak or pre-wash with agitation, the Cycle Control Knob
must point to a number in the SOAK Cycle.
10

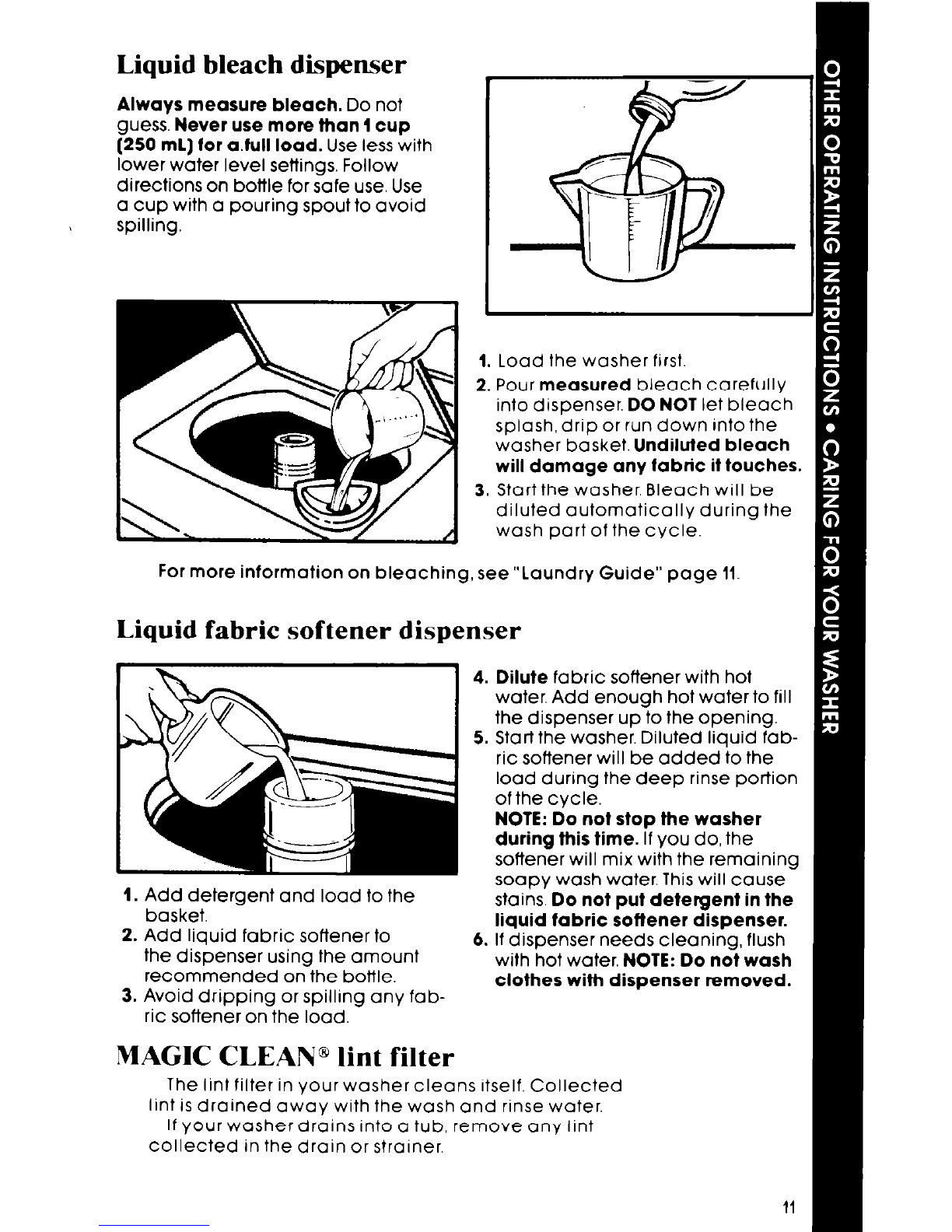

Liquid bleach dispenser
Always measure bleach. Do not
guess. Never use more than 1cup
(250 ml) for a.full load. Use less with
lower water level settings. Follow
directions on bottle for safe use. Use
a cup with a pouring spout to avoid
spilling.
1. Load the washer first
2. Pour measured bleach carefully
into dispenser. DO NOT let bleach
splash, drip or run down into the
washer basket. Undiluted bleach
will damage any fabric it touches.
3. Start the washer. Bleach will be
diluted automatically during the
wash part of the cycle.
For more information on bleaching,see”Laundry Guide” page 11
Liquid fabric softener dispenser
1. Add detergent and load to the
basket.
2. Add liquid fabric softener to
the dispenser using the amount
recommended on the bottle.
3. Avoid dripping or spilling any fab-
ric softener on the load.
4. Dilute fabric softener with hot
water. Add enough hot water to fill
the dispenser up to the opening.
5. Start the washer. Diluted liquid fab-
ric softener will be added to the
load during the deep rinse portion
of the cycle.
NOTE: Do not stop the washer
during this time. If you do, the
softener will mix with the remaining
soapy wash water. This will cause
stains. Do not put detergent in the
liquid fabric softener dispenser.
6. If dispenser needs cleaning, flush
with hot water. NOTE: Do not wash
clothes with dispenser removed.
MAGIC CLEAN@ lint filter
The lint filter in your washer cleans Itself. Collected
lent ISdrarned away with the wash and rrnse water.
If your washer drains into a tub, remove any lint
collected in the drain or strarner.
11

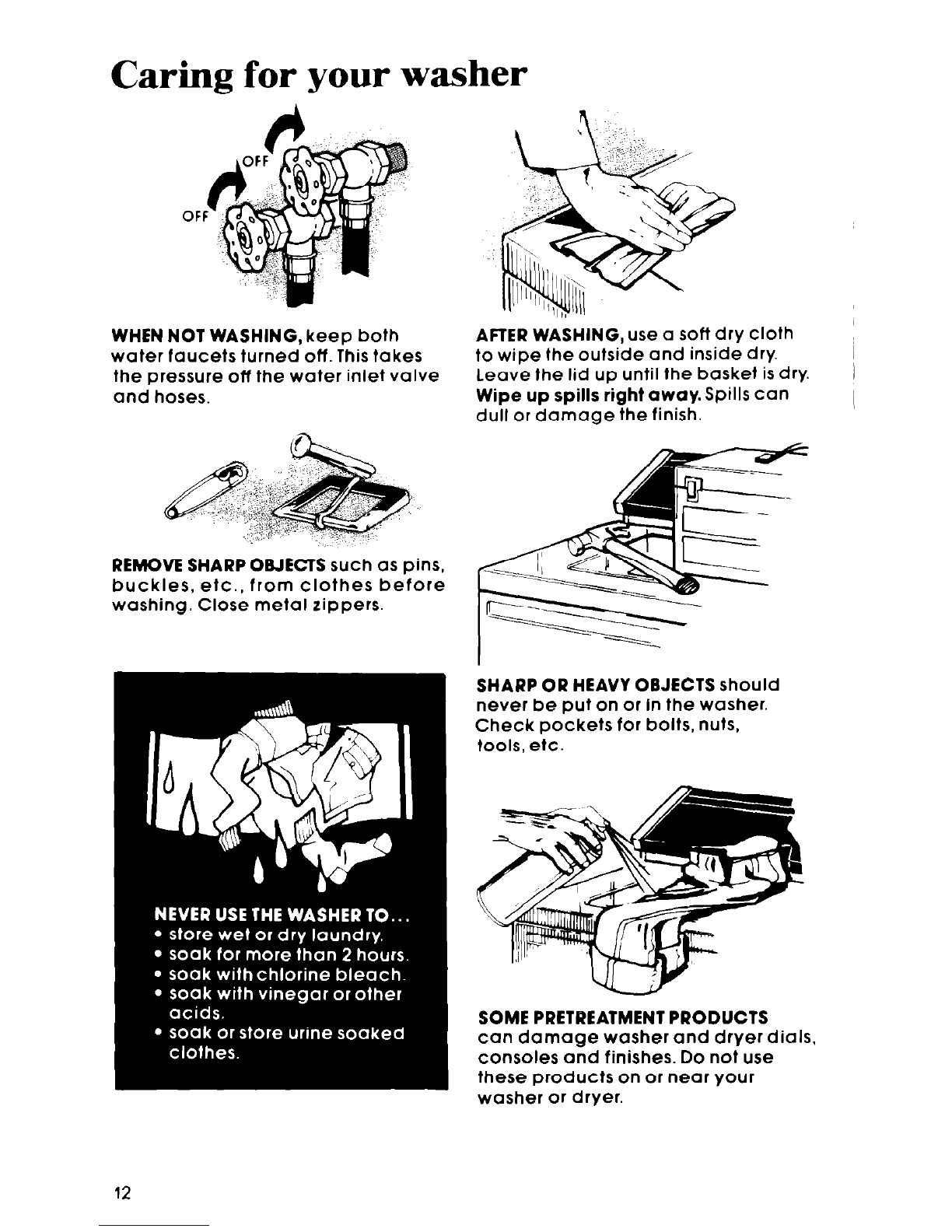

Caring for your washer
WHEN NOT WASHING, keep both
water faucets turned off. This takes
the pressure off the water inlet valve
and hoses.
REMOVE SHARP OBJECTS such as pins,
buckles, etc., from clothes before
washing. Close metal zippers.
AFTER WASHING, use a soft dry cloth
to wipe the outside and inside dry.
Leave the lid up until the basket is dry.
Wipe up spills right away. Spills can
dull or damage the finish.
SHARP OR HEAVY OBJECTS should
never be put on or in the washer.
Check pockets for bolts, nuts,
tools. etc.
SOME PRETREATMENT PRODUCTS
can damage washer and dryer dials,
consoles and finishes. Do not use
these products on or near your
washer or dryer.
12

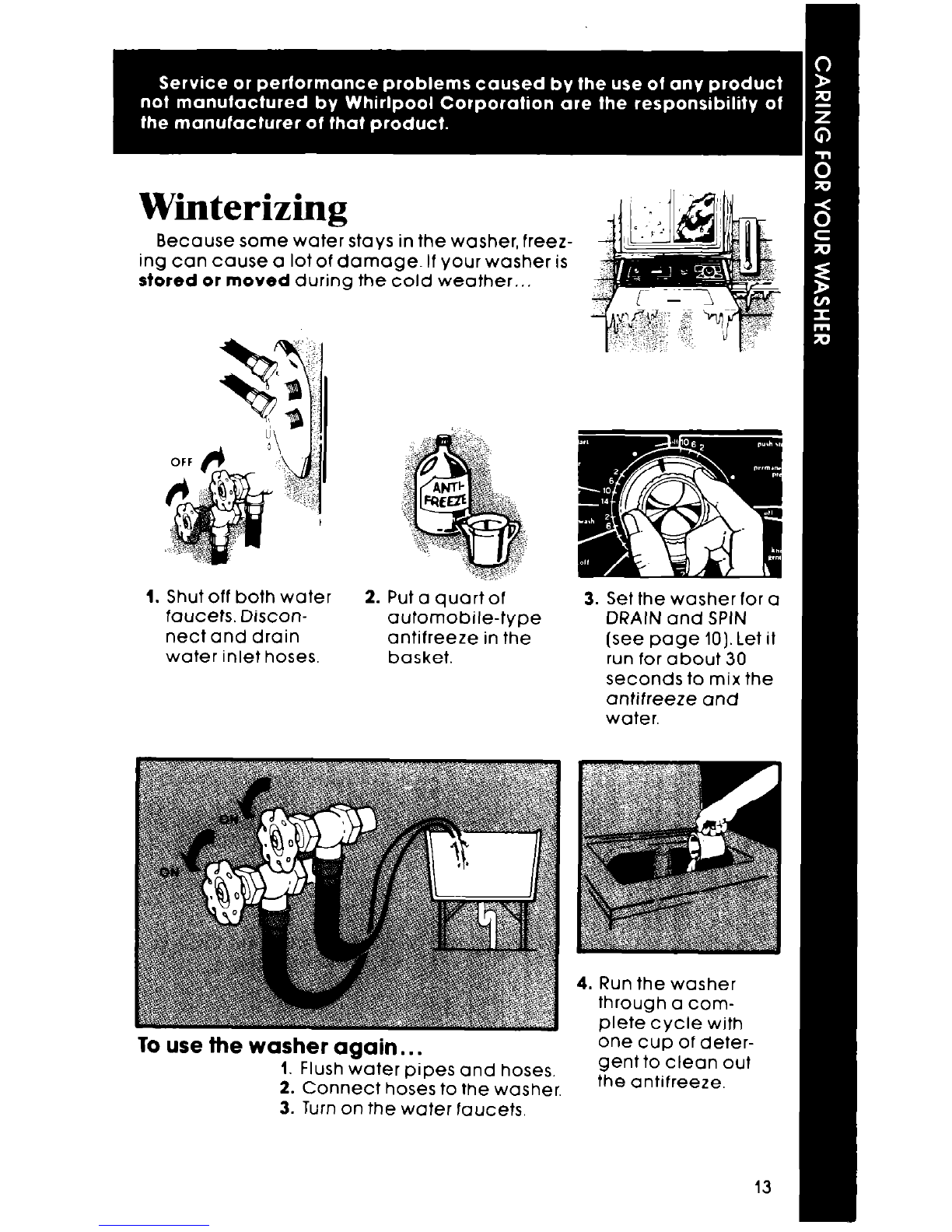

Winterizing
Because some water stays in the washer, freez-
ing can cause a lot of damage. If your washer is
stored or moved during the cold weather..
1. Shut off both water
faucets. Discon-
nect and drain
water inlet hoses.
2. Put a quart of
automobile-type
antifreeze in the
basket.
To use the washer again.. .
1. Flush water popes and hoses.
2. Connect hoses to the washer
3. Turn on the water faucets.
3. Set the washer for a
DRAIN and SPIN
(see page IO). Let it
run for about 30
seconds to mix the
antifreeze and
water.
4. Run the washer
through a com-
plete cycle with
one cup of deter-
gent to clean out
the antifreeze.
13

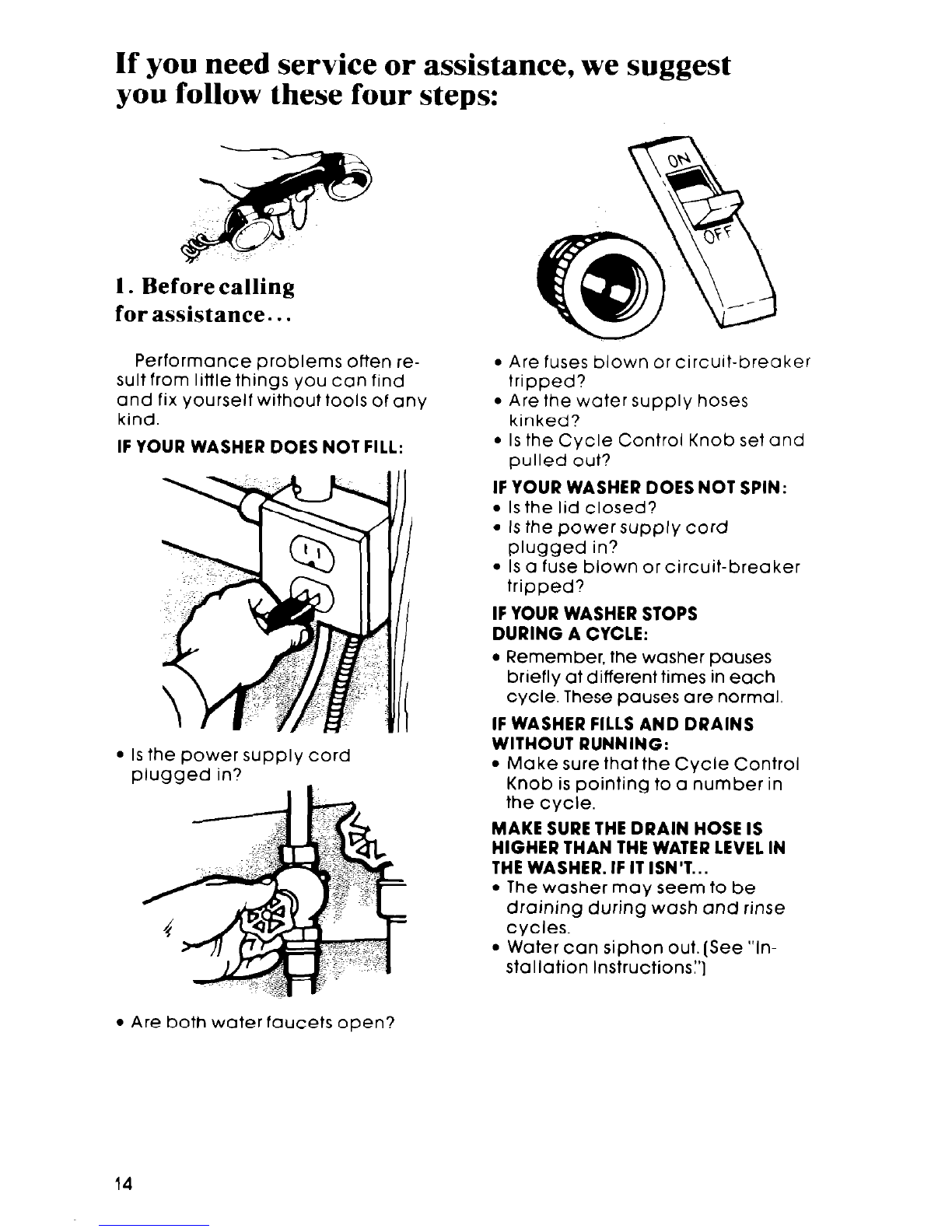

If you need service or assistance, we suggest
you follow these four steps:
1. Before calling
for assistance.. .
Performance problems often re-
sult from little things you can find
and fix yourself without tools of any
kind.
IF YOUR WASHER DOES NOT FILL:
l Is the power supply cord
plugged in?
l Are fuses blown or circuit-breaker
tripped?
l Are the water supply hoses
kinked?
l Is the Cycle Control Knob set and
pulled out?
IF YOUR WASHER DOES NOT SPIN:
l Is the lid closed?
l Is the power supply cord
plugged in?
l Is a fuse blown or circuit-breaker
tripped?
IF YOUR WASHER STOPS
DURING A CYCLE:
l Remember, the washer pauses
briefly at different times in each
cycle. These pauses are normal.
IF WASHER FILLS AND DRAINS
WITHOUT RUNNING:
l Make sure that the Cycle Control
Knob is pointing to a number in
the cycle.
MAKE SURE THE DRAIN HOSE IS
HIGHER THAN THE WATER LEVEL IN
THE WASHER. IF IT ISN’T...
l The washer may seem to be
draining during wash and rinse
cycles.
l Water can siphon out. [See “ln-
stallation Instructions:‘]
l Are both water faucets open?
14

2. If you need assistance*. ..
Call Whirlpool COOL-LINE ’ serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . [phone]
Michigan . . . . . . . [phone]
Alaska & Hawaii [phone]
and talk with one of ourtrained Con-
sultants. The Consultant can instruct
You in how to obtain satisfactory op-
eration from Your appliance or, if
service is necessary, recommend a
qualified service company in Your
area.
3. If you need service*...
A Whirlpool has
a nationwide net-
work of franchised
l!/
TECH-CARE 1 Serv-
~ECfl-CARE ice Companies.
1 FRANCHlSE’J?ER”lCEI TECH-CARE serv-
ice technicians are trained to fulfill
the product warranty and provide
after-warranty service,anywhere in
the United States. To locate TECH-
CARE service in your area, call our
COOL-LINE service assistance tele-
phone number (see Step 2) or look in
your telephone directory Yellow
Pages under,
4. If you have a problem*...
Call our COOL-LINE service as.
sistance telephone number (see
Step 2) and talk with one of our Con
sultants, or if You prefer, write to:
Mr. Stephen E.Upton
Senior Vice President
Whirlpool Corporation
Administrative Center
2000 US-33 North
Benton Harbor, MI 49022
*If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This in-
formation is needed in order to bet-
ter respond to Your request for
assistance.
FSP ISa registered trademark
0
of Whirlpool Corporation for
qualliv parts Look for this
FSP symbol of quallty whenever
you need a replacement port
8 for your WhIrlpool appliance
FSP replacement parts
~111fit rlghl and work right because they are
made lo the same exacting speclflcatlons
used to build every new WhIrlpal appliance

mirlR$E1
Home
Making your world a llttle easier
Part No. 387256
0 1985 Whirlpool Corporation Printed in U.S.A.
mat% Washers. Clothes Dryers, Freezers. Refrigerator-Freezers. Ice Makers. Olshwashers. Bwlt-In Ovens and Surface Units. Ranges. Mlcr,
