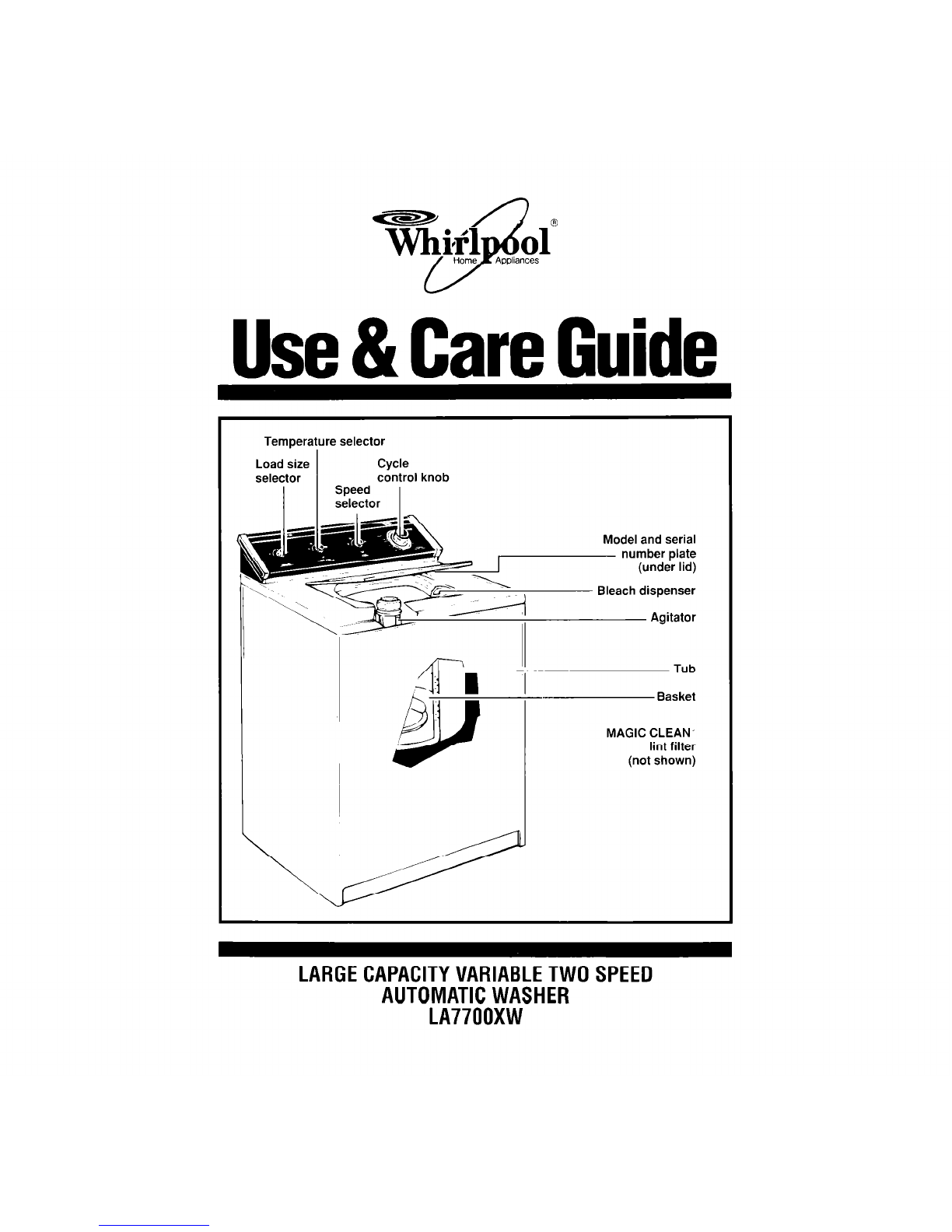

Use&CareGuide
Temperature selector
Load size Cycle
selector control knob
I Speed
selector
Model and serial
Bleach dispenser
Tub
Basket
MAGIC CLEAN I
lint filter
(not shown)
LARGECAPACITYVARIABLETWOSPEED
AUTOMATICWASHER
LA7700XW

Contents
Page
Important Safety Instructions _.......3
Operating Instructions
Starting your washer .._.__....._......4
Recommended wash speeds .___._..,6
What happens in each cycle .._...... 6
Other Operating Instructions
Rinse and spin ._......_......_._.....__._..10
Drain and spin ._,_,_...,_,_._.,.,_._.,,,.,_.10
Pre-wash cycle ,_.....,_._......_....,__._..10
Liquid bleach dispenser .._......_._...11
MAGIC CLEAN” lint filter 11
If You Need Service Or
Assistance .._..__..........._._._.12
Whirlpool Automatic
Washer Warranty .._._...16
Thank you for buying a Whirlpool
appliance. Please complete and mail
the Owner Registration Card provided
with this product. Then complete the
form below. Have this information ready
if you need service or call with a
question.
l Copy model and serial numbers from
plate (under lid near hinge) and the
purchase date from the sales slip.
l Keep this book, the Laundry Guide
and the sales slip together in a handy
place.
Model Number
01990 Whirlpool Corporation
Serial Number
Purchase Date
Service Company Phone Number
If your washer has a Consumer Buy
Guide label, remove it. It will be easier
to remove before the washer is used.
To remove any remaining glue:
l Rub briskly with thumb to make a ball,
then remove.
or
l Soak area with liquid hand dishwash-
ing detergent before removing glue as
described above.
Do not use sharp instruments, rubbing
alcohol, flammable fluids or abrasive
cleaners. These can damage the
finish. See “Important Safety
Instructions” on page 3.

ImportantSafetyInstructions
. Read all instructions before using These substances give off vapors
the washer. that can create a FIRE HAZARD or
l NEVER wash items cleaned, wash- EXPLOSION.
ed, soaked in or spotted with wax, l If hot water has not been used
paint, gasoline, or flammable fluids in recently (usually 2 weeks or longer),
the washer. The fumes can create a hydrogen gases may build up in the
FIRE HAZARD or EXPLOSION. water heater and the hot water
ALWAYS hand launder and air dry pipes. HYDROGEN GAS IS EX-
fabrics containing these materials. PLOSIVE. To prevent injury or
9 NEVER allow children to operate, damage, before using your washer,
play with, or crawl inside the washer. turn on all hot water faucets and al-
Close supervision of children is low water to run for several minutes.
necessary when the washer is used This will allow gases to escape. DO
near children. NOT smoke or use any open flame
l When discarding an old washer, near the faucet while it is open.
ALWAYS remove the lid to prevent
l You are responsible for making
accidental entrapment. sure that your washer:
l DO NOT reach into the washer -is installed, repaired, and has parts
basket while it is filling with water, replaced by a qualified person.
while agitator is moving or while -is properly installed and leveled on
basket is spinning. If the lid is a floor that can support the weight.*
opened while the basket is spinning, -is connected to the correct 3-prong
the basket will automatically stop in a outlet, electric supply, water supply
few seconds. and drain.*
. DO NOT tamper with controls. -is properly grounded.*
. NEVER use or store flammable fluids -is properly maintained.*
(dry-cleaning solvents, kerosene) in -is protected from the weather and
or near your washer. DO NOT add kept where the temperature will not
flammable fluids to the wash water. fall below freezing.
*See the Installation Instructions.
- SAVE THESE INSTRUCTIONS -
Additional safety instructions and your responsibilities
. ALWAYS store detergent, laundry
l ALWAYS unplug the power supply
aids and other materials in a cool, dry cord before attempting to service the
place where children can’t reach washer.
them-in a locked cabinet if possible. . DO NOT machine wash glass fiber
l ALWAYS read and follow instructions
on packages of detergents and
laundry aids-especially warnings and
precautions.
l HAZARDOUS FUMES can be formed
if chlorine bleach is used in the same
wash as ammonia or acids such as
vinegar or rust remover.
materials. Small particles can stick to
fabrics washed in following loads and
cause skin irritation.
l You are responsible for making sure
that your washer:
- is used only for jobs normally expect-
ed of home automatic washers.
- is not run by children or anyone
unable to operate it properly. 3

OperatingInstructions
Starting your washer
Be sure to measure and add deteroent, then place a sorted load in the washer
before starting it.
1. Select a load size
l Turn the knob to point at a setting that
describes the size of load you want to
wash.
l The knob can be set anywhere on or
between EX SMALL (a few small
items) and LARGE (a full load).
NOTE: For best washing results, items
should move freely in the washer. Do
not overload the washer or choose a
water level that is too low for your wash
load.
For best results with permanent
press clothes, use the LARGE water
level.
Reduce wash time when using EX
SMALL or SMALL water level settings.
Loads with only a few small items need
less wash time for best results.
2. Select water temperature
9 Match the water temperature to the
type of fabric and soils being washed.
l The top temperature is the wash
selection and the bottom temperature
is the rinse selection.
NOTE: Use warm wash water with the
PERMANENT PRESS or GENTLE/
SHORT Cycles.
For heavily soiled permanent press
or knit clothes, pre-wash or pre-soak
before washing in warm water.
ALWAYS use cold rinse water for
permanent press fabrics.

3. Select agitation and spin speeds
l Turn the knob to point at the wash
cycle speeds you want for your wash
load.
. The top speed is the agitation
selection and the bottom speed is
the spin selection. See page 6 for
tips on selecting speeds.
4. Select cycle and wash time
Start the washer
. Push in the Cycle Control Knob and
turn it clockwise.
. Stop when the indicator on the
knob’s outer ring points to the
number in the wash cycle you want.
The numbers are minutes of wash
time.
9 Start the washer by pulling out the
Cycle Control Knob. The washer will
fill to the selected water level with
the selected wash water tempera-
ture. The washer will begin agitating
immediately after filling. Agitation
can occur with the washer lid up or
down.
. To stop the washer at any time, push
in the Cycle Control Knob. To restart
the washer, pull out the Cycle
Control Knob.

Operating Instructions
Continued

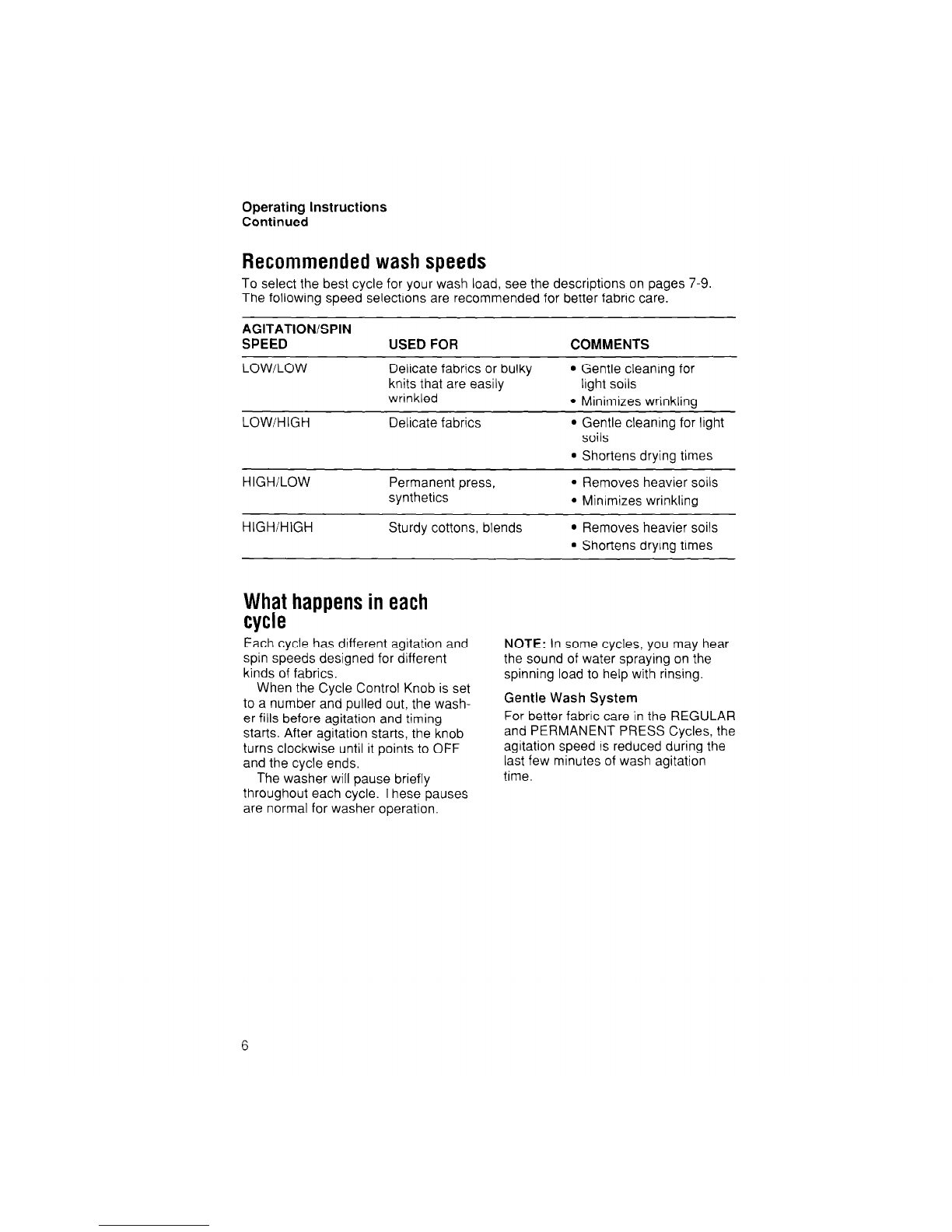

Recommended wash speeds
To select the best cycle for your wash load, see the descriptions on pages 7-9.
The following speed selections are recommended for better fabric care.
AGITATION/SPIN
SPEED USED FOR COMMENTS
LOW/LOW Delicate fabrics or bulky
knits that are easily
wrinkled
l Gentle cleaning for
light soils
l Minimizes wrinklino
LOW/HIGH Delicate fabrics l Gentle cleaning for light
soils
l Shortens drying times
HIGH/LOW Permanent press,
synthetics
l Removes heavier soils
l Minimizes wrinkling
HIGH/HIGH Sturdy cottons, blends
l Removes heavier soils
. Shortens drying times
What happens in each
cycle
Each cycle has different agitation and NOTE: In some cycles, you may hear
spin speeds designed for different the sound of water spraying on the
kinds of fabrics. spinning load to help with rinsing.
When the Cycle Control Knob is set
to a number and pulled out, the wash-
er fills before agitation and timing
starts. After agitation starts, the knob
turns clockwise until it points to OFF
and the cycle ends.
The washer will pause briefly
throughout each cycle. These pauses
are normal for washer operation.
Gentle Wash System
For better fabric care in the REGULAR
and PERMANENT PRESS Cycles, the
agitation speed is reduced during the
last few minutes of wash agitation
time.

Regular/Heavy Cycle
A cycle for fabrics that are heavily
soiled.
Regular/Normal Cycle
A cycle for moderately soiled fabrics.
FILL to Selected Level
WASH 8 Minutes Selected Speed
WASH 6 Minutes Low Speed
DRAIN No Agitation
SPIN Selected Speed
FILL for Deep Rinse
RINSE Selected Speed
DRAIN No Agitation
SPIN Selected Speed, Spray Rinse
FILL to Selected Level
WASH 4 Minutes Selected Speed
WASH 6 Minutes Low Speed
DRAIN No Agitation
SPIN Selected Speed
FILL for Deep Rmse
RINSE Selected Speed
DRAIN No Agitation
SPIN Selected Speed, Spray Rinse
NOTE: When using high speed in the
REGULAR Cycles, agitation speed is
reduced during the last few minutes for
better fabric care.

Operating Instructions
Continued
Permanent Press Cycle
A cycle designed for moderately
soiled permanent press and some
synthetic fabrics. The cool-down rinse
helps keep wrinkles from setting into
these items.
GentleShort Cycle
A cycle that gently washes and spins
lightly soiled delicate items and
washable knits.
to Selected Level
-2 Minutes Select
FILL to Selected Level I
-
WASH 6 Minutes Selected Speed
-
DRAIN No Agitation
! SPIN Selected Speed
FILL for Deep Rinse
RINSE Selected Speed
DRAIN No Agitation
SPIN Selected Speed, Spray Rinse
NOTE: When using high speed in the
PERMANENT PRESS Cycle, agitation
speed is reduced during the last few
minutes for better fabric care.

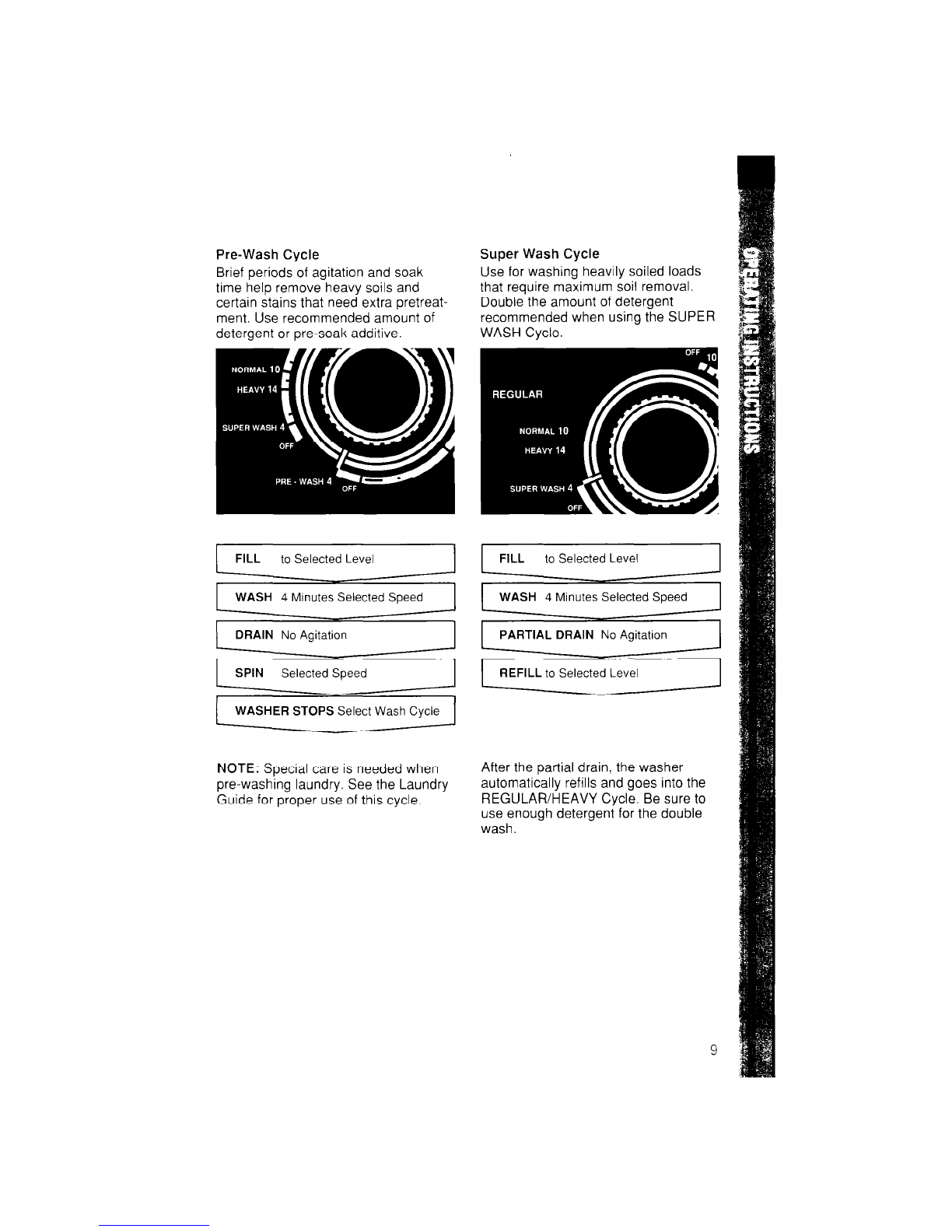

Pre-Wash Cycle
Brief periods of agitation and soak
time help remove heavy soils and
certain stains that need extra pretreat-
ment. Use recommended amount of
detergent or pre-soak additive.
Super Wash Cycle
Use for washing heavily soiled loads
that require maximum soil removal.
Double the amount of detergent
recommended when using the SUPER
WASH Cycle.
to Selected Level
WASH 4 Minutes Selected Speed
FILL to Selected Level
WASH 4 Minutes Selected Speed
DRAIN No Agitation
PARTIAL DRAIN No Agitation
SPIN Selected Speed REFILL to Selected Level
WASHER STOPS Select Wash Cycle
NOTE: Special care is needed when
pre-washing laundry. See the Laundry
Guide for proper use of this cycle.
After the partial drain, the washer
automatically refills and goes into the
REGULAR/HEAVY Cycle. Be sure to
use enough detergent for the double
wash.

OtherOperatingInstructions
Rinse and spin
When using extra detergent for heavily
soiled clothes, or washing special-care
items, you may want an extra rinse
and spin.
1. Push Cycle Control Knob in.
2. Turn clockwise to one of the dots
on the dial, as illustrated.
3. Pull Cycle Control Knob out. The
washer will fill to selected level,
agitate 2 minutes, drain and spin.
Drain and spin
A drain and spin may help shorten
drying times for some heavy fabrics or
special-care items by removing excess
water.
1. Push Cycle Control Knob in.
2. Turn clockwise until indicator points
to any bar just before an OFF area
on the dial, as illustrated.
3. Pull Cycle Control Knob out. The
washer will drain and spin.
Pre-wash cycle
For best results, use warm water for
pre-washing stained laundry. Hot
water can set stains.
1. Use recommended amount of
detergent or pre-soak product.
2. Push Cycle Control Knob in.
3. Turn clockwise until indicator points
to the number next to PRE-WASH.
4. Pull Cycle Control Knob out. The
washer will start.
5. When the cycle is over. add
detergent for the next selected
wash cycle.
NOTE: See the Laundry Guide for
additional pre-washing information.
10

/
Liquid bleach dispenser
MAGIC CLEAN Basket
lint filter interior
Always measure bleach. Do not
guess. Never use more than 1 cup
(250 mL) for a full load. Use less with
lower water level settings. Follow
directions on bottle for safe use. Use a
cup with a pouring spout to avoid
spilling.
1. Load the washer first.
2. Pour measured bleach carefully
into dispenser. Do not let bleach
splash, drip or run down into
washer basket. Undiluted bleach
will damage any fabric it touches.
3. Start the washer. Bleach will be
diluted automatically during the
wash part of the cycle.
MAGICCLEAN”lint filter
The lint filter at the bottom of the
washer basket cleans itself. During
agitation, wash and rinse water pass
over the filter, separating lint from
water. The collected particles of lint
are then continuously spun away from
the filter and washed out of the system
at the end of the wash cycle.
If your washer drains into a tub,
remove any lint collected in the tub or
strainer.

IfYouNeedServiceOrAssistance
We suggest you follow
these steps:
1. Before calling for assistance...
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
If your washer does not fill:
l Is the power supply cord plugged
into a live circuit with the proper
voltage?
l Are both water faucets open?
l Have you checked your home’s main
fuses or circuit breaker box?
l Are the water supply hoses kinked?
l Is the Cycle Control Knob set and
pulled out?
If your washer does not spin:
l Is the lid closed?
l Is the power supply cord plugged
into a live circuit with the proper
voltage?
l Have you checked your home’s main
fuses or circuit breaker box?
If your washer stops during a cycle:
l Remember, the washer pauses
briefly at different times in each
cycle. These pauses are normal.
If your washer fills and drains
without running:
l Make sure that the Cycle Control
Knob is pointing to a number in the
cycle.
Make sure the drain hose is higher
than the water level in the washer.
If it isn’t:
l The washer may seem to be draining
during wash and rinse cycles.
l Water can siphon out.
(See Installation Instructions.)
2. If you need assistance’...
Call Whirlpool COOL-LINE” service
assistance telephone number. Dial
free from anywhere in the U.S.:
1-800-253-l 301
and talk with one of our trained consult-
ants The consultant can instruct you in
how to obtain satisfactory operation
from your appliance or, if service is
necessary, recommend a qualified
service company in your area.
If you prefer, write to:
Mr. Donald Skinner
Director of Consumer Relations
Whirlpool Corporation
2000 M-63
Benton Harbor, Ml 49022
Please include a daytime phone number
in your correspondence.
3. If you need service*...
-LlY
Whirlpool has a
whit1 01 SMnationwide network of authorized
SERV’CEWhirlpoolSM service
companies.
Whirlpool service technicians are trained
to fulfill the product warranty and
provide after-warranty service, any-
where in the United States. To locate
the authorized Whirlpool service com-
pany in your area, call our COOL-LINE”
service assistance telephone number
(see Step 2) or look in your telephone
directory Yellow Pages under:
12

4. If you need FSP
replacement parts*...
FSP is a registered trademark of
Whirlpool Corporation for quality parts
Look for this symbol of quality
whenever you need a replacement
part for your Whirlpool appliance. FSP
replacement parts will fit right and
work right, because they are made to
the same exacting specifications used
to build every new Whirlpool
appliance.
To locate FSP replacement parts in
your area, refer to Step 3 or call the
Whirlpool COOL-LINE” service
assistance number In Step 2.
5. If you are not satisfied with how
the problem was solved’...
l Contact the Major Appliance
Consumer Action Panel (MACAP).
MACAP is a group of independent
consumer experts that voices
consumer views at the highest levels
of the major appliance industry.
l Contact MACAP only when the
dealer, authorized servicer or
Whirlpool have failed to resolve your
problem.
Major Appliance Consumer
Action Panel
20 North Wacker Drive
Chicago, IL 60606
l MACAP will in turn inform us of your
action.
*When requesting assistance, please
provide: model number, serial
number, date of purchase, and a
complete description of the problem.
This information is needed in order
to better respond to your request.
P
Gearcase assembly
covered by your
warranty. See back
cover for more
information.

Notes
14

Notes

WHIRLPOOL
AutomaticWasherWarranty AW008
LENGTH OF WARRANTY WHIRLPOOL WILL PAY FOR
FULL ONE-YEAR FSP” replacement parts and repair labor to correct
WARRANTY defects in materials (including top and lid rust) or
From Date of Purchase workmanship. Service must be provided by an
authorized WhirlpoolSM service company.
LIMITED FIVE-YEAR
WARRANTY
From Date of Purchase
FSP replacement parts for any part of gearcase
assembly if defective in materials or workmanship.
The gearcase assembly is shown in the “Service or
Assistance” section of this book.
FSP replacement parts for any top and lid rust.
LIMITED TEN-YEAR
WARRANTY
From Date of Purchase
FSP replacement of outer tub should it crack, or fail
to contain water, due to defective materials or
workmanship.
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of the washer.
2. Instruct you how to use the washer.
3. Replace house fuses or correct house wiring or plumbing.
B. Repairs when washer is used in other than normal, single-family
household use.
C. Pick up and delivery. This product is designed to be repaired in the
home.
D. Damage to washer caused by accident, misuse, fire, flood, acts of God
or use of products not approved by Whirlpool.
E. Any labor costs during the limited warranties.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation
of incidental or consequential damages so this limitation or exclusion may not apply
to you. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please contact
your authorized Whirlpool distributor or military exchange.
If you need service, first see the “Service and Assistance” section of this book. After
checking “Service and Assistance,” additional help can be found by calling our
COOL-LINER service assistance telephone number, l-800-253-1301, from anywhere
in the U.S.
@ Registered Trademark / SM Service Mark of Whirlpool Corporation
Part No. 3354636
cl 990 Whirlpool Corporation Printed in U.S.A.
