Whirlpool LCE4332P User instructions

®Compact Automatic Washer
PRODUCT MODEL NUMBERS
RECESSED AREA AND CLOSET INSTALLATION
DRAIN SYSTEM
LCE4332P
Electrical: A 120-volt, 60-Hz, AC-only, 15- or
20-amp fused electrical supply is required. Time-
delay fuse or circuit breaker is recommended. It is
recommended that a separate circuit serving only
this appliance be provided.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 326035915
09-22-04

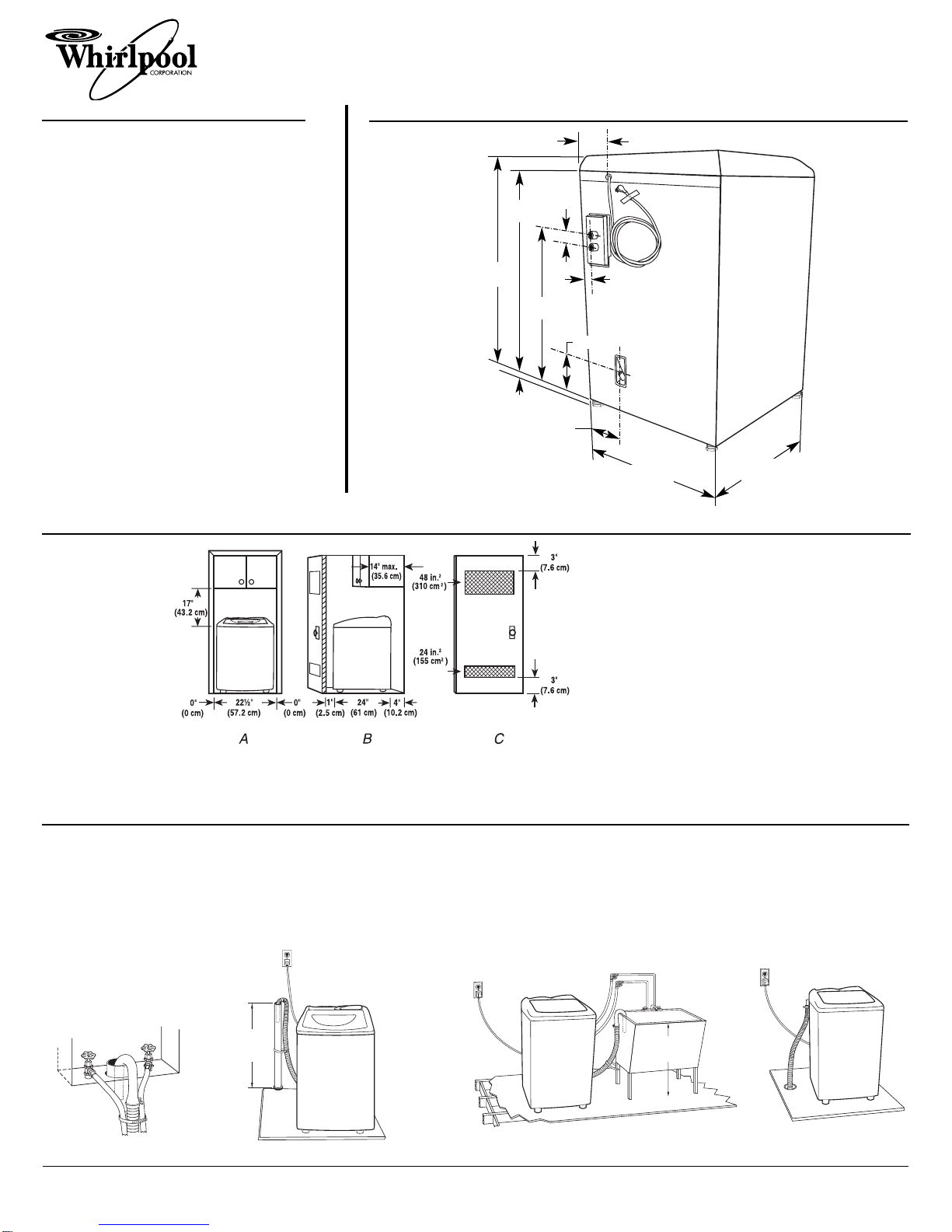

A. Front view
B. Side view
C. Closet door with vents
Additional clearances may be required for wall,
door and floor moldings.
If a closet door is installed, the minimum air
openings in the top and bottom of the door are
required. Louvered doors with air openings in
the top and bottom are acceptable.
Standpipe drain system - wall or floor (views A & B)
The standpipe drain requires a minimum diameter standpipe of 2" (5 cm).
The minimum carry-away capacity (for permanent installations) can be no
less than 13 gal. (49.2 L) per minute.
The top of the standpipe must be at least 39" (99 cm) high and no higher
than 72" (183 cm) from the bottom of the washer.
AB
39"
(99 cm)
C
39"
(99 cm)
D
Laundry tub drain system (view C)
The laundry tub requires a minimum carry-away capacity of 13 gal. (49.2 L) per minute
(for permanent installations). The top of the laundry tub must be at least 39" (99 cm)
above the floor and no higher than 72" (183 cm) from the bottom of the washer.
Floor drain system (view D)
The floor drain system requires a siphon break. The siphon break must be a minimum of
28" (71 cm) from the bottom of the washer. Additional hoses might be needed. The
minimum carry-away capacity (for permanent installations) can be no less than 13 gal.
(49.2 L) per minute.
REQUIREMENTS
7-1/4"
(18,4 cm)
6"(15,2 cm)
35"
(88,9 cm)
minimum height
with lid open
49-1/4"
(125,1 cm)
1" (2,5 cm)
24"
(61 cm)
31-1/8"
(79 cm)
6-1/2"
(16,5 cm)
2-1/2" (6,4 cm)
22-1/2"
(57,2 cm)
1-1/2"
(3,8 cm)
24"
(61 cm)
