WHISPER KOOL WCM 033114 User manual

WCM 033114
Ceiling Mount
OWNER’S MANUAL
The Coolest Thing In Wine Storage

WCM 033114
Copyright © 2012. WhisperKOOL. All rights reserved.
WhisperKOOL copyrights this manual, the product design, and the design concepts, with all rights reserved. Your rights with
regard to the hardware and manual are subject to the restrictions and limitations imposed by the copyright laws of the USA.
Under copyright laws, this manual may not be copied, reproduced, translated, transmitted, or reduced to any printed or electronic
medium or to any machine-readable form, for any purpose, in whole or in part, without the written consent of WhisperKOOL.
Every eort has been made to ensure that the information in this manual is accurate. WhisperKOOL is not responsible for printing
or clerical errors.
WhisperKOOL reserves the right to make corrections or improvements to the information provided and to the related hardware at
any time, without notice.
Vinothèque and WhisperKOOL are registered trademarks, and ECE is a trademark of WhisperKOOL. All rights reserved.
Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a
recommendation. WhisperKOOL assumes no liability with regard to the performance or use of these products.
REV 02
We manufacture, test and certify 100% of our wine cooling units in
the USA. By sourcing the best components and closely controlling our
manufacturing processes, we can assure the highest-quality,
lowest defect manufacturing rates in the industry.

www.whisperkool.com | Page 1
TABLE OF CONTENTS
Quick Reference Guide
Unit .....................................................
Knockout Location .......................................
Controller Layout & Specications ........................
Introduction ................................................
Receiving & Inspecting the System .........................
Before You Start ............................................
Preparing the Wine Cellar...................................
Preparing the installation Location.........................
Installing the Evaporator With Attic Access .................
220V Connection for Ceiling Mount Evaporator ............
Installing the Evaporator from Inside of Cellar .............
Drain Line...................................................
Liquid Thermostat (Bottle Probe)...........................
Remote Keypad .............................................
Active Humidity Option ....................................
Humidistat Installation .....................................
Ceiling Mount Wiring Diagram .............................
Ceiling Mount With Humidity Wiring Diagram..............
Ceiling Mount 4000 Condensing Unit Wiring Diagram .....
Ceiling Mount 8000 Condensing Unit Wiring Diagram .....
Preparing the Condensing Unit.............................
Condensing Unit Quick Reference Guide ...................
Line Set Piping Diagrams ...................................
Installing the Condensing Unit .............................
System Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Controller Functions ........................................
Maintenance Schedule .....................................
Troubleshooting Guide .....................................
Technical Assistance & Accessories .........................
Installation Terms and Conditions ..........................
2
3
4
6
7
8
9
12
15
20
21
24
25
26
27
28
30
31
32
33
35
36
40
41
43
44
47
48
50
51

Page 2 | 1-800-343-9463 WCM 033114
QUICK REFERENCE GUIDE
Top View
Bottom View
Mounting Bracket (Paintable)
Supply and Return Grille (Paintable)
Evaporator Unit (Fan Coil Unit)
Electrical Knockouts
Line Set Knock Out (x6)
Note: The unit comes black. The mounting bracket and front grille
are paintable, enabling you to match your desired color.
Top Panel
Electrical Knockout
Options
Line Set Knockout
Options

www.whisperkool.com | Page 3
2 x 1.50 Knockout
(Both Sides)
2 x 0.84 THRU
2 x
1.50 Knockout
2 x 0.84 THRU
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PROPRIETARY AND CONFIDENTIAL
NEXT ASSY
USED ON
APPLICATION
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
INTERPRET GEOMETRIC
TOLERANCING PER:
MATERIAL
FINISH
DRAWN
CHECKED
ENG APPR.
MFG APPR.
Q.A.
COMMENTS:
DATE NAME
TITLE:
SIZE
B
DWG. NO.
REV
WEIGHT:
SCALE: 1:6
UNLESS OTHERWISE SPECIFIED:
SHEET 1 OF 1
DO NOT SCALE DRAWING
1
Sheet 1
1-556000 Center Ceiling Mount
Knockout Locations
F. Pfaller
KNOCKOUT LOCATIONS
Side View of Evaporator Unit
Top View of Evaporator Unit
1.5”
2.5”
3”
5.55”
5.55”
14.1”
1.55”
Top View
Side View
1.75”
1.75”
13.25”
13.25”
20.75”
20.75”
35.75”
35.75”
12.65”
6.58”
1.5”
4.57” 4.29”
2”
12.65”
6.36”

Page 4 | 1-800-343-9463 WCM 033114
QUICK REFERENCE GUIDE
Controller Layout
Refer to page 44 for complete listing of buttons and symbols.
°
F
Compressor is On
Fans are On
Unit is in Anti-Frost Mode
Unit is in Pre-Chill Mode
Alarm is Present
°
F
°
F
°
F
°
F
°
F
View Set Point
Change Set Point
(Press and hold 3-5 sec)
Inactive
Power On/O
Low Bottle Temp
History
Scroll Button
High Bottle Temp
History
Scroll Button
Cellar Pre-Chill
(Press and hold 3-5 sec)
CEILING MOUNT SPECIFICATIONS
Model 4000 Evaporator
(Fan Coil Unit)
4000 Condenser
(Air Cooled Condensing Unit)
Cellar Size (cu. ft.) 1000
Dimensions 35.75”L x 14.5”W x 12.65”H 16”L x 11.5”W x 10”H
BTUh with 90° air entering
the Condenser Coil 3650
CFM 321 190
Refrigerant R-134a
Condensing Unit HP 1/3++
Voltage Rating (20 amp
dedicated circuit required) 115V or 230V
Weight (lbs) 80 56
AMPS (Starting/Running) 1.1 32.7/7.2
dBA 58.5 65
Drain Line 1/4” Condensate
Installation Evaporator unit (fan coil unit) is installed through the cellar ceiling, condenser is installed up to
100 line ft. from the evaporator unit.
Thermostat Digital Control Display
Temp. Delta 55°F max. temperature dierential between the cellar temperature and condenser air intake temperature.
Warranty 2-year parts and labor

www.whisperkool.com | Page 5
CEILING MOUNT SPECIFICATIONS
Model 8000 Evaporator
(Fan Coil Unit)
8000 Condenser
(Air Cooled Condensing Unit)
Cellar Size (cu. ft.) 2000
Dimensions 35.75”L x 14.5”W x 12.75”H 17.5”L x 13”W x 13.5”H
BTUh with 90° air entering
the Condenser Coil 4450
CFM 321 350
Refrigerant R-134a
Condensing Unit HP 1/2
Voltage Rating (20 amp
dedicated circuit required) 115V or 230V
Weight (lbs) 80 69
AMPS (Starting/Running) 1.1 48/9.5
dBA 58.5 65
Drain Line 1/4” Condensate
Installation Evaporator unit (fan coil unit) is installed through the cellar ceiling, condenser is installed up to
100 line ft. from the evaporator unit.
Thermostat Digital Control Display
Temp. Delta 55°F max. temperature dierential between the cellar temperature and condenser air intake temperature.
Warranty 2-year parts and labor

Page 6 | 1-800-343-9463 WCM 033114
WARRANTY REGISTRATION
In order to activate the warranty of your system, the Verication and Operational
Documentation must be completed by the certied refrigeration technician
installing your system and submitted via mail, fax or e-mail.
Mail to:
WhisperKOOL
ATTN: Warranty Registration
1738 E. Alpine Avenue
Stockton, CA 95205-2505
USA
Fax to:
209-466-4606
Scan and e-mail to:
[email protected]
OR OR
INTRODUCTION
Customer Service
Thank you for purchasing a WhisperKOOL cooling system. We strive to provide the highest quality products and the
best possible customer service. If you have any questions about your system, please call us at 1-800-343-9463 or visit
WhisperKOOL.com.
Using the Manual
This Owner’s Manual is intended to assist in the proper maintenance of the cooling system. In order to ensure the
longevity of your cooling unit, the equipment should be installed as outlined in the this Owner’s Manual. It is also vital
to establish a proper care and maintenance schedule. Please read and review this Owner’s Manual carefully and keep it
for future reference.
What is the WhisperKOOL Cooling System?
The WhisperKOOL cooling system is a specialized refrigeration system designed for one purpose only: to maintain
the optimal temperature and humidity levels conducive to the proper storage and aging of ne wines. This system
produces minimal in-cellar noise and has the most lenient exhaust requirements. An exterior housing is required for
outdoor condensing unit installations.
How Does the Cooling System Work?
Similar to the air conditioning systems used for homes, the evaporator and condensing units are installed in separate
locations and are connected by a refrigerant line set. The evaporator portion is commonly installed in the wine cellar,
with the condensing unit located either outside or in a remote indoor location that is ventilated. An exterior housing is
required for outdoor condensing unit installations.
Temperature Setting
The WhisperKOOL system can be set at any temperature within the acceptable wine-aging range of 50°F to 70°F. It
is designed to cool up to 55°F cooler than the ambient temperature of the space to which the condensing unit is
installed.

www.whisperkool.com | Page 7
Receiving and Inspecting the System
• Lift only at the designated hand hold locations on the shipping container or fully support the unit from
underneath. A shipment may include one or more boxes containing accessories.
• Inspect the packaging for any obvious signs of damage or mishandling before opening the container.
• Note any discrepancies or visual damage on the Bill of Lading before signing.
• Place the box containing the unit on a tabletop to prepare it for testing prior to installing.
• Sit unit upright for 24 hours.
Note: WhisperKOOL units are manufactured in the USA and tested prior to shipment.
Review the Packing Slip to Verify Contents
• Check the model number to ensure it is correct.
• Check that all factory options ordered are listed.
If any items listed on the packing slip do not match your order information,
contact WhisperKOOL Customer Service immediately.
Check the Evaporator Unit (Fan Coil Unit) Box for the Following Contents:
RECEIVING & INSPECTING THE SYSTEM
Please leave the unit in its original box until you are ready for installation. This will allow you to move the product
safely without damaging it. When you are ready to remove the product from the box, refer to the installation
instructions.
TIP: Save your box and all packaging materials. They provide the only safe means of transporting/shipping the unit.
• Ceiling Mount Evaporator Unit (Fan Coil Unit)
Accessory Kit:
• (12) #14 2” Phillips Pan Head Screw
• (1) 1/4” Drain Tube Connector
• (1) 10 ft. 1/4” Drain Line
• (1) 50’ Bottle Probe
• (1) Remote Keypad
• (1) 50’ Keypad Connection Cable
• (1) Remote Box
• (1) Split System Warranty Checklist
• (2) Strain Reliefs
• (1) Ceiling Mount Owner’s Manual
• (1) Mounting Bracket
Check the Condenser Box for the following contents:
• Ceiling Mount Condensing Unit
Accessory Kit Two:
• (1) 1/4” Sight Glass
• (1) 1/4” Filter Drier
• (12) #8 x 3/8” Black Oxide Screws
• (2) 7/8” Plugs
• (1) Small Strain Relief
• (2) Cable Ties
• (2) Cable Tie Holders
• (1) ∏” Plug
• (1) Anti-Siphoning Device

Page 8 | 1-800-343-9463 WCM 033114
BEFORE YOU START
1. Inspect the system before installation. If damage is found, please contact your distributor or WhisperKOOL
Customer Service at 1-800-343-9463.
2. The condensing unit requires a dedicated 115 volt 20 amp circuit. Use a surge protector with the unit. Do not use
a GFI (Ground Fault Interrupter) line.
3. It is REQUIRED to install a drain line to remove condensation from the evaporator unit.
4. The system is intended for use in properly designed and constructed wine cellars. Hire a professional wine
storage consultant with a valid contractor’s license to build your wine cellar.
5. WhisperKOOL requires that all Split Systems be installed by a certified HVAC-R technician only.
6. Warranty is not active until a Warranty Checklist has been received, reviewed, and approved.
If you encounter a problem with your WhisperKOOL system, please refer to the Troubleshooting Guide on page 48.
If you have any further questions, concerns, or need assistance, please contact WhisperKOOL’s Customer Service at
1-800-343-9463. Please be sure all testing has been completed prior to contacting Customer Service. Please have your
results ready for your representative.

www.whisperkool.com | Page 9
The performance and life of your system is contingent upon the
steps you take in preparing the wine cellar.
Note: Improperly preparing your enclosure or incorrectly installing your
unit may cause unit failure, leaking of condensation, and other negative side eects.
IT IS HIGHLY RECOMMENDED THAT YOU OBTAIN THE ASSISTANCE
OF A WINE STORAGE PROFESSIONAL.
Wine storage professionals work with licensed contractors, refrigeration technicians, and racking companies to build
well insulated, beautiful, and protective wine cellars. WhisperKOOL has provided useful tips to assist in the installation
process. Our recommendations are meant to act as a guide in the process of building a proper enclosure. Your
intended location may have specic needs that we do not address.
Wall & Ceiling Framing
Build wine cellar walls using standard 2x4 or 2x6 construction methods and ceiling joists following the guidelines of
local and state codes in your area. As a general rule, the thicker the walls and the higher the insulation value in your
cellar, the better it will be at maintaining a consistent temperature.
Insulation
Insulation is REQUIRED with the use of the WhisperKOOL product. Standard berglass or rigid foam insulation is
normally used in cellar construction or, in some cases,“blown-in” insulation is used. It is very important that all walls
and ceilings are insulated to keep the cellar temperature as consistent as possible during the summer and winter
months. The R-value, or quality of insulation, is determined by the rate at which heat passes through the insulation.
The higher the R-value, the more resistant the insulation is to conducting heat. Using higher R-values in insulation will
lower your operating costs and unit run time. (R-13 minimum, R-19 recommended, R-30 for ceiling and exterior walls.)
Vapor Barrier
Water vapor creates its own pressure (separate from the air pressure) and will intrude into colder/drier areas. A vapor
barrier is REQUIRED to prevent the intrusion of water vapor so that the cellar can be kept at the correct temperature
and humidity. 6 mm plastic sheeting (recommended) should be applied to the warm side of the cellar walls. The
vapor barrier must also be applied to the outside walls and ceiling. If it is impossible to reach the outside, then the
plastic must be applied from within the cellar. The most common method is to wrap the entire interior, leaving the
plastic loose in the stud cavity so the insulation can be placed between each stud. All of the walls and ceiling must be
wrapped in plastic for a complete vapor barrier.
In areas of high humidity, such as Southern and Gulf States, the vapor barrier will prevent inltration of warm, moist
air. The moist air can cause mold to form, and standing water in drain pans promote microbial and fungal growth that
cause unpleasant odors and indoor air quality problems. If mold is found, remove it immediately and sanitize that
portion of the unit.
Note: High humidity signicantly increases the heat load on the cooling system.
Any break in the vapor barriers (cut, nail hole, over-lapping, etc.) will allow a moisture leak and must be sealed. The
electric conduit is a “duct” for vapor to travel in. The conduit should be caulked and sealed on the warm air end.
PREPARING THE WINE CELLAR

Page 10 | 1-800-343-9463 WCM 033114
Unobstructed Airow
Unobstructed airflow to and from the system is critical for the system’s overall performance and life span. A
minimum three-foot clearance (five-foot is ideal) area is crucial. The air blown by the fans needs to circulate and either
dissipate or absorb heat from the space. The system will operate more efficiently with a greater amount of air to
exchange.
Door and Door Seal
An exterior grade (1 3/4”) door must be installed as a cellar door. It is very important that weather stripping is attached
to all 4 sides of the doorjamb. A bottom “sweep” or threshold is also required. The door must have a very good seal
to keep the cool cellar air from escaping out of the cellar. One of the most common problems with cooling systems
running continually is due to the door not sealing properly. In cases where glass doors are used and the room size
is close to the recommended system size, the next larger size WhisperKOOL system should be used. This will
compensate for the insulation loss due to the lower insulating rating of glass.
Note: Avoid attempting to camouflage the unit. This will restrict
airflow, and thus the system’s ability to work efficiently.

www.whisperkool.com | Page 11
Ambient Temperature Factor
The cooling system has the ability to cool a wine cellar eciently to 55°F as long as the ambient temperature of the
area that it is exhausting to does not exceed 110°F. Therefore, you want to exhaust the condensing unit in a space which
will not exceed 110°F and will allow for proper dissipation of the heat exhausted by the condensing unit. Without proper
heat dissipation the system will not have the capacity to keep the wine at a desirable 55°F.
Ventilation
The necessity of dissipating heat away from the condensing unit is critical to the performance and cannot be
overstated. As the system operates and cools, a greater amount of heat is generated on the condensing side of the
system. Adequate ventilation is required in order to dissipate heat away from the condensing unit. If ventilation is
inadequate, the exhaust will heat the area or room and adversely aect the system’s ability to cool. In some cases, it
may be advisable to install a vent fan to dissipate heat within the exhaust area on the condensing side of the system.
However, you must have a fresh air inlet as well.
Note: If you are unsure about having adequate ventilation in your install location, please
contact us to assess your specic installation at [email protected] or 1-800-343-9463.
WARNING! allowing your system to operate in high ambient temperatures for
extended periods of time will greatly decrease the life of your system and void
your warranty. The cooler the temperature of the air entering the condenser coil,
the more cooling capacity the system has. The less heat gain through the common
wall, the lower the consumption of electricity.

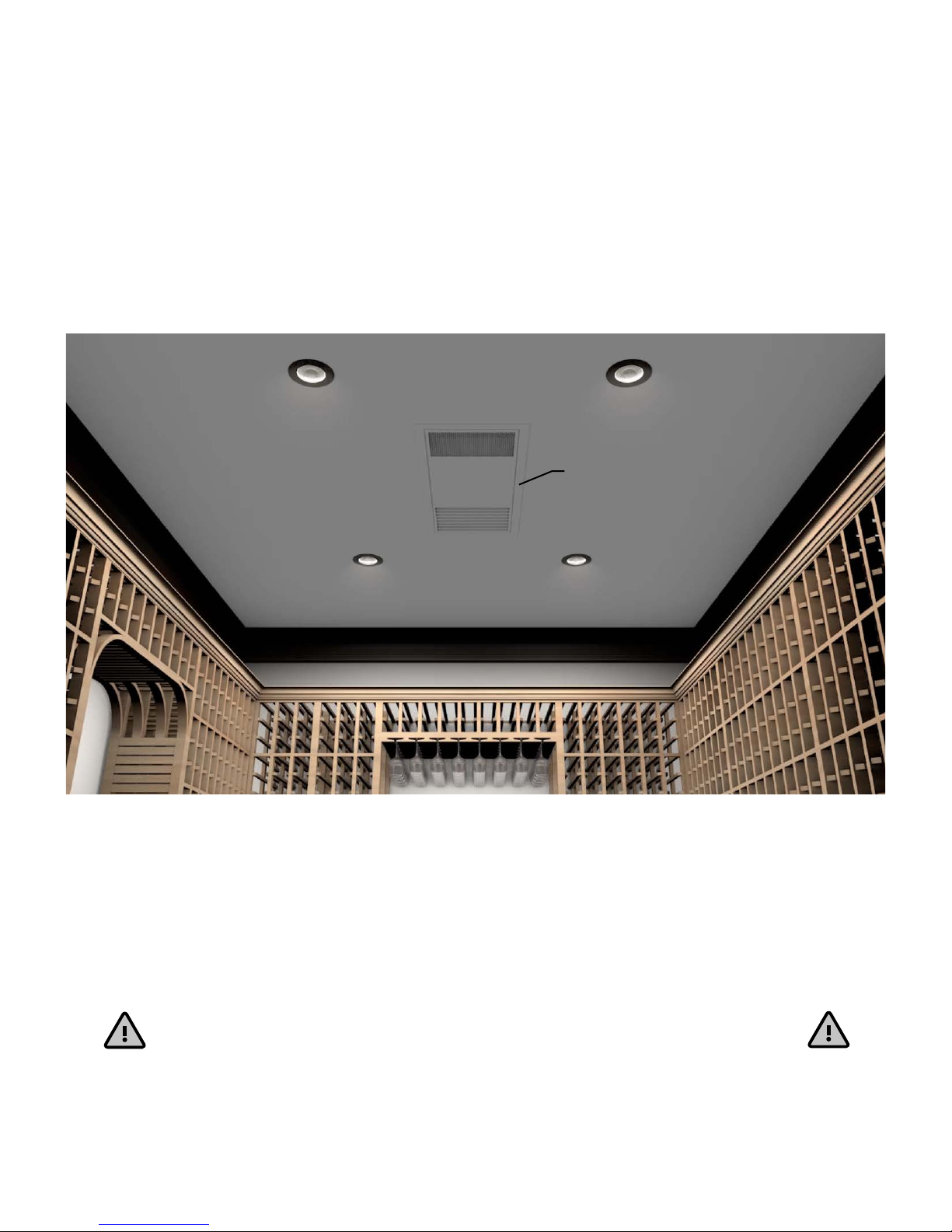

CEILING
EVAPORATOR
UNIT
Note: The unit comes black. The mounting bracket and front grille
are paintable, enabling you to match your desired color.

Page 12 | 1-800-343-9463 WCM 033114

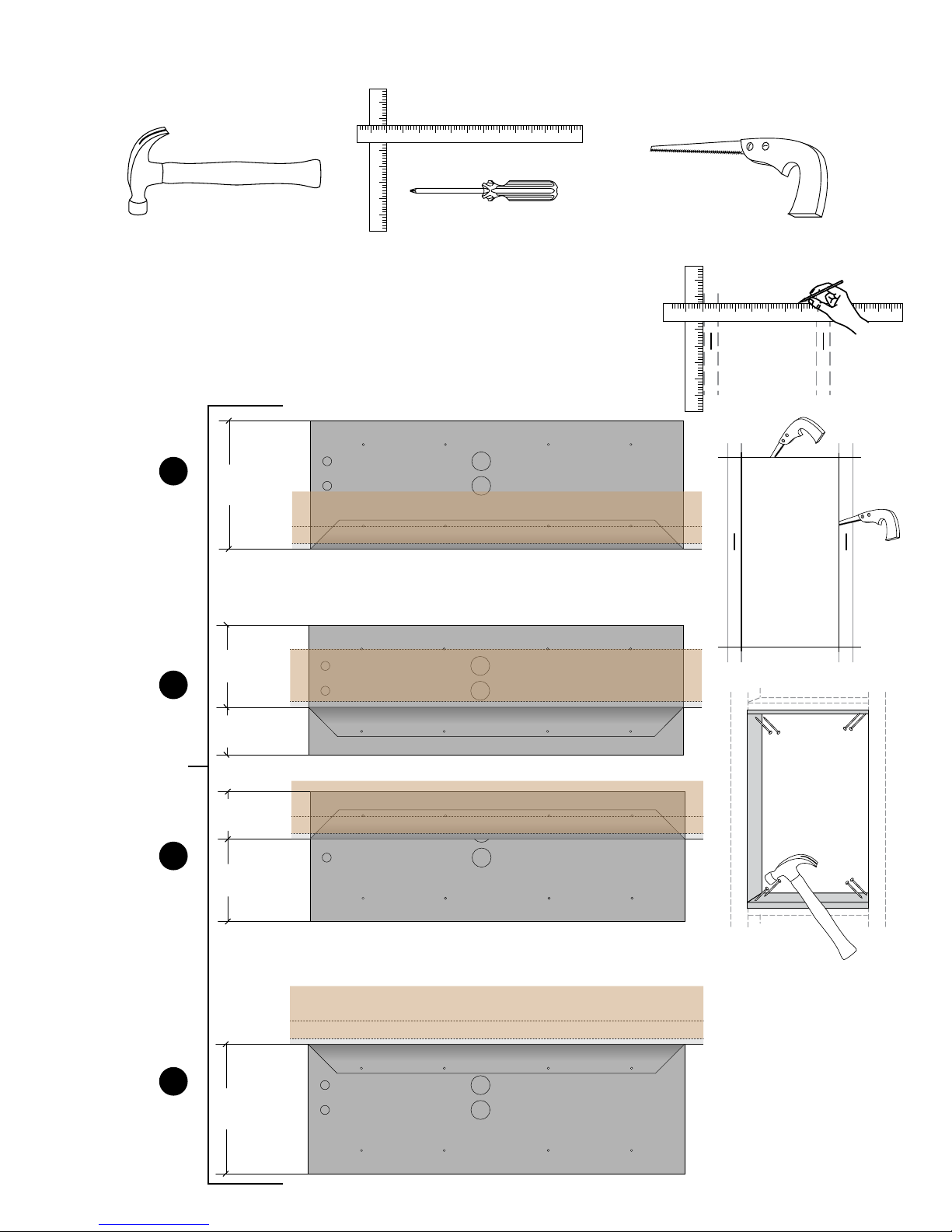

Minimum Tools Needed:
Fully Exposed
Mounting Option
Flush Mount
Mounting Option
Choose a Mounting
Option suitable
for the installation
location.
Partially Recessed
Mounting Option
Locate the desired installation location. Using a stud nder, locate the ceiling
joists on either side of the center point. Cut and frame an opening in the
ceiling measuring 14.5”x 36”. Make sure the framing is sucient to support
the weight of the cooling unit. It is highly recommended to use only the
mounting locations provided. These locations ensure that the installer
will not drill into any copper or electrical within the system.
Hammer Saw
Phillips Head #2
Screwdriver
PREPARING THE INSTALLATION LOCATION
T-Square
1
2
3
4
12.65”
12.65”
5.75”
6.9”
6.9”
5.75”

www.whisperkool.com | Page 13
NOTES

Page 14 | 1-800-343-9463 WCM 033114
INSTALLING THE EVAPORATOR UNIT (TYPICAL INSTALLATION)
ITEMS TO ROUTE BEFORE INSTALLING THE EVAPORATOR
1. Route the line set from the condensing unit to the desired evaporator installation location.
2. Route the keypad cable from the desired keypad location to the evaporator installation location (see page 26 for
more keypad information).
3. Route the bottle probe cable from the desired thermostat bottle location to the evaporator installation location
(see page 25 for more bottle probe information).
4. If you have purchased a unit with the Active Humidity Option, route the water line from the water source to the
evaporator location (see page 27 for more Active Humidity Option Information).
5. If you have purchased a unit with the Active Humidity Option, route the humidistat cable from the desired
humidistat location to the evaporator installation location (see page 28 for more Humidistat Information).
6. Route the drain line from a proper discharge location to the evaporator installation location (see page 24 for more
drain line Information).
7. Route the power cable wiring to the evaporator installation location.
ITEMS TO ROUTE
FAN
HI
MED
LOW
HU-
MID
OFF
DE-
HUM
30
40
50 60 70
80
90
%
FILTRATION SYSTEM
WATERLINE
POWER CABLE
DRAIN LINE
HUMIDISTAT
CABLE
For units equipped with the
Active Humidity Option
For units equipped with the
Active Humidity Option
KEYPAD CABLE
BOTTLE PROBE
LINE SET

www.whisperkool.com | Page 15
INSTALLING THE EVAPORATOR UNIT WITH ATTIC ACCESS
Figure 1
TOP VIEW
1. Place the evaporator on a working table with the Top
Access Panel facing up as shown in Figure 1.
Note: Line Set and drain line should extend to the exterior of
the unit through the Knockout(s). Dimensioned Locations of
the knockouts are provided on page 3.
PREPARING THE EVAPORATOR FOR INSTALLATION
2. Unscrew the 16 screws and remove the Top Access
Panel.
3. Remove the Knockout(s) you will be using to route the
Line Set into the unit.
4. Remove the Knockout(s) that you will be using to route
the items on the previous page into the unit (power
cable wiring, keypad cable, bottle probe cable, and
humidistat cable).
6. Using 1/4”and 1/2” copper tubing, route the liquid and
suction lines through the knockouts in the wrapper.
Note: 1/2”copper tubing will slip over the 3/8”suction
line on the evaporator for an easy connection.
7. Place a wet rag around the suction and liquid lines
approximately 4” from the braze joints. This will
prevent excess heat from damaging components.
8. To prevent oxidation, purge nitrogen through the
system.
9. Braze the copper tubing to the connections on the
evaporator unit
10. Insulate the suction line using Armaex or similar
insulation.
11. Route the drain line out of the evaporator unit with the
line set.
5. Remove the protective caps from the liquid and
suction line connection tubes. (as shown below)
LINE SET DRAIN LINE

Page 16 | 1-800-343-9463 WCM 033114
INSTALLING THE EVAPORATOR UNIT WITH ATTIC ACCESS
PREPARING THE EVAPORATOR FOR INSTALLATION CONTINUED
12. If you have purchased the Active Humidity Option, route the 1/4” water line out of the evaporator unit with the
drain line.
13. Reinstall the protective caps on the end of the line set to prevent debris from entering the system.
14. Reinstall the Top Access Panel and fasten the 16 screws into place.
15. Secure the mounting bracket to the unit as outlined on the next page.
Note: It is highly recommended to use only the mounting locations provided. These locations ensure that the
installer will not drill into any copper or electrical within the system.
LINE SET
MOUNTING BRACKET
DRAIN LINE
POWER CABLE
WIRING
KNOCKOUT
BOTTLE PROBE &
KEYPAD WIRING
KNOCKOUT

www.whisperkool.com | Page 17
Single Piece Mounting Bracket
The mounting bracket has been designed to secure the unit to the ceiling. Install the
mounting bracket to the evaporator unit following the guide below.
Mounting Bracket Installation
Using the guide below, select the desired mounting orientation and slide the mounting bracket onto the unit. Align
the mounting holes on the mounting bracket with the pre-drilled holes on the unit. Fasten the mounting bracket to
the unit using the supplied 1/2” self-tapping screws. Slide the unit through the framed opened in the ceiling. Secure
the unit to the opening using the 12 supplied 1 3/4”hex head screws.
INSTALLING THE EVAPORATOR UNIT
2. Secure the unit’s mounting bracket to the opening using the 12 supplied 1 3/4” hex head screws.
1. Secure the mounting bracket to the unit.
1. Keypad & Bottle Probe Wiring
2. Power Cable Wiring
3. Drain Line
4. Line Set
Routed Items:
Note: It is highly recommended to use only the mounting locations provided. These locations ensure that the
installer will not drill into any copper or electrical within the system.

Page 18 | 1-800-343-9463 WCM 033114
1. Insert the following items into the unit through the
removed knockouts: power cable wiring, keypad cable,
bottle probe cable and humidistat cable (optional).
INSTALLING THE EVAPORATOR UNIT WITH ATTIC ACCESS
CONNECTING THE EVAPORATOR UNIT
Note: The diagram on page 16 labels the knockouts to route
theses items into.
2. Remove the eight screws securing the supply and
return air grille.
3. Grasp the grille and pull straight down. This will release
the grille from the ball studs.
4. Remove the two screws securing the Control Access
Panel in place and remove the panel.
5. Remove the thumbscrew holding the electrical panel
and slide the panel.
6. Connect the power cable to the evaporator.
7. Connect the keypad cable to the evaporator (see page
26 for more keypad information).
8. Connect the bottle probe cable to the evaporator (see
page 25 for more bottle probe information).
9. If you have purchased the Active Humidity Option,
connect the Humidistat cable to the evaporator (see
page 28 for more humidistat information).
(Optional)
10. Slide the electrical panel back into the evaporator unit
and secure with the thumbscrew.
11. Re-install the control access panel.
