Whistler GPSMOD2 User manual

USER MANUAL
GPSMOD2
GPS Module for D19VR

2

3
Welcome
Thank you for choosing a Whistler product. We are dedicated to
providing products that represent both quality and value. Please
read the user manual carefully before using this product. If you have
additional questions, please visit the FAQ page on our website at
www.whistlergroup.com or call Toll Free [phone] / Tel (479)
273-6012, 8am to 5pm CT, Monday through Friday to speak to a
Customer Service Representative.
Features
INTRODUCTION
• Built-in U-blox 7 GPS/GNSS Chips
• Supports GPS, GLONASS, Galilleo and QZSS signals
• Supports L1C/A Signals at 1575.42MHz by GPS
• High Sensitivity
• Low Power Consumption
• Supports AGPS Autonomous Mode

4
Getting Started

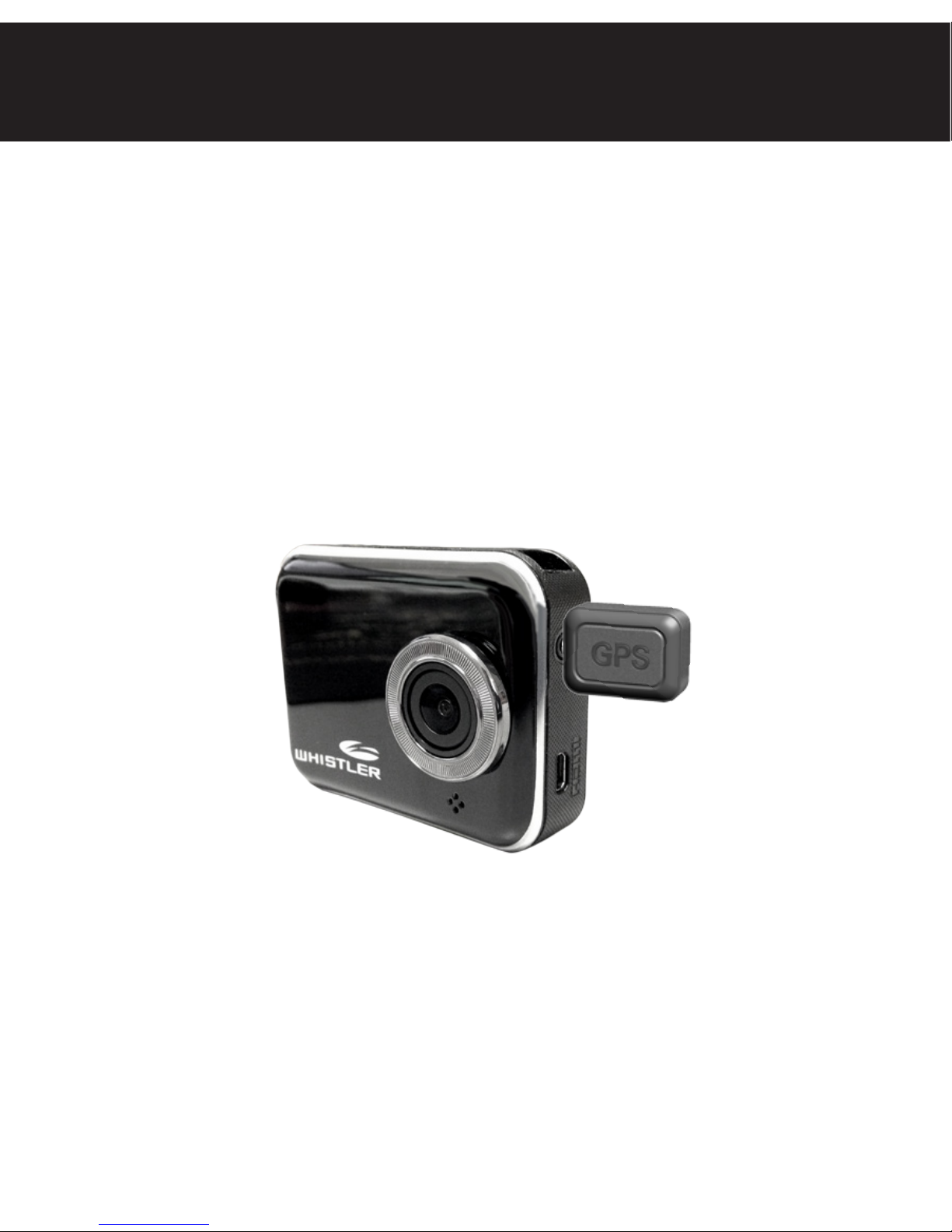

1. Insert GPSMOD2 into the D19VR.
2. Make sure GPS logo faces out and slightly up with clear
view to sky.
3. Insert SD card into DVR and turn DVR on.
4. Wait until GPS locks on to satellites before recording.
OPERATION
Map reader download instructions
1. Go to the Whistlergroup.com download area, select
DVR, Whistler Map Software Google - D19VR or
Whistler Map Software Baidu - D19VR.
2. Double click Setup.exe to install Unieye Map Reader
and follow on screen instructions.
NOTE: Baidu Map Reader For Use In China Only.

5
Unieye Map Application Usage
Viewing Recorded Files
1. Take out the SD card from your device, and put it into the card
reader of your computer.
2. Click “Unieye Map” to open the Unieye Map Reader.
3. Press to select SD card.
(Unieye Map can only read the video les from the SD card.)
4. The Start and End location of the video will be marked on
the map.
5. Press to reverse/play/stop/forward your video.
6. Press to adjust the volume of your video.
OPERATION
Baidu Map ViewGoogle Map View

6
OPERATION
Speedometer

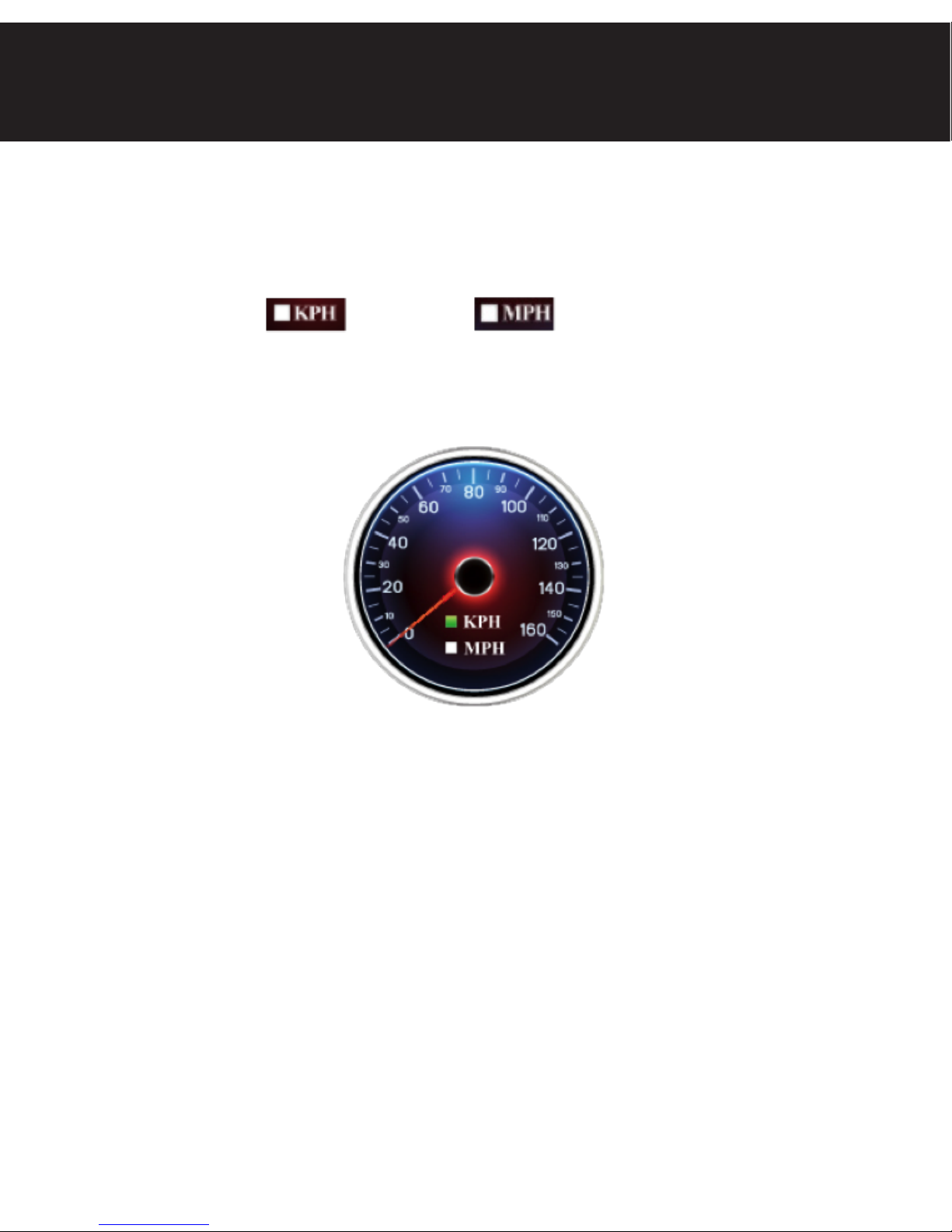

1. Shows the speed information from the recorded video.
2. Select KPH or MPH to change between
Kilometers per hour or Miles per hour.

7
Compass
1. Shows the moving direction from the recorded video.
Calendar
1. Press move to next month.
2. Press move to previous month.
3. Press the date in the calendar, the recorded videos
show dates information in the 24 hours meter.
4. Click on color lines to select the video you want to watch.
OPERATION
The Length of Video Clip 60 Minutes 24 Hours

8
OPERATION
PIP Mode
1. In Windows Mode, press button for Full Screen
Mode.
2. The default of Full Screen Mode: video in parent window,
map in child window.
3. In Full Screen Mode, press button returns to
Windows Mode

9
PIP Switch
1. Press button to swap PIP image.
OPERATION

10
SPECIFICATIONS
HARDWARE SPECIFICATIONS
GPS Solution U-blox 7 GPS/GNSS Chips
GPS Antenna GPS Antenna 18*18mm RHCP; 1575.42MHz
GPS Protocol Input/Output, ASCII, 0183,
2.3 (compatible to 3.0)
GPS Performance
Receiver Type
56 Channels
GPS L1C/A
SBAS L1C/A
QZSS L1C/A
First Plugin Car DV (Time-To-
First-Fix)
<50sec
Hot Start <5sec
Horizontal Position Accuracy <10m
Sensitivity -160dBm@Tracking &
Navigation
