NP100 Non-Programmable Thermostat
Installation Instructions & User Guide
Congratulations on the purchase of your White-Rodgers™thermostat!
Save these instructions for future use!
Questions? Contact White-Rodgers
™
customer service at 1-877-654-9394
For Installation Help
1-877-654-9394
White-Rodgers.com
F
F
F
F
F
For Installation HelpFor Installation Help
For Installation Help
For Installation Help
For Installation Help
For Installation Help
For Installation Hel
p
1
1
-
877
-
654
-
9394
877 654 9394
W
hite-Rod
g
er
s
.
c
o
m
0037-7264A
© 2011 Printed in China
White-Rodgers
8100 West Florissant Avenue
St. Louis, MO 63136

111
ATTENTION: MERCURY NOTICE
This product does not contain mercury. However, this product may replace a
product that contains mercury. Mercury and products containing mercury must
not be discarded in household trash. Do not touch any spilled mercury. Wearing
non-absorbent gloves, clean up any spilled mercury and place in a sealed
container. For proper disposal of a product containing mercury or a sealed
container of spilled mercury, place it in a suitable shipping container.
Refer to www.White-Rodgers.com for location to send product containing
mercury.
These symbols are used throughout this User Guide.
Watch for them to identify:
Cautions
Tips
Part 1: Before Getting Started ...................................................... Page 2
1.1 Check package contents
1.2 Answer questions about source of heating in your home
1.3 Assemble tools
1.4 Turn off power to your heating and cooling system
Part 2: Remove Old Thermostat and Install New Thermostat .... Page 4
2.1 Expose wires connected to old thermostat
2.2 Label and disconnect the wires
2.3 Install new thermostat’s wallplate
2.4 Match and connect wires
2.5 Set switch
2.6 Install batteries
2.7 Snap thermostat to the wallplate
Part 3: Quick Setup..................................................................... Page 13
3.1 Get to know your thermostat
3.2 Select options
3.3 Set fan and system switch
3.4 Turn on power to your heating and cooling system
Part 4: Additional Thermostat Features.................................... Page 17

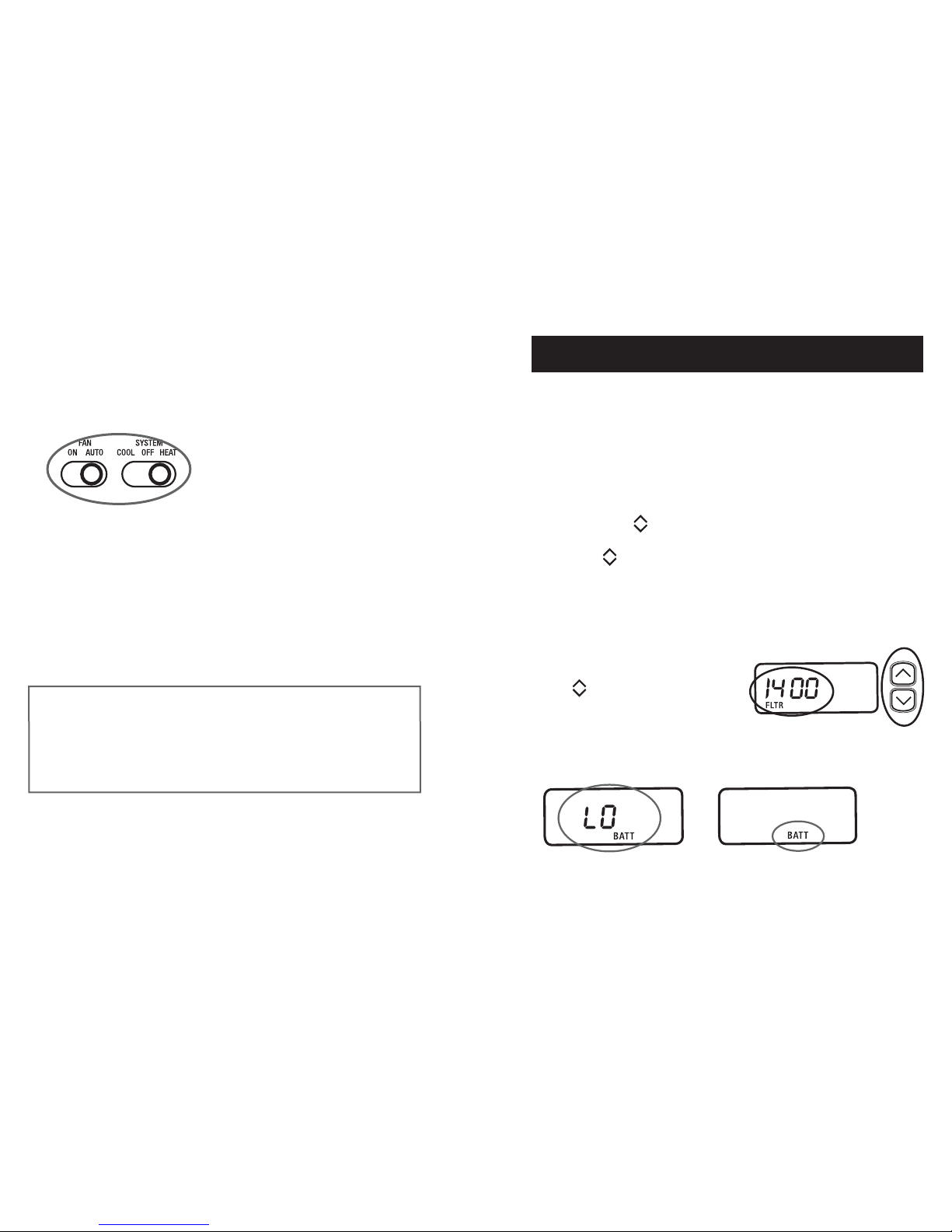

4.1 Set change filter reminder
4.2 Change batteries
4.3 Adjust actual temperature display
Part 5: Troubleshooting Guide.................................................... Page 19
TABLE OF CONTENTS
• Failure to read and follow all instructions carefully before installing
or operating this control could cause personal injury and/or
property damage.
• The thermostat may stop controlling temperature and your house
may freeze or overheat when batteries are too low. Batteries must
be changed when or appears on the
display.

2 3
A
B
C
Part 1 Before Getting Started
1.1 Check package contents
Open the package and verify that the following items are included:
• Thermostat Wallplate (A) and Cover (B)
• 2 mounting screws and wall anchors (C)
• Wire Labels
• Installation Instructions and User Guide
Before getting started, please review the following
pre-installation checklist.
If any of the items shown above are missing from your package,
call White-Rodgers™customer service at 1-877-654-9394 before
returning the thermostat to your place of purchase.
✔Do you have either oil or gas burning furnace?
✔Do you have Hydronic Heating (steam or hot water radiators or
radiant floor heating)?
You will need the following tools:
✔Flat-head screwdriver
✔2 AA alkaline batteries
You may also need:
✔Hammer
✔Drill with 3/16" (4 mm) bit
✔Small pliers to bend wires
Typically, this is achieved by flipping a switch on the outside of the
furnace/air handler to the “OFF” position.
1.2 Answer questions about source of
heating in your home
1.3 Assemble tools
1.4 Turn off power to your heating and
cooling system
Do not turn the system back on until you have
completed the installation and set up of the thermostat.

4 5
C
AUX
GE
L
Y
W
RC
R
Part 2 Remove Old Thermostat and
Install New Thermostat
Do not disconnect wires from the old thermostat until you
label all the wires according to this manual.
2.1.1After turning off power to your heating & cooling system,
expose wallplate with wires and wire terminals. The required
steps vary depending on your old thermostat type.
2.1 Expose wires connected to
old thermostat
✔The Cover: This usually pulls off, but is sometimes secured by a
screw which must be loosened.
✔The Base: This either pulls off or needs to be removed by loosening
screws under the cover.
✔The Wallplate: This is removed by loosening the screws that hold
the thermostat to the wall.
Your old thermostat may consist of:
• 3 parts: a cover, base and wallplate
or
• 2 parts: a cover and wallplate
Wallplate
Wallplate
Base
Cover
Cover
3-Part unit
2-Part unit

6 7
✔ Ignore wire colors. There is no standard color code for
thermostat wires.
✔ Ignore existing wire labels, if they are present.
✔ Use the provided labels to label/re-label the thermostat wires.
✔ The new labels must remain on the wires at least until the
installation process is complete.
✔ No two wires can have the same label.

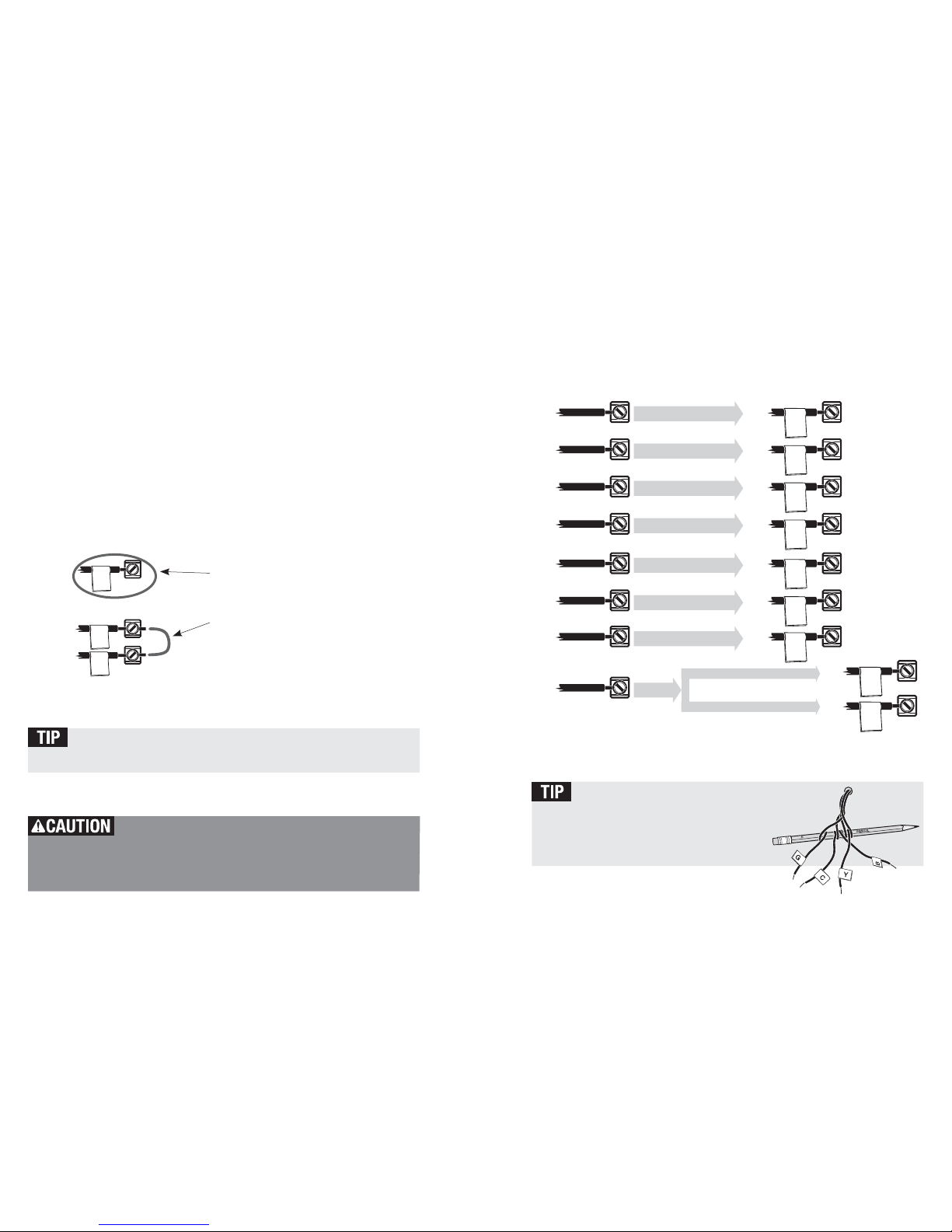

2.2.1 Note you may see two types of wiring in the old thermostat:
1. Wires leading from the wall to a
terminal on the thermostat
2. Wires connecting one terminal to
another (jumper wire).
These don’t have to be labeled.
2.2 Label and disconnect the wires
wall
C
wall
C
wall
2.1.2 Loosen all screws holding the old thermostat’s wallplate to
the wall. Do not disconnect the wires from terminals. Allow
the wallplate to hang loosely on the wires.
Wall opening
Wallplate hanging on the wires

8 9
If the OLD thermostat’s
terminal is wired into the wall
and identified by this letter…
…Then label its wire with
this letter:
You’ll need this information further in the installation process!
2.2.2 Label each wire that comes out of the wall and attaches to
terminals on the old thermostat. Use labels provided with your
new thermostat.
1. Note the letter printed near each wired terminal
2. For each out-of-the-wall wire:
– find its terminal letter(s) in the left column of the table
on page 9,
– label the wire according to the right column of the table.
3. Make the following notes in the right column of the table
on page 9:
– Circle all your out-of-the-wall
labeled wires
– Pencil in any jumper wire
connecting 2 terminals
Mislabeling the wires could result in damage to your
heating and cooling unit.
Contact White-Rodgers™Customer Service at 1-877-654-9394 if your
old thermostat contains any wired terminals not listed in the table.
Note: No thermostat installation uses all of the wires shown
on page 9. In most cases, between 4 and 5 terminals are wired.
wall
C
wall
wall
RC
RH
G
RC, R
RH, 5, R5
W, 4, W1
Y, Y1
X, C
O
B
wall
wall
wall
wall
wall
wall
wall
wall
wall
G
wall
RC
wall
RH
wall
W
wall
Y
wall
C
wall
O
wall
B
wall
If terminal “O” is NOT wired.
If terminal “O” is wired.
C
2.2 Label and disconnect the wires (cont.)
Examples
2.2.3 After labeling all the wires, use a screwdriver to disconnect
each wire from its terminal. Remove the old thermostat.
Make sure that the wires don’t fall
into the wall after you detach them from
the old thermostat. You may choose to
tape them to the wall or tightly wind them
around a pencil or screwdriver.

10 11
B
2.4 Match and connect wires
2.4.1 Match each wire coming from the wall to its corresponding
terminal, as shown in the illustration below. Insert each wire into
the hole on the side of its matching terminal. Using a screwdriver,
tighten the screw securely. DO NOT REMOVE THE WIRE LABELS.
A maximum of one wire from the wall can be wired
into each terminal.
No thermostat installation uses all of the wires shown below.
In most cases, between 4 and 5 terminals are wired. The remaining
terminals will not be used.
2.4.2 In the new thermostat, a jumper wire
connects the RC and RH terminals.
If, in your OLD thermostat… Then…
Terminals RC and RH (or 5, or R5) …leave the jumper wire in place
were connected by a jumper wire, in the new thermostat.
There was a terminal R, which you then …leave the jumper wire in place
labeled RC according to 2.2.2, in the new thermostat.
Terminals RC and RH (or 5 or R5) …remove the jumper wire from the
were NOT connected by a jumper wire, new thermostat.
If you’re not sure whether terminals RC and RH were connected in your old
thermostat, refer to your notes made in section 2.2.2.
GAS
ELEC
CGOY
WRHBRC
2.3.1 Detach the new thermostat’s wallplate from the rest of the
thermostat and position the wallplate on the wall according to
the illustration below, passing the labeled wires through the
wire hole in the center of the wallplate.
2.3.2 With the wallplate flush against the wall, mark mounting holes
with a pencil.
2.3 Install new thermostat’s wallplate
Do not allow wires to touch each other or parts on
the thermostat. Doing so could result in damage to your heating and
cooling unit.
2.3.3 Move the wallplate aside. Drill the mounting holes using a 3/16"
drill bit. With a hammer, tap the wall anchors, provided in the
package, into the drilled holes.
2.3.4 Position the wallplate on the wall again and screw the mounting
screws into the wall anchors. Do not use a power screwdriver,
you may damage your thermostat.
Wallplate
Mounting hole
WW
CGOY
Y
O G
C
RH RH
BB
RC RC

12 13
System Switch
Cool - air conditioning
Heat - heating
Off - system turned off
Fan Switch
On - fan always on for air circulation
Auto - fan runs only when system
provides Heating or Cooling
Indicates system
currently providing
Heating (flame
icon) or Cooling
(snowflake icon)

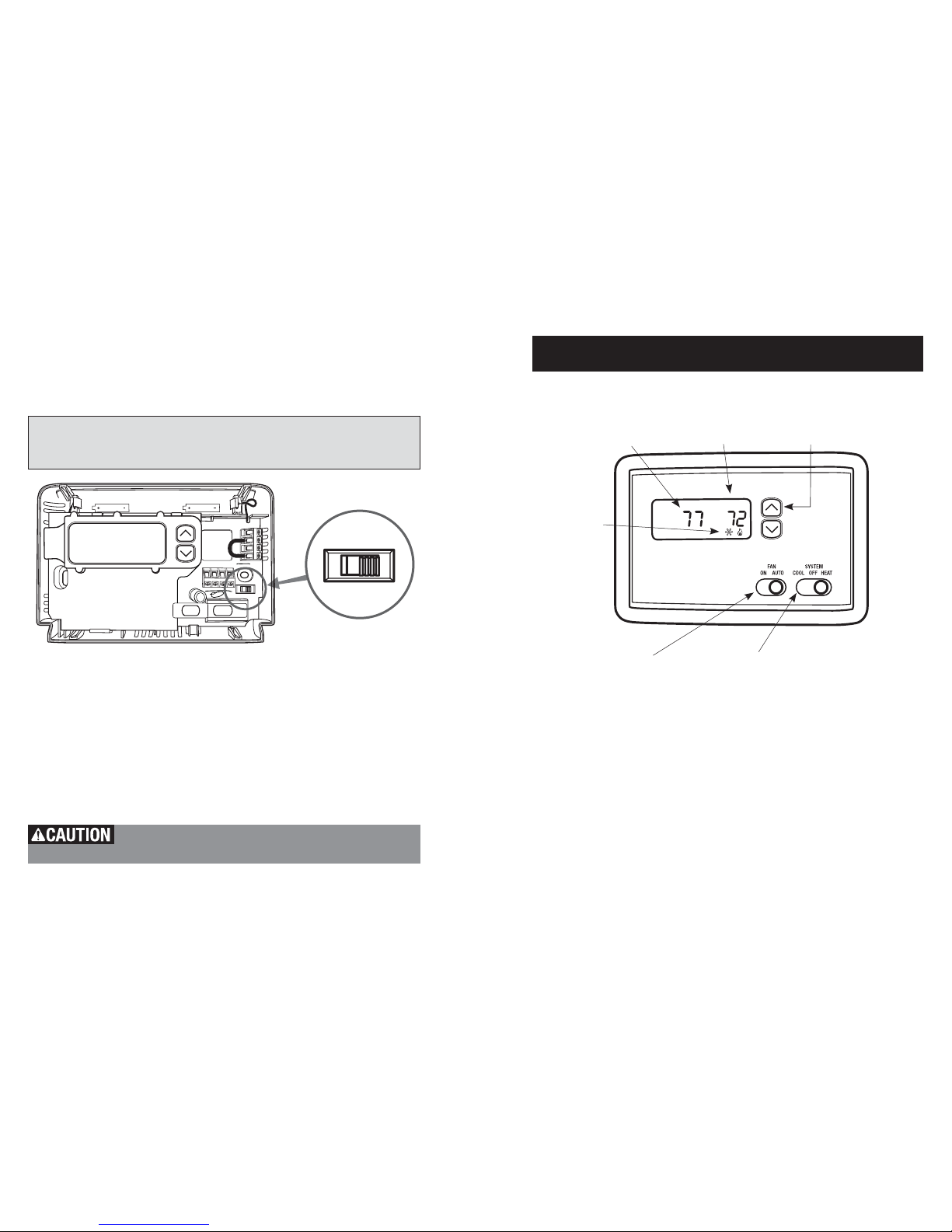

Find a switch located in the lower right corner of the wallplate labeled
ELEC/GAS. Set it as follows:
2.5 Set switch
• If you have either a gas or oil furnace, set the switch to GAS.
• If you do NOT have a gas or oil furnace, set the switch to ELEC.
Install 2 AA alkaline batteries (not included) into the battery
compartment at the top of the thermostat.
2.7 Snap thermostat to the wallplate
2.6 Install batteries
Do not restore power to the heating and cooling system
until instructed.
Part 3 Quick Setup
3.1 Get to know your thermostat
Actual
Temperature
Desired
Temperature
Temp Up/Down
Buttons
GAS
ELEC
CGOY
WRHBRC
GAS
ELEC

14 15

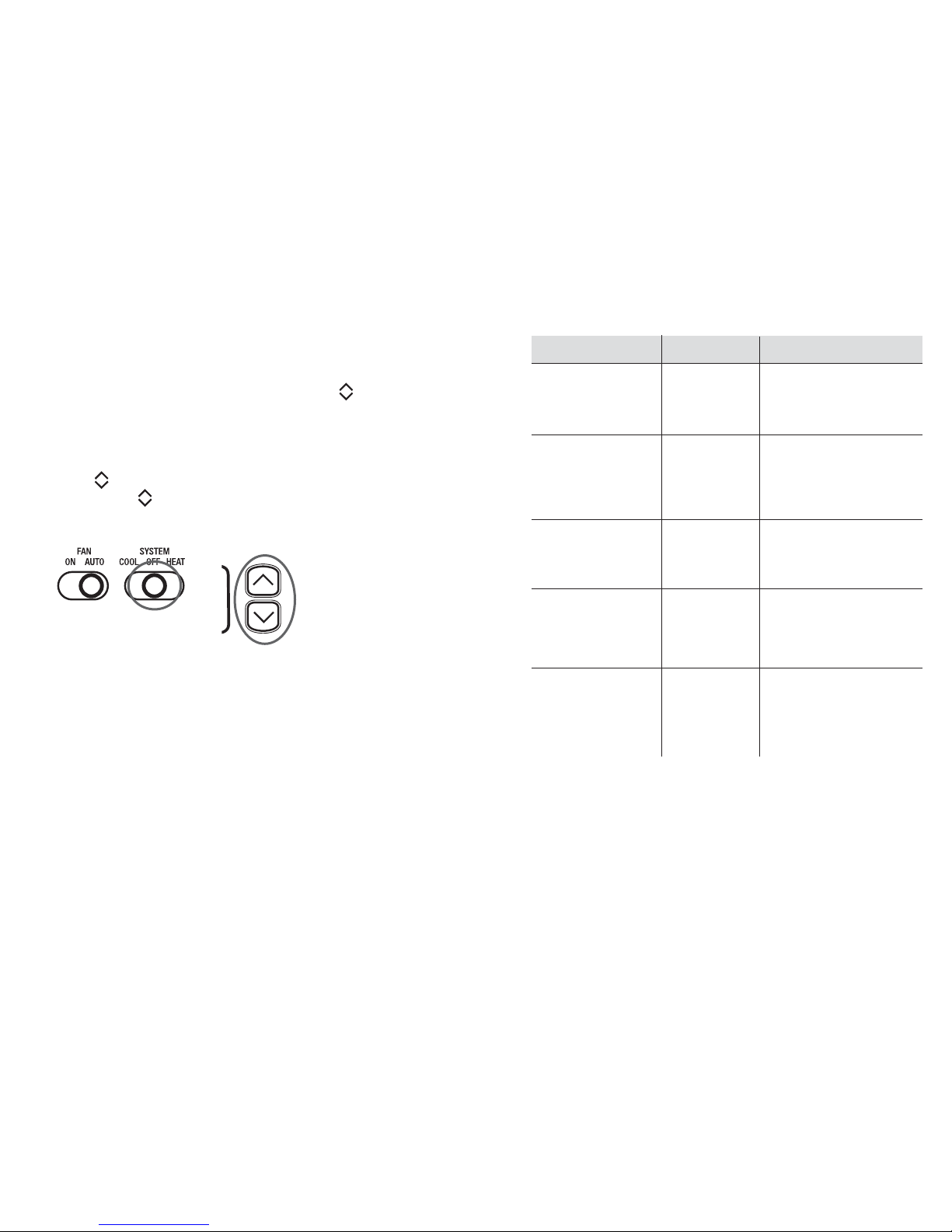

Set SYSTEM switch to OFF position and then press both buttons
simultaneously.
You will be prompted to answer 5 “Options” questions, on page 15.
As each option is presented:
✔Use the
buttons to answer each question.
✔Then press both buttons simultaneously
to move to the next question.
When you have answered all 5 questions, set SYSTEM switch to
HEAT position.
Options Default Setting Additional Information
1. Do you want the FA Select SL (slow) if you have
Cycle Rate to be (fast) Hydronic (water or steam)
Fast or Slow? heating. Otherwise, select
default FA.
2. Do you want 000 Select default 000 for now.
to be reminded (no reminder) To set a filter-change
when it is time reminder, see section 4.1
to change the
air filter? (FILTER)
3. Compressor OFF Select ON to provide
Lockout (LOC) protection to your Heating
and Cooling System’s
compressor
4. How much 0HI (no offset) Select default 0HI for now.
displayed To adjust the actual
temperature offset temperature reading, see
do you want? section 4.3
5. Do you want °F
temperature (Fahrenheit)
displayed in °C
(Celsius) or °F
(Fahrenheit)?
3.2 Select options

16 17
3.4 Turn on power to your heating and
cooling system
Congratulations!
You have completed the basic setup of
your new thermostat. It’s ready to use.
To read about additional thermostat features, continue to section 4.
1. Set the FAN switch to AUTO.
2. Set the SYSTEM switch to COOL (to turn on cooling) or HEAT (to
turn on heating).
3.3 Set fan and system switches Part 4
Additional thermostat features
The thermostat can display a reminder when it is time to change the air
filter on your heating and cooling system.
To enable Change Filter reminder:
1. Set SYSTEM switch to OFF position.
2. Press both the buttons simultaneously two (2) times until you
see FILTER icon in the lower left corner of the display.
3. Using the buttons select the number of hours until you would like
to be reminded of the filter change. The hours increase in
increments of 50.
4. Move SYSTEM switch back to COOL or HEAT position when you
are finished.
5. Once the set time has elapsed, FILTER will be displayed on
the screen.
6. Reset the reminder by pressing both
the
buttons simultaneously
when the FILTER is displayed.
When the thermostat displays
OR
you need to replace batteries with 2 new AA alkaline batteries.
4.1 Set change filter reminder
4.2 Change batteries

18 19
Default setting
– no temperature adjustment
Your thermostat was accurately calibrated at the factory. However,
if you would like the displayed temperature to read higher or lower than
the actual temperature, you can adjust the displayed temperature
by +/- 4 degrees.
To adjust the actual temperature display:
1. Set the SYSTEM switch to OFF position.
2. Press both the buttons simultaneously to advance through
the setup options until you reach a screen where “HI” or “LO”
is displayed.
3. Use the buttons to adjust displayed temperature; from 4 HI
to 4 LO.
4. Move SYSTEM switch back to COOL or HEAT position when you
are finished.
4.3 Adjust actual temperature display
Problem Possible Cause Action
Snowflake 5-minute lockout No action needed: should
icon blinking enabled to protect stop blinking after
compressor 5 minutes
No Heat, No Cool, Blown fuse / Replace fuse or reset
or No Fan tripped circuit breaker
breaker
Furnace power Turn switch to ON
switch to OFF
Furnace blower Replace door panel in
compartment door in proper position to
or panel loose or engage safety interlock
not properly or door switch
installed
Loose connection Tighten connections
to thermostat
or system
Low Batteries Replace batteries
Thermostat & The thermometer can be
Indoor adjusted +/- 4 degrees.
Thermometer See Temperature Display
Setting Disagree Adjustment in the
Configuration Menu section
Part 5 Troubleshooting Guide

20 21
Remember to turn off your heating / cooling
system BEFORE resetting your thermostat. You will then have to
go through a full initial setup described in Part 3 and Part 4 of the
manual before you can turn your Heating & Cooling system back on.
Failure to follow this instruction may lead to your Heating & Cooling
system damage or malfunction.
Reset Operation
If a voltage spike or static discharge blanks out the display or
causes erratic thermostat operation, you can reset the thermostat.
Move SYSTEM switch to OFF, then press both buttons
simultaneously, and then move SYSTEM switch to HEAT while still
pressing buttons. This reset will restore your thermostat’s initial
factory setting.
