White Z-165 User manual

Parts Manual
PRINTED IN U.S.A.
Model
Z-165
FORM NO. 770-10103A
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
(5/99)
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the Stateof California the above isrequired by law (Section 4442 ofthe California PublicResources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-9722.
WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 CLEVELAND, OHIO 44136-9722

2
Model Z-165
1
2
3
45
6
7
8
9
10
11
12
13
14
15 16
17 18
19
20
21
6
22 6
23
24 25 26
27
28
29
30
31
32
33
34
35
36
37
38
6
6
24
25
39

3

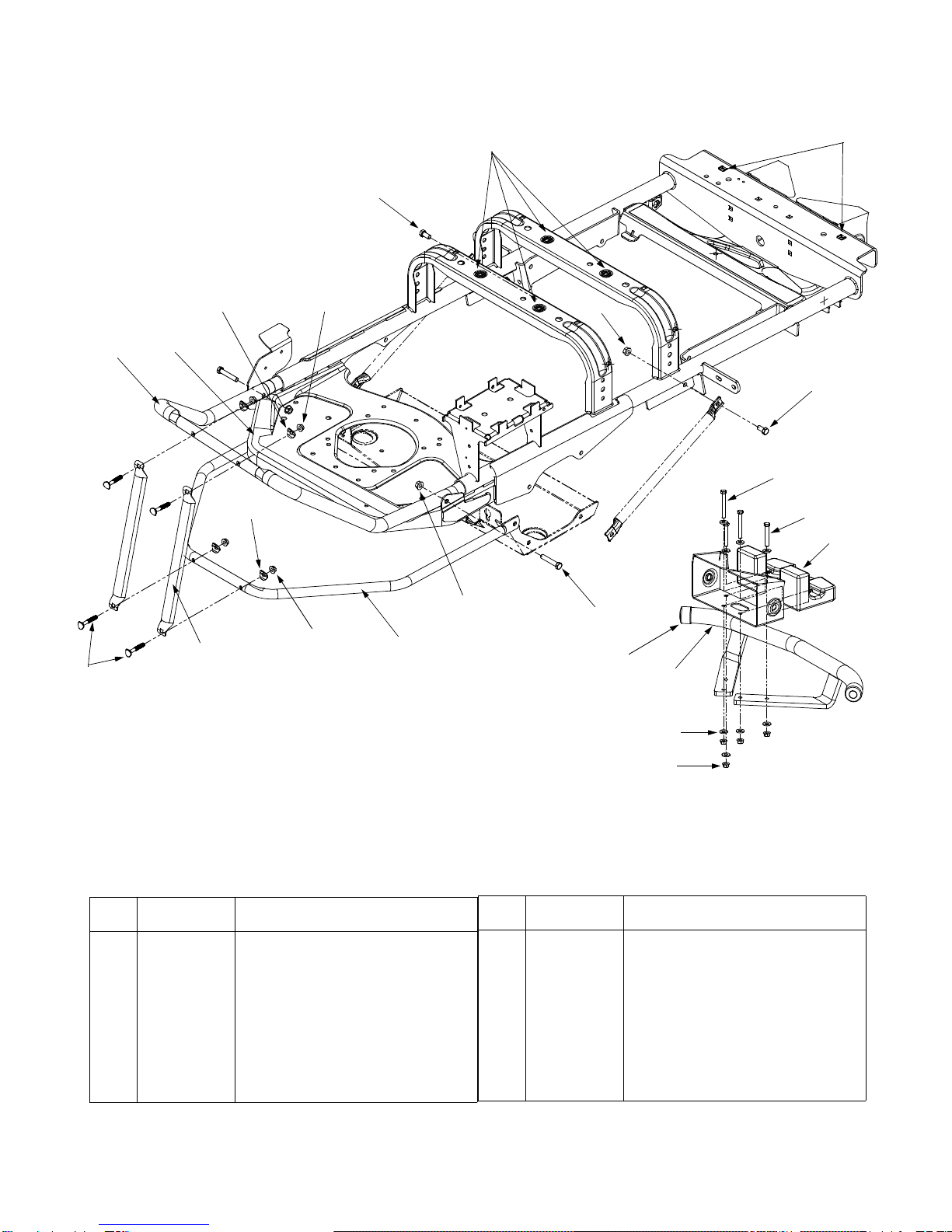

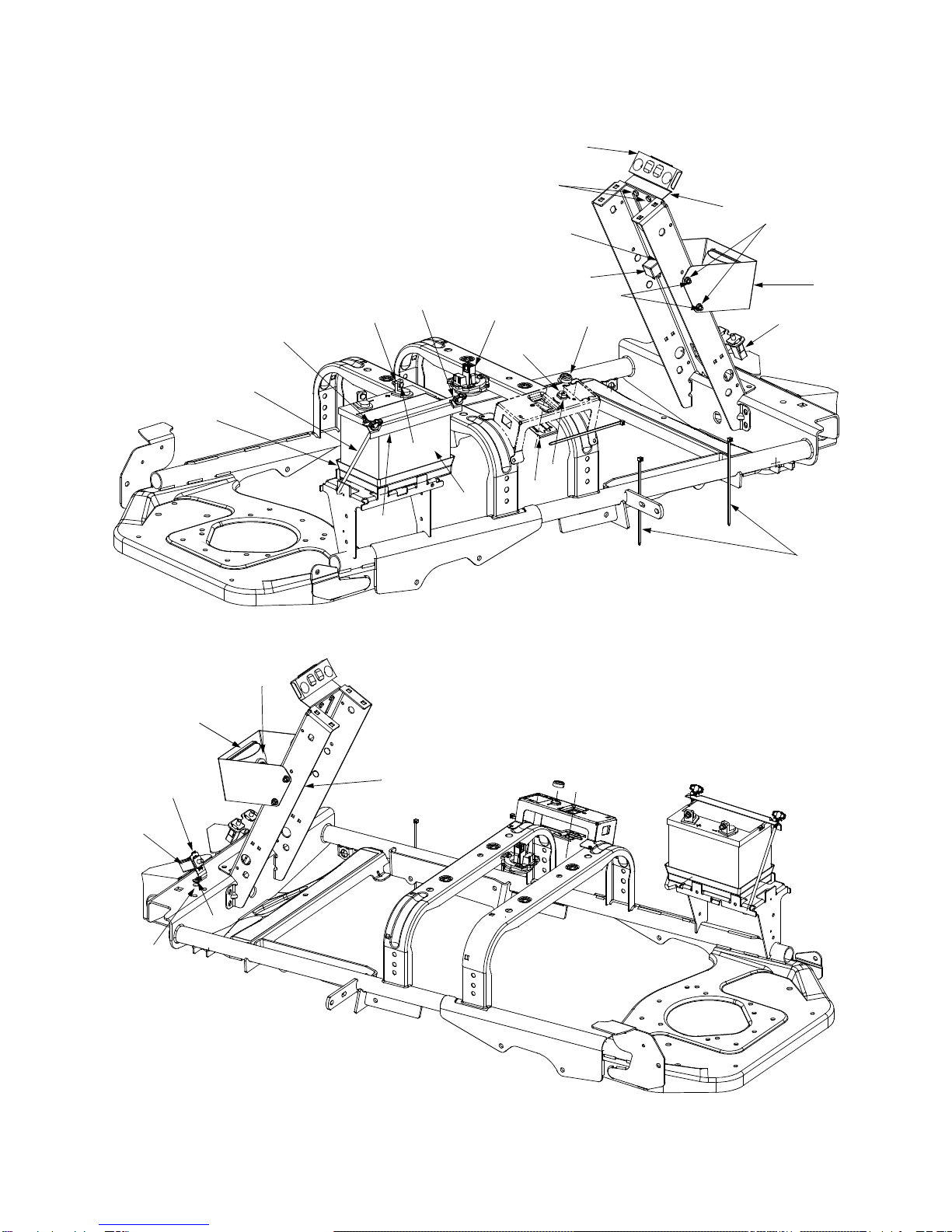

REF.
NO. PART NO. DESCRIPTION
1 731-3263 Control Handle
2 712-3004A Flange Lock Nut 5/16-18
3 710-0451 Carriage Bolt 5/16-18
4 731-3185 Bellow
5 735-0251 Foot Pad
6 710-0642 Hex Washer Screw 1/4-20 x .75
7 703-2648 Bellow Retainer Bracket
8 712-0431 Flange Lock Nut 3/8-16
9 703-2807B Foot Pad Mounting Bracket
10 710-3168 Carriage Bolt 3/8-16
11 749-3081 Cruise Control Tube
12 703-3288 Control Tube Mounting Bracket
13 710-0276 Carriage Screw 5/16-18 x 1.0
14 731-3283 Consol
15 726-0289 Plug
16 731-3128A Lens
17 736-0242 Bell Washer .340 ID x .872 OD
18 720-0241 Wingnut Knob
19 738-0754 Shoulder Screw
20 720-0302 Knob
21 731-3195A LH Control Panel Cover
22 603-0424 LH Control Panel Assembly
23 723-3042 Snap Bushing
24 712-0453 Retainer Nut 1/4-20
25 726-3047 Push Nut
26 728-0117 Pop Rivet
27 726-0197 Cable Tie
28 703-1345A Key
29 731-3309 Rear Body
30 738-3163A Shoulder Screw 3/8-16
31 736-3039 Flat Washer .406 ID x 1.5 OD
32 731-3318 Floor Body
33 603-0578 Body Plate Assembly
34 703-3474 Body Clip
35 710-0376 Hex Cap Screw 5/16-18 x 1.0
36 703-1345A Key
37 725-3233 Electric PTO Switch
38 731-3196 RH Control Panel Cover
39 603-0425 RH Control Panel Assembly
REF.
NO. PART NO. DESCRIPTION

4
Model Z-165
1
2
3
4
5
6
78
9
10
11
4
1213 14 15
16
17
18
19
20
9
21
7
22
23
24
25
7

5
REF.
NO. PART NO. DESCRIPTION
1 603-0649 Parking Brake Shift Ass’y
2 714-3004 Cotter Pin
3 710-3178 Carriage Bolt 3/8-16 x .75
4 741-0324 Hex Flange Bearing .506 ID x .590
5 703-3400 Brake Mounting Bracket
6 747-3404 Connecting Brake Rod
7 714-0104 Cotter Pin
8 710-0134 Carriage Screw 1/4-20 x .62
9 712-3027 Hex Flange Lock Nut 1/4-20
10 703-3405 Support Plate
11 714-0101 Cotter Pin
12 703-2857 Retaining Rod Bracket
13 732-0827 Torsion Spring 5/16
14 747-3397 Parking Brake Retaining Rod
15 735-0664 Parking Brake Pad
16 603-0683 Brake Rod Ass’y
17 711-3357 Ferrule
18 712-0314 Jam Nut 1/4-28
19 736-0258 Flat Washer .385 ID x 1.0 OD
20 712-0431 Flange Lock Nut 3/8-16
21 747-3266A Bracket Rod
22 732-0463 Extension Spring
23 732-0800 Extension Spring
24 747-3284 Release Pump Rod RH
25 747-3363 Release Pump Rod LH

6
Model Z-165 9
21
15 15 21
9
17
20
24
12
9
21
17
14
23
17
7
6
20
23
24
12
9
21
15
17
14
11
28
11
29
30
10
10
15
10
15
14 15
27
25
33
9
9
33
4
33
26
33
3
15
18
34
13
22
32 22
19
13
35
18 21 15
19
33
19 1
31
2
19
33
33
26
33
8
925 27
516
21
36
36
37

7
REF.
NO. PART NO. DESCRIPTION
1 603-0340 Bellcrank Ass’y Upper LH
2 603-0341 Bellcrank Ass’y Upper RH
3 603-0342 Bellcrank Ass’y Lower LH
4 603-0343 Bellcrank Ass’y Lower RH
5 603-0647 Support Ass’y Tower
6 603-0410 Rod Ass’y Control RH
7 603-0411 Rod Ass’y Control LH
8 710-0216 Hex Cap Screw 3/8-16 x .75
9 710-3005 Hex Cap Screw 3/8-16 x 1.25
10 710-3178 Carriage Bolt 3/8-16 x .75
11 711-1111 Control Shaft
12 711-1124 Pin
13 712-0312 Hex Jam Nut LH 3/8-24
14 712-0365 Hex Center Lock Nut
15 712-0431 Hex Flange Lock Nut 3/8-16
16 712-0453 Retainer 1/4-20
17 712-0711 Hex Jam Nut 3/8-24
18 712-3001 Hex Jam Nut 3/8-24
19 712-3004A Hex Flange Lock Nut 5/16-18
20 714-0104 Cotter Pin
21 723-0420 Spherical Rod End RH 3/8-24
22 723-0421 Spherical Rod End LH 3/8-24
23 727-3113 Damper Cylinder
24 732-3084 Spring Compression
25 736-0169 Lock Washer 3/8
26 736-0539 Thrust Washer .625 ID x 1.12 OD
27 736-3004 Flat Washer .406 ID x .875 OD
28 737-0280 Grease Fitting
29 737-3072 Grease Fitting w/Tube
30 737-3073 Adapter 1/4-20
31 738-0296 Shoulder Bolt .437 Dia. x .268
32 738-3153 Shoulder Bolt
33 741-3063 Sleeve Bearing
34 747-3281 Control Rod LH 31-5/8
35 747-3282 Control Rod RH 35-3/8
36 736-0300 Flat Washer .406 ID x .87 OD
37 703-3405 Support Plate
REF.
NO. PART NO. DESCRIPTION

8
Model Z-165
12
3
4
5
67
8
9
9
10
11
12
12
13
13
14
1516 17
18
19
20
21
22
23
24
25
26
37
42
43 44
42
45
46
47
48
49
50
51
52
53
54
55 56
57
58 59
60
44
61
62
62
63
63
64
65
66
29
27
28
67
30
31
32
33
36
35 3437
40
41 68
39
38

9
REF.
NO. PART NO. DESCRIPTION
1 737-3069 Pipe Plug
2 737-3070A Pipe Dipstick
3 603-0639 Hydraulic Tank Assembly
4 727-3116 Connection Fitting
5 721-0223 Seal
6 738-0940 Drain Plug
7 727-3120 Inlet Tube LH
8 727-3155 Tee Fitting
9 727-3154 Outlet Hose RH
10 727-3121 Inlet Tube RH
11 727-3153 Outlet Hose LH
12 710-0216 Hex Cap Screw 3/8-16 x .75
13 712-0455 Retainer Nut 3/8-16
14 747-3360 Belt Retainer Rod RH
15 710-0378 Hex Cap Screw 5/16-18 x 2.5
16 736-3089 Flat Washer 5/16
17 723-3071 Filter Element
18 731-1449A Fan Blade
19 712-0333 Hex Nut 1/2-20
20 703-3168 Mounting Pulley Bracket
21 756-0625 Roller Cable
22 738-0924 Hex Shoulder Screw 1/4-28 x .375
23 703-3169 Retainer Cable Bracket
24 712-0117 Lock Nut 1/4-28
25 618-3165 Complete Transmission Assembly LH
26 712-3050 Lug Nut
27 710-0347 Hex Cap Screw 3/8-16 x 1.75
28 736-0258 Flat Washer .385 ID x 1.0 OD
29 756-0627 Flat Idler Pulley 3.5 OD
30 703-3174 Mounting Bracket Cable
31 712-3019 Hex Nut 7/16-14
32 736-0171 Lock Washer 7/16
33 736-3015 Flat Washer .469 ID x .875 OD
34 603-0377A Idler Arm Assembly
35 603-0102 Shoulder Screw
36 732-0478 Extension Spring 6.12 Lg
37 712-0431 Flange Lock Nut 3/8-16
38 712-0138 Hex Nut 1/4-28
39 736-0329 Lock Washer 1/4
40 736-0342 Flat Washer .283 ID x .75 OD
41 710-0428 Hex Cap Screw 1/4-28 x 1.25
42 710-3008 Hex Cap Screw 5/16-18 x .75
43 710-3011 Hex Cap Screw 3/8-16 x 2.25
44 603-0362 Idler Pulley Assembly 5.0”
45 703-2888 Idler Bracket
46 712-3004A Flange Lock Nut 5/16-18
47 710-3103 Hex Cap Screw 5/16-18 x 2.0
48 727-3100 Connection Fitting 1/2 x 3/8
49 603-0358B Skid Plate Assembly
50 747-3361 Belt Rod LH
51 603-0450 Support Pump Assembly
52 710-3178 Carriage Bolt 3/8-16 x .75
53 749-3040 Frame Strut
54 736-0921 Lock Washer 1/2
55 710-1189 Hex Washer Screw #12-24 x .625
56 756-0974 Transmission Pulley
57 732-0729 Wire Ring
58 736-0185 Flat Washer
59 710-3144 Hex Cap Screw 3/8-16 x 2.0
60 618-3164 Complete Tranmission Assembly RH
61 710-0751 Hex Cap Screw 1/4-20 x .62
62 703-2907 Bearing Cup
63 741-0600 Ball Bearing
64 756-3085 Idler Pulley 5.0”
65 712-0324 Hex Lock Nut 1/4-20
66 750-3176 Idler Spacer
67 746-3083 Declutching Cable
68 712-3007 Jam Nut 5/16-18
REF.
NO. PART NO. DESCRIPTION

10
REF.
NO. PART NO. DESCRIPTION

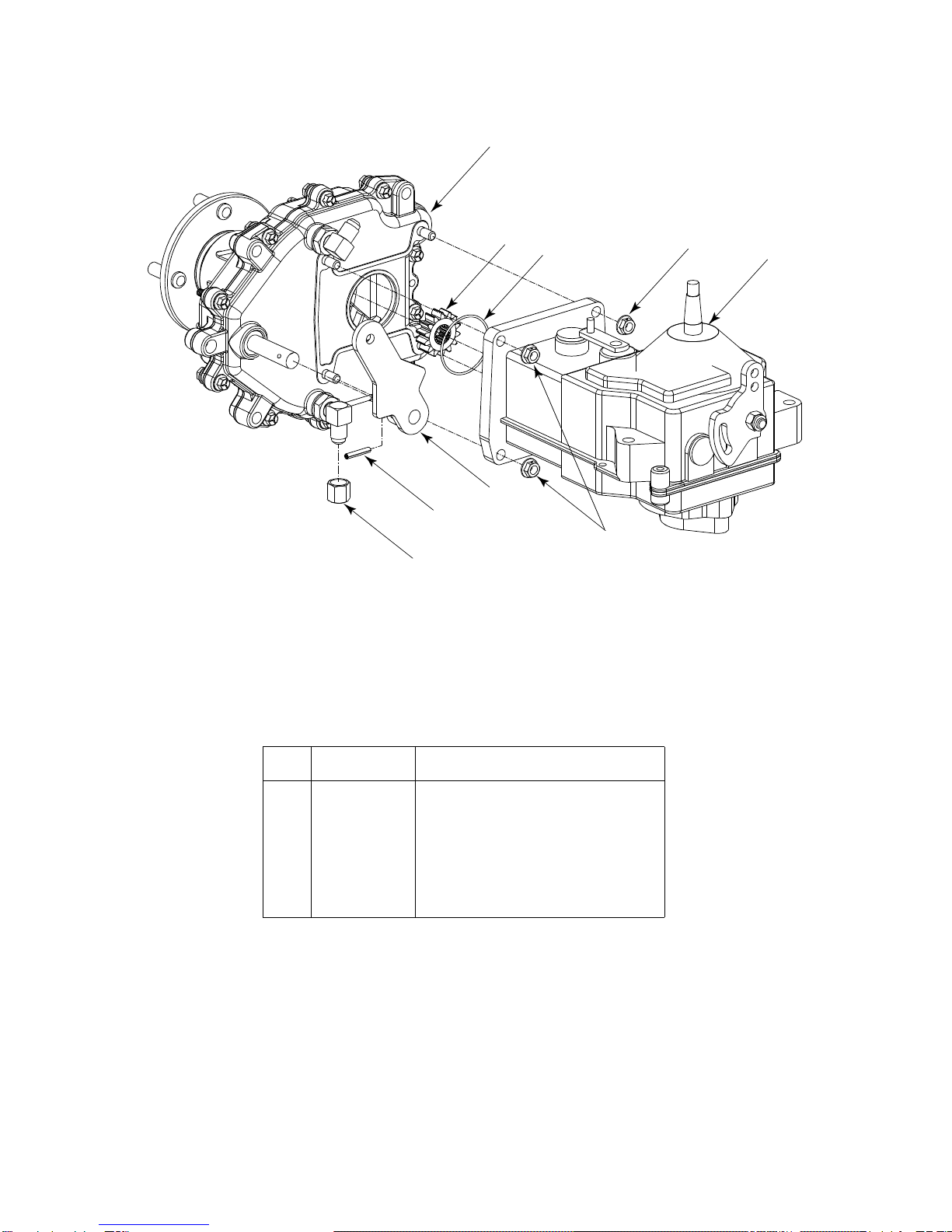

1 618-3110A Drive Ass’y Complete
2 712-3004A Hex Flange Lock Nut 5/16-18
3 715-0136 Spirol Pin 3/16 x 1.25
4 717-3396 Spur Gear 14T
5 717-3455 Hydro Transmission
6 718-3053 Parking Brake Lever
7 721-0343 O-Ring 2.0 Dia.
8 727-3125 Cap Nut 3/8
Model Z-165
1
2
3
45
6
7
8
2

11
REF.
NO. PART NO. DESCRIPTION
618-3110A Drive Ass’y Complete
1 611-3012 Axle Assembly
710-0852 Ribbed Neck Stud
2 618-3106 Carrier Assembly, Output
3 618-3107 Gear Assembly, 51T Internal & 20T
4 618-3109 Housing Ass’y
5 710-1342 Hex Washer Screw 1/4-20 x 1-1/8
6 711-1048 Brake Shaft
7 712-3027 Hex Flange Lock Nut 1/4-20
8 715-0156 Roll Pin
9 715-0219 Dowel Pin
10 715-3045 Bushing
11 716-3015 Inverted Retaining Ring
12 716-3018 Snap Ring
13 717-3395 Spur Gear 13T
14 717-3397 Ring Gear 46T
15 719-3114 Axle Outer Housing
16 721-0381 Oil Seal
17 721-0393 Oil Seal
18 727-3124 Elbow Fitting
19 732-0752 Brake Shoe Spring
20 736-0351 Shim Washer .76 x 1.5 x .030
736-0492 Shim Washer .76 x 1.5 x .010
736-0493 Shim Washer .76 x 1.5 x .020
21 741-0665 Needle Bearing
22 741-3033A Ball Bearing
23 741-3080 Needle Bearing
24 761-3049 Shoe Brake
REF.
NO. PART NO. DESCRIPTION
Model Z-165
1
16
7
15
22
11
12
2
13
10
19
14
24
9
23
21
5
18
18
5
8
5
17
7
6
5
20
43

12
Model Z-165
4
5
6
7
8
9
1
2
3
10
11
12
14
13
15
16
17
18
19
20
21
22
23
24
25 26
27
28 29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
35
49
51

13
REF.
NO. PART NO. DESCRIPTION

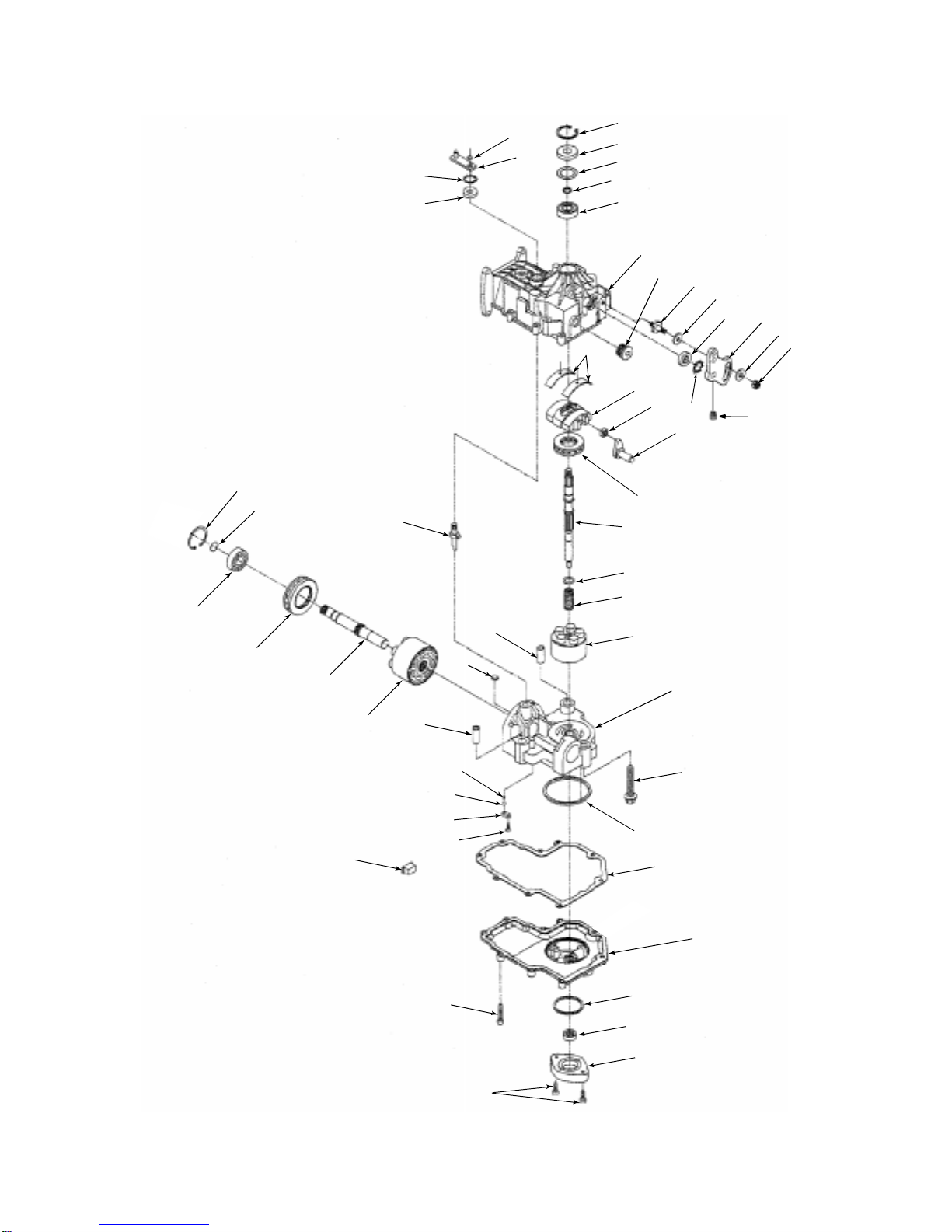

717-3455 Transmission Ass’y Hydro
1 HG-70304 Housing Ass’y Upper
2 HG-50301 Lower Housing
3 HG-70299 Center Section Assembly
4 HG-9008000-0128 Lip Seal
5 HG-2003018 Spacer
6 HG-2003016 Wire Retaining Ring
7 HG-2003052 Retaining Ring
8 HG-2003043 Ball Bearing
9 HG-2003023 Cradle Bearing
10 HG-2003087 Variable Swashplate
11 HG-50551 Thrust Bearing
12 HG-50303 Input Shaft
13 HG-2003017 Block Thrust Washer
14 HG-2003014 Block Spring
15 HG-70079 Cylinder Block Assembly
16 HG-70082 Cylinder Block Assembly
17 HG-50304 Output Shaft (Motor)
18 HG-50552 Thrust Bearing
19 741-0361 Ball Bearing
20 HG-2000022 Wire Retaining Ring
21 HG-50329 Retaining Ring
22 HG-50649 Motor Bearing Retaining
23 HG-2000015 Slot Guide
24 HG-2003005 Trunnion Arm
25 HG-9008000-0126 Lip Seal
26 HG-45007 Control Arm
27 712-0237 Hex Lock Nut 5/16-24
28 HG-50426 Short Stud 5/16-24
29 HG-50281 Friction Puck
30 HG-2003554 Bypass Plate
31 HG-2003555 Bypass Actuator
32 HG-45074 Lip Seal
33 HG-50270 Bypass Arm
34 HG-44870 Retaining Ring
35 HG-50002 Pin
36 HG-50016 Screw
37 HG-2000029 Charge Relief Spring
38 HG-9001214-2500 Ball
39 HG-50578 O-Ring
40 HG-50331 Gasket
41 HG-44876 Self Tapping Screw
42 HG-9005110-8700 Drain Plug
43 HG-50273 Gerotor Assembly
44 HG-9004101-1340 O-Ring
45 HG-50260 Gerotor Cover
46 HG-50095 Screw
47 HG-50651 Relief Plate
48 HG-50653 Screw
49 HG-50650 Retaining Ring
50 736-0371 Washer
51 HG-50018 Set Screw
REF.
NO. PART NO. DESCRIPTION

14
Model Z-165
12
3
4
6
5
7
8
910
11 12
13
14 15
16
17
18
19
20
21
22 23
24 25
26
27
28
29
30
27
31
32
33
34
36
35
37
38
39
40
41 12
42
43
44 45

15
REF.
NO. PART NO. DESCRIPTION
1 710-1314 Cap Screw 5/16-18
2 736-0119 Lock Washer 5/16
3 751-0619 Exhaust Pipe
4 710-0642 Hex Washer Screw 1/4-20 x .75
5 721-0208 Exhaust Gasket
6 710-3178 Carriage Bolt 3/8-16 x .75
7 751-3140 Oil Drain
8 751-3142 Oil Drain Cap
9 751B213146 Throttle Clamp
10 710-1237 Hex Washer Screw #10-32 x .625
11 703-3004 Muffler Bracket
12 725-0157 Cable Tie
13 710-3009 Screw #10-24 x .75
14 746-3074 Throttle Cable Control 32”
15 746-3073 Choke Cable Control 32.25”
16 712-0161 Hex Lock Nut #10 - 24
17 751-0617 Muffler
18 749-3048 Fuel Line
19 751-3141 Oil Drain Hose
20 751-0564 Muffler Deflector
21 710-0148 Hex Washer Screw #8-32 x .375
22 726-0205 Hose Clamp
23 751-0535 Fuel Line Hose
24 736-0607 Lock Washer 5/16
25 725-1711 Retainer Clip
26 710-0751 Hex Cap Screw 1/4-20 x .620
27 712-0291 Hex Lock Nut 1/4-20
28 736-3006 Lock Washer 1/4 ID x 3/4 OD
29 725-3001 Solenoid
30 736-0270 Bell Washer .265 ID x .75 OD
31 712-0431 Flange Lock Nut 3/8-16
32 603-0317 Clutch Retainer Ass’y
33 736-0258 Flat Washer .385 ID x 1.0 OD
34 747-3362 Rear Belt Retainer Rod
35 736-3010 Flat Washer .407 ID x .812 OD
36 726-3008 Heat Shield Cable Clip
37 710-1007 Hex Washer Screw 3/8-16 x 1.5
38 710-0502A Hex Washer Screw 3/8-16 x 1.25
39 754-3076 V-Belt
40 756-3060 Pulley
41 714-0128 Key
42 717-3467 Electric Clutch
43 750-3106 Spacer Clutch
44 710-0510 Hex Cap Screw 7/16-20 x 3.0
45 736-0171 Lock Washer 7/16
REF.
NO. PART NO. DESCRIPTION

16
Model Z-165
2
4
6
5
3
7
9
10
11
12
13
14
15
16
17
18
19
20
17
21
22
8
23
24
25
9
26
27
28
29

17
REF.
NO. PART NO. DESCRIPTION
1 629-3033 Wire Harness, Main - Not Shown
629-3037 Wire Harness, Engine
629-3039 Battery Cable, Red
629-3040 Battery Cable, Red
629-3041 Battery Cable, Black
2 723-0455 Foam Protector, Indicator Light
3 710-3013 Hex Cap Screw 1/4-20 x .50
4 703-2809 Bracket, Indicator Bulb Mtg.
5 712-3027 Nut, Hex Flange Lock, 1/4-20
6 725-1718 Relay
7 703-2836 Bracket, Headlight Mtg.
8 710-0134 Carriage Screw 1/4-20 x .62
9 725-3164A Switch, Plunger Safety
10 725-0157 Cable Tie
11 725-1347 Cap, Ignition Switch
12 725-1346 Nut, Ignition Switch, 5/8-32
13 725-3163 Switch, Ignition
14 783-0462 Bracket, PTO Switch Retainer
15 725-1722 Battery
16 725-3253 Switch, Seat
17 712-0397 Nut, Nylon Wing, 1/4-20
18 712-0271 Nut, Hex Sems, 1/4-20
19 710-3015 Screw, Hex Cap, 1/4-20 x .75 GR5
20 703-3149 Strip, Battery Retainer
21 747-3347 Rod, Battery Retainer
22 731-3233 Tray, Battery
23 725-3250 Headlight Assembly
759-3864 Bulb, Headlight - Only
24 731-3184 Bezel, Headlight
25 732-0816 Spring, Switch Mounting
26 710-0425 Screw, Machine, #10-24 x 5/8
27 712-0161 Nut, Hex Insert Lock, #10-24
28 725-3251 Voltage Sensor
29 726-0349 Ratchet Retainer
REF.
NO. PART NO. DESCRIPTION

18
REF.
NO. PART NO. DESCRIPTION
1 757-3006 Seat
2 731-3154 Seat Slide
3 738-0372 Shoulder Spacer
4 710-1260A Hex Washer Screw 5/16-18 x .75
5 738-0296 Shoulder Screw
6 712-3004A Flange Lock Nut 5/16-18
7 720-0190 Height Knob
8 732-3098 Spring Index
9 603-0294 Seat Base Bracket Assembly
10 712-3005 Flange Lock Nut 3/8-16
11 732-3080 Compression Spring
12 703-3498 Seat Plate
13 710-0514 Hex Cap Screw 3/8-16 x 1.0
14 710-3105 Bolt 5/16-18 x .875
757-3006 Seat
Model Z-165 1
2
3
4
2
4
56
7
8
9
6
10
11 5
12
13
13
14
14

19
REF.
NO. PART NO. DESCRIPTION
1 712-0251 Retainer Nut 3/8-16
2 712-0455 Retainer Nut 3/8-16
3 710-0216 Hex Cap Screw 3/8-16 x .75
4 712-0431 Flange Lock Nut 3/8-16
5 710-3144 Hex Cap Screw 3/8-16 x 2.0
6 749-3061 Lower Bumper Tube
7 712-3004A Flange Lock Nut 5/16-18
8 736-0451 Washer .320 ID x .93 OD
9 603-0720 Frame Assembly
10 749-3087 Upper Bumper
11 710-1174 Carriage Bolt 5/16-18 x 2.0
12 703-3504 Bumper Bracket
13 710-0521 Hex Cap Screw 3/8-16 x 3.0
14 710-0859 Hex Cap Screw 3/8 - 16 x 2.5
15 719-3130 Counter Weight
16 726-0298 End Cap
17 603-0620 Bumper Ass’y
18 736-3004 Flat Washer .406 ID x .875 OD
19 712-0431 Flange Lock Nut 3/8-16
REF.
NO. PART NO. DESCRIPTION
Model Z-165
1
2
4
3
3
5
4
7
8
9
10
11 12
8
76
13
14
15
16 17
18
19

20
Model Z-165
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16 17
18 19
20
20
21
21 22
2324 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
