Whynter ARC-148MS User manual

WHYNTER 14,000 BTU PORTABLE AIR CONDITIONER WITH
3M SILVERSHIELD FILTER
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before
using this product. Keep this manual in a safe place for future reference.
Model # : ARC-148MS
INSTRUCTION MANUAL

2
TABLE OF CONTENTS
PAGE
DISPOSAL INFORMATION 3
SAFETY PRECAUTIONS 4
INTRODUCTION / TECHNICAL DATA 5
PARTS IDENTIFICATION 6 - 7
CONTROL PANEL 8
INSTALLATION 9 - 11
OPERATION INSTRUCTIONS 12 - 13
REMOTE CONTROL 14
CARE AND MAINTENANCE 15
TROUBLESHOOTING 16 - 17
WARRANTY INFORMATION 18

3
DISPOSAL INFORMATION
This symbol on the product or its packaging indicates that the appliance cannot be treated as nor-
mal domestic trash, but must be handed in at a collection point for recycling electric and electronic
appliances. Your contribution to the correct disposal of this product protects the environment. Fur-
ther information about the recycling of this product can be obtained from your local municipal au-
thority.
Thank you for choosing the Whynter 14,000 BTU Portable Air Conditioner with 3M Silvershield filter.
Please follow the instructions provided in this user guide to obtain the very best performance from
your portable air conditioner and take full advantage of the many features your portable air condi-
tioner offers you. We trust that your Whynter air conditioner will provide the performance and relia-
bility that we stand for.
Please keep this user manual in a safe place for future reference.

4
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY
WHEN USING YOUR AIR CONDIITIONER, FOLLOW THESE BASIC
PRECAUTIONS:
Before the appliance is used, it must be properly positioned and installed as detailed in this manual.
 Do not under any circumstances cut or remove the third (ground) prong from the power cord
 Make sure this unit is connected to a correctly grounded power supply outlet. Do not use an extension cord or
power strip
 The power cord is UL listed. It has a built-in L.C.D.I. (leakage, current, detection, interruption) circuit breaker
for added safety. If the power supply is interrupted, press the reset button to reconnect the unit to power
source
 It is recommended to use a separate circuit that its size should be 15 Amps for the air conditioner
 Do not use an excessively wet cloth, industrial solvents, oil-based products to clean this portable air condition-
er
 To avoid the risk of shock, the product should never be used in bathrooms, shower rooms, or in any other
steamy or wet areas
 Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other applianc-
es
 Do not repair, disassemble and/or modify the unit by yourself
 Always turn off the portable air conditioner when cleaning the air filter, and transporting
 Do not turn this unit on and off by plugging and unplugging. Always use the ON/OFF switch
 Transport the unit in an upright position only, or leave it in an upright position for at least 4 hours before first
use
 Ensure curtains or other objects are not obstructing the air inlet filters
 Do not bend or crush the exhaust hose while in use
 Always allow at least 20” of clearance around the unit for ventilation. Do not use this unit inside closets, cabi-
nets and/or cramped spaces between furniture
 This unit is optimized to operate in an ambient temperature of 64°F – 90°F
 This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips
 The unit should not be located next to ovens, grills or other sources of high heat
 Always place the unit on even and hard and level surface
 Do not sit or place objects on the unit
 Do not allow children to climb, stand or hang on the appliance. The air conditioner could tip over and get dam-
aged and/or seriously injure somebody
 Keep fingers out of the air intakes and air outlets
 The appliance is an electrical appliance. To avoid injury from electrical shock do not operate it with wet
hands, while standing on a wet surface or while standing in water. Do not use it in outdoors or in wet condi-
tions
 When positioning or moving the appliance, ensure it is not turned upside down or greater than 45° or more off
level
 This appliance is designed for household, non-commercial use only. Any other use will void the warranty
 Do not plug into the power outlet before set up is completed
 Do not operate this unit without the air filter(s)
 Do not use harsh chemicals to clean the filter(s). Dry thoroughly before inserting the filter(s) into the unit
 Do not add extra length to the exhaust hose by more than a total length of 9’. This will reduce the cooling effi-
ciency of the portable air conditioner
 At the end of each season, all water must be drained from the unit and filter(s) must be cleaned before stor-
age
SAFETY PRECAUTIONS
THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY IF THE ABOVE INSTRUCTIONS ARE NOT FOLLOWED.

5
INTRODUCTION / TECHNICAL DATA
HOW IT WORKS
The Whynter compact CFC-free, lead-free, and energy efficient 14,000 BTU portable air condi-
tioner, helps you stay cool while working with better environmental standards and reducing ener-
gy consumption.
This high output portable air conditioner, specially designed to be mobile, can be easily setup in
almost any indoor location and is most commonly used in data closets / server rooms, bedrooms,
classrooms and garages / workshops.
This Whynter ARC-148MS portable air conditioner features an ECO-FRIENDLY CFC-free
GREEN R-410A refrigerant and lead-free RoHS compliant components.
TECHNICAL DATA
Model: ARC-148MS
Operational Modes: Auto, Air conditioner, Fan or Dehumidifier
Cooling Capacity: 14000 BTU
Coverage Area: 500 sq. ft.
Dehumidifying Capacity: 71 Pts / day
Fan Speed: 3 Fan Speeds
Filters: 3M Filter and Silvershield washable pre-filter
Thermostat Control Range: 62° - 88°F
Timer: 24 hour programmable timer
Noise Level: <55 dBA
Extendable Hose: 59”
Window Kit Length: Minimum: 26.5”
Maximum: 48”
Refrigerant: R-410A
Air Flow (at high speed): 497 m3/h / 292 CFM
Maximum Power Consumption: 1580W / 11.9A
Power Supply: 115 V / 60Hz
EER: 8.9
Unit Dimensions: 18.5" W x 15.75" D x 30.25" H
Package Dimensions: 20.75” W x 17.75" D x 35" H
Net Weight: 72.75 lbs
Gross Weight: 81.5 lbs

6
PARTS IDENTIFICATION
FRONT VIEW
BACK VIEW
Control Panel
Front Air Vent / Louvers
Casters (four)
Upper Air Filter
Air Outlet Vent
Power Cord
Upper Air Intake
Upper Drain Port
Lower Air Filter
Lower Air Intake
(Compressor)
Lower Drain Port
Power Plug
Socket (use
when storing unit)
Power Cord Buckle
(use when storing unit)
Handle

7
PARTS IDENTIFICATION
ACCESSORY IMAGE ACCESSORY DESCRIPTION QUANTITY
Exhaust hose
Window and Round Adaptor 1 set
Window sliders and Clear plastic plug (plug is in
the upper corner of the plastic bag that holds
the user manual)
1 set
Foam seal 3 pieces
Remote control and Batteries 1 set
Drain hose 1 piece
3M Filter (pre-installed on unit) 1 piece
Silvershield pre-filter (pre-installed on unit) 1 piece
Leakage-Current Detection and Interruption (LCDI)
Operating Conditions
Mode Room Temperature
Cool Higher than 64°F
Dry Higher than 60°F
Your portable air conditioner is supplied with a Leakage-Current Detection and Interruption (LCDI)
plug. This plug reduces the risk of fire due to arcing faults in the power supply cord. Please follow
the instructions below to ensure that LCDI plug works properly.
1. Plug the power cord to a grounded wall outlet. Do not plug to a power strip or extension cord.
2. Press the TEST button on the plug. This should trip the plug and cut the power to the air condi-
tioner. If the plug does not trip and the unit comes on, please contact technical support.
3. Press the RESET button to start the air conditioner.
4. Do NOT use the TEST and RESET buttons to turn the air conditioner on and off.

8
CONTROL PANEL
Power Button
Press to turn the air conditioner on and
off
Sleep Button
Press to activate Sleep mode
Fan Speed Button
Press to change fan speed
• Controls the 3 fan speeds: HI, MED,
LOW and AUTO. The fan speed indica-
tor lights illuminates to show the set fan
speed. When the AUTO speed is select-
ed, none of the fan speed indicator illu-
minates.
Mode Button
Press to change mode
• Controls the 4 function modes:
COOL, AUTO, FAN, and DRY.
Timer Button
Press to program Timer Delayed
Switch ON or OFF function
Swing Button
To adjust the air flow direction
Up ( + ) and Down ( - ) Buttons
Adjusts set temperature (1°C/ 2°F incre-
ments) or timer hours (0 – 24 hours).
 This unit is capable of displaying set
temperature in Fahrenheit or in Celsius.
To convert from one to the other, press and
hold the Up and Down buttons for 3 sec-
onds.
LED Display
• In Cool mode: shows set
temperature in °C or °F and AU-
TO timer setting.
• In DRY and FAN only modes:
shows room temperature.
Error Codes:
 E1 - Room temperature sensor error
- Unplug unit and restart in 5 minutes
 E2 - Evaporator sensor error
- Unplug unit and restart in 5 minutes
 E3 - Condenser sensor error
- Unplug unit and restart in 5 minutes
 E4 - Display panel sensor error
- Unplug unit and restart in 5 minutes
 P1 - Water reservoir full
- Drain water from the unit

9
INSTALLATION
WATER DRAINAGE
The dehumidifying capacity of this unit is 71 pints per day.
The patented self-evaporating function of the ARC-148MS
unit fully exhausts all condensation automatically in most en-
vironments when humidity is less than 70%. Areas with more
than 70% humidity, the self-evaporating function can still ex-
haust about 98% of the moisture and the remaining 2% of
moisture will be collected in the water tank of the air condi-
tioner.
When the water reservoir reaches its maximum level, the unit
will beep 8 times and the digital display will show P1. When
the unit displays P1, all operation modes will be disabled
temporarily, while the fan continuously running. The P1 code
will disappear when the water is completely drained.
• Manual drainage
Carefully move the unit to a drain location, remove the bot-
tom drain plug and let the water drain. Replace the drain plug
and plug in unit to resume operation.
• Continuous drainage
Remove the upper drain plug from the back of the unit and
install the drain hose. Place the open end of the hose to a
drain area. This method is recommended if uninterrupted op-
eration is desired.
Remove bottom
drain plug for
Manual Drainage
Attach drain
hose for
Continuous
Drainage
Silvershield FIlter
3M Filter
WARNING: NEVER OPERATE THE AIR CONDITIONER
WITHOUT THE AIR FILTER
AIR FILTERS
• Silvershield Pre-filter
This portable air conditioner is equipped with a
Silvershield pre-filter, which removes large particles such as
dust, pet hair and dander. This pre-filter can be removed for
cleaning by pulling the filter frame back and out. This pre-filter
washable and does not need to be replaced.
• 3M™ Antimicrobial High Air Flow Filter
This portable air conditioner comes with the 3M™ Antimicrobial
High Air Flow Filter which is designed to remove particles such
as dust, pet hair and dander, antimicrobial agent helps inhibit
the growth of mold and mildew, and the micro-structured elec-
trostatically charged filtration media traps and retains particles.
The 3M Filter is pre-installed.
Note: The 3M Filter should be replaced every 2-3 months de-
pending on usage. Please contact [e-mail] for retail
sales information.

10
INSTALLATION
LOCATION
The air conditioner should be placed on a hard and level surface strong enough to support the unit. The unit has
casters and it should only be rolled on smooth, flat surfaces. Use caution when rolling on carpet surfaces. Do not
attempt to roll the unit over objects. Never place any obstacles around the air inlet or outlet and allow at least 20 inch
of clearance for efficient air-conditioning.
EXHAUST HOSE INSTALLATION
When you use this air conditioner unit, hot air must be
exhausted out of the room to complete the air exchange
of the condenser. When the unit is operating in DRY or
FAN only mode, installation of the exhaust hose is option-
al.
1. Pull out about 6” of one end of the exhaust hose.
2. Install the window and round exhaust connector on the
exhaust hose by turning counter-clockwise. See Fig. 1.
3. Push in and hook the round exhaust connector into the
hole seat at the back of the unit. Fig. 2
4. Only extend the exhaust hose to the necessary length.
We do not recommend extending the exhaust hose more
than 9' long. If you are interested in purchasing an addi-
tional 5’ exhaust hose, please contact [email protected]om
for retail sales information.
WINDOW KIT INSTALLATION
When you use this air conditioner unit, hot air must be exhausted out of the room to complete the air exchange of
the condenser. When the unit is operating in fan-only mode, installation of the exhaust hose is optional.
Your window kit has been designed to fit most standard vertical and horizontal windows.
However, it may be necessary for you to modify the installation procedures for your window. Please refer to Fig. 3a
and Fig. 3b for minimum and maximum window openings. If your window opening is less than the mentioned mini-
mum length of the window slider kit, cut the slide bar with hole to fit window opening. Never cut out the hole on the
window slide bar.
NOTE: When using the window kit on a window or sliding door it will cause the window or sliding door not to be
properly closed and locked. Additional security measurements maybe needed.
The window slide bars can be fixed with the clear plastic bolt. Fig. 4.
Fig. 4
Fig.3a
Fig.3b
Fig. 1
Fig. 2
Hook
Hole Seat

11
INSTALLATION
WINDOW KIT INSTALLATION IN A DOUBLE-HUNG WINDOW
1. Open window or sliding door for approxi-
mately 5”
2. Cut the foam seal (adhesive type) to the
proper length and attach it to the bottom of
the window. Fig. 5a.
3. Adjust the length of the window bars to
the same length and width of the opening
of the window. Cut the window piece if nec-
essary to fit the length of your window. Fig.
5b.
4. Close the window on the window slide
bars. For long term installation, you may
screw the window kit into your window
frame. Fig. 5c.
5. Cut the foam seal to the length and seal
the open gap between the top window sash
and outer window sash. Shown in Fig. 5d.
WINDOW KIT INSTALLATION IN A SLIDING WINDOW/DOOR
1. Open window or sliding door for approx-
imately 5”
2. Cut the foam seal (adhesive type) to
the proper length and attach it to the bot-
tom of the door / window. Fig. 6a.
3. Adjust the length of the window bars to
the same length and width of the opening
of the window. Cut the window piece if nec-
essary to fit the length of your window. Fig.
6b.
4. Close the door/ window on the window
slide bars. For long term installation, you
may screw the window kit into your window
frame. Fig. 6c.
5. Cut the foam seal to the length and seal
the open gap between the top window sash
and outer window sash. Show in Fig. 6d.

12
OPERATION INSTRUCTIONS
BEFORE USING YOUR APPLIANCE
 Remove the exterior and interior packing
 Before connecting the appliance to the power source, let it stand upright for approximately 4 hours. This will reduce
the possibility of a malfunction in the cooling system from handling during transportation
SWITCHING ON/OFF THE AIR CONDITIONER
The appliance can be switched ON or OFF by pressing the POWER button on the control panel or the ON/OFF but-
ton on the remote control
COOLING MODE
In this mode, the air conditioner cools and dehumidifies the room. To activate this function mode, press the MODE
button until the COOL indicator light comes on. When the cooling mode is set, the compressor will start in approxi-
mately 3 minutes. In cooling mode, hot air is exhausted from the outdoor exhaust port and the exhaust hose must be
connected to exhaust out the hot air.
The temperature setting range of this air conditioner is from 62°F / 17°C to 88°F / 30°C. To set the temperature,
press the + or - buttons. This air conditioner has a 5°F temperature cushion which if the set temperature is within 5°F
of the ambient temperature, the unit runs on fan only mode. This saves energy and prolongs the life of the compres-
sor of the air conditioner.
To set the fan speed, press the FAN button. In cooling mode, the difference in noise level between the 3 fan speeds
is not very noticeable when the compressor is on. Try setting the unit to Fan only mode, you should be able to hear
the difference between high and low fan speed settings.
DRY (DEHUMIDIFYING) ONLY MODE
In this mode, the air conditioner only dehumidifies the room, the compressor will activate intermittently depending on
the ambient temperature and the fan speed is set to LOW. To activate this function mode, press the MODE button
until the DRY indicator light comes on. Please note that when switching function mode, there will be an approxi-
mately 3 minute transition time. In dehumidifying mode, do not connect the exhaust hose and let the warm air return
to the room. If room temperature is higher than 77°F, the fan speed can be adjusted. If room temperature is lower
than 77°F, the fan speed is set at Low.
NOTE: When using the Dehumidifying mode, the air exhaust hose should not be vented to the outside. If the warm
air is exhausted to the outside, cooling may occur. Additionally, you must manually drain the water from the unit.
AUTOMATIC MODE
When you set the air conditioner in AUTO mode, it will automatically select cooling or fan only operation depending
on the temperature of the room. The fan speed is automatically selected and cannot be changed .To operate the unit
in Auto mode when the unit is on, press the MODE button until the AUTO indicator light comes on.
FAN ONLY MODE
In this mode, only the fan of the air conditioner runs and circulates the air in the room. To activate this function mode,
press the MODE button until the FAN indicator light comes on. In this function mode, the temperature cannot be
set. Subsequently, set the desired fan speed by pressing the FAN button. Fan Only mode requires that the exhaust
hose be removed.

13
OPERATION INSTRUCTIONS
TIMER (DELAYED SWITCH ON / OFF) FUNCTION
This function mode enables a delayed switch ON or delayed switch OFF of the air conditioner. The time (hours) de-
lay can be set, enabled and disabled.
SETTING SWITCH OFF TIMER
With the air conditioner operating in any function mode, press the TIMER button. The TIMER OFF light will come on.
Then set the desired time delay OFF hours by pressing the UP and DOW N buttons. The time increments are at 0.5
hour to up to 10 hours, followed by 1 hour increment up to 24 hours. When the delay time set has elapsed, the air
conditioner switches off. To cancel the delayed switch off function, turn off the air conditioner or adjust the time set-
ting to 0.0.
SETTING DELAYED SWITCH ON TIMER
With the air conditioner is off, press the TIMER button. The TIMER ON light will come on. Then set the desired time
delay ON hours by pressing the UP and DOW N buttons. The time increments are at 0.5 hour to up to 10 hours, fol-
lowed by 1 hour increment up to 24 hours. When the delay time set has elapsed, the air conditioner switches on. To
cancel the delayed switch on function, turn on the air conditioner or adjust the time setting to 0.0.
SLEEP MODE
In this mode, the air conditioner gradually increases the set temperature in cooling mode, decreases the noise level
and conserves energy. In Sleep and cooling mode, the set temperature is increased by 1°C/ 2°F in the first 30
minutes. The temperature will then increase by another 1°C/ 2°F after an additional 30 minutes. This new tempera-
ture will remain the same for 7 hours. To activate this function mode, press the SLEEP button until the SLEEP
indicator light comes on.
AUTO RESTART
In the event of a power outage, the air conditioner restarts at the previously set function mode and settings when
power is restored.
CONTROLLING THE AIR FLOW DIRECTION
The louvers can be controlled to Auto-Swing or in a fixed direction. To control the air flow direction by Auto-Swing,
press the SWING button. To set the louvers in a fixed angle or direction, press SWING button while on Auto-Swing
mode when desired angle is chosen.
NOISE LEVEL
Portable air conditioners may make sounds that are not familiar to you. The sounds listed below are normal. Noise
reflecting off hard surfaces such as a floor or wall can make the sounds seem louder than they actually are.
 The compressor may make a pulsating or high-pitched sound
 Water running from the evaporator to the water tank may make a splashing sound
 Refrigerant flowing may make a gurgling sound
 Fan sound may come from front and back air vents
COMPRESSOR LOCK OUT
This portable air conditioner is optimized to operate in an ambient temperature of 64°F – 90°F. The compressor cir-
cuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents over-heating of
the compressor and possible circuit breaker tripping.

14
REMOTE CONTROL
The portable air conditioner can be switched on by the remote control. To transmit signals from the remote con-
trol to the air conditioner, point the front part of the remote handset towards the control panel on the air condi-
tioner. Reception of the signal is confirmed by a beep. The maximum signal transmission distance is approxi-
mately 8 meters / 26 feet.
NOTE:
 Other appliances in the same room controlled by a remote control (TV, radio, stereo, etc.), may cause
interferences
 Electronic and fluorescent lamps may interfere with the signal transmissions between the remote control
and the air conditioner
 Remove the batteries if the remote control is not used for long periods
INSTALLING BATTERIES
To insert the batteries, open the flap on the back of the remote control by sliding if off. Strictly adhere to the
polarity signs on the bottom of the battery housing, close the flap once the batteries have been inserted.
 Only use two dry LR03 AAA 1.5V Batteries (included) in the remote control
 Always change both batteries at the same time

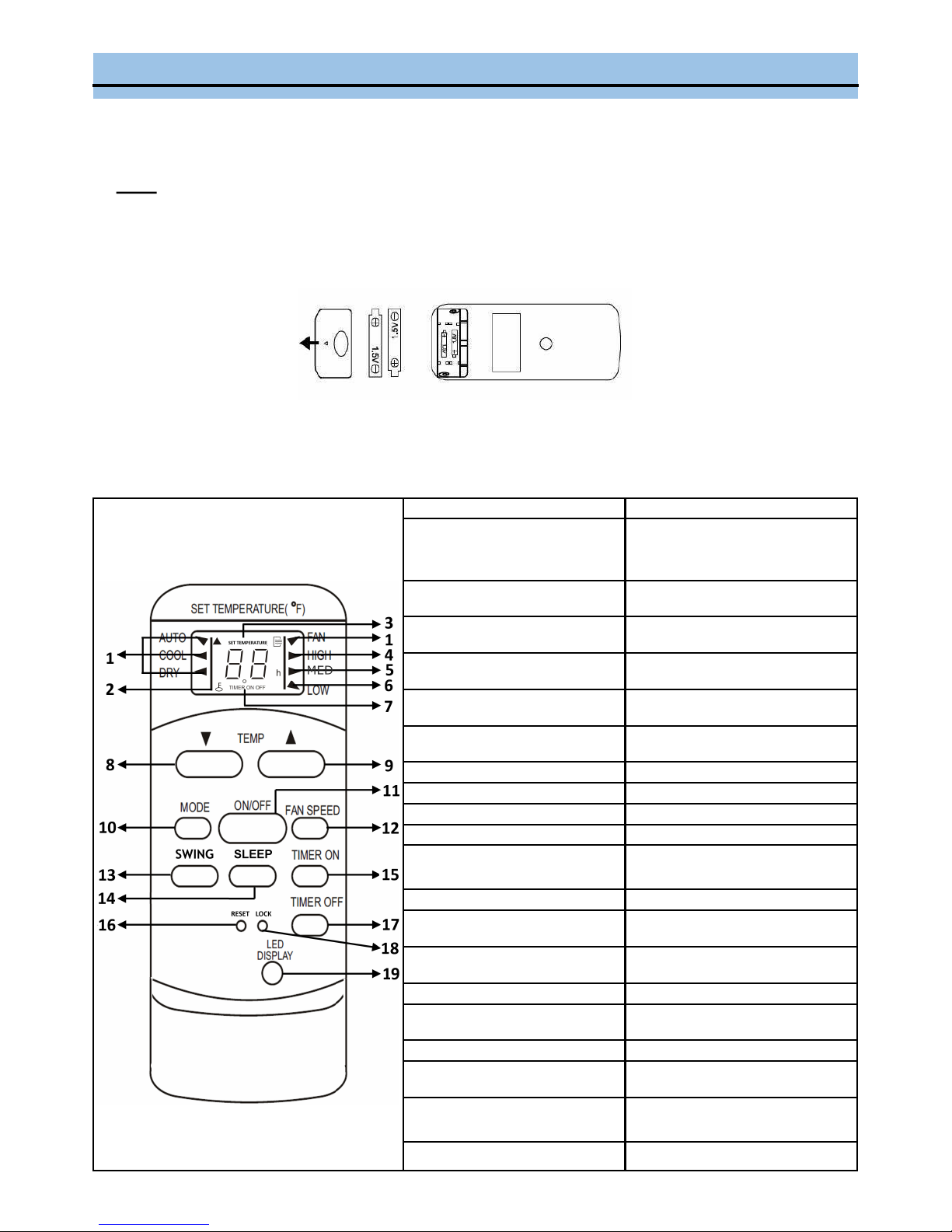

INDICATOR FUNCTION
1 – Mode Indicator Displays the current selected mode
(Auto, Cool, Dry, or Fan)
2 – Lock Indicator Indicates current setting is
locked and cannot be changed
3 – Temp./Timer Display Displays set temperature
4 – Fan (High) Displays the selected high fan
speed
5 – Fan (Medium) Displays the selected medium
fan speed
6 – Fan (Low) Displays the selected low fan
speed
7 – Timer Indicator Indicates Timer mode activated
BUTTONS FUNCTION
8 – Down Button Decreases set temperature/time
9 – Up Button Increases set temperature/time
10 – Mode Button Controls the 4 function modes:
Auto, Cool, Dry, & Fan
11 – On/Off Button Turns the unit On and Off
12 – Fan Speed Button Controls the fan speeds: High,
Medium, Low or Auto
13 – Swing Button Starts or stops louver movement
and set louver angle.
14 – Sleep Button Enables Sleep mode
15 – Timer On Button Enables the On timer & set timer
hours
16 – Reset Button Cancels all settings
17 – Timer Off Button Enables the Off timer & set timer
hours
18 – Lock Button Locks and Unlocks current set-
ting
19 – LED Display Button Turns on and off the display light

15
CARE AND MAINTENANCE
IMPORTANT:
 Switch off the air conditioner and disconnect the plug from
the power outlet
 Drain water by removing the drain plug
 Always transport the air conditioner in an upright position
only
CLEANING THE AIR FILTERS
 To ensure the air intake is filtered properly and to assure
that your air conditioner runs efficiently, it is recommended
to clean the air filters at least once every two weeks
 This unit has three air filters; the Silvershield pre-filter, 3M
filter and the lower air filter
 Switch off the air conditioner and remove the Silvershield
pre-filter and 3M filter from the unit (Fig. 7a and Fig. 7b)
 Remove the lower filter by loosening the screw and taking
down the air inlet grille. (Fig. 7a)
 Use a vacuum cleaner or tap lightly to remove loose dust
and dirt from the filters. Then rinse them thoroughly under
warm or cold running water (no hotter than 100F.)
 Dry thoroughly before re-inserting the filters. (Fig. 7c)
NOTE: Silvershield pre-filter is washable and does not
need to be replaced. The 3M should be replaced every 2-3
months depending on usage. Please contact
[email protected] for retail sales information
WARNING! Never operate the air conditioner without the
filter in place
CLEANING THE AIR CONDITIONER
 Always switch off the air conditioner and disconnect the
plug from the power supply outlet before cleaning the air
conditioner
 Use a soft damp cloth to wipe the body of the unit.
 Never use harsh chemicals, oil-based products, deter-
gents, chemically treated cloths or other cleaning solutions.
These could possibly damage the body of the air condition-
er
END OF SEASON STORAGE
 Switch off the air conditioner and disconnect the power
plug from the power supply outlet before cleaning the air
conditioner
 To remove the hose from the unit, the easiest way is to
remove take out the hose and leave the connector in
place.
 Clean the air filters
 Drain the condensed water completely
 On a warm day, turn on the Fan only mode for half a day
so that the inside can dry out completely
 Remove the batteries from the remote controller
 Wrap the cord using the Power Cord Buckle and insert the
plug into the Power Plug Socket. (Fig. 7d)
 It is recommended that the air conditioner be put back into
its original carton for storage
The Silvershield pre-
filter can be removed
for cleaning by pull-
ing the filter frame
back and out
Remove the screw,
then remove the lower
air filter
Install the Silvershield
pre-filter and filter frame
back to its place
Re-install lower air
filter and screw
Fig. 7a
Fig. 7b
Fig. 7c
Fig. 7d
Power Cord
Buckle
Power Plug
Socket
3M Filter

16
TROUBLESHOOTING
Problem Possible Causes Solutions
The portable air conditioner
does not turn on
 Power failure / outage
 The automatic switch, line fuse, or
breaker has been tripped
 The power supply voltage is too low
 The power cord is damaged
 The L.C.D.I. power plug for the unit
is tripped
 The internal water reservoir is full
and ‘P1” appears on display
 Restore the power supply
 Flip the switch / change the fuse / turn
the breaker back on. Also note that
you may have too many appliances
drawing power on one circuit, you may
need to move the other appliances to
another circuit
 Move the unit onto another circuit with
the correct voltage
 Call for service. Only authorized per-
sonnel should replace damaged pow-
er cord or power plug
 Press the Reset button on the L.C.D.I.
power plug
 Drain water from the air conditioner
 Possible loose internal connection.
Please contact Whynter for service
The unit turns on but the com-
pressor does not turn on (the
fan runs but the unit is not
cooling)
 The room temperature is outside of
the operational tolerances of the
unit
 The Cooling mode is not on
 The compressor has not turned on
yet because of its time delay
 The set temperature is too high
 The internal water reservoir is full
and ‘P1” appears on display
 This unit is designed to work in ambi-
ent temperatures of 63°F to 90°F
 Press the MODE button until the
COOL light is shown on the display
 Give the compressor 3 minutes to turn
on after the Cooling mode has been
selected
 Set the air conditioner to a lower tem-
perature. It is recommended to set the
temperature to at least 5°F of the am-
bient temperature
 Either manually drain the water by
removing the drain plug or allow the
unit to exhaust the water itself by run-
ning the fan only mode. Then cooling
will resume
 Possible loose internal connection.
Please contact Whynter for service
The air coming out of the unit
is not very cold, or the airflow
volume is weak
 The filters are dirty or obstructed
 The air intake or exhaust is ob-
structed
 The unit is set in DRY or FAN mode
 The unit is set to low fan speed
 Clean the air filters
 Make sure there is at least 20" of
clearance from the air intake. Make
the length of the exhaust hose is as
short as possible
 Set the unit to the cooling mode
 Set the unit to a higher fan speed
Many common portable air conditioner problems are easily resolved. Try the troubleshooting suggestions
below to see if the problems can be resolved before having to contact the service department.

17
TROUBLESHOOTING
Problem Possible Causes Solutions
The unit has worked for a long
time, but the room is not cold
enough
 Windows or doors are open
 There are too many people in the
room
 There is direct sunshine into the
room
 The room is a kitchen or with many
heat-producing appliances
 There is a server in the room
 The room is too large
 Close all windows and doors
 You may need additional cooling or
another air conditioner
 Close curtains or blinds and try to min-
imize the amount of direct sunlight into
the room
 You may need additional cooling or
another air conditioner
The unit is very noisy  The unit is not level
 The surface underneath the unit is
uneven
 Low power voltage
 Make sure the unit is on hard, level
and stable surface
 Move the unit to a location with a level
and hard floor
 Make sure the wall outlet and support
the required power consumption of the
air conditioner and do not use an ex-
tension cord
The unit leaks water  The unit is tilted or not leveled
 The water tank is full
 Make use the unit is leveled
 Drain water from the drain plug at the
back of the air conditioner
Fan speed cannot be changed  Fan speed differences are not very
noticeable
 The fan speed difference is not very
noticeable when the compressor is on.
Try setting the unit to Fan only mode,
you should be able to hear the differ-
ence between high and low fan speed
settings.

18
ONE YEAR LIMITED WARRANTY &
THREE YEAR WARRANTY ON COMPRESSOR
This Whynter portable air conditioner is warranted, to the original owner within the 48 continental states, for one
year from the date of purchase against defects in material and workmanship under normal use and service.
Should your Whynter portable air conditioner prove defective within one year from the date of purchase, return the
defective part or unit, freight prepaid (within two months of purchase; after two months to one year, customer will
be responsible for freight cost to Whynter’s service department), along with an explanation of the claim to Whynter
LLC. Please package the portable air conditioner carefully in its original packaging material to avoid damage in
transit. Please retain the original box and packaging material. Under this warranty, Whynter will repair or replace
any parts found defective. This warranty is not transferable. After the expiration of the warranty, the cost of labor
and parts will be the responsibility of the original owner of the unit.
THIS WARRANTY DOES NOT COVER:
 Acts of God, such as fire, flood, hurricanes, earthquakes and tornadoes.
 Damage, accidental or otherwise, to the Whynter portable air conditioner
while in the possession of a consumer not caused by a defect in material or
workmanship;
 Damage caused by consumer misuse, tampering, or failure to follow the
care and special handling provisions in the instructions.
 Damage to the finish of the case, or other appearance parts caused by wear.
 Damage caused by repairs or alterations to the product by anyone other
than authorized by the manufacturer.
 Freight and Insurance cost for the warranty service.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUD-
ING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO
ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. WHYNTER
SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE
AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY
OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSE- QUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRIT-
TEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT
VARY FROM STATE TO STATE.
To obtain service or information, contact
Whynter LLC via email at [email protected] or call
866-WHYNTER.
Product contents and specifications may change without notice.
Copyright © 2015 Whynter LLC
WWW.WHYNTER.COM
