QUICK START USER GUIDE
Wi AudioLink Pro
TM
www.widigitalsystems.com

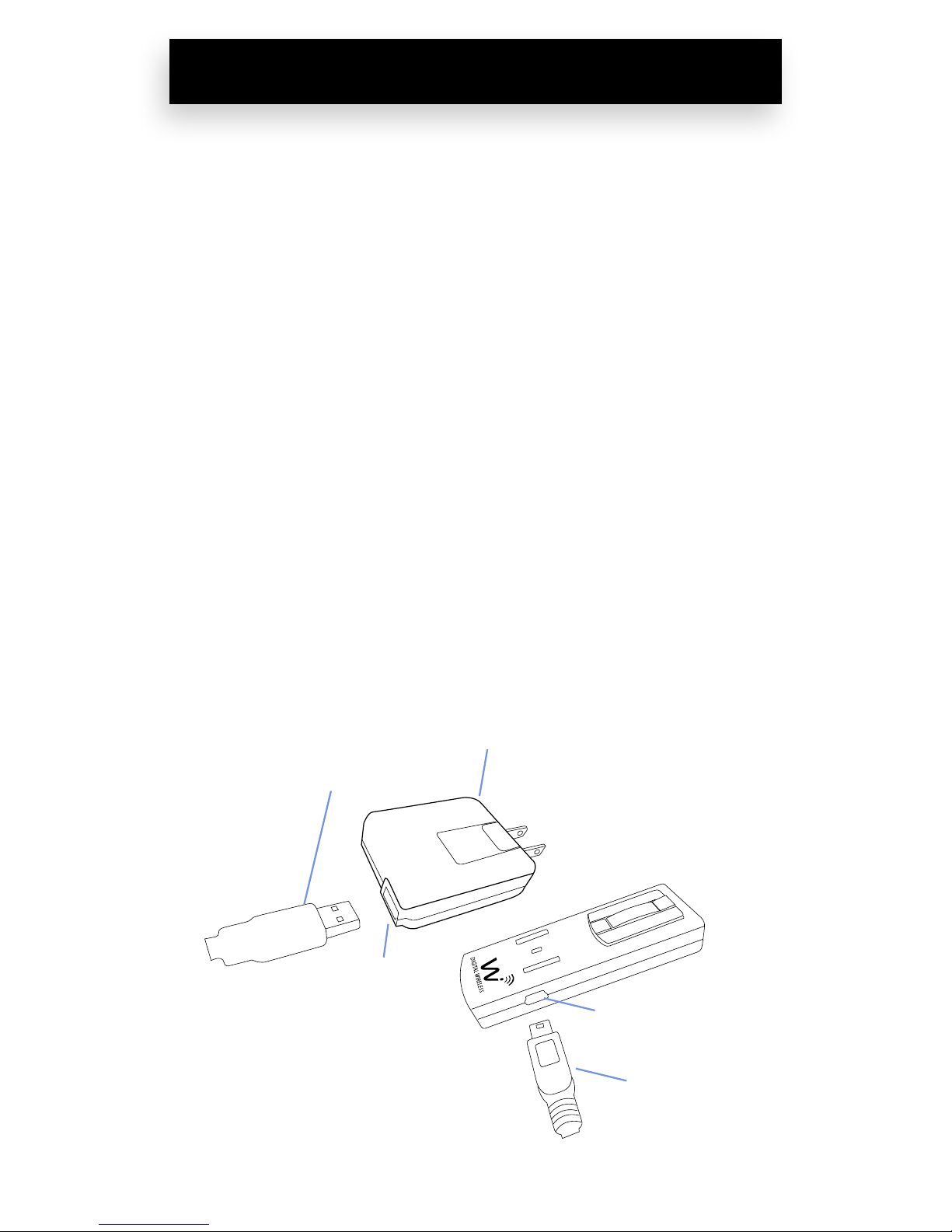

Charging
1. Plug theAC Charger into a power socket.
2. Connect the USB Y-Split power cable to
the USB port on theAC Charger.
3. Connect one of the two mini USB connectors
into the transmitter USB port.
4. Connect the second mini USB connector into
the receiver USB port.
5. The Power/Status LED will turn to solid
Red ON.
6. When charging is complete the Red LED
will turn OFF.
7. Remove the charging cable and theAC
Charger and store in the carrying case.
The battery will last 4 to 6 hours of
continuous operation.
POWER
LINK
Mini USB
Connector
USB Port
AC Charger
USB Port
USB Connector

1. First turn ON the transmitter (Tx) and the
receiver (Rx) units by pressing and
holding the POWER button , on each
of the units for 2 seconds.
2. Press and hold the LINK button on the
transmitter (Tx) for 3 seconds. The Power/
Status LED on the transmitter will start fast
ashing. The transmitter is now in a Pairing
mode and ready to search for the receiver.
3. Press and hold the LINK button on the
receiver (Rx) for 3 seconds. The Power/
Status LED on the receiver will start fast
ashing. The receiver is now in a Pairing
mode and ready to be found by the
transmitter.
4. Once the transmitter links with the receiver
the Power/Status LED on both devices will
turn to solid Green.
Pairing (Only If Needed)
p
k
z
v
(Tx)
pk
zv
(Rx)
r

1/4” mono male connector
Electric Guitar input

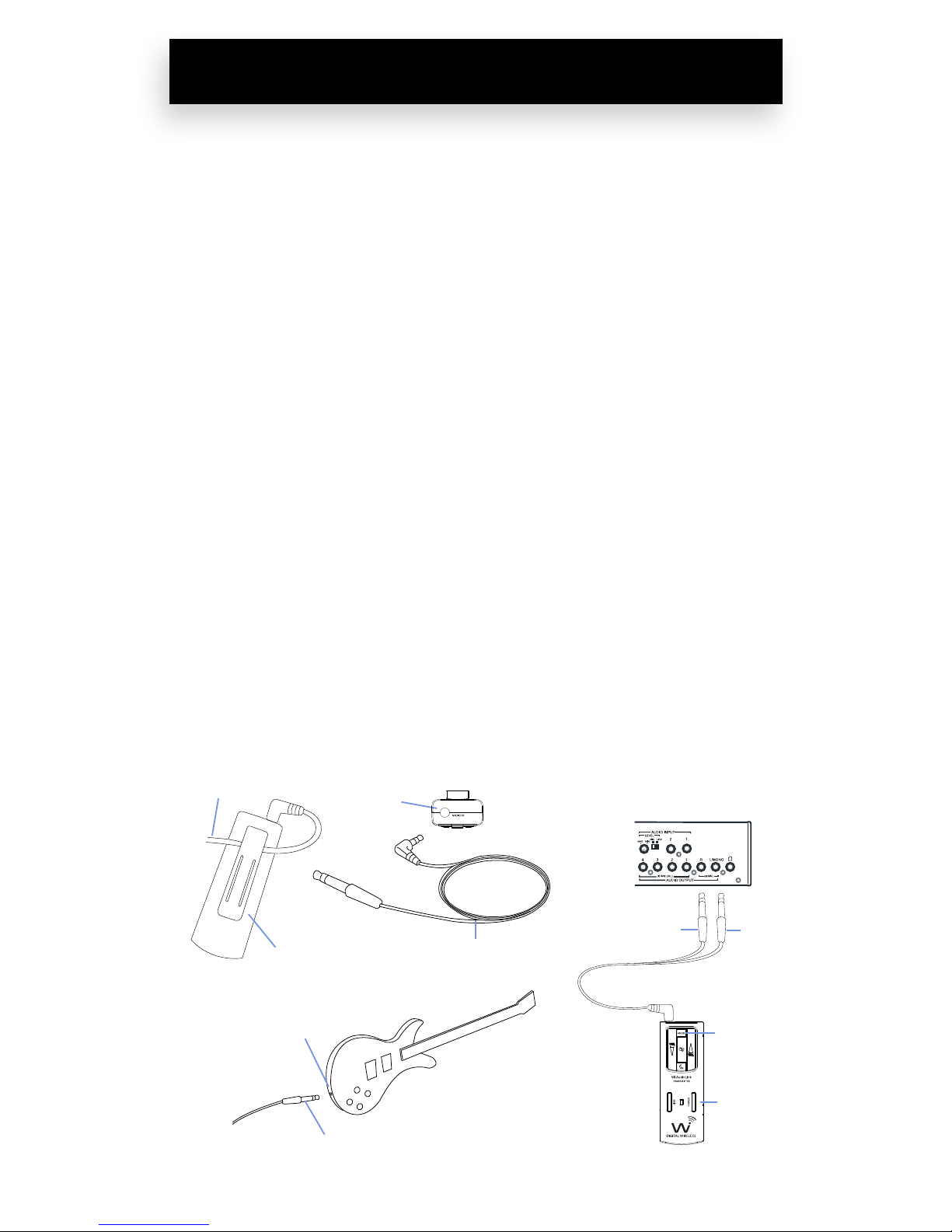

Transmitter Connection
1. Connect the 1/8” stereo male end of the
cable into the “Audio Input” jack on the
transmitter.
2. Route the audio cable beneath the belt clip
as shown to prevent accidental disconnection
of the cable.
3. Connect the 1/4” mono male end of the cable
into the electric guitar. Use the 1/4” stereo
cable for digital piano, keyboard or electronic
drums connection.
4. Power up the transmitter by pressing and
holding the POWER button for 2 seconds.
5. Pleaserefertothe“TransmitterButtonFunctionMatrix”
sectionofthisQuickGuideforActiveGuitarsand
StereoLine-in MODE settings.
6. Attach the transmitter to your belt.
Alternatively the receiver can be
placed next to the musical instrument.
Belt Clip
Audio Cable
v
Audio Input Jack
1/4” Mono to 1/8” Stereo Cable (L/MONO)
Musical Instrument
k
(R)
(Tx)
1/4” Y-Split to 1/8”
Stereo Cable
r
r

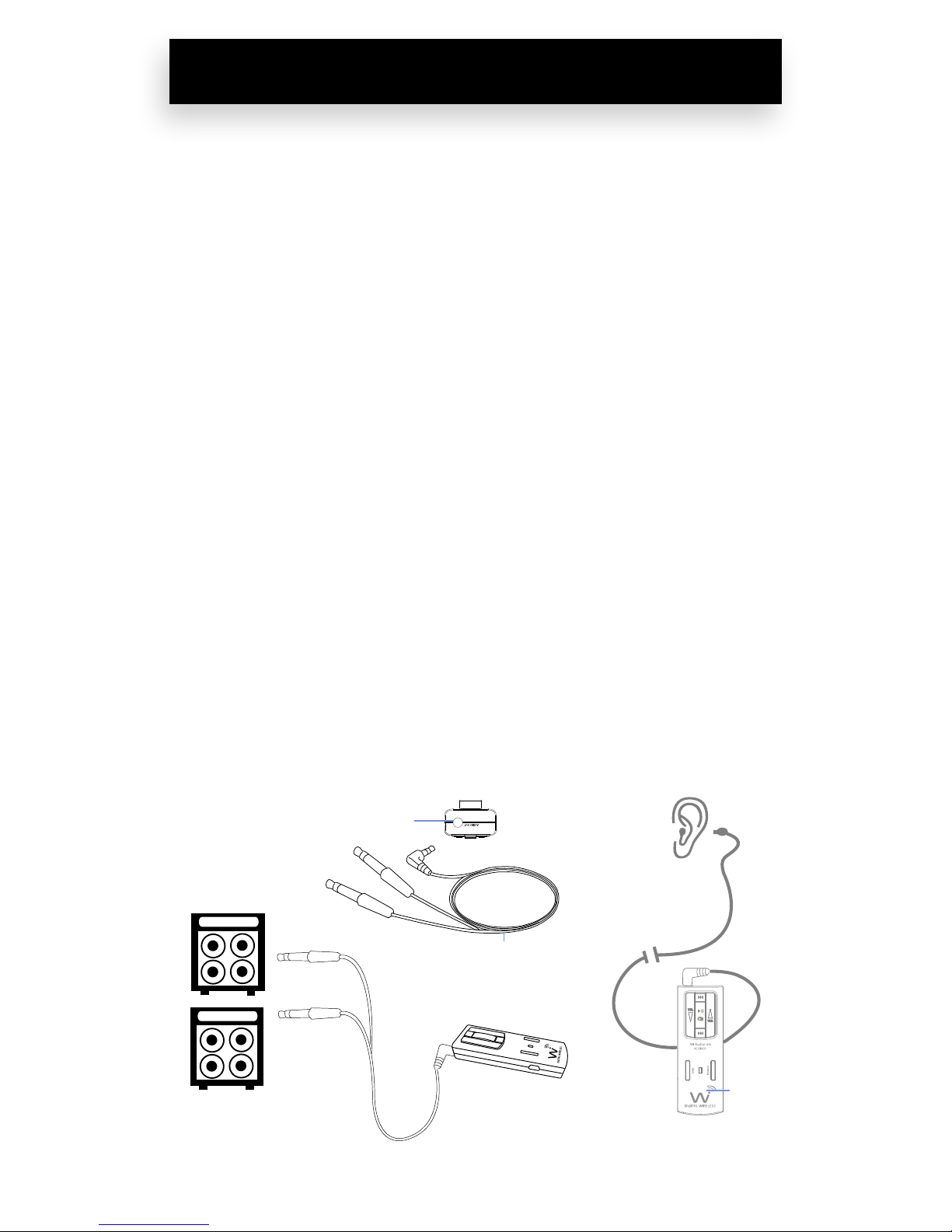

Receiver Connection
PLEASE PROTECT YOUR EARS! Prolonged use of
headphones or In-Ear personal monitors at high
volumes may affect your hearing capacity or may
result in noise induced hearing loss (NHL).
1. Connect the 1/8” stereo end of the cable into
the “Audio Input” jack on the receiver.
2. Route the audio cable beneath the belt clip
as shown to prevent accidental disconnection
of the cable.
3. Connect the 1/4” male end of the cable to the
inputs of your amplier, powered monitor,
sound system, mixer or foot pedal. Use the
L/MONO and R jacks on your gear when
using the system in stereo.
4. Power up the receiver by pressing and
holding the POWER button for 2 seconds.
5. Attach the receiver to your belt.Alternatively
the receiver can be placed next to the mixer,
amp, foot pedal or stomp box.
POWER
LINK
Audio Output
Jack
1/4” Y-Split to 1/8” Stereo Cable
v
(Rx)
v

www.widigitalsystems.com
© 2013 Wi Digital Systems, Inc. All rights reserved. Stylized Wi logo is a
registered trademark of Wi Digital Systems, Inc. in the United States and may
be a registered trademark in other countries. Wi, Digital Wireless Stereo logos
and Wi AudioLink, Wi Sure-Ears, Wi Micro-In-Ear are trademarks of Wi Digital
Systems, Inc. All other trademarks included herein are the property of their
respective owners. US and Foreign Patents Pending.
(Design and specications subject to change without notice).
TM
The Sound of Digital Wireless Innovation
QUICK START USER GUIDE

Wi Transmitter
1. Audio IN Jack
2. Power ON/OFF
3. Power/Status LED
4. Volume UP
5. Volume Down
6. Mute
7. Link/Pairing
8. Lock
9. Operation Mode
10. USB Audio
Interface &
Charging Port
11. Belt Clip
s
11
j
r
o
n
q
p
l
m
k

Function Button Hold LED Status
Power ON/OFF POWER 2 sec Solid Green
Pairing Mode LINK 3 sec Fast Green Flash
Volume UP Click
Volume Down
Mute ON/OFF 1.5sec Solid Green & Blue
Lock Keypad 2 sec Solid Green Only
Unlock Keypad Click Solid Green & Blue
Flashes
Mono Preamp MODE 2 sec Solid Green & Slow
Blue LED Flashes
Mono Line-In MODE 2 sec Solid Green & Fast
Blue LED Flashes
Stereo Line-In MODE 2 sec Solid Green & Two
BlueLEDFlashes
Function LED Status
Searching For Receiver Flashing Green
Linked to Receiver Solid Green
Lock Keypad Solid Green Only
Low Battery Solid Green &
Flashing Red
Charging With Power OFF Solid Red
Charging With Power ON Solid Red & Green
Charging Complete Red OFF
Transmitter Button Function
Transmitter LED Indicator
l
l
l
l
l
l
l

Wi Receiver
u
|
}
y
{
z
w
x
v
1. Audio OUT Jack
2. Power ON/OFF
3. Power/Status LED
4. Volume UP
5. Volume Down
6. Link/MIC
7. Next Track
8. Previous Track
9. Mute/ Play/Pause
10.USB Charging Port
11. Belt Clip
*Functions are activated when Transmitter is connected to a USB Port
11
~

Receiver Button Function
Receiver LED Indicator
Function LED Status
Searching For Transmitter Flashing Green
Linked to Transmitter Solid Green
Lock (Activated By Tx) Solid Green
Low Battery SolidGreen&
Flashing Red
Charging With Power OFF Solid Red
Charging With Power ON Solid Red & Green
Charging Complete Red OFF
w
w
w
w
w
w
w
Function Button Hold LED Status
Power ON/OFF POWER 2 sec Solid Green
Pairing Mode LINK 3 sec FastGreen Flash
MIC On/Off MIC Click2BlueLEDFlashes
/ SolidGreenLED
Volume UP Click
Volume Down
Mute ON/OFF 1.5 sec SolidGreen&Blue
Play/Pause * Click
Next Track * Click
Prev Track * Click
