Wickes 206207 User manual

Heavy Duty Garage Door Opener
Model 206207
Wickes Building Supplies Ltd.
120-138 Station Road
Harrow
HA1 2QB
Freephone Helpline: 0800 317847

START BY READING THESE IMPORTANT SAFETY RULES
CONTENTS
These safety alert symbols mean Caution – a personal safety or property damage instruction. Read these instructions carefully.
This garage door opener is designed and tested to offer reasonable safe service provided it is installed and operated in strict accordance
with the following safety rules.
Failure to comply with the following instructions may result in serious personal injury or property damage.
Caution: If your garage has no service entrance door, Model 203009 Outside Quick Release must be installed. This accessory allows manual
operation of the garage door from outside in case of power failure.
SAFETY RULES: Page 1
DOOR TYPES: Page 1 –Illustration
TOOLS REQUIRED: Illustration
HARDWARE PROVIDED:
Page 1 –Illustration
BEFORE YOU BEGIN: Page 2
COMPLETED INSTALLATION:
Page 2 –Illustration
ASSEMBLY:
Page 2 –Illustrations -
INSTALLATION:
Pages 2-3 –Illustrations -
PROGRAMMING THE CODE:
Page 4 –Illustration
ADJUSTMENT:
Page 4 –Illustrations -
INSTALL THE PROTECTOR: (Optional):
Page 4 –Illustration
OPERATION OF YOUR OPENER: Page 5
CARE OF YOUR OPENER: Page 5
MAINTENANCE OF YOUR OPENER: Page 5
PROBLEMS: Pages 5-6
SPECIAL FEATURE OF THE 206207:
Page 6 –Illustration
ACCESSORIES:
Page 6 –Illustration
SPECIFICATIONS: Page 6
REPLACEMENT PARTS:
Illustrations -2726
25
24
23
2220
19
189
85
4
3
21
DOOR TYPES
A. One-Piece Door with Horizontal Track Only
B. One-Piece Door with Horizontal and Vertical Track:
Special door arm (F, Wickes Canopy Door Converter) required.
C. Sectional Door with Curved Track:
See B–Connect Door Arm.
D. Double-wing door: Special door arm required. See your dealer.
E. Canopy door:
Special door arm (F, Wickes Canopy Door Converter) required.
18
1
Assembly Hardware:
(1) Bolts (8)
(2) Hex Screws (4)
(3) Lock Nuts (12)
(4) Coupling
Installation Hardware:
(5) Carriage Bolts (2)
(6) Wood Screws (4)
(7) Screws (2)
(8) Clevis Pins (2)
(9) Hex Screws (4)
(10) Rope
(11) Handle
(12) Insulated Staples
(13) Anchors (2)
(14) Lock Washers (6)
(15) Nuts (6)
(16) Ring Fasteners (3)
(17) 8mm Anchors (4)
(18) Sheet Metal Screws (2)
(19) Clevis Pin (1)
HARDWARE PROVIDED 3
Keep garage door balanced. Sticking or binding doors must
be repaired. Garage doors, door springs, cables, pulleys,
brackets and their hardware are under extreme tension and
can cause serious personal injury. Do not attempt to loosen,
move or adjust them. Call for garage door service.
Do not wear rings, watches or loose clothing while installing
or servicing a garage door opener.
To avoid serious personal injury from entanglement, remove
all ropes connected to the garage door before installing the
door opener.
Installation and wiring must be in compliance with your local
building and electrical codes. Connect the power supply
cord only to properly earthed mains.
Lightweight doors or fiberglass, aluminum or steel must
be substantially reinforced to avoid door damage. (See
page 4.) The best solution is to check with your garage door
manufacturer for an opener installation reinforcement kit.
The safety reverse system test is very important. Your
garage door MUST reverse on contact with a 50mm (2")
obstacle placed on the floor. Failure to properly adjust the
opener may result in serious personal injury from a closing
garage door. Repeat the test once a month and make any
needed adjustments.
This unit should not be installed in a damp or wet space.
Door must not extend over public byway during operation.
The force, as measured on the closing edge of the door,
should not exceed 150 N (15kg). If the closing force is
adjusted to more than 150 N, the Protector System must
be installed. Do not use the force adjustments to
compensate for a binding or sticking garage door.
Excessive force will interfere with the proper operation of the
Safety Reverse System or damage the garage door.
Fasten the caution label adjacent to the lighted door control
button as a reminder of safe operating procedures.
Disengage all existing garage door locks to avoid damage
to garage door.
Install the lighted door control button (or any additional push
buttons) in a location where the garage door is visible, but
out of the reach of children. Do not allow children to
operate push button(s) or remote control(s). Serious
personal injury from a closing garage door may result from
misuse of the opener.
Activate opener only when the door is in full view, free of
obstructions and opener is properly adjusted. No one
should enter or leave the garage while the door is in
motion. Do not allow children to play near the door.
Use manual release only to disengage the trolley and, if
possible, only when the door is closed. Do not use the red
handle to pull the door open or closed.
Disconnect electric power to the garage door opener
before making repairs or removing covers.
1-GB

BEFORE YOU BEGIN:
1. Look at the wall or ceiling above the garage door. The door/header
bracket must be securely fastened to structural supports.
2. Do you have a finished ceiling in your garage? If so, a support bracket
and additional fastening hardware (not supplied) may be required.
3. Depending on your door's construction, you might need a special door
arm. See your dealer.
4. Do you have an access door in addition to the garage door? If not,
Model 203009 Outside Quick Release Accessory is required.
COMPLETED INSTALLATION
As you proceed with the assembly, installation and adjustment
proceedures in this manual, you may find it helpful to refer back to
this illustration of a completed installation.
(1) Rail Brackets (8) Manual Release Rope & Handle
(2) Trolley (9) Curved Door Arm
(3) Rail (10) Straight Door Arm
(4) Hanging Bracket (11) Header Bracket
(5) Power Cord (12) Trolley Release Arm
(6) Opener (13) Door Bracket
(7) Light Lens
ASSEMBLY SECTION -
ASSEMBLE THE RAIL
1. (Illustration 5A) Turn the opened rail carton upside down, emptying its
contents onto a level work surface.
2. Unfold the rails, taking care to avoid kinking the screw rod joints.
3. (Illustration 5B) Rotate the rail sections so that the flat side is down and
the screw side is up for all three lengths. Keep it clean and free of debris
while you are working.
CAUTION: During assembly, avoid pulling the rail section housing the
trolley rack (1) away from the screw rod. The rack is factory set about
230mm (9") from the end of the screw rod to the center of the rack.
If the plastic liner slides part way out during assembly, simply push it back in.
4. (Illustration 5C) Beginning with the sprocket end (2), straighten the two
rail sections so that the screw rod is in a straight line at the joint. (Avoid
handling the joints, which may have sharp edges.)
5. Carefully slide the pins (3) at the top edge of the rail into the openings
(4) on the adjacent rail. It is essential that the rail assembly be on a
level surface to achieve proper alignment and to avoid damage to
the pins.
6. Insert two bolts (5) through the center holes of a brace (6), and place its
open length against the rail at this joint, aligning the holes as shown.
Position another brace on the opposite side of the rail over the bolts, add
lock nuts (7), and hand tighten. Insert two additional bolts and hand
tighten.
7. Keeping the rail straight and on a level surface, grasp the screw rods on
each side of the remaining joint and pivot into a straight line. Repeat
steps 5 and 6.
8. With an 11mm wrench, tighten bolts til snug. Work from the center holes
to those further from the joints. Do not overtighten.
FASTEN THE RAIL TO THE OPENER
Align the rail assembly (1) with the opener (2). Slip the coupling (3) over the
rail sprocket (4). Slide the rail through the opener bracket (5) until the
coupling fits securely over the opener sprocket (6). Align the two screw
holes in the rail with those in the opener bracket. Insert two hex screws (7)
and lock nuts (8). Tighten securely.
INSTALL THE TROLLEY
Slide the trolley (1) onto and along the bottom of the rail until it snaps firmly
in place. Be certain to install it facing correctly: the trolley release arm
must be horizontal (lock position), with its arrow pointed away from
the opener.
ATTACH THE RAIL BRACKETS
Align rail brackets (1) with end of rail assembly. Insert two hex screws (2)
and lock nuts (3). Tighten securely.
ASSEMBLY OF YOUR OPENER IS NOW COMPLETE.
INSTALLATION SECTION -
Wear protective goggles when working overhead to protect your eyes
from injury.
Disengage all existing garage door locks to avoid damage to the
garage door.
To avoid serious personal injury from entanglement, remove all ropes
connected to the garage door before installing the opener.
Installation of this product shall comply with ZH1/494, VDE 0700 Part 238,
and VDE 0700 Part 1.
It is recommended that the opener be installed 2,1m (7 feet) or more above
the floor where space permits.
POSITION THE HEADER BRACKET
The header bracket must be rigidly fastened to a structural support
of the garage. Reinforce the wall or ceiling with a 40mm (1-
1/2") board if necessary. Failure to comply may result in improper
operation of safety reverse system.

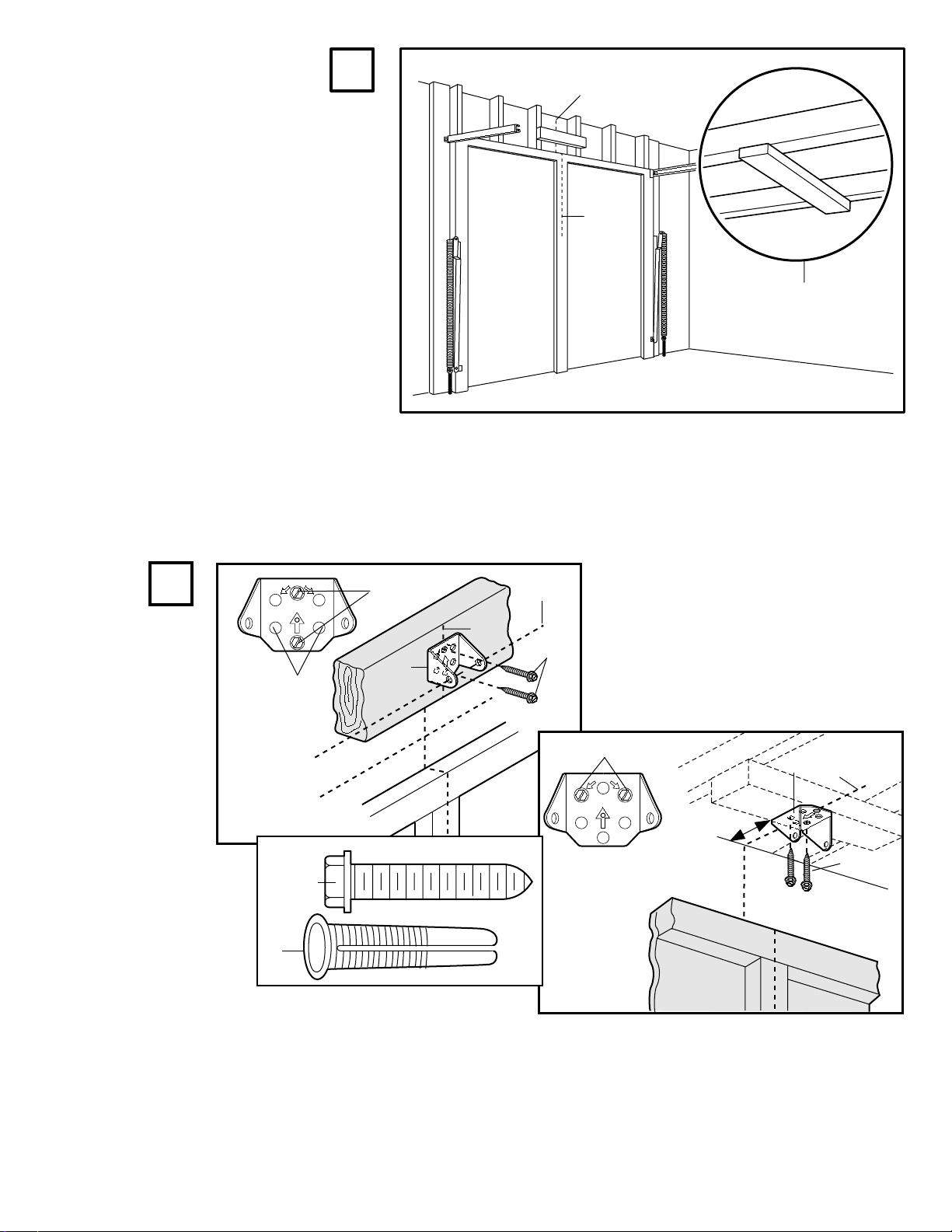

You can attach the header bracket either to the header wall (1) or to the
ceiling (3). Follow the instructions which will work best for your particular
requirements.
With the door closed, mark the vertical centerline (2) of the garage door.
Extend line onto header wall above the door.
Open door to highest point of travel. Draw an intersecting horizontal line on
header wall 75mm (3") above high point to provide travel clearance for top
edge of door.
INSTALL THE HEADER BRACKET
A. Wall Mount: Center the bracket (2) on the vertical guideline (1) with the
bottom edge of the bracket on the horizontal line (6) (with the arrow
pointing toward the ceiling).
Mark either set of bracket holes (4 or 5). Do not use the holes
designated for ceiling mount. Drill 4,5mm (3/16") pilot holes and fasten
the bracket with wood screws (3).
B. Ceiling Mount: Extend vertical guideline (1) onto the ceiling. Center the
bracket (2) on the vertical mark no more than 150mm (6") from the wall.
Make sure the arrow is pointing toward the wall.
Mark holes designated for ceiling mount only (4). Drill 4,5mm (3/16") pilot
holes and fasten the bracket with wood screws (3). For concrete ceiling
mount, use concrete anchors (7) provided.
ATTACH RAIL TO HEADER BRACKET
Position opener on garage floor below the header bracket. Use packing
material to protect the cover.
Note: To enable the rail to clear sectional door springs, it may be
necessary to lift opener onto a temporary support.
The opener must either be secured to a support or held firmly in place by
another person.
Raise rail until rail brackets and header bracket come together. Join with
clevis pin (1). Insert ring fastener (2) to secure.
POSITION THE OPENER
Note: A 25mm (1") board (1) is convenient for setting an ideal door-to-rail
distance (unless headroom is not sufficient).
Raise the opener onto a stepladder. Open garage door. Place a 25mm
(1") board (1) laid flat on the top section of door near the centerline as
shown. Rest the rail on the board.
If the raised door hits the trolley, pull down on the trolley release arm to
disconnect the inner and outer trolley sections. The trolley can remain
disconnected until connecting door arm to trolley is completed.
12
11
10
9
189
8
7
6
5
85
4
2-GB

HANG THE OPENER
The opener must be securely fastened to a structural support of the
garage. Attach the hanging brackets toward the front of the opener
as shown (1).
Three representative installations are shown. Yours may be different.
Hanging brackets (2) should be angled (Figure A) to provide rigid support.
On finished ceilings, (Figure B) attach a sturdy metal bracket (not supplied)
(5) to a structural support before installing the opener. For concrete ceiling
mount, (Figure C), use concrete anchors (6) provided.
On each side of opener measure the distance from the opener to the
structural support (or ceiling).
Cut both pieces of the hanging bracket to required lengths. Flatten one end
of each bracket and bend or twist to fit the fastening angles. Do not bend
at the bracket holes. Drill 4,5mm (3/16") pilot holes in the structural
supports (or ceiling). Attach flattened ends of brackets to supports with
wood screws (3).
Lift opener and fasten to hanging brackets with screw, lock washer and nut
(4). Check to make sure rail is centered over the door. REMOVE
25mm (1") board. Operate door manually. If door hits the rail, raise header
bracket.
ATTACH MANUAL RELEASE ROPE & HANDLE
Thread one end of rope (1) through hole in top of red handle so "NOTICE"
reads right side up as shown (3). Secure with an overhand knot (2). Knot
should be at least 25mm (1") from end of the rope to prevent slipping.
Thread other end of rope through hole in release arm of the outer trolley
(4). Adjust rope length so that handle is 1,8m (6 feet) above the floor.
Secure with an overhand knot.
Note: If it is necessary to cut rope, heat seal cut end with a match or
lighter to prevent fraying.
CONNECT ELECTRIC POWER
TO AVOID INSTALLATION DIFFICULTIES, DO NOT RUN THE GARAGE
DOOR OPENER UNTIL INSTRUCTED TO DO SO.
Connect the opener to a mains which is properly EARTHED according
to the wiring instruction tag attached to power supply cord (and as
specified by local code).
Connect the door opener only to an outlet controlled by a double pole
switch.
INSTALL THE LIGHTED DOOR CONTROL BUTTON
Locate push buttons where the garage door is visible, away from
door and door hardware and out of the reach of children.
Serious personal injury from a moving garage door may result from
misuse of opener. Do not allow children to operate the lighted door
control button or remote control transmitter.
Fasten the caution label on the wall near the lighted door control
button as a reminder of safe operating procedures.

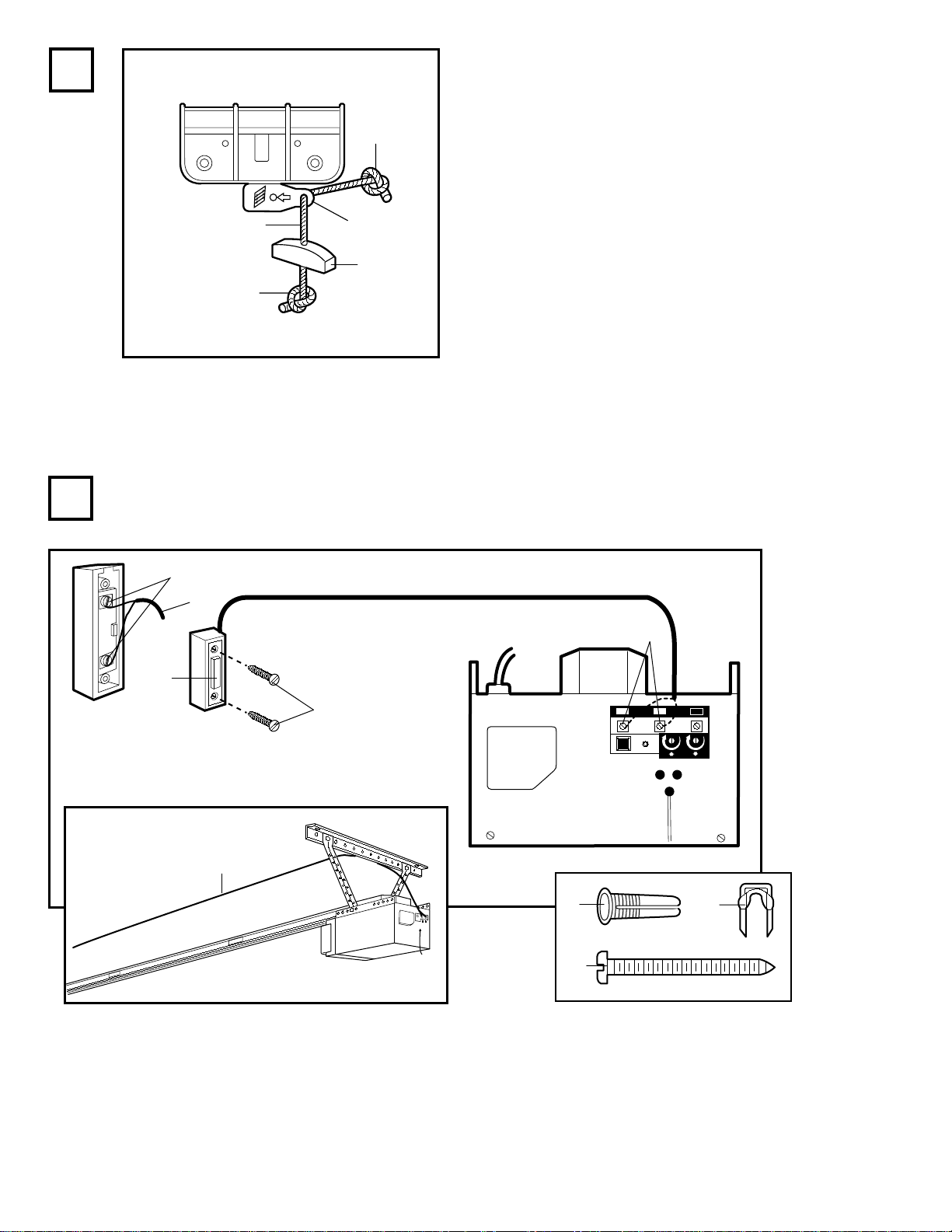

There are 2 screw terminals (1) on the back of the lighted door control
button (2). Strip about 6mm (1/4") of insulation from bell wire (4). Separate
wires enough to connect the white/red wire to terminal screw 1 and the
white wire to terminal screw 2.
Fasten the lighted door control button to an inside garage wall with sheet
metal screws (3) provided. Drill 4mm (5/32") holes and use anchors (6) if
installing into drywall or concrete. A convenient place is beside the service
door and out of reach of children.
Run the bell wire up the wall and across the ceiling to the garage door
opener. Use insulated staples (5) to secure wire. The receiver terminal
screws (7) are located on the back panel of the opener. Connect the bell wire
to the terminal screws as follows: white/red to 1 and white to 2.
OPERATION OF THE LIGHTED DOOR CONTROL BUTTON
Press to open or close the door. Press again to reverse the door during the
closing cycle or to stop the door during opening cycle.
INSTALL THE LIGHT AND LENS

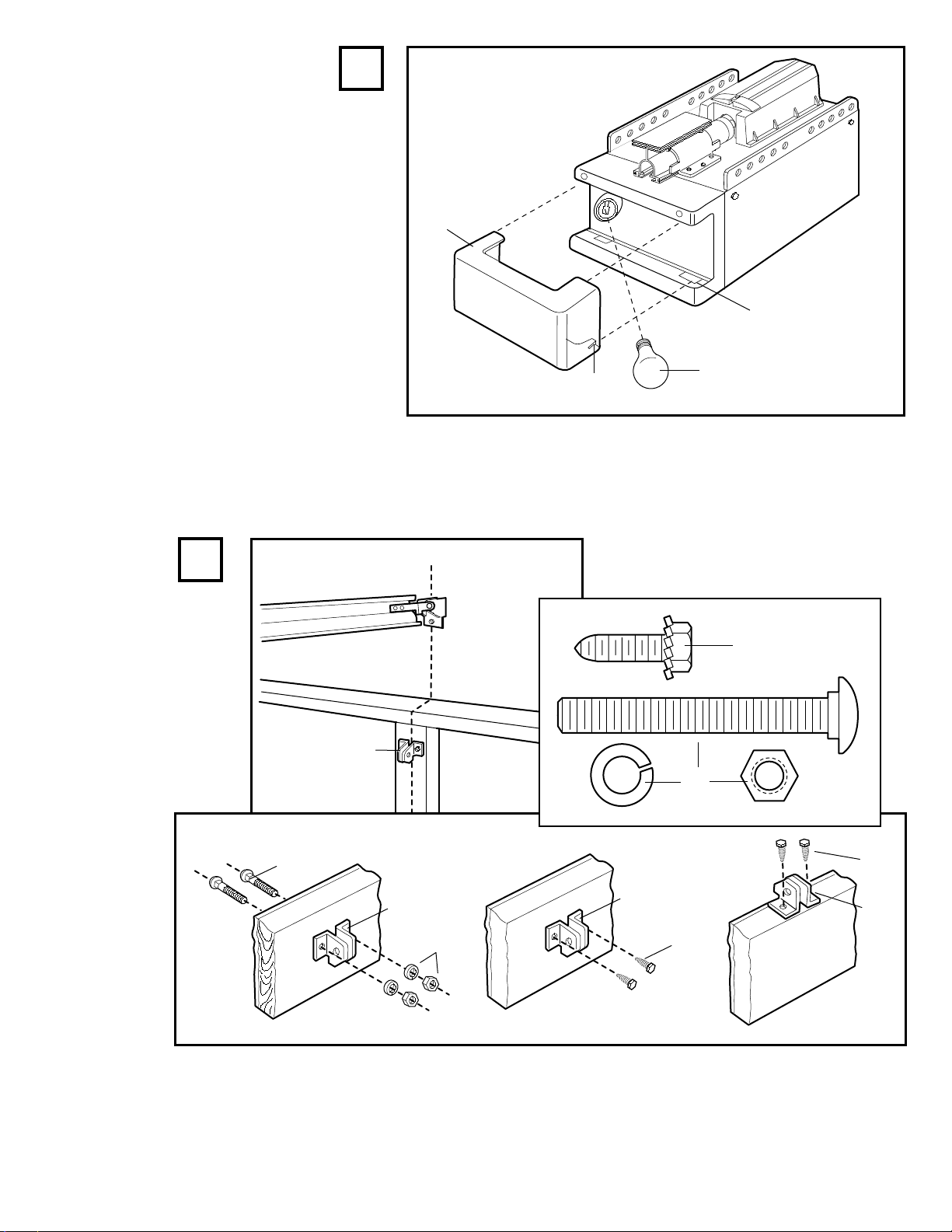

Install a 40 watt maximum (230V/E27) light bulb (1) in the socket as
shown. The light will turn on and remain lit for 4-1/2 minutes when power is
connected. After 4-1/2 minutes it will turn off.
Replace burned out bulbs with rough service light bulbs (230V/W40/E27).
Apply slight pressure on sides of the lens (2) and slide tabs (3) into slots (4)
in the end panel. Reverse the procedure to remove the lens.
FASTEN DOOR BRACKET
If yours is a canopy or dual-track style garage door, a door arm conversion
kit is required. Follow the installation instructions included with the
replacement door arm. Exercise care in removing and assembling arm
conversion kit. Keep fingers away from the sliding parts.
NOTE: Horizontal and vertical reinforcement is needed for lightweight
garage doors.
Sectional and One-Piece Door Installation Procedure:
1. Center bracket (1) at the top of inside face of door as shown. Mark
holes.
2. A. Wooden doors
Drill 8mm (5/16") holes and fasten the door bracket with nut,
lock washer, and carriage bolt (2).
B. Sheet metal doors
Fasten with sheet metal screws (3).
C. One-piece door optional
Fasten with sheet metal screws (3).
CONNECT DOOR ARM TO TROLLEY
NOTE: For one-piece doors, do not connect door arm to trolley before
adjusting limits. Failure to follow instructions may result in damage to
door. See below.
Sectional Door Installation: Note door arm configuration in Figure B.
One-Piece Door Installation: Procedure (Figure A).
Connect straight door arm (1) and curved door arm sections (2) to obtain
the longest possible length with hardware (3, 4 & 5). With door closed,
connect straight door arm section to door bracket with a clevis pin (6).
Secure with a ring fastener (7).
Before connecting door arm to trolley, adjust travel limits. Limit
adjustment screws are located on side panel.
Open Door Adjustment: Decrease up limit. Turn up limit adjustment
screw counterclockwise 5-1/2 turns.
Press door control button. Trolley will travel to full open position (8).
Manually raise door to open position (parallel to floor) and lift door arm (9)
to trolley. The arm should touch trolley just in back of door arm connector
hole (10) as shown in solid line drawing. Increase up limit if necessary.
One full turn equals 5cm (2") of door travel.
Closed Door Adjustment: Decrease down limit. Turn down limit
adjustment screw clockwise 5 complete turns.
Press door control button. Trolley will travel to full closed position (11).
Manually close door and lift door arm (12) to trolley. The arm should touch
trolley just ahead of door arm connector hole (13) as shown in dotted line
drawing. Decrease down limit if necessary. One full turn equals 5cm (2") of
door travel.
Connect Door Arm to Trolley: With door closed, connect curved arm to
trolley with remaining clevis pin. Secure with ring fastener. Note: Lift door
slightly to make connection if necessary.
Run opener through a complete travel cycle. If door has a slight
"backward" slant in full open position, decrease up limits until door is
parallel to floor.
18
17
16
15
14
13
3-GB

PROGRAM YOUR OPENER & REMOTE
Activate the opener only when door is in full view, free of obstruction
and properly adjusted. No one should enter or leave garage while
door is in motion. Do not allow children to operate push button(s) or
remote(s). Do not allow children to play near the door.
Your garage door opener receiver and remote control transmitter are set to
a matching code. If you purchase additional remote controls, the garage
door opener must be programmed to accept the new remote code.
Program the Receiver to Match Additional Remote Control Codes
1. Press and hold the remote control push button (1).
2. Press and release the "Smart" button (2) on the back panel of the
opener. The opener light will flash once.
3. Release the remote push button.
Now the opener will operate when the remote control push button is
pressed.
If you release the remote control push button before the opener lights
flash, the opener will not accept the code.
To Erase all Remote Control Codes
•Press and hold the "Smart" button on the opener panel until the indicator
light turns off (about 6 seconds). All the codes the opener has learned
will be erased.
•To reprogram, repeat Steps 1 –3 for each remote control in use.
ADJUSTMENT SECTION -
LIMIT ADJUSTMENT
Run the opener through a complete travel cycle. Limit adjustments are
not necessary when the door opens and closes completely and doesn't
reverse unintentionally in the fully closed position.
Situations requiring limit adjustment are listed below. Run the opener
through a complete travel cycle after each adjustment.
NOTE: Repeated operation of the opener during adjustment procedures
may cause motor to overheat and shut off. Allow a 15 minute cooling
period after 5 continuous operations of the opener.
Read the following carefully before proceeding to Force Adjustment. Use a
screwdriver to make limit adjustments.
If Door Doesn't Open Completely but Opens at Least 1,5m (5 feet):
Increase up travel. Turn the up limit adjustment screw (1) clockwise. One
turn equals 5cm (2") of travel.
If door does not open at least 1,5m (5 feet): Adjust up (open) force.
See Force Adjustment.
If Door Doesn't Close Completely: Increase down travel. Turn down
limit adjustment screw (2) counterclockwise. One turn equals 5cm (2") of
travel. If the door still will not close completely, lengthen the door arm. If it
still will not close completely, lower the header bracket.
If Opener Reverses in Fully Closed Position: Decrease down travel.
Turn down limit adjustment screw (2) clockwise. One turn equals 5cm (2")
of travel.
If Door Reverses when Closing and there is no Interference to Travel
Cycle: Test door for binding. Pull manual release handle. Manually open
and close door. If door is binding, call a door serviceman. If door is not
binding or unbalanced, adjust down (close) force.
FORCE ADJUSTMENT
The force, as measured on the closing edge of the door, should not
exceed 150 N (15kg). If the closing force is adjusted to more than
150 N, the Protector System must be installed.
Do not use force adjustments to compensate for a binding or sticking
garage door. Excessive force will interfere with proper operation of
safety reverse system or damage garage door.
Force Adjustment Controls (1 & 2) are located on the back panel of the
opener.
If the force adjustments are set too light, door travel may be interrupted by
nuisance reversals in down direction and stops in up direction. Weather
conditions can affect the door movement, occasional adjustment may be
needed.
Maximum force adjustment range is 260 degrees, about 3/4 of a complete
turn. Do not force controls beyond that point. Turn force adjustment
controls with a screwdriver.
Test Down (Close) Force: Grasp the door handle or door bottom when
door is about halfway through down (close) travel. Door should reverse.
Reversal halfway through down travel does not guarantee reversal on a
50mm (2") obstruction. If the door is hard to hold or doesn't reverse,
decrease down (close) force by turning the control (2) in a
counterclockwise direction. Make small adjustments until door reverses
normally. After each adjustment, run opener through a complete cycle.
If Door Doesn't Open at Least 1,5m (5 feet): Increase up (open) force by
turning the control (1) in a clockwise direction. Make small adjustments until
door opens completely. Re-adjust up limit if necessary. After each
adjustment, run opener through a complete travel cycle.
If Door Reverses During Down (Close) Cycle: Increase down (close)
force by turning the control (2) in a clockwise direction. Make small
adjustments until door completes close cycle. After each adjustment, run
the opener through a complete travel cycle. Do not increase the force
beyond the minimum amount required to close the door.
TEST THE SAFETY REVERSE SYSTEM
The safety reverse system test is important. Garage door must
reverse on contact with a 50mm (2") obstacle laid flat on the floor.
Failure to properly adjust opener may result in serious personal injury
from a closing garage door. Repeat test once a month and adjust as
needed.
Procedure: Always begin with door in fully open position. Place a 50mm
(2") obstacle (1) laid flat on the floor under the garage door. Operate the
door in the down direction. The door must reverse on the obstruction. If
the door stops on the obstruction, it is not traveling far enough in the
down direction. Increase the down limit by turning down limit adjustment
screw counterclockwise 1/4 turn. Repeat test.
When the door reverses on the 50mm (2") obstacle, remove the
obstruction and run the opener through a complete travel cycle. Door must
not reverse in closed position. If it does, adjust Limits and Force and
repeat safety reverse test.
INSTALL THE SAFETY EYES (OPTIONAL)
(See accessories)
The force, as measured on the closing edge of the door, should not
exceed 150 N (15kg). If the closing force is adjusted to more than
150 N, the Protector System must be installed.
After opener has been installed and adjusted, The Safety Eyes accessory
can be installed. Instructions are included with this optional device.
The Safety Eyes provides an additional measure of safety against a
small child being caught under a garage door.
It uses an invisible beam which, when broken by an obstruction, causes a
closing door to open and prevents an open door from closing and is
strongly recommended for homeowners with young children.
23
22
21
20
2220
19
4-GB

OPERATION OF YOUR OPENER
Your opener can be activated by any of the following devices:
• The Lighted Door Control Button. Hold the button down until door
starts to move.
• The Outside Keylock or Keyless Entry System (if you have installed
either of these accessories).
• The Remote Control Transmitter. Hold the push button down until the
door starts to move.
Opening the Door Manually:
Door should be fully closed if possible. Weak or broken springs could
allow an open door to fall rapidly. Property damage or serious
personal injury could result.
The door can be opened manually by pulling the release handle straight
down (so that the trolley release arm snaps into a vertical position). To
reconnect the door, pull the release handle toward the opener at a 45˚
angle so that the trolley release arm is horizontal. See illustration 14.
Do not use the manual release handle to pull the door open or closed.
When the Opener is Activated by Remote Control or Lighted Door
Control Button:
1. If open, the door will close. If closed, the door will open.
2. If closing, the door will reverse.
3. If opening, the door will stop (allowing space for entry and exit of pets
and for fresh air).
4. If the door has been stopped in a partially open position, it will close.
5. If an obstruction is encountered while closing, the door will reverse.
6. If an obstruction is encountered while opening, the door will stop.
7. The optional Protector System™uses an invisible beam which, when
broken by an obstruction, causes a closing door to open and prevents
an open door from closing. It is STRONGLY RECOMMENDED for
homeowners with young children.
Allow a 15 minute cooling period after 5 continuous operations of the
opener.
The opener light will turn on: 1. when opener is initially plugged in;
2. when the power is interrupted; 3. when the opener is activated.
The light turns off automatically after 4-1/2 minutes. Bulb size is 40 Watts
maximum (230V, E27).
CARE OF YOUR OPENER
When properly installed, opener will provide high performance with a
minimum of maintenance. The opener does not require additional
lubrication.
Limit and Force Adjustments: These adjustments must be checked and
properly set when opener is installed. Only a screwdriver is
required. Weather conditions may cause some minor changes in the door
operation, requiring some re-adjustments, particularly during the first year
of operation.
Refer to the limit and force adjustments on page 4. Follow the instructions
carefully and repeat the safety reverse test after any adjustment.
Remote Control Transmitter: The portable remote control may be
secured to a car sun visor with the clip provided. Additional remotes can be
purchased at any time for use in all vehicles using garage. Refer to
Accessories. The receiver must be programmed to operate with any new
remote.
Remote Control Battery: The lithium batteries should produce power for
up to 5 years.
To Change Battery: To replace batteries, use the visor clip or screwdriver
blade to pry open the case. Insert batteries positive side up. To replace
cover, snap shut along both sides. Do not dispose of the old battery with
household waste. Take battery to a proper disposal center.
MAINTENANCE OF YOUR OPENER
Once a Month:
•Repeat safety reverse test. Make any necessary adjustments.
•Manually operate door. If it is unbalanced or binding, call for professional
garage door service.
•Check to be sure door opens and closes fully. Adjust Limits and/or Force
if necessary. Once a Year:
Oil door rollers, bearings and hinges. The opener does not require
additional lubrication. Do not grease the door tracks.
HAVING A PROBLEM?
1. Opener doesn't operate from either door control or remote:
•Does the opener have electric power? Plug lamp into outlet. If it doesn't
light, check the fuse box or the circuit breaker. (Some outlets are
controlled by a wall switch.)
•Have you disengaged all door locks? Review installation instruction
warnings on page 1.
•Is there a build-up of ice or snow under door? The door may be frozen to
ground. Remove any obstruction.
•The garage door spring may be broken. Have it replaced.
•Repeated operation may have tripped the overload protector in the motor.
Wait 15 minutes. Try again.
2. Opener operates from remote but not from door control:
•Is door control button lit? If not, remove the bell wire from the opener
terminals. Short the red and white terminals by touching both terminals at
the same time with a piece of wire. If the opener runs, check for a faulty
wire connection at the door control, a short under the staples, or a broken
wire.
•Are wiring connections correct? Review page 3.
3. Door operates from door control but not from remote:
•Replace battery if necessary.
•If you have two or more remotes and only one operates, review receiver
programming procedures on page 4.
•Is the door control button flashing? The opener receiver must
re-learn the remote control code. Follow the instructions on page 4.
4. Remote has short range:
•Replace battery.
•Change the location of the remote control on the car.
•A metal garage door, foil-backed insulation or metal siding will reduce the
transmission range.
•Make sure antenna is fully extended across ceiling towards the door.
5. Door reverses for no apparent reason and opener lights don't blink:
•Is something obstructing the door? Pull manual release handle. Operate
door manually. If it is unbalanced or binding, call for professional garage
door service.
•Clear any ice or snow from garage floor area where garage door closes.
•Review Force Adjustment.
•If door reverses in FULLY CLOSED position, decrease travel limits.
Repeat safety reverse test after adjustment is complete.
The need for occasional adjustment of the force and limit settings is
normal. Weather conditions in particular can affect door travel.
6. Door reverses for no apparent reason and opener lights blink for
5 seconds after reversing:
Check The Safety Eyes (if you have installed this accessory). If the light is
blinking, correct alignment.
5-GB

HAVING A PROBLEM? (Continued)
7. Opener noise is disturbing in living quarters of home:
If operational noise is a problem because of proximity of the opener to the
living quarters, Vibration Isolator Kit 41A3263 can be installed. This kit was
designed to eliminate the "sounding board effect" and is easy to install.
8. The garage door opens and closes by itself:
•Is there a neighbor with a garage door opener using the same frequency
code? Change your code.
•Make sure remote push button is not stuck “on.”
9. Door stops but doesn't close completely:
Review Travel Limits Adjustment.
Repeat safety reverse test after any adjustment of door arm length,
close force or down limit.
10. Door opens but won't close:
•Check The Safety Eyes (if you have installed this accessory). If the light
is blinking, correct alignment.
•If opener lights do not blink and it is a new installation, check the down
force.
Repeat the safety reverse test after the adjustment is complete.
11. Opener light does not turn on:
Replace light bulb (40 Watts maximum, 230V, E27). Replace burned out
bulbs with rough service light bulbs.
12. Opener light does not turn off:
There may be a defective earth at the ceiling or wall receptacle. The unit
must be earthed.
13. Opener strains or maximum force is needed to activate door:
Door may be unbalanced or springs are broken. Close door and use
manual release rope and handle to disconnect trolley. Open and close door
manually. A properly balanced door will stay in any point of travel while
being supported entirely by its springs. If it does not, call for professional
garage door service to correct the problem. Do not increase the force to
operate the opener.
14. Opener motor hums briefly, then won't work:
•Garage door springs are broken. SEE ABOVE.
•If problem occurs on first operation of opener, door may be locked.
Disable door lock.
15. Opener won't activate due to power failure:
•Pull manual release rope and handle straight down to disconnect trolley.
Door can be opened and closed manually. When the power is restored,
pull the manual release handle toward the opener at a 45˚angle, so that
the trolley release arm is horizontal. The next time the opener is
activated, the trolley will reconnect.
•The Outside Quick Release accessory (if fitted) disconnects the trolley
from outside the garage in case of power failure.
ACCESSORIES
(1) Model 206205 Single-Function Remote Control
(2) Model 206206 Keyless Entry System
(3) Model 203009 Outside Quick Release
(4) Model 203007 The Safety Eyes
(5) Model 203008 Canopy Door Converter
Wiring Instructions for Accessories
Lighted Push Button: Protector System™:
To opener terminals: To opener terminals:
Red-1 and White-2 White-2 and Black-3
Outside Keylock: Wall Control Panel:
To opener terminals: To opener terminals:
Red-1 and White-2 Red-1 and White-2
REPLACEMENT PARTS -
SPECIFICATIONS
Max. Pull Force...........900N
Watts ...........................600W
Motor
Type.............................Permanent split capacitor
Speed..........................1500 rpm
Volts.............................230-240 Volts AC-50Hz Only
Drive Mechanism
Reduction....................1.27:1
Drive............................Screw. 2 Lead worm. Aluminum rail.
Length of Travel ..........Adjustable to 2,23m (7.4 feet)
Travel Rate..................152mm (6 inches) per second
Lamp ...........................1x230V/40W/E27 socket, on when door starts,
off 4-1/2 minutes after stop.
Door Linkage...............Adjustable door arm. Pull cord trolley release.
Safety
Personal......................Push button and automatic reversal in down
direction. Push button and automatic stop in up
direction.
Electronic.....................Independent up and down force adjustment screws.
Electrical......................Motor overload protector and low voltage push
button wiring.
Limit Adjustment..........Screwdriver adjustment on side panel.
Start Circuit .................Low voltage push button circuit.
Dimensions
Length (Overall) ..........3,1m (122 inches)
Headroom Required....6cm (2.3 inches)
Hanging Weight...........19 kg (41.8 lb)
Receiver Memory Registers
Computer Code...........12
Code Switch................1
Keypad........................1
2625
24
6-GB

Declaration of Conformity
Automatic Garage Door Opener ...............................................Model No. 206207
is in conformity to the applicable
sections of Standards.........................................................EN55014, EN61000-3,
....................................................................................ETS 300 683 & EN60335-1
per the provisions & all amendments
of the EU Directives .....................................1999/5/EC, 73/23/EEC, 89/336/EEC
Declaration of Incorporation
Automatic Garage Door Opener Model No. 206207, when installed and
maintained according to all the Manufacturer’s instructions in combination
with a Garage Door, which has also been installed and maintained accord-
ing to all the Manufacturer’s instructions, meets the provisions of EU
Directive 89/392/EEC and all amendments.
I, the undersigned, hereby declare that the equipment
specified above and any accessory listed in the manual
conforms to the above Directives and Standards.
Chamberlain GmbH
D-66793 Saarwellingen
August, 2001 Colin B. Willmott
Chief Engineer
© 2001
114A2543 All rights reserved Printed in Mexico

Heavy Duty
Garage Door Opener
Model 206207
Illustrations

2
AB
F
E
C
1
D

3
2
1
11mm, 13mm
11/13mm
10mm, 8mm,
4,5mm, 4mm
2
12
10
3
5
67
8
9
14
15
16
13 17
12
11
NOTICE
4
3
18
19

4
12
10
34
6
7
8
9
11
4
5
NOTICE
12
12
8
13

5
1
2
4
3
C2
5
5
7
7
4
4
3
3
6
6
6
6
B
5
6
1
A
5
7

6
6
1
2
4
5
3
6
8
7
78
7
1
83
1
2
32

UP
CEILING MOUNT ONLY
UP
CEILINGMOUNTONLY
1
23
4
5
B
UP
150mm
(6")
UP
CEILING MOUNT ONLY
421
3
10
A
6
3
7
7
9
3
1
2

8
11 2
1
12
12 1

9
A
C
13
1
3
2
3
6
3
6
2
2
1
4
4
B
1
4
5
4
2
2
6
3
4

10
2
3
1
2
4
14
NOTICE
4
2
3
7
1
WHT
2
RED
1
15
23
1
KG KG
5
3
6
4

11
16
2
4
1
3
1
17
1
2
A
2
1
B
31
3
C
2
3

12
6
2
12
13 10
9
18
1
11 8
4
7
5
3
A
4
3
5
B
6
4
5
7
3
19
2
1
23
1
KG KG
