Wido WD012411400 User manual

Mixer
WD012411400
1400W

WD012411400
Thank you for purchasing a WIDO product. We are confident that you will appreciate the quality
of the product and you will be entirely satisfied with your purchase. Please read carefully the
user safety and operating instruction on how to operate this product correctly within safety
norms and regulations.
2

3
WD012411400
1
3
2
4
6
7
5

22
22
22
22
22
1
2
6.5mm
1
2
321
654
8
7
4
WD0113
2411400WD01

1400W MIXER
ENG
COMPONENT LIST
4)
)Mixing paddle
6) Switch trigger
7) Switch lock on button
NORMAL ACCESSORIES
1) Mixing paddle: 1set
2) Spanner: 1set
2) Spare carbon brush: 1set
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according to the
work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can
assist you and offer advice.
5
1) Handle
2) Variable speed control
3) Two speed control
5
Spindle

1400W MIXER
ENG
GENERAL POWER TOOL SAFETY WARNINGS
Warning: Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructionsfor future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.Use
of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication.A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.This enables better control of
the power tool in unexpected situations.
6

1400W MIXER
ENG
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.The correct
power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in the
hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power tool
for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR POWER TOOL
1) Wear ear protectors with power tool. Exposure to noise can cause hearing loss.
2) Wear safety goggles or eye protection when using this power tool. Use a dust mask or respirator for
applications which generate dust.
3) Wear close fitting work clothes or a fitted boiler suit when using this power tool. Loose fitting clothes
pose a hazard as they can become entangled in the rotating parts of the power tool.
4) RCD (Residual Current Device) and personal protection devices like electrician’s rubber gloves and
footwear will further enhance your personal safety.
5) Never use the power tool in or near an explosive atmosphere.
6) Do not mix food. Power tools and their accessories are not designed for processing food.
7) The mixing container must be suitable for mixing and must stand securely. A container that is not
properly secured may move uncontrolled.
8) The operator should be aware of the routing of the supply cable and ensure that it does not be
routed near or through moist, damp or wet areas.
9)The power tool must not be damp and must not be operated in a wet environment.
10)Keep a secure stance with both feet firmly planted and slightly apart. This power tool also requires
7

1400W MIXER
ENG
the use of both hands. This power tool cannot be used one handed.
11) Keep handles dry, clean and free from oil and grease. Slippery hands cannot safely control the
power tool.
12)The power tool should only be started with the mixing paddle in the mixing container. Start the
power tool with the speed set at the lowest speed setting and gradually increase the speed until the
optimum mixing performance is achieved.
13) Never reach with your hand or any other object into the mixing container during mixing.
14)Once the mixing process is completed, the operator should use the speed adjustment wheel to set
the motor to its lowest speed setting, and then switch off the motor with the mixing paddle still in the
mixing container. The mixing paddle should be allowed to come to a complete standstill before the
power tool is removed from the mixing container.
15) When an extension cord is required you must ensure it has the correct ampere rating for your
power tool and that it is in a safe electrical condition.
16) Fully unwind extension cords to avoid potential overheating.
DOUBLE INSULATION
The power tool is double insulated. This means that all the external metal parts are electrically insulated
from the main power supply. This is done by placing insulation barriers between the electrical and
mechanical components making it unnecessary for the power tool to be earthed.
IMPORTANT NOTE
Be sure the supply is the same as the voltage given on the rating plate. The power tool is fitted with a
two-core cable and plug.
Remove the main plug from socket before carrying out any adjustment or servicing.
Do not use this power toolfor mixing corrosive, explosive or combustible materials.
8

1400W MIXER
ENG
SYMBOLS
Some of the following symbols may be used on your power tool. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
To reduce the risk of injury, user must read instruction manual
Double insulation
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice
TECHNICAL DATA
Note: For power tool specifications refer to the nameplate on your power tool.
Model WD012411400
Voltage 110 120V AC 220 240V AC
Frequency 50-
--
60Hz 50-60Hz
Power input 1400W 1400W
No load speed 0-480/min, 0-800/min 0-480/min, 0-800/min
Tool holder M14 M14
Max. mixing paddle dia Ф5-1/2’’ Ф140mm
Protection class
Machine weight 3.6Kg 3.6Kg
9

1400W MIXER
ENG
OPERATING INSTRUCTIONS
Note: Before using the power tool, readthe instruction manual carefully.
1. Intended use
The machine is intended for mixing pulverized building materials such as mortar, plaster, adhesives, as
well as solvent free paint, varnish and similar substances.
2. Before using your power tool
1)
1)
2)
Selection of the mixing paddle is dependent on the material that is to be mixed.
2) Ensure that the power switch is in the off position. If the plug is connected to a power receptacle
while the power switch is in the on position, this power tool will start operating immediately, inviting
serious accident.
3. Installing the mixing paddle

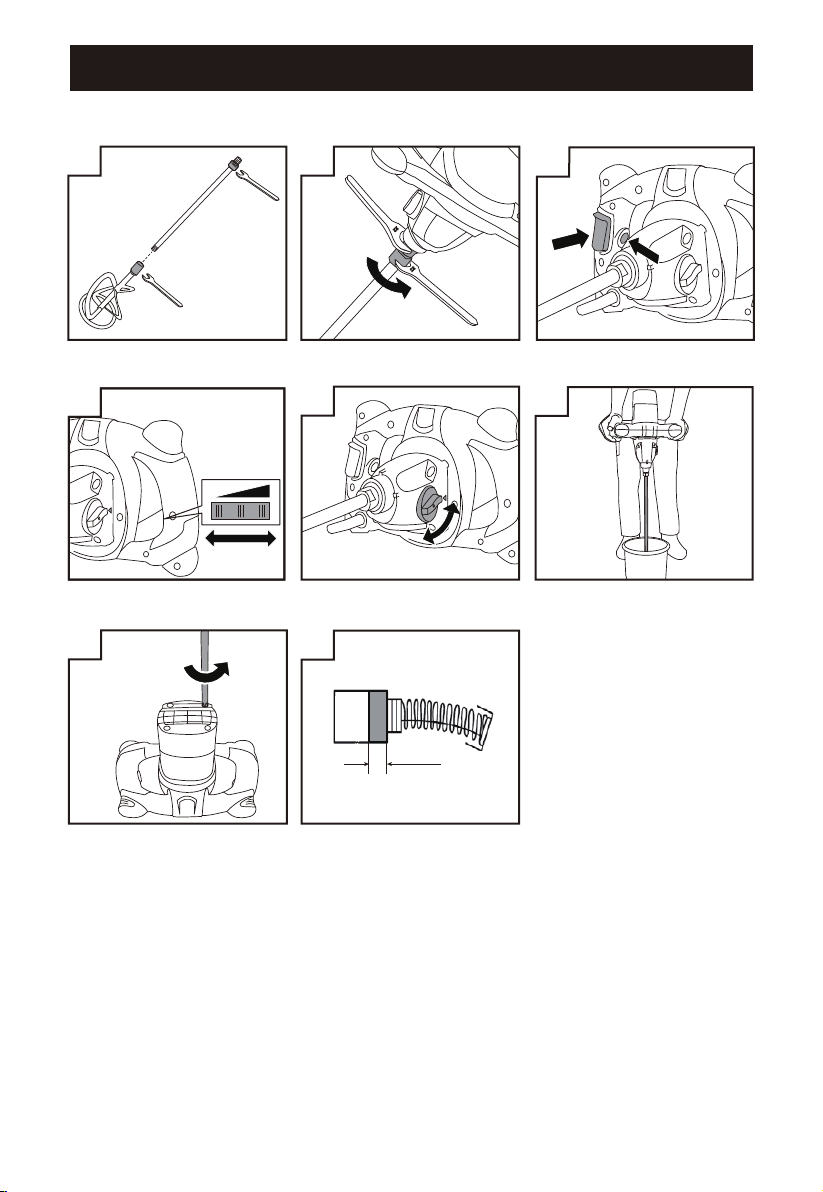

The power tool is supplied with a two piece mixing paddle. The two pieces of the mixing paddle
simply screw together (See Fig 1) and should be securely tightened using the spanner supplied.
The mixing paddle should be screwed into the power tool spindle and securely tightened (See Fig 2).
Warning: Before installing tool, remove mains plug from mains supply.
4. Operating the on/off switch
1) To start the power tool, simply depress the switch trigger. Release the switch trigger to stop your
power tool.
2) If you wish to use the power tool continuously, depress switch trigger then lock on button, release
switch trigger first and lock on button second (See Fig 3). Your switch is now locked on for continuous
use. To turn off your power tool just depress and release the switch trigger. The switch will return to "off"
position automatically.
Note: This power tool is equipped with electric soft-starter and it shall be started slowly without a
sudden impact when power tool is switched on.
5. Variable speed control
Adjust the variable speed control to increase or decrease the speed according to the material and
accessory to be used. Turn the variable speed control in anticlockwise direction to increase speed and
in clockwise direction to decrease speed (See Fig 4). High speed gives higher torque and low speed
will provide low torque.
Warning: Do not operate for long periods at low speed because excess heat will be
producedinternally.
6. Two speed control
Choose position “1” for high torque and low speed range for mixing heavy materials. Choose position
“2” for low torque and high speed range for mixing lightmaterials (See Fig 5). If the gears do not
engage easily, rotate the spindle by spanner to align the gears.Never change the gears when the tool is
rotating, wait until it has stopped.
10

1400W MIXER
ENG
7. Operation
Position the mixing container on a horizontal, stable and secure surface.
Place the materials to be mixed in the mixing container in accordance with the recommendations
provided by the manufacturer of the materials.
3) Check the mixer and particularly the security of the attached mixing paddle.
4) Place the mixing paddle in the mixing container.
5) Adopt a secure stance holding the mixer with both hands.
6) Choose two speed position by two speed control and with the lowest speed setting selected
depress the trigger. Switch to start the motor slowly.
7) Be prepared for the impact of the torque forces especially on start up.
8) Adjust the speed of the motor to give optimum mixing performance.
9) During mixing, guide the mixing paddle around the mixing container (See Fig 6).
10) Continue mixing until the required material consistency is achieved.
11) Release the switch trigger and allow the mixing paddle to come to a complete stop.
12) Remove the mixing paddle from the mixing container.
Warning: If the mixing paddle comes into contact with the bottom or side(s) of the mixing
container during mixing operations ‘kick back’ can be experienced.
WORKING HINTS FOR YOUR POWER TOOL
1. When using this power tool for mixing liquid, or dry powdered or granulated materials, follow
material manufacturer instructions and precautions.
•Do not run the power tool on a stand.
•Avoid splashing around the material being stirred to prevent slipping and losing control over the power
tool.
•Avoid prolonged use of the power tool at lower speeds. Otherwise the motor of the power tool could
overheat.
2. Selection of the stirrer paddle is dependent on the material that is to be stirred.
3. For materials with low viscosity, e. g. emulsion paint, varnishes, adhesive, grouting compound,
cement slurry, use a stirrer paddle with a left hand spiral. The material is moved from the top
downwards in a stirrer paddle with a left-hand spiral. The stirrer paddle is pushed upwards. Materials
with low viscosity are mixed in a way which minimizes splattering.
4. For materials with high viscosity, e. g. plaster, concrete, cement, screed, filler, epoxy resin, use a
stirrer paddle with right-hand spiral. The material is moved from the bottom upwards in a stirrer paddle
with a right-hand spiral. The stirrer paddle works its way into the mixture. Materials with high viscosity
are mixed thoroughly.
5. While mixing, move the power tool in an up and down motion. Clean the stirrer paddle after use.
MAINTENANCE
Warning: Remove the plug from the socket before carrying out any adjustment, servicing
or maintenance.
1. Keep the power tool ventilation slots clean and free from obstructions. If available, blow compressed
air into the vents to clear any internal dust (safety goggles must be worn when undertaking this
process).
2. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth.
3. Your power tool requires no additional lubrication.
11
1)
2)

1400W MIXER
ENG
4. Always store your power tool in a dry place.
5. The motor employs carbon brushes which are consumable parts. Since an excessively worn carbon
brush results in motor trouble. To inspecting or replacing the carbon brushes, use a screwdriver to
remove the four screws on rear cover (See Fig 7). Take out the carbon brushes. If it becomes worn to or
near “wear limit” (See Fig 8), replacing the new ones, reinstall the holder cap firmly.
Note:
•Both carbon brushes should be replaced at the same time. Use only identical carbon brushes. Keep
the carbon brushes clean and free to slip in the holders.
•The brush holder caps must be tightened firmly when reinstall the brush holder cap into power tool.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
TROUBLESHOOTING
1. If you see bigger sparks flashing in the ventilation slots than normal sparks, take out the carbon
brushes. If it becomes worn to or near “wear limit”, replace the new ones.
2. If your power tool will not operate, check the power at the mains plug, or check the carbon brushes.
3. If the mixer doesn’t work properly, check the mixing paddle, replace mixing paddle if worn.
4. If afault can’t be rectified, return the power tool to an authorized dealer for repair.
ENVIRONMENT PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.
12

MIXER ENG0W140

1400W MIXER
ENG
PART LIST
NO DESCRIPTION Q’TY NO DESCRIPTION Q’TY
1 Output shaft 1 30 Woolen washer 1
2 Key 1 31 Bearing 1
3 Oil seal 1 32 Rotor 1
4 Gear box 1 33 Bearing 1
5 Steel ball 1 34 Screw 12
6 Spring 1 35 Handle cover 1
7 Two speed control knob 1 36 Screw 2
8 Screw 1 37 Stator 1
9 Bearing 1 38 Variable speed control knob 1
10 Circlip 1 39 Potentiometer 1
11 Circlip 1 40 O ring 1
12 Big gear 1 41 Potentiometer sleeve 1
13 Circlip 1 42 Switch 1
14 Needle bearing 1 43
15 Spring 1 44
Screw 1
16 Oil pipe 1 45
Cable clamp 1
17 Screw 4 46
Cable protector 1
18 Shift dial 1 47
Cable and plug 1
19 Fork set 1 48
Motor housing 1
20 Needle bearing 1 49
Brush cover 2
21 First driving shaft 1 50
Carbon brush 2
22 Bearing 1 51
Brush holder 2
23 Needle bearing 2 52
Soft start 1
24 Second driving shaft 1 53
Screw 2
25 Second driving shaft gear 1 54
Decorative ring 1
26 Paper washer 1 55
Backcover 1
27 Middle cover 1 56
Screw 4
28 O ring 1 57
Mixing paddle 1
29 Spring 1
Spanner 2
14

WD012411400
15

MADE IN CHINA
Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com
