FM HARBIL 24018 User manual

Part # - 24018
Rev. C
05/01/99
®
®
HARBIL
5G High Speed
Paint Mixer
Instruction
Manual
With Enhanced Clamping Circuity

CONFIDENTIAL
PROPERTY OF
FLUID MANAGEMENT
®
(C) COPYRIGHT 1999
FLUID MANAGEMENT
AS AN UNPUBLISHED WORK ALL RIGHTS RESERVED
This material cannot be copied or disclosed to others without
the prior written permission of
Fluid Management
.
FLUID MANAGEMENT
A Unit of IDEX, Corp.
1023 Wheeling Road
Wheeling, Illinois 60090-5776
Voice [phone]
US [phone]
Fax [phone]

TABLE OF CONTENTS
5G Paint Mixer Instruction Manual
3
Table Of Contents
SAFETY INFORMATION- - - - - - - - - - - - - - - - - - - - - - - - - - - -5
INTRODUCTION- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -7
PRODUCT DESCRIPTION - - - - - - - - - - - - - - - - - - - - - - - - - - -7
UNPACKING DIRECTIONS - - - - - - - - - - - - - - - - - - - - - - - - -10
ELECTRICAL CONNECTIONS- - - - - - - - - - - - - - - - - - - - - - -11
ALIGNING AND LEVELING MIXER - - - - - - - - - - - - - - - - - -13
GETTING TO KNOW YOUR PAINT MIXER - - - - - - - - - - - - -15
OPERATIONAL TEST - - - - - - - - - - - - - - - - - - - - - - - - - - - - -17
IMPORTANT INFORMATION - - - - - - - - - - - - - - - - - - - - - - -18
BASIC OPERATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -19
MAINTENANCE PROCEDURES - - - - - - - - - - - - - - - - - - - - -22
TROUBLE-SHOOTING CHART - - - - - - - - - - - - - - - - - - - - - -24
SERVICING AND REPAIR- - - - - - - - - - - - - - - - - - - - - - - - - -29
OPENING MIXER - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -30
REMOVING SHAKE FRAME - - - - - - - - - - - - - - - - - - - - - - - -31
TESTING SHAKE MOTOR- - - - - - - - - - - - - - - - - - - - - - - - - -35
CHANGING SHAKE MOTOR- - - - - - - - - - - - - - - - - - - - - - - -36
CHANGING THE V-BELT- - - - - - - - - - - - - - - - - - - - - - - - - -37
REMOVING CIRCUIT BOARD- - - - - - - - - - - - - - - - - - - - - - -38
INSTALLING RUBBER PADS - - - - - - - - - - - - - - - - - - - - - - -39
REPLACING / ADJUSTING DC MOTOR- - - - - - - - - - - - - - - -41
ADJUSTING CLAMPING FORCE - - - - - - - - - - - - - - - - - - - - -42
REVERSING DOOR - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -44
REPLACING SUPER-STRUTS - - - - - - - - - - - - - - - - - - - - - - -46
REPLACING CRANKSHAFT - - - - - - - - - - - - - - - - - - - - - - - -53
REASSEMBLING MIXER- - - - - - - - - - - - - - - - - - - - - - - - - - -56
PARTS SECTION- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -59
PARTS: SHEET METAL AND OUTER FRAME - - - - - - - - - - -60
PARTS: CONTROL BOX ASSEMBLY- - - - - - - - - - - - - - - - - -64
PARTS: INNER FRAME- - - - - - - - - - - - - - - - - - - - - - - - - - - -66
PARTS: SHAKE FRAME - - - - - - - - - - - - - - - - - - - - - - - - - - -68
PARTS: CLAMPING MOTOR ASSEMBLY - - - - - - - - - - - - - -74
PARTS: TOP PLATE ASSEMBLY- - - - - - - - - - - - - - - - - - - - -76
PARTS: CRANKSHAFT ASSEMBLY - - - - - - - - - - - - - - - - - -78

4
Fluid Management
®

SAFETY INFORMATION
5G Paint Mixer Instruction Manual
5
SAFETY
INFORMATION
MIXER WARNING LABELS
You should become familiar with important warning labels which are
affixed to the mixer, as well as the symbols which appear throughout this
manual. These warnings have been included to help you safely perform your
job.
Please read all warning labels that are on the mixer. Keep them clean so they
are easy to read. If the warning labels become damaged or unreadable, new
labels can be purchased from Fluid Management. See the parts list in the
back of the manual for ordering information.
SAFETY NOTICE INFORMATION
The two main safety notices used in this manual are Warning and Caution.
Notices in this manual will look like the example below:
Warning Notice
A Warning notice tells you about a hazard that could cause serious injury to
you or extensive damage to the mixer. This information is placed at the
beginning of the manual to emphasize the importance of safety to your well
being.
When you see a Warning notice in this manual, read it carefully. Before
continuing with the operation of the mixer, take all necessary precautions to
avoid potential injury.
Caution Notice
Do not operate the mixer with the door
open.Disconnect power before servicing.
WARNING: ELECTRICAL HAZARD
All electrical components must be kept dry.
Never place containers of liquid on or near
the control box.
CAUTION: ELECTRICAL HAZARD

SAFETY INFORMATION
6
Fluid Management
®
A Caution notice tells you about a danger that could cause injury to you or
minor damage to the mixer. When you see a Caution notice in this manual,
read it carefully and be sure you understand it before continuing.
Information Notice
An Information notice gives details that will assist you in efficiently using
the mixer. When you see an Information notice in this manual, know that it
is there to save you time and energy.
If the cabinet vibrates, loosen the locking
nuts on the right front leveling foot and
slightly adjust the length.
NOTE:

INTRODUCTION
5G Paint Mixer Instruction Manual
7
INTRODUCTION The Harbil 5G High Speed Paint Mixer is a versatile, automatic mixer
designed with concern for safety, reliability and ease of use. Its features
include:
• Heavy-duty, high-capacity components and a durable finish for long
wear.
• Vibration-free mixing for blending and conditioning paint.
• Versatile mixing times from 30 seconds to 3 minutes
• Adaptability for pint, quart, gallon and 5-gallon containers.
Important safety features are
• Automatic shut off if the door is opened during the shaking
operation.
• Fully visible red STOP switch for emergency shut off.
PRODUCT
DESCRIPTION
SPECIFICATIONS
Height 45 3/8" (115.25 cm.)
Width 27 1/2" (69.8 cm.)
Depth 27 1/2" (69.8 cm.)
Weight 525 lb. (238.1 kg.)
CONTAINER DIMENSIONS
Maximum height 17.5" (44.5 cm.)
Minimum height 3.8" (9.2 cm.)
Diameter 12.0" (30.5 cm.)
TYPICAL ELECTRICAL SUPPLY
See name plate for specific information.
120 V ±10%, 60 Hz 13.5 Amp
220 V ±15%, 50 Hz

PRODUCT DESCRIPTION
8
Fluid Management
®
EQUIPMENT MAINTENANCE LOG
RECORD MODEL NUMBER HERE: _________________________
RECORD SERIAL NUMBER HERE: _________________________
SERVICE
DATE DESCRIPTION & PARTS REPLACED
(STATE IF UNDER WARRANTY)
SERVICED
BY

PRODUCT DESCRIPTION
5G Paint Mixer Instruction Manual
9
SPAREPARTSORDER
Fluid Management Parts Order Form
Photocopy and use this form to
Mail or fax orders to:
Fluid Management
A unit of
IDEX
|
Phone: [phone]
1023 Wheeling Road | Fax: [phone]
Wheeling, IL 60090 |
|
Sold To: Ship To:
________________________ ________________________
________________________ ________________________
________________________ ________________________
________________________ ________________________
Purchase Order Number_________________
Ship Via: ______________________

Collect

Prepaid

Taxable

Tax Exempt (Fax copy of exemption certificate.)
QUANTITY PART
NUMBER DESCRIPTION UNIT PRICE
S
S
S
S
S
S
S
S
S
S
S
Comments: ____________________________________________________
____________________________________________________
____________________________________________________
_________________________________________________
Signature ______________
Date:

UNPACKING DIRECTIONS
10
Fluid Management
®
UNPACKING
DIRECTIONS
INSPECT THE CRATE FOR DAMAGE
UNPACKING AND SETUP
Refer to the Unpacking and Setup Instructions affixed to the shipping carton
in a mailing pouch.
If any damage is found, notify the carrier at once
and arrange for inspection in order to claim
recovery. Claims for damage must be made by
the consignee (YOU).The carrier assumes full
responsibility upon acceptance of shipment and
will not entertain any claims by the consignor
(Fluid Management).
IMPORTANT:

ELECTRICAL CONNECTIONS
5G Paint Mixer Instruction Manual
11
ELECTRICAL
CONNECTIONS
CONNECTING TO THE POWER SOURCE
1. Connect the mixer to a separate, dedicated circuit; for example: 120 volt,
20 ampere. The mixer requires a single, grounded outlet. No other
equipment is to be used on this dedicated line. See “GROUNDING” on
page 12.
2. The following chart represents the wire gauge size required for the
distance from the load center to the grounded receptacle.
Figure 1 Minimum Wire Gauge
EXTENSION CORDS
Extension cords for 220 VAC models are not recommended. If an extension cord is
to be used, it should not be combined with others. Use only a 3-wire extension cord
that has a 3-pole grounding plug. Power should be provided by a 3-pole receptacle
that will accept the plug on the product. Make sure that your extension cord is in
good condition. It must have # 16 AWG conductors up to 25 feet long. An
extension cord 25 feet long, but nolonger than50 feet is permissible provided it has
conductors of at least # 12 AWG. It must be heavy enough to carry the current your
product will draw. An undersized cord will cause a drop in line voltage resulting in
loss of power and overheating.
DISTANCE 25
ft 50 ft 100 ft 150 ft 200 ft 250 ft 300 ft 400 ft 500 ft
GAUGE
SIZE
220V
14141210108866
GAUGE
SIZE
115V
14128664422
The unit must be plugged into a dedicated
electrical line with no other equipment using
the same circuit.
NOTE:

ELECTRICAL CONNECTIONS
12
Fluid Management
®
GROUNDING
In the event of an electrical short circuit, grounding reduces the risk of
electrical shock by providing an escape wire for the electric current. The 3-
prong plug, equipped with grounding wire, must be plugged into a 3-slot
receptacle that is properly installed and grounded in accordance with all
local codes and ordinances.
DO NOT connect the grounding wire to a flat-blade terminal. The wire with
the insulation having an outer surface that is green (with or without yellow
stripes) is the grounding wire.
Check with a qualified electrician or serviceman if you are not sure how to
ground this machine. Under no circumstances should you modify the
plug if it does not fit the outlet.
Improper use of the grounding plug can
result in a risk of electric shock.
DANGER:

ALIGNING AND LEVELING MIXER
5G Paint Mixer Instruction Manual
13
ALIGNING AND
LEVELING
MIXER
ALIGNING THE STRUTS
1. Make sure that the power is removed from the mixer.
2. Remove the top cover of the unit. Save the screws.
3. Check the inner frame and struts by grasping the frame at the top.
Vigorously rock the frame back and forth to see that all struts move
freely on their supports. No kinking in the springs should occur at the
bottom of the struts. The shake frame will return to the center position
and appear level when it comes to rest.
4. If one or more of the struts is not seated properly, it (they) can be
realigned as follows:
• Remove the sheet metal covering designated as upper rear cabinet in
Figure 6 on page 30.
• Raise the inner frame closest to the unseated strut. The frame should
be high enough for the strut pin to clear the strut body.
• Carefully lower the frame while guiding the pin into the strut body.
Take care not to raise the frame so high that the other struts become
unseated.
• Repeat this procedure for each misaligned strut.
5. Move the mixer to its permanent, leveled area. Leave ample room
around the paint mixer to facilitate maintenance and safe operation.
LEVELING
Although the mixer is leveled by the manufacturer, variations in floor
surfaces may necessitate further adjustment.
1. Level the mixer by adjusting the four (4) feet as necessary.
2. Lock the feet into place by tightening the lock nut to the frame insert.
Improper leveling may cause severe
damage to the paint mixer when in mixing
operation.
WARNING:

ALIGNING AND LEVELING MIXER
14
Fluid Management
®
REMOVE SHIPPING INSERTS
After you have plugged the mixer into a dedicated power line and leveled it,
inspect to be sure that you have removed the shipping materials inside the
mixer.
Refer to Figure 3 on page 16 for a diagram of the control panel.
1. Make sure the front door of the paint mixer is closed. A safety switch
prevents the operation of the paint mixer while the door is open.
2. Apply power to the paint mixer by placing the POWER switch in the ON
position.
3. Turn the button labeled EMERGENCY STOP clockwise until the button
pops out to the ON position. If the button does not turn, then it is already
in the ON position. To stop or turn off the paint mixer, push the
button to the OFF position.
4. Push the UP button. Wait several seconds until the UP light goes out and
the top plate raises high enough for you to remove the shipping inserts.
5. Open the front door of the paint mixer. Remove the shipping inserts and
the wooden disc insert. If there is not enough room to remove the inserts,
then push the UP button again.
6. Be sure that you save the plywood and the foam rubber discs. These
will be used with 5-gallon pails.
7. Before performing an operational test, read the following information
Getting To Know Your Mixer.

GETTING TO KNOW YOUR PAINT MIXER
5G Paint Mixer Instruction Manual
15
GETTING TO
KNOW YOUR
PAINT MIXER
General Locations
•CONTROL PANEL - All controls are in one location.
•DOOR SAFETY SWITCH -The Door must be closed continuously to
operate the paint mixer.
•WARNING STICKERS - Please read these important messages for
YOUR safety.
•ADJUSTABLE FEET - The leveling feet adjust in order to level the
mixer.
Figure 2 General Locations
SAFETY
LABEL
CONTROL
PANEL
DOOR
HANDLE
DOOR
DOOR
SAFETY
SWITCH
ADJUSTABLE
FOOT
HINGE

GETTING TO KNOW YOUR PAINT MIXER
16
Fluid Management
®

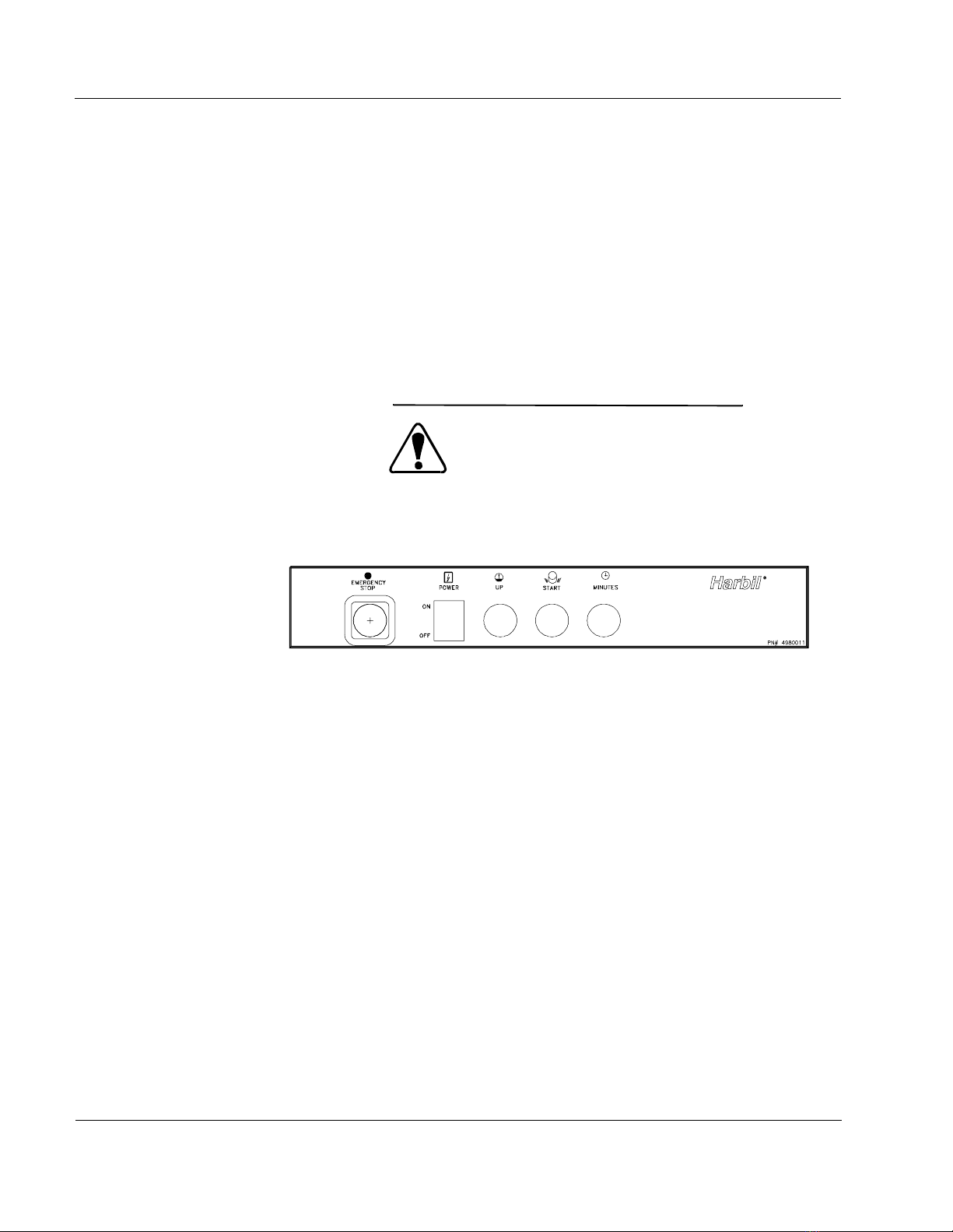

Control Panel
•EMERGENCY STOP button for quickly stopping the mixer.
•POWER rocker switch for applying power to the machine.
•UP button for raising the top pressure plate.
•START button for activating the mixer.
•TIMER for setting the desired mix time from 30 seconds to 3
minutes.
Figure 3 Control Panel
Reversible Door
The door on the mixer can be easily reversed using a slotted screwdriver.
Instructions for reversing the door are found in the maintenance section of
this documentation.
The POWER switch must be in the ON
position and the EMERGENCY STOP must
be turned clockwise until it pops up for the
machine to function.
NOTE:

OPERATIONAL TEST
5G Paint Mixer Instruction Manual
17
OPERATIONAL
TEST
1. Turn to “BASIC OPERATION” on page 19 to be sure you understand
how to operate this mixer before beginning this test.
2. Plug in the mixer.
3. To perform this test, use two one-gallon containers, followed by a five-
gallon container, and perform these steps:
• With the one-gallon containers in position on the table, set the
TIMER to its minimum value.
• Twist the EMERGENCY STOP to release it.
• Depress the POWER switch.
• With one hand on the EMERGENCY STOP, depress the START
switch. The unit should cycle automatically--clamping down and
starting the shake cycle with a smooth, vibration-free movement.
4. If vibrations are noticed, immediately press down the EMERGENCY
STOP switch.
•Mild vibrations may occur because the unit is not properly leveled.
Try slipping a piece of paper under each of the four (4) adjustable
feet. If the paper easily slides under a foot (feet), then the mixer is
not solidly contacting the floor. Level as necessary.
•Severe or persistent vibrations may be caused by a variety of
problems. Check to make sure that the struts are moving freely. If
they are, then contact a qualified service technician or Customer
Service at Fluid Management for assistance before continuing to
operate the mixer.
5. Repeat the above steps using a 5-gallon container.
6. When the unit is operating smoothly, replace and secure the top cover
and upper rear cabinet with the screws.
7. Your high speed paint mixer is now ready for operation. Please read the
next two sections to familiarize yourself with the machine and how to
operate it safely.

IMPORTANT INFORMATION
18
Fluid Management
®
IMPORTANT
INFORMATION
Before operating the mixer, carefully read the following important
information.
WARNINGS
• Verify that your paint mixer is properly levelled. Improper leveling
may cause severe damage to the machine during the mixing
operation.
• Always shut off the master POWER switch and unplug the mixer
from the AC power outlet before servicing the paint mixer.
•THIS MACHINE IS NOT EXPLOSION-PROOF AND MUST
NOT BE USED IN A FLAMMABLE ATMOSPHERE.
CAUTIONS
• Do not run the paint mixer without a container in place.
• Do not mix more that one full case (four 1-gallon cans) of paint at
one time. The maximum weight limit is 80 pounds for paint and 60
pounds for stucco mixture. See “Gallon Can Placement” on page 19.
• On 5-gallon metal containers use the flake-board disc for recessed
bottoms that do not have a center support. Use the discs for recessed
tops. Refer to “5-Gallon Container Cut-Away View” on page 20.
• On 5-gallon plastic containers, use the foam discs for the recessed
tops. Do not use the flake board disc on plastic containers.

BASIC OPERATION
5G Paint Mixer Instruction Manual
19
BASIC
OPERATION
Open the door. If you need to raise the top plate to accommodate the
container to be mixed, turn on the POWER switch and push the UP button.
Wait a few seconds until the UP light goes out. This will raise the top plate
about two inches. Repeat if necessary.
1. After opening the front door, place the container(s) near the center of the
table. The diagram below illustrates the proper gallon can placement.
Figure 4 Gallon Can Placement
NOTE:
To quickly stop the machine, push the
EMERGENCY STOP button.
If you open the door during the operation,
the paint mixer will stop.
2 GALLON CANS
3 GALLON CANS
CANS MUST BE
REMOVED FROM
CARDBOARD CASE.
BEFORE MIXING.
LEAD SCREW
CENTERLINE
LEAD SCREW
CENTERLINE
4 GALLON CANS

BASIC OPERATION
20
Fluid Management
®
2. When using 5-gallon plastic or metal containers with recessed lids, place
the foam disc on top of the container even with the rim. NOTE: Both
thick and thin discs come with the mixers. Foam discs eliminate flexing
of the container. On metal containers with recessed bottoms and no cen-
ter support, place the flake board disc underneath the container.
Figure 5 5-Gallon Container Cut-Away View
3. Close the door firmly. The paint mixer will not operate with the door
open.
FOAM RUBBER PAD
5 GALLON
FLAKE BOARD DISK
TABLE
FOR METAL
CONTAINERS
ONLY
CONTAINER
USE WITH PLASTIC
OR METAL CONTAINERS
