Translation of original
Operating Instructions
Leaf blower
Whisper Twister
4604.000
From equipment I.D. No. :
Status :
September 2016
4604 99 01

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
2
EC DECLARATION OF CONFORMITY
We
Wiedenmann GmbH
Am Bahnhof
89192 Rammingen
declare under our sole responsibility that the product
Leaf blower
Whisper Twister 4604
to which this declaration refers, corresponds with the relevant basic safety and health
requirements of the machinery directive 2006/42/EC.
Rammingen, the 29.09.2016
Horst Wiedenmann
(Place and date of issue)
Managing Partner
(Name, function and signature of authorised
person)
Rammingen, the 29.09.2016
Markus Remmele
(Place and date of issue)
Technical office manager Authorised
representative for tech. documentation
(Name, function and signature of authorised
person)
NOTE: The declaration of conformity is no longer valid if changes are made to
the machine that have not been agreed with the manufacturer.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
3
Declaration of conformity
We
Wiedenmann GmbH
Am Bahnhof
89192 Rammingen
hereby declare that the product
Leaf blower
Whisper Twister 4604
referred to by this declaration complies with the requirements of
Machinery Directive 2006/42/EC.
Rammingen, the 29.09.2016
Karl Wiedenmann
(Place and date of issue)
Sales Manager
(Name, function and signature of authorised
person)
Rammingen, the 29.09.2016
Harald Reuen
(Place and date of issue)
Operations Manager
(Name, function and signature of authorised
person)
Wiedenmann GmbH
Am Bahnhof
D 89192 Rammingen
Tel. No. : +49 (0) 7345 / 953-0
Fax No. : +49 (0) 7345 / 953 233
E-mail : [email protected]
Internet : http://www.wiedenmann.de

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
4
Preface
READ THESE OPERATING INSTRUCTIONS CAREFULLY to familiarise yourself
with the correct way to operate and service your machine, and to
prevent personal injury or damage to the machine.
These operating instructions and the adhesive safety signs on your
machine can also be obtained in other languages
(your dealer can order these for you).
THESE OPERATING INSTRUCTIONS ARE a permanent part of your machine and
should be handed over to the new owner if the machine is sold.
MEASUREMENTS in these operating instructions are given in the metric
system. Only use suitable parts and screws. Different wrenches are
required for metric and inch screws.
THE DESIGNATIONS “RIGHT” AND “LEFT” refer to the forward driving
direction of the mounted equipment.
ENTER THE PRODUCT IDENTIFICATION NUMBERS in the appropriate “Technical
data” or “Product - Identification Number” sections. Please ensure
that all figures are accurately entered. These numbers can be of
invaluable assistance for tracing the machine should it be stolen.
Your dealer also needs these numbers when you order spare parts. We
recommend that you additionally file these identification numbers in
a secure place away from the machine.
BEFORE DELIVERY OF THIS MACHINE, your dealer performed a pre-delivery
inspection to ensure optimal performance.
THIS DEVICE DESIGNED EXCLUSIVELY for commercial use and regular
application in the maintenance of greens and parks for the wind
generation through air without particles carried in the air stream
(“SPECIFIED USE“).
Usage for any other purpose beyond this is considered as contrary to
the intended use. The manufacturer accepts no liability for damage
or injury resulting from this improper use. These risks are borne
solely by the user. Compliance with and strict adherence to the
operating, maintenance and repair conditions as specified by the
manufacturer also form essential elements of the intended usage.
FORESEEABLE INCORRECT USE/MISUSE. It is not permitted to use the
attached device to transport persons or things.
THIS MACHINE MUST ONLY BE operated, maintained and repaired by persons
familiar with all its particular characteristics and acquainted with
the relevant safety regulations. The relevant accident prevention
regulations, all other generally recognised safety-related,
occupational medicine and road traffic regulations must be adhered
to. Any modifications carried out to this machine without the
express approval of the manufacturer excludes the manufacturer of
all liability for any resulting damage.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
5
TABLE OF CO N T E N T S Page
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
1.0. Safety ...................................................... 6-15
1.1. Safety Decals....................................... 11-13
1.2. Safety instructions................................. 14
1.3. The safety devices.................................. 15
2.0. Mounting..................................................... 16-20
2.1. General............................................. 16
2.2. Mounting on the tractor............................. 16
2.3. Extended attachment................................. 17
2.4. Supports............................................ 18
2.5. Drive shaft adjustment.............................. 18
2.6. Cardan shaft........................................ 19
2.7. Hydraulic connections............................... 19
2.8. Attaching the blowout nozzle........................ 20
3.0. Demounting................................................... 20
3.1. General............................................. 20
3.2. Removal from tractor................................ 20
3.3. Setting down cardan shaft........................... 20
4.0. Operating.................................................... 21-26
4.1. General............................................. 21
4.2. Direction of rotation and number of
revolutions of the drive............................ 22
4.3. Danger Zone......................................... 23
4.4. Swiveling the blower casing......................... 24+25
4.5. Mechanical adjustment of the blowing nozzle......... 26
4.6. Hydraulic adjustment of the blowing nozzle.......... 26
4.7. Upper guide position for working.................... 26
5.0. Operation.................................................... 26
5.1. General............................................. 26
5.2. Switching on........................................ 26
5.3. Transport / Operation............................... 26
6.0. Maintenance.................................................. 27-36
6.1. General............................................. 27
6.2. Cleaning............................................ 27
6.3. Intervals of maintenance............................ 28
6.4. Lubricating points.................................. 29-30
6.5. Hydraulic installation.............................. 31
6.6. Plan de raccordement hydraulique.................... 31
6.7. V –belt............................................ 33
6.8. Tire pressure....................................... 34
6.9. Angle drive......................................... 34
6.10. Disassembly / disposal.............................. 35
6.11. Unauthorized conversion and
spare part manufacture.............................. 36
7.0. Scope of delivery / Optional equipment....................... 37
7.1. Series equipment.................................... 37
7.2. Accessories......................................... 37
9.0. Specification................................................ 38-41
9.1. Technical Data...................................... 38-39
9.2. Metric bolt and cap screw torque values............. 40
9.3. Serial number....................................... 41

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
6
1.0. Safety
Recognize safety information
This is the safety-alert symbol.
When you see this symbol on your
machine or in this manual, be
alert to the potential for
personal injury.
Follow recommended precautions
and safe operating practices.
Follow safety instuctions
Carefully read all safety
messages in this manual and on
your machine safety sings. Keep
safety sings in good condition.
Replace missing or damaged safety
sings. Be sure new equipment
components and repair pqarts
include the curret safety sings.
Replacement safety sings are
available from your dealer.
Learn how to operate the machine
and to use controls properly. Do
not let anyone operate without
instruction.
Keep your machine in proper
working condition. Unauthorized
modifications to the machine may
impair the fuction and/or safety
and afect machine life.
If you do not understand any part
of this manual and need assistance,
contact your dealer.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
7
1.0. Safety
Observe road traffic regulations
Always observe llocal road
traffic regulations when
using public roads.
SCHUTZKLEIDUNG TRAGEN
Wear close fitting clothing and
safety equipment appropriate to
the job.
Prolonged exposure to loud
noise
can cause impairment or loss of
hearing.
Wear a suitable hearing
protective
device such as earmuffs or
earplugs
to protect against
objectionable or
uncomfortable loud noises.
Operating equipment safety
requires the full attention of
the operator. Deo not wear radio
or music headphones while
operating machine.
Stay clear of rotating drivelines
Entanglement in rotating
driveline
can cause serious injury or
death.
Keep tractor master shield and
driveline shields in place at all
times. Make sure rotating shields
turn freely.
Wear close fitting clothing. Stop
the engine and be sure PTO driveline
is stopped before making adjustments,
connections, or cleaning out PTO
driven equipment.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
8
1.0. Safety
Use safety lights and devices
Prevent collisions between other
road users, slow moving tractors
with attachments or towed
equipment, and self-propelled
machines on public roads.
Frequently check for traffic
from the rear, especially in
turns, and use hand signals or
turn signal lights.
Use headlights, flashing warning
lights, and turn signals day and
night. Follow local regulations
for equipment lighting and
marking. Keep lighting and
marking visible and in good
working order. Replace or repair
lighting and marking that has
been damaged or lost.
An implement safety lighting kit
is available from your dealer.
Avoid heating near pressurized fluid lines
Flammable spray can be generated
by heating near pressurized fluid
lines, resulting in severe burns
to yourself and bystanders. Do
not heat by welding, soldering,
using a torch near pressurized
fluid lines or other flammable
materials. Pressurized lines can
be accidentally cut when heat goes
beyond the immediate flamme
area.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
9
1.0. Safety
Guard and shields
Keep guards and shields in
place all the times. Ensure
that they are in good condition
and installed correctly.
Always disengage the driveline,
shut off engine and remove key
before removing any guards or
shields.
Keep hands, feet and clothing
away from moving parts.
Avoid high - pressure fluids
Escaping fluid under pressure
can penetrate the skin causing
serious injury.
Avoid the hazard by relieving
pressure before disconnecting
hydraulic or other lines.
Tighten all connections before
applying pressure.
Search for leaks with a piece of
cardboard. Protect hands and
body from high pressure fluids.
If an accident occurs, see a
doctor immediately. Any fluid
injected into the skin must be
surgically removed within a few
hours or gangrene may
result.Doctors unfamiliar with
this type of injury should
reference a knowledgeable
medical source.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
10
1.0. Safety
Remove paint before welding or heating
Welding should only be carried
out by persons with a relevant
qualifying certificate i.a.w.
EN287.
Avoid potentially toxic fumes
and dust.
Hazardous fumes can be generated when
paint is heated by welding, soldering,
or using a torch.
Do all work outside or in a well
ventilated area. Dispose of paint and
solvent properly.
Remove paint before welding or
heatingh:
If you sand or grind paint, avoid
breathing the dust. Wear an approved
respirator.
If you use solvent or paint
stipper with soap and water
before welding. Remove
solvent or paint stripper
containers and other
flammable material from area.
Allow fumes to disperse at
least 15 minutes before
welding or heating.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
11
1.0. Safety
1.1. Safety Decals
Pictorial safety signs
At several important places,
this machine has safety signs,
which indicate potential danger.
The hazard is identified by a
symbol in a warning triangle.
An adjacent pictograph provides
information on how to avoid
personal injury.
These safety signs, their
placement on the machine and
a brief explanatory text are
shown below.
Operating Instructions
In our operating instructions all
important information necessary
for operating the machine safely
are contained. Carefully observe
all safety rules to avoid
accidents.
Swivelling range
Never reach into areas of
crushing hazard as long
as any parts may move.
4603.33
4603.34

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
12
1.0. Safety
1.1. Safety Decals
Blower
Never put your hands inside
the blower while the engine
is running.
Blow-out cover
When operating ensure that
sufficient distance is left as
there is a risk of injury from
thrown or flying objects.
Direction of rotation and number of
revolutions of the power take-off shaft
The direction of rotation of the
power take-off shaft must be
absolutely observed. Please
control it during the initial
start-up. The declared number of
revolutions may not be exceeded.
Otherwise there is the risk of
extensive damages to the blower.
4603.35
4603.39
4603.36

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
13
1.0. Safety
1.1. Safety Decals
Service
Before performing service
or repair work, turn off
engine and remove key.
Noise level
This decal indicates the value
determined in accordance with
Article 13 of Directive
2000/14/EC
When working for several hours,
we recommend that you wear ear
protectors.
4603.38
4603.37
4603.40

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
14
1.0. Safety
1.2. Safety instructions
When observing the
operating instructions
also pay attention to
general safety
specifications and rules
for the prevention of
accidents!
It is important to
familiarize with all
devices and operating
elements as well as with
their action before
starting service.
Make sure that all
protective devices have
been properly mounted. It
will be too late for this
during operation!
On the working area the
user is responsible for
any third parties!
Corresponding
specifications must be
observed on public roads!
Before starting pay
attention that nobody is
around (Child!). Make
sure to have a good view!
It is forbidden to stand
within the risk area of
the appliance!
Any mounting on the
mounted implement must be
done only when the motor
is stopped and the power
take-off shaft is turned
off.
Use only the cardan shaft
which is especially
assigned for the mounted
implement.
Ensure a sufficient axle
load, for the
steerability of the
tractor must be
maintained.
The driving and operating
qualities of the tractor
can be influenced by
mounting the device. The
way of driving must be
adjusted to the
respective conditions of
the terrain and of the
soil. Be particularly
careful when working and
turning on slopes.
During all maintenance
works, the machine as
well as the motor of the
mounted implement must be
switched off. Before
starting the machine, all
protective devices must
be mounted.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
15
1.0. Safety
1.3. The safety devices
GENERAL SAFETY SIGN REQUIREMENTS
A safety sign with the following safety practices or similar set of messages shall be
provided on the machine. The label should be visible to an operator’s position, if possible.
a) Read the operator’s manual.
b) Do not operate the machine without guards, shield, and safety devices in place and
working.
c) Do not operate the machine when children and others are around.
d) Do not allow operation of the machine by untrained personnel.
ATTENTION - DANGER !
Never use Whisper Twister without safety equipment. Otherwise, you expose
yourself and others to extreme danger.
Moving parts may cause serious injuries.
Where to Find Safety Equipment on your Machine
A =Covers, only removable with tools.
C =Grille, only removable with tools.
B =Protection for p.t.o. shaft
connection can only be released
using a tool.
D =Blowing nozzle, only removable with
tools
B
C
A
4603.31
D

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
16
2.0. Mounting
2.1. GENERAL
WARNING:
Mount the machine only with
the engine shut off and the
PTO switched off. The
signboards applied on the
machine show important
warnings and directions for
safe operations.
Observe these signs for your
safety.
Check the engine speed and
sense of rotation (stickers on
the machine) against the
specifications of your
tractor. The stickers specify,
to which engine speed and sense
of rotation the machine has
been set.

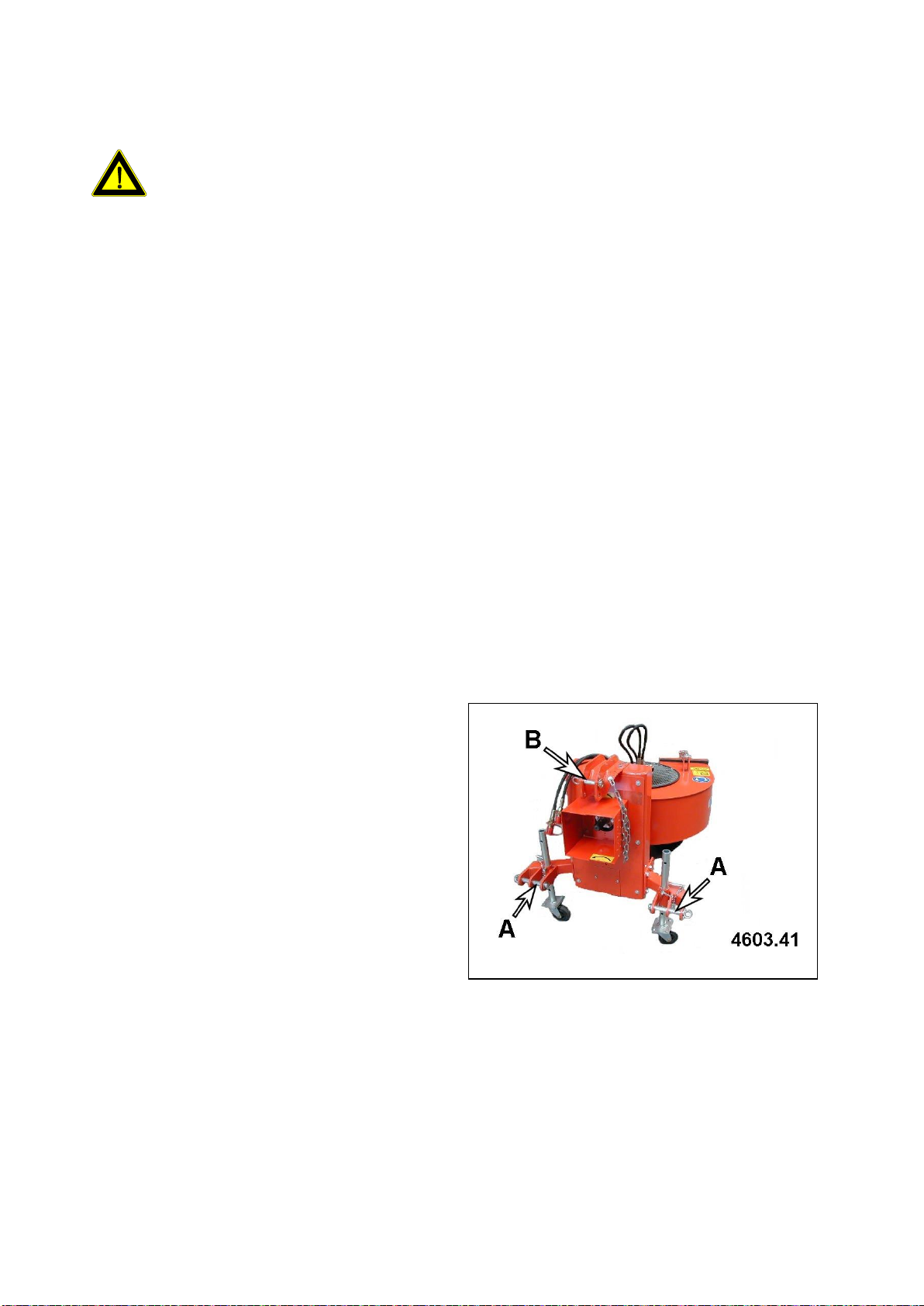

2.2. Tractor attachments
As a standard, the blower can
be mounted on a three-point
linkage cat. 1.
1. Attach bottom connecting rod
to both pins (A) and secure.
2. Attach top connecting rod
with pin (B) to the bore
matching the tractor type
and secure.
3. The adjustment is made with
the top connecting rod.
During mounting take care that
the blower stands parallel to
the soil.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
17
2.0. Mounting

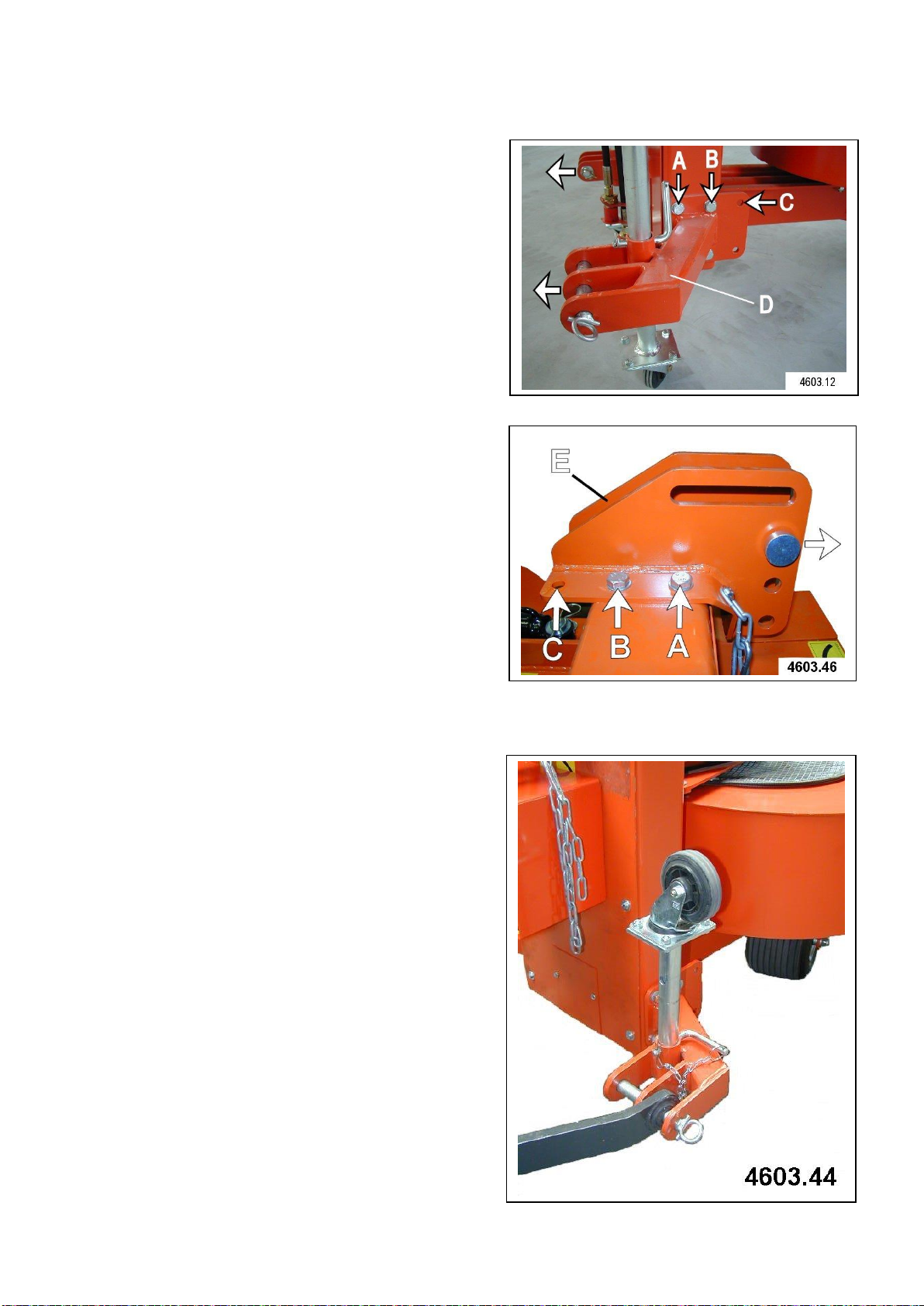

2.3. Extended attachment
The attachment can be extended
by 60 mm.
Remove front protective
cover
Release securing screws in
hole row A and B
Secure the mount (D) in
hole row B and C
The mount for the top
connecting rod can also be
extended 60 mm.
Release securing screws in
hole row A and B.
Secure the top connecting
rod frame (E) in hole row
B and C
When the conversion is
complete, reinstall the front
protective cover.
2.4. Supports
The supports must be inserted in
the holder from above, as shown
in Fig. 4603.44. Attach supports
in the middle bore and secure
with spring cotters.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
18
2.0. Mounting

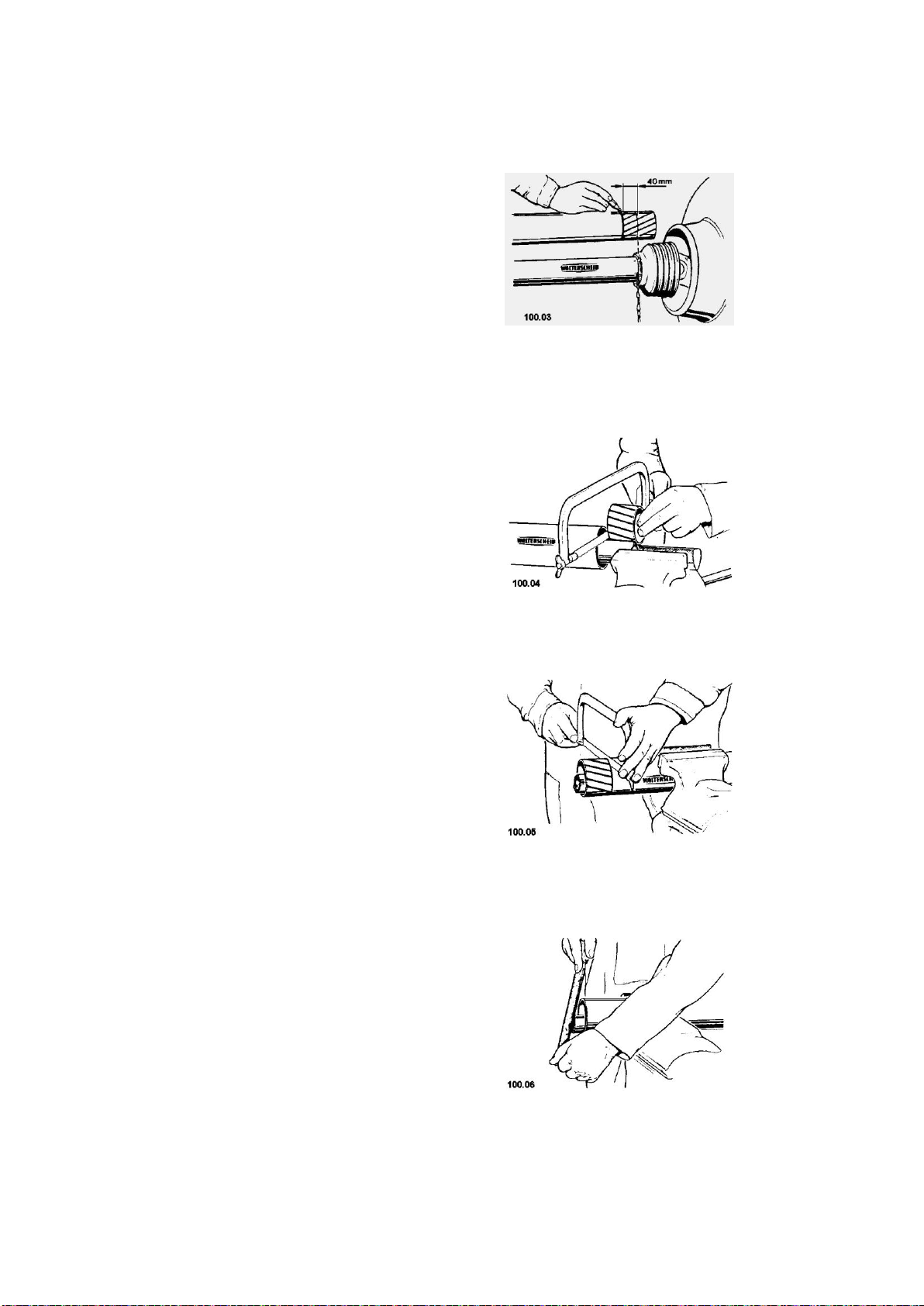

2.5. Drive shaft adjustment
To adjust the length, hold the
half shafts next to each other
in the shortest working position
and mark them.
Shorten inner and outer
protective tubes equally.
Shorten inner and outer sliding
profiles by the same length as
the protective tubes.
Round off all sharp edges and
remove burrs. Grease sliding
profiles.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
19
2.0. Mounting

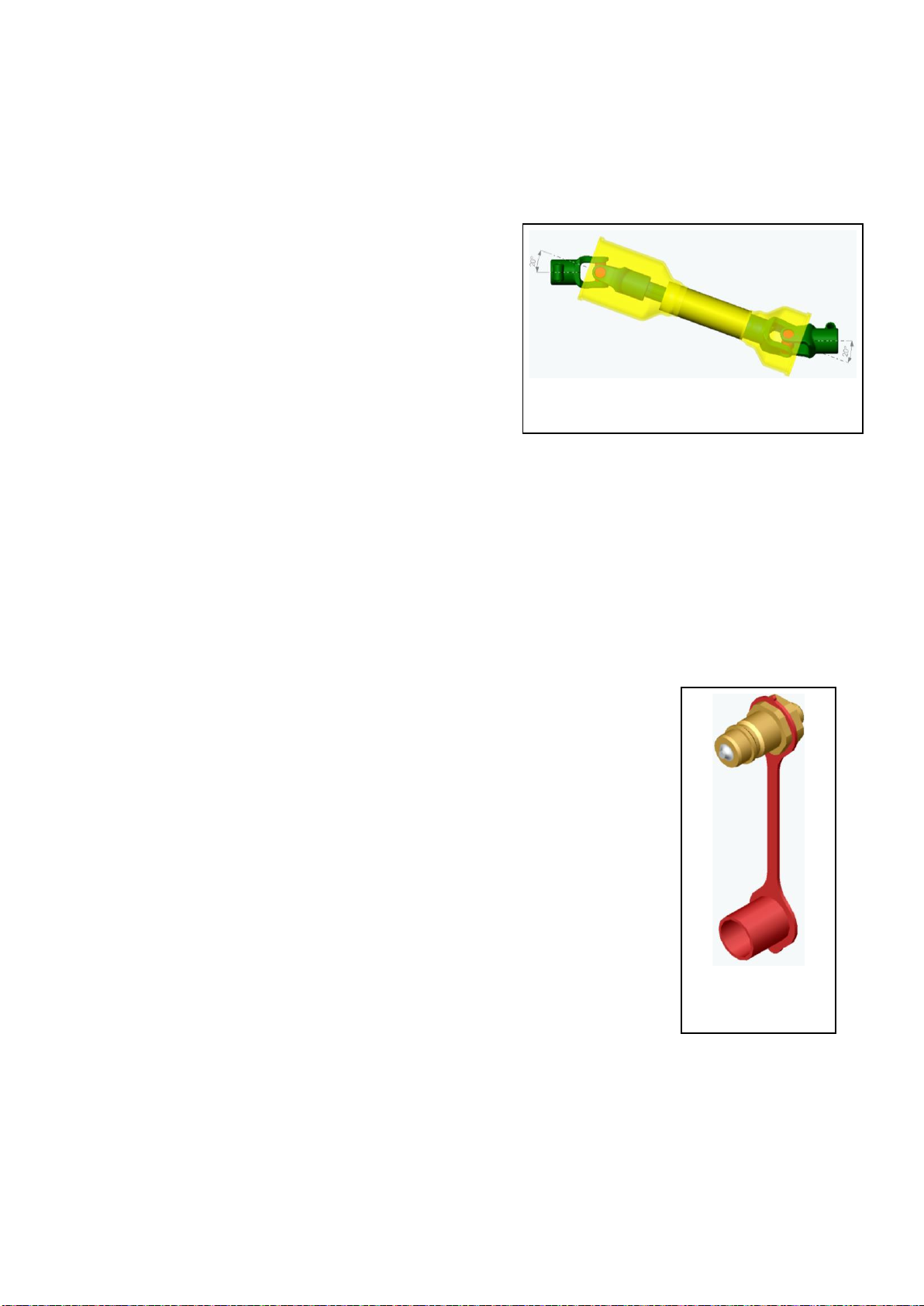

2.6. Cardan shaft
The length of the cardan shaft is
to be checked in the working
position and in removed position.
If the cardan shaft is too long,
it must be shortened according to
the description below.
When working with lifted-off
blower, pay attention to the
angle of the cardan shaft. If the
angle exceeds approx. 20°, the
standard cardan shaft must be
exchanged for a wide-angled
cardan shaft of the same size.
The protection for the cardan
shaft has to be fixed with the
safety chain.
2.7. Hydraulic connections
For hydraulic swiveling of the
blow-out nozzle an independently
switchable, double-acting
hydraulic valve is necessary.
The hydraulic hoses of the
swivel mechanism are equipped
with connectors of size 3.
Before coupling, the connectors
and sockets have to be cleaned
thoroughly in order to prevent
impurities from getting into the
hydraulic circuit. The hoses have
to be laid in such a way, that
no shear and abrasion spots can
occur. If necessary, the hoses
have to be fixed at the
appropriate places.
When the blower is dismounted,
the hydraulic connectors should
be protected from damages and
soiling by attaching the dust
guard caps.
4603.15
4603.14

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
20
2.0. Mounting
2.8. Attaching the blow-out nozzle
Remove protective cover (A); for
this purpose, release
countersunk screws (B).
Withdraw shaft (C) and bearing
bushes (D).
Fit blowout nozzle on sealing
profile.
Press in bearing bushes (D) on
both sides.
Slide shaft (C) into bearing
bushes (D) and secure on both
sides with disk and countersunk
screw (B).
Attach the blow-out nozzle
adjustment [mechanical (E),
electrical or hydraulic] to the
bolts (F) and secure with the
split pin (G).
