Wiedenmann 2350 Series User manual

Translation of original
Operating Instructions
Sweeper
Combi Clean
Series 2350
2350.003
From equipment I.D. No. :
Status :
January 2010
2350 99 01

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
2

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
3

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
4
Preface
READ THESE OPERATING INSTRUCTIONS CAREFULLY to familiarise yourself
with the correct way to operate and service your machine, and to
prevent personal injury or damage to the machine.
These operating instructions and the adhesive safety signs on your
machine can also be obtained in other languages
(your dealer can order these for you).
THESE OPERATING INSTRUCTIONS ARE a permanent part of your machine and
should be handed over to the new owner if the machine is sold.
MEASUREMENTS in these operating instructions are given in the metric
system. Only use suitable parts and screws. Different wrenches are
required for metric and inch screws.
THE DESIGNATIONS “RIGHT” AND “LEFT” refer to the forward driving
direction of the mounted equipment.
ENTER THE PRODUCT IDENTIFICATION NUMBERS in the appropriate “Technical
data” or “Product - Identification Number” sections. Please ensure
that all figures are accurately entered. These numbers can be of
invaluable assistance for tracing the machine should it be stolen.
Your dealer also needs these numbers when you order spare parts. We
recommend that you additionally file these identification numbers in
a secure place away from the machine.
BEFORE DELIVERY OF THIS MACHINE, your dealer performed a pre-delivery
inspection to ensure optimal performance.
THIS DEVICE IS DESIGNED EXCLUSIVELY for commercial use and regular
application in the maintenance of greens and parks of snow and dirt
removal in the maintenance of greens and parks (“SPECIFIED USE“).
Usage for any other purpose beyond this is considered as contrary to
the intended use. The manufacturer accepts no liability for damage
or injury resulting from this improper use. These risks are borne
solely by the user. Compliance with and strict adherence to the
operating, maintenance and repair conditions as specified by the
manufacturer also form essential elements of the intended usage.
FORESEEABLE INCORRECT USE/MISUSE. It is not permitted to use the
attached device to transport persons or things.
THIS MACHINE MUST ONLY BE operated, maintained and repaired by persons
familiar with all its particular characteristics and acquainted with
the relevant safety regulations. The relevant accident prevention
regulations, all other generally recognised safety-related,
occupational medicine and road traffic regulations must be adhered
to. Any modifications carried out to this machine without the
express approval of the manufacturer excludes the manufacturer of
all liability for any resulting damage.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
5
TABLE OF CO N T E N T S Page
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
1.0. Safety Measure……………………………………………………………….………….. 6-13
1.1. Safety Label...................................................................................................11-12
1.2. Safety Directions............................................................................................13
2.0. Connecting………………………………………………………………………..………. 14-18
2.1. General..........................................................................................................14
2.2. Installation with standard three-point linkage CAT.1……..............................14
2.3. Mounting Using the Coupling Triangle ............................................................15
2.4. Extension for standard three-point linkage and triangular coupling...............16
2.5. Etting cylinder broom.....................................................................................16
2.6. Direction of rotation of cylinder broom...........................................................17
2.7. Support leg.................................................................................................... 17
2.8. Connecting the hydraulics............................................................................. 17
2.9. Cardan shaft adjustment............................................................................... 18
3.0. Disconnecting…………………………………………………………………………….. 19-20
3.1. General..........................................................................................................19
3.2. Support leg.................................................................................................... 19
3.3. Dismantling with standard three-point linkage cat.1...................................... 20
3.4. Dismantling with Coupling Triangle ................................................................20
4.0. Operating……………………………………………………………………………..…… 21-23
4.1. General..........................................................................................................21
4.2. Installation of the side mounting.................................................................... 21
4.3. Installation of dirt container............................................................................22
4.4. Installing lateral broom.................................................................................. 23
5.0. Operation……………………………………………………………………………..…… 24-26
5.1. General..........................................................................................................24
5.2. Working with the sweeping machine............................................................. 24
5.3. Working speed.............................................................................................. 25
5.4. V-belt drive.................................................................................................... 25
5.5. Changing speed of driving motor.................................................................. 25
5.6. Switching off lateral broom drive................................................................... 26
5.7. Switching on lateral broom drive................................................................... 26
6.0. Maintenance……………………………………………………………………….……... 27-35
6.1. General..........................................................................................................27
6.2. Changing the cylinder broom........................................................................ 27
6.3. Cleaning........................................................................................................ 28
6.4. Check and tension the drive V-belts..............................................................28
6.5. Lubrication points.......................................................................................... 29+30
6.6. Hydraulic installation......................................................................................31
6.7. Hydraulic connection diagram....................................................................... 32-34
6.8. Dismounting/Disposal....................................................................................35
6.9. Modification................................................................................................... 35
7.0. Device combinations……………………………..………………………………….…... 36
8.0. Equipment.……………………….……………………………………………………….. 37
8.1. Scope of Delivery.......................................................................................... 37
8.2. Accessories.................................................................................................. 37
9.0. Technical specifications........................................................................................... 38-45

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
6
1.0. Safety
Recognize safety information
This is the safety-alert symbol.
When you see this symbol on your
machine or in this manual, be
alert to the potential for
personal injury.
Follow recommended precautions
and safe operating practices.
Follow safety instuctions
Carefully read all safety
messages in this manual and on
your machine safety sings. Keep
safety sings in good condition.
Replace missing or damaged safety
sings. Be sure new equipment
components and repair pqarts
include the curret safety sings.
Replacement safety sings are
available from your dealer.
Learn how to operate the machine
and to use controls properly. Do
not let anyone operate without
instruction.
Keep your machine in proper
working condition. Unauthorized
modifications to the machine may
impair the fuction and/or safety
and afect machine life.
If you do not understand any part
of this manual and need assistance,
contact your dealer.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
7
1.0. Safety
Observe road traffic regulations
Always observe llocal road traffic
regulations when using public roads.
Wear protective clothing
Wear close fitting clothing and
safety equipment appropriate to
the job.
Prolonged exposure to loud noise
can cause impairment or loss of
hearing.
Wear a suitable hearing
protective device such as
earmuffs or earplugs to protect
against objectionable or
uncomfortable loud noises.
Operating equipment safety
requires the full attention of
the operator. Deo not wear radio
or music headphones while
operating machine.
Stay clear of rotating drivelines
Entanglement in rotating
driveline can cause serious
injury or death.
Keep tractor master shield and
driveline shields in place at
all times. Make sure rotating
shields turn freely.
Wear close fitting clothing.
Stop the engine and be sure PTO
driveline is stopped before
making adjustments,
connections, or cleaning out
PTO driven equipment.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
8
1.0. Safety
Guard and shields
Keep guards and shields in
place all the times. Ensure
that they are in good condition
and installedcorrectly.
Always disengage the driveline,
shut off engine and remove key
before removing any guards or
shields.
Keep hands, feet and clothing away
from moving parts

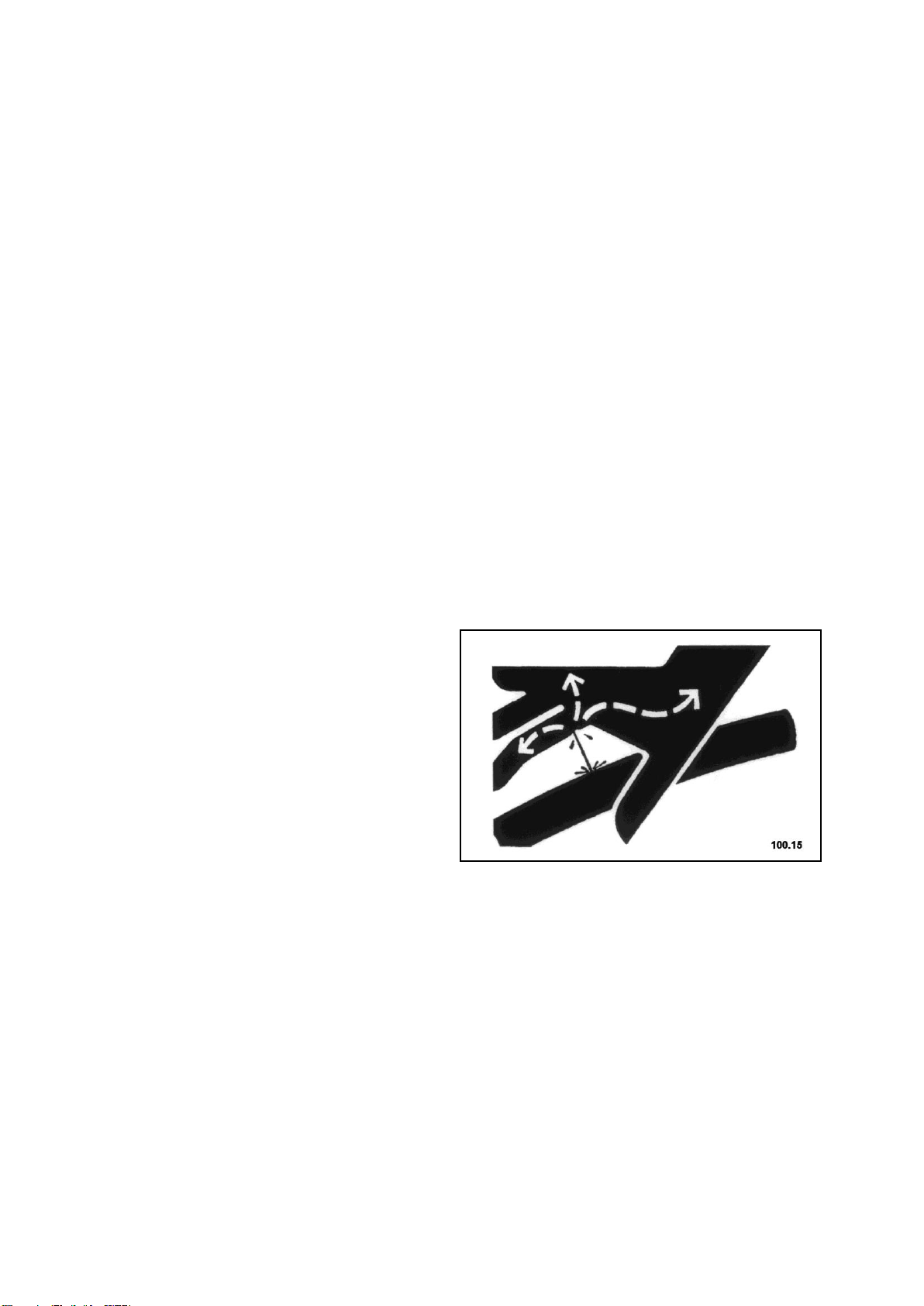

Avoid high - pressure fluids
Escaping fluid under pressure
can penetrate the skin causing
serious injury.
Avoid the hazard by relieving
pressure before disconnecting
hydraulic or other lines.
Tighten all connections before
applying pressure.
Search for leaks with a piece
of cardboard. Protect hands and
body from high pressure fluids.
If an accident occurs, see a
doctor immediately. Any fluid
injected into the skin must be
surgically removed within a few
hours or gangrene may result.
Doctors unfamiliar with this
type of injury should reference
a knowledgeable medical source.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
9
1.0. Safety
.Use safety lights and devices
Prevent collisions between
other road users, slow moving
tractors with attachments or
towed equipment, and self-
propelled machines on public
roads. Frequently check for
traffic from the rear,
especially in turns, and use
hand signals or turn signal
lights.
Use headlights, flashing
warning lights, and turn
signals day and night. Follow
local regulations for equipment
lighting and marking. Keep
lighting and marking visible
and in good working order.
Replace or repair lighting and
marking that has been damaged
or lost. An implement safety
lighting kit is available from
your dealer.
Avoid heating near pressurized
fluid lines
Flammable spray can be
generated by heating near
pressurized fluid lines,
resulting in severe burns to
yourself and bystanders. Do not
heat by welding,
soldering,using a torch near
pressurized fluid lines or
other flammable materials.
Pressurized lines can be
accidentally cut when heat goes
beyond the immediate flamme
area.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
10
1.0. Safety

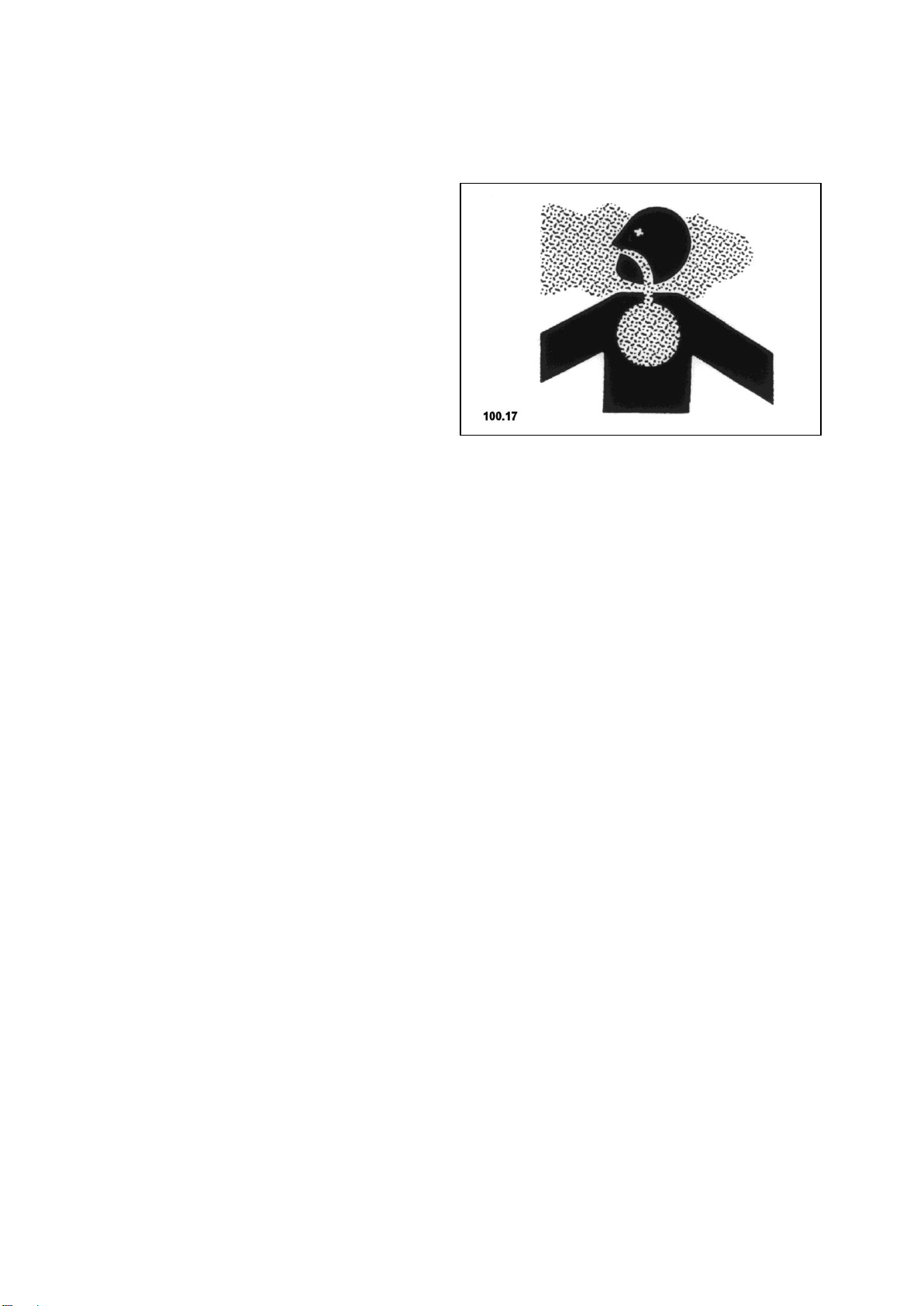

Remove paint before welding or heating
Avoid potentially toxic fumes
and dust.
Hazardous fumes can be
generated when paint is heated
by welding, soldering, or using
a torch.
Do all work outside or in a
well ventilated area. Dispose
of paint and solvent properly.
Remove paint before welding or
heatingh:
If you sand or grind paint,
avoid breathing the dust.
Wear an approved respirator.
If you use solvent or paint
stipper with soap and water
before welding. Remove
solvent or paint stripper
containers and other
flammable material from area.
Allow fumes to disperse at
least 15 minutes before
welding or heating.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
11
1.0. Safety

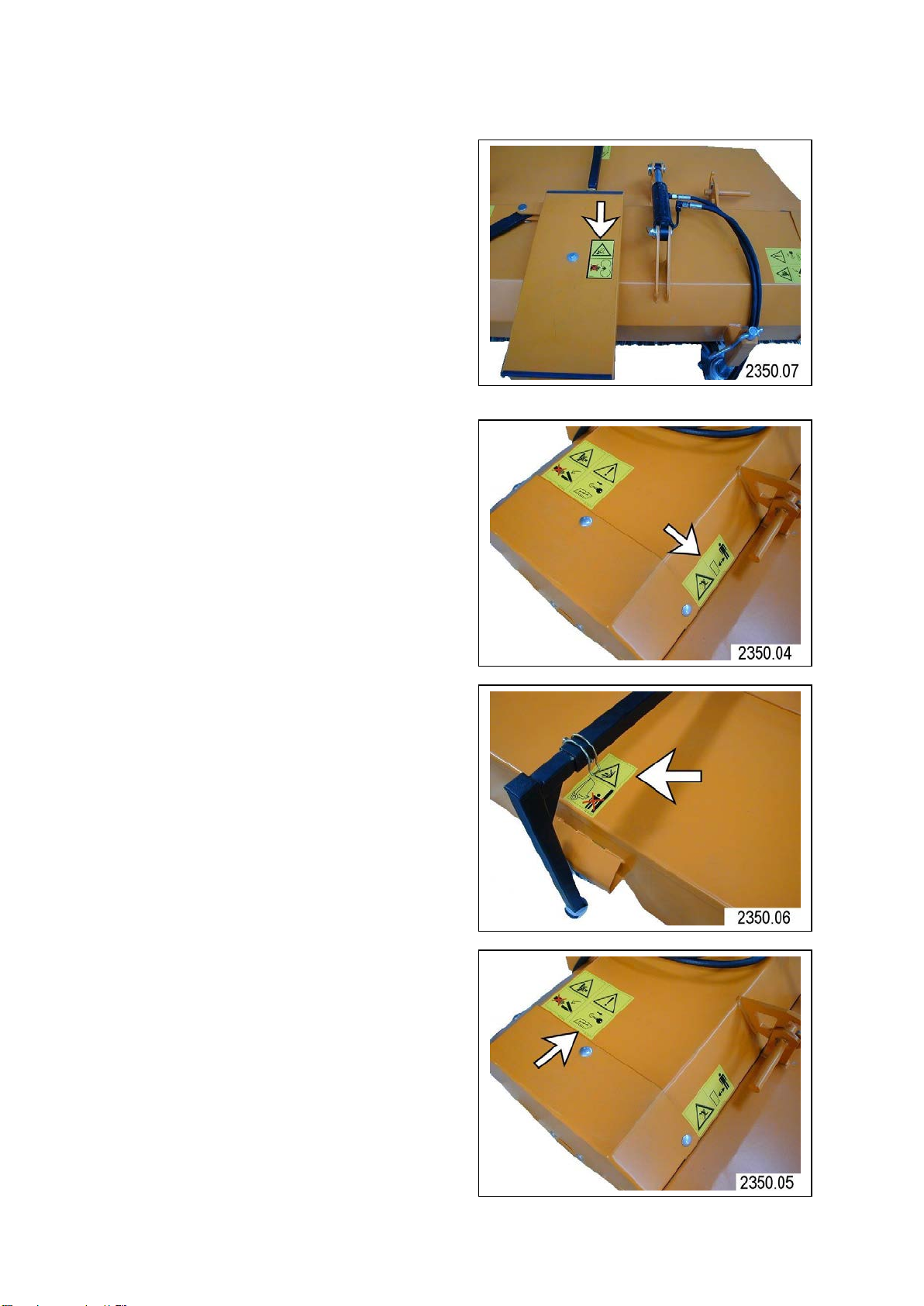

1.1. Safety Decals
Pictorial safety sings
At several important places
of this machine safety sings
are affixed intendent to
signify potenial danger. The
hazard is identified by a
pictorial in a warning
triangle. An adjacent
pictorial provides information
how to avoid personal injury.
These safety sings, their
placement on the nachine and
a brief explanatory text are
shown below.
Operator’ manual
This operator’s manual
containsall important
information necessary for
safe machine operation.
Carefully observe all
safety rules to avoid
accidents.
Protectors
Never reach into areas of
crushing hazard as long
as any parts may move.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
12
1.0. Safety
1.1. Safety Decals
Avoiding injury from rotating blade
When the engine is running,
keep a safe distance from
the mowing blades.
Tools
When operating ensure that
sufficient distance is left as
there is a risk of injury from
thrown or flying objects.
Container opening
When the tractor engine is
running, stay clear of the
swivel area of the container
Service
Before performing service
or repair work, turn off
engine and remove key.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
13
1.0. Safety
1.2. Safety instructions
-Besides the information in
these operating instructions,
please also observe generally
applicable safety and
accident-prevention
standards!
-Familiarise yourself with
all equipment and operating
elements and their functions
before starting work. Ensure
that all protective equipment
has been properly installed.
It is too late to do this
when you have started work!
-During work operation, the
user is responsible for the
safety of third parties!
-During operation on public
highways, the relevant
traffic regulations must be
observed!
-Before moving off, ensure
that the immediate area of
the machine is clear e.g. no
children nearby. Ensure that
your visibility is not
impaired!
- Keep all persons clear of
the danger zone of the
machine!
-Mount the appliance only
when the motor and the power
take-off shaft have been
switched-off.
- Use only cardan shafts
prescribed for the machine
which is being mounted.
- When driving the machine
outside the work area, the
drive should be switched off
and the attachment placed in
transport position.
- In event of malfunctions
(vibrations) or if the machine
runs over a foreign object,
turn off the drive, switch off
the engine (remove ignition
key or spark-plug connector)
and examine the machine,
particularly the equipment,
for damage.
- Damaged equipment must be
replaced.
-When working on the tool,
precautions should be taken to
prevent injury (e.g. gloves).
- The driving and operational
characteristics of the tractor
may be influenced by the
attachment of the sweeper.
Always adapt your driving
style to match the terrain and
ground conditions.
- Before carrying out any
maintenance work, the machine
and the tractor engine must be
switched off.
All protective devices must be
mounted before initial
operation.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
14
2.0. Connecting
2.1. General
Ensure that the tyre pressure of the
vehicle tyres is correct.
Please observe the following when
selecting the correct mounting points
(for the installed parts):
1. Lowest position of
tractor - frontal lifting
2. Top position of tractor - frontal
lifting
3. Clearance for the p.t.o shaft
4. Enough clearance between sweeping
machine and ground in order to
overcome obstacles (e.g. kerbs).
5. Installed sweeping machine must be
in float position in order to be
able to adapt to the unevenness of
the ground.
6. The protective cover of the V-belt
must be parallel to the ground.
Setting is made via the tractor's
upper link.
2.2. INSTALLATION WITH STANDARD THREE-POINT LINKAGE CAT.1
The installation stand is as standard
equipped with category I connection
components.
U Insert and secure the lower link
to the installation stand using
suitable pin (A).
Insert and secure upper link with
plug (B) to suitable bore hole of
the installation stand.
Mount the PTO shaft.
Raise sweeping machine with front
hydraulics.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
15
2.0. Connecting
2.3. MOUNTING USING THE COUPLING TRIANGLE
Version 1
Pull off the spring pin and
pull out the locking pin up to
the second bore.
Lock position using the spring
pin.
Lower the front power lift.
Drive the coupling half of the
tractor into the coupling
triangle.
Lift the front power lift.
Pull off the spring pin and
push in the locking pin up to
the first bore; if necessary
adjust the height of the guide.
Lock the position using
the spring pin.
Mount the propeller shaft.
Version 2
Some tractors are equipped with
safety hooks.
Locking plate (A) must be adjusted
to the safety hooks.
Version 3
Raise sweeping machine with front
hydraulics.
Secure the triangular coupling
against jumping out using screw
and U-disc.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
16
2.0. Connecting
2.4. EXTENSION FOR STANDARD THREE-POINT
LINKAGE AND TRIANGULAR COUPLING
This could lead to installation
problems with some tractors.
There is the possibility of
remedying this problem with
extension plates.
2.5. SETTING CYLINDER BROOM
Adjust the sweeping roller so
that the bristle ends just
touch the ground (see picture
2350.13).
The sweeper should be
horizontal in relation to the
ground when installed. If
necessary, correct at the
connector to the vehicle.
2350.13

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
17
2.0. Connecting
2.6. DIRECTION OF ROTATION OF CYLINDER BROOM
The sweeping roller must as shown
on picture 2350.14.
You can set the direction of
rotation yourself by turning the
brushing gear 180°. To do this,
the brushes must be disassembled
and the four screws between the
brushing gear and the swivel part
must be released.
2.7. PARK SUPPORTS
After a successful installation,
refit the park supports as shown
in the diagrams.
2.8. Connecting the hydraulics
If a hydraulic swivel device
is fitted, the hydraulic
hoses to the vehicle must be
installed so that shearing
and chafing is prevented.
If necessary, secure cable
binders at suitable
positions. Mount quick-
action couplings on the
coupling fitted on the
vehicle.
Drehrichtung der Kehrwalze
Rotating direction of
sweeping roller
Sens de rotation du balai
Fahrtrichtung
Direction of motion
Direction de la marche
2350.14

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
18
2.0. Connecting
2.9. CARDAN SHAFT ADJUSTMENT
Connect the cardan shaft and
check that it has the correct
length in working position and in
raised position; shorten if
necessary. Secure cardan shaft
guard with attached chain.
For adjusting the length hold
the two shaft parts side by
side within the shortest
operating position and mark
them out.
Cut off the inner and outer
sliding profile by the same
length as the sheath tube.
Cut off the inner and outer
sheath tube evenly.
Smooth off division edges,
remove chips carefully.
Lubricate sliding profile.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
19
3.0. Disconnecting
3.1. General
Only set the dirt sweeping machine
down:
on a firm, level surface
on the mounted park supports
with the lateral broom folded up
The dirt sweeping machine is thus
secure. The cylinder broom and
lateral broom are not damaged.
3.2. Support leg
The parking supports must be
mounted as shown in the diagrams
before the sweeping machine is
lowered.

All information, illustrations and specifications in these Operating Instructions are based on the latest information available at the time of
publication. We reserve the right to make design changes at any time without prior notification
20
3.0. Disconnecting
3.3. DISMANTLING WITH STANDARD THREE-POINT LINKAGE CAT.1
Unrig the PTO-Shaft.
Lower sweeping machine.
Release tension in upper link
and release from sweeping
machine.
Release lower connecting rod
turnbuckles and pull out the
bolt for the lower connecting
rod.
Lay down the unrigged PTO-
Shaft for storing
as illustrated in
picture 2350.26
3.4. DEMOUNTING WITH COUPLING TRIANGLE
Unrig the PTO-Shaft.
Pull off the spring ring pin
and pull out the locking pin
up to the second bore.
Lock position using the
spring pin.
Lower sweeping machine.
Lay down the unrigged PTO-
Shaft for storing
as illustrated in
picture 2350.28
