Wiko Harry User manual

user guide
Panduan Pengguna
Diproduksi oleh : PT Sentra Solusi Teknologi
Tangerang - Indonesia

1. 2.

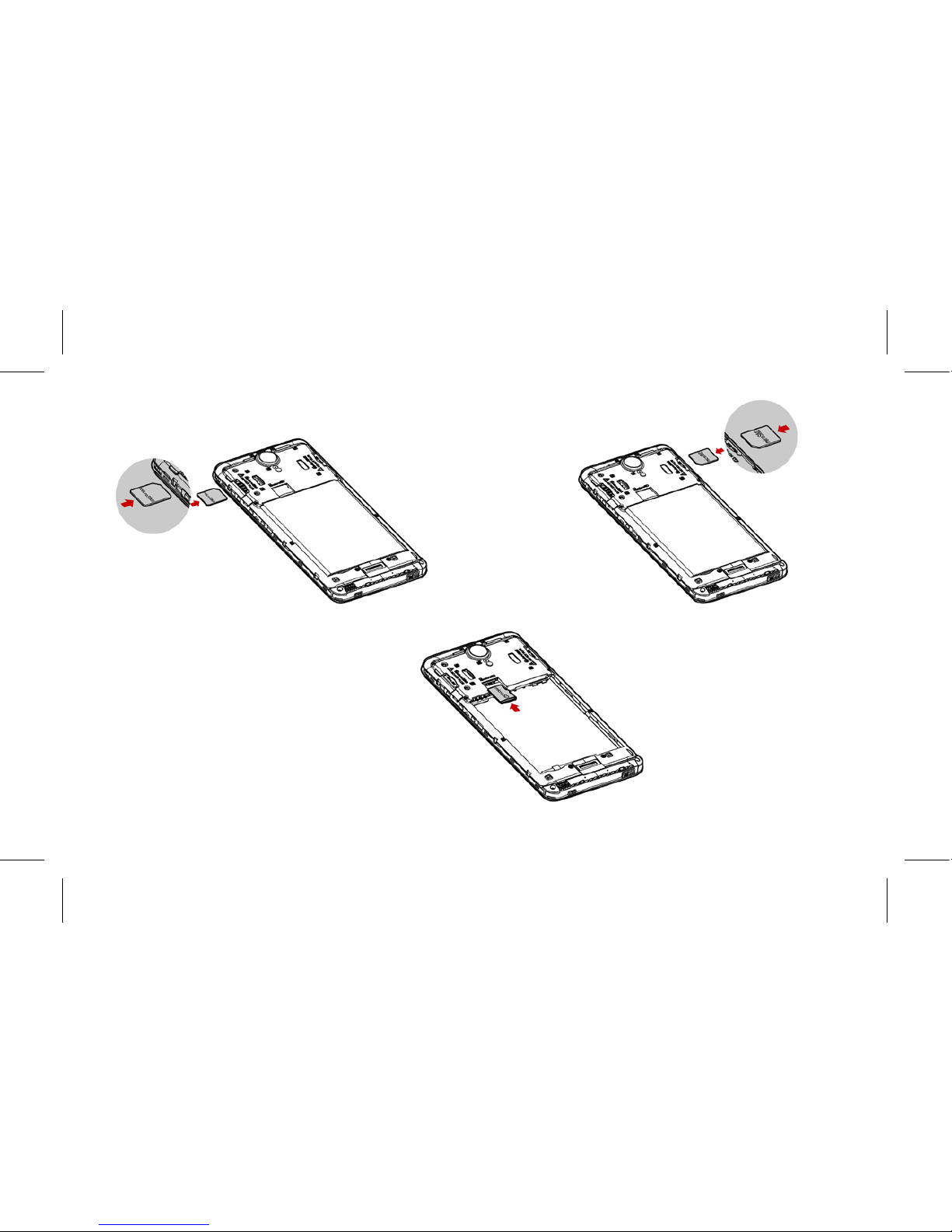

Inserting your cards
Masukkan kartu SIM

Micro SIM 1 Micro SIM 2
Micro SD 128 GB
3. 4.
5.

1, 2, 3...
Getting to know your phone
Mengenal Ponsel Anda

User guide
The contents of this manual may differ in certain
respects from the description of your phone depending on its
software version and your telephone operator.

CONGRATULATIONS !
You have just purchased your WIKO HARRY mobile
phone. This guide contains basic information to get
you started and quickly familiarise yourself, we hope,
with the world of WIKO.
A complete version of the guidelines, safety
instructions and your device usage user guide is
available on our website www.wikomobile.com. You
can request a printed version via email or printed
letter at the address listed at the end of the user
guide.
What’s in the Box :
1. WIKO HARRY mobile phone
2. AC adaptor
3. Micro USB cable
4. Hands-free kit
5. User guide
6. Battery

~ The buttons on your phone
Button
On/Off
Home
Overview
(right side)
Return
(left side)
Volume
Press and hold the button to turn the phone on or off.
Press the button lightly to lock the touch screen.
Returns to the home screen.
Opens the list of recent applications.
Returns to the previous screen. Closes the on-screen keyboard.
Increases or decreases the call volume, the ringtone, music,
games and other audio functions.
Switch the ringtone to silent mode when the phone rings.
Press and hold on Volume- to enable the meeting prole.
Function

Basic Operations
~ SIM Management
When you turn on your phone for the rst time,
various items of information about the SIM card(s) are
displayed. Follow on-screen instruction to set up SIM
management.
~ Network Connection
• Operator Not Available
If your operator does not appear in the list or the
list is empty, ask your operator how to congure the
APN manually. To do this, go to Settings > Wireless
& networks > More > Mobile networks >SIM1 or
SIM2 > Access Point Names , press on the button
and enter the information provided by your operator.
Return to the previous menu, then choose the APN
that you have just saved.
• Data Connection
To check your data connection settings:
1. Go to Settings > Wireless & networks > More >
Mobile networks > SIM 1 or SIM 2 > Access Point
Names, then enable the access point according to your
operator/package.
2. To activate Mobile data, drag the notication panel
downward with two ngers and enable data connection
by clicking on .
3. In SIM management, you can select which SIM card
is used for data connection.
• Data Roaming
Note that for roaming SIM cards, you must enable the
data roaming in the Settings > Wireless & networks >
More > Mobile networks > SIM 1 or SIM 2 > Activate
Data roaming.

~ Notifications Panel
Drag the status bar downwards with 2 ngers to see
details of all your notications. Information about
new messages received, upcoming calendar events,
download status, etc. will then be displayed.
Safety Information
Please read this safety information carefully so that
you can use your phone in complete safety:
1. Prolonged listening to the music player at
full power may damage the user’s hearing.
2. Hearing Nuisances: To avoid possible hearing
damage, do not listen to sounds or music at an
excessive volume using the earphones (headsets,
headphones) for a long period of time.
3. Emergency call: Sometimes the emergency
numbers are not accessible on all mobile networks,
check rst with your operator.
4. Children: Be very careful. A portable device is not
designed for use by children. The phone contains
small parts that could be swallowed or cause choking.

5. Driving safety: Using your mobile phone while dri-
ving is prohibited. It is your responsibility to respect
the laws and regulations on the use of mobile phones
in the country where you drive.
6. Electronic implants and pacemakers: A minimum
distance of 15cm between a mobile phone and a
pacemaker is advised to avoid potential interference
with the pacemaker. Hold the device on the opposite
side to their implant as a precaution when making
a call.
If you notice that your device is causing interference
with a pacemaker, switch it off immediately and
contact the doctor for advice on what action to take.
7. Fire hazard: Do not leave your device near heat
sources. Do not leave your device charging near
ammable materials.
8. Contact with liquid: Do not expose the device to
liquid or touch it with wet hands: any damage caused
by water may be irreparable.
9. Use only WIKO-approved accessories in box. The
use of unauthorised accessories may damage your
phone or cause a safety risk.
10. Batteries must be used with caution.
Do not attempt to disassemble the battery yourself.
Do not destroy the batteries and chargers. Never use
a battery or charger that has been damaged. Keep
batteries away from electronic objects.
You should not expose the batteries to very low or
very high temperatures (below 0°C or above 45°C).
It is recommended to recharge the battery at a room
temperature of 5 to 25 °C. To increase battery life, only
use the WIKO battery and charger supplied in the box.
Incorrect use of the battery or if battery is replaced
by an incorrect type may cause re, explosion or
other risk. Dispose of used batteries according to the
instructions.
11. Electric shock: Do not try to dismantle your device
as there is a very real risk of electric shock.

12. Recharge your phone in a well ventilated area.
13. Do not use the mobile phone in an environment
at too high or too low temperature, never expose
the mobile phone under strong sunshine or too wet
environment. The suitable temperature for the phone
is -10°c to +45°c, the maximum charging temperature
declared by the manufacturer is +40°c.
14. Due to the used enclosure material, the GSM
mobile phone should only be connected to a USB
Interface of version 2.0 or higher. The connection to
so called power USB is prohibited.
15. The socket-outlet should be near the equipment
and easily accessible.
16. This charger is for indoor use only, the charger
type is:
AREA COUNTRIES CHARGER TYPE
Area 1
France, Germany, Greece,
Italy, Portugal, Spain, Bel-
gium, Netherland, Switzer-
land, Luxembourg, Poland,
Algeria, Croatia, Slovenia,
Serbia, Greece, Cyprus
TN-050100E4A,
output voltage
current is 5V/1.0A
Area 2 UAE, Saudi Arabia,
Nigeria, Kenya
TN-050100B4A,
output voltage
current is 5V/1.0A
Area 3 Asia
TN-050100E4A,
output voltage
current is 5V/1.0A

~ Specific Absorption Rate "SAR"
Exposure to radiofrequency
Your device has been designed and produced to
comply with international norms (ICNIRP) for
exposure to radiofrequencies. The safety instructions
related to exposure to radiofrequencies use a
measuring unit called SAR (Specic Absorption Rate).
The SAR limit adopted by the European Directive
2014/53/EU is 2.0 W / kg.
The highest reported SAR value for your device
when tested for use at the head is 0.552 W/kg, and
1.105 W/kg when it is kept 0.5 cm from your body.
WWAN
Frequency Band Maximum output power
GSM B2/B3 28~32dBm
GSM B5/B8 31~35dBm
UMTS B1/B2/B5/B8 21~25dBm
FDD LTE B1/B3/B7/
B8/B20 20.3~25.7dBm (QPSK, partial RB)
WLAN
Standard Frequency Avg.Power(dBm)
802.11b 2.4~2.4835GHz 16.07
802.11g 2.4~2.4835GHz 13.56
802.11n 2.4~2.4835GHz 13.79
BLUETOOTH
Bluetooth Version Frequency Range Avg.Power(dBm)
BT 2.1+EDR 2.4~2.48GHz 5.67
BT 4.0 2.4~2.48GHz -1.34

~ Recycling
This product is subject to European
Directive (WEEE Directive 2012/19/EU)
and batteries (Directive 2006/66/EC).
Electrical, electronic equipment, batteries,
storage batteries and their accessories
must always undergo selective waste management.
Therefore, these elements must be reported to
an authorized collection point for appropriate
reprocessing or recycling.
~ Dangerous substances
This device complies with the requirements resulting
from the REACH regulation (Regulation (EC)
N°1907/2006) and those of the revised RoHS Directive
(Directive 2011/65/EU).
~ Responsibility
Within the limits set by the legislation in force in
your country, in case of negligence on your part or
on the part of a third party in the use of your device
or third party services accessible through it, WIKO
will not be responsible for any damages whatsoever,
arising from the said negligence. You remain solely
responsible for the use of the device in accordance
with all regulations applicable to and in effect in your
country.These recommendations, safety instructions
and use of your device can vary depending on the
country in which you reside. To nd out more regarding
the recommendations, additional safety instructions
and usage tips specic to your country, please visit
www.wikomobile.com

STATEMENT OF COMPLIANCE
We, WIKO SAS – 1, rue Capitaine Dessemond – 13007 Marseille – FRANCE, here by declares that the radio
equipment type HARRY is in compliance with Directive 2014/53/EU.
Software version: Harry-V01
The procedure for the Statement of Compliance, set out of Directive 2014/53/EU, was conducted under the
supervision of the following organisation:
TELEFICATION B.V.
Edisonstraat 12A 6902 PK Zevenaar-The Netherlands
Phone: [phone]/ Fax: [phone]
E-mail: certication@telecation.com
www.telecation.com
The full text of the device’s Statement of Compliance is available on written request to the following address or
www.wikomobile.com: WIKO SAS - 1, rue Capitaine Dessemond - 13007 Marseille - FRANCE
Michel ASSADOURIAN / CEO
08/03/2017

Panduan Pengguna
Dalam aspek tertentu, isi dari panduan ini mungkin berbeda
dari deskripsi ponsel anda tergantung pada versi perangkat
lunak dan operator anda.

SELAMAT !
Anda baru saja membeli ponsel WIKO HARRY.
Panduan ini berisi informasi dasar untuk
menggunakan ponsel ini, harapan kami, Anda dapat
dengan mudah membiasakan diri dengan dunia
WIKO.
Panduan, petunjuk keselamatan dan penduan
penggunaan versi terbaru tersedia di website kami
www.wikomobile.com. Anda dapat meminta versi
cetak melalui email.
Apa yang di dalam kotak:
1. Ponsel WIKO HARRY
2. Adaptor charger
3. Kabel mikro USB
4. Hands-free
5. Panduan Pengguna
6. Baterai

~ Tombol pada ponsel anda
Tombol
On/Off
Home
Pratinjau
(sisi kanan)
Kembali
(sisi kiri)
Volume
Tekan dan tahan tombol untuk menghidupkan atau matikan
ponsel. Tekan sebentar tombol untuk mengunci layar sentuh.
Kembali ke layar awal.
Buka daftar pada aplikasi terakhir.
Kembali ke layar sebelumnya. Tutup keyboard pada layar.
Memperbesar atau menurunkan volume panggilan, nada dering,
musik, permainan, dan fungsi suara lainnya. Alihkan nada dering
ke mode diam ketika telepon berdering. Tekan dan tahan pada
Volume- untuk mengaktifkan prol meeting.
Fungsi

Operasi Dasar
~ Pengelolaan SIM
Ketika Anda menghidupkan telepon untuk pertama
kalinya, berbagai item informasi tentang kartu SIM
akan ditampilkan. Ikuti instruksi di layar untuk
mengatur manajemen SIM.
~ Sambungan Jaringan
• Operator Tidak Tersedia
Jika operator anda tidak muncul di daftar atau
daftar kosong, tanya operator anda bagaimana
mengkongurasi APN secara manual. Untuk
melakukannya, pergi ke Pengaturan > Nirkabel &
jaringan > Lainnya > Jaringan Seluler > SIM1 atau
SIM2 > Access Point Names, tekan pada tombol
dan masukkan informasi yang disediakan oleh
operator. Kembali ke menu sebelumnya, kemudian
pilih APN yang baru anda simpan.
• Sambungan Data
Untuk memeriksa pengaturan sambungan data:
1. Pergi ke Pengaturan> Nirkabel & jaringan >
Lainnya > Jaringan seluler > SIM 1 atau SIM 2 >
Access Point Names, kemudian aktifkan akses poin
sesuai operator/paket.
2. Untuk mengaktifkan data seluler, geser panel
notikasi ke bawah dengan dua jari dan aktifkan
sambungan data dengan mengklik .
3. Pada pengelolaan SIM, anda dapat memilih kartu
SIM yang mana yang digunakan untuk sambungan
data.
• Data Roaming
Catatan untuk kartu SIM roaming, anda harus
mengaktifkan data roaming pada pengaturan
> Nirkabel & Jaringan > Lainnya > Jaringan Selular
> SIM 1 atau SIM 2 > Aktifkan data roaming.
