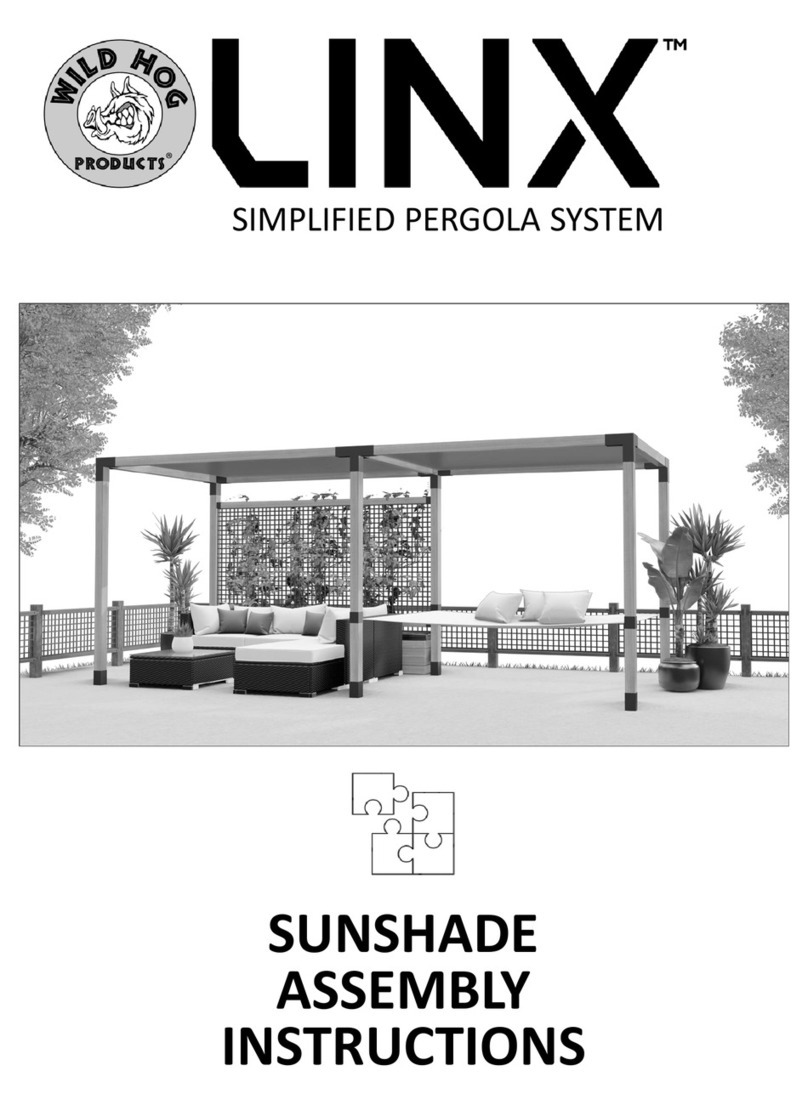

WILD HOG Linx Simplified Pergola System User manual

SIMPLIFIED PERGOLA SYSTEM
ASSEMBLY
INSTRUCTIONS

PARTS
TRIFIT UNIFIT
CORNER
BRACKET
SIDE
BRACKET
SUNSHADE
FASTENER
SUGGESTED TOOLS
DRILL TAPE MEASURE LEVEL LADDER
RECOMMENDATIONS
STRAIGHT, DRY WOOD
(SOLD SEPARATELY) 3 ADULTS FOR ASSEMBLY

IMPORTANT –CAUTION
•Wear personal protective equipment (PPE), including eye protection and gloves.
•It is the responsibility of the installer to meet all local building codes and permit
requirements.
•LINX and its distributors shall not be held liable for improper or unsafe installations.
•Posts must always be properly secured to the substrate:
•For deck installation the posts must be tied to the main framing structure via
lag bolts (sold separately).
•For concrete installation the posts must utilize a metal base plate (LINX Unifit
or similar) permanently affixed to sound, uncracked concrete.
•For soil installation of posts, 2 options:
1. Utilize post spikes, sold by others. Follow spike manufacturer’s
instructions.
2. Set in concrete, buried to a depth of at least 6” below the frost line.
•Post securing hardware is NOT included. Consult your local building permit office for
recommendations.
•Do not leave partially assembled structure unattended.
•Do not leave fully assembled structure unattended without posts permanently
attached to the ground.
•Do not assemble or install your structure during foul weather, including rain,
lightning or high winds.
•Remove Sunshades and Hammocks during high winds and heavy snowfall.
NOTES
•Touch up paint for the LINX Simplified Pergola System is Rust-Oleum® Satin Canyon
Black #249844, available at many local paint retailers.
•After removing LINX instructions, parts and fasteners from the LINX box, flatten
the box and use it as a protective barrier between the LINX part and the ground to
prevent scratches.
| SIMPLIFIED PERGOLA SYSTEM | INSTALLATION GUIDE
FOR QUESTIONS & SUPPORT
WILD HOG PRODUCTS
P. O . B o x 1 3 9 6
Healdsburg, CA 95448
CONTACT
1-888-HOGINFO
[e-mail]
www.linxpergola.com

STEP 1 LAY OUT THE PARTS FOR THE TOP
•4 wood posts + 4 TriFits, laid out in a square shape.
•Place flattened TriFit boxes between Linx parts and the ground to
protect all surfaces.
•Measure parallel posts to ensure equal lengths. Trim with saw as
necessary.
STEP 2 CREATE TWO ‘C’ SHAPE ENDS
•Selecting 2 parallel posts, slide the TriFits on both ends of each
post. Do not use screw fasteners yet.
Top View
Top View
PAGE 1 | 7 | SIMPLIFIED PERGOLA SYSTEM | INSTALLATION GUIDE

STEP 3 CREATE LARGE ‘U’ SHAPE
•Insert remaining 2 loose posts into each side of the ‘C’ end.
•Do not use screw fasteners yet.
STEP 4 ATTACH ‘C ’ END TO COMPLETE SQUARE
•Raise posts off ground and slide TriFits onto post.
•Do not use screw fasteners yet.
Top View
Top View
PAGE 2 | 7 | SIMPLIFIED PERGOLA SYSTEM | INSTALLATION GUIDE

STEP 5 INSERT 2 SCREWS IN EACH CORNER
•Ensure parallel, opposite sides are equal length.
•Insert 2 screws into the outer single holes using an electric drill
and the provided bit. Repeat on all 4 corners of the pergola.
STEP 6 IF NOT INSTALLING SUNSHADE
•Insert all remaining interior corner screws and SKIP TO STEP 10
STEP 7 INSTALL 4 CORNER BRACKETS
•Attach bracket to upper pair of holes using screws.
•Insert screws into lower pair of holes. Repeat 4 corners.
Top View
PAGE 3 | 7 | SIMPLIFIED PERGOLA SYSTEM | INSTALLATION GUIDE

STEP 8 ATTACH SUNSHADE IN 4 CORNERS
•Loop strap through each bracket and snap buckle together.
•Repeat on all 4 corners. Cinch tight.
STEP 9 ATTACH SIDE BRACKETS AND STRAPS
Top View
Pull side strap to post,
mark bracket location.
Attach bracket
with screws.
Loop strap and snap
together buckle.
Repeat on all.
Top View
PAGE 4 | 7 | SIMPLIFIED PERGOLA SYSTEM | INSTALLATION GUIDE

STEP 10 INSERT 2 UPRIGHT POSTS
•Have 2 adults tilt up one side of the pergola top, while
a 3rd adult inserts posts.
•Don’t attach screws.
STEP 11 RAISE PERGOLA WITH 4 LEGS
•Have two adults on ladders lift the pergola top.
•Insert posts when angle permits.
PAGE 5 | 7 | SIMPLIFIED PERGOLA SYSTEM | INSTALLATION GUIDE

STEP 12 INSERT ALL TOP SCREWS
•Using a ladder to access the underside of the pergola top, insert
screws in all empty holes, including both horizontal beam arms
and upright posts. Repeat on all 4 posts.
STEP 13 PUT UNIFIT ON EACH POST BOTTOM
•Have two adults lift each leg while one adult slides a Unifit under
the post. Slowly drop post into Unifit.
•Attach screws.
PAGE 6 | 7 | SIMPLIFIED PERGOLA SYSTEM | INSTALLATION GUIDE

STEP 14 SQUARE AND LEVEL THE BASE
•Measure and align all posts.
•Plumb all upright posts
STEP 15 ATTACH UNIFIT POST BASES TO GROUND
•Affix post base to substrate per local building codes.
•FASTENERS NOT INCLUDED FOR ANCHORING
PAGE 7 | 7 | SIMPLIFIED PERGOLA SYSTEM | INSTALLATION GUIDE
