Williams AV Caption Assist User manual

Caption Assist
CA C3
USER MANUAL
MAN 275A

2
Caption Assist
Table of Contents
Safety Warnings and Instructions .......................................................................................................................... 4
Maintenance and Recycling Instructions ............................................................................................................ 5
Overview .......................................................................................................................................................................6
Introduction ............................................................................................................................................................................ 6
Network Connection Required ..............................................................................................................................6
General Installation ....................................................................................................................................................6
The Back Panel....................................................................................................................................................................... 6
Connecting the Video Source and Outputs ................................................................................................................. 6
Connecting Devices ..............................................................................................................................................................7
Power On ................................................................................................................................................................................. 8
SoundPlus™ Media Player ........................................................................................................................................8
Downloading the Software................................................................................................................................................. 8
Installing the Video Software............................................................................................................................................. 8
Using the Video Software................................................................................................................................................... 8
Caption Assist Menu System ..................................................................................................................................9
Overview ..................................................................................................................................................................................9
Toolbar....................................................................................................................................................................................... 9
Main Menu ...............................................................................................................................................................................9
Menu Conventions...............................................................................................................................................................10
System Information .................................................................................................................................................. 10
System Info .............................................................................................................................................................................10
Scheduling Restarts ..............................................................................................................................................................11
Detecting and Assigning Devices.........................................................................................................................11
Setting COMM Port Parameters........................................................................................................................................11
Preparing Video Sources and Outputs ...............................................................................................................11
Setting Video Output............................................................................................................................................................11
EDID..........................................................................................................................................................................................12
Video Source Options.........................................................................................................................................................12
Default Video Source..........................................................................................................................................................13
Networking ..................................................................................................................................................................13
Network Setup.......................................................................................................................................................................13
Configure Windows Share (SMB) Settings ...................................................................................................................14
Remote Servers.....................................................................................................................................................................15
Caption Appearance and Settings.......................................................................................................................16
Speaker Settings...................................................................................................................................................................16
Language Settings ...............................................................................................................................................................16
Setting Caption Appearance ............................................................................................................................................ 17

3
Caption Assist
Devices Menu.............................................................................................................................................................18
Power Cycle ...........................................................................................................................................................................18
Selecting a USB Microphone............................................................................................................................................18
Updating the Caption Assist ..................................................................................................................................18
Captioning Sessions.................................................................................................................................................19
Purchasing Hours .................................................................................................................................................................19
Starting a Session.................................................................................................................................................................19
Stopping a Session ..............................................................................................................................................................19
Troubleshooting Guide........................................................................................................................................... 20
Telnet Commands......................................................................................................................................................21
Language Selection Table.....................................................................................................................................22
Outside copyright information for Software.....................................................................................................24
Specifications............................................................................................................................................................ 29
Regulatory Statements........................................................................................................................................... 29
United States - FCC ........................................................................................................................................................... 29
Canada IC.............................................................................................................................................................................. 29
Limited Warranty ...................................................................................................................................................... 30

4
Caption Assist
Safety Warnings and Instructions
WARNING! TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
POWER CORD NOTICE FOR INTERNATIONAL OPERATION - Please call Williams AV Customer Service at 800.328.6190
to order the appropriate power cord for the country of use.
Important Safety Instructions:
1. Read these instructions
2. Keep these instructions
3. Heed all warnings
4. Follow all instructions
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel.
14. The apparatus shall not be exposed to liquids.
15. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the
manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force and
uneven surfaces may cause the appliance and cart combination to overturn.
16. Power Sources - The appliance should be connected to a power supply only of the type described in the
operating instructions or as marked on the appliance.
17. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the
enclosure through the openings.
18. Servicing - The user should not attempt to service the appliance beyond that described in the operating
instructions. All other servicing should be referred to qualified service personnel.

5
Caption Assist
Precautions:
1. Power – WARNING, BEFORE TURNING ON THE POWER FOR THE FIRST TIME, READ THE FOLLOWING SECTION
CAREFULLY. The unit is designed for use only with the line cord of the region in which it will be operated.
2. Voltage Label (Rear Panel) – A label located at the rear panel power connection indicates the power input for the
unit.
3. Do Not Plug in the HDMI input, output, Comm 1, Comm 2, Ethernet, or USB connections while the power switch is
switched to the ON position.
4. Do Not Touch any part of the Caption Assist with wet hands. Do not handle any part of system, including the
power cord, when your hands are wet or damp. If water or any other liquid enters the Caption Assist or Caption
Assist‘s location, take the device to qualified service personnel for inspection.
5. Place all components of the Caption Assist in a well ventilated location. Take special care to provide plenty of
ventilation on all sides of the system components, especially when it is placed in a small location, such as a rack.
If ventilation is blocked, the system may over heat and malfunction.
6. Do not expose the Caption Assist to direct sun light or heating units as the system’s internal components
temperature may rise and shorten the life of the components. Avoid damp and dusty places.
7. Care – From time to time you should wipe o the front and side panels and the cabinet with a soft cloth. Do not
use rough material, thinners, alcohol or other chemical solvents or cloths since this may damage the finish or
remove the panel graphics.
Maintenance and Recycling Instructions
Help Williams AV protect the environment. Please take the time to dispose of your equipment properly.
Product Recycling:
Please do NOT dispose of your equipment in the household trash. Take the equipment to a electronics
recycling center.
Servicing or attempting to service this device will void the warranty
Refer servicing to qualified personnel. Servicing is required when the system has been damaged in any way: if liquid
has been spilled or objects have fallen into the unit, if the unit has been exposed to moisture, if the unit does not
operate normally, or if the unit has been dropped.
Do not block any ventilation openings. Install in accordance with manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produces heat.
Use only attachments/accessories specified by the manufacturer.
Unplug the transmitter during lightning storms or when unused for long periods of time.
Be advised that dierent operating voltages require the use of dierent types of line cord and attachment plugs.
Check the voltage in your area and use the correct type.
Use only the power supply provided by Williams AV. Other power supplies may have similar specifications, but
may not be equivalent in emissions ratings, in-rush current, etc. Use of an unapproved power supply may leave the
device partially or completely inoperable, and will void the warranty.
This apparatus has been designed with class-1 construction and must be connected to a main socket outlet with a
protective ground connection (the third grounding prong).
Protect the power cord from being walked on or pinched, particularly at plugs, receptacles, and near the power jack
on the transmitter.
The MAINS plug or an appliance coupler is used as the disconnect device, so the disconnect device should remain
readily operable.

6
Caption Assist
Overview
Introduction
The Caption Assist (CA C3) is a professional, hardware-based live captioning system. During a video call or other
live event, the Caption Assist can use the power of the Google Cloud to put real time captions on any video source.
Many languages and dialects can be selected for captioning, and is a perfect fit for churches, classrooms and other
presentations.
Network Connection Required
A network connection to the Caption Assist is required. The Caption Assist depends on access to the Google Cloud
to receive its captioning data.
General Installation
The Back Panel
Most wired devices will connect via one of the ports on the back panel. There are numerous ports to connect to,
including USB, HDMI, COMM ports and a Phoenix-Style connector.
19VDC --- 4.7A
LAN
COMM 2
COMM 1
HDMI Out
USB 3.0
HDMI In
B
PWR SW
CA C3
USB 3.0
RoHS
Made in USA
--C +

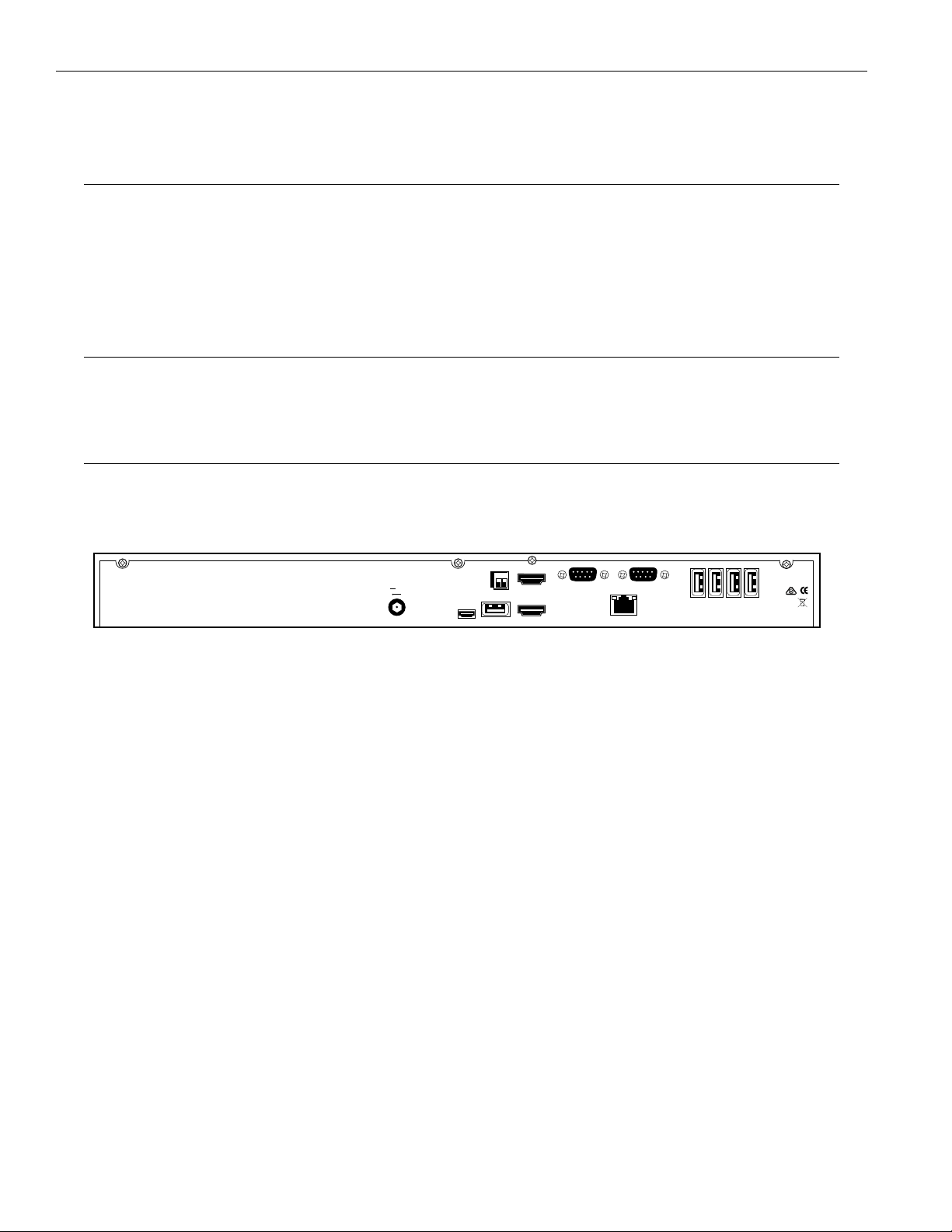

Back Panel Diagram
Connecting the Video Source and Outputs
HDMI Connectors
To connect HDMI video:
HDMI Input into Caption Assist: Using HDMI video cable, connect the cable to the HDMI In port on the back panel
of the Caption Assist.
HDMI Output from Caption Assist: Using HDMI video cable, connect the cable to the HDMI Out port on the back of
the Caption Assist to HDMI In on a HDMI display.
Required Use of Multiple Devices
The output typically cannot be connected to the same device as the input. For example, laptops do not have an
HDMI In port, but do have an HDMI Out port.
Any data sent to the HDMI Output is also sent out via a digital stream, which is viewable from the SoundPlus Media
Player.
Displaying the stream or output into the same device as the input will cause video to show a video of itself, creating
a visual echo.

7
Caption Assist
A visual echo loop is a repeating, nested video feed.
This is not desired as the video will repeat itself within itself, like filming yourself in a mirror. Audio echo may also be
introduced, depending on the configuration.
Connecting Devices
IMPORTANT: Be sure to power down the Caption Assist before connecting or disconnecting any controllers. The
Caption Assist will automatically detect installed controllers upon turning the power on. If you change controllers or
add a new controller, you need to turn power o, install the new controller(s), then turn the power on.
Connecting the Keyboard, Tablet or other USB Devices
Connect the device(s) to any USB port on the Caption Assist. The system supports up to 5 USB 3.0 devices and 1
USB B device.
Connecting the Phoenix Connector
Connect the wires from your power controller (or other device) to the Caption Assist’s Phoenix-style connector
(labeled on the back of the device as PWR SW). When the relay is thrown, the Caption Assist will power on or o, as
a toggle.
Connecting a 3rd Party Controller - COMM Port Wiring Issues
Customers sometimes encounter issues with the wiring of controllers. The following information may be helpful in
resolving any issues.
• Caption Assist’s COMM ports sometimes use pin 9 to supply power to the RS-232 line drivers. Pin 9 was
selected because it’s specification is seldom used. If you are connecting a device other than a line driver to a
COMM port, the voltage may cause unexpected issues with the device.
• COMM 2 is set up as the default control port.
• COMM 1 and COMM 2 have jumpers for power on pin 9, and are set to OFF when shipped from the factory. If
you require power from either or both of these COMM ports, please contact technical support.
Connecting USB Devices
A USB Mouse or Keyboard, Video Device, or other USB devices can be connected via the USB ports on the back
panel.
Connecting Analog Audio Input
Analog audio input cannot be directly connected to the Caption Assist. However, an XLR to USB cable is included
with the device to help convert the analog input connections to USB. You may be able to use other similar cables if a
XLR connection does not work for your audio setup.

8
Caption Assist
Power On
To power on the Caption Assist:
1. Plug the power cord into the back of the Caption Assist and then into any grounded outlet.
2. Plug the power cords from any video source(s), controller(s), and display(s) into any grounded outlet.
3. Turn on each of the connected units, and then press the power button on the front panel of the Caption Assist.
NOTE: In order for the Caption Assist to properly sync with the video signals, the sources should be turned on first.
After a moment, a Caption Assist splash screen will appear, followed by the initializing of the ports, and ending with a
copyright message.
After the startup process, the default input source will be shown.
If this process is dierent for you, recheck your installation and power on again. Call Williams AV for support if it is
still unsuccessful.
NOTE: To bypass port initialization, press ESC during startup.
SoundPlus™ Media Player
The Caption Assist can display streaming video output over the SoundPlus Media Player. The video will match any
HDMI video output. The player will let you select from any stream sent from a Caption Assist system.
Downloading the Software
Download the software from www.williamsav.com. The firmware can be found on the product page, or under the
Support - Downloads section.
The media player screen
Installing the Video Software
After downloading the software, unzip the file that you’ve downloaded and run the installer. Follow the installer’s
prompts and instructions until the installation is complete.
Using the Video Software
Once installed, open the web conference software of your choice. While the web conference software is running,
also open the SoundPlus Media Player.
During your web conference, share the SoundPlus Media Player like you would a document or your screen. For
instructions on sharing your screen, please view your web conference software’s documentation.

9
Caption Assist
Caption Assist Menu System
Overview
There are two Caption Assist menus. One is a series of icons that runs along the bottom of the screen with
commands a presenter would use frequently, such as starting a session.
The other menu is a larger, main menu system mostly used for setup and configuration. This menu will need to be
accessed to get your device connected to the network or calibrated properly.
Toolbar
A toolbar is available in the SoundPlus Media Player. The hamburger icon can toggle whether this menu is showing
or not. Switching the video source between HDMI or USB, the information screen, and the start or stop button are
available for quick access as well.
The Toolbar
Main Menu
The Main menu can be accessed by using a mouse connected to the USB ports on the Caption Assist to click the
top center of the output display. No physical button is visible. Pressing the Print Screen button on a USB keyboard
connected to the Caption Assist will also open the menu.
Click or use the arrow keys to navigate the menu system.
Main Menu

10
Caption Assist
Menu Conventions
Once the menu system is displayed, you can make selections from it to navigate to the option(s) you wish to change.
Each menu selection has the appearance of a rounded-corner button.
Not Selected: If a button is not selected, it has a black background.
Selected: When a button is selected, it changes to a blue background.
Hovering: As you move the selection arrow over a button (hovering), it will either
• Display blue behind the button text.
• Turn the text in the menu to white.
Submenus: A selection from the Main Menu causes a submenu to appear alongside it. A selection from the
submenu sometimes displays a second submenu of choices based on the selection you make.
Outline Format: The entire menu system is an outline format that allows you to drill down to the specific option you
wish to change. Whenever the Main Menu is visible, you can select directly from it to activate a dierent branch of
submenus.
Exiting Menus
Exit a submenu by selecting any option in the Main Menu. Exit the menu system by selecting Exit.
System Information
Certain menu items are used to view and update information about your Caption Assist.
System Info
This selection presents a readout of relevant information concerning your unit. This information can be useful in
troubleshooting, especially if you are contacting technical support.
1. Activate the menu system. The Main Menu appears.
2. Select Display. The Display menu appears.
3. Select System Info. A list of system information will be displayed.
NOTE: Your numbers will be dierent than those of the menu above. Please write down all numbers when contacting
technical support.

11
Caption Assist
Scheduling Restarts
The Caption Assist can be set to cycle the power at a set time of day. This will force the device to re-establish the
connection with any controllers or screens connected to it. The time to power cycle can be set from this menu, as
well as disabling or enabling the daily power cycling.
The Power Cycle Menu
Detecting and Assigning Devices
Devices connected to any ports will often be auto-detected by the Caption Assist. However, sometimes these
devices will need to be manually added or need additional configuration.
Setting COMM Port Parameters
If you are assigning a port for communicating with another system, you must select either Control Port or PVI to PVI
as your device type. The Caption Assist supports assigning only one port for each type.
Control Port: Choose this option if the Caption Assist is being used as an AV remote control command station, if it is
being controlled remotely using RS-232 commands, or if it is being connected to a PC.
1. Select the appropriate device type in the Device Select menu for the port where you are connecting the other
system.Where a question mark is usually found, you will instead see an arrow.
NOTE: Only one of the two COMM ports may be set to Control Port. Either COMM port may be set to Control Port,
but only one at a time may be assigned as Control Port. If the device type you desire for connecting to other
systems is unavailable, check to see if it is assigned to another port.
2. Activate the arrow next to the device type to set its communication parameters. The corresponding submenu
appears. Select the desired baud rate, parity, and stop bits.
NOTE: Factory settings are 9600 baud, no parity, 1 stop bit. Data bits, which cannot be manually set, are 8 data bits.
3. Exit the menu system and cycle the power on the Caption Assist. The Caption Assist implements the new
settings.
Preparing Video Sources and Outputs
Setting Video Output
The Caption Assist gives you a wide range of video parameters for fine tuning your video output.
1. Activate the menu system. The Main Menu appears.
2. Select Display. The Display menu appears.
3. Select Video Output. The Video Output dialog appears next to the Main Menu.

12
Caption Assist

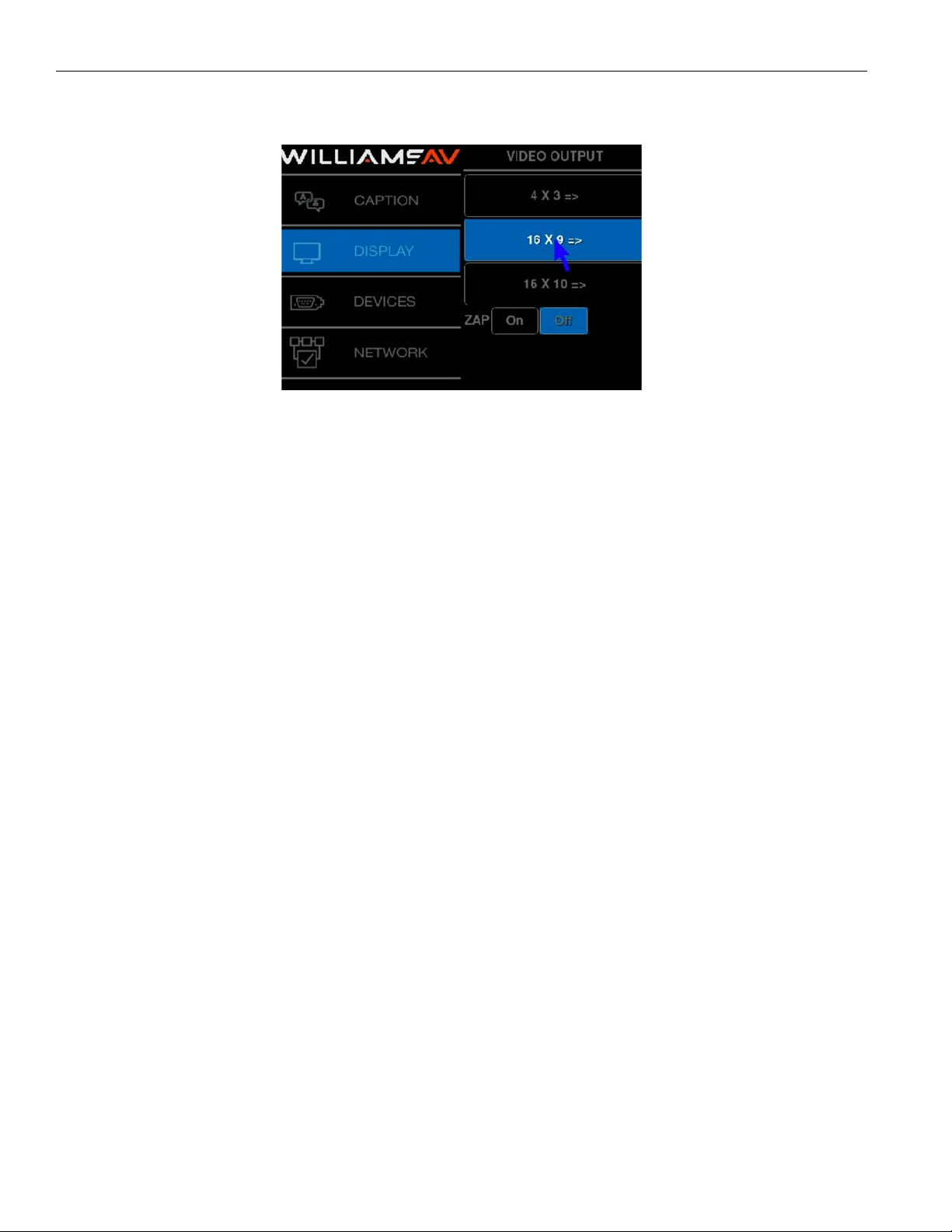

4. Select an output ratio. The associated Video Output Aspect Formats dialog appears next to the Main Menu.
Video Output Formats Dialog for 16 x 9 Ratio
5. Select a format. The Caption Assist will immediately switch to the output format selected.
6. Exit the menu system.
Note: The Zap icon is a special feature and can be enabled if desired.
EDID
This dialog allows you to set the Caption Assist’s preferred EDID resolution which tells the video source what
resolution to send.
1. Activate the menu system. The Main Menu appears.
2. Select Display. The Display menu appears.
3. Select EDID. The EDID menu appears.
4. Turn Force On or O. When o, the Caption Assist will not try to set the incoming source resolution. When on,
select your desired resolution and the Caption Assist will force your device to output the set resolution.
5. Select an EDID format. The associated EDID Format submenu appears.
6. Set Output to Int (for Internal) to broadcast in 1080p video. If the Caption Assist cannot send a 1080p signal, it
will send s 1024 x 768 resolution video instead. Set Output to Ext (For External) to use the optimal resolution for
connected, external devices.
7. Select a resolution.
8. Exit the menu system.
Video Source Options
The Video Source menu allows you to select between your current Source Video or the Chalkboard background.
From the Touch Screen:
1. Activate the menu system. The Main Menu appears.
2. Select Display. The Display menu appears.

13
Caption Assist
3. Select Video Source.
Video Source Menu
4. Choose from your desired video source.
5. Exit the menu system.
Default Video Source
Each time the Caption Assist starts, a specific video source can be selected as the default source to show. If the
video source changes often, the last selected source used may be the desired default. These options are selected
via the Video Source Start menu.
Video Source Start Menu
Networking
There are various networking capabilities built into the Caption Assist, such as the ability to stream or update.
Network Setup
1. Activate the menu system. The Main Menu appears. Select the Network option. The Network Menu appears.

14
Caption Assist
2. Select Network Setup.

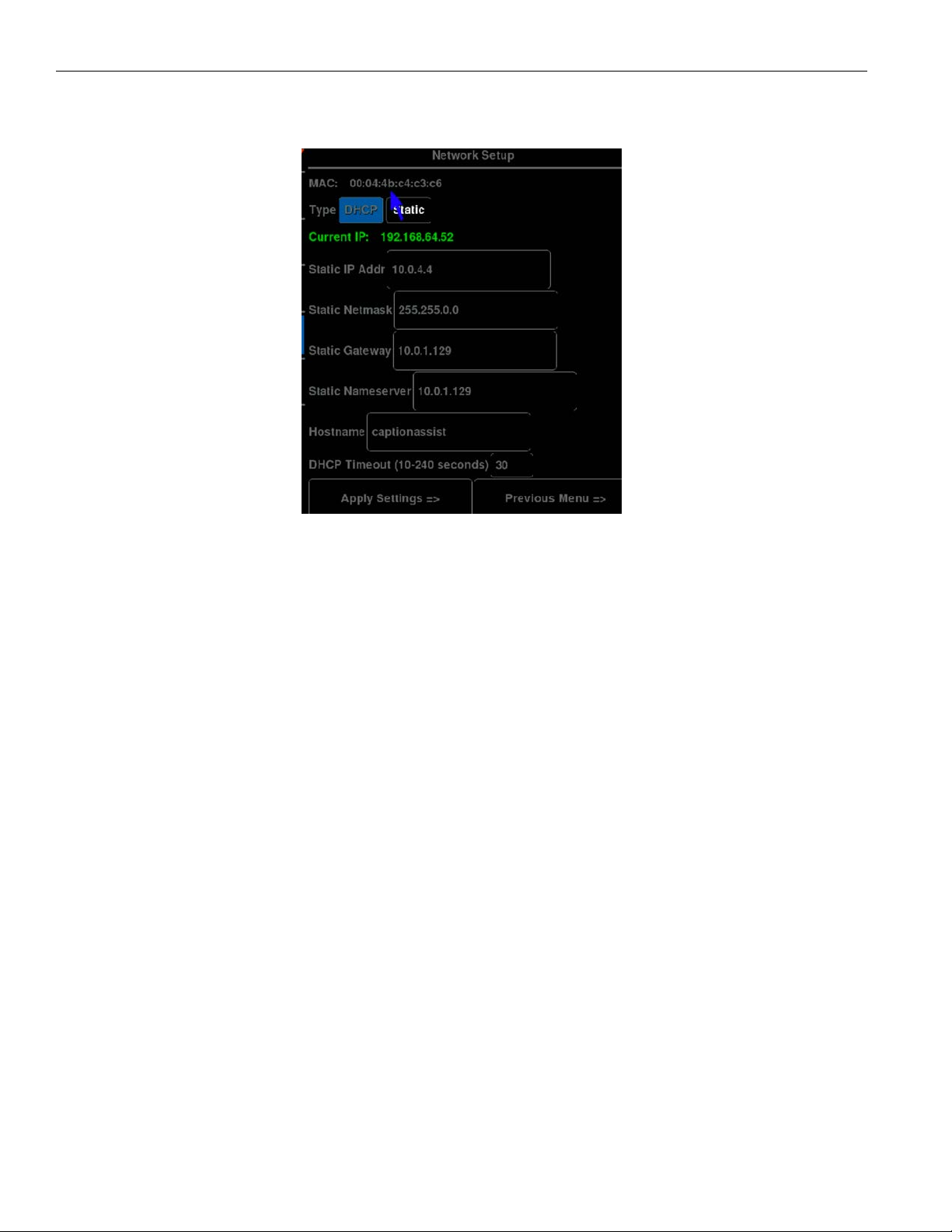

Example of Network Setup menu
The Network Setup menu appears. This dialog prepares the Caption Assist for communicating on your network.
3. Select DHCP or STATIC.
• If DHCP is selected, IP Address, Netmask, Gateway and Nameserver are assigned automatically.
• If STATIC is selected, you must make entries for IP Address, Netmask, Gateway and Nameserver. (This is the
default setting.)
Consult with your IT administrator if you need help with these entries.
4. Select Apply Settings to finish the network configuration.
5. Exit the menu system.
Configure Windows Share (SMB) Settings
Windows Share can only be used for providing firmware updates. The setup dialog requires a Server and Share
name. If the Share is password protected, you will need the username and password. Make sure your firewall does
not block access to your SMB share.
The following steps are required to allow the Annotation Pro to communicate with SMB share.
1. Activate the menu system. The Main Menu appears.
2. Select the Network option. The Network menu appears.

15
Caption Assist
3. Select the Windows Share option.

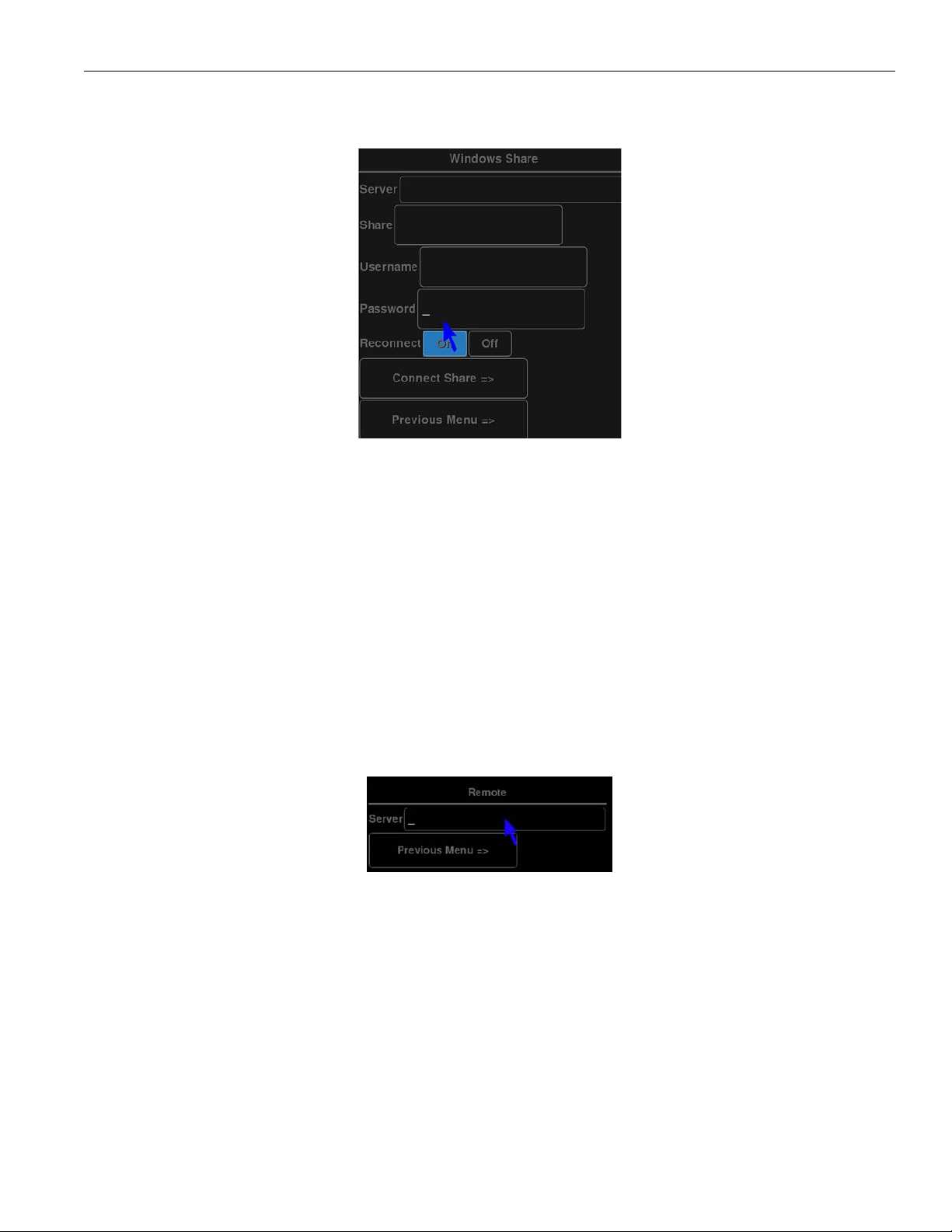

Example of Windows Share menu
4. Enter the Server name where your share is located. Check with your IT administrator if you do not know the
name.
5. Enter the Share name. This is the name assigned to the location on the server. Check with your IT administrator if
you do not know the name.
6. Enter the Username and Password, if any. Check with your IT administrator if you do not know this information.
7. Select the Connect Share button to connect the Annotation Pro to the Windows Share. The Annotation Pro will
indicate if it is able to connect to your Share. If it fails, check your settings.
8. Exit this dialog by selecting Previous Menu.
Remote Servers
Remote server locations can be used to update the system. Once on the menu, enter the IP address the remote
server.
Remote Server Menu

16
Caption Assist
Caption Appearance and Settings
The appearance of the captions can be edited to make them as legible as possible. The caption language and
speaker settings can also be set from this menu.
Speaker Settings
The Speaker setting controls whether the captions are displayed or not. It can be turned on or o directly on the
caption menu.
Main Caption Menu
Language Settings
The language and dialect of the audio that is being captioned must be selected. Selecting the correct dialect
is important. For example, English in South Africa sounds drastically dierent from English in Canada. Not all
languages have dialects, however.
In the Language Selection menu, find the language first and then look at the two character code next to the
language. Each letter will be in a small box. These boxed letters indicate the dialect. For a full lists of languages and
dialect codes, see “Language Selection Table” on page 22.
Language Selection Menu

17
Caption Assist
Setting Caption Appearance
The caption appearance can be adjusted using several features to be as clear as possible on the background of
your video content.

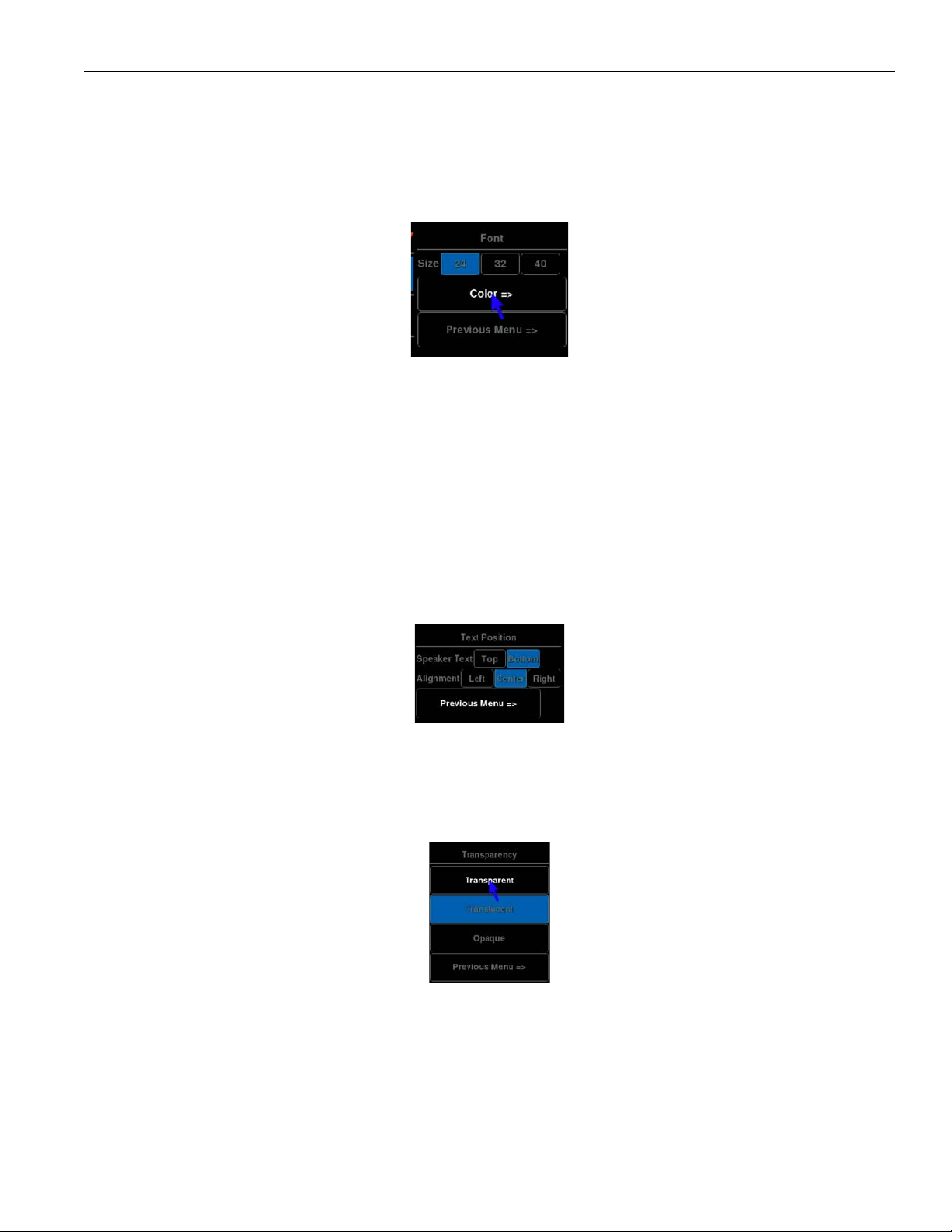

Font Menu
Font Size
From the font menu, the size of the font can be set.
Font Color
Select Color from the font menu to choose a font color. This is the color of the text on the screen.
Text Position
The text position menu lets you set the location of the text on the screen.
Use the Speaker Text option to set whether the text appears at the top of the screen or at the bottom.
Use the Alignment option to set whether the text appears against the left or right sides of the screen, or in the
center.
Text Position Menu
Background Transparency
The background of the text can be transparent (completely clear), translucent (see-through color) or opaque (a solid
color).
Transparency Menu
Background Color
The background color can be set, but will not appear if the background is set to be transparent.

18
Caption Assist
Devices Menu
Power Cycle
Devices are detected by the Caption Assist on start up. To for the Caption Assist to restart and detect any newly
connected devices, select the Power Cycle option.
Selecting a USB Microphone
Multiple USB microphones can be connected to the Caption Assist, but only one may be used at a time. The
Microphone’s menu will let you select from the connected microphones.
The Devices Menu
Updating the Caption Assist
The Caption Assist firmware can be updated through USB or via a remote server update to provide new features,
improve functionality or bug fixes.
NOTE: The Caption Assist must be connected to the internet to update, even when updating from a USB device.
Before activating the Update command, the update file must be copied into a remote server directory or on the flash
drive location called BIIUPG. Create this directory directly under the main (Root) directory. It cannot be inside any
other folder. Ensure there is an internet connection to the Caption Assist before starting the update.
1. Before activating the Update command, the update file must be copied into a directory on a USB flash drive or in
remote server location named BIIUPG. You must create the BIIUPG directory in the root directory.

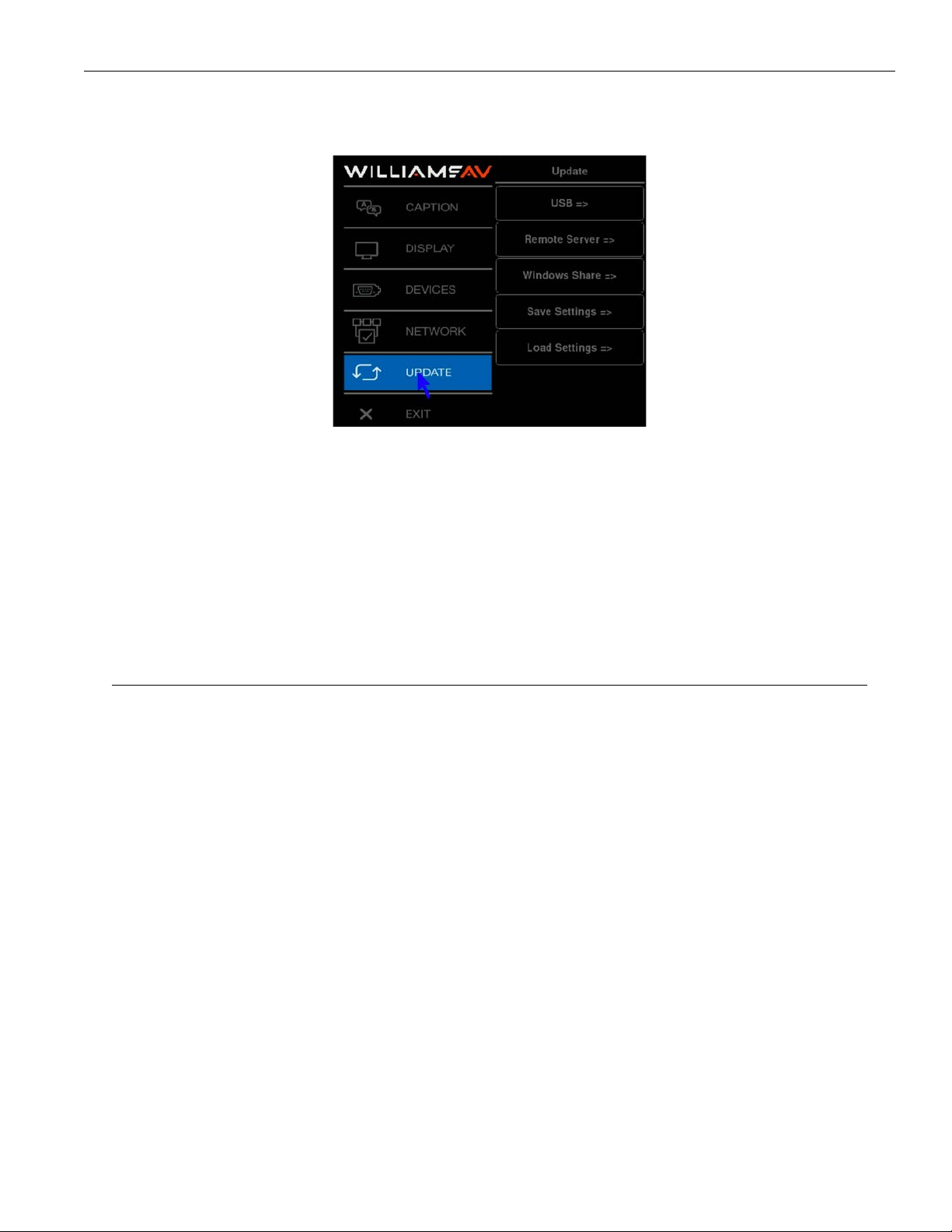

2. Activate the menu system. The Main Menu appears.
3. Select Update. The Update dialog appears.

19
Caption Assist
4. if updating via USB, select USB. The screen will display various information as the update takes place. Then it will
request that you cycle the power.
The Update Menu
5. If updating via Windows Share, enter the Windows Share information. The update file will be taken from the
provided location.
6. If updating via remote server, tap the Remote Server menu. The update file will be taken from the remote server
location.
NOTE: Do not shut o the device, remove the update file, or restrict access to the update file until the update is finished.
7. Turn the Caption Assist o, then turn it back on. The system will start up using the new firmware.
Captioning Sessions
Purchasing Hours
Caption Assist requires a fee in order to be used. Google charges for use of their cloud services, which is how Caption
Assist receives its captioning.
Hours can be purchased in groups of 8-hours, but the hours do not need to be used continuously. For instance, you can
run one 4-hour session on a Monday, a 2-hour session on Thursday, and use the remaining 2-hours the next week.
Multiple groups of hours can be purchased at one time, if desired. If you have a 4-hour meeting every day, you can
purchase three 8-hour groups at once for a total of 24 hours of live captioning. Hours do not expire.
To purchase hours, scan the QR code on the Caption Assist’s output display with the app. Once connected, tap the
shopping cart icon in the bottom right corner of the screen. Pricing is subject to change.
Starting a Session
Sessions may be started from the Caption Assist App, or by using a USB mouse connected to the Caption Assist.
If using a mouse:
On the toolbar or Caption Assist App, click the green START button with the provided mouse.
If using the app:
Scan the QR code on the output display to connect to your Caption Assist device. Once connected, tap on the
START button.
Stopping a Session
Tap STOP on the toolbar or Caption Assist app to pause the session. When stopped, you can switch languages, take a
break, or finish your session.
Sessions will automatically timeout if there has been 15 minutes of silence.

20
Caption Assist
Troubleshooting Guide
The following table describes common problems and their solutions. If, after referring to this table, a problem still
exists, call Williams AV and ask for technical assistance.
There are no user serviceable parts in the Caption Assist. Do not open the cabinet.
The Caption Assist can be soft booted/power cycled by pressing CTRL + ALT + DEL. Factory default settings are
restored by pressing CTRL + ALT + END.
WARNING: executing a factory reset will erase all user settings including calibrations, COMM port settings, etc.
SYMPTOMS POSSIBLE SOLUTIONS
The green indicator light
on the front of the Caption
Assist does not light up.
Check that the Caption Assist is plugged into a live outlet.
Monitor does not light up. Check that the monitor is plugged into a live outlet.
Check that the monitor is switched on.
Check that the monitor brightness and contrast controls are properly adjusted.
HDMI audio is missing. Reboot the Caption Assist using CTRL + ALT + DEL.
Monitor lights up but does
not display a picture.
Check that the video source and Caption Assist are plugged into a live outlet.
Check that the video source and Caption Assist are both switched on.
Check that the proper cables are connected to the proper connectors on the video
source, the Caption Assist, and the monitor. Some sources and monitors have
multiple output and input connectors. Consult your video or computer manuals for
correct connection information.
Bypass the Caption Assist by connecting the monitor directly to the video source.
If the video image still does not appear, have the video source and monitor
checked.
Monitor automatically adjusts
brightness so that video
image is dull while markers
are bright.
Monitor is automatically adjusting for the overall brightness level of the markers
and the video image. On the Caption Assist, activate the Change Brightness
command. Tone down the brightness level of the markers. The monitor will adjust
accordingly.
Monitor displays a scrambled
picture.
Check the horizontal hold control on the video monitor for proper adjustment.
Check that the Dual Voltage Switch (110V/220V) located on the back panel of the
Caption Assist is properly set.
Monitor is not compatible with video source. Use compatible system.
Check to be sure that the video in and out connectors on the Caption Assist are
secure.
Mouse will not operate
properly.
Refer to the specific section in this manual that describes installation of your
controller.
