DW SY 1 & DW SY 2
Digi-Wave Intercom Bridge
USER MANUAL
Intercom Bridge
The Digi-Wave Intercom Bridge is a wireless add-on
bundle oering a seamless expansion of an existing 2-wire
intercom base system to include wireless, full-duplex Digi-
Wave DLT 300 transceivers from Williams Sound. It supports
up to six simultaneous open microphones and an unlimited
number of Digi-Wave devices in a given area. Range is up
to 750 feet (228 meters), depending on the environment.

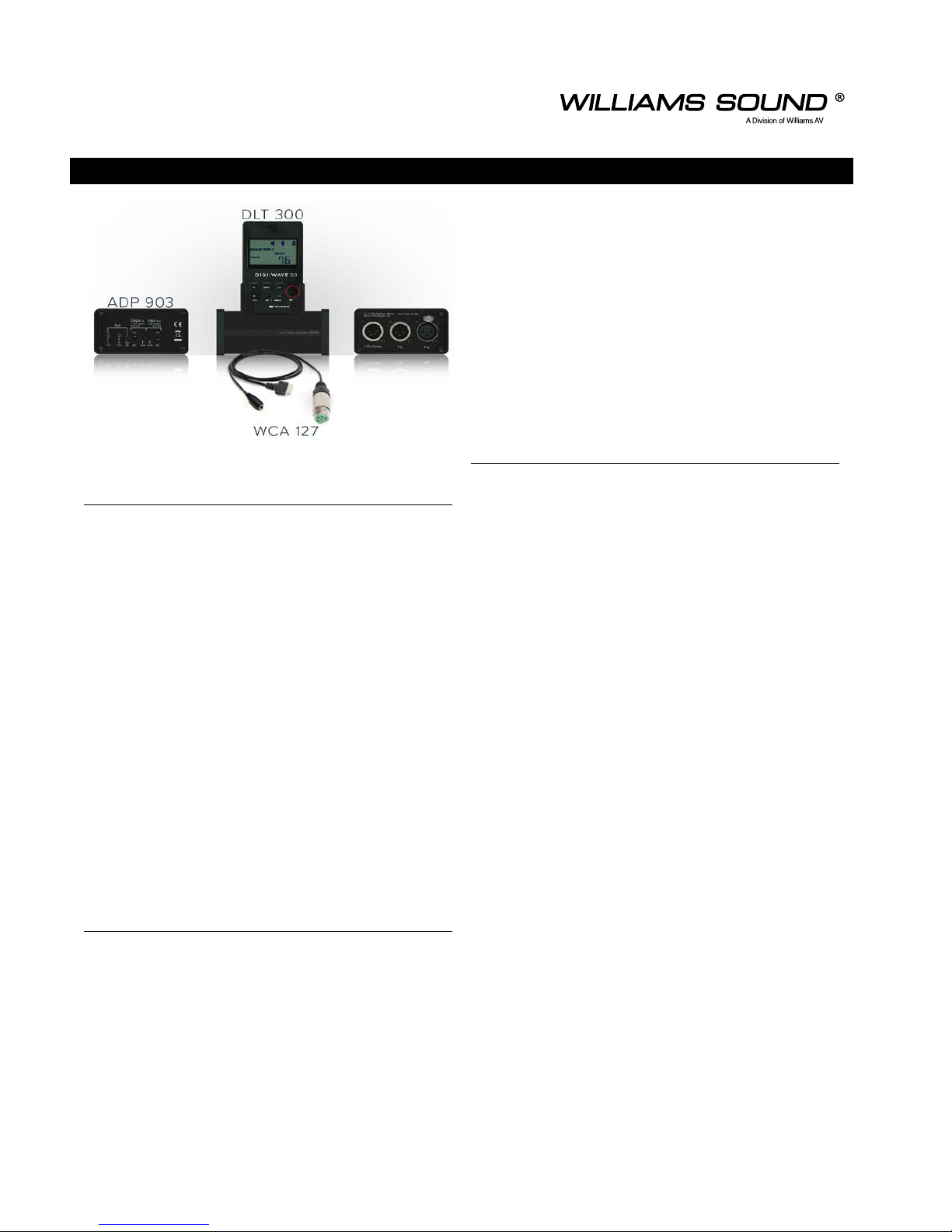

System Includes
• (1) ADP 903 2 to 4 Wire Adapter
• (1) BKT 032 Digi-Wave Transceiver Cradle
• (1) TFP 058 Power Supply
• (1) WCA 127 Interface Cable
• (1) Tuning Screw Driver
• (1) DLT 300 Digi-Wave Digital Transceiver (optional)
Any additional Digi-Wave devices or accessories are not
included in this system.
Set Up
A two-way party line system is expected to already exist.
The Digi-Wave system will be attached to the existing party
line system via a 2-4 wire adapter.
Two DLTs will need to be configured: one as Master and
one as Guest.
The Master DLT will need to be set to Group 0, the sidetone
set to 0, and given a unique address. The Guest DLT will
need to be set to Group 0, and given an address dierent
from the Master DLT.
Please reference the user manual for the DLT for additional
help configuring settings and using the menu system.
Snap the BKT 032 bracket onto the top of the ADP 903
Adapter. Insert the Master DLT into the slot on the bracket.
Plug the WCA 127 cable into the Master DLT, and into the
TFP 058 Power supply. Connect the power supply to a
outlet.
The Guest DLT is not wired into the system, and is only
used wirelessly. Any additional Digi-Wave devices can be
used normally.
See Figure 1 for a map of the dierent devices and how
they connect.
Nulling Procedure
You may experience sidetone echo in your headset. This
echo is caused by a delay between the wireless systems
transmitter and receiver.
The nulling procedure will reduce or remove this echo from
the audio stream.
Before starting the nulling process, connect a master DLT
to the two-wire system. Also configure a Guest DLT to send
and the receive Audio from the Master DLT , with the Guest
DLT set to transmit mode (the TALK button is active).
Please reference the user manual for the DLT for additional
help configuring settings and using the menu system.
Guest DLT Setup
1. Plug a headset into the headset jack.
2. Plug a microphone into the microphone jack.
3. Use the menu on the Guest DLT to set the sidetone
level to 0 (o).
4. Set the volume to level 63 (the maximum level).
5. Push the TALK button. The red light will turn on.
6. Speak or blow air into the microphone, while listening
with the headphones to the sound. If you hear yourself
or an echo (sidetone), you will need to adjust settings.
Adjusting Settings
On the ADP 903 Wire Adapter, the back panel has three
sections to adjust:
1. In the Input from 4-wire system onto ring section,
ensure the line/mic switch to Mic. The level is preset by
Williams Sound at an optimum level and does not need
adjustment.
2. In the Output to 4-wire system from ring section,
ensure the line/mic switch to Line. The level is preset by
Williams Sound at an optimum level and does not need
adjustment
3. In the Null section, adjust the Main Null (10 turns), HF
Trim (single turn), and LF Trim (single turn) settings using
the included screwdriver. Adjust until the echo (sidetone)
in your headset is reduced as much as possible (it may
never completely disappear).
4. Nulling adjustments may need to be repeated if the
two-wire intercom system configuration is changed.
Reset the Guest DLT
After the nulling process is finished, reset the Guest DLT back
to usable settings.
1. Set the sidetone to either 1 (-6dB) or 2 (-12dB), depending
on your preference.
2. Set the volume level back to your preferred listening
volume.
800-843-3544 / INTL: +1-952-943-2252
© 2018, Williams AV, LLC MAN 224A
Williams
Sound
Headsets
MIC 044-2P
MIC 057
MIC 058
MIC 068
MIC 102
Digi-Wave
DLT 300
in Guest Mode
Up to 6 simultaneous speakers
DLT 300
Communication
between
DLR 360s
and other DLT 300s.
Broadcasts wireless audio
to wired system.
Listen-only on DLR 360s
Wireless Devices
Power Supply
(for recharging the master DLT)
WCA 127
30-pin connector
To additional wired devices
(if needed)
2-4 wire adapter and
sidetone null adjustment
2 to 4 Wire Adapter AD903
Existing
BeltPacks
Existing
Headsets
TALK
CALL
Existing 2-wire intercom
main station
Main Station
Talk
Volume
Call
Headset
Program
Volume
Pgm
O
Intrpt
Ch. A
Ch. B
D.C. Short
Channel A Channel B
Broadcasts wired audio
to Guest DLT 300
Wired Devices
A680
Digi-Wave
DLT 300
in Master Mode
Figure 1: Connecting a Wired Intercom System to a Digi-Wave System
