Wilo SB Series User manual

en Installation and operating instructions
Wilo-SB Range
4 178 986-Ed.01/2013-04

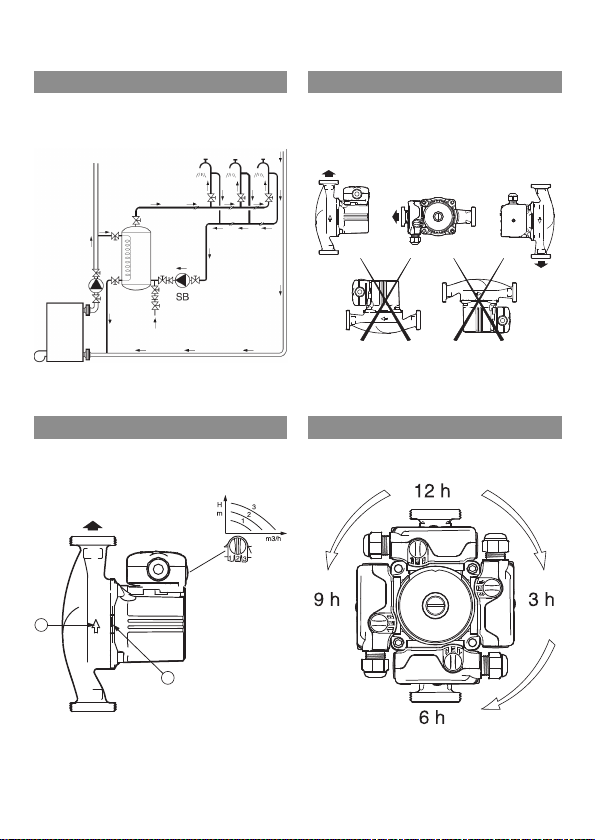

Fig. 1: Fig. 2:
Fig. 3: Fig. 4:
1
2

Fig. 5: Fig. 6:
Fig. 7: Fig. 8:

Installation and operating instructions Wilo-SB Range 3
English
Installation and operating instructions
1 General
About this document
These installation and operating instructions are an integral
part of the product. They must be kept readily available at the
place where the product is installed. Strict adherence to these
instructions is a precondition for the proper use and correct
operation of the product.
The installation and operating instructions correspond to the
relevant version of the product and the underlying safety regu-
lations and standards valid at the time of going to print.
EC declaration of conformity:
A copy of the EC declaration of conformity is a component of
these operating instructions.
If a technical modification is made on the designs named there
without our agreement or the declarations made in the instal-
lation and operating instructions on product/personnel safety
are not observed, this declaration loses its validity.
2Safety
These operating instructions contain basic information which
must be adhered to during installation, operation and mainte-
nance. For this reason, these operating instructions must, with-
out fail, be read by the service technician and the responsible
specialist/operator before installation and commissioning.
It is not only the general safety instructions listed under the
main point “safety” that must be adhered to but also the special
safety instructions with danger symbols included under the fol-
lowing main points.

English
4WILO SE 04/2013
2.1 Indication of instructions in the operating instructions
Symbols:
General danger symbol
Danger due to electrical voltage
Note:
Signal words:
DANGER!
Acutely dangerous situation.
Failure to follow instructions could lead to serious injury or
death.
WARNING!
The user can suffer (serious) injuries. “Warning” implies that
(serious) injury to persons is probable if this note is disre-
garded.
CAUTION!
There is a risk of damaging the product/unit. “Caution” con-
cerns possible damage to the product that could occur if this
note is disregarded.
Note: Useful information on handling the product. It draws
attention to possible problems.
Information that appears directly on the product, such as
• direction of rotation arrow
• identification for connections
• rating plate
• warning sticker
must be strictly complied with and kept in legible condition.

Installation and operating instructions Wilo-SB Range 5
English
2.2 Personnel qualifications
The installation, operating and maintenance personnel must
have the appropriate qualifications for this work. Area of
responsibility, terms of reference and monitoring of the per-
sonnel are to be ensured by the operator. If the personnel are
not in possession of the necessary knowledge, they are to be
trained and instructed. This can be accomplished if necessary
by the manufacturer of the product at the request of the oper-
ator.
2.3 Danger in the event of non-observance of the safety
instructions
Non-observance of the safety instructions can result in risk of
injury to persons and damage to the environment and the prod-
uct/unit. Non-observance of the safety instructions results in
the loss of any claims to damages.
In detail, non-observance can, for example, result in the follow-
ing risks:
• Danger to persons from electrical, mechanical and bacteriolog-
ical influences
• Damage to the environment due to leakage of hazardous mate-
rials
• Property damage
• Failure of important product/unit functions
• Failure of required maintenance and repair procedures.
2.4 Safety consciousness on the job
The safety instructions included in these installation and oper-
ating instructions, the existing national regulations for accident
prevention together with any internal working, operating and
safety regulations of the operator are to be complied with.

English
6WILO SE 04/2013
2.5 Safety instructions for the operator
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
• If hot or cold components on the product/the unit lead to haz-
ards, local measures must be taken to guard them against
touching.
• Guards protecting against touching moving components (such
as the coupling) must not be removed whilst the product is in
operation.
• Leakages (e.g. from the shaft seals) of hazardous fluids (which
are explosive, toxic or hot) must be led away so that no danger
to persons or to the environment arises. National statutory pro-
visions are to be complied with.
• Danger from electrical current must be eliminated.Local direc-
tives or general directives [e.g. IEC, VDE etc.] and local energy
supply companies must be adhered to.
2.6 Safety instructions for installation and maintenance work
The operator must ensure that all installation and maintenance
work is carried out by authorised and qualified personnel, who
are sufficiently informed due to their own detailed study of the
installation and operating instructions.
Work to the product/unit must only be carried out when at a
standstill. It is mandatory that the procedure described in the
installation and operating instructions for shutting down the
product/unit be complied with.
Immediately on conclusion of the work, all safety and protec-
tive devices must be put back in position and/or recommis-
sioned.

Installation and operating instructions Wilo-SB Range 7
English
2.7 Unauthorised modification and manufacture of spare parts
Unauthorised modification and manufacture of spare parts will
impair the safety of the product/personnel and will make void
the manufacturer's declarations regarding safety.
Modifications to the product are only permissible after consul-
tation with the manufacturer. Original spare parts and accesso-
ries authorised by the manufacturer ensure safety. The use of
other parts will absolve us of liability for consequential events.
2.8 Improper use
The operating safety of the supplied product is only guaranteed
for conventional use in accordance with Section 4 of the oper-
ating instructions. The limit values must on no account fall
under or exceed those specified in the catalogue/data sheet.
3 Transport and interim storage
Immediately after receiving the product:
• Check the product for damage in transit
• In the event of damage in transit, take the necessary steps with
the forwarding agent within the respective time limits.
CAUTION! Risk of damage to property!
Incorrect transport and interim storage can cause damage to
the product.
• The pump should be protected from moisture, frost and
mechanical damage due to impact during transport and
interim storage.
4 Intended use
This circulator is suitable for drinking water only.
Series Wilo SB circulating pumps are suitable of handling liquids
in the fields of service/drinking water and food-related liquids.

English
8WILO SE 04/2013
5 Product information
1) The values apply up to 300 m above sea level; Addition for higher altitudes:
0.01 bar/100 m increase in height. To prevent cavitation noises, be sure to
maintain the minimum inlet pressure at the suction port of the pump.
5.2 Scope of delivery
• Complete circulation pump
•2flatgaskets
• Installation and operating instructions
5.3 Accessories
Accessories must be ordered separately:
• Union for pipe connections,
• S1R-h plug-in timer module for 1-phase motors only,
See catalogue for detailed list.
5.1 Technical data
Connection voltage 1 ~ 230 V ± 10 %
Mains frequency 50 Hz
Input power P1See rating plate
Protection class IP See rating plate
Max. motor speed See rating plate
Water temperatures at max. ambient
temperature of +40 °C
Service water systems
+2 °C to +65 °C
Max. ambient temperature +40 °C
Max. operating pressure 10 bar (1000 kPa)
Minimum inlet pressure1) at +40 °C/+65 °C 0.5 bar / 0.2 bar (50 kPa / 20 kPa)
Pipe connection size (BSPM) SB 5 = 1”
SB 30(G) = 1½”(1¼”)
SB 60 = 1½”
Port-to-port length SB 5 = 130 mm
SB 30(G) = 130 mm (150 mm)
SB 60 = 180 mm
Variable speed control 3 stages

Installation and operating instructions Wilo-SB Range 9
English
6 Description and function
6.1 Description of the product
Series SB circulating water service pumps have been specially
designed for use in conjunction with domestic/ drinking water
service systems. They are, by material selection and design,
corrosion proofed against any residual parts in domestic/drink-
ing water.
The pump consists of a hydraulic system, a glandless pump
motor with terminal box. All the rotating parts in the glandless
pump are in contact with the fluid, this is also true for the motor
rotor. A shaft sealing, which is subject to wear, is not necessary.
The fluid lubricates the slide bearings and cools the bearing and
the rotor. Motor protection is not necessary. Even the maximum
overload current cannot damage the motor. The motor is
blocking-current proof.
6.2 Function of the product
Variable speed control (Fig. 3)
The pump's speed is switched in three stages [1 – 2 – 3] using
a rotary knob. The speed in the smallest stage is approx. 40 to
50 % of the maximum speed with a reduction of the current
consumption to 50 %.
7 Installation and electrical connection
DANGER! Risk of fatal injury!
Improper installation and electrical connection can result in
fatal injury.
• Installation and electrical connection may only be carried out
by qualified personnel and in accordance with the applicable
regulations.
• Adhere to regulations for accident prevention

English
10 WILO SE 04/2013
7.1 Installation
• Install directly on a horizontal or vertical pipe, on the distribu-
tion circuit return, after the draw off points (Fig. 1).
• Only install the pump after all welding and soldering work has
been completed and, if necessary, the pipe system has been
flushed through.
• Install the pump in a readily accessible place for easy inspection
and dismantling.
• Install gate valves upstream and downstream of the pump to
facilitate a possible pump replacement.
• Perform installation so that any leaking water cannot drip
onto the control module.
• To do this, align the upper gate valve laterally.
• Install with the power switched off and the pump motor always
in a horizontal position.
See Fig. 2 for installation positions of the pump.
• Direction arrows on the pump housing indicate the direction of
flow (Fig. 3, item 1).
• In thermal insulation work, make sure that the pump motor and
the module are not insulated. The condensate-drain openings
must remain uncovered (Fig. 3, item 2).
• Use a open-end wrench to prevent the pump from twisting (Fig. 5).
• The motor housing can be twisted after undoing the motor
attachment screws if it is necessary to position the terminal box
(Fig. 4).
Note: Generally, turn the motor head before the system is filled.
When turning the motor head in an installation which is already
filled, do not pull the motor head out of the pump housing. Turn
the motor head with a small amount of pressure on the motor
unit so that no water can come out of the pump.
CAUTION! Risk of damage to property!
The gasket may be damaged when the motor housing is
turned. Replace defective gaskets immediately:
Ø 86 x Ø 76 x 2.0 mm EP.

Installation and operating instructions Wilo-SB Range 11
English
7.2 Electrical connection
DANGER! Risk of fatal injury!
A fatal shock may occur if the electrical connection is not
made correctly.
• Only allow the electrical connection to be made by an electri-
cian approved by the local power supply company and in
accordance with the local regulations in force.
• Disconnect the power supply before any work.
• The current type and voltage must correspond to the details on
the rating plate.
• The electrical connection must be made via a fixed connected
load. The latter is provided with a plug device or an all-pole
switch with a contact opening width of at least 3 mm.
• To ensure drip protection and strain relief at the PG screwed
connection, a connected load with an adequate outer diameter
is necessary (e.g. H05W-F3G1.5 or AVMH-3x1.5).
• The connected load is to be installed in such a way that it can
under no circumstances come into contact with the piping
and/or the pump and motor housing.
• Make the mains connection corresponding to the terminals of
the circulator: Live (L), Neutral (N), and Earth (M) to (Fig. 6).
• The connection cable can be taken through the cable feed-in right
or left. Exchange dummy plugs and cable feed-in as necessary.
When the terminal box is positioned laterally, always arrange the
cable feed-in from below.
CAUTION! Risk of short circuit!
Once electrical connection is complete and in order to pro-
tect the terminal box from moisture, the terminal box cover
must be sealed according to regulations.
• Earth the pump/system according to regulations.

English
12 WILO SE 04/2013
8Commissioning
WARNING! Risk of injury and damage to property!
Incorrect commissioning can lead to injuries to persons and
damage to property.
• Commissioning by qualified personnel only!
• Depending on the operating status of the pump or system
(fluid temperature), the entire pump can become very hot.
Touching the pump can cause burns!
8.1 Filling and venting
Fill and vent the system correctly.
The pump does not pump any water if there is air in the pump
room. The pump rotor compartment is vented automatically
after a short operating period.
Dry running for short periods will not harm the pump.
Please proceed as follows if it is necessary to vent the rotor
room:
• Switch off the pump.
WARNING! Danger of personal injury!
Depending on the operating status of the pump or system
(fluid temperature), the entire pump can become very hot.
Touching the pump can cause burns!
• Close the gate valve on the pressure side piping.
WARNING! Danger of personal injury!
Depending on the temperature of the fluid and system pres-
sure, when the venting screw is opened, hot liquid or gaseous
fluid may escape or shoot out at high pressure. Escaping fluid
can cause scalding!
• Undo the venting screw carefully a few turns (Fig. 7).
• Protect electrical parts from any escaping water.

Installation and operating instructions Wilo-SB Range 13
English
•Switchonthepump.
Note: The pump may jam if the venting screw is undone,
depending on the operating pressure level.
• Screw the venting screw back in again after 15 to 30 seconds.
•Openthegatevalveagain.
8.2 Variable speed control
The circulator flowrate is adjusted by changing the speed of
rotation of the motor using the selector switch (see Fig. 3).
9Maintenance
DANGER! Risk of fatal injury!
A fatal shock may occur when working on electrical equip-
ment.
• The pump should be electrically isolated and secured against
unauthorised switch-on during any maintenance or repair
work.
• Any damage to the connection cable should always be recti-
fied by a qualified electrician only.
After successful maintenance and repair work, install and con-
nect the pump according to the “Installation and electrical con-
nection” chapter. Switch on the pump according to the
“Commissioning” chapter.

English
14 WILO SE 04/2013
10 Faults, causes and remedies
Only have faults remedied by qualified personnel.
Observe the safety instructions in chapter 9!
If the fault cannot be remedied, please consult the specialist
technician or the Wilo factory after-sales service.
Faults Causes Remedy
Pump is not run-
ning although the
power supply is
switched on.
Electrical fuse
defective. Check fuses.
Pump has no
voltage. Check the voltage on the pump.
(Observe the rating plate)
Restore power after interrup-
tion
Capacitor
defective Check capacitor (Observe rating plate)
Replace condenser
Motor is blocked,
e.g. by deposits
from the heating
water
Unscrew the venting screw
completely and check the ease
of movement of the pump
rotor or make it easy to move
by turning the slotted end of
the shaft with a screwdriver
(Fig. 8).
ATTENTION!
Close the gate valves
upstream and downstream to
the pump at high water tem-
peratures and system pres-
sures. Allow the pump to cool
down beforehand.
Pump is making
noises. Cavitation due to
insufficientsuction
pressure.
Increase the system suction
pressure within the permissi-
ble range.
Check the speed setting and
switch to a lower speed as
necessary.

Installation and operating instructions Wilo-SB Range 15
English
11 Disposal
Damage to the environment and risks to personal health are
avoided by the proper disposal and appropriate recycling of this
product.
1. Use public or private disposal organisations when disposing
of the entire product or part of the product.
2. For more information on proper disposal, please contact
your local council or waste disposal office or the supplier
from whom you obtained the product.
Subject to change without prior notice!

de EG - Konformitätserklärung
en EC – Declaration of conformity
fr Déclaration de conformité CE
(gemäß 2004/108/EG Anhang IV,2 und 2006/95/EG Anhang III,B,
according 2004/108/EC annex IV,2 and 2006/95/EC annex III,B,
conforme 2004/108/CE appendice IV,2 et 2006/95/CE appendice III B)
Hiermit erklären wir, dass die Bauarten der Baureihe : SB Range
Herewith, we declare that this product:
Par le présent, nous déclarons que cet produit
:
in der gelieferten Ausführung folgenden einschlägigen Bestimmungen entspricht:
in its delivered state complies with the following relevant provisions:
est conforme aux dispositions suivants dont il relève:
Elektromagnetische Verträglichkeit - Richtlinie 2004/108/EG
Electromagnetic compatibility - directi
v
e
Compatibilité électromagnétique- directive
Niederspannungsrichtlinie 2006/95/EG
Low voltage directive
Directive basse-tension
und entsprechender nationaler Gesetzgebung.
and with the relevant national legislation.
et aux législations nationales les transposant.
Angewendete harmonisierte Normen, insbesondere: EN 60335-2-51
A
pplied harmonized standards, in particular:
Normes harmonisées, notamment:
Bei einer mit uns nicht abgestimmten technischen Änderung der oben genannten Bauarten, verliert diese Erklärung ihre Gültigkeit.
If the above mentioned series are technically modified without our approval, this declaration shall no longer be applicable.
Si les gammes mentionnées ci-dessus sont modifiées sans notre approbation, cette déclaration perdra sa validité.
Dortmund, 28.11.2012
Claudia Brasse
Group Quality
WILO SE
Nortkirchenstraße 100
44263 Dortmund
Germany
Document: 2117845.1
CE-AS-Sh.: 4177776 ed.01

Einbau- und Betriebsanleitung Wilo-Stratos/-D/-Z/-ZD 107
Deutsch
WILO (U.K.) Ltd
Second Avenue,
Centrum 100
Burton Upon Trent
Staffordshire, UK, DE14 2WJ
