Wilson Electronics 460006 User manual

Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Sleek®
Cellular Signal Booster
460006/460106

2Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Contents
Package Contents ...........................................................2
Installation Options..........................................................3
Vehicle Installation Option .................................................3
In-Building Installation Option ...............................................4
Adjusting the Sleek Arms .....................................................5
Troubleshooting & Understanding the Light .....................................5
Additional FAQ..............................................................6
Optional Accessories ........................................................6
Safety and Recommendations .................................................7
Guarantee and Warranty..............................................Back Cover
Signal Booster Specifications .........................................Back Cover
IT IS VERY IMPORTANT
TO POWER YOUR SIGNAL
BOOSTER USING A SURGE
PROTECTED AC POWER
STRIP WITH AT LEAST A 1000
JOULE RATING.
FAILURE TO DO THIS WILL VOID YOUR WARRANTY
IN THE EVENT OF A POWER SURGE OR LIGHTNING
STRIKE.
! ! THE SIGNAL BOOSTER UNIT IS DESIGNED
FOR USE IN AN INDOOR, TEMPERATURE-
CONTROLLED ENVIRONMENT (LESS
THAN 150 DEGREES FAHRENHEIT). IT IS
NOT INTENDED FOR USE IN ATTICS OR SIMILAR
LOCATIONS SUBJECT TO TEMPERATURES IN
EXCESS OF 150°F.
Mini-Magnet Mount Antenna
(301126)
Vehicle Dash
Adhesive
Mounting Bracket
DC Plug-In Power Supply
& USB cable
(859963)
Sleek®
Adjustable Arms
Inside this Package
Sleek® 800 / 1900 MHz
Model #460006 FCC: PWO460006
Appearance of device and accessories may vary.
Optional Accessories
AC Power Supply
*(859969)
Gooseneck
Suction Cup
Cradle Mount
(901120)
Cup Holder
Cradle Mount
(901130)
Adjustable
Desk Mount
*(901137)
Antenna Window Mount
(Used with Mini-Magnet
Mount Antenna)
*(901128)
Vehicle Dash
Mounting Kit
-Rugged/Screw Mount-
-Adhesive Mount-
-Vent Clip Mount-
(901134)
(included in some kits)
* All 3 available together in the Home Accessory Kit - 859970
Carrying case included
Mobile Power
Supply
(859984)

3Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Installation Options

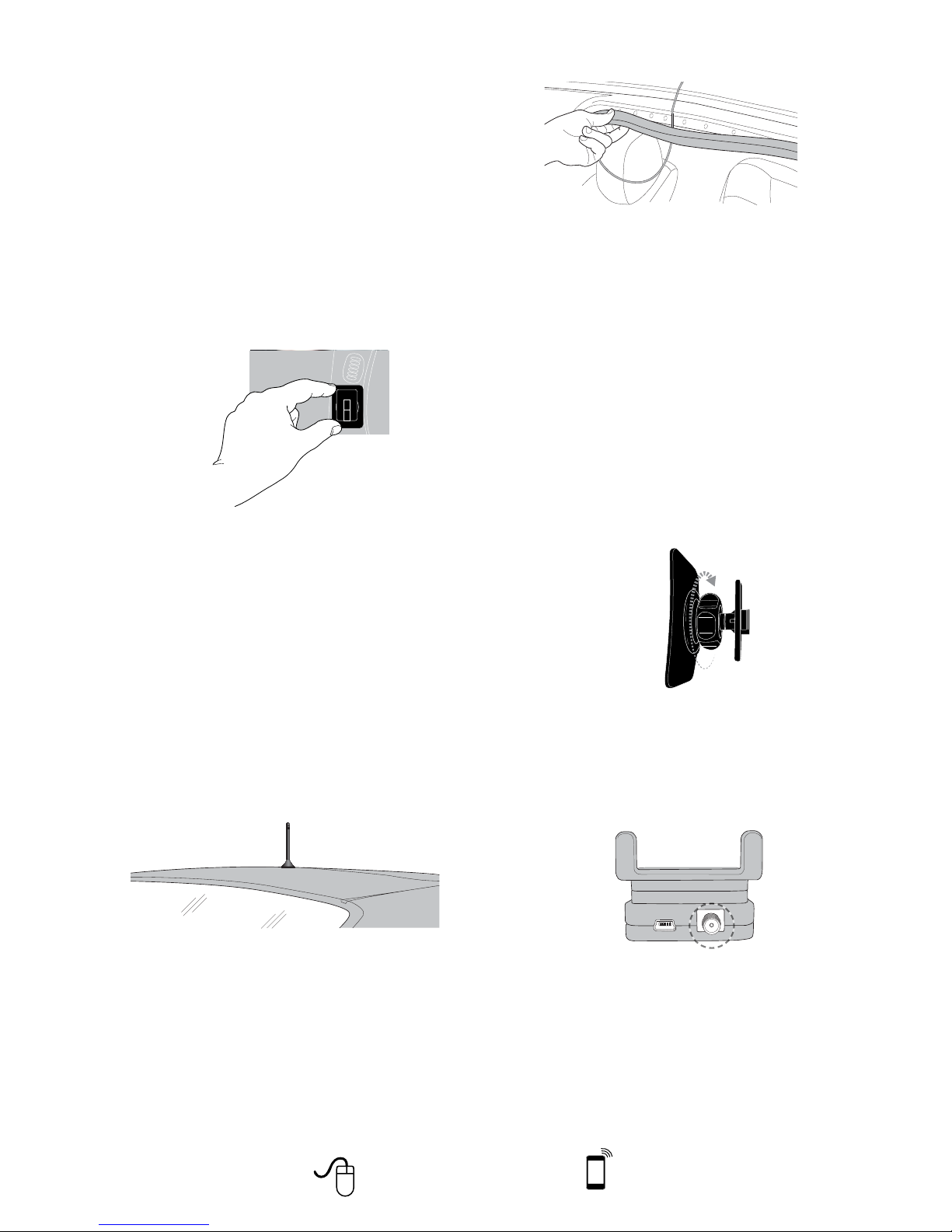

Vehicle Installation Option
1. Attach the Mounting Bracket to the vehicle’s
dashboard.
 •Cleantheareawherethebracketistobe
mounted with the alcohol wipe included.
Allow the area to dry.
 •Peelthebackingtoexposetheadhesive
and press the bracket onto the desired
location on the dashboard. NOTE: Be
sure the tab is positioned vertically.
 •Allowtheadhesivetocurefor24hours
before you attach the Sleek (Step 4).
2. Install the Outside Antenna. Select a
location on top of the car that is:
 •Nearthecenterofthevehicle’sroof.
 •Atleast12inchesfromanyother
antennas.
 •Freeofobstructions.
 •Atleast6inchesfromanywindows
(including sunroofs).
The Outside Antenna must be installed
vertically.
3. Run the Outside Antenna cable into the car.
The cable is strong enough that it may be
shut in most vehicle doors without damaging
the cable. For a cleaner look, carefully pull
down the door seal, run the cable under the
seal, and push the seal back into place. This
method reduces wear on the cable as the
door opens and closes.
4. Attach the Sleek to the Mounting Bracket.
After waiting 24 hours for the adhesive on
the bracket to cure, attach the Sleek by
aligning the rectangular hole on the back
of the Sleek with the tab on the Mounting
Bracket, grasping the sides of the Sleek,
andslidingitdownwardapproximately¼
inch into place.
The Mounting Bracket is designed to
swivel for more convenient viewing angles.
Once the Sleek is in place, you can adjust
the angle of the bracket by loosening the
knurled nut, applying gentle pressure to
the top or bottom of the Sleek, and then
tightening the nut when the desired angle is
achieved.
5. Attach the antenna to the Sleek. Connect
the cable from the Outside Antenna to the
antenna connector on the bottom of the
Sleek. Do NOT plug in the power supply
(nextstep)untiltheOutsideAntennacable
is connected to the Sleek.
Note: The Sleek has a convenient mini-USB
charging port located on the right side
of your booster. This port allows for
charging your phone or device. Wilson
offers several cables for this purpose
 •859966,mini-USBtomini-USB
 •859979,mini-USBtoiPhone(upto4S)
 •859967,mini-USBtomicro-USB

4Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
magnetbaseoftheantennatotheat
surface of the bracket. The antenna must
be mounted vertically for the best signal.

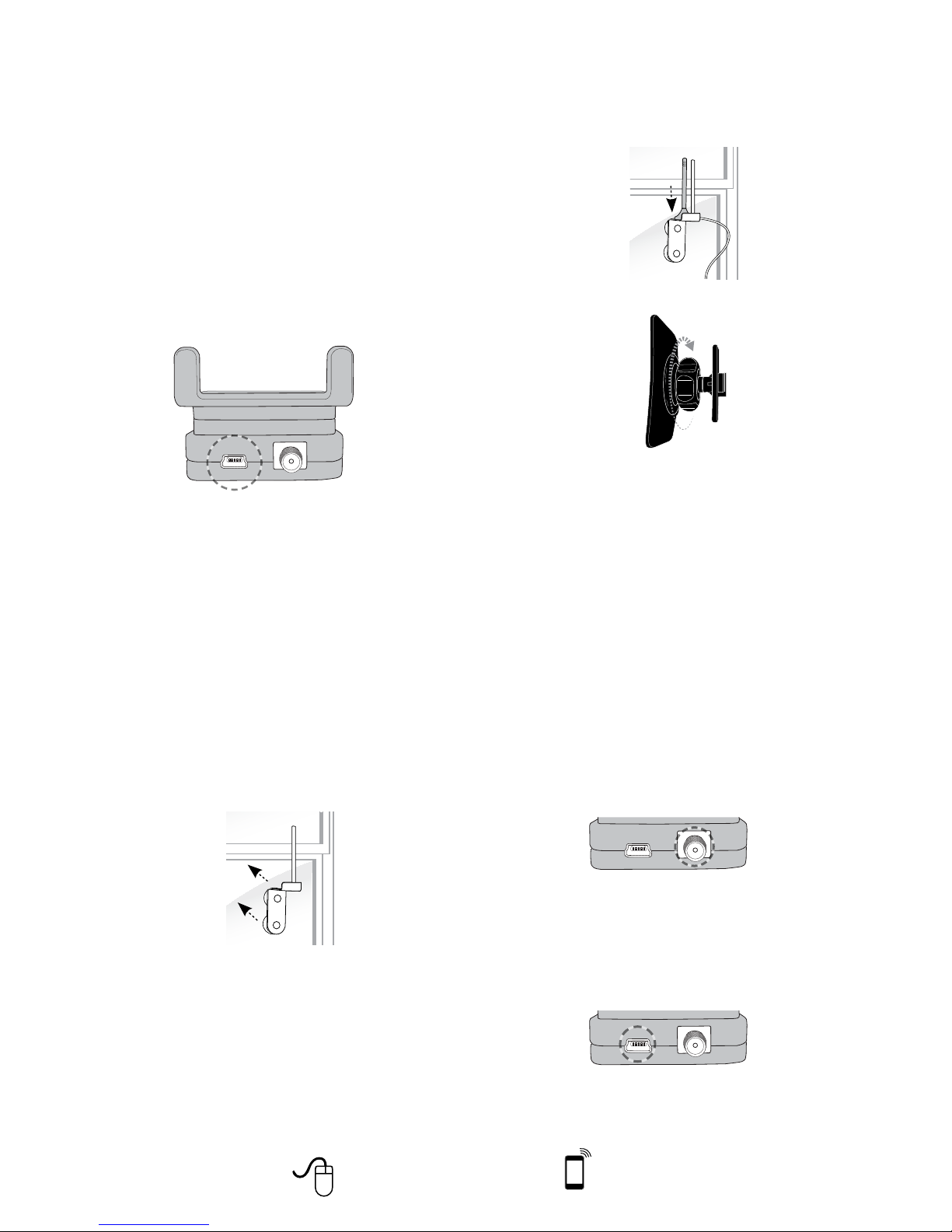

2. Install the Mounting Bracket and Sleek.
Put your Sleek in the Mounting Bracket (see
instructions under Vehicle Installation) and
place it in a convenient location such as a
desk or table top in the room where you will
use the phone. The location should be at least
three feet from the Outside Antenna to avoid
oscillation (feedback). Your cell phone must
be in the cradle for the Sleek to amplify the
signal. Use a Bluetooth headset, wired hands-
free device or speakerphone for talking on the
phone.
3. Attach the antenna to the Sleek. Connect
the cable from the Outside Antenna to the
antenna connector on the bottom of the
Sleek. Do NOT plug in the power supply
(nextstep)untiltheOutsideAntennacable
is connected to the Sleek.
4. Power up your Sleek. Connect the power
cable to the mini-USB port on the bottom of
the Sleek. Then insert the adapter into the
AC power supply (859969), sold separately.
Use only the supplied Wilson Electronics
power supply.
6. Power up your Sleek. Connect the power
cable to the mini-USB port on the bottom of
the Sleek. Then insert the adapter into the
vehicle 12V DC power source. Use only the
supplied Wilson Electronics power supply.
While the Sleek may remain on, leaving the
Sleek on in a vehicle when it is not running
may discharge the battery in a day or two.
Also note that some 12V DC power sources
are shut down when the vehicle ignition is
turned to off. Use a Bluetooth headset, wired
hands-free device or speakerphone for talking
on the phone.
In-Building Installation Option
Note: Home Ofce Accessory Kit sold separately
1. Install the Outside Antenna to a window. For
best results:
 •Selectawindowonthesideofthe
building where you get the strongest cell
signal.
 •Attachthesuctioncupbracket(sold
separately) to the inside of a window
so the cable will reach the location of
the Mounting Bracket and Sleek. Place
the bracket as high on the window as
possible.
 NOTE:Manymodernenergyefcientdual
pane windows use a metal coating that may
decrease the strength of a cellular signal,
reducing the effectiveness of the Sleek. If you
have dual pane windows, consider a Wilson
Electronics signal boost product that provides
an option for mounting an antenna on an
outside wall or roof of a building.
 •Withthebracketinplace,attachthe

5Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
the Sleek and the power source.
 •IfusingaDCpowersupplyinyour
vehicle, ensure the power supply is
properly inserted. Then check the 12 volt
power from the car socket and the fuse.
Replace the fuse if necessary.
 •Ifusingapowerstripinabuilding,
ensure the power strip is plugged in and
turned on and that power is coming from
the outlet.
Red light: An red light indicates the Sleek
has powered down to protect the cell tower.
Separation between the Sleek and the Outside
Antenna is important to prevent oscillation
(feedback), similar to when a microphone is too
close to a speaker. When oscillation occurs,
the Sleek shuts down in order to prevent
interference in the cell tower.
If the light is red, move the Outside Antenna
farther away from the Sleek. On a vehicle, that
usually means moving it farther toward the back
of the car. Remember to keep the antenna at
least 6 inches from any window or sunroof.
Inanofce,movethelocationoftheSleek
farther from the window where the antenna is
mounted. Once you have separated the Outside
Antenna and the Sleek, reset the Sleek by
disconnecting the power and then reconnecting
the power supply. If the light is green, the Sleek
is working properly. If the red light is still on,
move the Outside Antenna farther away and
repeat the process.
Green light: A green light indicates the Sleek is
working properly.
Adjusting the Sleek Arms
Various sized arms are included with your Sleek.
These provide you with options to customize the
Sleektotvirtuallyanycellphone.
 •Tochangearms,gentlyliftthearm
upward until the arm slides free from the
Sleek.
 •Torepositionarms,movethearmabove
a different slot on the Sleek and gently
slidethearmdownuntilthearmisrmly
in place.
Troubleshooting & Understanding
the Light
The light on the side of the Sleek indicates
whether the system is working or if there are
problems. Take the following steps based on the
indicator light color when using the Sleek.
Light off: If the light is not on:
 •Checkconnectionsonthepowersupply
toseethatitisrmlypluggedintoboth

6Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Additional FAQ:
What hours can I contact tech support?
Technical Support can be reached from 7:00am to 6:00pm MST by calling (866-294-1660), or by email, at tech@
wilsonelectronics.com
How does weather affect the performance of my Outside Antenna?
Watervapor(e.g.rain,fog,snoworotherprecipitation)createsaneffectiveltertocellularsignal.Intimesof
heavy precipitation, you may see less performance.
What’s the difference between the 800 MHz and the 1900 MHz bands? How do I know which MHz band
my cell phone uses?
The Sleek works with all major North American cellular providers on the 800 & 1900 MHz frequencies.
Traditionally, 800/1900MHz are associated with voice and 3G data; while 700MHz and 1700/2100MHz are
associated with 4G data. For more detail see below.
United States Carrier Frequency Use
We recommend visiting www.wirelessadvisor.com for information regarding the frequency band used by your cell
serviceproviderinaspecicgeographicallocation.
Mobile Antennas
Mini-Mag
•301126w/12.5RG174cable-SMA
•301113w/12.5RG174cable-FME
12” Mag Mount w/ 12.5’ RG174
•311103
•311125
•311128
•311703
•314202
Trucker antenna w/10.5’ RG58
•311101
•311701
Trucker antenna w/13.5’ RG58
•311119
•311133
NMO Antenna’s w/ RG174
Kit 311104-17410
•800/1900NMOantenna
•10’RG174cable
Kit 311112-17410
•800/1900NMOantenna
•10’RG174cable
Kit 314203-17410
•800/900/1900NMOantenna
•10’RG174cable
Marine Antenna
Kit 311130-5810
•MarineAntenna
•10’RG58cable
Glass Mount w/14’ RG58 cable
•311102
•311114(MiniGlassMount)
NMO Antenna’s w/ RG58
Kit 311104-5810
•800/1900NMOantenna
•10’RG58cable
Kit 311112-5810
•800/1900NMOantenna
•10’RG58cable
Kit 314203-5810
•800/900/1900NMOantenna
•10’RG58cable
NMO Antenna’s w/ LMR400
Kit 311104-40015
•800/1900NMOantenna
•15’LMR400cable
Kit 311112-40015
•800/1900NMOantenna
•15’LMR400cable
Kit 314203-40015
•800/900/1900NMOantenna
•15’LMR400cable
Outside Fixed Antennas
50 Ohm Outside Antenna Kits
Kit 314453-5825
•50OhmPoleMountPanelAntenna
•25’RG58Cable
Kit 314411-5825
•50OhmWideBandDirectional
•25’RG58Cable
Kit 301111-5850
•YagiDirectionalAntenna
•50’RG58Cable
Kit 311124-5840
•1900MHzYagiDirectional
•40’RG58Cable
Kit 311203-5820
•Omni-Directionalantenna
•20’RG58Cable
Kit 311129-5830
•800MHzYagiAntenna
•30’RG58Cable
Kit 314411-40075
•50OhmWideBandDirectional
•75’LMR400Cable
Kit 311203-40020
•Omni-Directionalantenna
•20’LMR400Cable
Kit 301111-400170
•YagiDirectionalw/N-Female
•170’LMR400
Kit 311124-400100
•1900MHzYagiDirectional
•100’LMR400Cable
Kit 311129-400100
•800MHzYagiAntenna
•100’LMR400Cable
Kit 314453-40075
•50OhmPoleMountPanelAntenna
•75’LMR400Cable
75 Ohm Outside Antenna Kits
Kit 301111-0675
•YagiDirectionalAntenna
•75’RG6Cable
•N-MaletoF-Femaleadapter
Kit 311201-0620
•OmniDirectionalw/F-Female
•20’RG6Cable
Kit 311124-0660
•1900MHzYagiDirectional
•60’RG6Cable
•N-MaletoF-Femaleadapter
Kit 311129-0650
•800MHzYagiDirectional
•50’RG6Cable
•N-MaletoF-Femaleadapter
Kit 314473-0640
•75OhmPoleMountPanelAntenna
•40’RG6Cable
Kit 314475-0630
•75OhmWideBandDirectional
•30’RG6Cable
Kit 311141-0620
•75OhmGreyBrickAntenna
•20’RG6Cable
Kit 301111-11140
•YagiDirectionalAntenna
•140’RG11Cable
•N-MaletoF-Femaleadapter
Kit 311201-1120
•OmniDirectionalw/F-Female
•20’RG11Cable
Kit 311124-11110
•1900MHzYagiDirectional
•110’RG11Cable
•N-MaletoF-Femaleadapter
Kit 311129-1180
•800MHzYagiDirectional
•80’RG11Cable
•N-MaletoF-Femaleadapter
Kit 314473-1175
•75OhmPoleMountPanelAntenna
•75’RG11Cable
Kit 314475-1175
•75OhmWideBandDirectional
•75’RG11Cable
Kit 311141-1120
•75OhmGreyBrickAntenna
•20’RG11Cable

7Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Safety and Recommendations
WARNING: Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone.
WARNING: Use only the power supply provided in this package. Use of a non-Wilson Electronics product may damage
your equipment.
WARNING: To uphold compliance with network protection standards, all active wireless devices must maintain at least
18” of separation distance from mobile inside antennas, 4’ of separation distance from desktop antennas and
6’ of separation distance from Panel and Dome antennas.
WARNING: The Signal Booster unit is designed for use in an indoor, temperature-controlled environment (less than 150
degreesFahrenheit).Itisnotintendedforuseinatticsorsimilarlocationssubjecttotemperaturesinexcess
of that range.
RF SAFETY WARNING: Any antenna used with this device must be located at least 8 inches from all persons. The FCC
requires that a cell phone with cradle attached may only be used with the cradle mounted as illustrated in this
installation guide. A cell phone held near the ear must be without the cradle attached.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your
provider’s consent. Most wireless providers consent to the use of signal boosters. Some
providers may not consent to the use of this device on their network. If you are unsure, contact
your provider.
You MUST operate this device with approved antennas and cables as specified by the
manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC or a licensed
wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served
by using this device.
This is a CONSUMER device.
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesiredoperation.ChangesormodificationsnotexpresslyapprovedbyWilsonElectronicscouldvoidtheauthorityto
operate this equipment.

8Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
3301 East Deseret Drive, St. George, UT 84790
web: www.WilsonElectronics.com email: [email protected]
phone: [phone] local: 435-673-5021 fax: [phone]
Copyright © 2014 Wilson Electronics, LLC All rights reserved.
U.S. Patent Nos.– 7,221,967; 7,729,669; 7,486,929; 7,409,186; 7,783,318; 8,583,034; 8,583,033; 7,684,838; D626,953; 8,473,018
Disclaimer:The information provided by Wilson Electronics, LLC is believed to be complete
and accurate. However, no responsibility is assumed by Wilson Electronics, LLC
for any business or personal losses arising from its use, or for any infringements
of patents or other rights of third parties that may result from its use.
111283_Rev01_01.23.14
Signal Booster Specifications
Sleek
Model Number 460006
Connectors SMA-Female
Antenna Impedance 50 Ohms
Frequency 824-894 MHz/1850-1990 MHz
3Power output for single cell phone (dBm)
800 MHz 1900 MHz
Uplink
Downlink
22.9
-28.0
25.2
-29.1
Noise Figure (typical downlink/uplink) 3 dB nominal
Isolation > 40 dB
Power Requirements 5.5 V 1A
Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without factory
reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order to increase
coverage of authorized frequency bands only. If the Signal Booster is not in use for five minutes, it will reduce gain until a signal is detected. If
a detected signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically turn the
power off on that band. For a detected oscillation the Signal Booster will automatically resume normal operation after a minimum of 1 minute.
After 5 (five) such automatic restarts, any problematic bands are permanently shut off until the Signal Booster has been manually restarted by
momentarily removing power from the Signal Booster. Noise power, gain, and linearity are maintained by the Signal Booster’s microprocessor.
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson Electronics 30-day money-back guarantee. If
for any reason the performance of any product is not acceptable, simply return the product directly to the
reseller with a dated proof of purchase.
2-Year Warranty
Wilson Electronics Signal Boosters are warranted for two (2) years against defects in workmanship and/or
materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof
of purchase.
SignalBoostersmayalsobereturneddirectlytothemanufacturerattheconsumer’sexpense,withadated
proof of purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics.
Wilson Electronics shall, at its option, either repair or replace the product. Wilson Electronics will pay for
delivery of the repaired or replaced product back to the original consumer if located within the continental U.S.
This warranty does not apply to any Signal Boosters determined by Wilson Electronics to have been subjected
to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.
Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.
RMA numbers may be obtained by contacting Technical Support at 866-294-1660.
