WilTec 51278 User manual

Operation Manual
ARTICLE 51278, 51279, 51748 and 51749
Spindle Pre
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ
insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities please contact us.
© by WilTec Wildanger Technik GmbH Seite 10
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

The information contained in this document is subject to change without prior notice. o part of this
document can be copied or duplicated in another form without the prior written consent of WilTec
Wildanger Technik GmbH. The WilTec Wildanger Technik GmbH assumes no liability for any errors in
this user manual or the connection diagram.
Although WilTec Wildanger Technik GmbH has made every effort to make sure that this user manual
is complete, accurate and updated, errors cannot always be avoided. In the event of problems with
this user manual please complete and send this form back to us.
FAX-notification (+++49 2403 55592-15),
from: ________________________________________
Name: ________________
Firm:_____________________
Tel/Fax:__________________
I would like to report the following mi take :
_______________________________ ____________________________________
Customer Service WilTec Wildanger Technik GmbH
e-mail: [email protected]
Tel:++ [phone]
Introduction
Thank you for purchasing this quality product. To minimize the ri k of injury by mean of fire or
electric hock we urge that our client take ome ba ic afety precaution when u ing thi
device. Plea e read the operation in truction carefully and make ure you have under tood it
content.
Always use a grounded power connection with the appropriate mains voltage. You can find the
corresponding mains voltage on the type plate. If you have any doubts about the connection being
grounded, have it checked by a qualified professional. ever use a faulty electric cable.
Do not inspect the electrical part of the pressure pond filter in a wet or damp environment or when you
are wet yourself and protect it from direct sunlight. Install this device in a safe location so that nobody
can step on the cable, fall over or damage it. Disconnect the power plug before cleaning it and use
only a damp cloth for cleaning. Avoid using cleaning agents and make sure that no liquid enters the
electrical part of the pump.
The electric part of the device contains no parts that can be inspected or serviced by the user. Leave
the maintenance, adjustment and repair to qualified technical personnel. In case of unauthorised
intervention the 2-year warranty is no longer valid! Keep these operation instructions safe.
© by WilTec Wildanger Technik GmbH Seite 11
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

INTRODUCTION
Thank you very much for purchasing this quality product. In order to minimize the risk of misplace-
ment, we always ask you to take some basic safety precautions when using this product. Please read
this manual carefully and make sure you understand it.
All persons operating or servicing this equipment must familiarize themselves with the operating in -
structions and be aware of potential hazards. Children must not use the fruit press. Observe the gen -
eral accident prevention regulations and all health and safety regulations.
There are no user serviceable parts inside this unit. Refer servicing, adjustment and repair to qualified
service personnel. In the event of external intervention, the 2-year warranty period expires! Keep these
operating instructions in a safe place.
With all presses of this type it is not possible to press whole fruits. A mash (strongly crushed fruit) must
be produced, otherwise a successful pressing process is not possible. A wine or fruit press cannot be
compared to a juicer. Both products work completely differently. Grapes, for example, cannot be pro-
cessed in a juicer, because the nuclei are destroyed and bitter substances are released. Only with a
fruit press do the seeds remain intact and the juice can be processed into wine.
Apples, pears and other types of fruit must be processed into mash before pressing.
Whole, half and quartered fruits cannot be pressed.
A good fruit mash is the requirement for the production of juice, spice or must. A suitable mill can be
used to grind berries, grapes, apples, pears and potatoes or similar soft fruit/vegetables. Hard fruit and
vegetables such as sugar beets, carrots or unripe or hard pome fruit are not suitable for processing
with fruit mills.
Apples, pears, quinces and related fruit varieties are particularly suitable for further processing. The
relatively firm flesh is crushed by the mill, the resulting mash increases the juice yield and allows the
fruit to be pressed.
Grapes, raspberries, currants and similar fruits should not be ground, just like stone fruits. This is usu-
ally not necessary because the flesh is very soft and only surrounded by a skin. The seeds contained
in the fruit release bitter substances during grinding which would colour the juice dark brown.
You get a good juice quality if only healthy and ripe fruit is processed. Unripe, overripe, rotten and torn
fruits must be separated. Fruit that has rot or mould may not be processed. Fresh pressure stamps of
fallen fruit are not meant as long as no rot has occurred. Before processing, clean the fruit thoroughly
with drinking water so that no dirt gets into the mash.
The fruit press is not designed for industrial use.
© by WilTec Wildanger Technik GmbH Seite 12
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

1) SETTING UP THE PRESS
• Attach the 3 feet to the base of the press using the screws provided.
• Lift the press plate by turning it counterclockwise.
• Loosen the wing nut at one end of the spindle and swing the spindle and plate to one side.
• The cylindrical container can then be lifted off the base plate.
• Clean the press with warm soapy water and rinse with clean water. Make sure that the spindle pis-
ton is dry.
• We recommend mounting the press on a table. (Mounting material is not included in delivery)
• Fill the press with the fruit to be pressed. Please use only fruits that have already been crushed
and seeded/destoned.
• Place a suitable container under the press outlet.
• Turn the spindle slowly using the handle to press fruits. It makes sense for a second person to
hold the press.
• If you want to increase the pressure, loosen the screws and fill additional fruit into the press. The
press plate should always be lowered as far as possible.
2) FRUIT PREPARATION
• It is important that fruit is prepared before pressing.
• Apples must be crushed, not mashed. Mixers are not suitable.
• Grapes and berries must be carefully chopped to break up the skin.
© by WilTec Wildanger Technik GmbH Seite 13
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

3) PRESS
•Please supervise children when using the press.
•Please always use the press on a firm and stable surface.
•Grease the spindle piston with cooking grease or a little vaseline.
•Drip some vegetable oil into the joint between the bottom of the threaded spindle and the clamp,
which is screwed to the press plate.
•Place a suitable clean container under the lip of the spout to collect fruit juice. (Please remember
that the press can produce up to 6 litres or more of juice in a single pressing operation.)
•Swing the plunger and the press plate away from the press container.
•If you are using a press bag, fold the top corner over the press container before filling it.
•Fill with crushed fruit by pressing the fruit firmly down with your hand.
•Fill the container up to 25 mm below the edge.
•If you are using a press bag, please fold the corners of this bag over the fruit like a small package.
•Position the T-handle over the press basket by inserting and tightening the end into the receptacle
in the press.
•Tighten the wing nut to secure the piston.
•Turn the handle to push the wooden press plate into the press container.
•If no more juice can be produced, release the pressure on the press plate.
•To empty the press, lift the press plate, swing it away from the wooden container and lift this con-
tainer from the ground - the compressed fruit can then be removed.
•If there is a shortage of fruit, you can put the pressed fruit aside and combine it with the next load
of chopped fruit in the 2nd pressing operation.

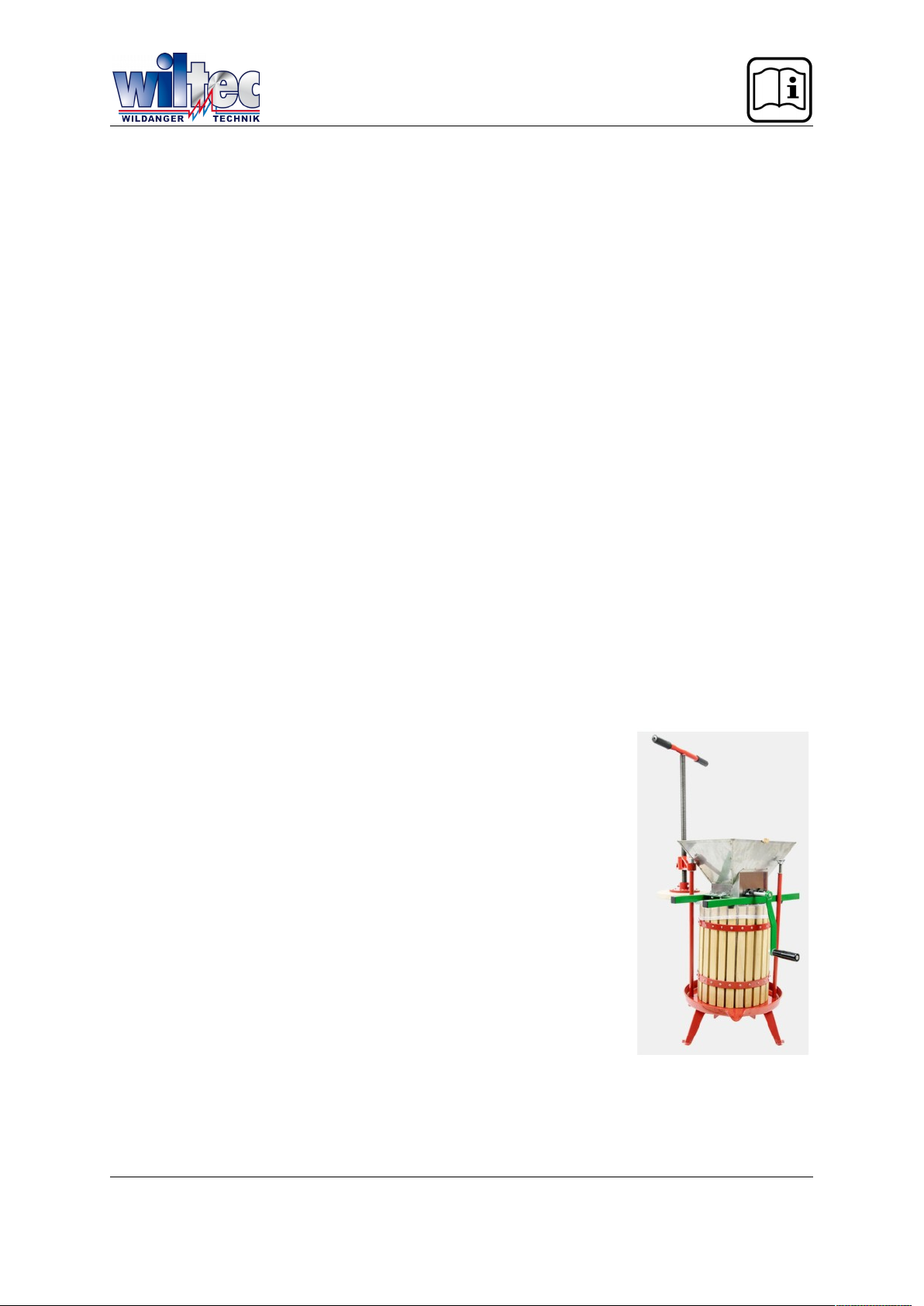

Please note: If you grind fruit with our fruit mill, then this fruit mill can be
mounted above the press container, as shown in the picture.
Please do not screw the press plate down too tightly and never over-
tighten the handle to increase the pressure as this could damage the
press.
Please never leave the press plate on top of the chopped fruit as this can
cause the wood to warp.
© by WilTec Wildanger Technik GmbH Seite 14
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

4) CLEANING AFTER EACH PRESSING PROCESS
Please clean the press with water using a scrubbing brush to remove fruit residues between the
wooden strips and on the press plate. Dry everything with a dishcloth.
•Grease the spindle lightly with cooking fat or Vaseline.
•ever leave the press plate screwed into the bottom of the press container.
•Store the press in a dry place, the press plate turned up above the height of the press container.
o. Description Qty
1 Fruit Press Stand 1
2 Stainless Steel Basket 1
3 Frame 2
4 Press Plate 1
5 Frame 1
6 T-Grip 1
7 Hexagon ut M12 2
8 Washer 3
9 Wing Screw M12 1
10 Screw M8x20 2
11 Hexagon ut 2
© by WilTec Wildanger Technik GmbH Seite 15
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

o
.
Description Qty
1 Fruit Press Sstand 1
2 Press Basket 1
3 Frame 2
4 Press Plate 1
5 Metal Cap 1
6 Frame 1
7 T-Grip 1
8 Screw M12 2
9 Washer 3
10 Wing ut 1
11 Screw M8x20 2
12 Screw M8 2
13 Screws 4
© by WilTec Wildanger Technik GmbH Seite 16
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

Di po al regulation
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were
implemented in the law related to electrical and electronic equipment and appliances.
All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry EAR under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal
household waste but must be disposed to a recycling
collection point for electronic and electrical waste
equipment. By contributing to the correct disposal of
this article you protect the environment and the health
of your fellow men. Environment and health are
threatened by inappropriate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
Additional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
Address:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of WilTec Wildanger Technik GmbH.
© by WilTec Wildanger Technik GmbH Seite 17
