Wincor Nixdorf BEETLE /S-II plus User manual

BEETLE /S-II plus
(G41- Motherboard)
Modular POS System
User Manual

Your opinion:
We would like to know your opinion on this publication.
Please send us a copy of this page if you have any constructive criticism.
We would like to thank you in advance for your comments.
With kind regards,
Wincor Nixdorf International GmbH
Documentation RD HWD01
Rohrdamm 7
D-13629 Berlin
E-Mail: retail.documentat[email protected]
Order No.: 01750211898A

BEETLE /S-II plus
(G41 Motherboard)
Modular POS System
User Manual, Edition April 2011

Copyright© Wincor Nixdorf International GmbH, 2011
The reproduction, transmission or use of this document or its contents is not
permitted without express authority.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility
model or design, are reserved.
Delivery subject to availability; technical modifications possible.
All brand and product names mentioned in this document are trademarks of
their respective owners.

Contents
Manufacturer´s Certification...............................................1
Tested Safety..............................................................................................1
FCC-Class A Declaration............................................................................1
Important Notes...........................................................................................2
Introduction..........................................................................4
About this manual.......................................................................................5
Care of the BEETLE /S-II plus ....................................................................5
Recycling the BEETLE /S-II plus ................................................................6
Warranty.....................................................................................................7
BEETLE /S-II plus- the POS System...................................8
Overview.....................................................................................................8
Before switching on the System..................................................................9
Unpacking and checking the System ....................................................9
Setting up the device.............................................................................9
Cabling of the BEETLE /S-II plus..............................................................12
Basic settings............................................................................................13
The System BEETLE /S-II plus .........................................14

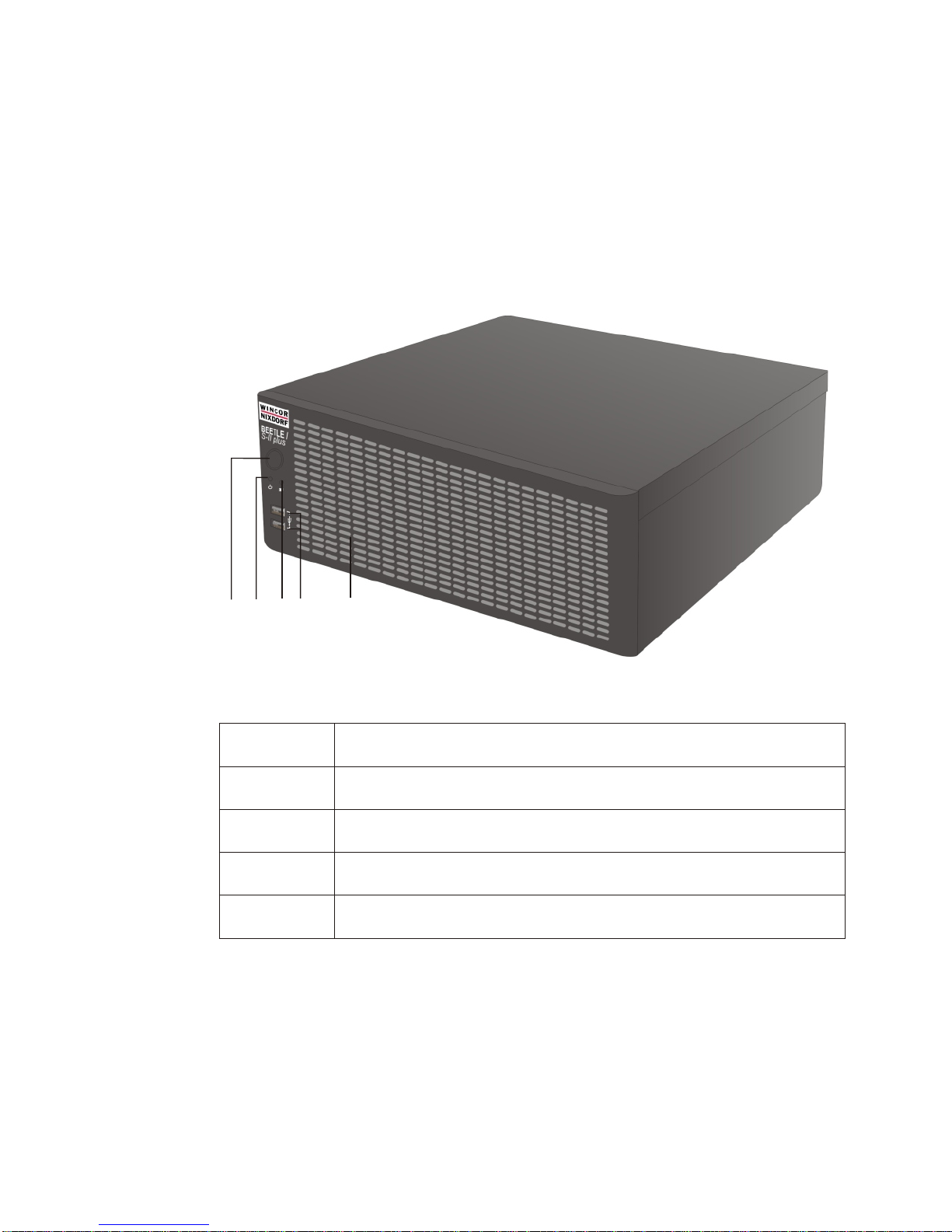

Front Side View.........................................................................................14
ON Button ...........................................................................................15
Light-emitting Diode (LED)..................................................................15
USB (Universal Serial Bus)- A, USB 2.0 .............................................15
Interior view...............................................................................................16
Power Supply.....................................................................17
Connector Panel.......................................................................................17
Power Connector.................................................................................18
DC24V (Modular Printer).....................................................................18
RJ12 (CASHDR, Geldlade).................................................................18
Power Consumption..................................................................................19
System Unit........................................................................20
Jack Plug 3.5 mm (MIC, SPK)..................................................................21
Mini-DIN (KYBD).......................................................................................21
D- Sub Plug (COM1).................................................................................21
RJ10/RMT (optional).................................................................................22
P-USB (Powered USB).............................................................................22

D- Sub- Jack power supplied (COM2*-COM4*)........................................22
PLINK TFT (TFT- VGA Monitor, optional).................................................23
DVI-I, DVI-D (optional)..............................................................................23
CRT (optional via a DVI/VGA adapter cable)............................................23
LAN (RJ45)...............................................................................................24
USB (Universal Serial Bus)- A, USB 2.0...................................................24
Disconnecting cables........................................................25
Storage Media....................................................................27
Change of the Data Store.........................................................................27
USB- Controller (optional) ................................................31
COM5*- COM8*- Interfaces (optional) ..............................32
PLINK or DVI-D (optional).................................................33
Starting up the system......................................................35
Appendix............................................................................37
Technical Data BEETLE /S-II plus............................................................37
Interfaces..................................................................................................38
Extensions ................................................................................................39
Rear Panel (Base)...............................................................................39
Rear Panel (Base, DVI-D**) ................................................................39
Rear Panel (Base, DVI-D**, USB).......................................................39
Rear Panel (Base, DVI-D**, USB, COM*)...........................................40
Total Current Consumption Of Interfaces .................................................41
Glossary....................................................................................................42
Abbreviations............................................................................................44

Manufacturer´s Certification
The device complies with the requirements of the EEC
directive 2004/108/EC with regard to ‘Electromagnetic
compatibility" and 2006/95/EG “Low Voltage Directive”.
Therefore, you will find the CE mark on the device or packaging.
Tested Safety
The POS system has been provided
with the symbol for “Tested Safety”.
In addition, the BEETLE has
received the UL symbol and cUL
symbol.
FCC-Class A Declaration
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful inter-ference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the
interference at his own expense. Modifications not authorized by the
manufacturer may void users authority to operate this device. This class A
digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe A est conforme à la norme NMB-003
du Canada.
BEETLE /S-II plus 1

Important Notes
The modular POS system BEETLE /S-II plus conforms to the current safety
standards for data processing equipment.
nIf this device is taken from a cold environment into the operating room,
moisture condensation may form. The device must be absolutely dry
before being put into service; an acclimatization period of at least two
hours must therefore be observed.
nThis device is equipped with a safety-tested power cable and may be
connected only to a prescribed grounded-contact power socket.
nWhen setting up the device, ensure that the power socket on the device
and the grounded-contact power socket are easily accessible.
nTo disconnect the device from the supply voltage completely, switch off
the device and disconnect the power plug of the power supply.
nEnsure that no foreign objects (e.g. office clips) find their way into the
device, as this may lead to electric shocks or short-circuits.
nNever plug in or unplug data communication lines during thunderstorms.
nProtect devices from vibrations, dust, moisture and heat.
nAlways dispose of used parts, such as batteries, in an environmentally
safe manner.
nThe ventilation slots must remain unobstructed to ensure sufficient
ventilation of the equipment. If the equipment is to be fitted, you must
ensure that the specified minimum distances are maintained and constant
ventilation is provided.
nIn emergencies (e.g. damaged housing or damaged power cable,
penetration by liquids or foreign bodies), the device must be switched off
immediately, the power plug disconnected and the Customer Service of
Wincor Nixdorf or your dealer must be notified.
nThe lithium battery must be disposed of in accordance with local
regulations for special waste. In case of an improper change of the lithium
battery it exist an explosion risk.
2BEETLE /S-II plus

nThe device may only be repaired by authorized qualified personnel.
Unauthorized opening of the device and inexpertly carried-out repairs may
not only seriously jeopardize the safety of the user, but also cancel all
warranty and liability agreements.
nYour BEETLE system is the result of modern technical innovation. So
please see for according structural and technical surroundings to
guarantee a faultless and efficient work of your BEETLE. Therefore, you
should connect your BEETLE or other IT-devices only to power supply
systems with separately guided protective earth conductor (PE). This kind
of electricity system is known as TN-S network. Do not use PEN
conductors!
Please also observe the recommendations of the norm DIN VDE 0100,
Part 540, Appendix C2 as well as EN50174-2, §5.4.3.Thus you can help
to avoid possible malfunctions.
nYou can connect or disconnect USB devices during operation of your
BEETLE, provided that these devices comply with the specifications
according to usb.org. Other peripheral devices with higher power
requirement (such as PoweredUSB printer) should be connected to or
disconnected from your BEETLE system only after the BEETLE has been
switched off.
BEETLE /S-II plus 3

Introduction
The BEETLE /S-II plus is the powerful POS System for multi-functional
solutions. This High performance POS system unit with low power,
state-of-the-art Intel desktop processor technology provides a basis for all
of today’s and future POS store and back office solutions.
The BEETLE /S-II plus features numerous standard PC and
retail-specific powered interfaces for connection of peripheral devices.
Additional USB ports are accessible from the front for greater
convenience. The type and number of interfaces can be customized
very flexibly.
The BEETLE /S-II plus uses cutting-edge Intel processors that offer
better performance yet consume more than 30 % lesspower than those
of previous generations. The power supply unit complies with the strict
80 PLUS Bronze supply standard, operating with a constant energy
efficiency of over 82 %.
The addition of a powered interfaces for peripherals, power-saving functions
in the BIOS and operating system results in a marked reduction in power
consumption and the resulting CO2 emissions. These technologies enable
you not only to protect the environment but also to reduce running costs
and total cost of ownership.
Whatever configuration you need: Wincor Nixdorf International GmbH offers
a suitable solution. If you want to know more about our products visit us on
Internet:
http://www.wincor-nixdorf.com/internet/site_EN/EN/Home/homepage_node.
html
4BEETLE /S-II plus

About this manual
This documentation is intended to help you to work with the POS system
and to serve as a reference work. The detailed table of contents help you
find the desired information quickly and easily.
Notes in the manual are marked by this symbol.
This symbol is used for warnings.
The type and scope of application programs depend on the customer’s own
selection; therefore, software will not be discussed further in this manual.
You will find a description of the BIOS Setup and the Central Processing
Unit in a separate manual (“POS Motherboard”), see:
http://www.wincor-nixdorf.com/internet/us/Services/Support/TechnicalSuppo
rt/POSSystems/index.html.
Care of the BEETLE /S-II plus
Clean your BEETLE /S-II plus at regular intervals with a suitable
plastic-surface cleaner which can be ordered from Wincor Nixdorf
International GmbH. Make sure that the power plug is disconnected
and that no liquid finds its way into the device.
BEETLE /S-II plus 5

Recycling the BEETLE /S-II plus
Environmental protection does not begin
when the time has come to dispose of
the BEETLE; it begins with the
manufacturer. This product was
designed according to our internal norm
“Environmental conscious product
design and development”.
The modular BEETLE /S-II plus system is manufactured without the use of
CFCs and CCHS and is produced mainly from reusable components and
materials.
The processed plastics can, for the most part, be recycled. Even the
precious metals can be recovered, thus saving energy and costly raw
materials.
Please do not stick labels onto plastic case parts. This would help us to
re-use components and material.
At this time, there are still some parts that are not reusable. Wincor Nixdorf
International GmbH guarantees the environmentally safe disposal of these
parts in a Recycling Center, which is certified pursuant to ISO 9001 and
ISO 14001.
So don’t discard your BEETLE /S-II plus system on the garbage when it has
served its time, but take advantage of the environmentally smart, up-to-date
recycling methods!
Please contact your competent branch or the Recycling Center Paderborn
(for European countries) for information on how to return and re-use devices
and disposable materials under the following mail address.
Email: [email protected]
or on the internet.
We look forward to your mail.
6BEETLE /S-II plus

Warranty
Generally, Wincor Nixdorf guarantees a warranty engagement for twelve
months beginning with the date of delivery. This warranty engagement
covers all damages which occur despite a normal use of the product.
Damages because of
nimproper or insufficient maintenance,
nimproper use of the product or unauthorized modifications of the product,
ninadequate location or surroundings
will not be covered by the warranty.
For further information on the stipulation consult your contract.
All parts of the product which are subject to wear and tear are not included
in the warranty engagement. For detailed warranty arrangements please
consult your contract documents.
Please order spare parts at the Wincor Nixdorf customer service.
BEETLE /S-II plus 7

BEETLE /S-II plus- the POS System
Overview
You can connect a variety of peripherals to your modular POS system
BEETLE /S-II plus and thus implement a wide range of expansion stages.
You can connect a four-line alphanumeric customer display and a four
line cashier display. Alternatively, you can connect flat screens.
You can
nuse various types of scanners such as distance, touch or stationary
scanners,
nuse scales and scanner scales (please take into account the official
certification regulations),
nconnect various printers,
nuse POS keyboards,
nuse different types of cash drawers,
nintegrate the BEETLE /S-II plus in a network and
nupgrade the BEETLE /M-II plus, since it can accommodate two expansion
cards (2x PCI or 1x PCI + PCI-Express).
This means that the BEETLE /S-II plus can meet your requirements at all
times, without having to exchange the complete system for a new one.
8BEETLE /S-II plus

Before switching on the System
Unpacking and checking the System
Unpack the components and verify that the scope of delivery is identical to
the information on the delivery ticket.
The carton contains the basic unit and a country-specific accessories kit.
Some ordered composition may be installed.
Should you notice any transport damages or discrepancies between
package contents and delivery ticket or functional defects please inform
your contracting parties or the branch office of Wincor Nixdorf immediately.
Please indicate the number of your delivery ticket and delivery ticket position
and serial numbers of the respective devices.
The serial numbers can be found on the sample label illustrated below
which are located at the bottom side of the housing.
serial number
Transport the device only in its original packaging (to protect it against
impact and shock).
Setting up the device
Set up the BEETLE /S-II plus system where it will not be exposed
to extreme environmental conditions. Protect the device from vibrat-
ions, dust, moisture, heat and strong magnetic fields.
BEETLE /S-II plus 9
Wincor Nixdorf
Made in ............
WN
0200200102
BEETLE /S-II plus
01750 xxxxxx

Horizontal installation
Mind the minimum distances indicated below! If the equipment is to be
fitted, you also must ensure that the specified minimum distances are
maintained and constant ventilation is provided. The immediate ambient
temperature of the system must not exceed 40° C (104° F).
Vertical installation of the equipment
The minimum top and bottom distances listed in the figure must be
maintained; otherwise, a sufficient ventilation of the equipment is not
guaranteed.
10 BEETLE /S-II plus
100 mm
60 mm
50 mm
50 mm
100 mm
60 mm

If you install the BEETLE /S-II plus in vertical position, you have attend to
the following:
nThree breakable bore holes are located at the underside, which allow the
BEETLE /S-II plus to be suspended by means of the screws.
nMind the following minimum clearances also for vertical mounting to
ensure sufficient ventilation:
forward: 100 mm,
backward: 60 mm
sideways (left): 50 mm
nA surface made of nonflammable material (e.g. concrete or metal) must
be located underneath the vertically mounted power supply unit.
BEETLE /S-II plus 11

Cabling of the BEETLE /S-II plus
Follow the steps below in the order given when installing devices:
nPlug one end of the power cable into the socket of the BEETLE /S-II plus.
nPlug in and secure the data cable.
nPlug the other end of the power cable into the main power supply.
Always make sure that all power plugs from the grounded-contact
power sockets are unplugged.
ON Button
Power Input Jack
12 BEETLE /S-II plus
DC 24V CASHDR ONLY
MIC
KYBD RMT
COM1
SPK
12V
12V (*) 24V
COM2* DVI-I USB
LAN
PLINK / DVI-D
COM3* COM4*
COM6/8 (*) COM5/7(*)


Now push the power ON button on the front side of the system.
The power supply can be connected to all conventional power supply
networks. It automatically adjusts itself to the particular voltage. The power
output of the power pack is maximum 304 W.
Basic settings
Ex works, the BEETLE /S-II plus is configured to your order. Your
configuration must be subsequently adapted to support supplementary
devices such as scanners. For more information, contact the Wincor Nixdorf
International GmbH branch office responsible for your area.
BEETLE /S-II plus 13

The System BEETLE /S-II plus
Front Side View
ON Button
Power LED
HDD- LED
2 USB Interfaces
Ventilation Slots (NOT COVERING)
14 BEETLE /S-II plus


