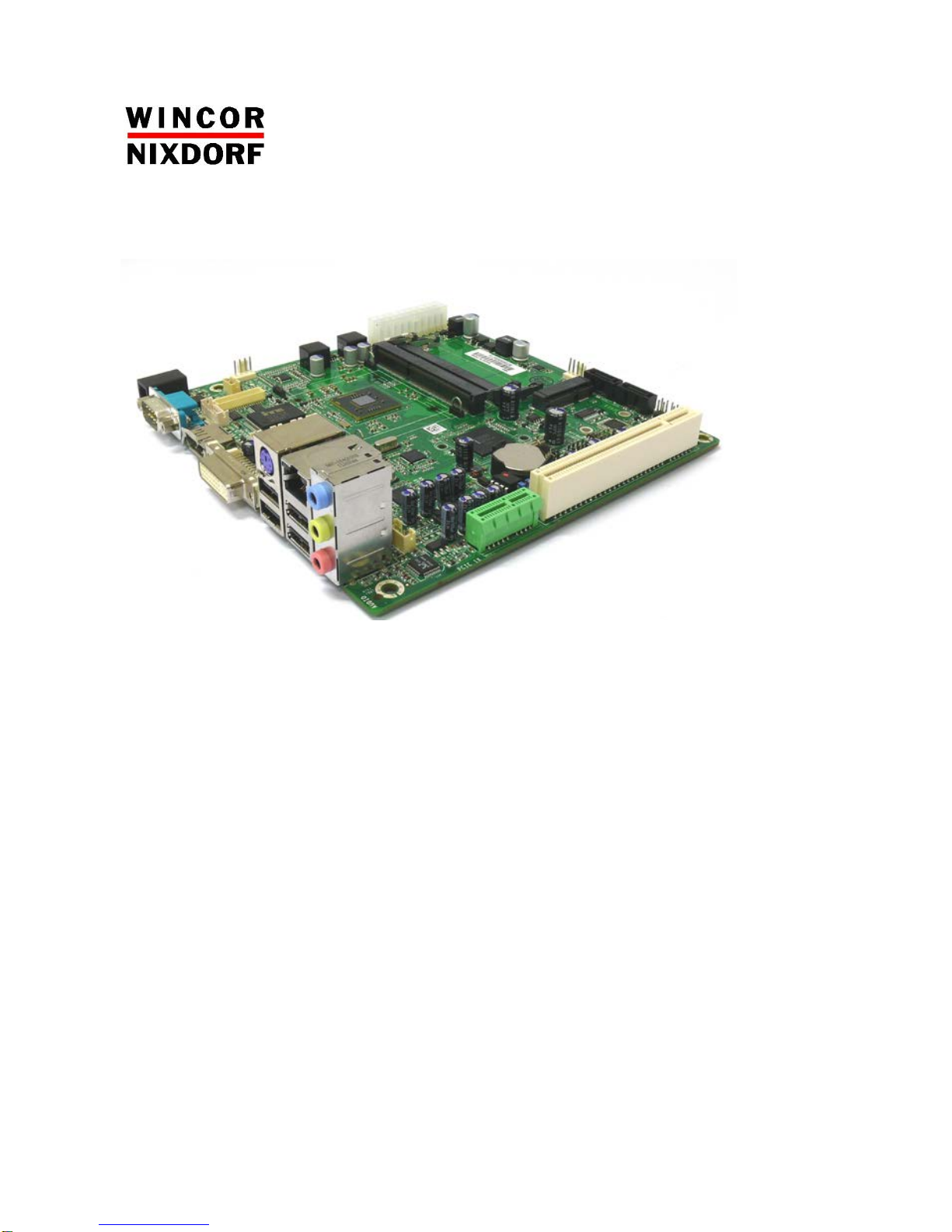

Wincor Nixdorf J1-CPU User manual

POS Motherboard
J1-CPU
User Manual

We would like to know your opinion on this publication.
Please send us a copy of this page if you have any constructive criticism.
We would like to thank you in advance for your comments.
With kind regards,
Wincor Nixdorf International GmbH
Documentation R&D SAT22
Wohlrabedamm 31
D-13629 Berlin
E-Mail: [e-mail]
Order No.: 01750228406°
Your opinion:

POS Motherboard
J1-CPU
User Manual
Edition November 2012

All brand and product names mentioned in this document are trademarks of their
respective owners.
Copyright © Wincor Nixdorf International GmbH, 2012
The reproduction, transmission or use of this document or its contents is not permitted without
express authority.
Offenders will be liable for damages. All rights, including rights created by patent grant or
registration of a utility model or design, are reserved.
Delivery subject to availability; technical modifications possible.
Refer to protection notice ISO 16016

Contents
Overview ...................................................................................................... 1
Introduction.................................................................................................... 1
Highlights of Cedar Trail J1 Motherboard...................................................... 1
Motherboard Specification......................................................................... 3

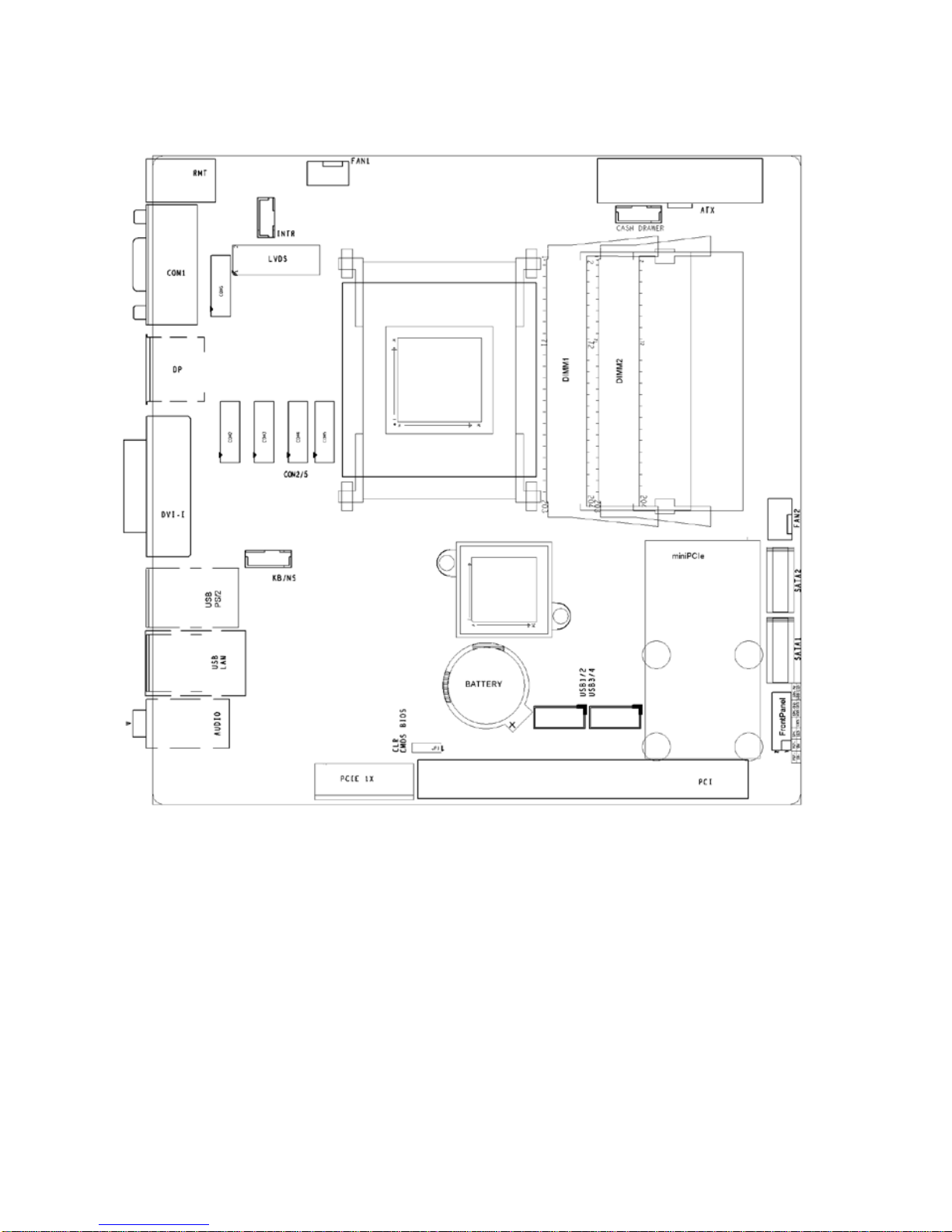

Motherboard Mechanical Arrangement......................................................... 4
Motherboard PCB Dimension........................................................................ 5

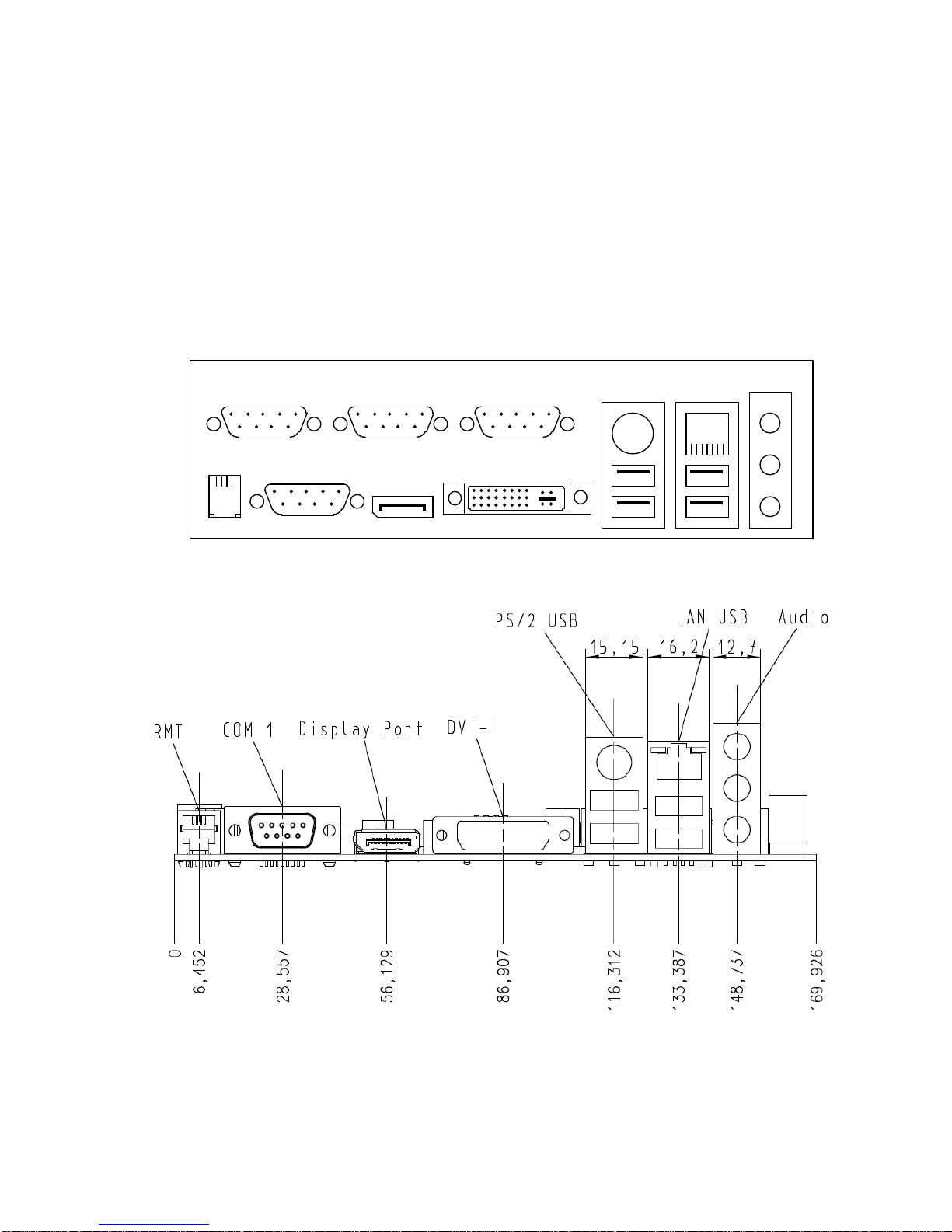

External I/O Connector.................................................................................. 5
Internal I/O Connector................................................................................... 6
Jumper Setting.............................................................................................. 7
Maximum Power Consumption...................................................................... 7
Typical Power Consumption.......................................................................... 7
Maximum Current Rating for external Peripherals......................................... 8
Supported Power Modes (Sx) ....................................................................... 8
Thermal Management................................................................................... 9
CPU Support................................................................................................. 9
Memory Support............................................................................................ 9
Graphics Subsystem................................................................................... 10
System Clock Generator............................................................................. 11
Gigabit LAN Interface.................................................................................. 11
Super I/O Controller .................................................................................... 11
SATA II Interface......................................................................................... 12
CPU Fan and System Fans......................................................................... 12
Audio........................................................................................................... 12
USB Interface.............................................................................................. 13
Serial Interfaces COM1-6............................................................................ 13
PS/2 Keyboard Interface............................................................................. 13
Front Panel Interface................................................................................... 14
Cash Drawer Interface I/O 310h.................................................................. 14
Intrusion Detect Interface............................................................................ 14
TPM............................................................................................................. 14
System Beeper............................................................................................ 15
PCIe Slot..................................................................................................... 15
PCI Slot....................................................................................................... 15
Mini PCIe Slot.............................................................................................. 15
RMT Feature............................................................................................... 15
Connector and Pin Assignments............................................................. 16
External Connectors.................................................................................... 16
PS/2 Connector ...................................................................................... 16
Gigabit LAN Connector........................................................................... 16
USB Connectors..................................................................................... 17
COM1 Connector.................................................................................... 17

COM2*-6* Connectors ............................................................................18
DVI-I Connector......................................................................................19
DisplayPort Connector............................................................................20
Audio Connector.....................................................................................21
Connectors and Headers for internal Connection........................................21
SATA.......................................................................................................21
USB Header............................................................................................22
Front Panel Interface Connector.............................................................23
Cash Drawer Interface Connector...........................................................23
Fan Connector (with FAN speed control)................................................24
Intrusion Interface ...................................................................................24
ATX Power..............................................................................................24
PCI Express x1 .......................................................................................25
PCI..........................................................................................................25
RMT ........................................................................................................28
Internal Speaker out................................................................................28
Mini PCIe ................................................................................................28
Technical Data...........................................................................................31
Changing the Battery................................................................................34
Addendum: Sleep States .......................................................................... 35
UEFI BIOS Setup........................................................................................36
Standard UEFI BIOS Version......................................................................36
BIOS Menu Bar.......................................................................................37
Legend Screen........................................................................................37
General Help...........................................................................................38
Scroll Bar ................................................................................................38
Sub-Menu ...............................................................................................38
Info Screen..................................................................................................39
Product Name:........................................................................................40
BIOS Version:.........................................................................................40
BIOS Date:..............................................................................................40
Ethernet MAC Address: ..........................................................................40
Windows XP Graphics Support:..............................................................40
UUID Info:...............................................................................................40
System, Main board, Power Supply:.......................................................40
Main Menu...................................................................................................41
System Date [XX/XX/XXXX] ...................................................................41
System Time [XX: XX: XX]......................................................................41
Advanced Menu...........................................................................................41
Advanced Menu...........................................................................................42
Sub Menu Trusted Computing ............................................................42
Security Device Support [Enable]........................................................42
TPM State [Disable].............................................................................42
Pending operation [None]...................................................................42
Advanced Menu...........................................................................................43
Sub Menu > Hardware Configuration......................................................43

Intel GMCH Configuration................................................................... 46
Advanced Menu .......................................................................................... 47
Sub Menu CPU Configuration............................................................. 47
Advanced Menu .......................................................................................... 48
Sub Menu SATA Configuration........................................................... 48
Advanced Menu .......................................................................................... 49
Sub Menu USB Configuration............................................................. 49
Advanced Menu .......................................................................................... 50
Sub Menu IO Port Configuration......................................................... 50
Advanced Menu .......................................................................................... 51
Sub Menu H/W Monitoring.................................................................. 51
Boot Menu................................................................................................... 52
‘#n’ Boot Device...................................................................................... 52
Security Menu ............................................................................................. 53
Administrator Password.......................................................................... 53
Intrusion Detection [Disabled]................................................................. 53
Save & Exit Menu........................................................................................ 54
Save Changes and Exit .......................................................................... 54
Discard Changes and Exit ...................................................................... 54
Save Changes and Reset....................................................................... 54
Discard Changes and Reset................................................................... 55
Restore Defaults..................................................................................... 55
Boot Override.......................................................................................... 55
Launch EFI Shell from filesystem device................................................ 55
Test Points Codes....................................................................................... 56
Checkpoint Ranges..................................................................................... 56
SEC Phase.................................................................................................. 56
PEI Phase ................................................................................................... 57
PEI Beep Codes.......................................................................................... 60
DXE Phase.................................................................................................. 60
DXE Beep Codes........................................................................................ 62
Abbreviations ............................................................................................ 63

POS Motherboard with J1-CPU 1
Overview
Introduction
This specification describes the features of a Motherboard based on the
INTEL Cedarview processor and NM10 chipset in mITX form factor.
This Cedar Trail Motherboard (J1 for short) is designed for integration
into Wincor BEETLE / X plus sealed systems and other POS systems like
BEETLE /i8A, the BEETLE /SII+ family and the EPC ATS.
Highlights of Cedar Trail J1 Motherboard
Intel ATOM processor Cedarview (dual core), min. 2GHz
Integrated Graphics Core supporting VGA+DVI (DVI-I), Display Port
HDD SATA II interface (2 ports)
Fan-less Motherboard design, supports chassis fan with automatic PWM
speed control
Intel Gigabit LAN on board
Two DDR3 SDRAM (SO-DIMM) socket, up to 4GB / 1066MHz supported
One PCI Express slot
One PCI slot (supports riser card only)
One mini PCI Express slot with LPC support for TPM and NVRAM
module
6 COM ports (5 ports have the option to be powered COM interfaces)
Onboard RJ11 remote control interface RMT (power save button)
8 USB ports
PS/2 connector, supports keyboard and mouse via Y-cable
Cash Drawer support on board

2 POS Motherboard with J1-CPU
Intel HD audio controller with Realtek audio codec supporting micro-
phone, line in and amplified speaker out
Optional NVRAM and TPM module support via mini PCIe
OS support includes Windows 7 (32 Bit), Windows 8 (32 Bit),
XP (32 Bit), Linux
Long term availability (5 years; Intel embedded roadmap)
