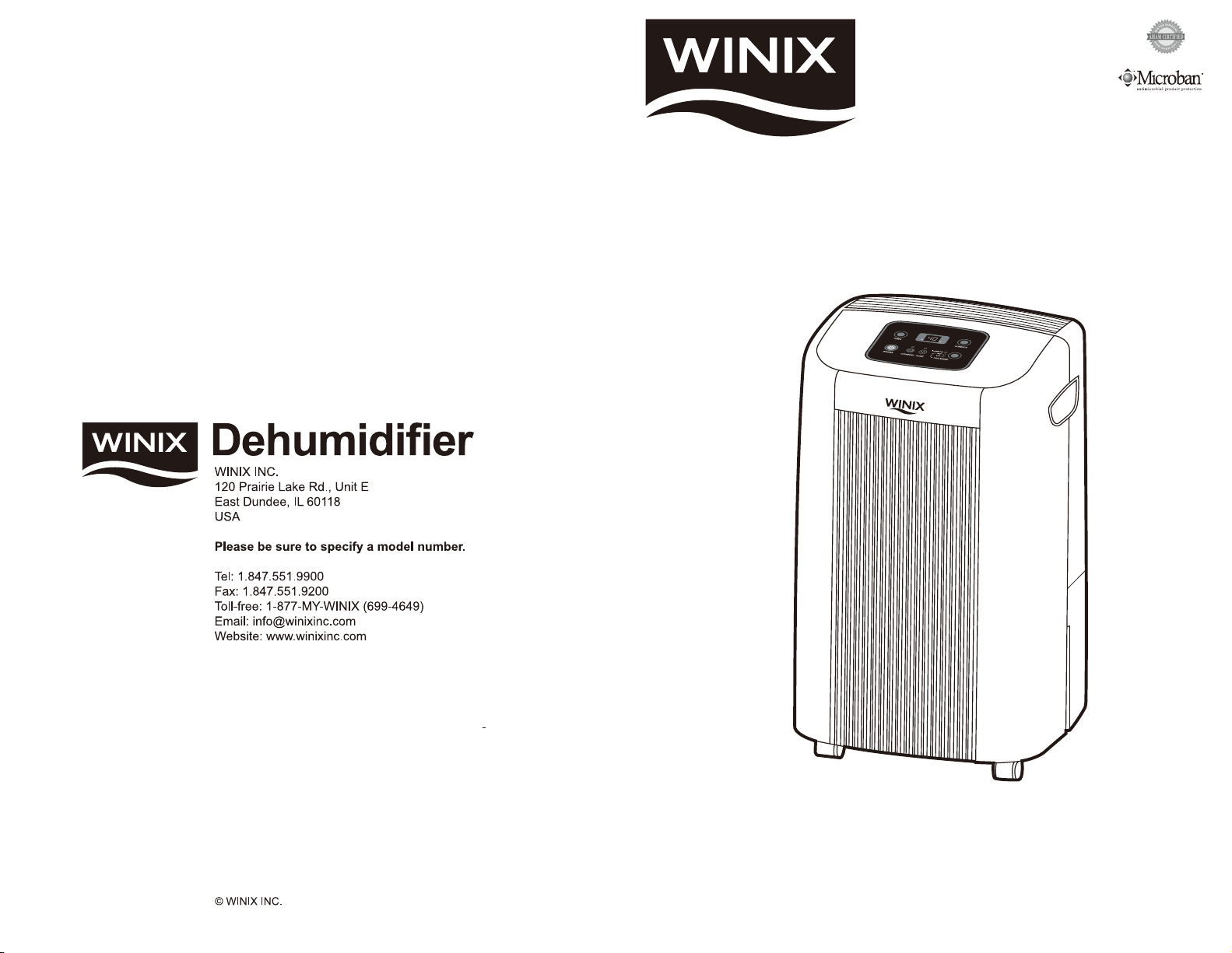

Winix WDH 871 User manual
Dehumidifier
Model WDH 871 Operator’s Manual
CAUTION:
Read and follow all
safety rules and instructions
before operating this equipment
Please visit our website or contact us to
get the information of WINIX Dehumidifier.
NOTE:IF YOU EXPERIENCE A PROBLEM,
PLEASE CONTACT CUSTOMER SERVICE. RE-
FER TO YOUR WARRANTY. DEFECTIVE UNITS
SHOULD BE RETURNED TO THE PLACE WHERE
ORIGINALLY PURCHASED. DO NOT ATTEMPT TO
REPAIR THE APPLIANCE YOURSELF.DOING SO
WILL VOID YOUR WARRANTY AND MAY RESULT
IN GREATER DAMAGE TO THE DEHUMIDIFIER
OR PERSONAL INJURY.
Dehumidifier
Model WDH 871 Operator’s Manual
CAUTION:
Read and follow all
safety rules and instructions
before operating this equipment
Please visit our website or contact us to
get the information of WINIX Dehumidifier.
NOTE:IF YOU EXPERIENCE A PROBLEM,
PLEASE CONTACT CUSTOMER SERVICE. RE-
FER TO YOUR WARRANTY. DEFECTIVE UNITS
SHOULD BE RETURNED TO THE PLACE WHERE
ORIGINALLY PURCHASED. DO NOT ATTEMPT TO
REPAIR THE APPLIANCE YOURSELF.DOING SO
WILL VOID YOUR WARRANTY AND MAY RESULT
IN GREATER DAMAGE TO THE DEHUMIDIFIER
OR PERSONAL INJURY.

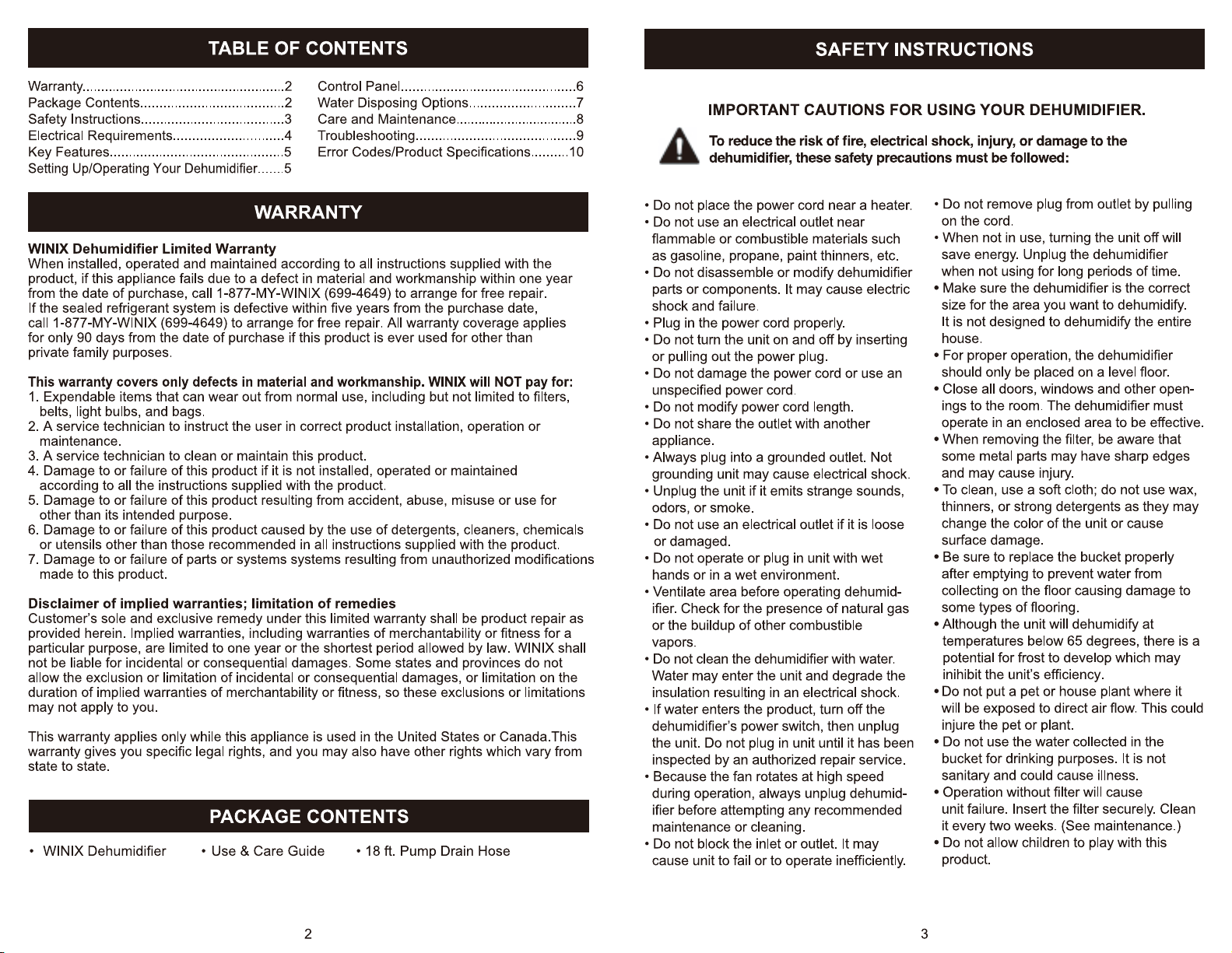

ELECTRICAL REQUIREMENTS
4 5
OBSERVE ALL LOCAL CODES AND
ORDINANCES.
DO NOT, UNDER ANY CIRCUMSTANCES,
REMOVE THE POWER SUPPLY CORD
GROUND PRONG.
ELECTRICAL GROUND IS REQUIRED ON
THIS APPLIANCE.
A 115-VOLT 60Hz, AC ONLY, 15A
FUSED AND PROPERLY GROUNDED
ELECTRICAL SUPPLY IS REQUIRED.
DO NOT USE AN EXTENSION CORD.
RECOMMENDED GROUNDING METHOD
For your personal safety, this appliance
must be grounded. This appliance has a
power supply cord with a 3-prong grounded
plug. To minimize possible shock hazard,
the cord must be plugged into a matching
grounded electrical outlet that complies with
the latest edition of the National Electrical
Code and all local codes and ordinances.
If a grounded 3-prong electrical outlet is not
available, it is the personal responsibility
and obligation of the customer to have one
installed by a qualified electrician.
ELECTRICAL SHOCK HAZARD
Plug into a grounded 3-prong outlet.
•Do not remove ground prong.
•Do not use a two-prong adapter.
•Do not use an extension cord.
Failure to follow these instructions can result
in death, fire or electrical shock.
WARNING
To reduce the risk of fire, electric shock or injury to persons, read the important
SAFETY INSTRUCTIONS found on page 3 before operating this appliance.
WARNING

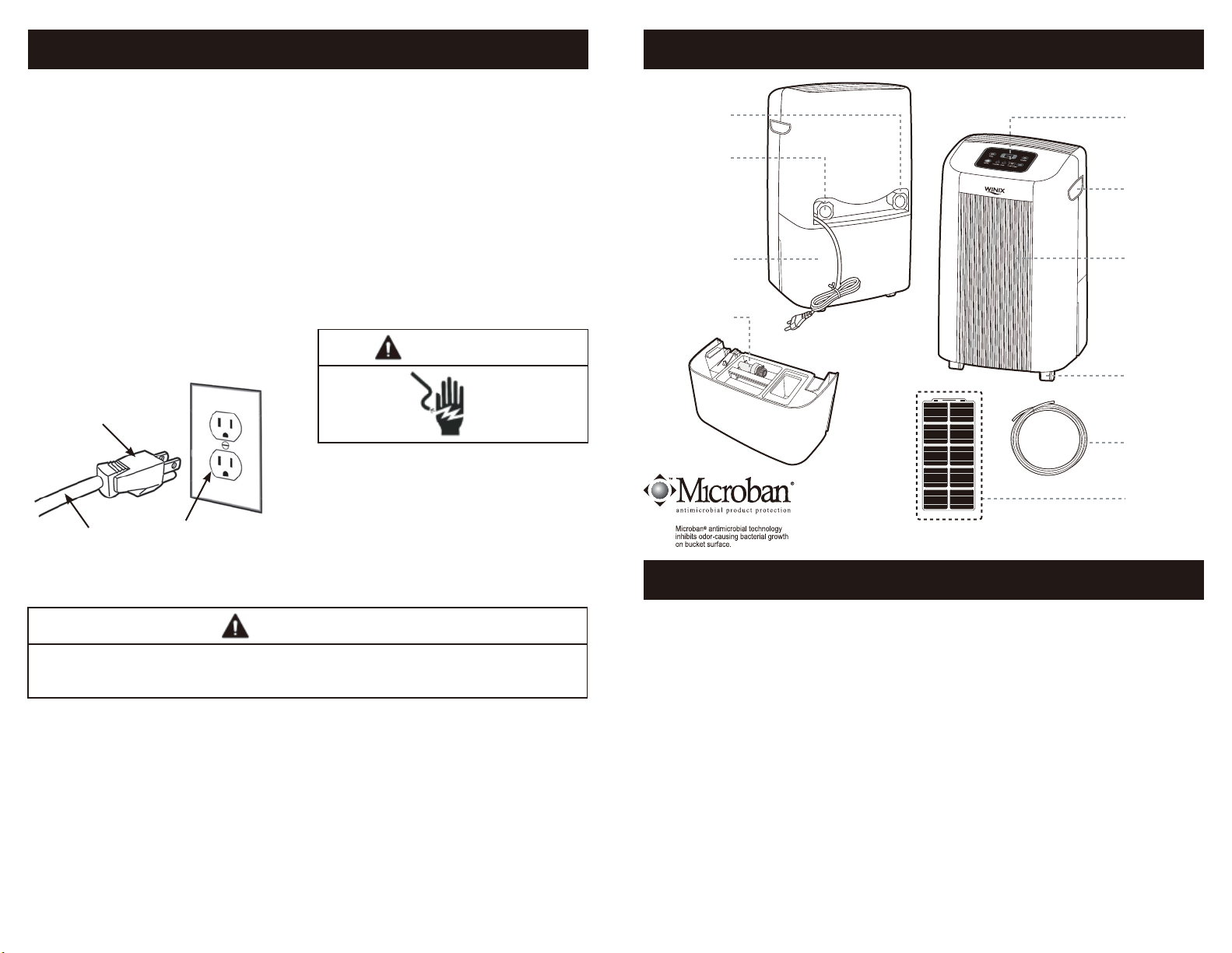

KEY FEATURES OF YOUR DEHUMIDIFIER
SETTING UP AND OPERATING YOUR DEHUMIDIFIER
Power supply cord
3-prong grounded plug
Grounded 3-prong
electrical outlet
A time delay fuse or time delay circuit
breaker is recommended. Use a dedicated
circuit serving only this appliance.
CONTROL
PANEL
FRONT GRILL
CASTER
HANDLE
GRAVITY
DRAIN
PUMP DRAIN
BUCKET
AIR INLET
FILTER
PUMP DRAIN
HOSE
GRAVITY HOSE
ATTACHMENT
CHOOSING THE PROPER LOCATION
* Place the dehumidifier on a level floor
strong enough to support the unit with a
full bucket of water
* For best performance, allow at least
12-18 inches of air space on all sides of
the unit for good air circulation
* Use the dehumidifier:
-
in the basement to help prevent moisture
damage.
- in the kitchen, laundry room, bathroom,
and spa/exercise areas that have excessive
moisture
- to prevent moisture damage anywhere
books or valuables are stored
- during construction or remodeling to
reduce drying time for drywall and paint
DEFROST OPERATION
- The dehumidifier has a built-in defrost control
that senses frost buildup on the evaporator coils
- During defrosting, the compressor will
automatically turn off; the fan will continue
running to defrost the coils.
AUTOMATIC SHUTOFF
-
When the bucket is full, or when the bucket is not
in the proper position, the bucket full light will
turn on and the unit automatically shuts off
-
The bucket must be placed in the proper position
for the dehumidifier to work. The light will stay
on and the dehumidifier will not run if the bucket
is not in the proper position.
- The dehumidifier will shut off once the desired
humidity setting has been reached.
ELECTRICAL REQUIREMENTS
4 5
OBSERVE ALL LOCAL CODES AND
ORDINANCES.
DO NOT, UNDER ANY CIRCUMSTANCES,
REMOVE THE POWER SUPPLY CORD
GROUND PRONG.
ELECTRICAL GROUND IS REQUIRED ON
THIS APPLIANCE.
A 115-VOLT 60Hz, AC ONLY, 15A
FUSED AND PROPERLY GROUNDED
ELECTRICAL SUPPLY IS REQUIRED.
DO NOT USE AN EXTENSION CORD.
RECOMMENDED GROUNDING METHOD
For your personal safety, this appliance
must be grounded. This appliance has a
power supply cord with a 3-prong grounded
plug. To minimize possible shock hazard,
the cord must be plugged into a matching
grounded electrical outlet that complies with
the latest edition of the National Electrical
Code and all local codes and ordinances.
If a grounded 3-prong electrical outlet is not
available, it is the personal responsibility
and obligation of the customer to have one
installed by a qualified electrician.
ELECTRICAL SHOCK HAZARD
Plug into a grounded 3-prong outlet.
•Do not remove ground prong.
•Do not use a two-prong adapter.
•Do not use an extension cord.
Failure to follow these instructions can result
in death, fire or electrical shock.
WARNING
To reduce the risk of fire, electric shock or injury to persons, read the important
SAFETY INSTRUCTIONS found on page 3 before operating this appliance.
WARNING
KEY FEATURES OF YOUR DEHUMIDIFIER
SETTING UP AND OPERATING YOUR DEHUMIDIFIER
Power supply cord
3-prong grounded plug
Grounded 3-prong
electrical outlet
A time delay fuse or time delay circuit
breaker is recommended. Use a dedicated
circuit serving only this appliance.
CONTROL
PANEL
FRONT GRILL
CASTER
HANDLE
GRAVITY
DRAIN
PUMP DRAIN
BUCKET
AIR INLET
FILTER
PUMP DRAIN
HOSE
GRAVITY HOSE
ATTACHMENT
CHOOSING THE PROPER LOCATION
* Place the dehumidifier on a level floor
strong enough to support the unit with a
full bucket of water
* For best performance, allow at least
12-18 inches of air space on all sides of
the unit for good air circulation
* Use the dehumidifier:
-
in the basement to help prevent moisture
damage.
- in the kitchen, laundry room, bathroom,
and spa/exercise areas that have excessive
moisture
- to prevent moisture damage anywhere
books or valuables are stored
- during construction or remodeling to
reduce drying time for drywall and paint
DEFROST OPERATION
- The dehumidifier has a built-in defrost control
that senses frost buildup on the evaporator coils
- During defrosting, the compressor will
automatically turn off; the fan will continue
running to defrost the coils.
AUTOMATIC SHUTOFF
-
When the bucket is full, or when the bucket is not
in the proper position, the bucket full light will
turn on and the unit automatically shuts off
-
The bucket must be placed in the proper position
for the dehumidifier to work. The light will stay
on and the dehumidifier will not run if the bucket
is not in the proper position.
- The dehumidifier will shut off once the desired
humidity setting has been reached.
WATER DISPOSING OPTIONS
6 7
CONTROL PANEL
1. Power ON/OFF
Pressing button will turn the machine on.
Pushing again will turn the machine off.
Please note unit may turn on or off depending
on room environment.
3.
Select Your Fan Speed
By pressing fan speed button (5), fan speed will
change. The indicator (9) of selected fan speed
will light (High or Low). In Comfort Mode, fan
speed will adjust the fan speed automatically
depending how close the room humidity is to 50%.
For example, if the room is 70%, the unit will need
to pull in air quickly, so it will turn on high. Once
2. Select Operating Mode
* Comfort Mode
When the unit is turned on for the first time or by
pressing comfort button (2) once, operation begins
in comfort mode. "50" will appear in the display
(7) and the comfort indicator (8) will light up. In
this setting, humidity level is adjusted for optimum
comfort (50%) with no manual adjustment needed.
When pressing the button again, comfort mode
is turned off and the unit will adjust humidity level
based on the humidity level programmed.
* Humidity Mode
To set desired humidity level when not in comfort
mode, push
humidity
button
(3)
until desired
humidity level is reached. The humidity levels
will adjust in increments of 5% beginning at a low
of 35% and reaching a maximum of 70%.
Humidity will show in the display when adjusting
humidity. When humidity level has reached 70%,
pushing once more will set unit into continuous
mode.
* Continous Mode
Continuous mode will run the unit continuously
until it is turned off or until another setting is
inputted. When continuous mode is programmed,
“Lo” will be displayed.
the room reaches 55%, the unit will slow the
amount of air flow and turn the fan on low.
4. Water Removal Indicators
* Pump ON
Pump "ON" is an optional setting when using the
included 18 ft. hose to remove the collected water
automatically.
To select the pump as your water removal option,
press the pump button (6). When the pump indicator
(10)
is on, the pump will automatically remove
the water in the bucket only when the bucket is full.
It will only turn on for a period of 30 seconds to
remove the water. The pump will turn off after 30
seconds and not turn on again until the bucket is
full again. It is normal for a small amount of water
to remain in the bucket after the pump has operated,
this is to protect the pump. The pump button should
be off at all times except when the user chooses
this as their option to remove collected water
(See Page 7, Option 3). The pump option should
only be selected when there is a ¼” hose properly
installed in the pump drain location.
If the pump button is pressed when using other
disposal options, E3 (Error message – See page
10) will be displayed. If other disposal options
are needed, push the pump button again to turn
off the pump function.
* Bucket Full Indicator
When the collection bucket is full,
bucket full
indicator (11) will light. The unit will not run with
the bucket full. Dispose of water and replace
bucket properly.
5. Timer Function (Optional)
a. By pressing the
timer
button
(4)
, the unit will
run until the desired time expires and the unit will
shut off. Timer range is between 1 and 12 hours
with increments of 1 hour. Please note display
shows setting time while programming temporarily
before returning to desired humidity level display.
OPTION 1, EMPTYING MANUALLY
1. Pull out the bucket, grasping upper and
lower handles.
2. Carry the bucket by grasping the inside
handle of the bucket.
3. After emptying the bucket, replace the
bucket in the dehumidifier.
NOTE: Dehumidifier will not work when the
BUCKET FULL light is on or without the
bucket properly placed in the unit.
OPTION 2, GRAVITY DRAIN HOSE
(Garden Hose Not Provided)
1. Take off GRAVITY DRAIN CAP by turning
the cap counterclockwise. (Fig.1)
2. Remove DRAIN CONNECTOR from the
bucket. (Fig.2)
3. Next, screw the DRAIN CONNECTOR
to a standard garden hose by turning
clockwise. (Fig.3)
4. Reattach the DRAIN CONNECTOR end
of garden hose to the dehumidifier (Fig.4)
then check hose for kinks or obstructions.
The position of the hose at the floor drain
must be lower than DRAIN CONNECTOR.
5. Keep the DRAIN CAP for future use when
emptying bucket manually.
OPTION 3, PUMP DRAIN
1. Remove the PUMP DRAIN CAP by turn-
ing clockwise (Reverse thread). (Fig.1)
2. Remove the drain-hole PLUG by pulling out
while pressing in on the coupler. (Fig.2)
Keep the DRAIN CAP and PLUG for future use.
3. Feed the 1/4-inch hose provided through
the hole in the DRAIN CAP. (Fig.3)
4. Insert the end of hose into the drain hole
(Fig.4), then screw DRAIN CAP back
onto the unit. Place the other end of the
hose in the location you want the water to
go: to a floor drain, a water container, or
through a basement window to the
outdoors. (Pump can lift water up to 15
feet above the unit.) Check hose for kinks
or other obstruction.
Fig.1 Fig.2
Fig.3 Fig.4
Fig.1 Fig.2
B
Pressing
Fig.3 Fig.4
5. In the unlikely event the hose comes
loose during pump operation due to
vibration, re-attach hose to continue
automatic pump removal of water.
CAUTION: Do not remove the
bucket while the pump is operating. This
will cause the dehumidifier to stop operat-
ing and result in an “E3” error message.
ALSO: The pump drain hose should not
be both under water AND at a height
that is above the dehumidifier. This can
cause a “back flow” to the dehumidifier
and cause the dehumidifier to stop work-
ing resulting in an “E3” error message.
Following an “E3” error, the unit must be
unplugged and reset to operate. (See
Error Code section of this manual.)
2
1
8
6
5
9
43
10
11
7
WATER DISPOSING OPTIONS
6 7
CONTROL PANEL
1. Power ON/OFF
Pressing button will turn the machine on.
Pushing again will turn the machine off.
Please note unit may turn on or off depending
on room environment.
3.
Select Your Fan Speed
By pressing fan speed button (5), fan speed will
change. The indicator (9) of selected fan speed
will light (High or Low). In Comfort Mode, fan
speed will adjust the fan speed automatically
depending how close the room humidity is to 50%.
For example, if the room is 70%, the unit will need
to pull in air quickly, so it will turn on high. Once
2. Select Operating Mode
* Comfort Mode
When the unit is turned on for the first time or by
pressing comfort button (2) once, operation begins
in comfort mode. "50" will appear in the display
(7) and the comfort indicator (8) will light up. In
this setting, humidity level is adjusted for optimum
comfort (50%) with no manual adjustment needed.
When pressing the button again, comfort mode
is turned off and the unit will adjust humidity level
based on the humidity level programmed.
* Humidity Mode
To set desired humidity level when not in comfort
mode, push
humidity
button
(3)
until desired
humidity level is reached. The humidity levels
will adjust in increments of 5% beginning at a low
of 35% and reaching a maximum of 70%.
Humidity will show in the display when adjusting
humidity. When humidity level has reached 70%,
pushing once more will set unit into continuous
mode.
* Continous Mode
Continuous mode will run the unit continuously
until it is turned off or until another setting is
inputted. When continuous mode is programmed,
“Lo” will be displayed.
the room reaches 55%, the unit will slow the
amount of air flow and turn the fan on low.
4. Water Removal Indicators
* Pump ON
Pump "ON" is an optional setting when using the
included 18 ft. hose to remove the collected water
automatically.
To select the pump as your water removal option,
press the pump button (6). When the pump indicator
(10)
is on, the pump will automatically remove
the water in the bucket only when the bucket is full.
It will only turn on for a period of 30 seconds to
remove the water. The pump will turn off after 30
seconds and not turn on again until the bucket is
full again. It is normal for a small amount of water
to remain in the bucket after the pump has operated,
this is to protect the pump. The pump button should
be off at all times except when the user chooses
this as their option to remove collected water
(See Page 7, Option 3). The pump option should
only be selected when there is a ¼” hose properly
installed in the pump drain location.
If the pump button is pressed when using other
disposal options, E3 (Error message – See page
10) will be displayed. If other disposal options
are needed, push the pump button again to turn
off the pump function.
* Bucket Full Indicator
When the collection bucket is full,
bucket full
indicator (11) will light. The unit will not run with
the bucket full. Dispose of water and replace
bucket properly.
5. Timer Function (Optional)
a. By pressing the
timer
button
(4)
, the unit will
run until the desired time expires and the unit will
shut off. Timer range is between 1 and 12 hours
with increments of 1 hour. Please note display
shows setting time while programming temporarily
before returning to desired humidity level display.
OPTION 1, EMPTYING MANUALLY
1. Pull out the bucket, grasping upper and
lower handles.
2. Carry the bucket by grasping the inside
handle of the bucket.
3. After emptying the bucket, replace the
bucket in the dehumidifier.
NOTE: Dehumidifier will not work when the
BUCKET FULL light is on or without the
bucket properly placed in the unit.
OPTION 2, GRAVITY DRAIN HOSE
(Garden Hose Not Provided)
1. Take off GRAVITY DRAIN CAP by turning
the cap counterclockwise. (Fig.1)
2. Remove DRAIN CONNECTOR from the
bucket. (Fig.2)
3. Next, screw the DRAIN CONNECTOR
to a standard garden hose by turning
clockwise. (Fig.3)
4. Reattach the DRAIN CONNECTOR end
of garden hose to the dehumidifier (Fig.4)
then check hose for kinks or obstructions.
The position of the hose at the floor drain
must be lower than DRAIN CONNECTOR.
5. Keep the DRAIN CAP for future use when
emptying bucket manually.
OPTION 3, PUMP DRAIN
1. Remove the PUMP DRAIN CAP by turn-
ing clockwise (Reverse thread). (Fig.1)
2. Remove the drain-hole PLUG by pulling out
while pressing in on the coupler. (Fig.2)
Keep the DRAIN CAP and PLUG for future use.
3. Feed the 1/4-inch hose provided through
the hole in the DRAIN CAP. (Fig.3)
4. Insert the end of hose into the drain hole
(Fig.4), then screw DRAIN CAP back
onto the unit. Place the other end of the
hose in the location you want the water to
go: to a floor drain, a water container, or
through a basement window to the
outdoors. (Pump can lift water up to 15
feet above the unit.) Check hose for kinks
or other obstruction.
Fig.1 Fig.2
Fig.3 Fig.4
Fig.1 Fig.2
B
Pressing
Fig.3 Fig.4
5. In the unlikely event the hose comes
loose during pump operation due to
vibration, re-attach hose to continue
automatic pump removal of water.
CAUTION: Do not remove the
bucket while the pump is operating. This
will cause the dehumidifier to stop operat-
ing and result in an “E3” error message.
ALSO: The pump drain hose should not
be both under water AND at a height
that is above the dehumidifier. This can
cause a “back flow” to the dehumidifier
and cause the dehumidifier to stop work-
ing resulting in an “E3” error message.
Following an “E3” error, the unit must be
unplugged and reset to operate. (See
Error Code section of this manual.)
2
1
8
6
5
9
43
10
11
7
CLEANING FRONT GRILLS AND AIR FILTER
1. Remove front grill by pulling out bottom
towards you (Fig.1). Then hold the top of
the grill and lift up gently to remove grill
completely (Fig.2).
2. Pull the bottom of the filter out and lift the
filter out (Fig.3).
Note : The filter is extremely flexible.
The removal of the filter will not damage the filter
3.
Wash with mild detergent and rinse thoroughly.
Air dry away from direct sunlight.
4. Install filter and grill back into unit following
reverse directions listed above.
5.
FRONT GRILL can be cleaned using a vacuum
with a soft brush attachment to remove dust
(Fig.4)
8 9
CARE AND MAINTENANCE
WARNING
•Disconnect power supply cord from
receptacle before performing any
maintenance.
CLEANING THE EXTERIOR
Clean the exterior using a soft brush or dry
towel. But do not spray water directly on the
exterior.
CLEANING THE BUCKET
Pull the bucket out. Lift off bucket cover.
(Fig.1) Clean the inside of bucket every week
using mild detergent in order to block buildup
of mold and bacteria. (Fig.2)
After cleaning, replace the bucket cover
and slide the bucket into the unit. (Fig.3)
Check the float switch to make sure it is not
obstructed. Proper position of the bucket
and the float switch is required for the
dehumidifier to turn on.
Fig.1 Fig.2
Fig.3
Float Switch
TROUBLESHOOTING
Before calling for service, try the suggestions below to see whether you can solve your
problem without outside help.
PROBLEMS CHECK POINT SOLUTIONS
Dehumidifier does not
work when pressing
the POWER ON
button.
Is the power cord plugged into
a grounded 3-prong outlet?
Is BUCKET FULL light on?
Does BUCKET FULL light
appear after emptying the
water bucket?
Plug the power cord securely into a
grounded 3-prong outlet.
Empty the water bucket and
re-install.
Check the float switch to make sure
it is free and not obstructed.
Dehumidifier is
operating, but the
dehumidification
function does not
work.
Is the compressor running as
well as the fan?
Is there frost on the coils?
The unit may be in the defrost
mode. The fan is running but not the
compressor. The unit will return to
dehumidification automatically.
Loud noise and/
or vibration during
operation.
Is the unit on a level surface? Move the unit to a level surface.
Sounds. Sounds like flowing water
during and after operation.
It makes a pinging sound.
This is the normal sound of the
refrigerant flowing through the coils.
Normal sound of expansion and
contraction caused by temperature
changes.
Dehumidification
function is inefficient
Are the filters and grills dirty?
Is indoor temperature under
65°F?
Clean the FRONT GRILL and AIR
FILTER.
Unit does not operate efficiently
below 65°F.
Unit is discharging
warm air.
Normal: Compressor and electric
motor discharge nominal heat.
Water does not drain
through garden hose.
Check the DRAIN CON-
NECTOR making sure it is
installed securely.
Check the garden hose for
tangles or folds.
Re-install it according to this manual.
Flatten the hose or remove block-
age.
Water does not drain
through pump drain
hose.
Check the connecting hose
for tangles or folds.
Does pump display light
appear?
Re-install drain hose according to
this manual.
Flatten the hose or remove blockage.
Turn on the pump.
Fig.1 Fig.2
Fig.3 Fig.4
CLEANING FRONT GRILLS AND AIR FILTER
1. Remove front grill by pulling out bottom
towards you (Fig.1). Then hold the top of
the grill and lift up gently to remove grill
completely (Fig.2).
2. Pull the bottom of the filter out and lift the
filter out (Fig.3).
Note : The filter is extremely flexible.
The removal of the filter will not damage the filter
3.
Wash with mild detergent and rinse thoroughly.
Air dry away from direct sunlight.
4. Install filter and grill back into unit following
reverse directions listed above.
5.
FRONT GRILL can be cleaned using a vacuum
with a soft brush attachment to remove dust
(Fig.4)
8 9
CARE AND MAINTENANCE
WARNING
•Disconnect power supply cord from
receptacle before performing any
maintenance.
CLEANING THE EXTERIOR
Clean the exterior using a soft brush or dry
towel. But do not spray water directly on the
exterior.
CLEANING THE BUCKET
Pull the bucket out. Lift off bucket cover.
(Fig.1) Clean the inside of bucket every week
using mild detergent in order to block buildup
of mold and bacteria. (Fig.2)
After cleaning, replace the bucket cover
and slide the bucket into the unit. (Fig.3)
Check the float switch to make sure it is not
obstructed. Proper position of the bucket
and the float switch is required for the
dehumidifier to turn on.
Fig.1 Fig.2
Fig.3
Float Switch
TROUBLESHOOTING
Before calling for service, try the suggestions below to see whether you can solve your
problem without outside help.
PROBLEMS CHECK POINT SOLUTIONS
Dehumidifier does not
work when pressing
the POWER ON
button.
Is the power cord plugged into
a grounded 3-prong outlet?
Is BUCKET FULL light on?
Does BUCKET FULL light
appear after emptying the
water bucket?
Plug the power cord securely into a
grounded 3-prong outlet.
Empty the water bucket and
re-install.
Check the float switch to make sure
it is free and not obstructed.
Dehumidifier is
operating, but the
dehumidification
function does not
work.
Is the compressor running as
well as the fan?
Is there frost on the coils?
The unit may be in the defrost
mode. The fan is running but not the
compressor. The unit will return to
dehumidification automatically.
Loud noise and/
or vibration during
operation.
Is the unit on a level surface? Move the unit to a level surface.
Sounds. Sounds like flowing water
during and after operation.
It makes a pinging sound.
This is the normal sound of the
refrigerant flowing through the coils.
Normal sound of expansion and
contraction caused by temperature
changes.
Dehumidification
function is inefficient
Are the filters and grills dirty?
Is indoor temperature under
65°F?
Clean the FRONT GRILL and AIR
FILTER.
Unit does not operate efficiently
below 65°F.
Unit is discharging
warm air.
Normal: Compressor and electric
motor discharge nominal heat.
Water does not drain
through garden hose.
Check the DRAIN CON-
NECTOR making sure it is
installed securely.
Check the garden hose for
tangles or folds.
Re-install it according to this manual.
Flatten the hose or remove block-
age.
Water does not drain
through pump drain
hose.
Check the connecting hose
for tangles or folds.
Does pump display light
appear?
Re-install drain hose according to
this manual.
Flatten the hose or remove blockage.
Turn on the pump.
Fig.1 Fig.2
Fig.3 Fig.4
Classification Spec Remark
Model WDH 871
Power Supply AC 115V/60(Hz)
Moisture Capacity 70 Pints 24-Hour Period
Control Type Electronic
Refrigerant R-410A / 11.29 oz. 320g
Humidity Humidity Setting: 35%-70% 5% Increments
Timed Shut-off Setting Range: 1Hr-12Hr 1 Hour Increments
Fan Motor Speed 2 Stages High/Low
Dimensions 15.75x26.30x13.31 in 400x668x338mm
Net Weight 41.9 lbs 19Kg
Operating Temp. 36°F-99°F
Drain Pump 12V DC
Pump Drain Hose .25 in x 18 ft 6.35x5,486mm
Error
Code Error Type Possible Causes Corrective Actions
E3 Pump Drain 1. Improper
bucket
installation.
2. Blockage to
drain hose
system.
3. Back flow of
water through
pump drain
hose.
4. Improper pump
drain hose
installation.
5. Faulty drain
pump.
1. Unplug the dehumidifier.
2. Remove the bucket.
3. Check to make sure that there is nothing
blocking the connection at the base of the
pump or the bucket.
4. Reinstall the bucket, taking care that it is
installed properly.
5. Check to make sure that the pump drain
hose is not crimped or blocked.
6. Check to make sure that the pump drain
hose is not both under water and sitting at
a height above the dehumidifier – this can
cause a “back flow” of water from the hose
to the dehumidifier.
7. Remove and reinstall the pump drain hose,
taking care that the pump drain hose is
installed properly.
8. Plug the dehumidifier in and restart
PRODUCT SPECIFICATIONS
ERROR CODES
10
Classification Spec Remark
Model WDH 871
Power Supply AC 115V/60(Hz)
Moisture Capacity 70 Pints 24-Hour Period
Control Type Electronic
Refrigerant R-410A / 11.29 oz. 320g
Humidity Humidity Setting: 35%-70% 5% Increments
Timed Shut-off Setting Range: 1Hr-12Hr 1 Hour Increments
Fan Motor Speed 2 Stages High/Low
Dimensions 15.75x26.30x13.31 in 400x668x338mm
Net Weight 41.9 lbs 19Kg
Operating Temp. 36°F-99°F
Drain Pump 12V DC
Pump Drain Hose .25 in x 18 ft 6.35x5,486mm
Error
Code Error Type Possible Causes Corrective Actions
E3 Pump Drain 1. Improper
bucket
installation.
2. Blockage to
drain hose
system.
3. Back flow of
water through
pump drain
hose.
4. Improper pump
drain hose
installation.
5. Faulty drain
pump.
1. Unplug the dehumidifier.
2. Remove the bucket.
3. Check to make sure that there is nothing
blocking the connection at the base of the
pump or the bucket.
4. Reinstall the bucket, taking care that it is
installed properly.
5. Check to make sure that the pump drain
hose is not crimped or blocked.
6. Check to make sure that the pump drain
hose is not both under water and sitting at
a height above the dehumidifier – this can
cause a “back flow” of water from the hose
to the dehumidifier.
7. Remove and reinstall the pump drain hose,
taking care that the pump drain hose is
installed properly.
8. Plug the dehumidifier in and restart
PRODUCT SPECIFICATIONS
ERROR CODES
10
Table of contents
Other Winix Dehumidifier manuals
