Winnebago 1995 ICG32RQ User manual

1995
ICG32RQ
F31
F32
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

ACCESSORIES GROUP
OPERATOR MANUAL
KEYPART NUMBER U/MDESCRIPTION
054185-D3-000 EAMANUAL-OPERATOR, 1995 SUNCRUISER - G-SERIES
092318-01-000 EABINDER - 3 RING, MOTOR HOME MANUAL
092319-01-000 EAPOCKET PAGE - 3 RING BINDER, PLASTIC
114399-01-000 DWTOP LEVEL DRAWING, G - 1995
AUDIO VIDEO GROUP
RADIO SYSTEMS & ANTENNAS
KEYPART NUMBER U/MDESCRIPTION
116148-01-000 EARADIO-AM/FM STEREO, CD PLAYER - CLARION 5633CD
110267-03-000 EARADIO-AM/FM STEREO, CD COMPATIBLE - AUDIOVOX IM-400
087683-03-000 EARADIO-AM/FM STEREO, CASSETTE - AUDIOVOX RS-100
110469-01-000 EASPEAKER - 4 X 6, OVAL - COAXIAL - MAGNADYNE F46XB-12
110470-01-01A EAGRILLE-SPEAKER, OVAL - 4" X 6" - BLACK - MAGNADYNE G46WI
074979-08-000 EASHIELD-SPEAKER, BACK - MOLDED PLASTIC - LIGHT OAK
089340-02-000 EAGRILLE-SPEAKER, 6.5" - SQUARE
089340-03-000 EASPACER-GRILLE, 6.5" - SQUARE - TAN - MAGNADYNE G514
094097-01-000 EASPEAKER-RADIO, W/O GRILLE - 5.25" DIAMETER - AUDIOVOX 110C3030
081059-02-000 EAWIRE ASSEMBLY - 9-PIN, RADIO - AUDIOVOX 112B-1761
105248-01-000 EAANTENNA-CB, ADVANCE 8604
090944-01-000 EAANTENNA-RADIO, 16" RUBBER
108847-01-000 EABRACKET-ANTENNA GROUND
077069-02-000 EACABLE-ANTENNA, RADIO - EXTENSION 96" - ARA 6700667
115916-01-01B EABRACKET-ANTENNA MOUNT, MILL FINISH
REAR MONITOR SYSTEM
KEYPART NUMBER U/MDESCRIPTION
093040-05-000 EATELEVISION SYSTEM-REAR VIEW, 7" - SONY YM-RVF7AM
093040-05-700 EAMONITOR - 7", W/POWER HARNESS - SSM721AM
093040-04-700 EACAMERA, W/BRACKET & WIRING - REAR VIEW - SSC-520AM
096717-03-000 EAWIRE ASSEMBLY-REAR MONITOR, UPPER
093040-06-000 EAWIRE ASSEMBLY-MONITOR SONY SM-HRN7
108885-01-000 EAWIRE ASSEMBLY-INSTRUMENT PANEL, REAR MONITOR - CHEVY
093041-01-000 EACABLE-MONITOR/CAMERA, INTERNAL USE
093041-02-000 EACABLE-MONITOR/CAMERA, EXTERNAL USE
093041-03-000 EACABLE-MONITOR/CAMERA, SONY UK121A
PATIO ENTERTAINMENT CENTER
KEYPART NUMBER U/MDESCRIPTION
087683-03-000 EARADIO-AM/FM STEREO CASSETTE, AUDIOVOX RS-100
110469-01-000 EASPEAKER - 4" X 6", OVAL - COAXIAL - MAGNADYNE F46XB-12
110470-01-01A EAGRILLE-SPEAKER, OVAL - 4" X 6" - BLACK - MAGNADYNE G46WI
077069-02-000 EACABLE-ANTENNA, RADIO - EXTENSION 96" - ARA 6700667
090944-01-000 EAANTENNA-RADIO, 16" RUBBER
108847-01-000 EABRACKET-ANTENNA GROUND
109889-04-000 EAEXTENDER-SHAFT, ANTENNA - 3" - MAGNADYNE RV71EX3
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

TV ANTENNA
KEYPART NUMBER U/MDESCRIPTION
1076319-18-000 EAANTENNA-TV, ROOF MOUNT - WINEGARD
2076319-01-700 EAHEAD-ANTENNA, AMPLIFIED - WINEGARD #RVSA U/V
3076319-01-701 EAGEAR-ELEVATING, PLASTIC - WINEGARD #2200046
4076319-01-702 EASHAFT ASSEMBLY-ELEVATING, WINEGARD #RVP-400A
5076319-01-711 EABASE & LIFT ASSEMBLY, WINEGARD #2762802
6076319-01-706 EACRANK-ELEVATING, W/SET SCREW - WINEGARD #5755100
7076319-01-705 EABEARING-NYLON, 7/8" ID - WINEGARD #3200658
8076319-01-708 EADECAL-CRANK, WINEGARD #5413002
9076319-01-707 EASPRING-HANDLE, WINEGARD #5160800
10076319-01-709 EAPLATE-DIRECTIONAL, FOR HEAD - WINEGARD #3200644
11076319-01-712 EAPLATE-CEILING, WINEGARD #3200608
12076319-01-704 EABEARING-NYLON, 1.25" OD - WINEGARD #3200657
13076319-01-713 EAPLATE-BASE, WINEGARD #3100523
14076319-01-703 EABEARING-NYLON, 5" OD - WINEGARD #3200656
15076319-01-714 EAHOUSING, ROTATING GEAR WINEGARD 2200049
AUDIO VIDEO GROUP (CONTINUED)AUDIO VIDEO GROUP (CONTINUED)
TV - VCR SYSTEMS & ANTENNA
KEYPART NUMBER U/MDESCRIPTION
086757-03-000 EACONTROL CENTER-SWITCH, VCR/TV - MAGNADYNE VCS-6
098446-06-000 EAVCR-VHS, CABLE READY - REMOTE - MAGNAVOX VR9210
FROM: 00-00-00 THRU: 10-03-94
098446-06-700 EAREMOTE-MODEL #9210 0974584
098446-07-000 EAVCR-VHS, CABLE READY - REMOTE MAGNAVOX VR9320
FROM: 10-04-94 THRU: 99-99-99
098446-07-700 EAREMOTE-MODEL #VR9320 8874589
113684-01-000 EATV - 19" COLOR, UL AND CSA AUDIOVOX AVT-1975
113684-01-700 EAREMOTE -TV 8822345
092310-02-000 EATV-COLOR, 9" - AC/DC - W/REMOTE - MAGNAVOX RD0945
092310-02-700 EAREMOTE-MODEL #RD0945 0822334
093214-01-02A EAGRILLE-SPEAKER, 4" BROWN
098819-01-000 EASPEAKER - 2 WATT, 8 OHM - 4"
086777-03-000 EAWALLPLATE-CABLE, W/TV ANTENNA SWITCH & BOOSTER - IVORY
086777-01-000 EAWALLPLATE-TV CABLE, W/ANTENNA SWITCH - IVORY
076319-09-000 EAWALLPLATE-CABLE RECEPTACLE, TV - SINGLE - BROWN
086777-05-000 EAWALLPLATE - ANT 1 OUTPUT, IVORY - WINEGARD RV-0921
076319-08-000 EAWALLPLATE-CABLE RECEPTACLE, TV - SINGLE - IVORY
076319-03-000 FT CABLE-COAXIAL, 75 OHM
076319-12-000 EACONNECTOR-COAXIAL, ONE PIECE
082134-01-000 EAADAPTER-TV, CABLE TO CABLE - WINEGARD F-81M
086756-01-000 EASPLITTER-TV, 2 WAY
099717-01-000 EATV TIEDOWN STRAP - 22.8" LONG
082136-01-000 EANUT-HEX JAM 3/8-32, WINEGARD
3
2
4
5
6
7
8
9
10
11
13
12
14
1
15
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

BATH GROUP
BATH CABINETS, SHOWER & COMPONENTS
KEYPART NUMBER U/MDESCRIPTION
1M05993-24-E30 EADOOR-CABINET, W/O HARDWARE - 275MM X 710MM
2111978-01-E10 EACABINET-LINEN, W/O DOOR & HARDWARE
3M05993-23-E30 EADOOR-CABINET, W/O HARDWARE - 285MM X 500MM
4104459-14-F31 EACOUNTERTOP-CABINET,LAVATORY
4104459-14-F32 EACOUNTERTOP-CABINET,LAVATORY
5M05970-69-E30 EADRAWER-CABINET, W/O HARDWARE
6106017-02-F31 EASHELF ASSEMBLY-BATH
6106017-02-F32 EASHELF ASSEMBLY-BATH
7085330-06-000 EATOILET-CHINA, W/SPRAYER - SEALAND 591003 - BONE
8075452-02-000 EAHOLDER-TOILET TISSUE, BRASS
9M05993-76-E30 EADOOR-CABINET, W/O HARDWARE - 380MM X 555MM
10 P04459-02-F31 EACABINET-LAVATORY, W/O DOOR & HARDWARE
10 P04459-02-F32 EACABINET-LAVATORY, W/O DOOR & HARDWARE
11 096927-01-01A EASINK-LAVATORY, RECTANGULAR - PLASTIC - BONE
096927-01-700 EASINK-STOPPER
096927-01-701 EATAILPIECE-SINK
12 075240-06-000 EAFAUCET-LAVATORY, BONE
091253-01-000 EAGASKET-FAUCET,LAVATORY/GALLEY
13 075454-02-000 EARING-TOWEL, W/MOUNTING HARDWARE - BRASS
14 058331-51-000 EAMIRROR-GLASS, SAFETY - 600MM X 1016MM
15 110235-01-01A EALIGHT-MAKE UP, 3 BULB PANLESS - PD PD200-621 - BRASS
16 M02630-22-C07 EASHOWER PAN ASSEMBLY
066440-01-000 EASTRAINER-W/RUBBER WASHER
069735-01-000 EAWASHER-STRAINER TO TAILPIECE PLASTIC, 1.5"
011069-04-000 EATAILPIECE - 1 1/2 X 1 1/4 X 8 - BRASS
011069-03-000 EATAILPIECE-SHOWER/TUB, 1 1/2" X 1 3/4" - PLASTIC - US
011069-02-000 EATAILPIECE-TUB/SHOWER, 1 1/2" X 1 1/4" X 4" - BRASS - CANADIAN
066436-01-000 EANUT-SLIP, TAILPIECE - 1.5"
091208-01-000 EAWASHER-RUBBER, .06" X .75" X .5"
17 075241-05-000 EAFAUCET-SHOWER, BONE
18 104462-01-01A EACADDY-SHOWER, OFF WHITE
113714-02-01A EARETAINER-SHELF, SHOWER - OFF WHITE
19 103092-01-000 EASHOWER HEAD-W/60" HOSE, US
19 103092-02-000 EASHOWER HEAD-W/HOSE, CANADIAN
011048-03-700 EABRACKET-SHOWER HEAD, BONE
103092-01-700 EABRACKET-SHOWER HEAD, CLEAR - 2328028
20 104464-02-01A EASURROUND-SHOWER, OFF WHITE
057671-01-000 EACOVER-SCREW, #8 - PLASTIC - OFF WHITE
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

WARDROBE CABINETS & PRIVACY DOOR
KEYPART NUMBER U/MDESCRIPTION
1104013-03-F31 EADOOR-SLIDING
103874-01-000 EAHANGER-SLIDINGDOOR
103868-03-01A EATRACK-SLIDING DOOR, OFF WHITE
103908-03-C27 EAHEADER-DOOR
098410-01-01A EAPULL-FINGER, OVAL - BRASS
2M06804-11-E30 EADOOR-WARDROBE, W/O HARDWARE
BATH PRIVACY DOOR
KEYPART NUMBER U/MDESCRIPTION
M87868-23-E10 EADOOR-CABINET, BATH
009059-02-000 EAHINGE - 2 IN, BRASS
094485-03-01A EAKNOB-DOOR, BRASS
100357-01-000 EAROD-TOWEL, BRASS W/ENDS BENT FOR BACK OF BATH DOOR
102089-13-E07 EAMOUNT-TOWEL ROD, RIGHT SIDE - 26" LONG - WOOD
102089-14-E07 EAMOUNT-TOWEL ROD, LEFT SIDE - 26" LONG - WOOD
BATH GROUP (CONTINUED) BATH GROUP (CONTINUED)
1
2
3
4
5
6
7
8
9
10
11
12 13 14
15 16
17
18
19
TOILET & COMPONENTS
KEYPART NUMBER U/MDESCRIPTION
1085330-06-000 EATOILET-CHINA, STANDARD W/SPRAYER - 591003 - BONE
2085330-06-700 EASEAT ASSEMBLY, BONE - 340591
3085330-06-702 EAHARDWARE SET-HINGE, BONE - 342131
4085330-01-703 EARING & HALF CLAMPS ASM, BONE - 385310048
5085330-01-704 EATEFLON & RUBBER SEALS - 385316140
6085330-01-705 EASUPPORT-SEAL, PLASTIC - 390346405
7085330-02-700 EABASE ASM - 310121
8085330-02-702 EACOVER KIT-PEDESTAL, BONE - 510 - 310112
9085330-01-714 EASEAL-FLANGE, FLOOR - 390343892
10 085330-01-717 EABOLT MOUNTING PACKAGE - 385310064
085330-01-718 EASEAL & BOLT MOUNTING PACKAGE - 385310063
11 085330-01-706 EABALL-SHAFT & CARTRIDGE, 385318162
12 085330-02-703 EACOVER KIT-PEDAL, BONE - NEW STYLE - 310115
13 085330-01-709 EAVALVE-WATER, 385314349
14 085330-01-707 EACARTRIDGE-SPRING, 381236096
15 085330-06-703 EAFLUSH LEVER - 340873
16 085330-01-710 EAPLUG-DRAIN & CAP, W/SEAL - 385316142
17 085330-06-701 EAVALVE-W/DIVERTER, VACUUM BREAKER - 230335
18 085330-06-704 EAVACUUM BREAKER KIT - 316906
19 085330-04-706 EABREAKER-VACUUM, W/HAND SPRAY - 385319055
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

BEDROOM GROUP
KEYPART NUMBER U/MDESCRIPTION
1107563-01-F31 EACABINET-CHEST, W/O DRAWERS - PASSENGER SIDE
1107563-01-F32 EACABINET-CHEST, W/O DRAWERS - PASSENGER SIDE
2107563-11-F31 EACOUNTERTOP-CABINET
2107563-11-F32 EACOUNTERTOP-CABINET
3M05193-02-C07 EACABINET-TWIN BED TOP, PASSENGER SIDE
4M05993-79-F31 EADOOR-CABINET, W/O HARDWARE - 305MM X 555MM
5104507-11-F31 EACOUNTERTOP-NIGHTSTAND
5104507-11-F32 EACOUNTERTOP-NIGHTSTAND
6M05993-21-E30 EADOOR-CABINET, W/MIRROR - 400MM X 710MM
108536-06-04A EAMIRROR-GLASS, FERNLY - 330MM X 640MM
6M05993-48-E30 EADOOR-CABINET, W/O HARDWARE - 400MM X 710MM - EXPORT
7M05993-22-E30 EADOOR-CABINET, W/MIRROR - 400MM X 520MM
108536-05-04A EAMIRROR-GLASS, FERNLY - 330MM X 450MM
7M05993-41-E30 EADOOR-CABINET, W/O HARDWARE - 400MM X 520MM - EXPORT
8M06839-04-E30 EACABINET-OVERHEAD, W/O DOORS & HARDWARE
8M06839-02-E30 EACABINET-OVERHEAD, W/O DOORS & HARDWARE - EXPORT
9104507-01-F31 EACABINET-NIGHTSTAND
9104507-01-F32 EACABINET-NIGHTSTAND
10M05970-65-F31 EADRAWER-NIGHTSTAND, W/O HARDWARE
11M05970-73-F31 EADRAWER-NIGHTSTAND, W/O HARDWARE
12M05194-02-C07 EACABINET-TWIN BED TOP, DRIVER SIDE
13M05197-03-C27 EACABINET-TWIN BED BASE, DRIVER SIDE
14M05197-03-C27 EACABINET-TWIN BED BASE, PASSENGER SIDE
15 104362-11-F31 EACOUNTERTOP-CABINET
15 104362-11-F32 EACOUNTERTOP-CABINET
16107562-01-F31 EACABINET-CHEST, W/O DRAWERS - DRIVER SIDE
16107562-01-F32 EACABINET-CHEST, W/O DRAWERS - DRIVER SIDE
17 M05970-71-E30 EADRAWER-CABINET, W/O HARDWARE
18 104826-01-E10 EASHELF-TV
19 111236-15-E07 EASHELF-TV WEDGE
107796-05-000 EABRACKET-GAS SPRING, SPDI SPD-1020
107796-06-000 EASPRING-GAS, 20" LENGTH - 120 LB - SPDI SPD-2300-120
107796-07-000 EABRACKET-GAS SPRING, SPDI SPD-1080
TWIN BEDROOM CABINETS
KEYPART NUMBER U/MDESCRIPTION
1104826-01-F31 EASHELF-TV
2111236-15-E07 EASHELF-TV WEDGE
3M05970-79-E30 EADRAWER-NIGHTSTAND, W/O HARDWARE
4M05970-70-E30 EADRAWER-NIGHTSTAND, W/O HARDWARE
5104361-11-F31 EACOUNTERTOP-NIGHTSTAND
5104361-11-F32 EACOUNTERTOP-NIGHTSTAND
6M06804-37-E30 EADOOR-CABINET, W/O HARDWARE
058331-A7-000 EAMIRROR-CABINET DOOR
7110625-01-F04 EACABINET-SHIRT CLOSET, W/O DOORS & HARDWARE
8M06839-05-E30 EACABINET-OVERHEAD, W/O DOORS & HARDWARE
8M06853-01-E30 EACABINET-OVERHEAD, W/O DOORS & HARDWARE - EXPORT
9M05993-21-E30 EADOOR-CABINET, W/MIRROR - 400MM X 710MM
108536-06-04A EAMIRROR-GLASS, FERNLY - 330MM X 640MM
9M05993-48-E30 EADOOR-CABINET, W/O HARDWARE - EXPORT
10110625-02-F04 EACABINET-SHIRT CLOSET, W/O DOORS & HARDWARE
11104361-01-F31 EACABINET-NIGHTSTAND, W/O DRAWERS
11104361-01-F32 EACABINET-NIGHTSTAND, W/O DRAWERS
12 104362-11-F31 EACOUNTERTOP-NIGHTSTAND
12 104362-11-F32 EACOUNTERTOP-NIGHTSTAND
13104362-01-F31 EACABINET-NIGHTSTAND, W/O DRAWERS
13104362-01-F32 EACABINET-NIGHTSTAND, W/O DRAWERS
14P13089-01-E33 EACABINET-QUEEN BED, W/O TOP
15 M05905-06-E10 EATOP-QUEEN BED CABINET
041389-25-000 EAHINGE-PIANO,1.50 X 1397.0 - MILL FINISH - STOCKER HINGE
057460-02-000 EABALL-STUD, 10MM BALL - 5/16-18
057460-04-000 EASPRING-GAS
089025-01-000 EASUPPORT-SPRING, TO BED - ANGLE 1.5" X 11.8" LONG - STEEL
109645-02-000 EABRACKET-SUPPORT, FLOOR
BEDROOM GROUP (CONTINUED)
QUEEN BEDROOM CABINETS
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

FRONT BUMPER
KEYPART NUMBER U/MDESCRIPTION
1103497-01-000 EABRACE-BUMPER, FRONT - UPPER
2103611-01-000 EABRACE-BUMPER, FRONT - LOWER
3086140-04-000 EASUPPORT-FRONT BUMPER, DRIVER SIDE - 9.1" X 4" - STEEL
4103512-01-000 EACHANNEL ASSEMBLY-BUMPER
5111077-01-E10 EABUMPER PANEL-FRONT
6104318-02-C07 EAGRILLE ASSEMBLY-BUMPER
7086140-03-000 EASUPPORT-FRONT BUMPER, PASSENGER SIDE - 9.1" X 4" - STEEL
REAR BUMPER
KEYPART NUMBER U/MDESCRIPTION
1104418-07-000 EAANGLE-SUPPORT, BUMPER REAR
2103228-01-05A EAEND CAP-REAR BUMPER, BLACK
3103099-01-02A EABUMPER-REAR, OFF WHITE
4107707-01-000 EAHITCH ASM-CLASS II
5034512-01-000 EAPIN-LOCKING, DRAWBAR
6034513-01-000 EAPIN-HITCH, 3/16" WIRE
113589-01-000 EACONNECTOR-PLUG,TRAILER
113589-02-000 EACONNECTOR-SOCKET,TRAILER
CHASSIS GROUP CHASSIS GROUP (CONTINUED)
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

CHASSIS GROUP (CONTINUED)CHASSIS GROUP (CONTINUED)
COMPARTMENTS & TRAYS
KEYPART NUMBER U/MDESCRIPTION
1094657-02-000 EATRAY-GENERATOR, 22.5" X 30.4" X 6.9" W/ANGLE & NUTS
2055374-03-000 EAREAR WHEELWELL-PLASTIC
3M06991-03-F36 EACOMPARTMENT-SEWER HATCH
4114679-01-01A EACOMPARTMENT-POWERCORD
5107717-01-000 EACOMPARTMENT-LP
109778-01-000 EASHIELD-TANK, LP
6017516-01-000 EAFLAP-MUD, 14" X 18" - BLACK
7020167-05-000 EADIRT GUARD-STEEL, 380MM LONG
065450-05-000 EATIEDOWN-BATTERY, 8.4" TUBE
115361-01-01A EAPLUG-PLASTIC, CAPLUG NO.W5
EXTERIOR ENTERTAINMENT CENTER
KEYPART NUMBER U/MDESCRIPTION
1104897-01-01A EABOX-ENTERTAINMENT CENTER, OFF WHITE
2104899-01-C05 EAMOUNTINGPLATE-RADIO
3105377-01-01A EABRACKET-TABLE HANGER, OFF WHITE
4105376-01-02A EAHINGE-CONTINUOUS, 2" X 140MM - OFF WHITE
5105230-11-E01 EASHELF-ENTERTAINMENT CENTER BOX
6105230-12-E01 EASUPPORT-SHELF
105230-01-E01 EASHELF & SUPPORT ASSEMBLY
7104898-01-01A EAPLATE-BOTTOM, PLASTIC - OFF WHITE
8104898-02-01A EAPLATE-BACK, PLASTIC - OFF WHITE
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

CHASSIS GROUP (CONTINUED)
HYDRAULIC LEVELING SYSTEM - CHEVY & FORD
KEYPART NUMBER U/MDESCRIPTION
100532-08-000 EALEVELING SYSTEM-HYDRAULIC, JOYSTICK HWH AP0758
100532-01-704 EASWITCH-MERCURY, 6K & 9K JACK RAP1010
100532-01-705 EASPRING KIT - 9K JACK R1171
100532-02-700 EAJACK ASSEMBLY - 6K TALL RAP7164
100532-02-701 EASPRING KIT - 6K JACK R6824
100532-02-704 EAACTIVATOR CABLE - 6K JACK RAP7194
100532-02-705 EAPUMP/RESERVOIR ASSEMBLY-MONARCH RAP8178
100532-03-710 EASENSING UNIT - 21' MTA RAP6798
100532-03-715 EACAP-BREATHER RAP7876
100532-08-700 EAPOWER UNIT ASSEMBLY RAP0595
100532-08-701 EABI AXIS CONTROL, 200 SYSTEM RAP0612
100532-08-702 EAVALVE-BI AXIS RAP9589
100532-08-703 EAPANEL ASSEMBLY - 200 BI AXIS SYSTEM RAP9755
100532-08-704 EAJACK ASSEMBLY - 9K TALL, 200 SYSTEM RAP7002
100532-09-707 EAACTUATOR ASSEMBLY - 9K RAP0547
100532-09-709 EAACTUATOR ASSEMBLY - 6K RAP0448
100532-09-710 EASOLENOID - 4 POST INT. DUTY RAP0533
100533-06-000 EABRACKETS-FRONT LEVELING JACK, HWH AP7160 - FORD
100534-06-000 EABRACKETS-REAR LEVEL JACK, HWH AP6957 - FORD
100533-05-000 EABRACKETS-FRONT LEVELING JACK, HWH AP7107 - GM
100534-12-000 EABRACKETS-REAR,LEVELING JACKS, HWH AP0921 - GM
100536-11-000 EAHOSE KIT-HWH AP0013
107890-01-000 EAELBOW-STEEL, 90 D 1/4 X 37 D FLARE - PARKER 4-C6X-S
112236-01-E30 EAMONITOR ASSEMBLY-LEVELING JACKS
112236-01-E10 EABEZEL-MONITOR
ELECTRIC STEP
KEYPART NUMBER U/MDESCRIPTION
094707-01-01A EASTEP-DOUBLE, ELECTRIC - KWIKEE 3218
094707-02-700 EAMOTOR REPLACEMENT KIT, MODELS 32 & 28 - KWIKEE 9520
094707-02-701 EALINKAGE ASSEMBLY-MODEL 32 - KWIKEE 9523
094707-02-702 EAGEAR KIT-KWIKEE 9525
094707-02-703 EAPARTS KIT-BEARINGS & PINS, KWIKEE 9530
094707-02-704 EACONNECTOR KIT-MOTOR, KWIKEE 9537
094707-02-705 EACONTROL UNIT, WHITE - KWIKEE 9513
094707-02-707 EANON-SKID TREAD, BLACK - 6" X 21" 909333
P01713-01-000 EASWITCH ASSEMBLY-SEALED, STEP AND DOOR SWITCH
FROM: 00-00-00 THRU: 10-23-94
116995-01-000 EASWITCH/MAGNET-STEP, ELECTRIC - KWIKEE 905306
FROM: 10-24-94 THRU: 99-99-99
113285-01-01A EASEAL-STEP, SWITCH - BLACK - LUNDELL
ENTRANCE DOOR STEP COMPARTMENT
KEYPART NUMBER U/MDESCRIPTION
104006-01-C05 EALID-ENTRANCE STEP COMPARTMENT, W/O CARPET
101222-01-02A EABRACKET-CATCH, LID - OFF WHITE
107941-01-02A EASUPPORT-LID, ENTRANCE STEP - OFF WHITE
CHASSIS GROUP (CONTINUED)
SHOCK ABSORBER-CHEVY
KEYPART NUMBER U/MDESCRIPTION
104993-01-000 EASHOCK ABSORBER-GAS, P30 FRONT - BILSTEIN B46-1173
CHASSIS MISCELLANEOUS
KEYPART NUMBER U/MDESCRIPTION
093287-07-01A EANET-CARGO, 34" X 10" INSTALLED
093287-11-01A EANET-CARGO, 64.8" X 10" INSTALLED
080208-01-000 EALUG WRENCH - 1.06 X 1.00
080208-02-000 EABAR-LEVERAGE, LUG WRENCH
070579-06-000 EAPLATE-ANCHOR, W/7/16 WELD NUT - 1.5" X 3.3"
087234-01-000 EANUT-JACK, 1/4 X 20 THD - MOLLY - MOUNTS LICENSE PLATES - BRASS
076310-01-000 EASHEET-RUBBER, RADIATOR BAFFLE - .12" X 15" X 62" - BLACK
110934-01-000 EACONNECTOR-PLASTIC, BARB 5/16 KEVCO TC 7055
113007-01-000 EAPIN-SPRING, .375 X 3.00" - FORD
113007-03-000 EAPIN-SPRING, .188 X .50"
056748-01-000 EAPLUG-CAP, 1.5" DIAMETER - BLACK
110605-01-000 EATEE-PLASTIC, BARB -1/8 X 1/8 X 3/16
113875-01-000 EAHOSE-HUMP, 3" - TURBO CHARGER TO AIR DUCT - GRIFFITH HH3 - DIESEL
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

CHASSIS GROUP (CONTINUED)
EXHAUST SYSTEM - FORD
KEYPART NUMBER U/MDESCRIPTION
1075307-03-000 EASHIELD-HEAT, LP
2096055-05-000 EASUPPORT-EXHAUST PIPE
3095190-01-000 EAHANGER-EXHAUST PIPE
4102117-06-000 EAHANGER-TAILPIPE
5112166-01-000 EAPIPE-EXHAUST, TAIL - FORD - REAR
6112165-01-000 EAPIPE-EXHAUST, TAIL - FORD - FRONT
007125-07-000 EACLAMP-MUFFLER, 2.50" DIAMETER
7007125-05-000 EACLAMP-MUFFLER, 2" DIAMETER
8101544-06-000 EASHIELD-HEAT, EXHAUST - STEEL
CHASSIS GROUP (CONTINUED)
EXHAUST SYSTEM - CHEVY
KEYPART NUMBER U/MDESCRIPTION
1101544-01-000 EASHIELD-HEAT, EXHAUST - 19.7" X 28.9" - STEEL
2101544-02-000 EASHIELD-HEAT, EXHAUST - 30" X 28.9" - STEEL
3094918-01-000 EACLAMP-EXHAUST, 3 INCH
4098762-06-000 EAPIPE-EXHAUST, TAIL - GM
114668-01-000 EAPIPE-EXHAUST, EXTENSION - 6.5L DIESEL - EXPORT
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

EXHAUST SYSTEM CHEVY - W/LEVELING JACKS
KEYPART NUMBER U/MDESCRIPTION
1101544-01-000 EASHIELD-HEAT, EXHAUST - 19.7" X 28.9" - STEEL
2101544-02-000 EASHIELD-HEAT, EXHAUST - 30" X 28.9" - STEEL
3107754-01-000 EAPIPE-EXHAUST, TAIL - GM FROM: 00-00-00 THRU: 12-18-94
4095223-03-000 EABRACKET-EXHAUST, LOWER FROM: 00-00-00 THRU: 12-18-94
5095190-01-000 EAHANGER-EXHAUST, 4" X 1.4"
6095523-11-000 EABRACKET-EXHAUST, UPPER FROM: 00-00-00 THRU: 12-18-94
102117-02-000 EAHANGER ASSEMBLY-TAILPIPE FROM: 00-00-00 THRU: 12-18-94
CHASSIS GROUP (CONTINUED) CHASSIS GROUP (CONTINUED)
FUEL SYSTEM - FORD
KEYPART NUMBER U/MDESCRIPTION
1095854-01-01A EASHROUD-FUEL FILL
2078200-01-000 EAGASKET-FUEL FILL, 3.5" OD X 2" ID
3087256-07-000 EANECK ASM-FUEL FILL, FORD
4066732-01-000 FT HOSE-FUEL FILL, .62" ID
5098806-01-000 EAPIPE-FILL VENT, 90 DEGREE BEND - .625" OD - STEEL
6007111-02-000 EAHOSE-FUEL FILL, 2.00 ID - IN 3FT LENGTHS
007063-01-000 FT HOSE-GAS, 1/4" ID X 1/2" OD
084884-01-000 EAPLUG-BRASS, 3/8"
FUEL SYSTEM - CHEVY
KEYPART NUMBER U/MDESCRIPTION
1098807-01-000 EAPIPE-FUEL FILL, 90 DEGREE BEND - 6.6" - 1 3/4" OD - STEEL
2095854-01-01A EASHROUD-FUEL FILL
3078200-01-000 EAGASKET-FUEL FILL, 3.5" OD X 2" ID
4087256-06-000 EANECK ASM-FUEL FILL FROM: 00-00-00 THRU: 02-05-95
4087256-10-000 EANECK ASM-FUEL FILL FROM: 02-06-95 THRU: 99-99-99
4087256-08-000 EANECK ASM-FUEL FILL, 6.5L DIESEL - EXPORT
5066732-01-000 FT HOSE-FUEL FILL, .62" ID
6098806-01-000 EAPIPE-FILL VENT, 90 DEGREE BEND - .625" OD - STEEL
7098803-02-000 EAPIPE-FUEL FILL FROM: 00-00-00 THRU: 02-05-95
7098803-01-000 EAPIPE-FUEL FILL, 90 DEGREE BEND - 13.2" - 1 3/4" OD - STEEL
FROM: 02-06-95 THRU: 99-99-99
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

CHASSIS GROUP (CONTINUED)
TIRE & WHEEL - FORD
KEYPART NUMBER U/MDESCRIPTION
083425-05-000 EATIRE-MICHELIN - LT235/85R16 LRE - XPS RIB
095853-01-000 EAWHEEL-STEEL, 16" X 6K - F2TA-1015 - NA
051377-05-000 EAVALVE STEM ASSEMBLY, VS-938 F53-92
WHEEL LINERS - FORD
KEYPART NUMBER U/MDESCRIPTION
091209-08-000 EALINER-WHEEL, SET/4 FROM: 00-00-00 THRU: 12-11-94
091209-01-704 EALUG NUT COVER W/O FLANGE 36 KAPER
091209-08-704 EAFRONT SIMULATOR
091209-08-705 EAREAR SIMULATOR
091209-08-706 EAFLAT NUT - .500, 9/16 STUD
077030-02-000 EAEXTENSION-VALVE STEM, 1.25"
095012-03-000 EAEXTENSION-VALVE STEM, DUAL WHEEL
095012-04-000 EASTABILIZER-VALVE EXTENSION, DICOR AG-STA-2
091209-14-000 EALINER-WHEEL, SET/4 - F53/1PC KAPER II 1611-4ULT4
FROM: 12-12-94 THRU: 99-99-99
WHEEL COVERS - FORD
KEYPART NUMBER U/MDESCRIPTION
098532-01-000 EACOVER-WHEEL, FORD - 16" - SET OF 4
098532-01-700 EACOVER-LUG NUT, CHROME
098532-01-701 EACOVER-WHEEL, 16"
TIRE - CHEVY
KEYPART NUMBER U/MDESCRIPTION
007324-03-000 EATIRE-MICHELIN, 8R 19.8 LRF
051377-01-000 EAVALVE STEM-TR 500
WHEEL LINERS - CHEVY
KEYPART NUMBER U/MDESCRIPTION
091209-01-000 EALINER-WHEEL, 19.5" - SST - SET OF 4 - KAPER 1954-ION
091209-01-700 EALINER-WHEEL, 19.5" - FRONT - 10 LUG - CHEVY P-30
091209-01-701 EALINER-WHEEL, 19.5" - REAR - 10 LUG - CHEVY P-30
091209-01-702 EACOVER-AXLE, 19.5" - FRONT - 10 LUG - CHEVY P-30
091209-01-703 EACOVER-AXLE, 19.5" - REAR - 10 LUG - CHEVY P-30
091209-01-704 EACOVER-LUG NUT
077030-02-000 EAEXTENSION-VALVE STEM, 1.25"
095012-03-000 EAEXTENSION-VALVE STEM, DUAL WHEEL
095012-04-000 EASTABILIZER-VALVE EXTENSION, DICOR AG-STA-2
WHEEL COVERS - CHEVY
KEYPART NUMBER U/MDESCRIPTION
109443-01-000 EAWHEEL-COVER, 4/SET - 19.5 W/HARDWARE
109443-01-700 EAWHEEL-COVER, 19.5 - FRONT & REAR - SHAG95 DICOR
109443-01-701 EASET-BRACKET, 1 FRONT WHEEL - SHAG95-FBS DICOR
109443-01-702 EASET-BRACKET, 1 REAR WHEEL - SHAG95-RBS DICOR
109443-01-703 EACAP-CENTER, HUB - DICOR
NOTE: USE THIS ILLUSTRATION WHEN DETERMINING LENGTH AND WIDTH MEASUREMENTS FOR
CURTAINS. YOU WILL NOTE THE WIDTH MEASUREMENT IS TAKEN ON THE TOP OF THE
CURTAIN WITH THE CURTAIN FULLY EXTENDED. THE LENGTH MEASUREMENT IS TAKEN
FROM TOP TO BOTTOM. LEFT AND RIGHT WINDOW LEGS ARE DETERMINED WHEN FACING
THE WINDOW.
CURTAIN & CUSHION GROUP
NOTICE
IN ORDER TO ASSIST OUR PARTS SALES DEPT. IN PROVIDING INTERIOR SOFTGOODS ITEMS,
PLEASE INCLUDE THE SERIAL NUMBER AND THE COLOR CODE NUMBER FROM THE VEHICLE
CERTIFICATION LABEL WHEN ORDERING. THIS LABEL IS LOCATED ON THE LEFT SIDEWALL
AT THE END OF THE DASH (A-BODY),OR ON THE DRIVER'S DOOR LATCH PLATE (C-BODY).
AN EXAMPLE OF A COLOR CODE NUMBER IS B07, WHICH DESIGNATES AN OVERALL COLOR
SCHEME OF A PARTICULAR UNIT. THE COLOR LISTED AFTER THE ITEM DESCRIPTION ON THE
MICROFICHE, INDICATES THE OVERALL UNIT COLOR. ORDER THE ITEM YOU DESIRE ACCORD-
ING TO UNIT COLOR CODE.
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

CURTAIN & CUSHION GROUP (CONTINUED)
FABRIC & TRIMS
KEYPART NUMBER U/MDESCRIPTION
072333-85-000 YDFABRIC-DRAPERY, MUSHROOM
087272-03-000 YDDRAPERY-LINING, 54" IVORY
079680-07-000 YDFABRIC-VINYL, 54" WIDE - BEIGE
089351-03-000 YDVINYL-CEILING, DIAMOND DESIGN - 54" WIDE
103907-01-01A YDFABRIC-VINYL, 54" WIDE - OFF WHITE
105745-88-000 YDFABRIC-BEDSPREAD, MAIN (F31)
105745-93-000 YDFABRIC-BEDSPREAD, MAIN (F32)
105745-87-000 YDFABRIC-BEDSPREAD, ACCENT (F31)
105745-92-000 YDFABRIC-BEDSPREAD, ACCENT (F32)
108446-C7-000 YDFABRIC-UPHOLSTERY, MAIN (F31)
108446-C8-000 YDFABRIC-UPHOLSTERY, MAIN (F32)
108446-C9-000 YDFABRIC-UPHOLSTERY, PLAIN ACCENT (F31)
108446-55-000 YDFABRIC-UPHOLSTERY, PLAIN ACCENT (F32)
108446-D0-000 YDFABRIC-UPHOLSTERY, PATTERN ACCENT (F31)
108446-76-000 YDFABRIC-UPHOLSTERY, PATTERN ACCENT (F32)
079349-04-F31 YDWELT-NARROW, ACCENT (F31)
079349-04-E22 YDWELT-NARROW, ACCENT (F32)
ASSIST HANDLE & BUTTONS
KEYPART NUMBER U/MDESCRIPTION
007021-01-000 EABELT-SEAT, 2" X 90" - BLACK
057759-01-000 EAWASHER BRACKET-SEAT BELT, 4" DIAMETER
069178-02-000 EABRACKET-MOUNTING, ASSIST HANDLE - L ANGLE - W/HOLES - ST
000C16-07-16B EABOLT-CARRIAGE, ASSIST HANDLE - 7/16" - 14 X 1" - ZINC
000D20-07-00B EANUT-ACORN,ASSIST HANDLE - 7/16" X 14 - ZINC
053552-02-AA8 EAHANDLE-ASSIST, INTERIOR - ENTRY DOOR - VINYL - OFF WHITE
070578-02-B29 EABUTTON-SCREW, STUD - #30 - VINYL
CURTAIN & CUSHION GROUP (CONTINUED)
CURTAINS & WINDOW TREATMENT
KEYPART NUMBER U/MDESCRIPTION
1115811-03-F31 EAVALANCE ASSEMBLY-LAMBREQUIN, 52" - THREE SIDED
1115811-03-F32 EAVALANCE ASSEMBLY-LAMBREQUIN, 52" - THREE SIDED
1111910-24-F31 EABLIND-DAY/NIGHTER, 49" X 28.5" DROP - SHELL SATIN/ALABASTER
1111910-24-F32 EABLIND-DAY/NIGHTER, 49" X 28.5" DROP - LINEN BEIGE/ALABASTER
2115811-04-F31 EAVALANCE ASSEMBLY-LAMBREQUIN, 44" - THREE SIDED
2115811-04-F32 EAVALANCE ASSEMBLY-LAMBREQUIN, 44" - THREE SIDED
2111910-25-F31 EABLIND-DAY/NIGHTER, 41" X 28.5" DROP - SHELL SATIN/ALABASTER
2111910-25-F32 EABLIND-DAY/NIGHTER, 41" X 28.5" DROP - LINEN BEIGE/ALABASTER
3109041-20-01A EABLIND-MINI, 31" X 18" DROP - PURE SILVER
109353-07-01A EAVALANCE-BLIND, 31" SLAT - PURE SILVER
109353-04-000 EACLIP-VALANCE SLAT MOUNTING, CLEAR PLASTIC
3109041-20-02A EABLIND-MINI, 31" X 18" DROP - BEIGE
109353-07-02A EAVALANCE-BLIND, 31" SLAT - BEIGE
109353-04-000 EACLIP-VALANCE SLAT MOUNTING, CLEAR PLASTIC
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

CURTAINS & WINDOW TREATMENT (CONTINUED)
KEYPART NUMBER U/MDESCRIPTION
4115811-01-F31 EAVALANCE ASSEMBLY-LAMBREQUIN, 44" - THREE SIDED
4115811-01-F32 EAVALANCE ASSEMBLY-LAMBREQUIN, 44" - THREE SIDED
4109802-38-F31 EABLIND-PLEATED, 60" X 30" - MULBERRY
FROM: 00-00-00 THRU: 01-01-95
4109802-38-FA1 EABLIND-PLEATED, 60" X 30" - SHELL SATIN
FROM: 01-02-95 THRU: 99-99-99
4109802-38-F32 EABLIND-PLEATED, 60" X 30" - LINEN BEIGE
5101668-46-E91 EACURTAIN-FRONT WRAP AROUND, 48" X 95" - LH - TAPE TOP
6101668-45-E91 EACURTAIN-FRONT WRAP AROUND, 48" X 95" - RH - TAPE TOP
7115811-07-F31 EAVALANCE ASSEMBLY-LAMBREQUIN, 33" - THREE SIDED
7115811-07-F32 EAVALANCE ASSEMBLY-LAMBREQUIN, 33" - THREE SIDED
7109802-39-F31 EABLIND-PLEATED, 30" X 30" DROP - PLUM
FROM: 00-00-00 THRU: 01-01-95
7109802-39-FA1 EABLIND-PLEATED, 30" X 30" DROP - SHELL SATIN
FROM: 01-02-95 THRU: 99-99-99
7109802-39-F32 EABLIND-PLEATED, 30" X 30" DROP - LINEN BEIGE
8084755-57-E07 EASHADE-PULL, 27.25" - W/O TRIM
SHOWER CURTAIN
KEYPART NUMBER U/MDESCRIPTION
084481-25-D36 EACURTAIN-SHOWER, 67" X 38" - GROMMET TOP (F31)
084481-25-E10 EACURTAIN-SHOWER, 67" X 38" - GROMMET TOP (F32)
CURTAIN TIEBACKS
KEYPART NUMBER U/MDESCRIPTION
073260-42-C18 EATIEBACK-CURTAIN, 6" X 18" - FRONT WRAP AROUND CURTAINS
073260-54-D36 EATIEBACK-CURTAIN, 3" X 16" - SHOWER CURTAIN (F31)
073260-54-E01 EATIEBACK-CURTAIN, 3" X 16" - SHOWER CURTAIN (F32)
057534-03-000 EATIEBACK-PLASTIC, 7.5" - CLEAR
057534-01-000 EATIEBACK/TIEDOWN-BED/CURTAIN/DOOR, 6" - PLASTIC - CLEAR
CURTAIN & CUSHION GROUP (CONTINUED)
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

CURTAIN & CUSHION GROUP (CONTINUED)
BUCKET SEAT
KEYPART NUMBER U/MDESCRIPTION
1111855-03-F31 EASEAT-WINDSOR, W/EXECUTIVE ARMRESTS
1111855-03-F32 EASEAT-WINDSOR, W/EXECUTIVE ARMRESTS
2M05962-03-F31 EACOVER-BACK, WINDSOR
2M05962-03-F32 EACOVER-BACK, WINDSOR
3111320-03-F31 EAARMREST-RIGHT HAND
3111320-03-F06 EAARMREST-RIGHT HAND (F32)
3P11320-03-F31 EACOVER-ARMREST, W/PAD - RIGHT HAND
3P11320-03-F06 EACOVER-ARMREST, W/PAD - RIGHT HAND (F32)
4111320-04-F31 EAARMREST-LEFT HAND
4111320-04-F06 EAARMREST-LEFT HAND (F32)
4P11320-04-F31 EACOVER-ARMREST, W/PAD - LEFT HAND
4P11320-04-F06 EACOVER-ARMREST, W/PAD - LEFT HAND (F32)
5M05962-04-F31 EACOVER-SEAT, WINDSOR
5M05962-04-F32 EACOVER-SEAT, WINDSOR
6M80906-11-000 EAFRAME-SEAT, BACK & SPRING
7069246-05-000 EAADJUSTER SIDE-W/LOCK, FORWARD & BACK
FROM: 00-00-00 THRU: 10-16-94
069246-05-700 EASPRING-ADJUSTER, FOR REMOTE FROM: 00-00-00 THRU: 10-16-94
7 069246-14-000 EAADJUSTER SIDE-W/ LOCK, FORWARD & BACK
FROM: 10-17-94 THRU: 99-99-99
069246-99-000 EASPRING-ADJUSTER, FOR REMOTE - LIGHT BLUE
FROM: 10-17-94 THRU: 99-99-99
117125 01 02B EABRACKET-CABLE HOLDER, STEEL FROM: 10-17-94 THRU: 99-99-99
069246-05-701 EACLIP-CABLE, FOR REMOTE
8107921-05-000 EATOP PLATE-PEDESTAL, W/SEATBELT BAR
9107921-01-000 EAPEDESTAL-FLOOR MOUNTED, W/ 9.75" EXTENSION
107921-06-000 EABEARING KIT-PEDESTAL
10069246-02-000 EAADJUSTER SIDE-W/O LOCK, FORWARD & BACK
FROM: 00-00-00 THRU: 10-16-94
10069246-15-000 EAADJUSTER SIDE - W/O LOCK, FORWARD & BACK
FROM: 10-17-94 THRU: 99-99-99
11107921-14-000 EAPEDESTAL-FLOOR MOUNTED, W/5.75" EXTENSION
12 116215-03-000 EAPLATE-LOWER, 6 WAY MANUAL CONTROL
13 116215-03-000 EAMANUAL CONTROL - 6 WAY
14116215-03-000 EAUPPER PLATE - 6 WAY MANUAL CONTROL
15 080730-09-000 EASHIELD-RECLINER HANDLE
080730-10-000 EASCREW-RECLINER HANDLE SHIELD
16 080730-08-000 EAHANDLE-RECLINER, BLACK
17 080730-11-000 EASHIELD-RUBBER BOOT
18 108049-01-000 EAREMOTE & CABLE - 28"
19097683-03-000 EABRACKET-REMOTE, SIDE MOUNT - SINGLE
20108049-01-000 EAREMOTE & CABLE-SWIVEL, 28" FROM: 00-00-00 THRU: 11-13-94
20108049-03-000 EACABLE - 20", Z END CABLE FROM: 11-14-94 THRU: 99-99-99
108049-02-000 EACABLE CLIP
21071126-43-F31 EASKIRT-SINGLE, 10.5" - W/OPEN BACK
21071126-43-F06 EASKIRT-SINGLE, 10.5" - W/OPEN BACK (F32)
21071126-54-F31 EASKIRT-SINGLE, 10.5" - W/OPEN BACK - 6 WAY MANUAL CONTROL
21071126-54-F32 EASKIRT-SINGLE, 10.5" - W/OPEN BACK - 6 WAY MANUAL CONTROL
22111169-01-000 EABACK PLATE-ITASCA EMBLEM
22 111169-05-000 EAEMBLEM - "ITASCA"
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

PILLOW SHAMS
KEYPART NUMBER U/MDESCRIPTION
1102161-29-F31 EAPILLOW SHAM-W/1/2" GATHERED WELT - 20" X 33"
1102161-29-F32 EAPILLOW SHAM-W/1/2" GATHERED WELT - 20" X 33"
TWIN BEDSPREAD & MATTRESS
KEYPART NUMBER U/MDESCRIPTION
2085365-34-F31 EABEDSPREAD-W/ROUNDED CORNERS, 33" X 80"
2085365-34-F32 EABEDSPREAD-W/ROUNDED CORNERS, 33" X 80"
098176-10-000 EAMATTRESS-TWIN, INNERSPRING - 32" X 79" - SEALY
QUEEN BEDSPREAD & MATTRESS
KEYPART NUMBER U/MDESCRIPTION
3085365-19-F31 EABEDSPREAD-W/1" GATHERED WELT, 60" X 75"
3085365-19-F32 EABEDSPREAD-W/1" GATHERED WELT, 60" X 75"
098176-04-000 EAMATTRESS-QUEEN, INNERSPRING - 59" X 74" - SEALY
ACCENT PILLOWS
KEYPART NUMBER U/MDESCRIPTION
111862-04-F31 EAPILLOW - 15" X 15", W/1/2" GATHERED WELT
111862-04-F32 EAPILLOW - 15" X 15", W/1/2" GATHERED WELT
111637-02-F31 EAPILLOW - 22" X 22", KNIFE EDGE - W/WELT
111637-02-F32 EAPILLOW - 22" X 22", KNIFE EDGE - W/WELT
SOFA BED
KEYPART NUMBER U/MDESCRIPTION
4111905-03-F31 EAARMREST-SOFA, W/INSIDE PILLOW - RIGHT HAND
4111905-03-F32 EAARMREST-SOFA, W/INSIDE PILLOW - RIGHT HAND
4P11905-03-F31 EACOVER-ARMREST, RIGHT HAND
4P11905-03-F32 EACOVER-ARMREST, RIGHT HAND
5111877-01-F31 EABACK-SOFA, W/2 CUSHIONS - 70"
5111877-01-F32 EABACK-SOFA, W/2 CUSHIONS - 70"
5P11877-01-F31 EACOVER-BACK CUSHIONS
5P11877-01-F32 EACOVER-BACK CUSHIONS
6104652-03-F31 EASEAT-SOFA, W/3 CUSHIONS
6104652-03-F32 EASEAT-SOFA, W/3 CUSHIONS
6P04652-03-F31 EACOVER-SEAT CUSHIONS
6P04652-03-F32 EACOVER-SEAT CUSHIONS
7111905-02-F31 EAARMREST-SOFA, W/INSIDE PILLOW - LEFT HAND
7111905-02-F32 EAARMREST-SOFA, W/INSIDE PILLOW - LEFT HAND
7P11905-02-F31 EACOVER-ARMREST, LEFT HAND
7P11905-02-F32 EACOVER-ARMREST, LEFT HAND
105433-01-000 EAFRAME-COUCH
DINETTE CUSHIONS
KEYPART NUMBER U/MDESCRIPTION
8088927-87-F31 EACUSHION-DINETTE SEAT, 23" X 38" X 5"
8088927-87-F32 EACUSHION-DINETTE SEAT, 23" X 38" X 5"
8M88927-87-F31 EACOVER-CUSHION, DINETTE SEAT - 23" X 38" X 5"
8M88927-87-F32 EACOVER-CUSHION, DINETTE SEAT - 23" X 38" X 5"
9111880-01-F31 EACUSHION BACK-CHANNEL STYLE, 13.5" X 38" X 5"
9111880-01-F32 EACUSHION BACK-CHANNEL STYLE, 13.5" X 38" X 5"
9P11880-01-F31 EACOVER-CHANNEL STYLE BACK, W/STRAP
9P11880-01-F32 EACOVER-CHANNEL STYLE BACK, W/STRAP
078155-01-000 EASTRAP-SNAP, BACKREST CUSHION
DINETTE CHAIRS
KEYPART NUMBER U/MDESCRIPTION
10 101604-01-01A EACHAIR-FOLDING, DINETTE - OAK - W/O FABRIC
11 109379-02-F31 EACHAIR-DINETTE, CHROMECRAFT II
11 109379-02-F32 EACHAIR-DINETTE, CHROMECRAFT II
CURTAIN & CUSHION GROUP (CONTINUED)
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

CURTAIN & CUSHION GROUP (CONTINUED)
CHROMECRAFT CHAIRS
KEYPART NUMBER U/MDESCRIPTION
1109379-02-F31 EACHAIR-DINETTE, CHROMECRAFT II
1109379-02-F32 EACHAIR-DINETTE, CHROMECRAFT II
P09379-02-F31 EACHAIR-SEAT & BACK W/FABRIC
P09379-02-F32 EACHAIR-SEAT & BACK W/FABRIC
105799-01-700 EAWOOD ARM PADS-CHROMECRAFT CHAIR
105799-01-004 EABOLT-SEAT, CHAIR #723634-1
2069246-06-000 EAADJUSTER-SWIVEL CHAIR, MANUAL - FORWARD & BACK
FROM: 00-00-00 THRU: 10-16-94
2069246-13-000 EAADJUSTER ASM-NONLOCKING,2 ST AMP #83710
FROM: 10-17-94 THRU: 99-99-99
3088245-03-000 EATOP PLATE-SWIVEL W/O TILT, W/LOCK
4105799-01-006 EASTEM UPRIGHT-LOCKOUT
5105799-01-003 EALEG-WOOD COVER BASE, CHAIR
6069246-07-000 EAADJUSTER-SWIVEL CHAIR, W/LOCKING ARM - FORWARD & BACK
007221-01-000 EASPACER-SEAT, ADJUSTER - 4 USED PER SWIVEL CHAIR
069705-02-000 EABAR-SEAT BELT, 2.5" X 12.75"
CURTAIN & CUSHION GROUP (CONTINUED)
SWIVEL CHAIR-RECLINER
KEYPART NUMBER U/MDESCRIPTION
1116016-01-F31 EACHAIR-CHANNEL RECLINER
1116016-01-F32 EACHAIR-CHANNEL RECLINER
1P16016-01-F31 EACOVER-CHANNEL RECLINER
1P16016-01-F32 EACOVER-CHANNEL RECLINER
2085187-08-F31 EASKIRT-RECLINER
2085187-08-F32 EASKIRT-RECLINER
3097683-03-000 EABRACKET-REMOTE, SIDE MOUNT
4089368-04-000 EAREMOTE & CABLE-ADJUSTER SLIDE
5069246-08-000 EAADJUSTER ASSEMBLY-LOCKING, 1 STUD - SCHROCK
FROM: 00-00-00 THRU: 10-16-94
5069246-12-000 EAADJUSTER ASSEMBLY-LOCKING, 2 STUDS - AMP #83700
FROM: 10-17-94 THRU: 99-99-99
108049-02-000 EACLIP-PEDESTAL CABLE
6107921-08-000 EATOP PLATE-PEDESTAL, W/O SEATBELT BAR
7107921-01-000 EAFLOOR MOUNTED PEDESTAL-W/9.75" EXTENSION
8108445-02-000 EASUB PLATE-FLOOR MOUNTED PEDESTAL
107921-06-000 EABEARING KIT-PEDESTAL
9069246-06-000 EAADJUSTER-SWIVEL CHAIR, MANUAL - FORWARD & BACK
FROM: 00-00-00 THRU: 10-16-94
9069246-13-000 EAADJUSTER-SWIVEL CHAIR, NONLOCKING
FROM: 10-17-94 THRU: 99-99-99
10 007221-01-000 EASPACER-SEAT ADJUSTER
11097683-02-000 EABRACKET-REMOTE, SIDE MOUNT
12 089368-05-000 EAREMOTE & CABLE-RECLINE
13 108049-01-000 EAREMOTE & CABLE-SWIVEL FROM: 00-00-00 THRU: 11-13-94
13108049-03-000 EACABLE - 20", Z END CABLE FROM: 11-14-94 THRU: 99-99-99
108049-02-000 EACLIP-PEDESTAL CABLE
057759-01-000 EAWASHER BRACKET-SEAT BELT, 4" DIAMETER
007021-01-000 EASEAT BELT - 2" X 90", BLACK
117125-01-02B EABRACKET-CABLE HOLDER, E-COAT
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

K13
CURTAIN & BLIND HARDWARE
KEYPART NUMBER U/MDESCRIPTION
1109353-04-000 EACLIP-VALANCE SLAT MOUNTING, CLEAR PLASTIC
2106544-01-000 EASHADE PULL-BRASS
106544-01-001 EASCREW-SHADE PULL, BRASS
3009136-02-000 EAHANGER-RING, CURTAIN - PIN TYPE - BRASS
4101031-01-000 YDTAPE-GLIDE, CURTAIN - 4.25" SPACING
5084434-01-000 EABRACKET-MOUNTING, ROLLER SHADE - 1 3/8"
096843-01-000 EASPRING-REWIND, ROLLER SHADE
6029156-01-000 EASOCKET-SNAP, 9/16" OD
7029130-01-000 EASCREW-SNAP SOCKET, 8 PH X 5/8"
8029155-01-000 EACAP-SNAP, 5/32" OD OF PIN
046867-01-000 EAGROMMET-BRASS, 7/16" ID X 1" OD
9102075-06-01A EASHOWER ROD
009136-02-000 EASHOWER RINGS-BRASS
009112-01-000 EAFLANGE-SHOWER ROD
10 109441-01-000 EAHOLD DOWN-BLIND, HOOK
11083170-02-000 EABRACKET-BLIND, LEFT SIDE
12083170-01-000 EABRACKET-BLIND, RIGHT SIDE
13 097564-01-000 EAHANDLE-T, EZ LIFT SHADE
14102555-01-000 EACLEAT-CORD, BLIND - OFF WHITE
15114641-03-01A EATRACK-WRAPAROUND CURTAIN, OFF WHITE - PASSENGER SIDE
FROM: 00-00-00 THRU: 10-13-94
15114641-04-01A EATRACK-WRAPAROUND CURTAIN, OFF WHITE - DRIVER SIDE
FROM: 00-00-00 THRU: 10-13-94
15114641-07-F11 EATRACK-WRAPAROUND CURTAIN, OFF WHITE - PASSENGER SIDE
FROM: 10-14-94 THRU: 99-99-99
15114641-08-F11 EATRACK-WRAPAROUND CURTAIN, OFF WHITE - DRIVER SIDE
FROM: 10-14-94 THRU: 99-99-99
093475-01-701 EAEND CAP-BLIND, W/STUD
`048394-02-000 YDVELCRO TAPE-HOOK, ADHESIVE BACK - .75" WIDE - BEIGE
088792-02-000 YDVELCRO TAPE-LOOP, ADHESIVE BACK - .75" WIDE - BEIGE
094896-02-000 EAGROMMET-CORD, PLEATED BLIND - NYLON - GRAY
094907-02-000 EAEND CAP-TOP, PLEATED BLIND - PLASTIC - GRAY
094907-04-000 EAEND CAP-BOTTOM, PULL TYPE
097565-01-000 EABRACKET-MOUNTING, PLEATED BLIND
097591-01-000 EASPRING-EXTENSION, PLEATED BLIND
097593-10-000 FT CORD-BLIND, PLEATED - VANILLA (F31)
097593-02-000 FT CORD-BLIND, PLEATED - GRAY(F32)
086276-01-000 EATAPE-DOUBLE SIDED, 1/2"
CURTAIN & CUSHION GROUP (CONTINUED) DINETTE GROUP
DINETTE & OVERHEAD CABINETRY
KEYPART NUMBER U/MDESCRIPTION
1103128-02-E10 EA END CAP-CABINET
2M05993-16-E30 EADOOR-CABINET, W/O HARDWARE
3M06839-09-F31 EACABINET-OVERHEAD, W/FABRIC PANEL INSERT - DINETTE
3M06839-09-F32 EACABINET-OVERHEAD, W/FABRIC PANEL INSERT - DINETTE
4104787-04-F31 EAPAD-DINETTE
4104787-04-E31 EAPAD-DINETTE (F32)
5M05970-35-E30 EADRAWER-CABINET, W/O HARDWARE
6M04175-61-E10 EACABINET-SEATBASE, RIGHT HAND
7081295-01-AA8 EABED SUPPORT-DINETTE
8M04175-62-E10 EACABINET-SEATBASE, LEFT HAND
9111338-10-F31 EAPAD-DINETTE
9111338-10-E31 EAPAD-DINETTE (F32)
10 M04174-62-E10 EACABINET-SEATBACK, LEFT HAND
113405-12-F11 EASEATBOARD (F31)
113405-12-F32 EASEATBOARD
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

DINETTE GROUP (CONTINUED)
DINETTE TABLE & COMPONENTS
KEYPART NUMBER U/MDESCRIPTION
1M02115-09-E04 EATABLE-DINETTE (F31)
1M02115-09-F32 EATABLE-DINETTE
2064781-06-000 EACUP HOLDER - 2 STEP
3053200-12-000 EABRACKET-TABLE SUPPORT, UPPER - WALL MOUNTED - 23.5" - OFF WHITE
4088410-02-000 EABRACKET-TABLE MOUNTED, OFF WHITE
5024281-14-000 EABRACKET-LIFT ROD, LOWER - WALL MOUNTED - 22.12" - OFF WHITE
6024275-12-000 EAROD-TABLE LIFT, 8" X 23.5" - OFF WHITE
7024283-01-000 EACLIP-LEG, 1" - 1.125" OD - BLACK
8024282-01-000 EABRACE-TABLE LEG, HINGED
9064050-05-000 EACLAMP-SADDLE, LEG HINGE - OFF WHITE
10 024276-23-000 EALEG-TABLE, METAL - OFF WHITE
11 049493-12-000 EALEG CATCH-FLOOR MOUNTED, OFF WHITE
049493-11-700 EALEG CATCH-FLOOR MOUNTED, 2.5" X 2.7" - METAL - E-COAT
PULLOUT DINETTE TABLE
KEYPART NUMBER U/MDESCRIPTION
1092708-10-E30 EALEG-TABLE
2102810-01-02A EABRACE-TABLE LEG - OFF WHITE
102810-01-03A EABRACE-LEG, TABLE - MILL FINISH
3092707-08-05A EAMOLDING-TABLE LEG, OAK - RAMBLING ASH
4102194-01-000 EAGUIDE-PLASTIC
5P02056-06-E30 EATABLE-PULLOUT, W/DROP LEAF
102056-14-E10 EATOP-PULLOUT TABLE, HIGHLAND OAK
6102201-02-01A EASUPPORT-HINGECATCH
7102200-02-02A EASUPPORT-HINGE LOCK, OFF WHITE
8110749-01-000 EASLIDE-TABLE, 19 3/4" LONG
9009050-02-000 EALEVELER-TABLE TOP, MALE END W/4 SCREWS - PLASTIC
9009050-03-000 EALEVELER-TABLE TOP, FEMALE END W/2 SCREWS - PLASTIC
DINETTE GROUP (CONTINUED)
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

KEY PARTNUMBER U/M DESCRIPTION
10 078579-09-000 EA TRIM-WINDSHIELD, UPPER INNER - RH - GRAY
11 040714-01-000 EA MIRROR-REAR VIEW, W/ARM MOUNT & SET SCREW - GM # 911722
067490-01-000 EA BUTTON-MIRROR, REAR VIEW - STANK S927H
12 078579-10-000 EA TRIM-WINDSHIELD, UPPER INNER - LH - GRAY
13 036420-02-000 EA FAN-DEFROSTER, 2 SPEED - 6" DIAMETER
14 103961-02-01A EA COVER-BRACKET, SEATBELT - OFF WHITE - W/DRIVER DOOR
R77030-53-447 EA WASHER-FLAT
15 024700-48-000 EA COVER-SIDEWALL ROLL BAR, DRIVER DOOR ONLY - UPPER - OFF WHITE - 25"
16 103931-04-02A EA COVER-INTERIOR, A-PILLAR - DRIVER SIDE - GRAY
17 079765-10-000 EA TRIM-WINDSHIELD, CENTER - GRAY
18 103931-03-02A EA COVER-INTERIOR, A-PILLAR - PASSENGER SIDE - GRAY
19 024700-46-000 EA COVER-ROLL BAR, PASSENGER SIDE UPPER - OFF WHITE - 21.2"
20 024700-44-000 EA COVER-ROLL BAR, PASSENGER SIDE LOWER - OFF WHITE - 53"
21 091990-04-01A EA SEAT BELT - 3 POINT, BLACK - INTERTEK A8408
109146-01-000 EA BOLT-SHOULDER, SEAT BELT
22 086120-01-F31 EA PAD-MAP POCKET, 12" X 16"
22 086120-01-F32 EA PAD-MAP POCKET, 12" X 16"
23 095757-03-F31 EA COVER-HEATER
23 095757-03-F04 EA COVER-HEATER (F32)
24 115840-01-01A EA COVER-MOTOR
115850-01-02B EA RETAINER ASSEMBLY-LATCH, MOTOR COVER - E-COAT
116581-01-000 EA LATCH-MOTOR COVER, SOUTHCO 2710074088
115852-01-02B EA STRIKE ASM-MOTOR COVER, E-COAT
115860-01-01A EA TRIM-MOTOR COVER, MILL
116833-01-02B EA WRENCH-HEX, MOTOR COVER - E COAT
25 111618-01-E10 EA BEVERAGE TRAY ASSEMBLY
111618-13-E07 EA LID-BEVERAGE TRAY
046886-03-000 EA ASHTRAY-CHROME, W/COVER
26 103498-06-000 EA BOOT-COLUMN, UNIVERSAL
111521-01-04A EA COVER-STEERING COLUMN, FORD - BLACK
112634-01-01A EA TRIM-STEERING COLUMN, FORD - RH - BLACK
112634-02-01A EA TRIM-STEERING COLUMN, FORD - LH - BLACK
27 024700-47-000 EA COVER-SIDEWALL ROLL BAR, DRIVER DOOR ONLY - LOWER - OFF WHITE - 18.9"

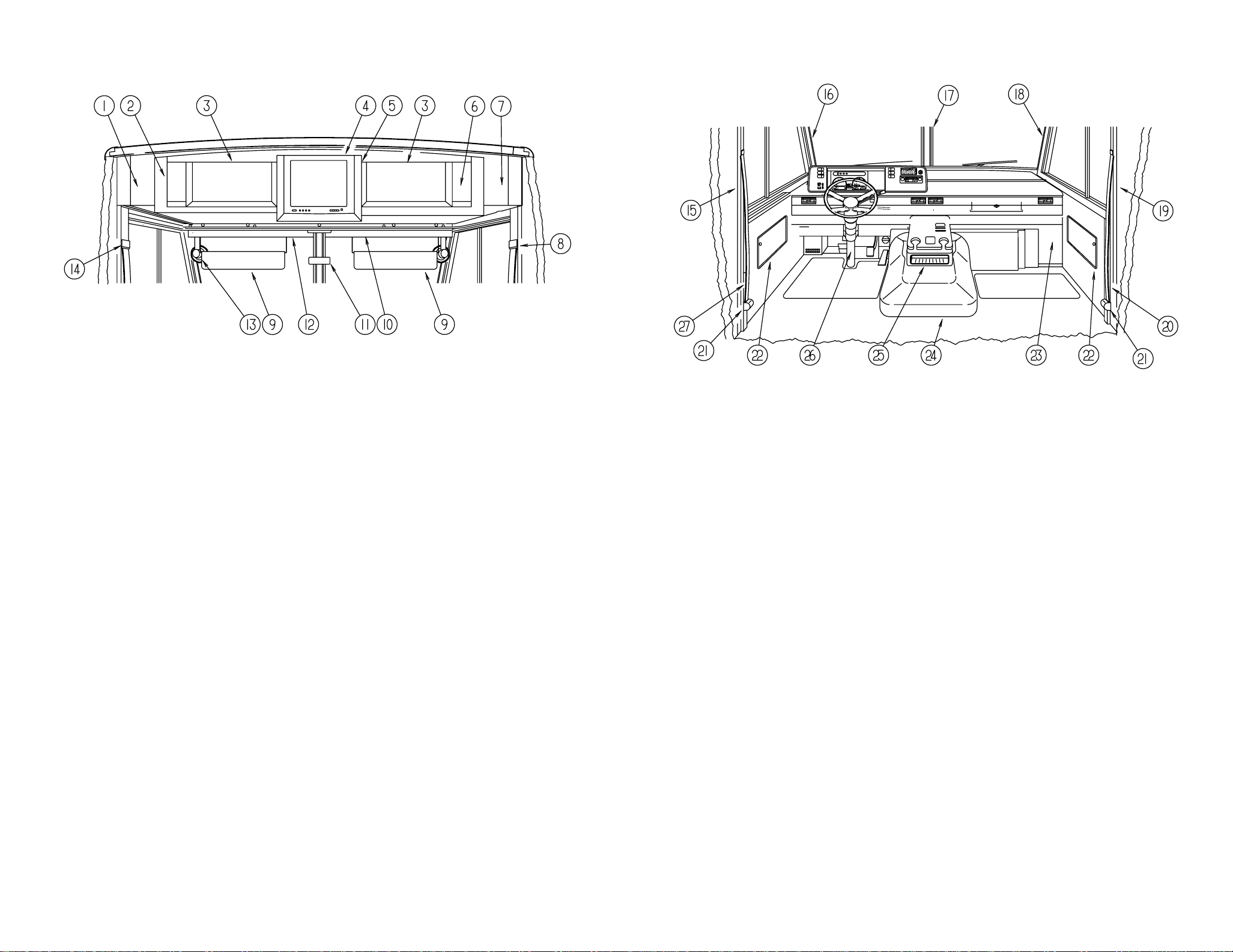

DRIVERS COMPARTMENT GROUP
UPPER&LOWERDRIVERCOMPARTMENT
KEY PARTNUMBER U/M DESCRIPTION
1 104289-04-D12 EA PANEL-SIDE, DRIVER - OVERHEAD - VINYL
101497-23-D12 EA PANEL-END CAP, UPPER LEFT HAND
101499-08-C07 EA PANEL-END CAP, BOTTOM LEFT HAND
2 114612-02-E10 EA FACE ASSEMBLY-OVERHEAD CABINET, DRIVER - W/TV
106699-01-01A EA BRACKET-OVERHEAD CABINET, OFF WHITE
P03077-03-E10 EA SHELF-BASE, OVERHEAD CABINET - DRIVER
114661-06-E10 EA PANEL ASSEMBLY-LINER, DRIVER OVERHEAD
078811-08-E10 EA PANEL-TRIM, HEADER - LOWER - BETWEEN OVERHEAD AND W/S TRIM
3 100708-12-000 EA DOOR-CABINET, GLASS
100710-01-01A EA LOCK ASSEMBLY-TWIST TYPE, BRASS
100711-01-01A EA HINGE-GLASS DOOR
100707- 01-000 EA SPACER-GLASS DOOR, .8" DIAMETER - .3" HOLE - PLASTIC
101272-01-000 EA CATCH-GLASS DOOR
101766-01-000 EA PIN-SUPPORT, GLASS DOOR
108487-02-01A EA SUPPORT-PROP ROD, PASSENGER OVERHEAD - BLACK
108486-01-01A EA BRACKET-PROP ROD, PASSENGER OVERHEAD - BLACK
4 M05993-C5-E30 EA DOOR-CABINET, W/O TV
5 116791-01-F31 EA FRAME ASSEMBLY-CABINET, W/TV
114615-02-F31 EA COVER ASSEMBLY-TV, WITH VINYL
104826-01-C27 EA SHELF ASSEMBLY-TV
6 114612-01-E10 EA FACE ASSEMBLY-CABINET, PASSENGER OVERHEAD
106699-01-01A EA BRACKET-OVERHEAD CABINET, OFF WHITE
P03077-04-E10 EA SHELF-BASE, CABINET - PASSENGER OVERHEAD
100676-02-000 EA STAND-VCR
114661-01-E10 EA PANEL ASSEMBLY-LINER, PASSENGER OVERHEAD - W/O TV
114661-02-E10 EA PANEL ASSEMBLY-LINER, PASSENGER OVERHEAD - W/TV
114661-03-E10 EA PANEL ASSEMBLY-LINER, PASSENGER OVERHEAD - W/TV & VCR
114661-04-E10 EA PANEL ASSEMBLY-LINER, PASSENGER OVERHEAD - W/TV, VCR/INVERTER
114661-05-E10 EA PANEL ASSEMBLY-LINER, PASSENGER OVERHEAD - W/TV & INVERTER
7 104289-03-D12 EA PANEL-SIDE, PASSENGER OVERHEAD - VINYL
101499-07-C07 EA PANEL ASSEMBLY-END CAP, BOTTOM RIGHT HAND
101497-22-D12 EA PANEL ASSEMBLY-END CAP, UPPER RIGHT HAND
8 103961-01-01A EA COVER-BRACKET, SEATBELT - OFF WHITE
9 082286-19-F11 EA SUNVISOR ASSEMBLY
007211-01-000 EA HINGE-SUNVISOR, 25.5" X 1.5" - METAL
074012-01-000 EA CLIP-SUNVISOR, SQUARE - PINCH ON
116093-01-02A EA BRACKET-SUNVISOR, W/ROD - RH - BLACK
116093-02-02A EA BRACKET-SUNVISOR, W/ROD - LH - BLACK
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
