Winnebago 1996 WKM35RQ User manual

1996
WKM35RQ
PICKLED ASH
G38 GOTHIC
G40 OXBOW
G42 GARNET
SALEM CHERRY
G39 GOTHIC
G41 OXBOW
G43 GARNET
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

ACCESSORIES GROUP
OPERATORS MANUAL
KEYPART NUMBER U/MDESCRIPTION
054185-E2-000 EAMANUAL-OPERATOR, 96 VECTRA
092318-01-000 EABINDER-3 RING, MOTOR HOME MANUAL
092319-01-000 EAPOCKET PAGE-3 RING BINDER, PLASTIC
119439-01-000 DWTOP LEVEL-M,1996
VACUUM CLEANER
KEYPART NUMBER U/MDESCRIPTION VENDOR NO.
108186-01-000 EAVACUUM CLEANER-BUILT IN, HP 19-1 DELUXE
092304-01-700 EABAG-VACUUM, REPLACEMENT PKG 5 4908
092304-02-704 EAMOTORW/RELAY 5098
108186-02-000 EATOOL SET-W/O POWER BRUSH, HP W/30" HOSE
092304-02-701 EATOOL-DUSTING 1142
092304-02-702 EATOOL-RUG 4982
092304-02-703 EATOOL-CREVICE 1141
092304-02-707 EATOOL-UPHOLSTERY 7029
092304-02-708 EAWAND-PLASTIC 4978
092304-02-709 EAHOSE ASSEMBLY, 30 FEET 6452-02
092304-02-710 EASECONDARY FILTER HP 4929
AUDIO VIDEO GROUP
RADIO & CD SYSTEM
KEYPART NUMBER U/MDESCRIPTION
097460-08-000EARADIO-AM/FM STEREO, CASS DIN - SONY XR-1700
110469-01-000EASPEAKER-4" X 6" OVAL, COAXIAL - MAGNADYNE F46XB-12
110470-01-01A EAGRILLE-SPEAKER, OVAL 4" X 6" BLK - MAGNADYNE G46WI
074979-15-000EACOVER-SPEAKER, LT OAK
074979-08-000EASHIELD-SPEAKER, BACK - MOLDED PLASTIC - LIGHT OAK
089340-02-000EAGRILLE-SPEAKER, 6.5" SQUARE
094097-01-000EASPEAKER-RADIO, W/O GRILLE - 5.25" DIA - AUDIOVOX 110C3030
116148-02-000EARADIO-AM/FM STEREO, CD PLAYER - CLARION RDB515F (DELUXE STEREO OPTION)
097460-06-000EARADIO-AM/FM CASS, WITH CD CON - SONY XR-130 (RADIO & CD CHANGER OPTION)
FROM: 00-00-00 THRU: 07-23-95
102080-02-000EACHANGER-COMPACT DISC - SONY CDX-45 (RADIO & CD CHANGER OPTION)
FROM: 00-00-00 THRU: 07-23-95
102080-03-000EACHANGER-COMPACT DISC - SONY CDX-71RF (RADIO & CD CHANGER OPTION)
FROM: 07-24-95 THRU: 99-99-99
109053-02-000EARADIO-WALL MOUNT AM/FM CASS - AWM-300 AUDIOVOX (REAR STEREO OPTION)
081059-02-000EAWIRE ASM-9-PIN, RADIO - AUDIOVOX 112B-1761 (REAR STEREO OPTION)
087683-03-000EARADIO-AM/FM STEREO CASSETTE - AUDIOVOX RS-100 (EXTE ENTERTAINMENT)
RADIO & CB ANTENNA
KEYPART NUMBER U/MDESCRIPTION
090944-01-000EAANTENNA-RADIO, 16" RUBBER
104498-02-000EABRACKET-ANTENNA MOUNT
108847-01-000EABRACKET-ANTENNA GROUND(REAR STEREO & EXTE ENTERTAINMENT)
109889-03-000EAEXTENDER - ANTENNA SHAFT 4" (EXTE ENTERTAINMENT)
077069-02-000EACABLE-ANTENNA, RADIO - EXTENSION 96" - ARA 6700667
105248-01-000EAANTENNA-CB, ADVANCE 8604 (C.B. RADIO PREP)
TELEPHONESYSTEM
KEYPART NUMBER U/MDESCRIPTION
093253-01-01A EAPLATE-WALL, TELEPHONE - BEIGE - CAC625F2-4-50
093254-01-000EAHOUSING-TELEPHONE, AMP 554171-1
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

AUDIO VIDEO GROUP (CONTINUED)
1
3
2
4
12
8
7
10
9
11
13
14
6
5
15
AUDIO VIDEO GROUP (CONTINUED)
SONY REAR VIEW MONITOR & SHROUDS
KEYPART NUMBER U/MDESCRIPTION VENDOR NO.
093040-08-000 EA7" REAR VIEW MONITOR SYSTEM W/AUDIO JACK
1096717-03-000 EAWIRE ASM-REAR MONITOR, UPPER
093040-06-000 EAWIRE ASM-MONITOR - SONY SM-HRN7
2107852-01-04A EASHROUD-CAMERA, OUTER, SABLE
108529-01-01A EASHROUD-CAMERA, INNER, BLACK
3093040-04-700 EACAMERA, W/BRACKET & WIRING SSC-530AM
4093041-01-000 EACABLE-MONITOR/CAMERA, INTERNAL USE - 65.6'
093041-02-000 EACABLE-MONITOR/CAMERA, EXTERNAL USE
5N/A PARTS ARE INCLUDED W/TELEVISION SYSTEM - SONY
6093040-05-700 EAMONITOR-7" W/POWER HARNESS SSM721AMR
WINEGARD TV ANTENNA
KEYPART NUMBER U/MDESCRIPTION VENDOR NO.
1076319-16-000EAANTENNA-TV ROOF MOUNT, WINEGARD WI-3094
2076319-01-700EAHEAD-ANTENNA, AMPLIFIED RVSA U/V
3076319-01-701EAGEAR-ELEVATING,PLASTIC 2200046
4076319-01-702EASHAFT ASM-ELEVATING RVP-400A
5076319-01-703EABEARING-NYLON, 5" OD 3200656
6076319-01-704EABEARING-NYLON, 1.25"OD 3200657
7076319-01-705EAGROMMET-NYLON, 7/8"ID 3200658
8076319-01-706EACRANK-ELEVATING, W/SET SCREW 2750897
9076319-01-707EASPRING, HANDLE 5160822
10076319-01-708 EADECAL-CRANK 5413002
11076319-01-709EAPLATE-DIRECTIONAL F/HEAD 3200621
12076319-01-711EABASE & LIFT ASM 2762802
13076319-01-712EAPLATE-CEILING, DIRECTIONAL 3200608
14076319-01-713EAPLATE-BASE, STEEL 3100523
15076319-01-714EAHOUSING,ROTATINGGEAR 2200049
069726-02-000EABUMPER-.88" DIAMETER X .40", BLACK
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

AUDIO VIDEO GROUP (CONTINUED)
WINEGARD SATELLITE DISH
12
13
15
14
16
17
18
19
20
1
2
3
6
7
10
11
9
8
4
5
KEYPART NUMBER U/MDESCRIPTION VENDOR NO.
120233-01-000 EASATELLITE SYSTEM W/O RECEIVER (DISH & HDW ONLY)
120233-02-000 EASATELLITE ANTENNA SYSTEM W/RECEIVER - MANUAL LIFT
1120233-01-700 EAPLATE-FIXED 3750821
2120233-01-701 EADIAL-DIRECTIONAL 2745056
3120233-01-702 EAPIVOT-DIAL-DIRECTIONAL 2745058
4120233-01-703 EASTOP-ROTATION 3711281
5120233-01-704 EAPLATE-CEILING W/DIR. HANDLE RP-6300
6120233-01-705 EAPLATE-ROTATE 375080
7120233-01-706 EASPRING RP-6822
8120233-01-707 EACLAMP-ROTATE 3711280
9120233-01-708 EAKNOB-CLAMP 160822
10120233-01-709 EAWASHER-NYLON RP-2658
11120233-01-710 EAHANDLE-CRANK RP-6795
12120233-01-711 EAREFLECTOR-46CM 2745304
13120233-01-712 EABOLT-FLAT HEAD 2160253
14120233-01-713 EASPRING 2160820
15120233-01-714 EACLIP-E 5160818
16120233-01-715 EARCA LNB 278015
17120233-01-716 EAPIN2160814
18120233-01-717 EABEARING-NYLON 2200728
19120233-01-718 EAPIN5160817
20120233-01-719 EACLAMP-CABLE 2200060
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

AUDIO VIDEO GROUP (CONTINUED)
TV & VCR SYSTEMS
KEYPART NUMBER U/MDESCRIPTION VENDOR NO.
108096-07-000 EATV-19"COLOR, 1/8" JACK USA - MAGNAVOX 19PR10C (FRONT OVHD TV)
FROM: 00-00-00 THRU: 08-06-95
108096-10-000 EATV-19"COLOR, 1/8" JACK USA - MAGNAVOX 19PR14C (FRONT OVHD TV)
FROM: 08-07-95 THRU: 99-99-99
108096-08-000 EATV-19"COLOR, 1/8"JACK CSA - MAGNAVOX XR1905C (FRONT OVHD TV)
098447-11-700 EAREMOTE FOR ALL 19" TVS 8822336
092310-02-000 EATV-COLOR, 9" - AC/DC - W/REMOTE - MAGNAVOX RD0945 (REAR COLOR TV)
092310-02-700 EAREMOTE F/TV F/MODEL RD0945 0822334
086757-03-000 EACONTROL CENTER-SWITCH, VCR/TV - AUDIOVOX AVCC-100 (FRONT OVHD TV)
098446-07-000 EAVCR-VHS, CABLE READY - REMOTE - MAGNAVOX VR9320 (FRONT OVHD TV)
FROM: 00-00-00 THRU: 10-08-95
098446-07-700 EAREMOTE F/MODEL VR9320 8874589
098446-09-000 EAVCR-VHS, CABLE READY, REMOTE - MAGNAVOX VRT222AT (FRONT OVHD TV)
FROM: 10-09-95 THRU: 99-99-99
098446-09-700 EAREMOTE ONLY
114870-01-000 EAPLUG ASM-3.5MM AUDIO W/LEADS - OW DONALD 35-94-SC
094097-01-000 EASPEAKER-RADIO/TV, W/O GRILLE - 5.25" DIA - AUDIOVOX 110C3030
089340-02-000 EAGRILLE-SPEAKER, 6.5" SQUARE
098819-01-000 EASPEAKER-2 WATT, 8 OHM - 4"
093214-01-02A EAGRILLE-SPEAKER, 4" BROWN
115540-01-000 EAAMPLIFIER-TV SPEAKERS - O.W.DONALD AMP3
115539-01-000 EARELAY-RADIO/TV SPEAKER, SWITCH - ASA A1780100
093901-06-000 EAPLATE-TV
099717-01-000 EATV TIEDOWN STRAP- W/24" FEMALE STRAP & 14.2" MALE STRAP
082134-01-000 EAADAPTER-TV, CABLE TO CABLE - WINEGARD F-81M
082136-01-000 EANUT-HEX JAM 3/8-32, WINEGARD
086756-01-000 EASPLITTER-TV, 2 WAY
086777-06-000 EAPLATE-WALL, ANT 1 OUTPUT BROWN - WINEGARD RV-0931
086777-02-000 EAWALLPLATE-TV CABLE, W/ANTENNA SWITCH - BROWN
076319-03-000 FTCABLE-COAXIAL, 75 OHM
076319-09-000 EAWALLPLATE-CABLE RECEPTACLE, TV - SINGLE - BROWN
076319-12-000 EACONNECTOR-COAXIAL, ONE PIECE
BATH GROUP

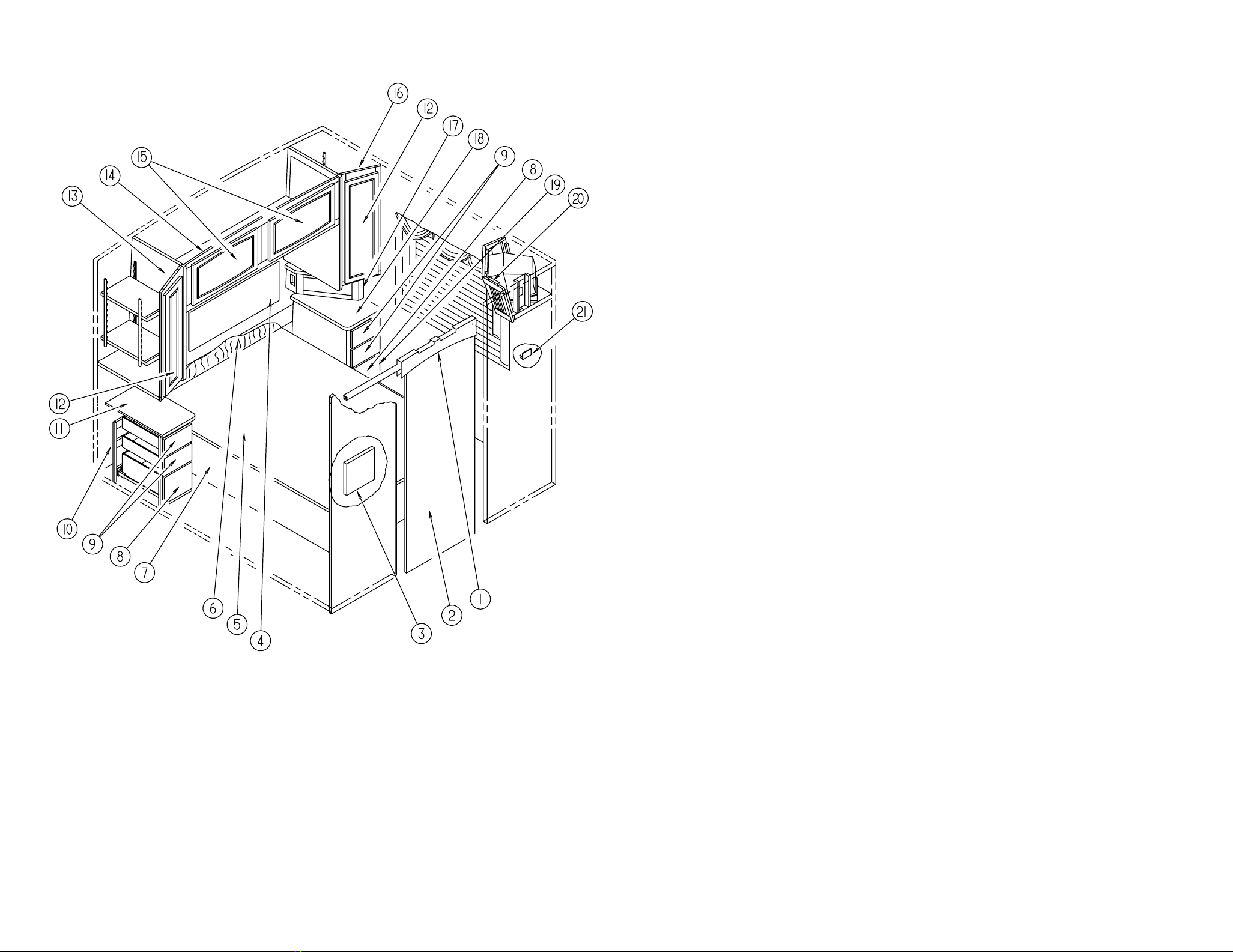

BATH CABINETS & FIXTURES
KEYPART NUMBER U/MDESCRIPTION VENDOR NO.
1114861-01-F36 EACABINET ASM-OVHD, MEDICINE (PICKLED ASH)
1114861-01-F37 EACABINET ASM-OVHD, MEDICINE (SALEM CHERRY)
114861-11-F36 EASHELF ASM (PICKLED ASH)
114861-11-F37 EASHELF ASM (SALEM CHERRY)
2115237-01-E37 EADOOR ASM-MIRROR (PICKLED ASH)
2115237-01-E41 EADOOR ASM-MIRROR (SALEM CHERRY)
3075240-05-000EAFAUCET-LAVATORY, BRASS
105218-01-01A EASPACER-FAUCET, LAVATORY SINK - 2" X 5.9" - ABS PLASTIC O/W
4105921-01-01A EASINK-LAVATORY, LARGE OVAL - 17" X 20" - PLASTIC - OFF WHITE
106116-01-01A EASTRAINER-SINK, W/STOPPER TAILPIECE GASKET & NUT - PLASTIC
5103092-01-000EASHOWER HEAD-W/60" HOSE FROM: 00-00-00 THRU: 08-27-95
5103092-03-000EASHOWER HEAD-W/HOSE & BRACKET
FROM: 08-28-95 THRU: 99-99-99
5103092-02-000EASHOWER HEAD-W/HOSE, ONDINE 23213NYLON B
103092-01-700EABRACKET-SHOWER HEAD, CLEAR 2328028 SPECIFY COL
011048-03-700EABRACKET-SHOWER HEAD 2328029-3
115363-01-01A EARING-GUIDE, SHOWER HOSE, KEVCO 47904-CLR
FROM: 08-28-95 THRU: 99-99-99
6107848-01-01A EACAP-SHOWER,OFFWHITE
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

BATH GROUP (CONTINUED)
BATH CABINETS & FIXTURES (CONTINUED)
KEYPART NUMBER U/MDESCRIPTION
7108035-01-01A EAPANEL-SKYLIGHT, INNER O/W
7108661-01-01A EACOVER-SKYLIGHT,WHITE
107849-01-01A EAENCLOSURE-SHOWER O/W FROM: 00-00-00 THRU: 09-24-95
107849-02-01A EAENCLOSURE-SHOWER O/W FROM: 09-25-95 THRU: 99-99-99
113714-01-01A EARETAINER-SHELF, SHOWER O/W
8075241-04-000EAFAUCET-SHOWER, BRASS FROM: 00-00-00 THRU: 08-27-95
8109801-02-01A EAFAUCET-SHOWER, CONTROL, POLISH BRASS
FROM: 08-28-95 THRU: 99-99-99
075606-01-000EAPANEL-FAUCET BACK, SHOWER - 5" X 9" - PLASTIC
9M02630-23-D18 EASHOWER PAN ASM
10085330-06-000EATOILET-CHINA,STANDARD W/SPRAYER, SEALAND 591003 BONE
MODEL 910 W/SPRAY IN BONE
10085330-02-000EATOILET-CHINA, STANDARD, BONE SEALAND ML 510 (OPTIONAL)
11M05992-38-E37 EADOOR-RAIL, HDW, 0305 X 0475 (PICKLED ASH)
11M05992-38-E41 EADOOR-RAIL, HDW, 0305 X 0475 (SALEM CHERRY)
12075452-02-000EAHOLDER-TOILET TISSUE, BRASS
13P08900-01-G38 EACABINET ASM-LAVATORY
13P08900-01-G39 EACABINET ASM-LAVATORY
13P08900-01-G40 EACABINET ASM-LAVATORY
13P08900-01-G41 EACABINET ASM-LAVATORY
13P08900-01-G42 EACABINET ASM-LAVATORY
13P08900-01-G43 EACABINET ASM-LAVATORY
14108900-11-G38 EACOUNTERTOP ASM
14108900-11-G39 EACOUNTERTOP ASM
14108900-11-G40 EACOUNTERTOP ASM
14108900-11-F40 EACOUNTERTOP ASM (G41)
14108900-11-G42 EACOUNTERTOP ASM
14108900-11-G43 EACOUNTERTOP ASM
108900-13-E37 EASHELF ASM (PICKLED ASH)
108900-13-E41 EASHELF ASM (SALEM CHERRY)
15M05992-62-E37 EADOOR-RAIL, HDW, 0305X0475 (PICKLED ASH)
15M05992-62-E41 EADOOR-RAIL, HDW, 0305X0475 (SALEM CHERRY)
16111753-01-E37 EACABINET ASM-HAMPER (PICKLED ASH)
16111753-01-E41 EACABINET ASM-HAMPER (SALEM CHERRY)
17M05992-64-E37 EADOOR-RAIL, HDW, 0305 X 1015 (PICKLED ASH)
17M05992-64-E41 EADOOR-RAIL, HDW, 0305 X 1015 (SALEM CHERRY)
093606-12-000EAMIRROR-PANEL, BEVELED 1/8" - 372.0 X 643.0 MM
18114860-13-F36 EASHELF ASM (PICKLED ASH)
18114860-13-F37 EASHELF ASM (SALEM CHERRY)
075454-02-000EARING-TOWEL, W/MOUNTING HARDWARE - BRASS
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

BATH GROUP (CONTINUED)
1
2
3
4
5
6
7
8
10
11
12
13 14 15
16 17
18
19
9
20
STANDARD SEALAND TOILET
KEYPART NUMBER U/MDESCRIPTION VENDOR NO.
1085330-06-000EATOILET-CHINA,STANDARD W/SPRAYER, SEALAND 591003 BONE
2085330-06-700EASEAT ASSEMBLY, BONE 340591
3085330-06-702EAHINGE HARDWARE (BONE) SET 342131
4085330-01-703EARING & HALF CLAMPS 385310048
5085330-01-704EATEFLON & RUBBER SEAL KIT 385316140
6085330-01-705EASEAL SUPPORT, PLASTIC 390346405
7085330-02-700EABASE ASM 310121
8085330-02-702EACOVER-PEDESTAL, BONE 510 310112
9085330-01-718EABASE W/SEAL & MOUNTING HDW 3853100-63
10085330-01-714EASEAL-FLOOR FLANGE 390343892
11085330-01-717EAMOUNTING PKG. W/BOLT & SEAL 3100-64
12085330-01-706EABALL, SHAFT & CARTRIDGE 385318162
13085330-02-703EACOVER-PEDAL, BONE NEW STYLE 310115
14085330-01-709EAVALVE-WATERKIT 385314349
15085330-01-707EACARTRIDGE SPRING ASSEMBLY 381236096
16085330-06-703EALEVER-FLUSH 340873
17085330-01-710EADRAIN-KIT (PLUG & CAP W/SEAL) 230384
18085330-06-701EAVALVE W/DIVERTER (VACUUM BREAKER) 230335
19085330-04-701EAHAND SPRAY W/HOSE(500 & 900) 340683
20085330-01-716EAFLANGE-FLOOR 3" MPT 345889
OPTIONAL SEALAND ELONGATED TOILET
KEYPART NUMBER U/MDESCRIPTION VENDOR NO.
1085330-02-000EATOILET-STANDARD BONE CHINA - MODEL 911
2085330-04-707EASEAT ASSEMBLY, BONE 340816
3085330-01-720EAHINGE HARDWARE, (BONE) SET 341707
4085330-01-703EARING & HALF CLAMPS 385310048
5085330-01-704EATEFLON & RUBBER SEAL KIT 385316140
6085330-01-705EASEAL SUPPORT, PLASTIC 390346405
7085330-02-700EABASE ASM 310121
8085330-02-702EACOVER-PEDESTAL, BONE 510 310112
9085330-01-718EABASE W/SEAL & MOUNTING HDW 3853100-63
10085330-01-714EASEAL-FLOOR FLANGE 390343892
11085330-01-717EAMOUNTING PKG. W/BOLT & SEAL 3100-64
12085330-01-706EABALL, SHAFT & CARTRIDGE 385318162
13085330-02-703EACOVER-PEDAL, BONE NEW STYLE 310115
14085330-01-709EAVALVE-WATERKIT 385314349
15085330-01-707EACARTRIDGE SPRING ASSEMBLY 381236096
16085330-06-703EALEVER-FLUSH 340873
17085330-01-710EADRAIN-KIT (PLUG & CAP W/SEAL) 230384
18085330-04-700EABREAKER-VACUUM, F/HANDSPRAY 230325 SEALAND
19085330-04-701EAHAND SPRAY W/HOSE(500 & 900) 340683
20085330-01-716EAFLANGE-FLOOR 3" MPT 345889
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

BATH GROUP (CONTINUED)
10
5
7
7
8
435
6
92
1
COASTAL SHOWER DOOR
KEYPART NUMBER U/MDESCRIPTION VENDOR NO.
1107878-01-01A EADOOR ASM-SHOWER, COASTAL IND. INC.
2089318-01-701 FTSWEEP-VINYL C171G 500FT RL
3092574-01-700 EAKNOB-SAFETY LATCH 9728G
4092574-01-704 EASCREW-GOLD #6 3/8 638G
092574-01-705 EASTRIP-MAGNETIC, 56 7/8" 98-41G
5092574-01-707 EABUSHING-PIVOT,TOP 18712B
6092574-01-703 EAPULL-DOOR, GOLD 8149G
7107878-01-701 EABRACKETS-TOWEL BAR-SILVER 8141B
8107878-01-702 EABAR-TOWEL, SILVER 68B
9107878-01-703 EACAP-DRIP, PLUG SET DCP2
10107878-01-704 EAHEADER OR SILL 70
BATH GROUP (CONTINUED)
PASSENGER SIDE BATH CABINETS & FIXTURES
KEYPART NUMBER U/MDESCRIPTION
1111644-14-E37 EASHELF ASM (PICKLED ASH) FROM: 00-00-00 THRU: 09-03-95
1111644-14-E41 EASHELF ASM (SALEM CHERRY) FROM: 00-00-00 THRU: 09-03-95
1120823-14-G38 EASHELF ASM (PICKLED ASH) FROM: 09-04-95 THRU: 99-99-99
1120823-14-G39 EASHELF ASM (SALEM CHERRY) FROM: 09-04-95 THRU: 99-99-99
2M06803-A3-E37 EADOOR-MITERED CORNERS W/OGEE EDGING 10.8" X 40" (PICKLED ASH)
2M06803-A3-E41 EADOOR-MITERED CORNERS W/OGEE EDGING 10.8" X 40" (SALEM CHERRY)
112547-01-01A EAGRILLE MESH - BRIGHT BRASS 7.6" X 36.7"
3113922-01-E37 EADOOR COMPLETE-MIRRORED
4111644-15-E37 EASHELF ASM (PICKLED ASH) FROM: 00-00-00 THRU: 09-03-95
4111644-15-E41 EASHELF ASM (SALEM CHERRY) FROM: 00-00-00 THRU: 09-03-95
4120823-15-G38 EASHELF ASM (PICKLED ASH) FROM: 09-04-95 THRU: 99-99-99
4120823-15-G39 EASHELF ASM (SALEM CHERRY) FROM: 09-04-95 THRU: 99-99-99
5111644-11-E37 EAHOLDER (PICKLED ASH) FROM: 00-00-00 THRU: 09-03-95
5111644-11-E41 EAHOLDER (SALEM CHERRY) FROM: 00-00-00 THRU: 09-03-95
6111644-13-E38 EACOUNTERTOP ASM (G38, G39) FROM: 00-00-00 THRU: 09-03-95
6111644-13-E40 EACOUNTERTOP ASM (G40, G41) FROM: 00-00-00 THRU: 09-03-95
6111644-13-G42 EACOUNTERTOP ASM (G42, G43) FROM: 00-00-00 THRU: 09-03-95
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

BATH GROUP (CONTINUED) BATH GROUP (CONTINUED)
PASSENGER SIDE BATH CABINETS & FIXTURES (CONTINUED)
KEYPART NUMBER U/MDESCRIPTION
6120823-13-G38 EACOUNTERTOP ASM (G38, G39) FROM: 09-04-95 THRU: 99-99-99
6120823-13-G40 EACOUNTERTOP ASM (G40, G41) FROM: 09-04-95 THRU: 99-99-99
6120823-13-G42 EACOUNTERTOP ASM (G42, G43) FROM: 09-04-95 THRU: 99-99-99
7111644-21-E38 EACOUNTERTOP ASM (G38, G39) (W/WASHER & DRYER)
FROM: 00-00-00 THRU: 09-03-95
7111644-21-F40 EACOUNTERTOP ASM (G40, G41) (W/WASHER & DRYER)
FROM: 00-00-00 THRU: 09-03-95
7111644-21-G42 EACOUNTERTOP ASM (G42, G43) (W/WASHER & DRYER)
FROM: 00-00-00 THRU: 09-03-95
7120823-21-G38 EACOUNTERTOP ASM (G38, G39) (W/WASHER & DRYER)
FROM: 09-04-95 THRU: 99-99-99
7120823-21-G40 EACOUNTERTOP ASM (G40, G41) (W/WASHER & DRYER)
FROM: 09-04-95 THRU: 99-99-99
7120823-21-G42 EACOUNTERTOP ASM (G42, G43) (W/WASHER & DRYER)
FROM: 09-04-95 THRU: 99-99-99
8M05971-D4-E37 EADRAWER COMPLETE-SLIDE (PICKLED ASH)
8M05971-D4-E41 EADRAWER COMPLETE-SLIDE (SALEM CHERRY)
FROM: 00-00-00 THRU: 09-03-95
9111644-12-E37 EASHELF ASM (PICKLED ASH) FROM: 00-00-00 THRU: 09-03-95
9111644-12-E41 EASHELF ASM (SALEM CHERRY) FROM: 00-00-00 THRU: 09-03-95
9120823-12-G38 EASHELF ASM (PICKLED ASH) FROM: 09-04-95 THRU: 99-99-99
9120823-12-G39 EASHELF ASM (SALEM CHERRY) FROM: 09-04-95 THRU: 99-99-99
10042438-01-000 EADOWEL-WOOD, CLOTHES ROD - 1" DIAMETER X 4'
MIRRORED WARDROBE DOOR
KEYPART NUMBER U/MDESCRIPTION
113922-01-E37 EADOOR COMPLETE-MIRRORED
1102327-01-01A EAPULL-MIRROR, SQUARE
2113923-01-02A EASTILE-DOOR, W/PULL TERRATONE
3113924-01-02A EARAIL-DOOR TERRATONE
4112377-01-02A EABRACKET-DOORSTOP,BEIGE
5058331-A6-000 EAMIRROR-GLASS, SAFETY - 438MM X 1801MM
6111572-01-01A EAHARDWARE SET-DOOR, SWING, STANLEY 4160
7074493-02-000EASUPPORT-PISTON SPRING, CABINET DOOR
8112376-01-02A EABRACKET-DOOR E-COAT
9111575-01-01A FTCHANNEL-GLAZING, SWING DOOR
BATH PRIVACY DOOR
KEYPART NUMBER U/MDESCRIPTION
103868-03-01A EATRACK-DOOR, 1250, O/W
104013-02-E37 EADOOR ASM-SLIDING (PICKLED ASH)
104013-02-E41 EADOOR ASM-SLIDING (SALEM CHERRY)
110418-01-E37 EAHEADER ASM-DOOR (PICKLED ASH)
110418-01-E41 EAHEADER ASM-DOOR (SALEM CHERRY)
BEDROOM/BATH PRIVACY DOOR
KEYPART NUMBER U/MDESCRIPTION
103868-05-01A EATRACK-DOOR, 1353 O/W
104013-03-E37 EADOOR ASM-SLIDING (PICKLED ASH)
104013-03-E41 EADOOR ASM-SLIDING (SALEM CHERRY)
110418-03-E37 EAHEADER ASM-DOOR (PICKLED ASH)
110418-03-E41 EAHEADER ASM-DOOR (SALEM CHERRY)
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

BEDROOM GROUP
QUEEN BEDROOM CABINETS & FIXTURES
KEYPART NUMBER U/MDESCRIPTION
5M05905-01-D18 EATOP ASM-BED, QUEEN
041389-25-000 EAHINGE-PIANO, 1.50 X 1397.0 MILL
057460-04-000 EASPRING-GAS
057460-02-000 EASTUD-BALL, GAS SPRING - 10MM - 5/16" - 18
097872-04-000 EADOWEL-WOOD, 1" DIAMETER X 1.38" LONG
089025-01-000 EASUPPORT-SPRING, TO BED - ANGLE 1.5" X 11.8" LONG - STEEL
109645-01-000 EABRACKET-SUPPORT, FLOOR TO BED 93-M F/GAS SPRING
081114-01-000 EACAP-INSERT, ROUND - 1" DIAMETER - PLASTIC - BLACK
091952-01-000 EACLIP-GRIPPER
091261-01-000 FTSLIPNOT-ANTISLIP,1"WIDE
097872-04-000 EADOWEL-WOOD, 1.00 DIAMETER X 1.38 LONG - UNFINISHED
6112516-04-G38 EAHEADBOARD-IMPERIAL, QUEEN (G38, G39)
6112732-04-G40 EAHEADBOARD-IMPERIAL, QUEEN (G40, G41)
6112516-04-G42 EAHEADBOARD-IMPERIAL, QUEEN (G42, G43)
7P09393-01-E37 EACABINET ASM-BED, QUEEN (PICKLED ASH)
7P09393-01-E41 EACABINET ASM-BED, QUEEN (SALEM CHERRY)
8M05971-19-E37 EADRAWER COMPLETE-SLIDE (PICKLED ASH)
8M05971-19-E41 EADRAWER COMPLETE-SLIDE (SALEM CHERRY)
9M05971-18-E37 EADRAWER COMPLETE-SLIDE (PICKLED ASH)
9M05971-18-E41 EADRAWER COMPLETE-SLIDE (SALEM CHERRY)
10107017-01-E38 EACABINET ASM-NIGHTSTAND, RH (PICKLED ASH) (G38)
10107017-01-E42 EACABINET ASM-NIGHTSTAND, RH (PICKLED ASH) (G39)
10107017-01-F40 EACABINET ASM-NIGHTSTAND, RH (PICKLED ASH) (G40)
10107017-01-F41 EACABINET ASM-NIGHTSTAND, RH (PICKLED ASH) (G41)
10107017-01-G42 EACABINET ASM-NIGHTSTAND, RH (PICKLED ASH)
10107017-01-G43 EACABINET ASM-NIGHTSTAND, RH (PICKLED ASH)
11107017-11-E38 EACOUNTERTOP ASM (G38, G39)
11107017-11-F40 EACOUNTERTOP ASM (G40, G41)
11107017-11-G42 EACOUNTERTOP ASM (G42, G43)
12M06803-14-E37 EADOOR-MITERED CORNERS W/OGEE EDGING 10.8" X 36.4" (PICKLED ASH)
12M06803-14-E41 EADOOR-MITERED CORNERS W/OGEE EDGING 10.8" X 36.4" (SALEM CHERRY)
088742-10-000 EAMIRROR-BEVELED, SAFETY GLASS
13P14721-01-F36 EACABINET ASM-SHIRT CLOSET RH (PICKLED ASH)
13P14721-01-F37 EACABINET ASM-SHIRT CLOSET RH (SALEM CHERRY)
14M05960-10-E37 EACABINET ASM-OVERHEAD, RR (PICKLED ASH)
14M05960-10-E41 EACABINET ASM-OVERHEAD, RR (SALEM CHERRY)
15M05990-01-E37 EADOOR ASM, 14.4" X 26.8" (PICKLED ASH)
15M05990-01-E41 EADOOR ASM, 14.4" X 26.8" (SALEM CHERRY)
16P14720-01-F36 EACABINET ASM-SHIRT CLOSET LH (PICKLED ASH)
16P14720-01-F37 EACABINET ASM-SHIRT CLOSET LH (SALEM CHERRY)
17107446-01-E38 EACABINET ASM-RADIO (G38)
17107446-01-E42 EACABINET ASM-RADIO (G39)
17107446-01-F40 EACABINET ASM-RADIO (G40)
17107446-01-F41 EACABINET ASM-RADIO (G41)
17107446-01-G42 EACABINET ASM-RADIO
17107446-01-G43 EACABINET ASM-RADIO
18107018-11-E38 EACOUNTERTOP ASM (G38, G39)
18107018-11-F40 EACOUNTERTOP ASM (G40, G41)
18107018-11-G42 EACOUNTERTOP ASM (G42, G43)
19107018-01-E38 EACABINET ASM-NIGHTSTAND, LH (G38)
19107018-01-E42 EACABINET ASM-NIGHTSTAND, LH (G39)
19107018-01-F40 EACABINET ASM-NIGHTSTAND, LH (G40)
19107018-01-F41 EACABINET ASM-NIGHTSTAND, LH (G41)
19107018-01-G42 EACABINET ASM-NIGHTSTAND, LH
19107018-01-G43 EACABINET ASM-NIGHTSTAND, LH
20P07445-01-E37 EACABINET ASM-OVERHEAD, TV (PICKLED ASH)
20P07445-01-E41 EACABINET ASM-OVERHEAD, TV (SALEM CHERRY)
21104174-01-000 EAHOOK-ROBE,TWIN
KEYPART NUMBER U/MDESCRIPTION
1110418-03-E37 EAHEADER ASM-DOOR (PICKLED ASH)
1110418-03-E41 EAHEADER ASM-DOOR (SALEM CHERRY)
103868-05-01A EATRACK-DOOR, 1353 O/W
2104013-03-E37 EADOOR ASM-SLIDING (PICKLED ASH)
2104013-03-E41 EADOOR ASM-SLIDING (SALEM CHERRY)
3112515-01-02A EAPICTURE-DECORATIVE, THOU ART 12" X 16"
4058331-93-000 EAMIRROR-GLASS, SAFETY - 700MM X 1600MM
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

CHASSIS GROUP CHASSIS GROUP (CONTINUED)
COMPARTMENTS & COMPONENTS (CONTINUED)
KEYPART NUMBER U/MDESCRIPTION
22110277-02-000EASTRAP-W/HOLES
23111756-03-000EABRACKET-EXHAUST, HANGER
24106152-01-000EAPANEL-COMPARTMENT, GENERATOR
107719-01-01A EASTRIKE-VALANCE DOOR, MILL
061420-05-000EAPLUG-PLASTIC, 1.8" DIAMETER
115361-01-01A EAPLUG-PLASTIC
056748-01-000EAPLUG-CAP, 1.5" DIAMETER - BLACK
072368-02-000EATRIM-VINYL, EDGE - BLACK - GM 14004305
090340-01-000FTSEAL-FOAM, CLOSED CELL - 1/4" X 1/2" X 50'
STORAGE COMPARTMENT
KEYPART NUMBER U/MDESCRIPTION
1114677-01-01A EARETAINER-HATCH FROM: 00-00-00 THRU: 01-25-96
2121175-01-01A EALATCH-SWELL, BLACK FROM: 01-26-96 THRU: 99-99-99
3M06991-03-F36 EAHATCHASM W/FOAM
4114679-01-01A EACOMPARTMENT-STORAGE
COMPARTMENTS & COMPONENTS
KEYPART NUMBER U/MDESCRIPTION
1098215-03-000 EACOLLAR-CRIMPED, 6 " ROUND
2105536-01-000 EAPANEL-BOTTOM,WATER COMPARTMENT
3114679-01-01A EACOMPARTMENT-STORAGE
4092263-03-000 EAPANEL-EXHAUST, FURNACE
5093287-10-01A EANET-CARGO FROM: 00-00-00 THRU: 09-17-95
5093395-01-000 EAANGLE-SHELF, TIRE FROM: 00-00-00 THRU: 09-17-95
6115652-02-02B EABRACKET-HANGER, GENERATOR - 4 USED (DIESEL GENERATOR ONLY)
7115656-02-02B EATUBE ASM-SUPPORT, GENERATOR - 2 USED (DIESEL GENERATOR ONLY)
8111546-01-000 EAMAT-RUBBER
9065450-05-000 EATIEDOWN-BATTERY,8.4" TUBE FROM: 00-00-00 THRU: 11-19-95
9093395-02-000 EABRACKET SHELF, TIRE
10093395-01-000 EAANGLE-SHELF, TIRE
10093287-08-01A EANET-CARGO FROM: 00-00-00 THRU: 09-17-95
11107723-01-01A EAPANEL-COVER SEAL, VALANCE, BLACK
12020167-03-000 EADIRT GUARD-STEEL 279.5MM LONG (11" LONG)
13017516-01-000 EAFLAP-MUD, 14" X 18" - BLACK
14020167-05-000 EADIRT GUARD - STEEL - 380MM LONG (15" LONG)
15115392-01-01A EASTRAP ASM-VELCRO, APLIX FF5026-008
16112384-01-000 EASPONGE-BRACKET, RACK & LADDER
16108986-01-000 EATUBE-SUPPORT, LADDER, LOWER
17039623-01-000 FTSEAL-MOTOR COVER, RUBBER BULB TYPE - BLACK
072877-03-000 EAINSULATION-SOUND BARRIER
18115653-13-02B EABRACKET ASM-AIR DRYER, E-COAT
19111844-01-000 EABRACKET-AIR DRYER
20111845-01-000 EABRACKET-AIR DRYER
076310-01-002 EARUBBER-SHEET 0150 X 0100MM
21111756-01-000 EABRACKET-EXHAUST, HANGER FROM: 00-00-00 THRU: 11-26-95
21111756-04-000 EABRACKET-EXHAUST, HANGER FROM: 11-27-95 THRU: 99-99-99
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

CHASSIS GROUP (CONTINUED) CHASSIS GROUP (CONTINUED)
ENTERTAINMENT COMPARTMENT
KEYPART NUMBER U/MDESCRIPTION
1108534-01-D18 EAFRAME ASM-ENTERTAINMENT CTR
2108508-02-000 EABRACKET-ENTERTAINMENT CENTER
3108506-01-F36 EAPLATE-RADIO MOUNTING
4069726-02-000 EABUMPER-RUBBER, .88" DIAMETER X .40", BLACK
5110381-01-D18 EALEG ASM-TABLE, EXTERIOR
6P10549-01-F36 EATABLE ASM-ENTERTAINMENT CTR
7110287-01-000 EABRACKET-LEG, TABLE EXTERIOR
8074630-03-000 EAFASTENER-PUSH ON, .250 ROUND
8110459-01-000 EASPRING-COMPRESSION .300X1.50
9110439-01-000 EAFASTENER-SNAP-BUTTON
10110550-01-000 EACAP-TUBE 22.2MM SQUARE
KWIKEE ELECTRIC STEP & SWITCH SPACER
KEYPART NUMBER U/MDESCRIPTION VENDOR NO.
1094707-01-01A EASTEP-DOUBLE, ELECTRIC - KWIKEE 3218
2094707-01-702 EAFRAME W/DBL STEP, 3200 SERIES 908032
3094707-02-700 EAMOTOR ASM., W/BEARINGS & PINS 909520
4094707-02-701 EALINKAGE ASM. W/BEARINGS-PINS 909534
5094707-02-702 EAGEAR KIT, W/BEARINGS, PIN-CASE 909525
094707-02-703 EABEARING & PINS 909530
6094707-02-704 EACONNECTOR-MOTORASM.W/PLATES 909537
7094707-02-705 EACONTROL UNIT, WHITE 909513
8088746-01-705 EALIGHT-UNDER STEP 9004
088733-01-700 EABULB 9004
094707-02-707 EATREAD-NON SKID, BLACK 6"X21" 909333
116995-01-000 EASWITCH/MAGNET-STEP, ELECTRIC, KWIKEE 905306
075723-02-000 EASPACER-SWITCH, W/HOLE - .2" X .9" X 2" - METAL - OFF WHITE
1
34
5
6
7
2
8
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

CHASSIS GROUP (CONTINUED)
REAR BUMPER & TRAILER HITCH
KEYPART NUMBER U/MDESCRIPTION
1M05811-02-D18 EAREAR BUMPER ASM (PUSHER)
2107707-04-000 EADRAWBAR ASM-HITCH, CLASS II
113588-02-01B EABRACKET-CONNECTOR, TRAILER, MILL
107627-01-000 EATOWBAR ASM-LH, UNPAINTED
034512-01-000 EAPIN-LOCKING, DRAWBAR
3107487-01-000 EAANGLE-ATTACHMENT, REAR
4107665-01-000 EAANGLE-FORMED, BUMPER, LOWER
5115486-02-02B EABRACKET-MOUNT, BUMPER, LH, E-COAT
6115486-01-02B EABRACKET-MOUNT, BUMPER, RH, E-COAT
7108939-02-000 EAFRAME ASM-BUMPER, REAR, LH
8108939-01-000 EAFRAME ASM-BUMPER, REAR
9108453-04-000 EACAP ASM-END, REAR, RH
108453-03-000 EACAP ASM-END, REAR, LH
113589-01-000 EACONNECTOR-PLUG, TRAILER - GENERAL 433501
10113589-02-000 EACONNECTOR-SOCKET, TRAILER - GENERAL 433601
CHASSIS GROUP (CONTINUED)
FUEL SYSTEM - STANDARD & W/DIESEL GENERATOR OPTION
KEYPART NUMBER U/MDESCRIPTION
1073220-03-000EACAP-FUEL FILL, NON LOCK (DSL) - GM-15671703
2102951-01-01A EASHROUD-FUEL FILL
3087256-09-000EANECK ASM-FUEL FILL
4007111-02-000EAHOSE-FUEL FILL, 2.00 ID
5024138-01-000FTHOSE-FUEL, 5/16" ID
6114253-02-000EAELBOW-5/16 SGL BARB X 1/4MPT - WEATHERHEAD 1557
7116457-01-000EATEE-BRASS, BRANCH 1/4 NPT, W'HD 3600X4
8068382-06-000EABUSHING-BRASS, 3/8MPT X 1/8FPT - PARKER 209P-6-2
8114253-01-000EAELBOW-1/4 SGL BARB X 1/8MPT - WEATHERHEAD 1582
9007063-01-000FTHOSE-GAS 1/4"ID X 1/2"OD
084884-01-000EAPLUG-BRASS, 3/8"
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

CHASSIS GROUP (CONTINUED)
HWH HYDRAULIC LEVELING SYSTEM FOR CHASSIS W/SPRING SUSPENSION
14
23
6
815
17 22
9
10
16 15
6
10
17 9
18
11
2
19
19
21
5
11
1
4
20
REAR
THIS
SIDE
UP
CABLE LENGTH
7
13
LEVEL
ON
STORE
EXCESS
SLOPE
OFF
NOT IN
PARK/
BRAKE
TRAVEL
CAUTION!
HWH COMPUTERIZED LEVELING
UNDERSTAND OPERATOR'S MANUAL BEFORE USING. BLOCK FRAME AND TIRES
SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.
12
3
1
KEYPART NUMBER U/MDESCRIPTION VENDOR NO.
1100532-01-704EASWITCH-MERCURY, 6K & 9K JACK RAP1010
2100532-01-705EASPRING KIT-9K JACK RAP1171
3100532-01-707EABEARING-ROLLER KIT, 9K JACK R2527
4100532-02-701EASPRING KIT-6K JACK RAP6824
5100532-02-704EACABLE-ACTUATOR, 6K JACK RAP7194
6100532-03-705EAPUMP/MOTOR/TANK .75 GAL RAP0002
7100532-03-710EASENSING UNIT 21' MTA RAP6798
8100532-03-715EACAP-BREATHER RAP7876
9100532-03-716EASOLENOID-SINGLE, ESSEX RAP7505
10100532-03-717EAVALVE-PRESS., RETURN SHUTTLE RAP7964
11100532-03-726EASWITCH-PRESSURE RAP8003
12100532-09-700EAPANEL ASM.-TOUCH CONTROL RAP1002
13100532-09-701EACONTROL BOX ASM. RAP0984
14100532-09-702EACABLE-MODULAR 5' AP1020
15100532-09-703EAMANIFOLD ASM.-COMPLETE RAP0959
16100532-09-704EAVALVE-PRESSURE SOLENOID RAP0642
17100532-09-705EASWITCH-PRESSURE W/HEAD-3000# RAP0993
18100532-09-706EAJACK ASM. 9K TALL RAP0980
19100532-09-707EAACTUATOR ASM. - 9K RAP0547
20100532-09-708EAJACK ASM. 6K W/PRESSURE SW. TALL RAP0992
21100532-09-709EAACTUATOR ASM.-6K RAP0448
22100532-09-710EASOLENOID-4 POST INT. DUTY RAP0533
23100532-09-711EAPOWERUNIT/MANIFOLD ASM. RAP0978
100532-09-712EAHARNESS HYDRAULIC PUMP 35.8' RAP1024
100532-09-713EAHARNESS WARNING PRESSURE 35.11' RAP1025
KEYPART NUMBER U/MDESCRIPTION VENDOR NO.
1100533-08-000EABRACKETS-FRONT LEVELING JACK - HWH AP9857
FROM: 00-00-00 THRU: 11-19-95
1114748-06-02B EABRACKET ASM-FRONT LEVELING JACKS - E-COATED
FROM: 11-20-95 THRU: 99-99-99
2100536-14-000EAHOSE KIT - HWH #AP0182
100536-09-701EAHOSE-HYDRAULIC-60" RAP4073
100536-14-700EAHOSE-HYDRAULIC-288" RAP4063
100536-14-701EAHOSE-HYDRAULIC-108" RAP4074
100536-14-702EAHOSE-HYDRAULIC-264" RAP6216
3100534-07-000EABRACKETS-REAR LEVELING JACK - HWH AP9858
FROM: 00-00-00 THRU: 11-19-95
3114748-05-02B EABRACKET ASM-REAR LEVELING JACKS - E-COATED
FROM: 11-20-95 THRU: 99-99-99
4100532-10-000EALEVELING SYSTEM-HYDRAULIC - HWH AP1018
5116199-01-02B EASUPPORT ASM-LEVELING JACK PUMP, E-COAT
6116200-01-09B EASHIELD-HEAT, LEVELING JACK PUMP, GALVANIZED
7116181-01-02B EABRACKET-PUMP, LEVELING JACK, RR INNER E-COAT
085765-01-000EATEE-2 F & 1 MALE ENDS, 1/4 MPT X 1/4 - BRASS - WEATEARP
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

CHASSIS GROUP (CONTINUED)
HWH HYDRAULIC LEVELING SYSTEM FOR CHASSIS W/AIR SUSPENSION
KEYPART NUMBER U/MDESCRIPTION
114748-06-02B EABRACKET ASM-FRONT LEVELING JACKS - E-COATED
100536-26-000 EALEVELING SYSTEM-HYDRAULIC, HWH AP12059
114748-05-02B EABRACKET ASM-REAR LEVELING JACKS - E-COATED
100532-23-000 EALEVELING SYSTEM-HYDRAULIC, HWH AP11296
116199-01-02B EASUPPORT ASM-LEVELING JACK PUMP, E-COAT
116200-01-09B EASHIELD-HEAT, LEVELING JACK PUMP, GALVANIZED
116181-01-02B EABRACKET-PUMP, LEVELING JACK, RR INNER E-COAT
085765-01-000 EATEE-2 F & 1 MALE ENDS, 1/4 MPT X 1/4 - BRASS - WEATEARP
CHASSIS GROUP (CONTINUED)
SPARE TIRE HOIST
FROM: 01-16-96 THRU: 99-99-99
KEYPART NUMBER U/MDESCRIPTION
1119968-18-02B EASUPPORT ASM-SPARE TIRE HOIST, E-COAT
2113007-04-000EAPIN-SPRING, .188 X 1.25 IN
3111576-02-000EASUPPORT-HANDLE, TIRE HOIST
4093375-10-000EAEXTENSION-TIREHOIST
5093376-04-000EAHANDLE ASM-CRANK, TIRE HOIST
114376-02-000EAPIN-DRIVE, .156 X .750 - TYPE E - TIRE HOIST
6102340-01-000EATIRE, 245/70 R19.5, MICHELIN XZA
077030-02-000EAEXTENSION-VALVE STEM, 1.25"
7120752-01-02B EASUPPORT-TIRE,SPARE,E-COAT
8120877-01-000EAHOIST-SPARE TIRE, 400 LB - FORD F6UZ1A131BB
9116242-01-02B EASPACER-TIRE, SPARE, E-COAT
080208-04-000EAWRENCH-LUG, 30MM (1 3/16") - OSHKOSH/X21RDX
080208-05-000EALEVERAGE BAR-LUG WRENCH 3/4D - OSHKOSH/X21RDX
SPARE TIRE HOIST
FROM: 00-00-00 THRU: 01-15-96
KEYPART NUMBER U/MDESCRIPTION
1115653-12-02B EASUPPORT ASM-SPARE TIRE HOIST, E-COAT
2111868-01-000 EAPLATE-SIDE,TIRE HOIST
3111576-01-000 EASUPPORT-HANDLE, TIRE HOIST
077030-02-000 EAEXTENSION-VALVE STEM, 1.25"
4093267-01-000 EAHOIST-SPARE TIRE, DEUER MFG6L201
5093375-09-000 EAEXTENSION-TIREHOIST
6093376-02-000 EAHANDLE ASM-CRANK, TIRE HOIST
114376-01-000 EAPIN-DRIVE, .156 X .750 - TYPE E - TIRE HOIST
7000F10-06-32B EAPIN-COTTER, 3/16 X 2.00 - ZN
8102340-01-000 EATIRE, 245/70 R19.5, MICHELIN XZA
080208-04-000 EAWRENCH-LUG, 30MM (1 3/16") - OSHKOSH/X21RDX
080208-05-000 EALEVERAGE BAR-LUG WRENCH 3/4D - OSHKOSH/X21RDX
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

CHASSIS GROUP (CONTINUED)
KAPER WHEEL LINERS
KEYPART NUMBER U/MDESCRIPTION VENDOR NO.
091209-13-000 EAWHEEL LINER SET - 19.5" WHEEL - (SET = 4)
091209-08-704 EALINER-WHEEL, FRT. (PLASTIC NUT) 207
091209-08-705 EALINER-WHEEL, RR. (PLASTIC NUT) 208
091209-13-700 EANUT-JAMB-A22, 20M, FRT & REAR A22
091209-13-701 EACOVER-LUG NUT (PLASTIC-JAMB) 302
091209-13-702 EACAP-CENTER, PLASTIC A24
091209-13-703 EACAP-LUG NUT FAKE, PLASTIC A25
091209-16-000 EANUT-JAMB-A20, 22M THREAD FRT A20
091209-13-705 EALINER-WHEEL, FRT. (SS NUT COVER) 209
091209-13-706 EALINER-WHEEL, RR. (SS NUT COVER) 210
091209-13-707 EACOVER-LUG NUT, (SS JAMB NUT) 302
091209-13-708 EACAP-CENTER, STAINLESS A26
AIR INTAKE HOSE, RADIATOR BAFFLE & STEEL TUBE
KEYPART NUMBER U/MDESCRIPTION
076310-01-000 EASHEET-RUBBER, RADIATOR BAFFLE - .12" X 15" X 62" - BLACK
076310-04-000 EASHEET-RUBBER, 23" X 50"
105805-01-000 EATUBE-STEEL
110082-02-000 EAHOSE-AIR INTAKE,6.0 INCH DIA - FLEXFAB FLX3005-000
CURTAIN & CUSHION GROUP
NOTICE
IN ORDER TO ASSIST OUR PARTS SALES DEPT. IN PROVIDING INTERIOR SOFTWARE ITEMS,
PLEASE INCLUDE THE SERIAL NUMBER AND THE COLOR CODE NUMBER FROM THE VEHICLE
CERTIFICATION LABEL WHEN ORDERING. THIS LABEL IS LOCATED ON THE LEFT SIDEWALL
AT THE END OF THE DASH (A-BODY),OR ON THE DRIVER'S DOOR LATCH PLATE (C-BODY).
AN EXAMPLE OF A COLOR CODE NUMBER IS B07, WHICH DESIGNATES AN OVERALL COLOR
SCHEME OF A PARTICULAR UNIT. THE COLOR LISTED AFTER THE ITEM DESCRIPTION ON THE
MICROFICHE, INDICATES THE OVERALL UNIT COLOR. ORDER THE ITEM YOU DESIRE ACCORD-
ING TO UNIT COLOR CODE. IF ALL COLORS USE THE SAME ITEM NO COLOR CODE WILL BE NOTED.
NOTE: USE THIS ILLUSTRATION WHEN DETERMINING LENGTH AND WIDTH MEASUREMENTS FOR
CURTAINS. YOU WILL NOTE THE WIDTH MEASUREMENT IS TAKEN ON THE TOP OF THE
CURTAIN WITH THE CURTAIN FULLY EXTENDED. THE LENGTH MEASUREMENT IS TAKEN
FROM TOP TO BOTTOM. LEFT AND RIGHT WINDOW LEGS ARE DETERMINED WHEN FACING
THEWINDOW.
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

CURTAIN & CUSHION GROUP (CONTINUED)
MATTRESS, PILLOWS & BEDSPREAD
KEYPART NUMBER U/MDESCRIPTION
1098176-05-000 EAMATTRESS-QUEEN, INNERSPRING - 59" X 79" - SEALY
2118859-01-G38 EAPILLOW-W/BUTTON & BRAID 14" X 14" (G38, G39)
2118859-03-G38 EAPILLOW-W/BUTTON & BRAID 14" X 14" (G38, G39)
2118869-01-G40 EAPILLOW-ENVELOPE W/CORD & BUTTON (G40, G41)
2118859-02-G42 EAPILLOW-W/BUTTON & BRAID 14" X 14" (G42, G43)
3102161-40-G42 EASHAM ASM-QUILTED W/BRAID, 20 X 33 (G42, G43)
4118858-01-G38 EABEDSPREAD - FITTED W/REVERSING SHAM 60" X 80" (G38, G39)
4119141-01-G40 EABEDSPREAD-THROW W/REVERSING SHAM 60" X 80" (G40, G41)
4109588-17-G42 EABEDSPREAD-FITTED DUVET W/CORNER PLEAT 60" X 80" (G42, G43)
COUCH
KEYPART NUMBER U/MDESCRIPTION
5111909-07-G38 EAARM ASM-RH SOFA, FRENCH (G38, G39)
5111905-07-G40 EAARM ASM-RH SOFA, INSIDE PILLOW (G40, G41)
5111909-07-G42 EAARM ASM-RH SOFA, FRENCH (G42, G43)
P11909-03-G38 EACOVER-ARM, RH SOFA, FRENCH (G38, G39)
P11905-07-G40 EACOVER-ARM, RH SOFA, INSIDE PILLOW (G40, G41)
P11909-07-G42 EACOVER-ARM, RH SOFA, FRENCH (G42, G43)
6104655-02-G40 EACUSHION ASM-CLUB SOFA BACK (G40, G41)
P04655-02-G40 EACOVER ASM-CLUB SOFA BACK (G40, G41)
7104654-04-G38 EACUSHION ASM-RH VICTORIAN SOFA BACK (G38, G39)
7104654-04-G42 EACUSHION ASM-RH VICTORIAN SOFA BACK (G42, G43)
P04654-04-G38 EACOVER ASM-RH VICTORIAN SOFA BACK (G38, G39)
P04654-04-G42 EACOVER ASM-RH VICTORIAN SOFA BACK (G42, G43)
8104654-06-G38 EACUSHION ASM-CENTER VICTORIAN SOFA BACK (G38, G39)
8104654-06-G42 EACUSHION ASM-CENTER VICTORIAN SOFA BACK (G42, G43)
P04654-06-G38 EACOVER ASM-CENTER VICTORIAN SOFA BACK (G38, G39)
P04654-06-G42 EACOVER ASM-CENTER VICTORIAN SOFA BACK (G42, G43)
9104654-05-G38 EACUSHION ASM-LH VICTORIAN SOFA BACK (G38, G39)
9104654-05-G42 EACUSHION ASM-LH VICTORIAN SOFA BACK (G42, G43)
P04654-05-G38 EACOVER ASM-LH VICTORIAN SOFA BACK (G38, G39)
P04654-05-G42 EACOVER ASM-LH VICTORIAN SOFA BACK (G42, G43)
10104652-05-G38 EASEAT-66" SOFA, 3-CUSHION, CUT ARM (G38, G39)
10104652-05-G40 EASEAT-66" SOFA, 3-CUSHION, CUT ARM (G40, G41)
10104652-04-G42 EASEAT-66" SOFA, 3 CUSHION, CUT ARM (G42, G43)
P04652-05-G38 EACOVER-66" SOFA SEAT, CUT ARM (G38, G39)
P04652-05-G40 EACOVER-66" SOFA SEAT, CUT ARM (G40, G41)
P04652-04-G42 EACOVER-66" SOFA SEAT, CUT ARM (G42, G43)
110266-01-000EAFRAME-66" SOFA BED (G38, G39, G42, G43)
105433-02-000EAFRAME-COUCH, 66" (G40, G41)
102872-01-000EASTRIKE-COUCH, W/ROD - 4.5" - STEEL - CANADIAN
11111909-02-G38 EAARM ASM-LH SOFA, FRENCH (G38, G39)
11111905-02-G40 EAARM ASM-LH SOFA, INSIDE PILLOW (G40, G41)
11111909-02-G42 EAARM ASM-LH SOFA, FRENCH (G42, G43)
P11909-02-G38 EACOVER-ARM, LH SOFA, FRENCH (G38, G39)
P11909-02-G40 EACOVER-ARM, LH SOFA, INSIDE PILLOW (G40, G41)
P11905-02-G42 EACOVER-ARM, LH SOFA, FRENCH (G42, G43)
102872-01-000EASTRIKE-COUCH, W/ROD - 4.5" - STEEL - CANADIAN
LOUNGETHROWPILLOWS
KEYPART NUMBER U/MDESCRIPTION
103669-08-G38 EAPILLOW ASM-15 X 15 THROW (G38, G39)
103669-08-G40 EAPILLOW ASM-15 X 15 THROW (G40, G41)
103669-08-G42 EAPILLOW ASM-15 X 15 THROW (G42, G43)
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

CURTAIN & CUSHION GROUP (CONTINUED)
SWIVEL CHAIR
KEYPART NUMBER U/MDESCRIPTION
12115393-01-G38 EACHAIR ASM-CAMEO (G38, G39)
12115393-01-F40 EACHAIR ASM-CAMEO (G40, G41)
12115393-01-G42 EACHAIR ASM-CAMEO (G42, G43)
DINETTE CHAIRS
KEYPART NUMBER U/MDESCRIPTION
13116058-04-000 EACHAIR-DINETTE, FLEXSTEEL, 944ALC (G38, G39)
13116058-05-000 EACHAIR-DINETTE, FLEXSTEEL, 944ALC (G40, G41)
13116058-06-000 EACHAIR-DINETTE, FLEXSTEEL, 944ALC (G42, G43)
116080-01-FQ0 EACOVER-CHAIR LEG (PICKLED ASH) FROM: 00-00-00 THRU: 10-08-95
116080-03-G38 EACOVER-CHAIR LEG (PICKLED ASH) FROM: 10-09-95 THRU: 99-99-99
116080-01-FQ1 EACOVER-CHAIR LEG (SALEM CHERRY)
FROM: 00-00-00 THRU: 10-08-95
116080-03-G39 EACOVER-CHAIR LEG (SALEM CHERRY)
FROM: 10-09-95 THRU: 99-99-99
101866-98-01A EACOVER-#943 3/8"PLUG (PICKLED ASH)
101866-98-02A EACOVER-#943 3/8"PLUG (SALEM CHERRY)
DINETTE CUSHIONS
KEYPART NUMBER U/MDESCRIPTION
14111897-07-G38 EACUSHION-13.5 X 30 X 5, CLUB BACK (G38, G39)
14111897-07-G40 EACUSHION-13.5 X 30 X 5, CLUB BACK (G40, G41)
14111897-07-G42 EACUSHION-13.5 X 30 X 5, CLUB BACK (G42, G43)
P11897-07-G38 EACOVER-13.5 X 30 X 5, CLUB BACK (G38, G39)
P11897-07-G40 EACOVER-13.5 X 30 X 5, CLUB BACK (G40, G41)
P11897-07-G42 EACOVER-13.5 X 30 X 5, CLUB BACK (G42, G43)
078155-01-000 EASTRAP-SNAP, BACKREST CUSHION
15105603-17-G38 EACUSHION-23 X 30.5 X 5 SEAT (G38, G39)
15105603-17-G40 EACUSHION-23 X 30.5 X 5 SEAT (G40, G41)
15105603-17-G42 EACUSHION-23 X 30.5 X 5 SEAT (G42, G43)
P05603-17-G38 EACOVER-23 X 30.5 X 5, DINETTE SEAT (G38, G39)
P05603-17-G40 EACOVER-23 X 30.5 X 5, DINETTE SEAT (G40, G41)
P05603-17-G42 EACOVER-23 X 30.5 X 5, DINETTE SEAT (G42, G43)
FOLDING CHAIRS
KEYPART NUMBER U/MDESCRIPTION
101604-01-01A EACHAIR-FOLDING, DINETTE - OAK (PICKLED ASH)
101604-01-02A EACHAIR-FOLDING, DINETTE - OAK (SALEM CHERRY)
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

CURTAIN & CUSHION GROUP (CONTINUED)
BUCKET SEATS
KEYPART NUMBER U/MDESCRIPTION
1118807-01-G38 EABUCKET-500, LH MANUAL RECLINING (G38, G39)
1118807-01-G40 EABUCKET-500, LH MANUAL RECLINING (G40, G41)
1118807-01-G42 EABUCKET-500, LH MANUAL RECLINING (G42, G43)
1118807-03-G38 EABUCKET-500\LHS, MANUAL RECLINING -LEATHER/VINYL
2M05962-24-G38 EACOVER-BACK, 500 LH BUCKET (G38, G39)
2M05962-24-G40 EACOVER-BACK, 500 LH BUCKET (G40, G41)
2M05962-24-G42 EACOVER-BACK, 500 LH BUCKET (G42, G43)
2M05962-26-G38 EACOVER-BACK, 500\LHS BUCKET - LEATHER/VINYL
3119627-01-G38 EAARMREST ASM-500-01, RT (G38, G39)
3119627-01-G40 EAARMREST ASM-500-01, RT (G40, G41)
3119627-01-G42 EAARMREST ASM-500-01, RT (G42, G43)
P19627-01-G38 EACOVER-ARMREST, 500-01, RT (G38, G39)
P19627-01-G40 EACOVER-ARMREST, 500-01, RT (G40, G41)
P19627-01-G42 EACOVER-ARMREST, 500-01, RT (G42, G43)
3119627-03-G38 EAARMREST ASM-500-01, RT - VINYL/LEATHER
P19627-03-G38 EACOVER-ARMREST, 500-01, RT - VINYL/LEATHER
115617-01-000 EABRACKET-ARM, RT MOLDED
4119627-02-G38 EAARMREST ASM-500-02, LT (G38, G39)
4119627-02-G40 EAARMREST ASM-500-02, LT (G40, G41)
4119627-02-G42 EAARMREST ASM-500-02, LT (G42, G43)
P19627-02-G38 EACOVER-ARMREST,500-02, LT (G38, G39)
P19627-02-G40 EACOVER-ARMREST,500-02, LT (G40, G41)
P19627-02-G42 EACOVER-ARMREST,500-02, LT (G42, G43)
4119627-04-G38 EAARMREST ASM-500-02, LT - VINYL/LEATHER
P19627-04-G38 EACOVER-ARMREST, 500-02, LT - VINYL/LEATHER
115617-02-000 EABRACKET-ARM, LT MOLDED
111169-01-000 EAPLATE-BACK, ARMREST
5M05962-25-G38 EACOVER-SEAT, 500 LH BUCKET (G38, G39)
5M05962-25-G40 EACOVER-SEAT, 500 LH BUCKET (G40, G41)
5M05962-25-G42 EACOVER-SEAT, 500 LH BUCKET (G42, G43)
5M05962-27-G38 EACOVER-SEAT, 500\LHS BUCKET - LEATHER/VINYL
6M80906-12-000 EAFRAME ASM-SEAT & BACK & SPRING
7097683-02-000 EABRACKET-MOUNT, REMOTE (PASSENGER)
8108049-03-000 EACABLE-REMOTE, 26" W/Z END-SWITCH LEVER
117125-01-02B EABRACKET-CABLE HOLDER, E-COAT
108049-02-000 EACLIP-CABLE, PEDESTAL
9097683-03-000 EABRACKET-REMOTE, SIDE MOUNT - SINGLE (DRIVER)
10107921-01-000 EAPEDESTAL ASM-SEAT 9-3/4" - FLEXSTEEL 3060 MSPD (PASSENGER)
10107921-14-000 EAPEDESTAL ASM-SEAT 5.75" - FLEXSTEEL XP1774 (DRIVER)
22
23
24
25
26
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC

KEYPART NUMBER U/MDESCRIPTION VENDOR NO.
11119952-04-000EASLIDE-SEAT, HD, LOCKING 4STUDS - ATWOOD 83785
007221-01-000EASPACER-SEAT, ADJUSTER
12107921-05-000 EATOP PLATE -FLEXSTEEL
107921-06-000 EABEARING KIT-PEDESTAL, FLEXSTEEL
13119952-02-000EASLIDE-SEAT, HD, NONLOCKING 4ST - ATWOOD 83731
007221-01-000EASPACER-SEAT, ADJUSTER
14080730-11-000EASHIELD-RUBBER BOOT - FLEXSTEEL
15080730-08-000EAHANDLE-30179907 - KEIPER
16080730-09-000EASHIELD-FLEXSTEEL
17071126-43-G38 EASKIRT-SGL,10.5", SEAT BELT SLOT (PASSENGER) (G38, G39)
17071126-43-F06 EASKIRT-SGL,10.5", SEAT BELT SLOT (PASSENGER) (G40, G41)
17071126-43-G42 EASKIRT-SGL,10.5", SEAT BELT SLOT (PASSENGER) (G42, G43)
17071126-54-G38 EASKIRT-SGL,10.5", 6-WAY MANUAL (DRIVER) (G38, G39)
17071126-54-F06 EASKIRT-SGL,10.5", 6-WAY MANUAL (DRIVER) (G40, G41)
17071126-54-G42 EASKIRT-SGL,10.5", 6-WAY MANUAL (DRIVER) (G42, G43)
17071126-26-G38 EASKIRT ASM-POWER SEAT (DRIVER) (G38, G39)
17071126-26-G40 EASKIRT ASM-POWER SEAT (DRIVER) (G40, G41)
17071126-26-G42 EASKIRT ASM-POWER SEAT (DRIVER) (G42, G43)
17071126-52-F36 EASKIRT-NON-POWER SEAT W/LEATHER OPTION (PASSENGER)
17071126-57-F36 EASKIRT ASM-POWER SEAT W/LEATHER OPTION (DRIVER)
18116215-01-000EASEAT-MANUAL, 6-WAY, DRIVER - ATWOOD 83805
19116215-02-000EAPLATE-UPPER, MANUAL, 6-WAY - ATWOOD 85118
20116215-03-000EAPLATE-LOWER, MANUAL, 6-WAY - ATWOOD 83835
21119626-01-G38 EAHEADREST ASM-500-04 (G38, G39)
21119626-01-G40 EAHEADREST ASM-500-04 (G40, G41)
21119626-01-G42 EAHEADREST ASM-500-04 (G42, G43)
21119626-02-G38 EAHEADREST ASM-500-04 VINYL/LEATHER
P19626-01-G38 EACOVER-HEADREST ASM-500-04 (G38, G39)
P19626-01-G40 EACOVER-HEADREST ASM-500-04 (G40, G41)
P19626-01-G42 EACOVER-HEADREST ASM-500-04 (G42, G43)
P19626-02-G38 EACOVER-HEADREST ASM-500-04 VINYL/LEATHER
113977-12-000EAHEADREST INSERT, W/O LOCK - FLEXSTEEL
113977-13-000EAHEADREST INSERT, W/LOCK - FLEXSTEEL
114791-04-000EAFRAME-HEADREST, 180004 STD
22081373-03-000EASEAT-POWER,6 WAY - DELCO RV620
081373-01-700EABRACKET-L, CONTROL SWITCH H-171
23081373-02-703EAMOTORPKG.ADJ.HORIZONTAL 22063237 & H-195
24081373-02-704EAMOTOR PKG. ADJ. VERTICAL 22063238 & H-196
25081373-03-700EASWITCH ASM F/BRN-GRAY (FLAT) 22138182 & H-441
26081373-03-701EAWIRE HARNESS ASM., LT. SIDE 6000
26081373-03-702EAWIRE HARNESS ASM., RT. SIDE 6001
111169-04-000EAINSERT-OVAL, VECTRA
CURTAIN & CUSHION GROUP (CONTINUED)
BUCKET SEATS (CONTINUED)
22
23
24
25
26
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC
