Winny OD15061 User manual

1
Important Precautions
1. This model mainly applies to swimming pool with flat floor
2. Make sure that your local voltage is compatible with the device.
3. In order to prevent severe damage to the cleaner, never power on the unit when it is
outside of the swimming pool.
4. Make sure the electrical outlet is grounded. It is strongly advised to protect the electrical
line on which the robot is connected by a differential of 30 milliamperes of type AC.
5. Do not operate the cleaner when people are in the pool.
6. Before power on, make sure the cable is fully released to avoid any winding, which could
affect the cleaner’s performance or cause damage.
7. The filter bags should be cleaned every time you use the unit. This will prevent the dirty
filter bags affecting the normal operation of the cleaner.
8. The cleaner should be stored in a cool and ventilated place, away from direct sunlight,
when not in use.
9. The power supply unit should be placed in a shaded area. In order to avoid overheating
and the potential damage of components, never cover the power supply unit.
10. Only authorized after sales service personnel should open the cleaner’s motor assembly
and power supply unit, otherwise the warranty will be invalidated.
11. Do not uncover the protective film which is sticked on the operating panel.
12. Do not use the cleaner beyond the working environment/conditions stated in this manual.
13. Close the filtering system of your pool when use this cleaner.
14. The file must be disconnected from the wall outlet before cleaning or repair.
15. If the power cable is damaged, it must be replaced by the manufacturer, its service agent
or similar qualified person in order to avoid a hazard.
16. This appliance can be used by children aged from 8 years and above and person with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.

2
17. CAUTION – The control box of the appliance must be fixed to the ground or the wall
securely. Never operate the unit without fixing the control box first.
18. CAUTION – The control box must be fixed at a minimum distance of 3.5m from the edge
of the swimming pool.
19. The cleaner is only to be used with the power supply unit provided with the appliance
20. The unit should be operated only under low safety voltage corresponding to the marking
of the appliance.
Note
1. Putting into or lifting out from pool with the cleaner bottom toward the wall to avoid any
possible scratch to the pool surface.
2. Please store the cleaner in flat place, the cleaner body should not touch any hard
article to avoid possible damage.
3. Do not press into or lift out the filter cartridge when install or take off it to avoid any damage to
the chassis.
Do not lift both sides of the filter cartridge Do not lift both sides of the cartridge
at the same time at the same time.

3
Contents
Ⅰ. Introduction…………………………………………………………………………………..·P. 4
Ⅱ. Safety…………………………………………………………………………………………..P. 4
Ⅲ. Specifications…………………………………………………………………………………P. 4
Ⅳ. Cleaner Structure……………………………………………………………………………..P. 5
Ⅴ. Operation Instructions……………………………………………………………………….P. 6
Ⅵ. Trouble Shooting……………………………………………………………………………...P. 15
Ⅶ. Packing List…………………………………………………………………………………….P. 16
Ⅷ Warranty…………………………………………………………………………………………P. 16

4
Ⅰ. Introduction:
The automatic swimming pool floor cleaner OD15061/HJ1009B is a new type of highly efficient
swimming pool cleaning equipment. Through its advanced computer controlled program, it can
clean the pool floor automatically without draining pool water. At the same time, it filters the pool
water and gets rid of suspended particles and sediments.
For safe operation, the cleaner works on 24V direct current.
Please read this instruction manual carefully before use.
. Safety:Ⅱ
1, Position requirement of power supply unit：Refer to item 9 and 11 in “Important Precautions”.
2, Requirement of power: Refer to item 3 in “Important Precautions”.
Before connecting the cleaner to power, please check that the local voltage and
frequency (hertz) correspond to that of the power supply unit.
Ⅲ. Specifications:
1. Rated input voltage and frequency: 230V/50Hz
2. Output Voltage: DC24V
3. Rated input and output power: 150W/120W
4. Working cycle: 1h/1.5h/2h/2.5h
5. Cable length: 13m
6. Maximum cleaning area: 150m²
7. Filtering capacity: 15m³/h
8. Filtering capability: 150µm
9. Water temperature of use: 10°C - 35°C
10. Creeping speed: 15-18m/min
11. IP Grade：Cleaner-IPX8 Power supply unit-IPX4
12. Working temperature: 10°C - 40°C

5
13. Pool depth: 2.5m
. Cleaner Structure
Fig.4-1
Assembly the cleaner according to above structure
1
3
2
4
Optional
2
3
4
1

6
. Operation Instruction
5.1 Cable connection
5.1.1 Plug the cable line into the socket on the power supply unit (note: make sure to plug it
in the correct direction and position), and fasten the nuts on both sides of the plug.
Fig. 5-1
5.1.2 Connect the plug with power
Fig.5-2
Match point Turn round this part for
locking or loosen

7
5.2 Panel operation
Chart 5-1. Buttons & indicator lights instructions
5.3 Function and adjustment of nozzle
There are two nozzles on the cleaner (as shown in Fig.5.4), one of them opens once the
other closes. Water flows out through the opening nozzle to
thrust the cleaner move forward. Operator can adjust the
nozzle direction through rotating it by which to control the
moving path of the cleaner..
Item
Name Specification Function
1
POOL
DISTANCE Pool distance selection button Select based on pool width
2 RUN TIME Auto running time selection button
3 STOP Stop button
4 FWD/REW Manual forward/backward button
To move the cleaner to a certain
location
5 AUTO RUN Automatic working button
Cleaner starts running in
automatic program
6
Automatic working time indicator
light
7 Pool width indicator light
Fig.5-3
Fig. 5-4

8

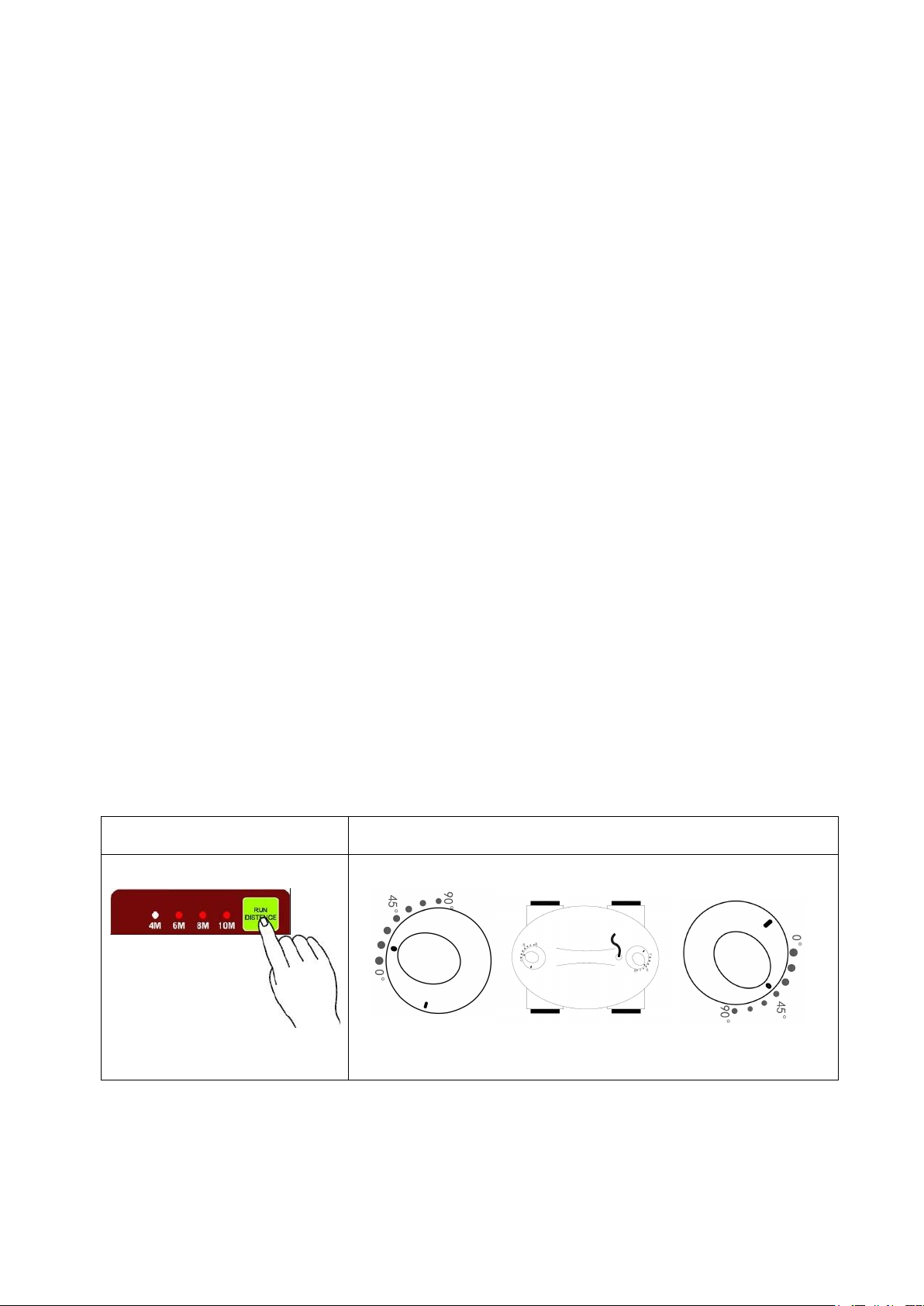

5.3.1 Setting of nozzle, speed and moving path
5.3.1.1 In general, there will be better cleaning effect under a slower moving speed.
There is less cable twists occur when cleaner moves at bigger curvature radius and below
instruction is helpful for a proper setting.
5.3.1.2 Overlay of the cleaner’s moving paths at different position of the nozzle
Moving at slow speed（Adjust symble of on the nozzle）
Fig. 5-6
Moving at fast speed (Adjust the symble of ●)
Fig.5-7
Operator can select a proper nozzle position for different pools, for example, chose slow speed
T
oward left
T
oward right
0° 15°30°45°60°75°90°
慢速
Symble of
T
oward left
T
oward right
0° 15°30°45°60°75°90°
Fast
Position of symble ●
Fig. 5-5

9
which leads to big moving radian by putting the symble 〇 points at 45º (cleaner moves
toward left), or points at 75º (cleaner moves toward right)
5.3.1.3 : Settings of nozzle
In most cases, put both of the nozzles at same direction will fit for any shap of pools.
A radius path and a direct path will happen by alternation if one nozzle is at 30º and the other is
at 60º by which will leads to dense coverage of the pool and is helpful for release any possible
cable twist.
5.3.1.4 : Setting of distance
Chose a proper pool distance on the operating panel based on your pool size.
Suggest to chose a longer distance if you put the nozzle at direction of low speed or there is
slope in your pool, for example, the pool width is 6m, then suggest to chose 8m or 10m if the
cleaner moves in low program.
5.3.1.5 : Setting for pools with slope
Put the nozzle at a position of fast speed so as to climb slope by enhancing water flow of the
cleaner. (See scheme of moving at fast speed).
Note: A full coverage is not guaranteed for some of customized pool shapes, while you can
adjust the nozzle direction to reduce the moving curvature radius even this means to cause
cable twist more often.

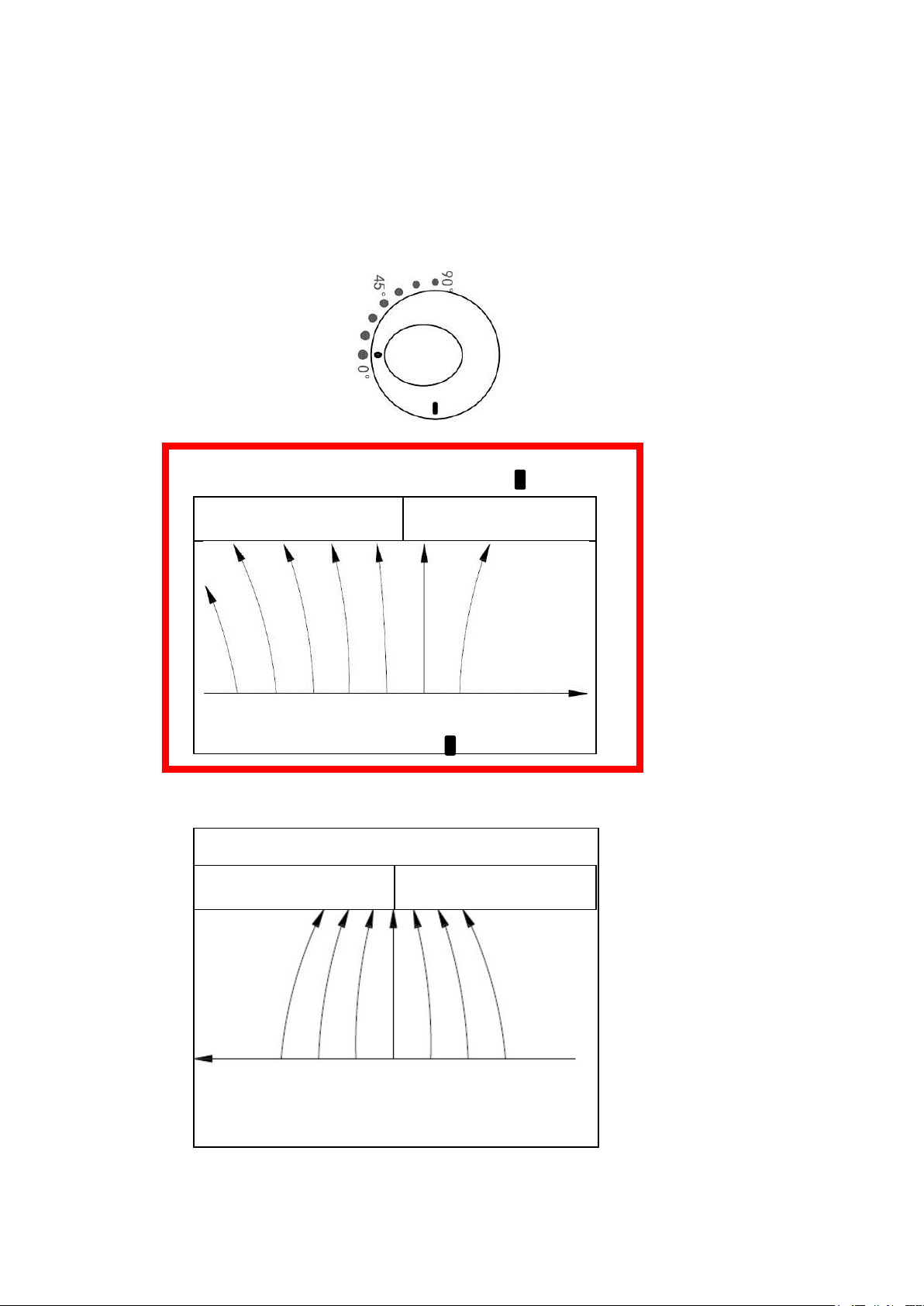

5.3.2 Recommended nozzle direction:
1) Direction at which cleaner moves faster
Pool distance Sketch map

10

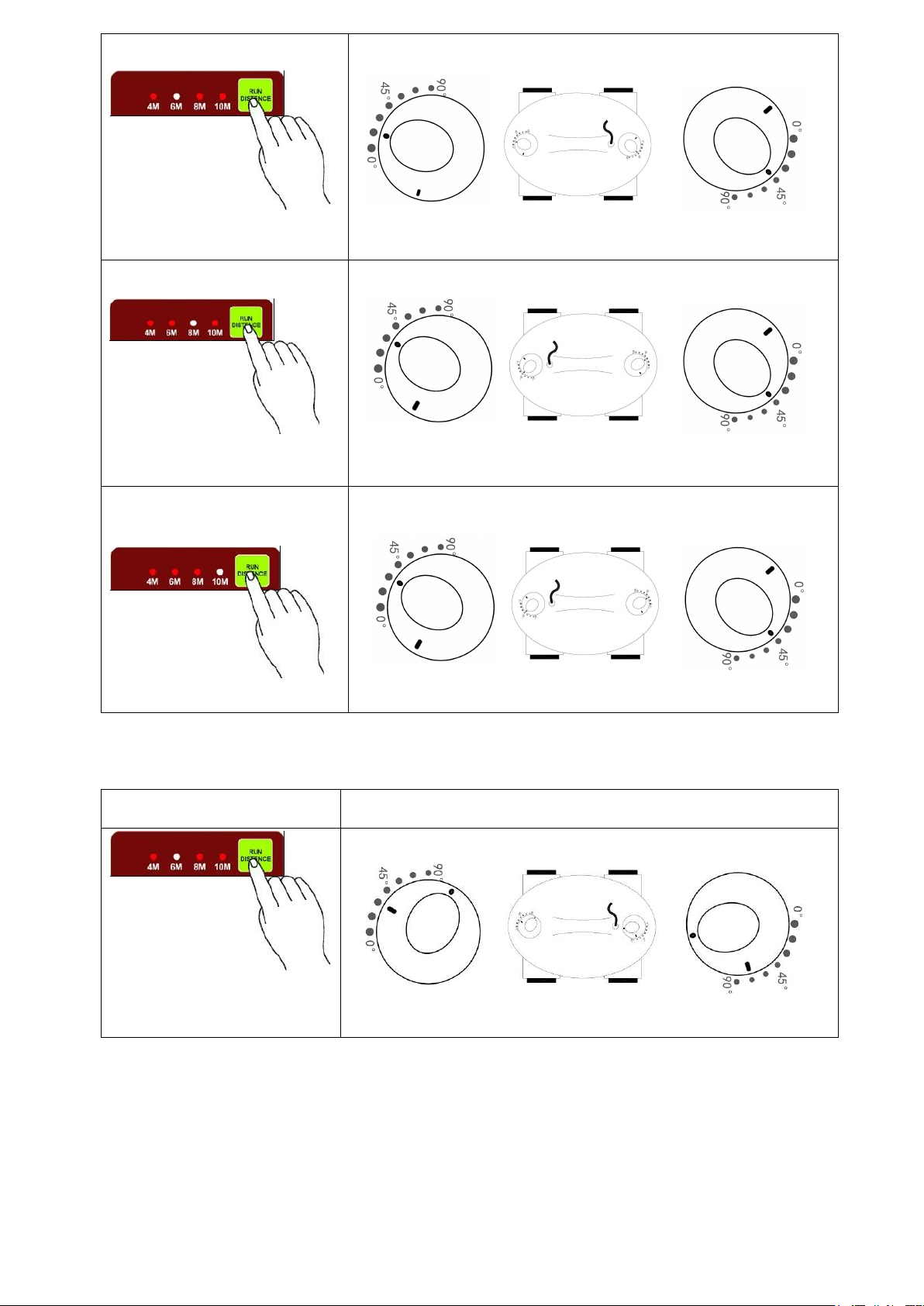

2）Direction at which cleaner moves slower
Pool distance Sketch map

11
3) Pool with slope floor
Pool distance Sketch map
Select according to pool
size
Select according to pool
size
Note: The above are recommending settings and operator can select a proper nozzle
direction based on above principle actual pool situation.
5.4 Methods of puting the cleaner into pool
Hold a proper position of the cable by one hand ( be sure that the cable from hand to cleaner
will let the cleaner immerges into water but above the floor), hold the cleaner handle by the

12
other hand to put the cleaner into water slowly.
Fig.5-8
Keep holding the cable before the cleaner filled with water and sinks into pool floor.
Fig.5-9
Release the rest of the cable after the cleaner falls onto the pool floor slowly.
Fig.5-10
It’ll avoid any turning upside down of the cleaner by following above methods.

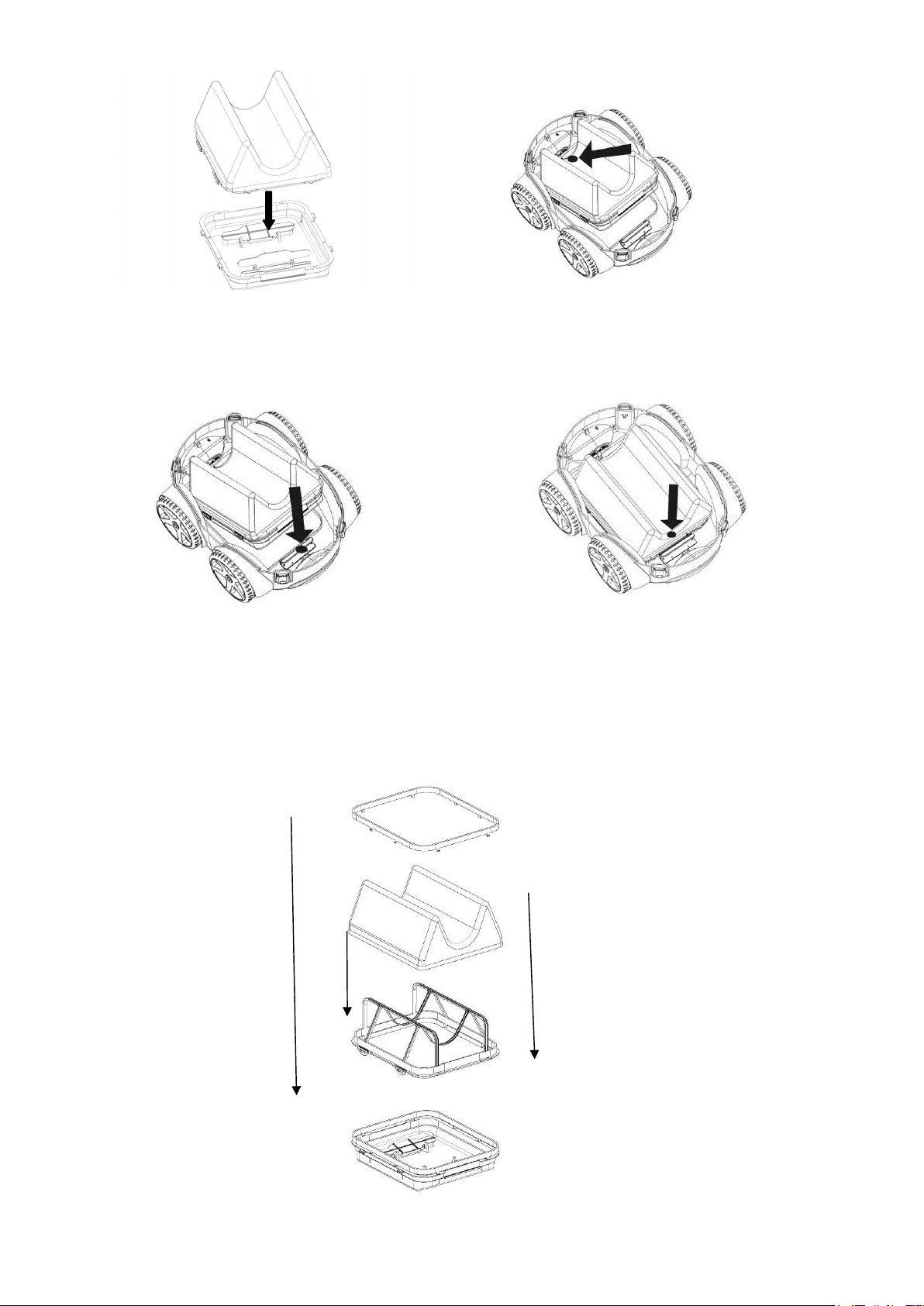

5.5 Cleaning the filter bag
Unfold the retaining ring and open the cleaner.
Fig.5-11
Retaining ring

13
Press the buckle of one side as well as lift the filter cartridge.
Fig. 5-12
Take off the filter cartridge
Fig. 5-13
Open the small buckle and take off the filter bag to wash
Fig. 5-14
Reinstall the filter cartridge

14
Put on the filter bag Insert one side of the filter cartridge into the buckle
Fig. 5-15
Press the buckle of the other side as well as put the filter cartridge in position.
Fig. 5-16
5.6 Replacing filter bag
Please use new filter bag in case broken as structure bellow
Fig. 5-17
1
3
2

15
5.7 Helpful tips
i. Unplug power connection immediately after use (Do not do it with wet hand or
naked foot).
ii. The cleaner should not touch pool walls while lifting out to avoid scratching the pool
surface or any damage to the cleaner.
iii. Before lifting out from pool and placing on the pool edge, suspend the cleaner
above water surface for 10-15 seconds to release the water left inside the cleaner
body.
iv. Please hold the cleaner handle to lift it out from pool and never pull the cable.
. Trouble Shooting
Symptom Possible reason Corrective action
Cable twists or coils
up
Cable not fully released Unplug power line and release cable
Nozzle in extra angle Adjust water outlet into proper angle
Obstruction in pool Remove obstruction in pool
Stuck on main drain outlet of
the pool Turn off pool filter system
Long time working Release manualy
Cleaner does not
reach all pool area
Power supply unit
improperly positioned
Place power supply in proper position so
that cleaner can reach all area
Nozzle in improper direction Adjust nozzle into proper direction
Customized pool shape Adjust the nozzle to lead to bigger moving
radius
Pool filter system and pump
open Turn off pool filter system
Cable not long enough in
pool Release cable
Cleaner does not
work
Power cord not connected
well Plug power cord and cable line
Damaged during
transportation Contact local vendor
Cleaner does not match
local rated voltage Contact local vendor

16
Ⅶ. Packing List
Item Name Model Quantity (pc) Usage Remarks
1 Cleaner OD15061/HJ1009B 1 In carton
2 Power supply unit OD15061/HJ1009B 1 In carton
3 Manual & certificate 1
Ⅷ. Warranty
This product has passed all quality control and safety tests, conducted by the technical department of the
factory
Warranty information:
1. Warranty period is 2 years and is settled in accordance with the terms established by Directive
1999/44/EC of 25th of May regarding guarantees on the sale of consumer goods as well as the
local law in the Country of Purchase within the European Union.
2. This warranty is void if the product has been altered, misused, or has been repaired by
unauthorized personnel.
3. The warranty extends only to manufacturing defects and does not cover any damage resulting
from mishandling of the product by the owner
4. The sales invoice must be presented for any claim or repair during the warranty period
Please contact your local dealer for any warranty issues.

17
Environmental Programmes, WEEE European Directive
Processing of electric and electronic equipment at the end of their
service life (applicable in member countries of the European Union and
other European countries operating a selective waste collection
system).
This symbol, affixed to the product or its packaging, indicates that the
product must not be processed with household waste. It must be
brought to an electric and electronic waste collection point for recycling
and disposal. By ensuring the appropriate disposal of this product you
also help in preventing potentially negative consequences for the
environment and human health. The recycling of materials helps
preserve our natural resources. For further information regarding the
recycling of this product, please contact your municipality, local waste
disposal centre or the store where the product was purchased.
Net Weight : 11.5
CI - FR 91977 Les Ulis
Made in China 2014
