Wintal PD900 User manual

PORTABLE DVD PLAYER
WITH BUILT-IN DIGITAL & ANALOG TUNERS
USER MANUAL
PD900

2
CONTENTS
INTRODUCTION ............................................................................................................. 3
MAIN FUNCTIONS .......................................................................................................... 3
REMOTE CONTROL .......................................................................................................... 6
CONNECTION AND SETUP FOR RECEPTION OF DVB-T AND ANALOG TV ......................................... 7
CONNECTION TO TV SET ................................................................................................... 8
AS A MONITOR .............................................................................................................. 9
PLAYING GAMES ......................................................................................................... 10
FILE BROWSING AND PLAYBACK ...................................................................................... 11
PLAYING FILES OFF USB FLASH DRIVE.............................................................................. 12
NAVIGATING THE FILE MANAGER..................................................................................... 12
READING MEMORY CARDS (SD / MS / MMC) ....................................................................... 13
DVB-T SETUP MENU OVERVIEW ....................................................................................... 14
DVB-T FIRST TIME INSTALLATION WIZARD ........................................................................ 14
OPERATING IN DVB MODE .............................................................................................. 15
ANALOG TV SETUP MENU OVERVIEW................................................................................. 16
OPERATION IN TV MODE ................................................................................................ 16
DVD PLAYBACK............................................................................................................ 17
PARENTAL LOCK (DVB-T MODE) ....................................................................................... 18
CHARGING YOUR BATTERY.............................................................................................. 19
CHARGE LED INDICATIONS ............................................................................................. 19
TROUBLESHOOTING ..................................................................................................... 20
SPECIFICATIONS.......................................................................................................... 21

3
INTRODUCTION
MAIN FUNCTIONS
The PD900 is a versatile portable entertainment unit.
9.2” widescreen TFT-LCD•
The rotatable screen allows versatile viewing opportunities.
DVD player•
Watch your favourite movies on the go. The PD900 not only includes support for common DVD
movies, but can also read DivX, MPG, S/VCD discs too.
Integrated DVB-T and Analog TV tuner•
Analog TV receives almost all systems in the world: PAL B/G, PAL D/K, PAL I, NTSC M,
SECAM B/G, SECAM D/K, PAL M, PAL N, SECAM L.
> Two search modes: “AUTO” and “SLOW AUTO”.
DVB-T Digital TV standard works in most countries including Australia, Deutschland,
England, Italy, France, Portugal, Spain, Netherlands, China, Taiwan.
Digital audio player•
Listen to MP3 and WMA files from CD, DVD, USB drive, or memory card.
Game player•
Lets you play 8bit NES (*.nes) game ROMs from the included CD, USB drive, or memory card.
Photo viewer•
Load up your personal photos in JPG format via CD, DVD, USB drive, or memory card. Kodak
Picture CDs are also supported.
USB reader (USB-A)•
Reads supported multimedia files from compatible USB flash drives
Card Reader (SD/ MS/ MMC)•
Reads supported multimedia files from compatible USB flash drives
Disc, media, and format support:•
Supported disc and media types:
> DVD-R, DVD+R, DV, DVD-RW, DVD+RW, CD-R, CD-RW discs
> USB drives (via integrated USB-A port)
> SD/MS/MMC Media cards (via integrated card reader)
Supported audio and video formats:
Video: DVD Video, S/VCD, DivX (DivX 4.x, DivX 5.x), MPG
Audio: MP3, WMA
Photos: JPG, Kodak Picture CD
Accepts external inputs such as Video game, Video camera, Video recorder, connect to TV set,•
to enjoy AV entertainment with high quality image at home. Can be used as a closed circuit
(CCTV) TV monitor.
Super ESP (Electronic Shock Protection)•
Built-in high energy rechargeable lithium polymer battery.•
Teletext (DVB Mode)•

4
Package contents:•
> 1x PD900
> 1x Remote control
> 1x AV cable
> 1x headphone
> 1x DC car charger lead
> 1x AC power supply 13.8 V @ 1.5 A
> 1x joystick
> 1x user manual
> 1x portable antenna
Connections:•
> Power input
> Game port (USB-A)
> RF input
> USB port (USB-A)
> Card reader
> 2.5mm AV input
> 2.5mm AV output
> 3.5mm headphone out

5

6

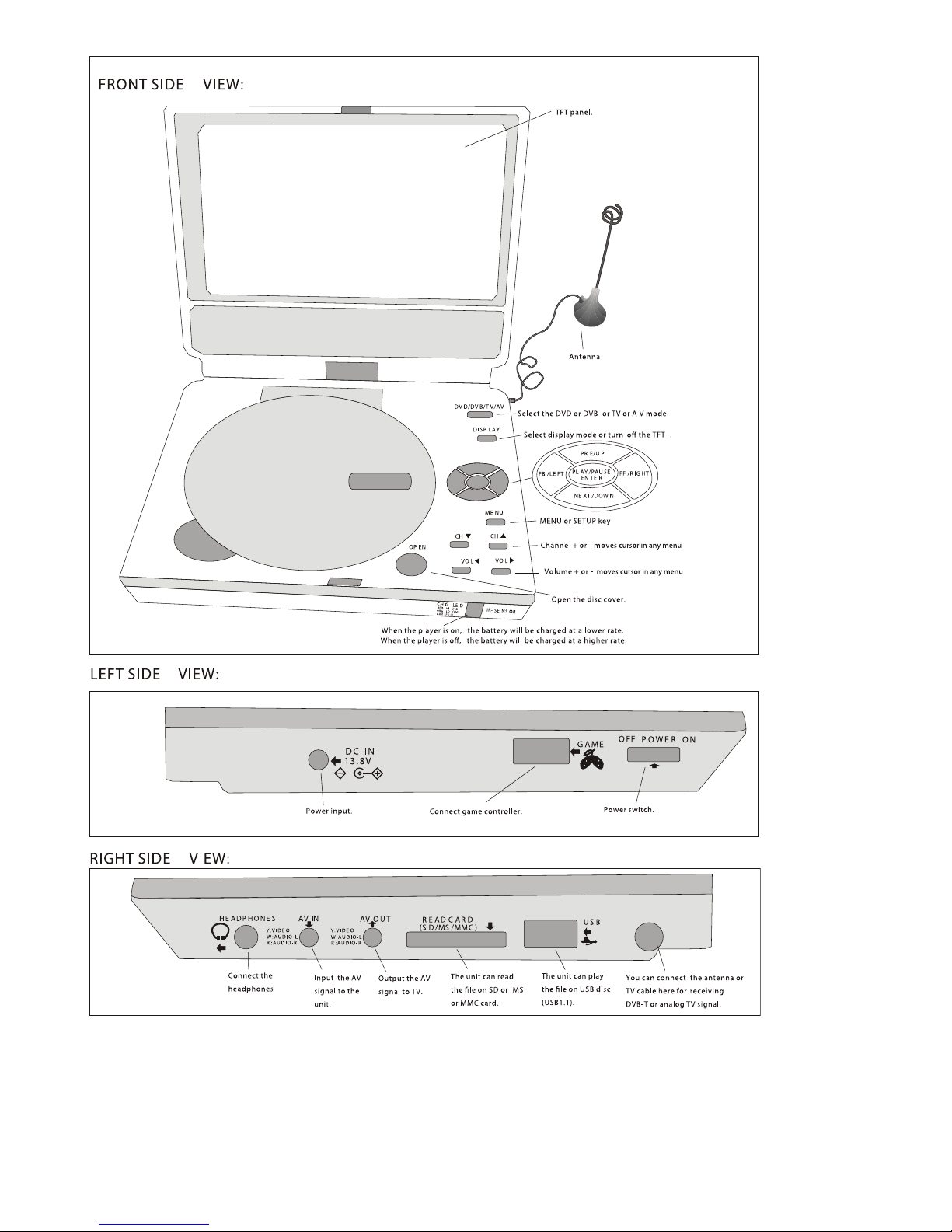

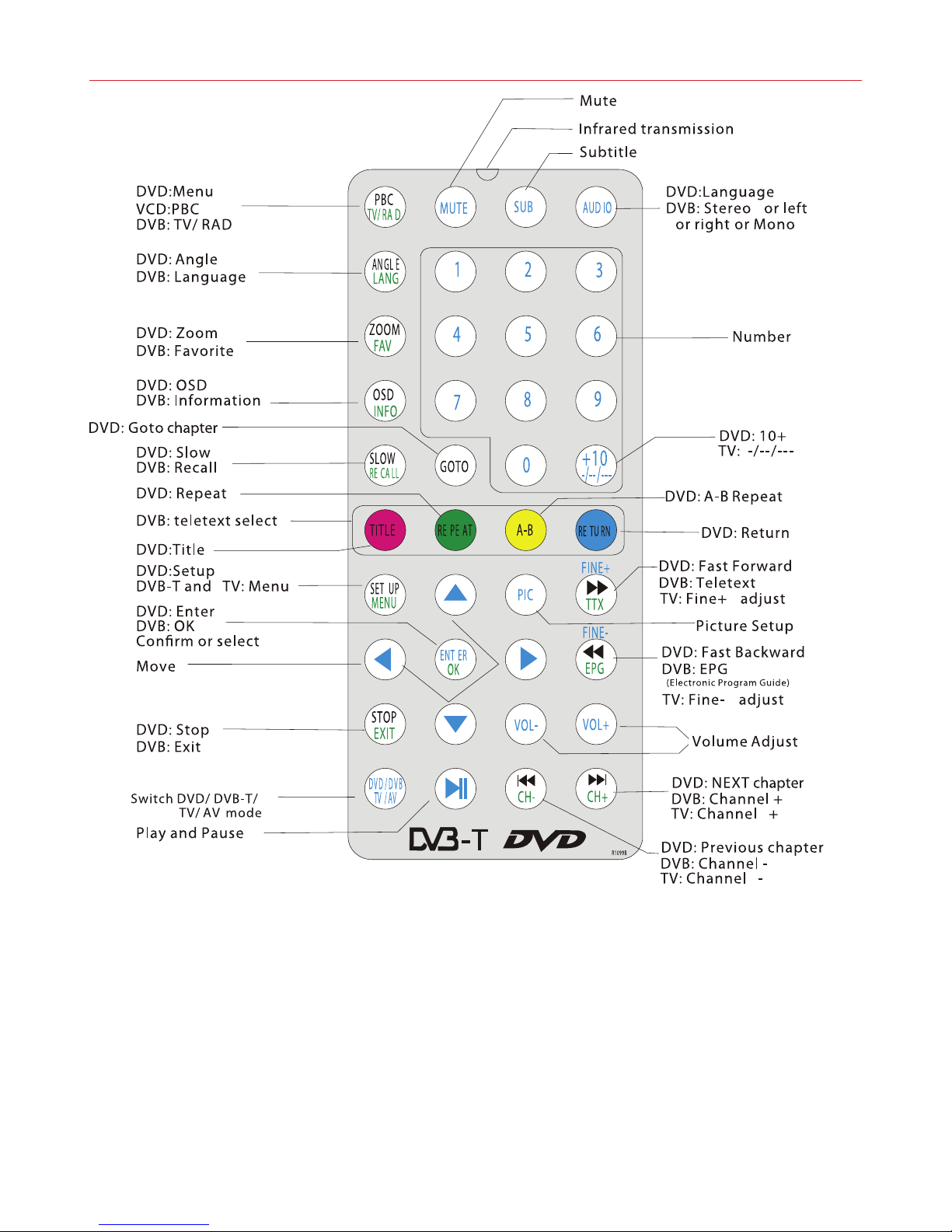

REMOTE CONTROL
Note: As you switch between modes (DVD/ TV/ DVB-T/ AV) the buttons functions will change.
The remote takes 2x “AAA” batteries.

7
CONNECTION AND SETUP FOR RECEPTION OF DVB-T AND ANALOG TV
Connect the included portable antenna or an external antenna to the “Antenna” input on1.
your PD900.
Choose your mode to watch either digital or analog TV.2.
To watch digital televisiona.
Press “DVD/DVB/TV/AV” key to change the unit to “DVB” for DVB-T
To watch analog televisionb.
Press “DVD/DVB/TV/AV” key to change the unit to “TV” to receive analog signals
Digital TV (DVB-T) Analog TV
Press the menu key to enter the set up1.
menu.
Select program search2.
Select “Auto Scan”3.
Select “Start Scan”4.
Press the menu key to enter the ”PRESET”1.
menu.
Using the arrow keys on the remote, move2.
down to System and choose “PAL-BG” for
Australia.
Select “AUTO” or “SLOW AUTO” to search3.
channels.
READ CARD USB
HEADPHONES
AV OUT
AV IN
Y:VIDEO
W:AUDIO-L
R:AUDIO-R
Y:VIDEO
W:AUDIO-L
R:AUDIO-R
(SD/MS/MMC)
Note: The supplied antenna will only work in prime signal areas and should not be expected to
work every where. For best results use an external antenna.

8
CONNECTION TO TV SET

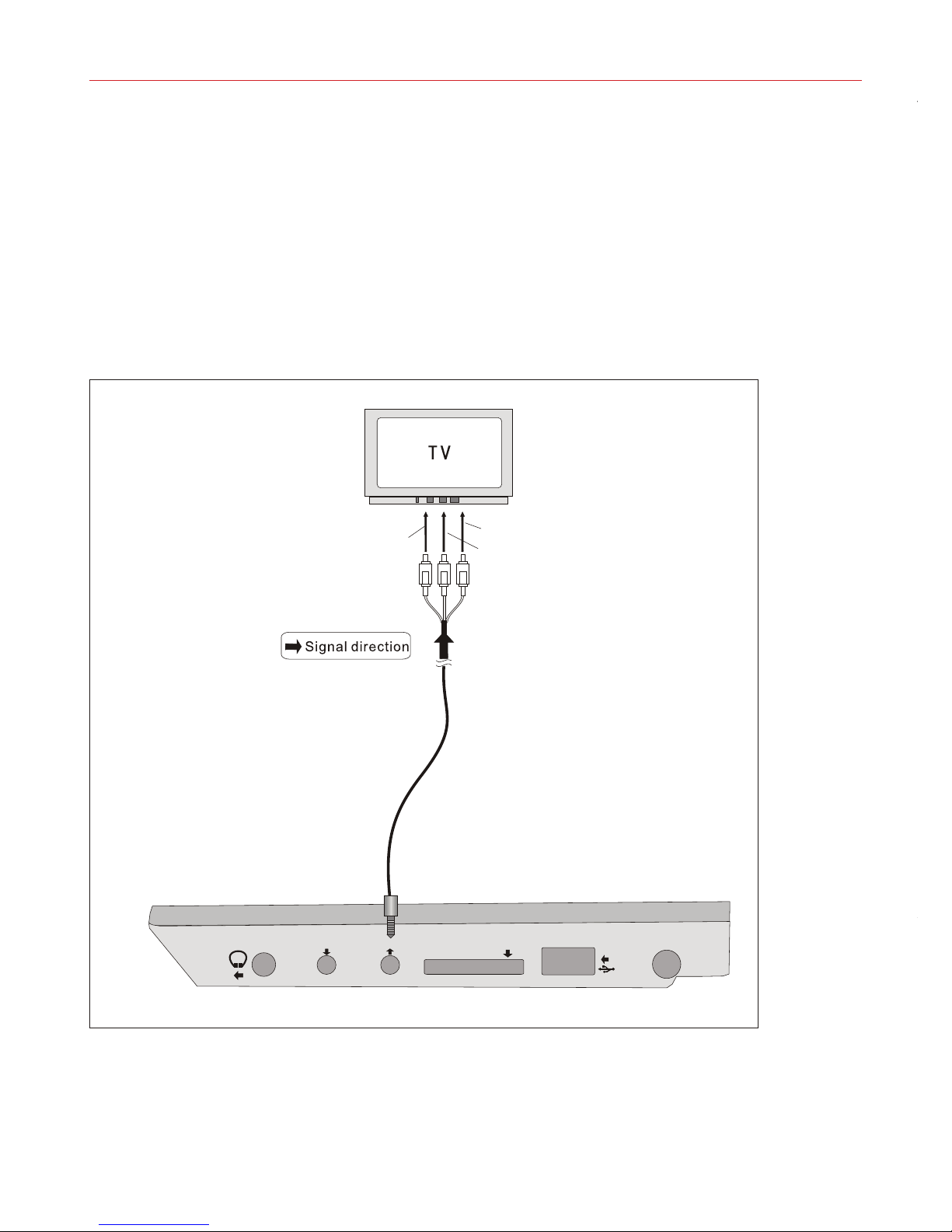

Using “AV out” and connecting the included AV cable to a TV set at home you can enjoy a bigger
image and higher quality sound.
Only in DVD mode can the output be sent to an external device (eg. TV set).
Press “DVD/DVB/TV/AV” key to change the unit to “DVD”1.
Connect the 2.5mm jack to “AV Out” on your PD9002.
Connect the Yellow/ White/ Red connectors to your TVs AV input3.
Yellow: Video
White: Left Audio
Red: Right Audio
Once connected select AV mode on your TV remote to view DVD output.4.
READ CARD USB
HEADPHONES
AV OUT
AV IN
Y:VIDEO
W:AUDIO-L
R:AUDIO-R
Y:VIDEO
W:AUDIO-L
R:AUDIO-R
(SD/MS/MMC)
VIDEO(YELLOW)AUDIOLEFT(WHITE)
AUDIORIGHT(RED)
Y

9
AS A MONITOR
You can use your PD900 as a monitor, by inputting video and audio to the unit.
Press the “DVD/DVB/TV/AV” key, to change the input mode to “AV”1.

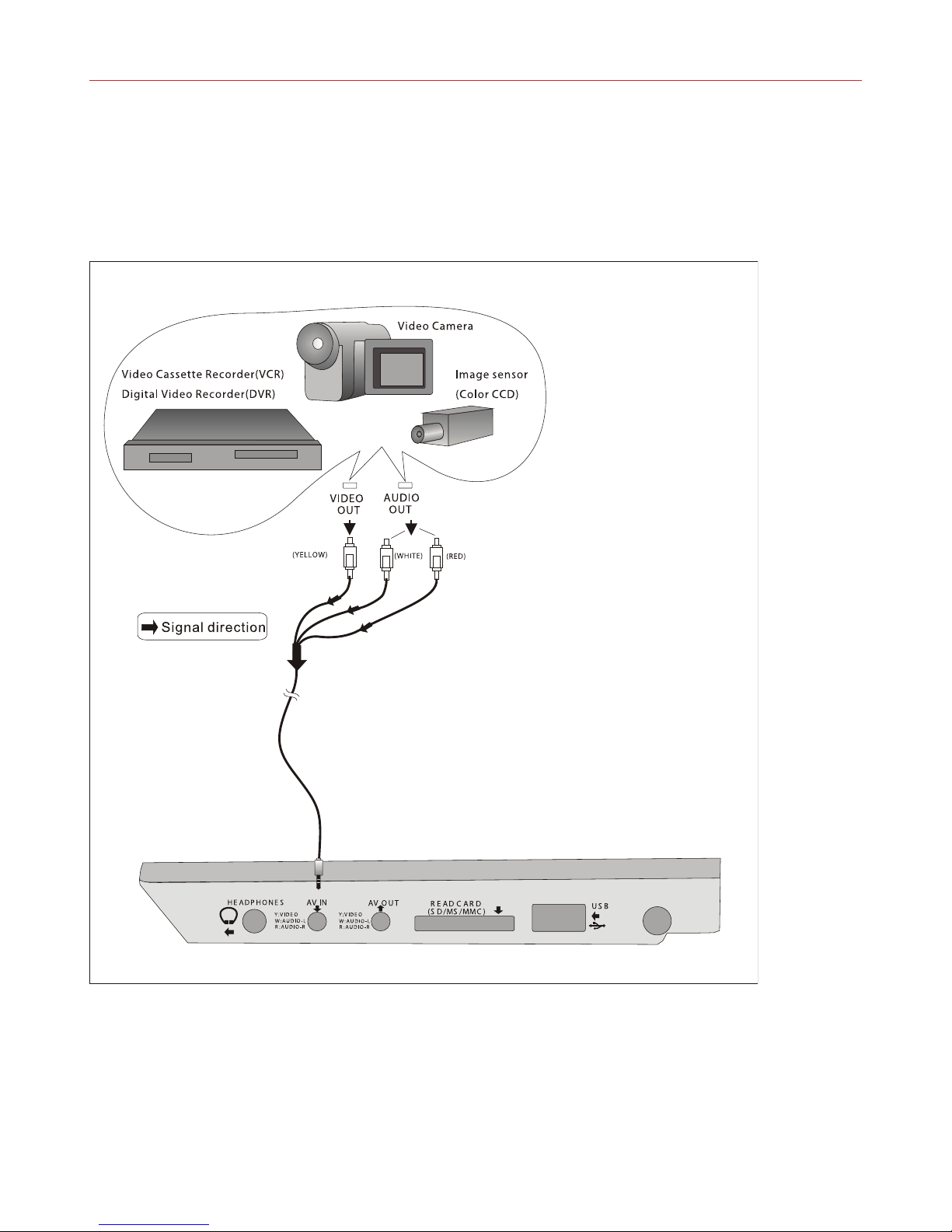

Using the AV cable supplied connect the external signal to the “AV In” on your PD900 (see2.
below fig).
Note: Match the coloured RCA plugs to the output sockets on your device

10
PLAYING GAMES
Load the 8-bit NES game disc into the unit1.
(you can also load 8bit NES games from a USB drive or flash card)
Connect the game controller to the game port as per diagram. Use the remote to select the2.
game you wish to play from the menu.
Power on3.
Play game4.

11
FILE BROWSING AND PLAYBACK
Your PD900 allows you to playback a multitude of audio and video files from a number of sources;
including data files burnt to a CD-R/RW, DVD±R/W, USB flash drive, or files located on a memory
card.
When a source is inserted (CD/DVD, USB drive, memory card) containing supported audio, video,
picture files; the PD900 will always start off with playing the music files.
To playback your images, games or movie files; use the directional keys on your remote and
navigate to the Audio, Photo, Game, and Video icons located at the bottom right corner of the
screen.

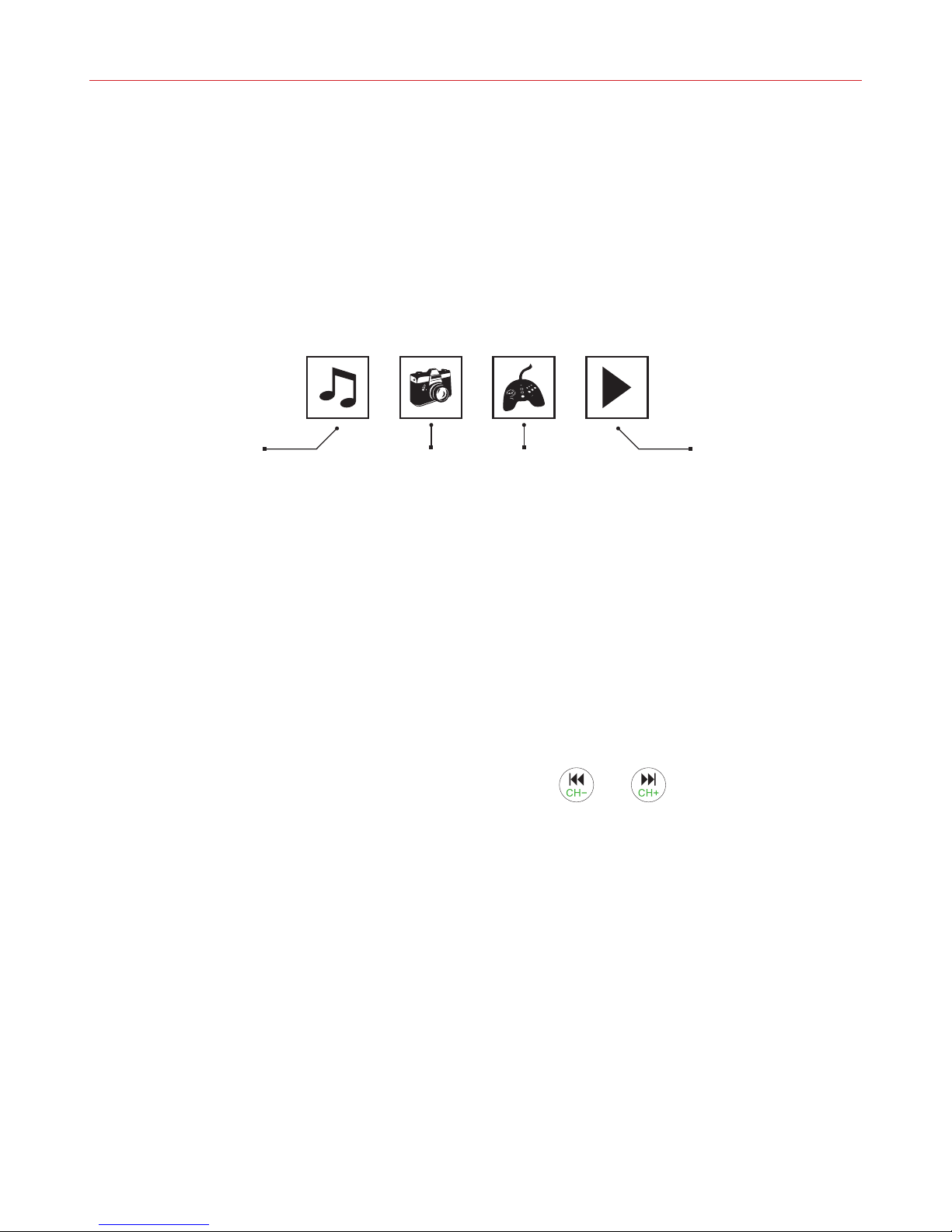

audio photos games video
Choose the appropriate mode and press the ENTER key on your remote.
The files on the right hand column will change to show only the file types you have chosen
depending on the mode you are in (AUDIO/ PHOTOS/ GAMES/ VIDEO).
To playback a file, use the directional keys on your remote and press the ENTER/OK key once you
have selected the file you would like to play.
TIP: If you want to return to the file list while watching a DivX movie, press the RETURN key on
your remote.
To jump between files in the list during playback, press the and keys on your remote.

12
PLAYING FILES OFF USB FLASH DRIVE

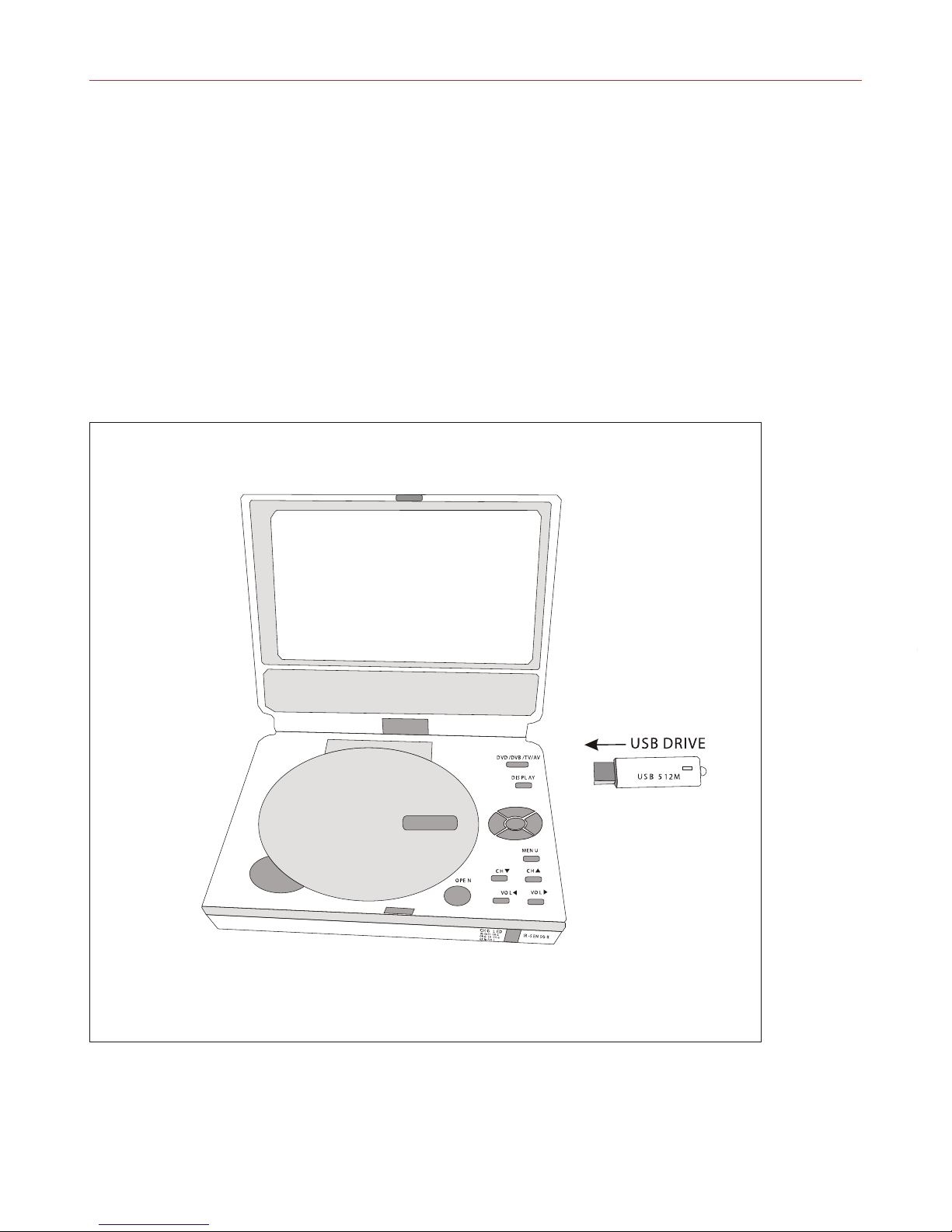

To enable USB playback, make sure there are no discs inserted.1.
Insert your USB drive2.
Power on3.
You can plug and play MPEG4, MP3, JPG, VCD and NES files via your USB flash drive.4.
Navigating the file manager
Select which type of files you wish to play from the modes at the bottom of the screen (Music,
Picture, Game and Movie) then move the cursor to select the file then press enter to begin
playback. Your PD900 will display relevant file types according to the mode you set. See File
browsing and playback for more information.
Notes: The USB port on your PD900 is classified as USB 1.1.
DVD files (*.VOB) may not playback properly as the bit stream is too fast.

13
READING MEMORY CARDS (SD / MS / MMC)
To enable USB playback, make sure there are no discs inserted.1.

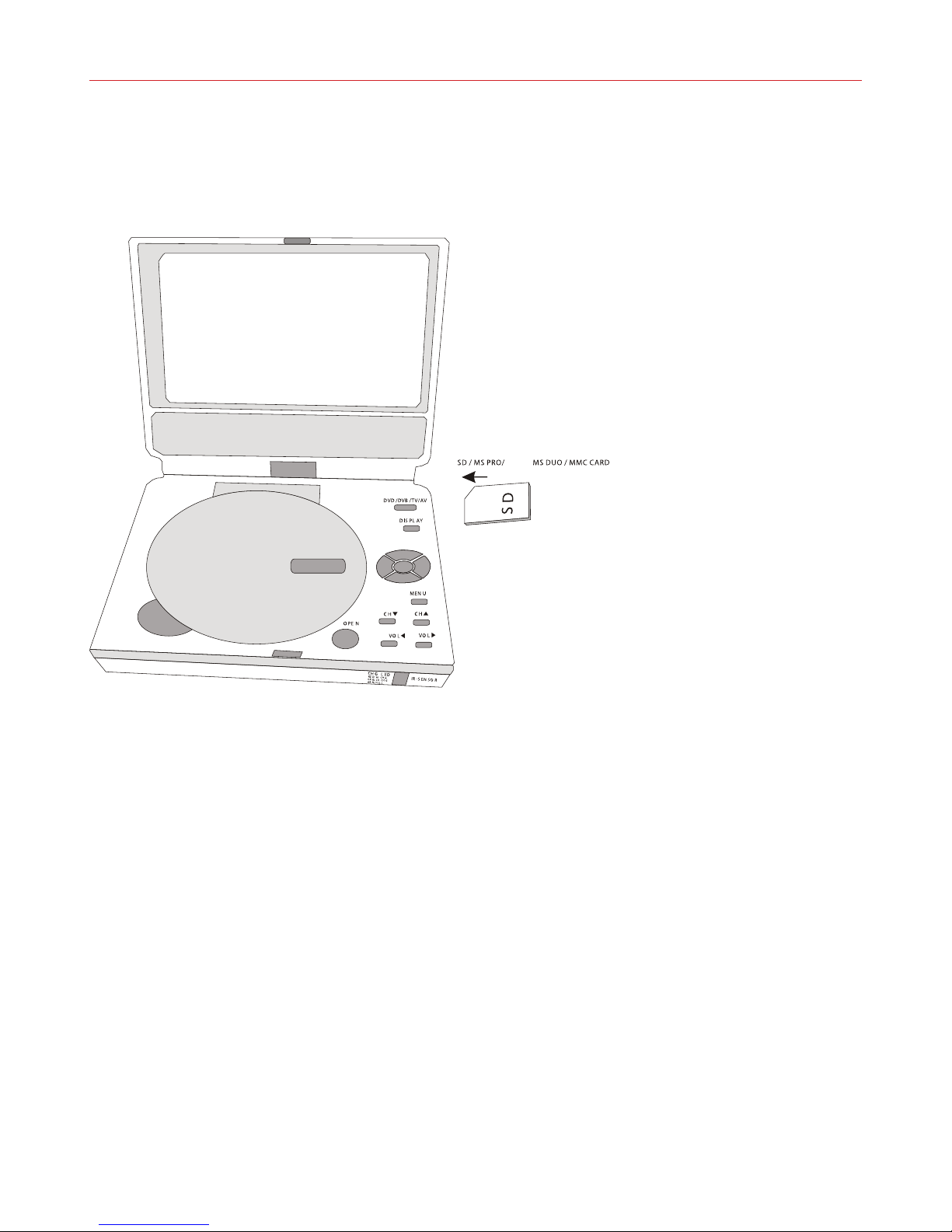

Insert your flash card (SD / MS PRO / MS DUO / MMC).2.
Power on.3.
You can plug and play MPEG4, MP3, JPG, VCD and NES files via your USB flash drive.4.
Follow instructions as per USB Drive (Navigating the file manager)5.

14
DVB-T SETUP MENU OVERVIEW
To access the DVB menu:
Press the “DVD/DVB/TV/AV” key to change the unit to “DVB” for DVB-T1.
Press the menu button on your remote control, or on your unit.2.
Program List
 TV Program list
Music Program List
 Sort
By Name
By Service ID
By Channel No
Program Search
 Automatic Search
 Manual Search
Parental Control
 Channel Lock
 YES
 NO
 Parental Setting
 Change PIN
Note: See page 17 for the
PIN number.
System Setting
 TV Standard
 PAL
 NTSC
 Auto
 Display Type
 4:3PS
 4:3LB
 16:9
 Video Output
 CVBS + S-Video
 Antenna Power
 OFF
 ON
 Regional Setting
 Language
 Time Setting
 System Schedule
Game
 Mine
 Tetris
 Gomoku
 Calendar
Accessory
 System Information
Factory Default
NO
YES
System Update
Personal Style
Menu Colour
Blue Red Yellow 
Orange Green Gray
Transparency
1 2 3 4 5 6 7 8
Border Pattern
Round Rectangle
Entry Animation
Right Down Right Down 
Blind Right Blind Down
DVB-T First Time Installation Wizard
The first time you enter DVB mode on your PD900, you will prompted to run the “First Time
Installation Wizard”.
T

15
First Time Installation
Do you want to start first time
installation wizard?
NO
YES
Follow the on screen instructions to set up digital reception.
The wizard will automatically scan available digital channels, including TV and Music (Radio).
Should you need to run the set up again, revert to Factory Defaults (DVB Mode > Menu > Accessory
> Factory Default > Yes)
Antenna Power:
If you have a Masthead amplifier installed, you must select “Antenna Power: On” otherwise leave
it set to “Off”.
Operating in DVB Mode
Use the and or and buttons on your remote to change between channels.
Teletext
Press the button on your remote to view teletext transmissions. This feature is only
supported if the channel you are watching has Teletext.
Use the directional keys on your remote to change pages, or input the page number directly using
the keypad on your remote.
EPG (Electronic Program Guide)
Press the key on your remote to see the electronic program guide information.
EPG is only available if it is broadcast by the channel you are watching. In some cases only the
current and next program will be displayed.
Refer to the Program List and Program Search menu overview list on the previous page to
customize your settings.

16
ANALOG TV SETUP MENU OVERVIEW
To access the TV menu:
Press the “DVD/DVB/TV/AV” key to change the unit to “TV”.1.
Press the2. menu button on your remote control to access the PRESET menu.
Note: Pressing the MENU button on the unit itself will present the Picture settings menu.
PRESET
 Channel
(Use the directional keys on your remote to select the channel to edit settings)
 Skip
On Off
 System
PAL-BG PAL-DK PAL-I PAL-M PAL-N SECAM-BG SECAM-DK SECAM-L NTSC-M
 Fine
(Use the directional keys on your remote to fine tune a channel)
 Manual
(Use the directional keys on your remote to manually search for the selected channel)
 Auto
 SlowAuto
Operation in TV Mode
To scan for channels, enter the TV Menu (see instruction above) and choose “Auto” to
automatically scan for channels.
Use the and or and buttons on your remote to change between channels.

17
DVD PLAYBACK
Follow these steps to watch a DVD movie:
Turn on your PD900.1.
Insert a DVD movie.2.
Your DVD should automatically start playback.
Your PD900 operates like any other DVD player. Use the directional keys on your remote control to
navigate through menu items and press the ENTER/OK key to confirm your selection.
While watching a DVD movie, use the SUB and/or AUDIO keys on your remote to cycle through
available subtitles (SUB) or languages (AUDIO) present on your DVD movie.
To return to the DVD’s menu, press the TITLE or RETURN keys on your remote.
Using the included AV lead and hooking the PD900 to your television set will allow you to use your
PD900 like a standard DVD player and enjoy your movie on a bigger screen.
DVD mode uses a separate setup menu compared to other modes on your PD900.
Press the key on your remote to access DVD playback settings including parental control, TV
aspect ratio, DVD picture settings (Video Setup) and more.

18
PARENTAL LOCK (DVB-T MODE)
Parental lock allows you to block selected channels. To access the Parental lock feature, make
sure you are in DVB mode and press the SETUP/MENU key on your remote.
To enable Parental lock:
Press the “DVD/DVB/TV/AV” key to change the unit to “DVB”.1.
Press the2. menu button on your remote control to access the DVB menu.
Use the directional keys on your remote to navigate to “Parental Control.”3.
Enter the Parental pin: 99994. †
To lock a channel:5. choose Parental Setting. In the list of channels, navigate to the channel
you wish to block and press the OK/ENTER key.
A locked channel will not be viewable unless the correct pin number is entered. You will be
prompted to enter the Parental pin each time you attempt to view the channel.
To disable Channel lock, follow steps 1 to 5, and when you are viewing the list hit the OK/ENTER
key on your remote to remove the lock from that channel.
†9999 is the Master password. It is advised to change your Parental pin using the master
password. You can do this under the Parental Control menu. When you change your password you
may still use the Master password and the new pin number you set.
The master password is implemented for cases where you forget your PIN.

19
CHARGING YOUR BATTERY
Your PD900has a built-in Lithium Polymer battery which provides long lasting power for when you
are on the go.
The battery compartment on the bottom side of your unit is screwed to prevent accidental
removal of the battery. Should you need the battery replaced, just unscrew the compartment
using a small Philips screwdriver. This should be done by a certified technician to avoid any
damage to your unit.
The PD900 is charged when the supplied power supply is connected. You can still use your PD900
while it is being charged, though full charge will be achieved at a longer time as for safety
reasons, the unit is charged via a low current (approx. 0.4 A). If the PD900 is switched off while
charging however, the higher current (approx. 1.2 A) will provide a quicker charge.
Charge LED Indications
The LEDs on the front of the unit indicate the current charge condition.
RED: High current charge
ORANGE: Low current charge
GREEN: Battery is full

20
TROUBLESHOOTING
Problem Possible cause Solution
DVB Mode
No signal found Antenna is disconnected Check antenna lead
Antenna is damaged Check antenna
Antenna not aligned properly Move the antenna around
Out of digital signal area Make sure your location receives
digital signals
No picture or sound Accidentally entered Teletext Exit out of teletext using the TTX key
on your remote
Parental PIN Channel is locked Remove the parental lock via
the menu. See page 17 for more
information.
USB/ Card Reader Mode
Will not read USB or memory cards There is a DVD inserted in the tray Remove the DVD from the unit.a.
In DVD mode if you select SETUP,b.
System Setup, Source. You can
change the source to USB or
Card without having to take out
the DVD.
Won’t playback a DivX file Incompatible DivX version Ensure that your DivX files are
compatible with the PD900. The
PD900 supports DivX 4.x and 5.x
versions encoded at 640x480 or less.
DVD Mode
DVD playback prompts password The DVD you wish to watch has a
disc rating higher than your current
Parental setting.
Enter the DVD setup menu and change
the Parental lock to be higher than
your DVD’s rating.
Won’t read DVDs Disc is scratched or dirty Make sure you clean your DVDs and
that they are free from scratches of
marks.
Subtitle/ Audio key does not work Your DVD does not have any subtitles
or alternative audio tracks
Ensure the DVD you wish to watch
has subtitles and other audio tracks
(languages, DTS, AC-3 etc.)
Misc.
Remote control is not working Battery is flat Replace the batteries with new ones
(2x “AAA”)
Not seeing the IR sensor Make sure you are pointing the remote
to the IR sensor located on the front
of the unit and that there are no
obstacles in between.
