WinTelecom MetroLink WA500-SU User manual

Installation Guide
for WA500-SU
Installation Guide
A Resource Guide for
Installation and Configuration
W i n T e l e c o m I N C.

International Headquarters Address
143-1, SangDaeWonDong, JoongWonGu, SeongNamSi, GyeongGiDo,
South Korea
T E L: [phone]
FAX: [phone]
E-mail: [email protected]m
Web site: www.wintelecom.com.
WinTelecom makes no warranties with respect to this documentation and disclaims any implied
warranties of merchantability, quality, or fitness for any particular purpose. The information in this
document is subject to change without notice. WinTelecom reserves the right to make revisions to
this publication without obligation to notify any person or entity of any such changes.
Limited Warranty WinTelecom Inc. (“WinTelecom”) makes the following limited warranty. This
limited warranty extends to the original consumer purchaser and to no other purchaser or transferee.
Limited One (1) Year Parts and Labor Warranty for WinTelecom CPE Unit. WinTelecom warrants
this product and its parts against defects in materials and/or workmanship for a period of one (1)
year after the date of original retail purchase.
During this period, WinTelecom will repair or replace a defective product or part without charge to
you
Warranty Conditions
The above LIMITED WARRANTY is subject to the following conditions:
1. Warranty extends only to products distributed by WinTelecom.
2. Warranty extends only to defects in materials and/or workmanship as limited above.
Warranty extends only to defects which occur during normal use and do not extend to
damage to products or parts which results from alternation, repair, modification, faulty
installation or service by anyone other than an Authorized WinTelecom Service Center;
damage to products or parts caused by accident, abuse, or misuse, or maintenance,
mishandling, misapplication, or use in violation of instructions furnished by us; damage
which occurs in shipment or any damage caused by acts of God, such as lightening or line
surges.
3. You must retain your bill of sale or provide other proof of purchase.
4. Any replacement parts furnished at no cost to the purchaser in fulfillment of this warranty
are warranted only for the unexpired portion of the original warranty.
-1-

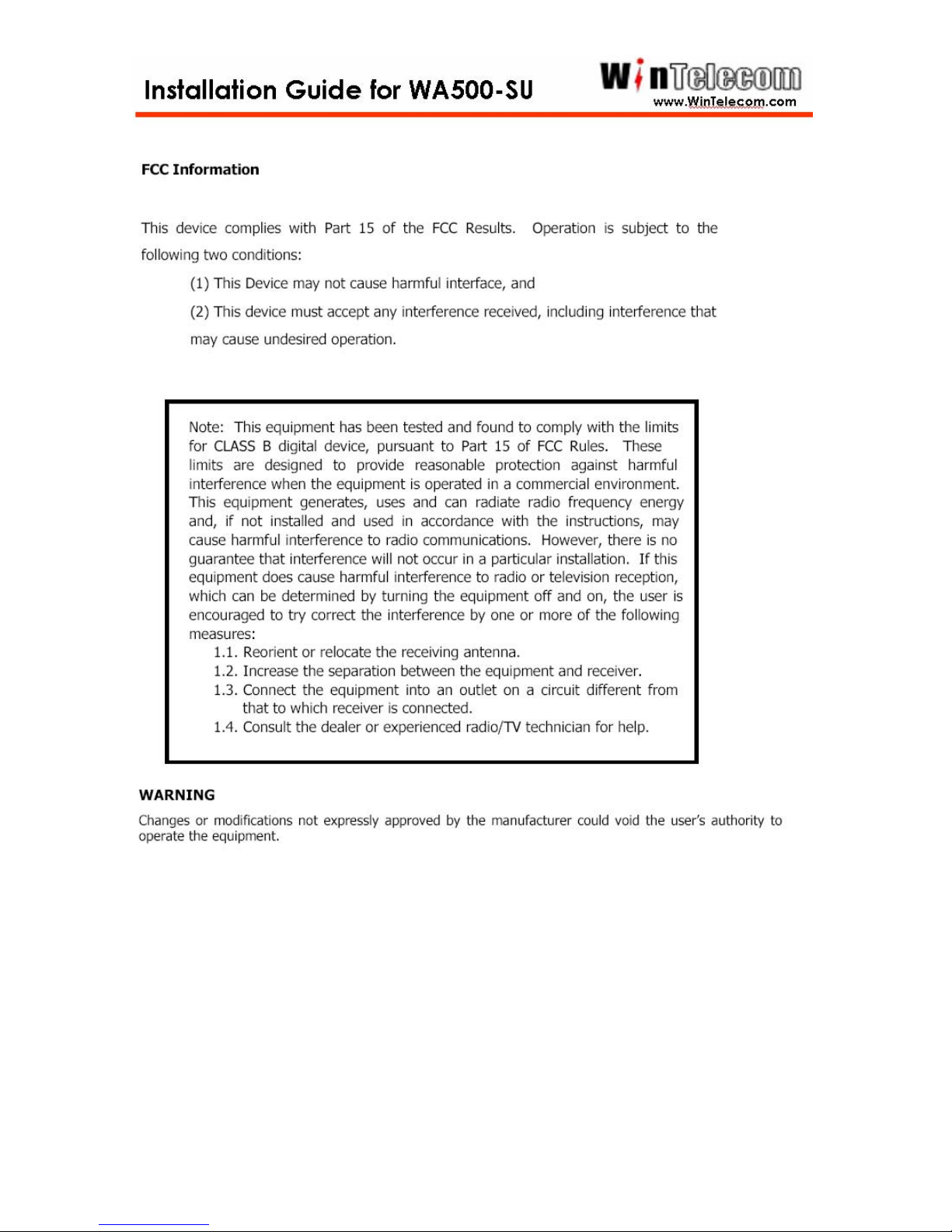

CAUTION: Exposure to Radio Frequency Radiation.
Antenna shall be mounted in such a manner to minimize the potential for human
contact during normal operation. The antenna should not be contacted during
operation to avoid the possibility of exceeding the FCC radio frequency exposure
limit and the antenna used for this device must be installed to provide a separation
distance of at least 40 cm from all persons and must not be collocated or operating
in conjunction with any other antenna or transmitter. Also only specific approved
antenna shall be used with this device.

Table of Contents
Introduction
Chapter1
Physical Intallation
Chapter2
Network Setup Wizard
Chapter3
Security Configuration
-2-

Congratulation! As the proud owner of the state-of-the-art Wintelecom™
WA500-SU
MetroLink series wireless bridges have been designed to provide transparent,
high-speed data communications between two to 16 locations. Point-to-point,
multipoint, and repeater functionality are built into all WinTelecom wireless
Bridge fast and affordable broadband wireless access products.
This solution offers fast, reliable wireless connectivity with considerable cost
savings compared to wired alternatives. Utilizing proprietary 5 GHz
technology, the Metrolink bridge can easily replace an Ethernet or or
seamlessly integrate into a newer 100 Mbps Ethernet Local Area Network
(LAN).
Thank you for choosing Ascend Airlink and, by all means, enjoy your wide
area wireless networking device!!
-3-

Physical Installation
The WinTelecom Products has Out Door Unit (ODU), AC/DC Power Adapter and
Console cable.
Before installation the hardware devices, customer have to preparing below items
for easy installation.
No
Items
1 LAN Cable between ODU and Switch / Hub
FTP Cat5e UV Protection or UTP Cat 5e
(Cable Length: Depend on customer environment)
2 RJ-45 Modular plug
3 RJ-45 Crimpter
4 LAN Cable Tester
5 Adjustable Spanner for fixing the ODU with Pole
6 Plus(+) type of screwdriver
-4-

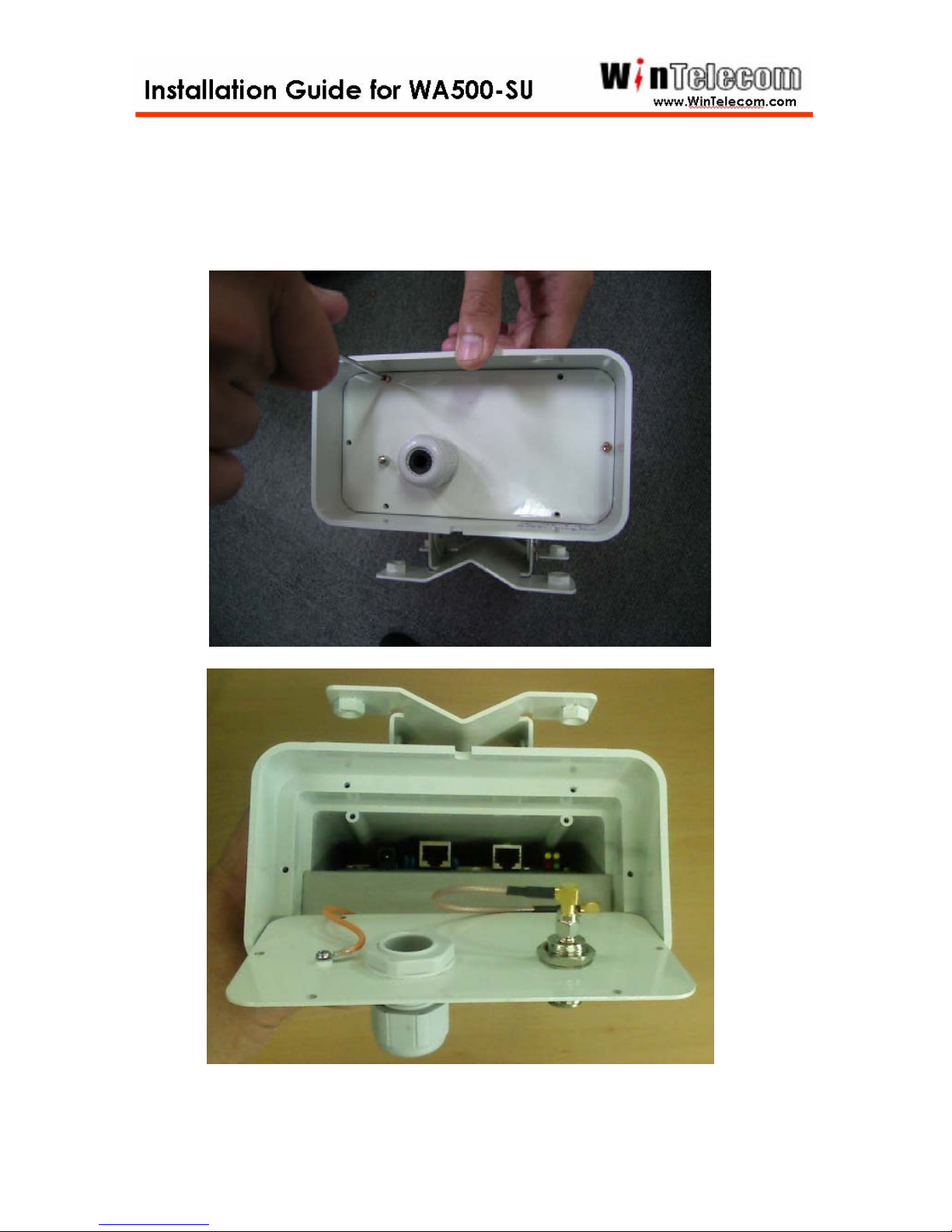

Step 1
Open the WA500-SU bottom case using plus screwdriver.
-5-

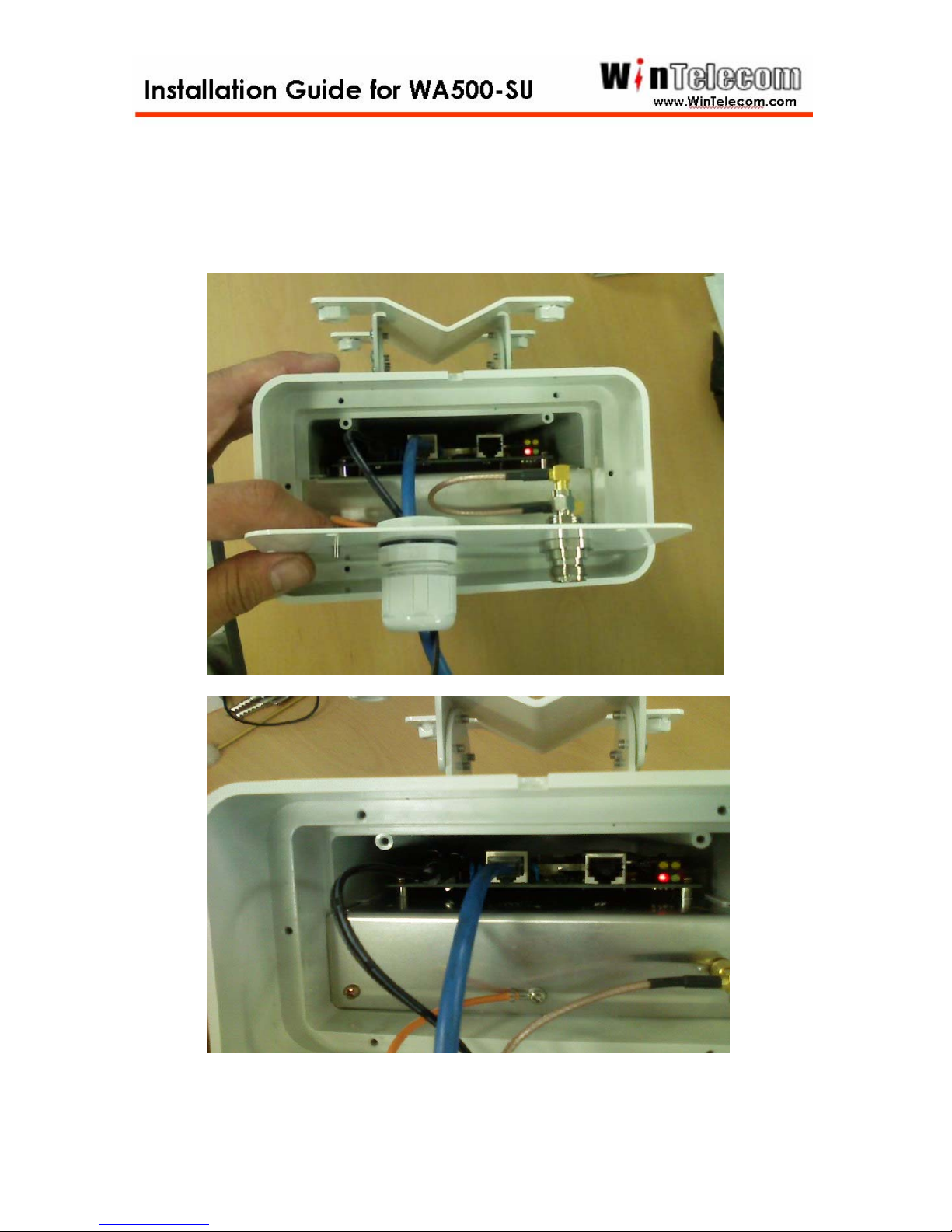

Step 2
Insert the Ethernet cable, DC Power Adapter through the waterproof
enclosure and then plug the Ethernet port In WA500-SU
-6-

Step 3
Close the WA500-SU bottom case and then tight waterproof
enclosure.
-7-

If You use the External Antenna. The Antenna cable connects with a
WA500-SU N-type Connector.
The antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 40 cm from all persons and must not be collocated
or operating in conjunction with any other antenna or transmitter.
-8-

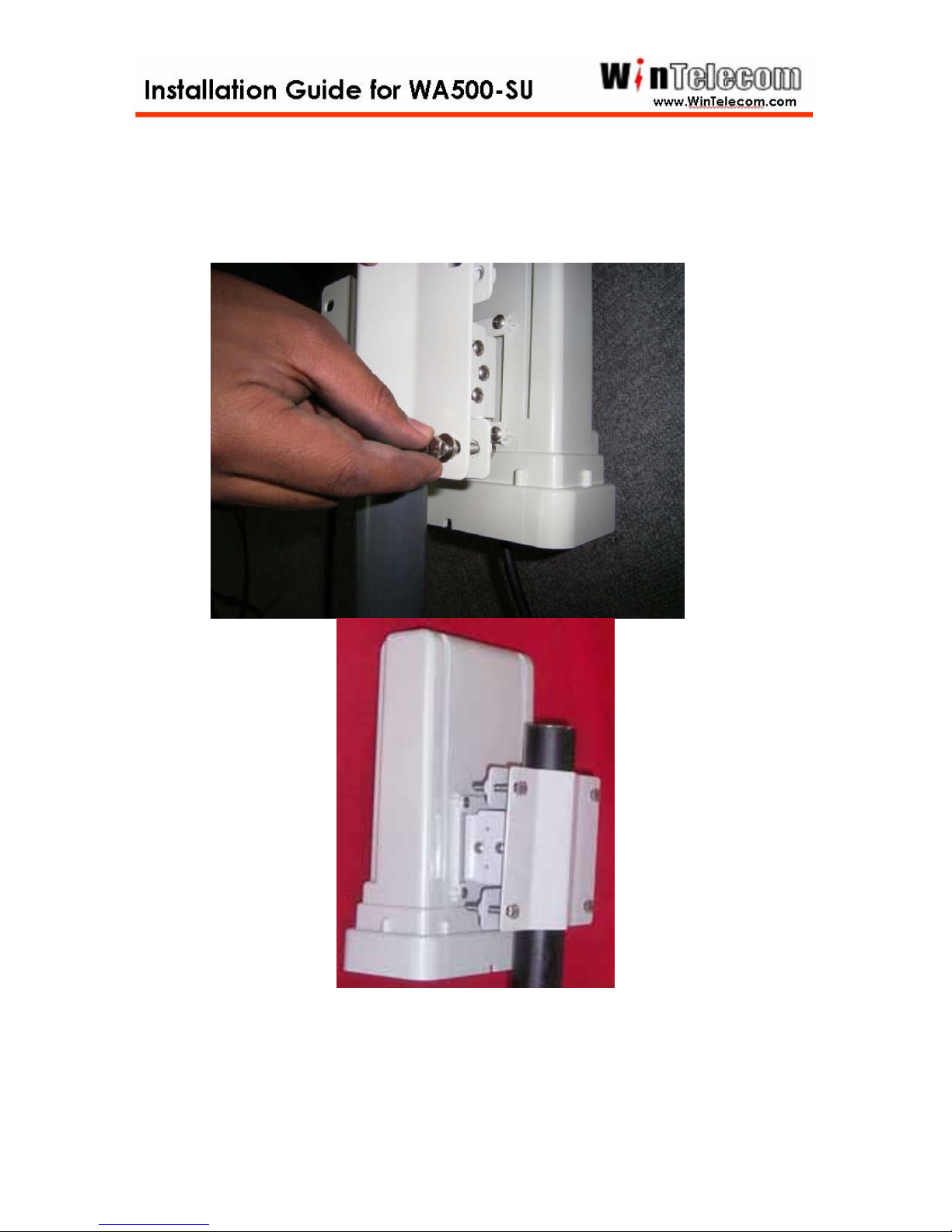

Step 4
A completion, WB500-SU with mounting kit should look like this.
-9-

Step 5
Complete physical connection diagram.
-10-

Network Setup Wizard
The WA500-SU is bridge mode Access Point devices.
The WA500-SU provides simple Plug and Play installation between wireless links.
When customer bought the WA500-SU, the Basic configuration was done by
manufacture. Customer just required physical installation.
The table provides default value on the AP.
Value Base Station CPE
User ID win win
Password win win
System Name Base Station CPE
IP Address 192.168.1.70 192.168.1.71
Subnet Mask 255.255.255.0 255.255.255.0
Default Gateway
Address 0.0.0.0 0.0.0.0
SSID win70 win70
Frequency 5785MHz 5785MHz
If the user wants to change the configurations, the user Host PC IP address
has to change as below one of IP address.
-10-

Plug & Play
If the user installed the systems with electricity power locally, the system
automatically working between links.
The WA500-SU provides Web based configuration.

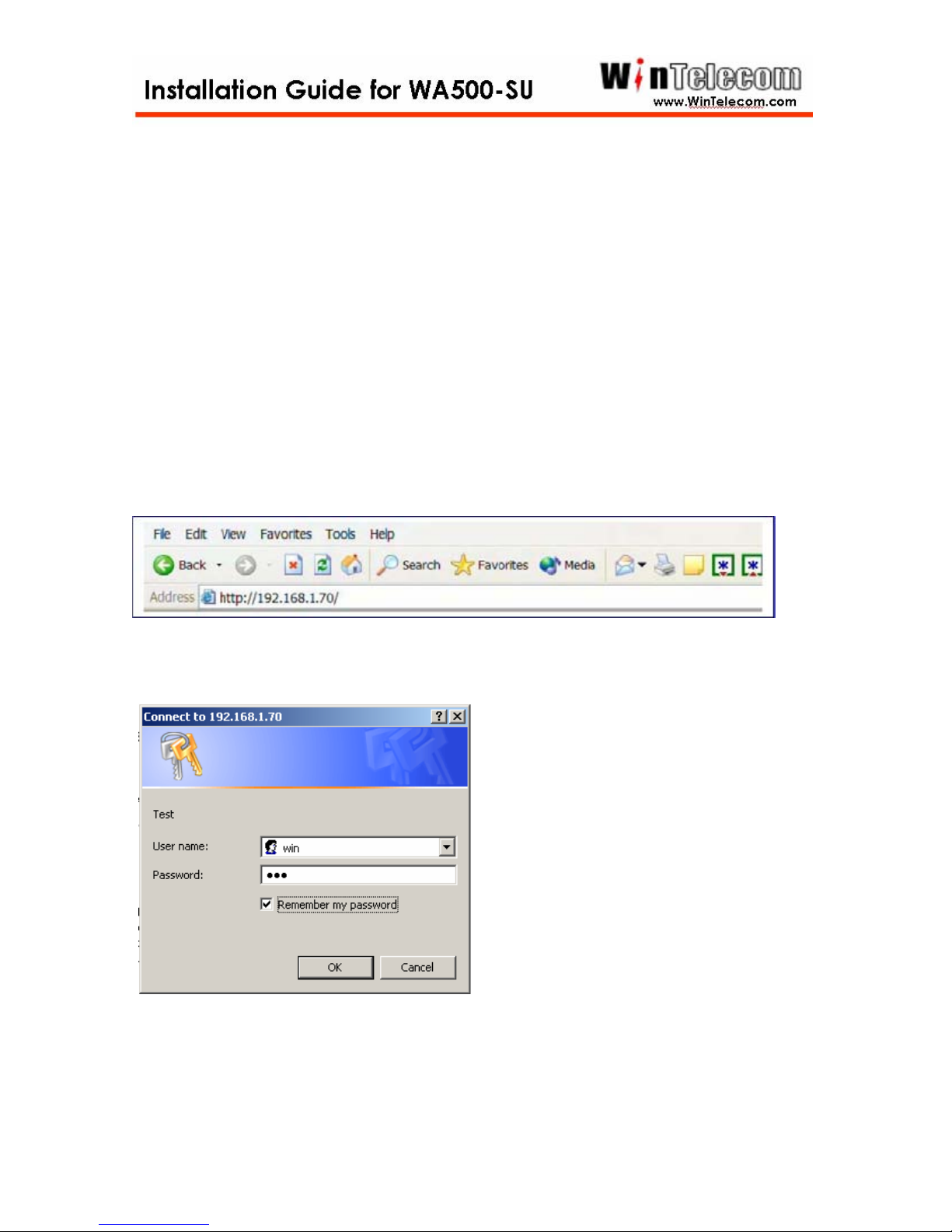

Step 1
Launch a web browser. Netscape Navigator and Internet Explorer are examples of
commonly used web browsers.
Step 2
From the Host PC, enter the IP address that is assigned to the AP as the URL
address. For example, the default address is http://192.168.1.70. (The CPE default
IP address is http://192.168.1.71 )
The WinTelecom Metrolink bridge requires you to enter a user name and password
to gain access to the configuration utility.
The default User Name and Password is “WIN
”
Click OK to complete login process.
-11-

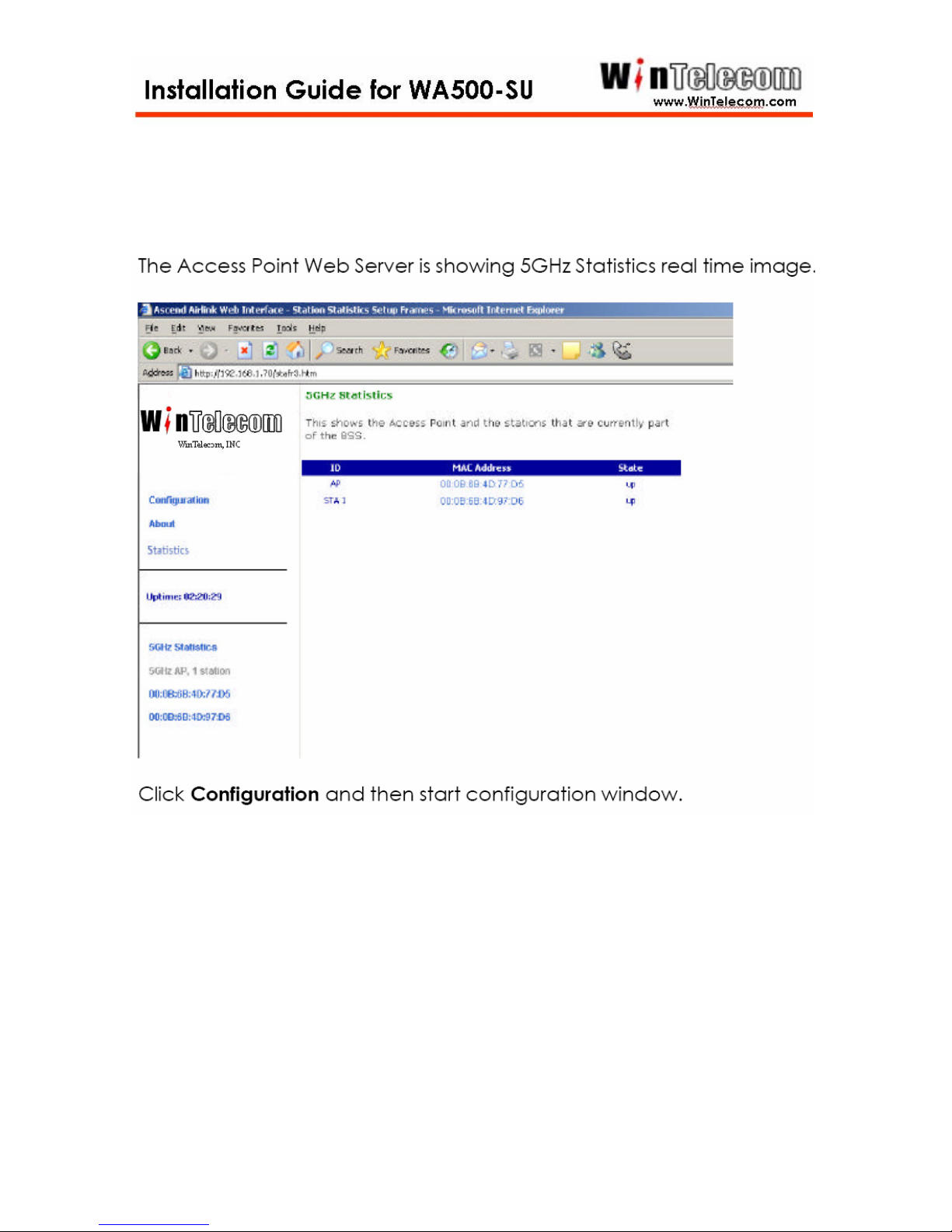

Step 3
The AP Web server homepage appears.
Click on the image to access the configuration pages.
-12-

Step 4
-13-

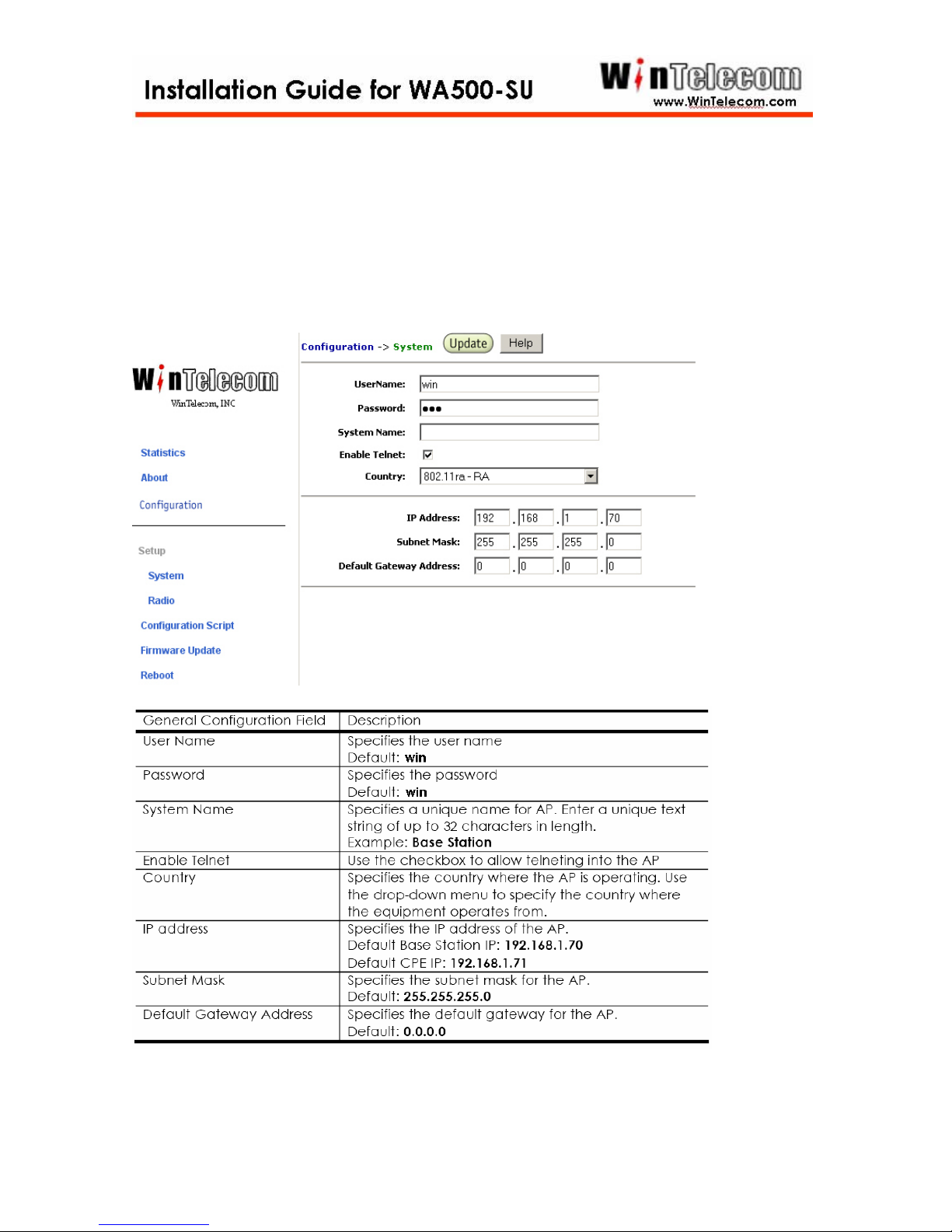

Step 5
The system configuration window allows the setting of general operating
information for the AP. Click on Configuration from any window to access the
system configuration window.
-14-

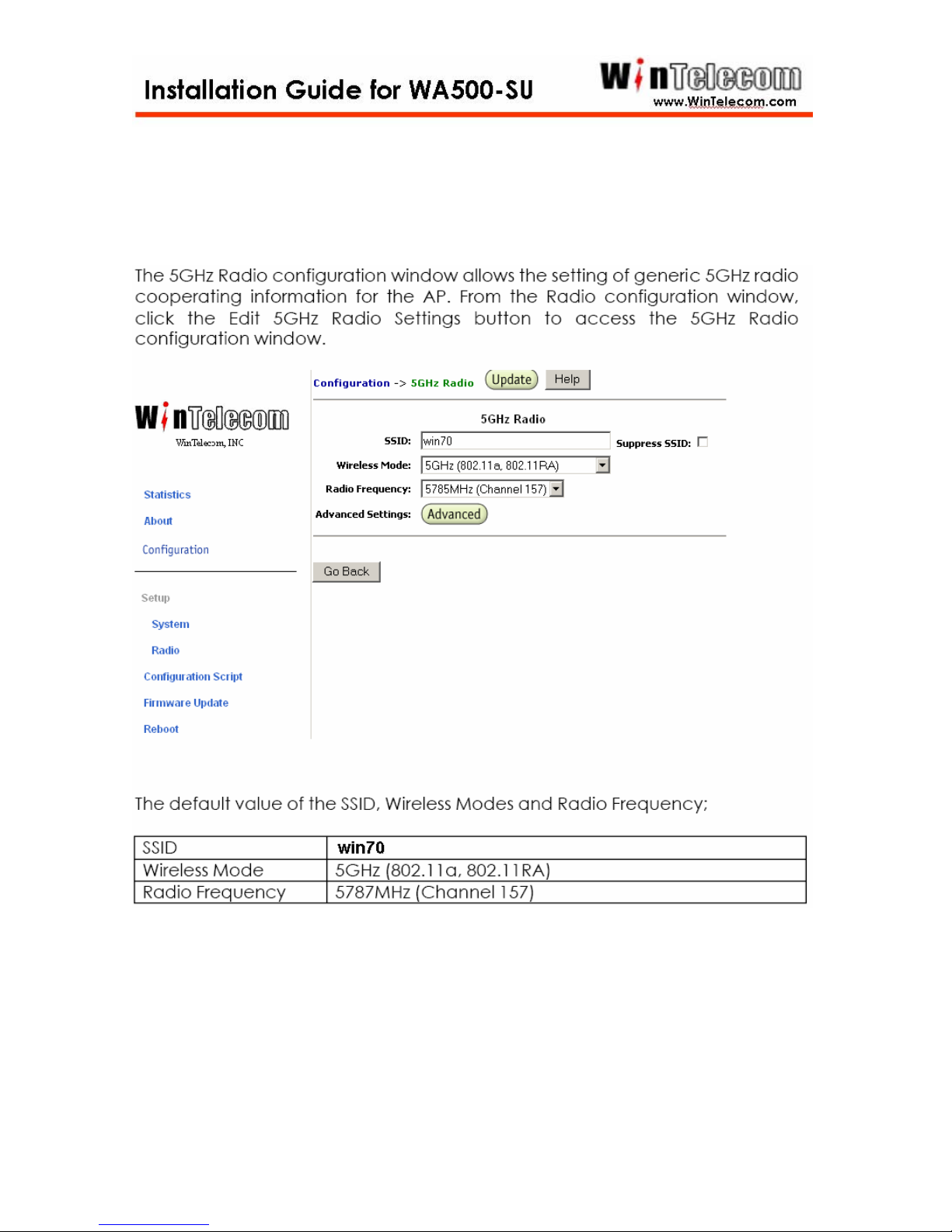

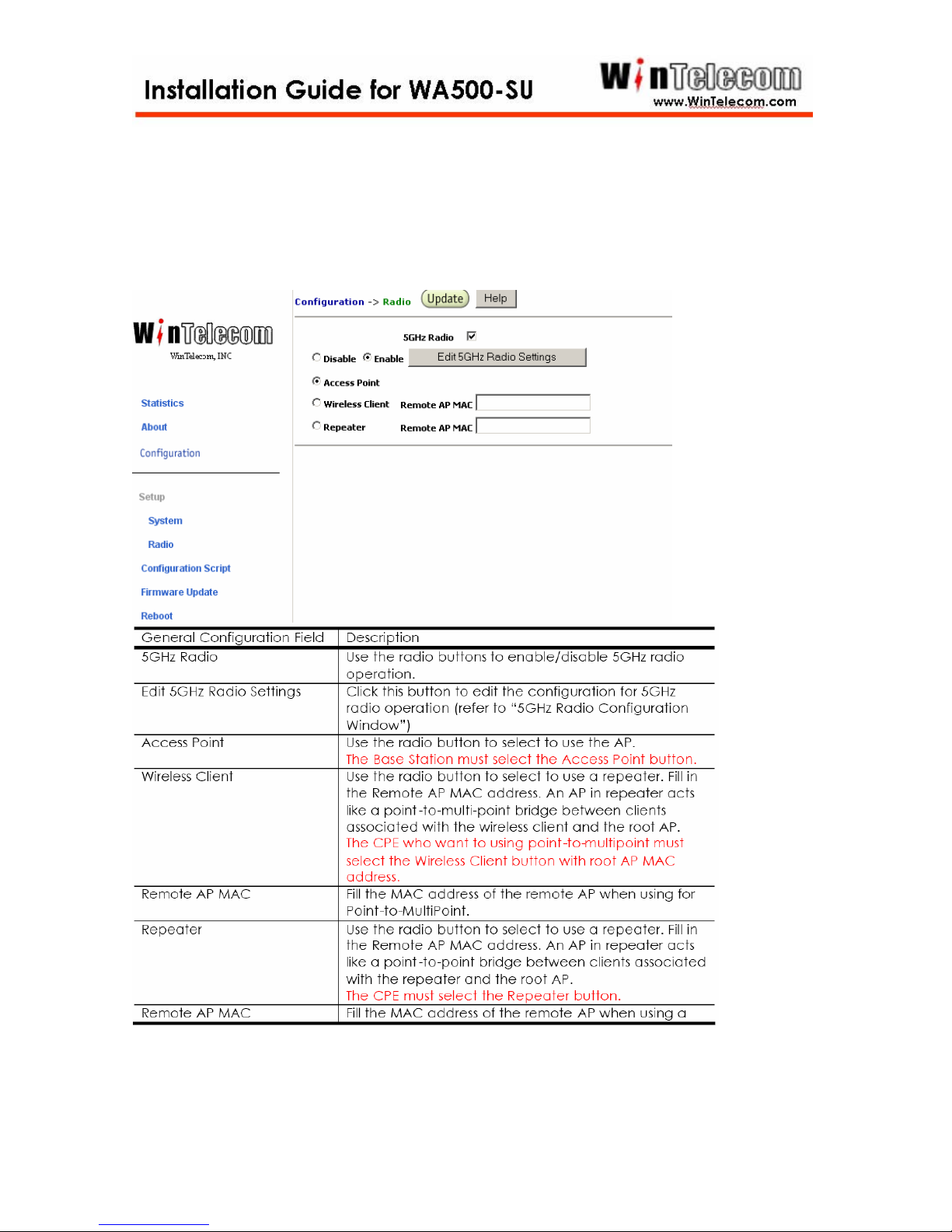

Step 6
The Radio configuration windows allow the setting of generic radio operating
Information for the AP. From the AP system configuration window. Click Rdio.
-15-

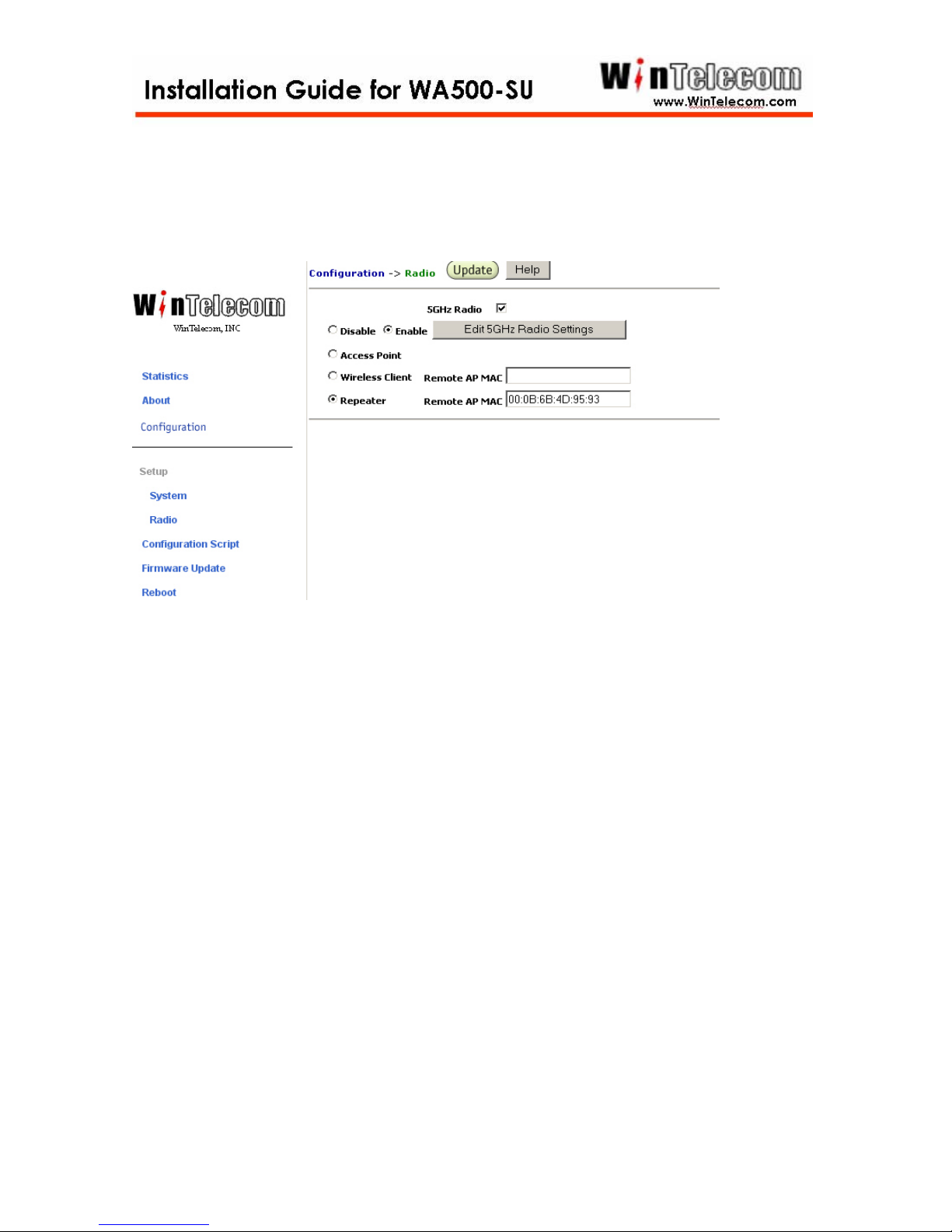

Below picture is showing CPE of POINT to POINT configuration.
The Mac Address of Remote AP Mac field is Bas Station Mac Address.
-16-

Step 7
-17-
