Wirata TF-160A User manual

MODEL NO.
TF-160A
POWER
50W
VOLTAGE
220-240V
FAN SIZE
16” (400mm)
FREQUENCY
50Hz
NO. OF BLADE
5
FAN SPEED
3
INSTRUCTION MANUAL
Model No.:
TF-160A
Please read Instruction Manual before use
& Follow ALL the instructions carefully.

WHAT’S IN THE BOX

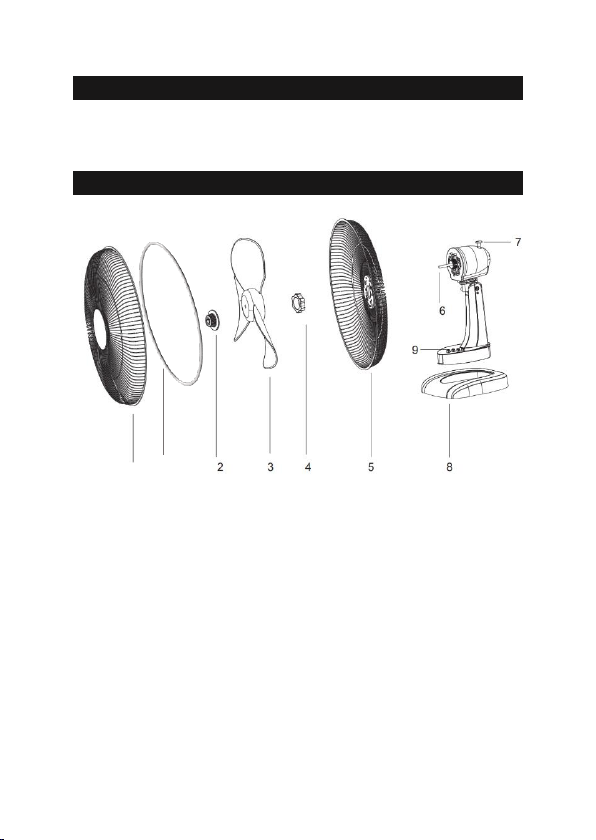

PARTS DESCRIPTION
0: Guard ring 5: Rear guard
1: Front guard 6: Motor shaft
2: Fan blade nut 7: Oscillation knob
3: Blade 8: Base
4: Blade lock 9: Control panel
1. Table Fan –1set
2. Instruction Manual–1 set
MAIN COMPONENT：
(Product may vary slightly from what is illustrated)
1
0

When using the electrical appliance, the following basic
safety precautions should always be followed.
Please read these instructions carefully. Pay your special
attention to important safety instructions. Keep this
“Instructions for use” for future reference.
WARNING - To reduce the risk of fire, electric shock or injury to persons
or property:
1. Always operate the product from a power source of the
same voltage, frequency and rating as indicated on the
product identification plate.
2. Do not use this fan with any solid-state speed control
device to reduce the risk of electric shock.
3. The appliance is not intended for use by persons
(including children) with reduced physical, sensory,
mental capabilities or lack of experience and
knowledge, unless they have been given supervision or
instructions concerning use of the appliance by a
person responsible by their safety.
4. Children should be supervised to ensure that they do
not play with the appliance.
5. Do not leave the fan running unattended.
6. Do not operate the product if it is dropped, damaged or
showing signs of product malfunction. Do not operate
the product with a damaged plug or cord. Return the
complete product to the place of purchase for
inspection, refund or replacement.
7. If it is not working properly, contact a qualified
electrician or service centre for examination and repair,
never try to dismantle it by yourself.
GENERAL INSTRUCTION
SAFETY INSTRUCTIONS

8. Do not immerse or expose the product or flexible cord
to rain, moisture or any other liquid.
9. This product should not be used in the immediate
vicinity of water, such as bathtubs, washbowls,
swimming pools etc. where the likelihood of immersion
or splashing could occur.
10. Never install the unit where it could be subject to:
•Heat sources such as radiators, heat registers, stoves
or other products that produce heat
•Direct sunlight
•Mechanical vibration or shock
•Excessive dust
•Lack of ventilation, such as a cabinet or bookcase
•Uneven surface
11. Switch off and unplug from outlet when the product is
not in use, before assembling or disassembling parts
and before cleaning. Fully assemble the fan before
switching on.
12. Avoid contact with moving parts. Do not insert any
body parts (e.g., finger) or objects through the grill
when the fan is operating.
13. Do not cover the grille, or operate in close proximity to
curtains, etc.
14. This product is intended for normal domestic/household
use only.
15. Always disconnect the fan when moving it from one
location to another.
16. The use of attachments or accessories not
recommended or sold by the product distributor may
cause personal or property hazards or injuries.
17. Be sure fan is on a stable surface when operating to
avoid overturning.
18. Do not immerse in water.
19. If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent, or similarly
qualified person, in order to avoid a hazard.

1. To assemble the safety grille and blade assembly,
remove the spinner (by turning it clockwise),
then the locking nut (by turning it anticlockwise) from
the motor spindle.
2. Place the back safety grille into position. Ensure the
safety grille fits into the locating lugs. If this is done
correctly, the safety grille's carry handle will be at the
top.
3. Fix the safety grille into position by replacing the
locking nut tightly by hand. Do not force the locking
nut.
4. The groove in the centre of the fan blade aligns with a
T-bar on the motor spindle to ensure correct
positioning.
5. Fix the blade into place by gently hand tightening the
spinner anticlockwise onto the end of the motor
spindle. The spinner is self-tightening do not force it.
6. Lift out all locking clips on the front safety grille.
7. Place the safety grille into position and secure it by
fastening the clips over the outer rim. The screw and
nut at the bottom of the grille must be fixed.
1. Select a suitable location for the fan. Always choose a
safe location in accordance to the safety
recommendations outlined.
2. When placing a fan on a table or shelf, always ensure
that the power cord does not hang where it can
HOW TO OPERATE
WARNING: Do not use the device near water, over the bath tub,
pool or other water basin.
*Observe the above-mentioned rules in order to avoid burning,
electric shock or fire hazard. Make sure you understand the
instructions.
ASSEMBLY INSTRUCTION

accidentally be pulled and that the unit cannot
accidentally fall.
3. Do not hang or mount the fan on a wall or ceiling.
4. Remove the cable tie and unravel the cord set before
operation.
5. To blow air in one direction and stop oscillation, allow
the desk fan to move into the desired position and pull
the oscillating knob up. To return to a normal
oscillating function, press the oscillating knob down.
6. ON/ OFF and Speed control: -
The ON/Off and Speed is controlled by the push button.
•0-The Fan is switched Off
•1-at the lowest speed
•2-at the middle speed
•3-at the highest speed
7. Angle Adjustment.
Switch off the fan. Adjust the fan to the desired angle
by hand.
1. Switch off and unplug from the power supply before
assembling or disassembling and cleaning.
2. Keep the air vents at the rear of the main body free
from dust or fluff- use a vacuum cleaner to remove
these when necessary. Do not probe any opening to
remove fluff.
3. Fan component parts should be cleaned using mild
soap and a damp cloth or sponge. Do not allow any
water or other liquid to enter the motor housing
4. Thoroughly remove soap film with clean water.
CAUTION: Do not use harsh detergents, chemical cleaners or solvents as
they may damage the surface finish of the fan components.
ENVIRONMENT PROTECTION
Dispose the appliance according to the local garbage
regulations. Never throw it away to the rubbish, so you will
help to the improvement of the environment.
CLEANING INSTRUCTION
