Wisenet SCO-6085R User manual

High Resolution Weatherproof
IR Camera
User Manual
SCO-6085R

High Resolution Weatherproof IR Camera
User Manual
Copyright
©2019 Hanwha Techwin Co., Ltd. All rights reserved.
Trademark
Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the
registered trademark of their respective company.
Restriction
Copyright of this document is reserved. Under no circumstances, this document shall be reproduced, distributed or changed,
partially or wholly, without formal authorization.
Disclaimer
Hanwha Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal
guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsi-
bility. Hanwha Techwin reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.

English_3
●SAFETY INFORMATION
safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric
shock is present within this unit.
This exclamation point symbol is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING
• To prevent damage which may result in fire or electric shock hazard, do not expose this appliance
to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with
the installation instructions.
WARNING
1. Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire,
electric shock, or damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause
abnormal heat generation or fire.
4. Securely plug the power cord into the power receptacle. insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly. The fall of camera may cause
personal injury.

4_ safety information
safety information
6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled
with water on top of the camera. doing so may cause personal injury due to fire, electric shock,
or falling objects.
7. Do not install the unit in humid, dusty, or sooty locations. doing so may cause fire or electric
shock.
8. If any unusual smells or smoke come from the unit, stop using the product. in such case,
immediately disconnect the power source and contact the service center. continued use in
such a condition may cause fire or electric shock.
9. If this product fails to operate normally, contact the nearest service center. never disassemble
or modify this product in any way. (Hanwha Techwin is not liable for problems caused by
unauthorized modifications or attempted repair.)
10. When cleaning, do not spray water directly onto parts of the product. doing so may cause fire
or electric shock.
CAUTION
1. Do not drop objects on the product or apply strong shock to it. Keep away from a location
subject to excessive vibrationor magnetic interference.
2. Do not install in a location subject to high temperature (over 55°C), low temperature (below
-10°C), or high humidity. Doing so may cause fire or electric shock.
3. If you want to relocate the already installed product, be sure to turn off the power and then
move or reinstall it.
4. Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may
cause fire or damage to the product.
5. Keep out of direct sunlight and heat radiation sources. It may cause fire.
6. Install it in a place with good ventilation.
7. Avoid aiming the camera directly towards extremely bright objects such as sun, as this may
damage the CMOS image sensor.
8. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
9. The Mains plug is used as a disconnect device and shall stay readily operable at any time
10. Do not expose the camera to radioactivity. Radioactivity exposure may damage the CMOS.

English_5
●SAFETY INFORMATION
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions :
1) This device may not cause harmful interference, and
2) This device must accept any interference received including interference that may cause
undesired operation.
CAUTION
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own
expense.
IC Compliance Notice
This Class A digital apparatus meets all requirements of the Canadian
Interference.-Causing Equipment Regulations of ICES-003.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed
of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb
indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If
batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and
recycle them through your local, free battery return system.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

6_ important safety instructions
important safety instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus.
13. Unplug this apparatus when a card is used. Use caution when moving the
cart/ apparatus combination to avoid injury from tip-over.
14. Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as powersupply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15. This product is intended to be supplied by a Listed Power Unit marked “Class 2” or “LPS” and
rated 24Vac (50 or 60Hz), min. 0.45A, or 12 Vdc, min 0.45A.
16. If you use excessive force when installing the product, the camera may be damaged and
malfunction.
If you forcibly install the product using non-compliant tools, the product may be damaged.

English_7
●IMPORTANT SAFETY INSTRUCTIONS
17. Do not install the product in a place where chemical substances or oil mist exists or may be
generated. As edible oils such as soybean oil may damage or warp the product, do not install
the product in the kitchen or near the kitchen table.
This may cause damage to the product.
18. When installing the product, be careful not to allow the surface of the product to be stained
with chemical substance.
Some chemical solvents such as cleaner or adhesives may cause serious damage to the
product’s surface.
19. If you install/disassemble the product in a manner that has not been recommended, the
production functions/performance may not be guaranteed.
Install the product by referring to “Installation & connection” in the user manual.
20. Installing or using the product in water can cause serious damage to the product.
Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus
WARNING
• To prevent damage which may caused by IR LED, don't stare at operating lamp.
for below models only.
SCO-6085R*
Risk Group 1
WARNING IR emitted from this product.
Do not stare at operating lamp.
Product tested against IEC 62471
Hanwha Techwin cares for the environment at all product manufacturing
stages, and is taking measures to provide customers with more environmentally
friendly products.
The Eco mark represents Hanwha Techwin's devotion to creating
environmentally friendly products, and indicates that the product satisfies the
EU RoHS Directive.
important safety instructions

8_ contents
contents
INTRODUCTION
9
9Features
10 Components and Accessories
11 Component names and functions
CONNECTION
14
14 Connecting to Monitor
14 Connecting to Power
15 Using Coaxial Communications
CAMERA OPERATION
17
17 Menu Conguration
17 Menu Setup
TROUBLESHOOTING
31
31 Troubleshooting
SPECIFICATIONS
32
32 Specications
34 Dimension

English_9
●INTRODUCTION
introduction
FEATURES
yHigh Resolution
Use of a 2 mega pixel CMOS device provides clear pictures with a resolution of 1920x1080.
yExcellent Sensitivity
-
Color : 0.11Lux (F1.6, 1/30sec)
B/W : 0Lux(IR LED on)
ySSNR4 Function
High performance DSP Chip removes noises of GAIN resulting from the low light level and
shows a vivid, high denition video even in the dark place.
yDay&Night
This camera has a function that automatically selects the mode that is appropriate for
daytime or night-time conditions. The COLOR mode operates in daytime conditions to
provide optimum colors, and B/W mode operates in night-time conditions to enhance
the denition of the image.
yPROFILE
You can set a mode according to the camera installation conditions.
- BASIC, DAYNIGHT, BACKLIGHT, ITS, INDOOR, USER
yD-WDR
By adopting a proprietary high performance DSP chip, the camera delivers clear,
high quality pictures even in backlight, by increasing exposure in dark areas while
decreasing it in bright areas; a corrected image with clear details results.
yMiscellaneous Functions
HLC(High Light Compensation), REVERSE , SHARPNESS and PRIVACY functions are
provided.
yCommunication
AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron)
yOSD
The camera’s OSD is complimented by 16 languages.
- English, Korean, Japanese, German, Italian, French, Spanish, Russian, Czech, Polish,
Romanian, Serbian, Swedish, Danish, Turkish, Portuguese

10_ introduction
introduction
COMPONENTS AND ACCESSORIES
Check if the following items are included in the product package.
Camera Quick Manual Screws
Template Wrench Card-type moisture
absorbent

English_11
●INTRODUCTION

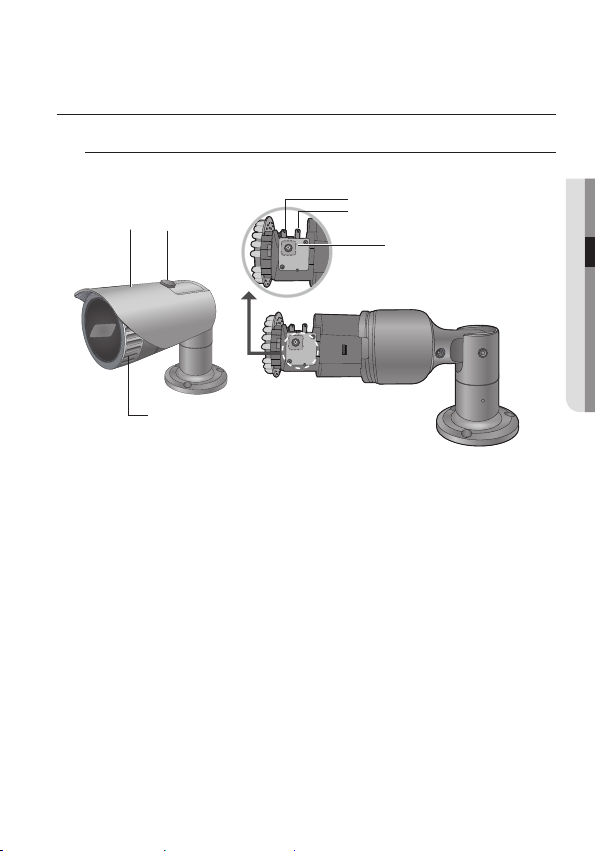

COMPONENT NAMES AND FUNCTIONS
1Camera Sunshield
2Knob Sunshield : Fixing the sunshield onto the camera.
3Focus lever : Set focus of lens by turn the focus lever.
4Zoom lever : Set zoom magnification of lens by turn the zoom lever.
5Front cover
6Function Setup Switch : Display the menu on the screen and move the cursor to four
directions to confirm status or after changing a selected item.
Switching between AHD and CVBS modes: Press the SET button for more than 5 seconds.
M
`When you adjust to the ZOOM & FOCUS of the lens, Please remove the front cover from
the camera, by turning the cover counterclockwise.
`To adjust the zoom & focus loosen the individual levers before tightening them again.
`To ensure the weatherproof integrity is maintained, Before installation the front cover,
it’s necessary to push tight first. and then turn it clockwise to locking indication.
Front
2
1
3
4
5
6

12_ introduction
introduction
7Function jack (ALARM OUT, GND)
8VIDEO OUTPUT jack : Video signals are output through this port. Connect this port to the
Video IN port of a AHD DVR.
9Power input terminal : Connect the power as specified for each model here.
Back
CAUTION:
Beware of the
RatedVo ltageand Polarity
ofthe power connection.
7
8
9

English_13
●INTRODUCTION
Adjust the lens’s zoom and focus
1. Remove the sunshield from the camera.
2. Remove the front cover from the camera by turning it counterclockwise.
3. Unlock the Zoom or Focus lever before adjusting the lens.
4. Adjust the zoom & focus by moving the lever counterclockwise for (NEAR & WIDE)
and clockwise for (TELE & FAR) position.
5. After adjustment, tighten the zoom or focus levers, taking care not to adjust the
zoom/focus position.
6. Please, close and tighten the front cover.
7. Replace the sunshield.
FRONT COVER
FOCUS LEVER
ZOOM LEVER
FAR NEAR
WIDE TELE

14_ connection
connection
CONNECTING TO MONITOR
Connect the Video OUT port on the rear panel of the camera to a AHD DVR.
yAs the connecting method varies with the instruments, refer to the manual supplied
with the instrument.
yOnly connect the cable when the power is turned o.
M`This product supports 2 video output formats of AHD and CVBS. The default is AHD.
Select the video output appropriate for your DVR.
CONNECTING TO POWER
You can connect power as shown in the following figure.
REC HDD ALARM NETWORK BACKUP POWER
CAUTION:
Beware of the
RatedVoltage and Polarity
ofthe power connection.
AHD DVR
Monitor
REC HDD ALARM NETWORK BACKUP POWER
CAUTION:
Bew areof the
RatedVoltage and Polarity
ofthe power connection.
Power Input Terminal

English_15
●CONNECTION
When the resistance value of copper wire is at [20°C(68°F)]
Copper wire size (AWG) #24 (0.22mm2)#22 (0.33mm2)#20 (0.52mm2)#18 (0.83mm2)
Resistance value(Ω/m) 0.084 0.053 0.033 0.021
Voltage Drop (V/m) 0.045 0.028 0.017 0.011
yAs shown in the table above, voltage decreases as the wire gets longer.
Therefore use of an excessively long adaptor output line for connection to the camera
may aect the performance of the camera.
 Standard voltage for camera operation : DC 12V±10%, AC 24V±10%
 There may be some deviation in voltage drop depending on the type of wire and the
manufacturer.
M
`Be sure to connect power only after all the installation is complete.
USING COAXIAL COMMUNICATIONS
yCoaxial Communications System
yOSD Control method
CAMERA DVR
SET MENU/ENTER
UP UP KEY
DOWN DOWN KEY
LEFT LEFT KEY
RIGHT RIGHT KEY

connection
16_ connection
- Video Cable
The camera's video output port is connected to the DVR with a BNC coaxial cable,
shown below.
Distance
Recommended Cable
Specification
500m 5C2V
M`It is recommended that pure copper coax cable is used and not copper coated steel, as
this will cause issues with the communication over the coaxial cable.
`To ensure picture quality, only single-channel video output connector can be used
while camera connected to other video equipments.
● : BNC

English_17
●CAMERA OPERATION
MENU CONFIGURATION
MAIN SETUP
VIDEO FORMAT
◦AHD ◦CVBS
PROFILE
◦BASIC ◦DAY/NIGHT ◦BACKLIGHT
◦ITS ◦INDOOR ◦USER
D-WDR
◦ON ◦OFF
WHITE BAL
◦ATW ◦INDOOR ◦OUTDOOR
◦MANUAL ◦ AWC →SET
EXPOSURE
◦BRIGHTNESS ◦LENS ◦SHUTTER
◦AGC ◦SSNR4 ◦RETURN
BACKLIGHT
◦OFF ◦USER BLC ◦HLC
SPECIAL
◦DISPLAY ◦COAX ◦IMAGE ADJ
◦DAY/NIGHT ◦DEFOG ◦PRIVACY
◦MOTION ◦RETURN
EXIT
◦SAVE ◦NOT SAVE ◦RESET
MENU SETUP
For function setting, you can use the function setting switch inside the cover.
camera operation
Function Setup switch

18_ camera operation
camera operation
1. Press the Function Setup switch.
yMain SETUP menu is displayed on the monitor screen.
2. Select a desired function using the Function Setup switch.
yPlace the cursor over a desired item.
3. Set up a selected item by using the Function Setup switch.
4. To nish the setting, select ‘EXIT’ and press the Function Setup switch.
M
`An item with the icon also has sub menus. To select a sub menu, select an item
with the icon and press the Function Setup switch.
`An item with the --- icon is unavailable due to function settings.
VIDEO FORMAT
1. When the SETUP menu screen is
displayed, select‘VIDEO FORMAT’
by using the Function Setup switch
so that the arrow indicates‘VIDEO
FORMAT’.
2. Select a desired mode using the
Function Setup switch.
yThe video output can be selected
from AHD/CVBS.
M
`By pressing the function setting button for more than 5 seconds, you can change
the setting from AHD to CVBS. From CVBS, you can change it to AHD.
MAIN SETUP
1. VIDEO FORMAT AHD
2.
PROFILE BASIC
3.
D-WDR OFF
4. WHITE BAL ATW
5. EXPOSURE
6. BACKLIGHT OFF
7. SPECIAL
8. EXIT SAVE
Change the status
using the Function
Setup switch.
Select the
function using
the Function
Setup switch.
MAIN SETUP
1. VIDEO FORMAT AHD
2.
PROFILE BASIC
3.
D-WDR OFF
4. WHITE BAL ATW
5. EXPOSURE
6. BACKLIGHT OFF
7. SPECIAL
8. EXIT SAVE

English_19
●CAMERA OPERATION
PROFILE
1. When the SETUP menu screen is
displayed, select‘PROFILE’ by using
the Function Setup switch so that the
arrow indicates ‘PROFILE’.
2. Select a desired mode using the
Function Setup switch according to the
picture display you want.
yBASIC : The most common environ-
ment is set to meet.
yDAY/NIGHT : It will be set
automatically so it optimizes to the day or night conditions,
respectively.
yBACKLIGHT : It will be set automatically so you can distinguish the object from the
background in a severe backlighting scene.
yITS : It will be set automatically so you can easily check the trac conditions.
yINDOOR : It will be set automatically to help you take a picture in a regular indoor
lighting condition.
yUSER : Automatically congures the camera to your custom settings.
1) Select Custom for Simple Setup mode.
2) Configure the menu options to your custom settings.
3) The settings are automatically saved as Custom mode.
4) Profile user mode don't initialize when menu resets.
3. In the PROFILE menu, you can con gure the following camera settings at once.
BASIC DAY/NIGHT BACKLIGHT ITS INDOOR USER
SHUTTER 1/5~1/12000 1/5~1/12000 1/5~1/12000 1/200~1/12000
A.FLK -
AGC HIGH HIGH HIGH HIGH HIGH -
WHITE BAL ATW ATW ATW OUTDOOR INDOOR -
BACKLIGHT OFF OFF USER BLC OFF OFF -
SSNR4
ON ON ON ON ON -
DAY/NIGHT AUTO AUTO AUTO AUTO AUTO -
M
`If you select ITS mode, the shutter will be set to 1/200 sec. Noise can be detected at
night.
MAIN SETUP
1.
VIDEO FORMAT AHD
2. PROFILE BASIC
3.
D-WDR OFF
4. WHITE BAL ATW
5. EXPOSURE
6. BACKLIGHT OFF
7. SPECIAL
8. EXIT SAVE

20_ camera operation
camera operation
D-WDR
When there are both bright and dark areas at the same time, this mode makes both areas
distinctive.
1. When the SETUP menu screen is displayed, select‘D-WDR’ by using the Function
Setup switch so that the arrow indicates‘D-WDR’.
2. Select a desired mode using the Function Setup switch.
yLEVEL : Adjust the D-WDR Brightness
by controlling the bar from 1
to 32.
<D-WDR ON> <D-WDR OFF>
White Bal (White Balance)
Use the White Balance function to adjust the screen color.
1. When the SETUP menu screen is
displayed, select‘White Bal’ by using
the Function Setup switch so that the
arrow indicates‘White Bal’ .
2. Select a desired mode using the
Function Setup switch.
D-WDR SETUP
1. LEVEL
IIIIIIIIIIIIIIIIIIIII
15
Press Set To Return
MAIN SETUP
1.
VIDEO FORMAT AHD
2.
PROFILE BASIC
3.
D-WDR OFF
4. WHITE BAL ATW
