WiseWay GW1949 User manual

Installation and Operating Manual
WiseWay Model GW-1949 Pellet stove owner’s manual
Picture shown with optional base tray
Rev 02 – Aug 2012

Page | 2
Report Number: 504-S-01-2 ULC-S627-00 UL 1482-11
Table of contents:
Our commitment to safety…………………………………………….…2
Accessories/ Replacement parts……………………………………….3
Consumables……………………………………………………………..3
Safety Notice…………………………………………………………......4
Using the correct fuel……………………………………………….……5
Stove pipe install hints…………………………………………………..5
Lighting procedure……………………………………………………….6
Temperature control……………………………………………………..7
Shutting down the stove…………………………………………………7
Cleaning and Maintenance…………………………………………….. 7
Specifications……………………………………………………………..8
Helpful hints……………………………………………………………… 10
SAVE THESE INSTRUCTIONS
Rev 02 – Aug 2012

Page | 3
The authority having jurisdiction (such as municipal building department, fire department, fire prevention bureau, etc.)
should be consulted before installation to determine the need to obtain a permit.
Rev 02 – Aug 2012

Page | 4
Our commitment to safety
WiseWay pellet stoves are constructed with the utmost care and precision and designs comply with national
safety standards. However, personal safety begins with good fire management.
The temperatures of surfaces in and around a fire can become extremely hot during operation. It is essential
to monitor traffic around a WiseWay product to prevent burns and to protect the overall safety of your home
and loved ones.
Tips for safe operation
•Always read and follow the instructions for the safe use and maintenance of your WiseWay product.
•Surfaces on stoves get EXTREMELY HOT!
•Surfaces around the fire can stay very hot for long periods of time after operation has ended. Be
aware that surfaces may stay hot even if the product is not operating.
•Never leave young children or pets alone when operating a WiseWay product.
•Educate your family about fire safety before you begin operating a new WiseWay product.
•Never block free airflow through the open vents of the stove.
•Do not place clothing or other flammable items on or near the stove.
•Keep foreign objects out of the hopper.
•This stove is designed and approved for pelletized wood fuel only. Any other type of fuel burned in
this heater is prohibited.
•Your stove requires periodic maintenance and cleaning. Failure to maintain your stove may lead to
smoke spillage in your home.
•Allow the stove to cool before carrying out any maintenance or cleaning.
WiseWay Pellet Stoves Inc. grants no
warranty, implied or stated, for the
installation or maintenance of your stove,
and assumes no responsibility of any
consequential damage(s).

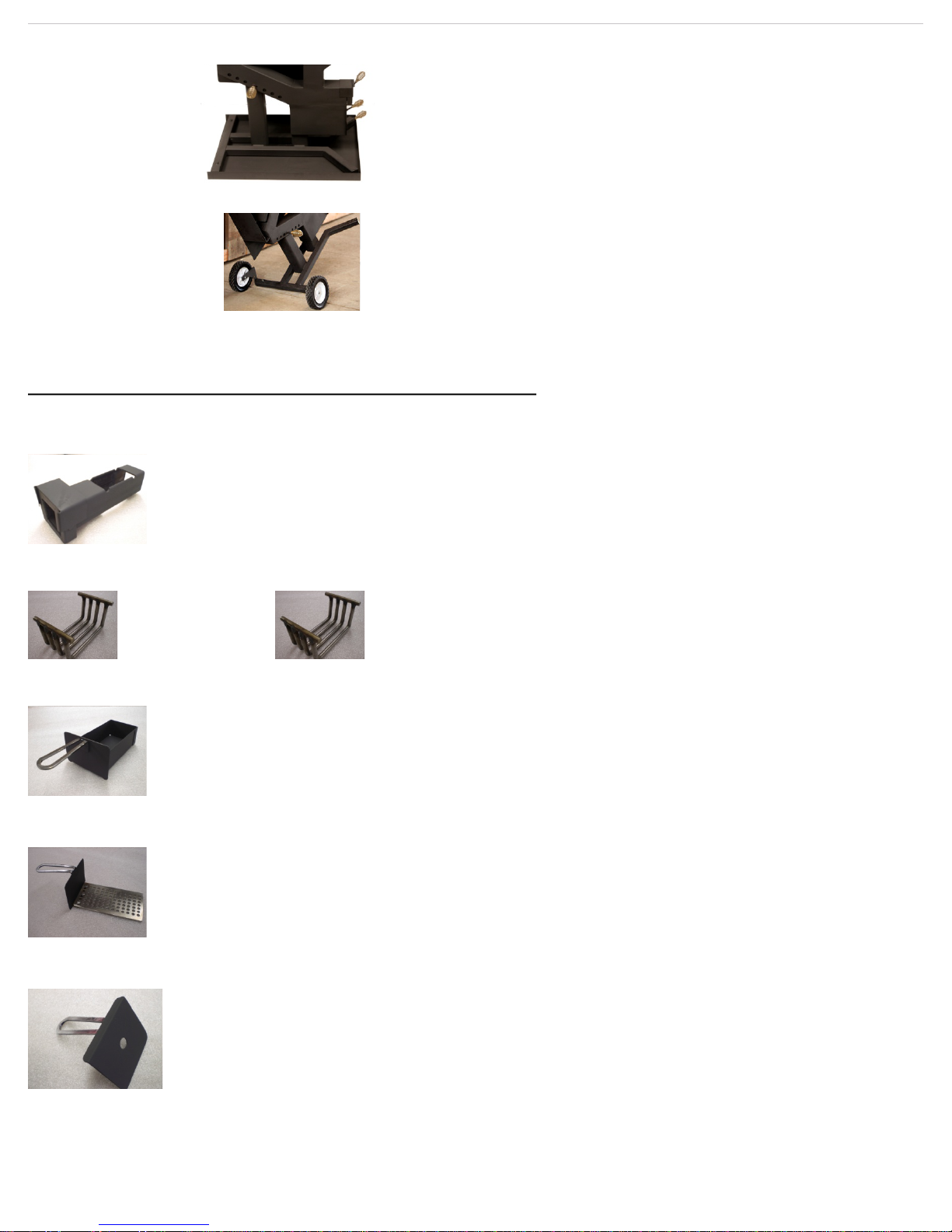

ACCESSORIES:
Rev 02 – Aug 2012

Page | 5
Base Pan: Part # BP - 001
Removable wheels: Part # RW - 001
Replacement parts and Consumables:
Primary Burn Chamber Part# APBC-12
Primary Burn cage Part# LTPBC – 001 & HTPBC_002 US 001 FOR LOWER HEAT RANGE 002 FOR HI HEAT RANGE
Ashtray Part# ATWH - 001
Secondary Burn Plate Part# SBPWH - 001
Primary Burn Chamber end slide Part# PBCSWH - 001
Rev 02 – Aug 2012

Page | 6
SAFETY NOTICE
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET FUEL-BURNING ROOM HEATER. FAILURE
TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMANGE, BODILY INJURY OR EVEN DEATH.
When this room heater is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation
instructions. Contact local building or fire officials about restrictions and installation inspection requirements in your area.
Θ Never use gasoline, gasoline-type lantern fuel,
kerosene, charcoal lighter fluid, or similar liquids
to start or “freshen up” a fire in this stove. Keep all
such liquids well away from the stove while in use.
Θ Never block free airflow through the open vents of
the stove.
Θ Keep foreign objects out of the hopper.
Θ Hot while in operation. Keep children,
clothing, and furniture away.
Θ Contact may cause skin burns.
Θ Educate all children of the danger of a high temperature stove. Young
children should be supervised when they are in the same room as the stove.
Θ Burning wood other than in a pellet form is prohibited
EACH UNIT HAS BEEN TESTED BEFORE LEAVING THE FACTORY SO THERE MAY BE SOME RESIDUE OF
ASH OR PELLETS INSIDE.
WiseWay Pellet Stoves Inc. grants no
warranty, implied or stated, for the
installation or maintenance of your stove,
and assumes no responsibility of any
consequential damage(s).
Rev 02 – Aug 2012

USING THE CORRECT FUEL
•This stove is designated for burning pelletized wood
fuel only. Pellet of 6.35 mm (1/4 in) in diameter and
approximately 25.4 mm (1 in) long should be used.
•Burning wood in forms other than pellets is not permitted.
•DO NOT block the fresh air intake ports – this will seriously
affect the performance of the stove.
LIGHTING
•This stove feeds pellets at a preset rate, adding fuel by hand
or burning fuel other than pellets will not increase heat
output but may seriously impair the stove performance.
•DO NOT burn wet pellets or pellets that have been
previously opened and stored in the elements. The pellets
may have absorbed some moisture resulting in poor
performance from the stove. Storing pellets in an air tight
container is recommended.
•Stove performance depends heavily on the quality of your
pellet fuel. Avoid the use of pellets which is excess fines,
with binder and high ash content.
Helpful hint
When installing your stove, an all vertical stove pipe, straight up and
through the roof is best. This will insure a good upward draft that all
stoves need to operate. The more twists and turns you have in stove
piping the more it will restrict the draft, this is true for all stoves.
IMPORTANT: It is important for the stove pipe to extend to at least
as high as the highest point of your roof.
CAUTION : Don’t place fuel within space heater installation
clearances or witin the space required for charding and ash removal
8

LIGHTING PROCEEDURES:
You will need a hand held propane torch to ignite your stove. We recommend a
high quality propane torch with a squeeze trigger ignition system.
• Remove hopper lid. Make sure feed door is in the closed position inside of
the hopper.
• Add desirable amount of pellets to the hopper.
• Make sure front dampener is in the all the way closed position (holes
should be blocked)
• Inspect primary burn chamber, secondary burn plate and ashtray for soot
build up and cleanliness. Perform any maintenance required.
•Reinstall primary burn chamber, secondary burn plate and ashtray.
•Remove primary burn chamber end slide located on the primary burn
chamber end.
Slide cover is the top handle
•Insert lit torch into the primary burn chamber and let run for one minute,
this will help start the necessary draft that all stoves need to operate
and will speed the ignition process.
•Slide the feed door open, located inside the hopper and tighten set screw.
•
Let torch run until temperature reaches 200 degrees, you can then
remove, turn off and store your torch (this should only take one or two
minutes)
•Keep the primary cover slide off until stove reaches 400 degrees
9

•Reinstall the primary cover slide. A drop or fluctuation in temperature
after any adjustments is normal. Wait several minutes before making
additional adjustments.
USE 3 OR 4 INCH STANDARD CERTIFIED PELLET EXHAUST VENTING SYSTEM TO BE INSTALLED BY
CERTIFIED CHIMNEY INSTALLER AND THE STOVE INSTALLED BY A QUALIFIED STOVE INSTALLER
AND THE INTSALLATION MUST MEET LOCAL CODES
WARNING : Chimney Connector must be in good condition and kept clean
DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM OF THIS UNIT
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
Attachment and securement of the exhaust venting system to the product and to each
adjoining section. All joints for connector pipe shall be required to be fastened with at
least three screws. If vented horizontally, joints shall be made gastight in a manner that
shall be specified.
Exhaust venting system termination requirements, including location restrictions;
relationshsip to air inlets; distances from windows, doors, and air inlets; and distance to
combustible materials MUST BE MAINTANED AT ALL TIMES
The chimney connector shall not pass through an attic or roof space,
closet or similar concealed space, or a floor, or ceiling. Where passage
through a wall, or partition of combustible construction is desired, the
installation shall conform to CAN/CSA-B365, Installation Code for Solid-
Fuel-Burning Appliances and Equipment.
Install only with a chimney complying with the requirements for Type HT chimneys in the
Standard for Chimneys, Factory-Built, Residential Type and Building Heating Appliance, UL 103 or
a code-approved masonry chimney with a flue liner
USE 3 OR 4 INCH STANDARD CERTIFIED PELLET EXHAUST VENTING SYSTEM TO BE INSTALLED BY
CERTIFIED CHIMNEY INSTALLER AND THE STOVE INSTALLED BY A QUALIFIED STOVE INSTALLER
AND THE INTSALLATION MUST MEET LOCAL CODES
Caution do not make make-shift compromise during installation of the chimney and stove.
INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT MAUFACTURER
The ashtry should be slid all the way in during operation.
Seconday burn plate can be slid out as much as 1 inch to increase air flow.
10

After starting the stove the primary end slide must be on to insure proper
air flow through the seconday burn chamber and proper use of outside
air.
A NON-FLAMMABLE HEARTH PAD MUST BE INSTALLED
(see diagram) NON-FLAMMABLE HEATH PAD

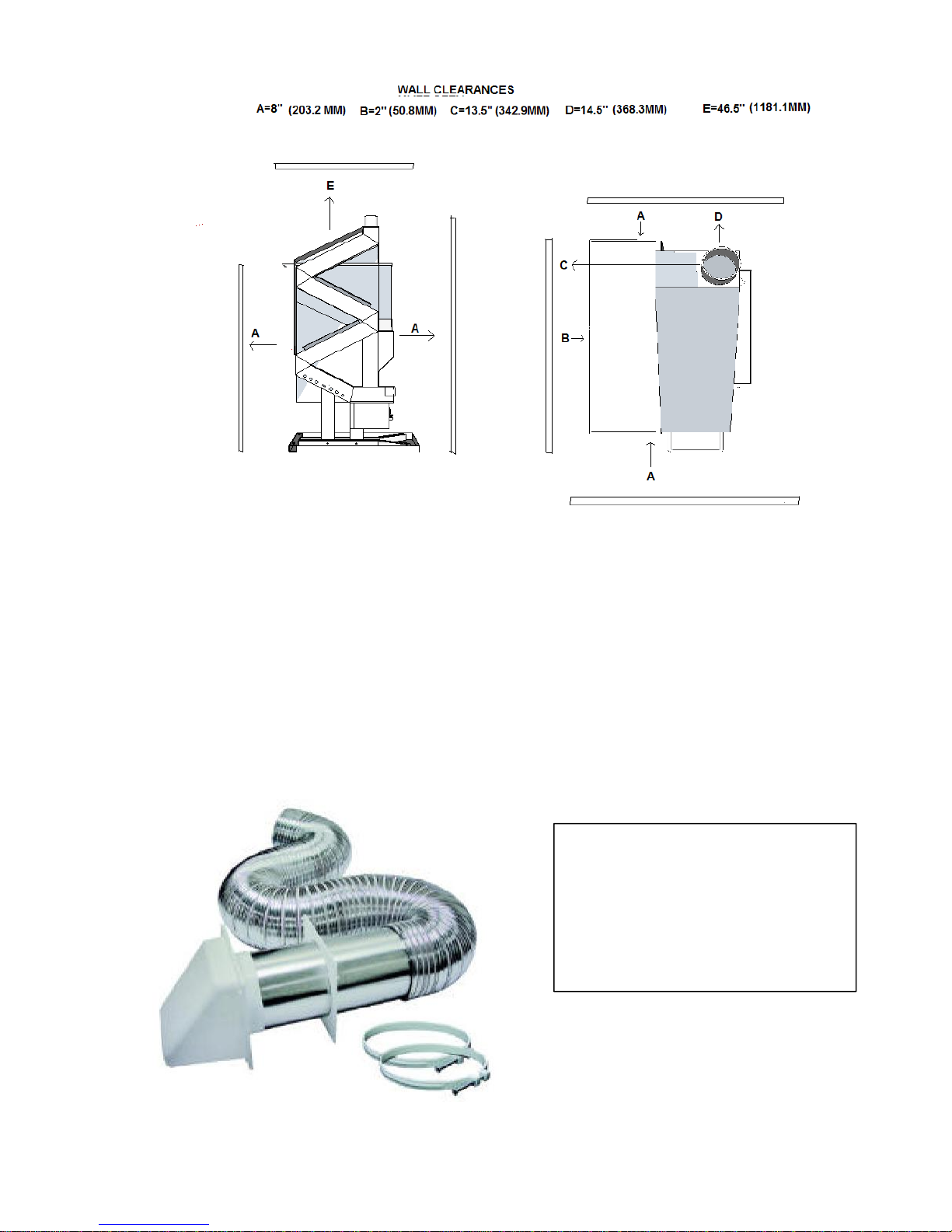

CLEARANCE TO COMBUSTIBLES
-
11
