Witt E-900 Lady User manual

User manual Witt E-Bikes / UK
E-900 Lady & E-900 Gent

2

3
Table of contents
Before first use...........................................................................................4
Purchase.....................................................................................................8
Traffic laws and regulations .......................................................................9
Safety checklist.........................................................................................11
Troubleshooting.......................................................................................12
Safe bike ride............................................................................................13
Transportation .........................................................................................13
Maintenance ............................................................................................14
Cleaning and storage................................................................................15

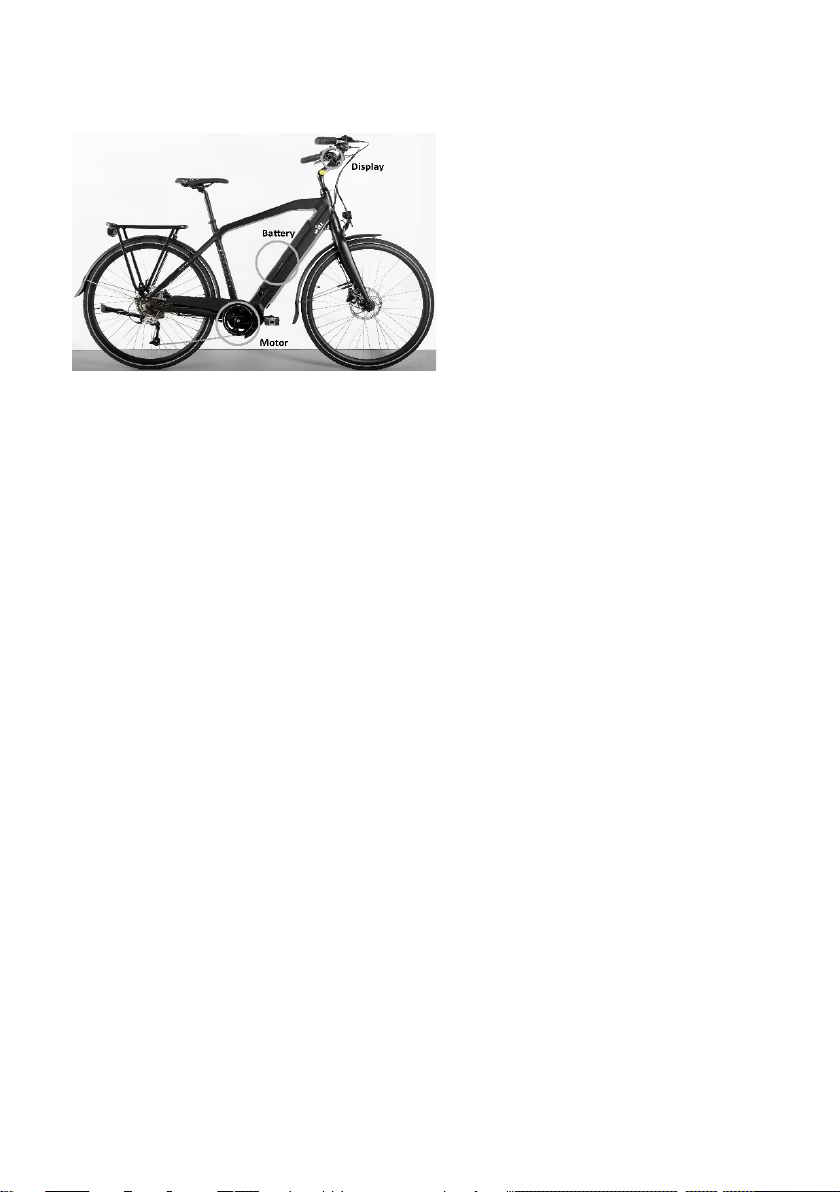

Introduction .............................................................................................16
Technical data ..........................................................................................17
Features ...................................................................................................18
Distances ..................................................................................................19
Display......................................................................................................19
Riding/parking..........................................................................................20
eBike settings ...........................................................................................21
Charge instruction....................................................................................22
How to demount the battery...................................................................23
Charging ...................................................................................................24
Battery and charger safety.......................................................................25
Important!................................................................................................26
Service instruction ...................................................................................27
Troubleshooting.......................................................................................28
Warranty ..................................................................................................29

4
Before first use
•Read the operating and installation instructions carefully before using the
eBike. They contain important information on safety, installation, use and
maintenance. This prevents both personal injury and damage to the
eBike.
•Keep these instructions in a safe place and pass them on to any future
owner.
•Damage to the eBike can compromise your safety. Check the eBike for
visible signs of damage. Do not use a damaged eBike.
•If you find any visible sign of damage, please contact the store where you
bought the eBike.
•Check that the eBike has been properly assembled.
•This eBike can be used by children and people with impaired physical,
sensory or mental abilities or with a lack of experience and knowledge
provided that they are supervised or have received instruction in the safe
use of this device, and about the resulting hazards. Children must not
play with this appliance.
•Cleaning and user maintenance work must not be carried out by children
without adult supervision.
•Keep the charger out of infants and children's reach. Do not play with the
eBike.
•Only use Lithium rechargeable batteries. DO NOT use this charger for any
other types of batteries than listed here. Improper use of the charger or
attempt to charge non-rechargeable batteries can cause fire, electric
shock and/or other hazards.
•The charger is for indoor use only and requires adequate ventilation
(ventilation openings must never be covered or blocked); and the charger
should always be connected to a grounded outlet.

5
•Do not attempt to disassemble or modify this device. Maintenance
and/or repair work must be carried out by professionals only. If the
safety warnings are not followed, warranty, performance and product
liability claims will be invalidated.
•Only use the AC power cord supplied with the charger or recommended
by the supplier.
•If the power cord is damaged, it must be replaced by the manufacturer,
its service agent or a professionally qualified person to avoid danger.
•Remove the charger from the power supply before connecting /
disconnecting the battery. Risk of electric shock.
•A short circuit between the charger's plus (+) and minus (-) may cause
fire, electric shock and/or other hazards. Make sure the plug is kept away
from all metal when the battery is not connected.
•If/when the metal part of the charger becomes dirty, pull the charger out
of the socket and clean with a dry cloth only. Risk of electric shock.
•The charger gets warm during charging. This is normal and not a defect.
•Stop charging immediately if charging does not occur within a reasonable
time.
•If abnormal odors or deformity of the charger occurs during use,
immediately turn off the power and unplug the power cord to avoid
possible danger or risk of fire.
•Please keep the charger cool and dry when not in use.
•Do not expose the charger to direct sunlight and/or other heat sources
(e.g. radiators and/or other electrical appliances, chimneys, etc.),
moisture, water, flames, fire or high-explosive gas; or in places where
liquids (e.g. condensation and water from leaky ceilings) or objects which
can enter into the product.
•Please do not dispose of your old appliance with your household waste.
Please dispose of it at your local recycling center.
•Ride slowly on rainy, snowy and/or icy roads. Calculate good braking
distance on icy roads.
•The eBike is intended for driving in the rain and is not damaged by it. But
never immerse the electronic parts (motor, battery) in water and/or
other liquids.
•Never lend your eBike without prior thorough instruction in its use.
•Important! Turn off the battery during charging and after use.

6
•Important! Charge the eBike at least once a month, even when not used
for long periods. This protects the battery and extends its life.
•Never touch the battery contact points with wet hands and never
attempt to short-circuit the battery using tools. Risk of personal and/or
product damages.
•Batteries are affected by different weather conditions. Generally, a
battery performs best when used at temperatures above 0 °C. The
battery capacity is reduced by approx. 1/3 at freezing temperatures.
Therefore, the driving distance will be reduced during use below 0 °C.
However, the battery is not damaged when used at temperatures below
0 °C.
•All bikes, even the most sturdy and expensive, can be dangerous to drive
due to common wear, possible crashes, transportation, age and/or other
external factors.
•The user is responsible for using the bicycle safely. It is therefore
important to carry out regular safety checks.
•Only use the bike if it is in perfect condition.
•Customize your driving style to your abilities and surroundings.
•Avoid getting your clothes or bags stuck in the tyres.
•Always use a helmet when riding the eBike.
•Always remember to have the bike examined by a professional after a
crash or an accident.
•Bicycles are only safe to use if they are examined by a specialist every
year.
•Unsuitable spare parts and accessories can make the bike dangerous to
use. Always ask a professional.
•Drive safely and always be aware that eBikes are silent in use. When you
approach others, it is typically not detected by them.
•EBikes are only recommended for users who already can ride a regular
bike. Cyclists who have not been riding for a long time should only ride
eBikes in traffic when they are comfortable using it.
•Do not modify the bike or try to improve its driving style or speed. If such
modifications occur, the manufacturer will not take responsibility for the
eBike and the warranty, performance and product liability claims will be
invalidated.

7
E-Bikes with electric motors (electric bikes) are designed to be used on good
surfaces and roads, and they are not suitable for off-road terrain. The
maximum capacity of eBike is 120 kg including cyclist and bags.
Usage
When accelerated, the user must use his/her own muscle power. This is
essential when much energy is required.
If the battery is not charged, the safety protection is activated, and the
display will indicate that the battery needs charging. In this case, charge the
battery immediately.
Please notice the following must be in accordance with current laws and
regulations:
•The assist will automatically be deactivated at 25 km/h.
•If the motor does not initiate when the eBike is used, first check that the
battery is properly installed. If the problem persists, contact the store
where the eBike was purchased.

8
Purchase
Please note the following:
•Your bike is ready for use and has been controlled by a professional.
•The dealer informed you about the bike's functions and the safety
features.
•Always ask for the original instructions when dealing with complicated
parts.
Before using the eBike:
Read and implement the safety checklist.
Practice riding and braking on a safe surface, first using the rear brake and
then gradually using the front brake. You must be able to perform a complete
full stop without losing control. If the front tyre stops turning, the eBike will
become unstable and therefore the brakes should be adjusted by an expert.
After 4 weeks or 300 km.
•It is normal for any bike - even the most sturdy and expensive - to have
the brakes, gears, bearings and wheels adjusted regularly. This is done to
prevent product and personal injuries and malfunctions.
•Read these instructions carefully and make sure that the bike is properly
assembled before using it.
•Be careful when riding in the rain, on gravel or on slippery roads.
•The bike can be used in the rain without damaging it. However, the
electrical parts, such as the battery and the motor, should never be
immersed directly in water.
•Never touch the battery terminals with bare hands and never attempt to
short-circuit it.
•Never disassemble the electrical machine part. Contact a specialist.
•Never lend your eBike without prior thorough instruction in its use.
•Batteries are affected by different weather conditions. Generally, a
battery performs best when used at temperatures above 0 °C. The
battery capacity is reduced by approx. 1/3 at freezing temperatures.
Therefore, the driving distance will be reduced during use below 0 °C.
However, the battery is not damaged when used at temperatures below
0 °C.

9
Traffic laws and regulations
Traffic regulations and laws dictate the following:
Lights: Between sunset and sunrise, you must have and use one white light
pointing straight forward and one red one pointing straight back.
Reflectors: Your bike must have at least one red rear reflector and four
amber pedal reflectors.
Brakes: Your bike should have two functioning braking systems. Bikes in UK
generally have the right-hand lever for the front brake and left hand one – for
the rear brake.
Bell: Bike bells are not required by law in the UK, but it’s good to have it. A
polite but determined, chiefly British “Excuse me” can also work as a less
aggressive warning device.
Helmet: Wearing a helmet while riding is not mandatory.
Cycling rules in the UK
•Everyone must drive/ride on the left-hand side of the roadway. Never
ride your bike against the traffic flow.
•The use of cycle lanes is not compulsory and will depend on your
experience and skills, but they can make your journey safer.
•You may use a lane shared by bikes and pedestrians, but if it’s segregated
you must keep to the side intended for cyclists. In these cases, take care
when passing pedestrians, especially children, older or disabled people,
and allow them plenty of room.
•You cannot cycle on sidewalks / footpaths.
•In pedestrian areas, only ride your cycle if there aren’t too many
pedestrians about; otherwise dismount and push it. Also, if there is
signage specifically prohibiting cycling in such areas, you’d better respect
it.
•You can ride across cycle-only crossings and so-called Toucan crossings
– light-controlled crossings for both cyclists and pedestrians. They are
push-button operated. On any other type of crossing you must dismount
and walk across.
•You must not cross the stop line when the traffic lights are red. Just
don’t. Ever (yes, even when there’s nobody around). Some junctions

10
have an advanced stop line for cyclists where you can wait ahead of
other traffic.
•Do not pass between the curb and a bus when the bus is in a bus station.
•You must not carry a passenger unless your bike has been built or
adapted to carry one.
•You are not allowed to hold onto a moving vehicle or trailer.
•When approaching a junction on the left, watch out for vehicles turning
in front of you, out of or into the side road. Just before you turn, check
for undertaking cyclists or motorcyclists. Do not ride on the inside of
vehicles signaling or slowing down to turn left. Pay extra attention to
those nasty big trucks, they are dangerous to cycle next to, especially at
junctions.
•If you are turning right, check the traffic to ensure it is safe, then signal
and move to the center of the road. Wait until there is a safe gap in the
oncoming traffic and give a final look before completing the turn.
•Take extra care when crossing tramway tracks. You should also dismount
at level crossings where a ‘cyclist dismount’ sign is displayed.
•Cycling while drunk is, of course, a big NO. While there is no legal limit
for the alcohol volume accepted when riding a bike and nothing will
happen to your driver’s license, the police can decide you are not able to
ride safely and fine you by up to £2,500.
•We also recommend having liability insurance. Check with your insurance
company that your insurance covers all damages you may incur on the
bike.
•Cyclists must always respect all applicable traffic regulations and laws.

11
Safety checklist
Troubleshooting for this section can be found in the section
"Troubleshooting"
•Squeeze the brake levers using all your arm power - the handles should
not touch the handlebar.
•Squeeze the brake levers and pull the bike forward - the brake pads must
clamp tightly around the discs/rims.
•Brake front tire and turn the handlebar - the handlebars must not be able
to rotate.
•The saddle must not be able to rotate or rotate up or down.
•Check that the tyre is not blocked, the release lever/arm should not
protrude.
•Turn the tyres - they should be in line and move smoothly without
touching other parts of the bike.
•Let the bike fall freely from 20 cm height - if accessories such as rear bike
rack, displays or lights are moving or falling off, they may be mounted
incorrectly.
•Check the lights and the bell.
•Check tyre condition and pressure and look for loose spokes.
•Check the frame, handlebar and grip for scratches and dents.
•The brakes and cables should not show signs of wear or damage.
•Check for broken links in the bike chain.
•Test the brakes and gearshift with a test drive.
•Check the electric motor and the charging level.

12
Troubleshooting
Maintenance performed by unqualified technicians can result in serious
accidents:
•The brake lever screw can be used to adjust the distance between the
handles and the handlebar.
•Brake adjustments should be performed by an expert.
•Normally the handlebar can be tightened using a screw that is in the
center of the handlebar. All other adjustments should be made by an
expert.
•Tighten all screws around the saddle.
•The saddle and handlebar can only be adjusted up to the line on their
respective bar.
•Align the tyre, tighten the nuts and lock the release lever/arm.
•Loosen and straighten the tyre - the distance from the front fork and
frame should be proportional.
•Tighten loose screws. Have an expert repair any part or screw that is
defective.
•Tighten loose screws, replace the lights, secure the cables.
•Pump air into the hose with a hand pump - compressed air can damage
the tyres. Get an expert to repair defective tyres or loose spokes.
•Any minor damage should be repaired by qualified personnel.
•Damaged cables should be replaced by qualified personnel immediately.
•Damaged chains should be replaced by qualified personnel immediately.
•If the brake is too powerful, weak or unstable, or if the bike is running
unstable or irregular, or if the gearshift does not work optimally, the
eBike must be repaired by an expert.
•Consult a qualified service center for servicing the electric motor.

13
Safe bike ride
•Only use the bike if you are healthy and in good shape.
•Do not use the bike if you are affected by alcohol, drugs or medication.
•The bike should be adjusted according to your weight.
•Practice cycling, braking, shifting gears and turning safely before riding in
tight traffic.
•Wear gloves in cold weather to always be able to hold the handle with
both hands and use force when braking.
•Always keep your bags secured on the rear bike rack.
•Do not hang bags on the handlebar. Risk of serious accidents.
•Be aware of the effect of heavy bags: use proper bicycle bags that ensure
the bike's balance.
•Bicycles have a longer braking distance than cars, so be sure to respect
the safety distance.
•The braking distance increases on damp, wet or dirty surfaces.
•Ride with caution - electric bikes do not accelerate fast!
•Do not make any sudden movements while starting the bike, otherwise
you risk falling.
•Practice a quick start before a climb to avoid riding too slowly and thus
risking crashing the bike.
Transportation
•When transporting the bike, it must be fixed horizontally on a suitable
roof mounted bicycle rack on the car to avoid unnecessary strains on the
handlebar and other parts.
•Remove all accessories such as displays, bottles, pumps etc., otherwise
these can loosen during transport.
•When the bicycle is transported at high speed and in rain, water will
penetrate the bearings and into cables which cause damages.
•Make sure the rear derailleur/gear is upwards to avoid damage if the
eBike is transported horizontally in a vehicle.
•Read and perform the safety checklist before any kind of transport.

14
Maintenance
•Every bike should be checked by an expert at least once a year. This to
find eventual hidden defects such as micro-damage to the frame or
handlebars, broken brake cables, broken tyre rims, worn brake pads, etc.
•Use only suitable and original spare parts - pay attention to the
replacement of brake pads to fit the tyre rim and that the brake force
meets local traffic regulations.
•In case the control display shows an opaque error message, contact the
store where the eBike was purchased.
•Keep the bike and display clean and avoid water ingress (rain is not a
problem). Do not immerse the battery into water. Do not clean the bike
with a water pump or a pressure washer. Only use a damp cloth.
•Always keep the battery charged regardless of whether the bike is in use
or not.
•Use only the original battery charger.
•If the eBike is to be stored, be sure to recharge the battery regularly - at
least once a month - to prevent the battery from losing capacity.
•Store the battery in a dry place at room temperature.
•The battery reaches its maximum charging capacity after being charged
10 times.
•Do not expose the battery to high temperatures such as direct sunlight,
open flames, etc.
•If the battery leaks after an accident, it must be replaced immediately.
Contact the store where the eBike was bought.
•Batteries may not be disposed as general waste but must be disposed at
a waste disposal site according to applicable laws and regulations.
•Do not strain the bike. This includes using bicycle trailers and off-road
riding.
•Remember to assist the electrical energy using your own muscle power
at steep inclines to prevent the system from overheating. In case of
overheating, a fuse is activated to avoid personal and/or product
damages.
•To save battery power during acceleration, you can assist by using your
own muscle power.

15
Cleaning and storage
Cleaning
•Regularly clean your bike - this is also the best way to find eventual
damages on the bike.
•Bicycles should not be cleaned with a pressure washer, with steam or
water jets. These cleaning methods can push sand grains and moisture
into the bearings and cables, thereby damaging the bicycle.
•Clean the bike with warm water and soap to remove grease and dirt. You
can find a suitable cleaning product at your local bicycle dealer.
•Also clean the chain and gears. A clean and greased chain that runs
smoothly increases the life of the gears.
•After cleaning the chain and gears, lubricate them by using a suitable
water-repellent product.
•Problems such as dirty or rusty parts, especially when it comes to the
chain, are not included in the warranty. Chains are not immune to rust
and should be cared for.
•Remove residual grease from the tire rim after cleaning and lubrication.
•Remaining grease on the tire rim can reduce braking efficiency.
Storage
•When not in use, store the eBike in a dry place. If it is outside, its life can
be reduced. Therefore, it is also important to protect the bike with an
anti-rust coating. This product can be purchased at your local bicycle
dealer.
•If the bike is not in use for a long period of time, it can be hung on the
wall as it will protect the tyres from damage.
•Clean and prepare the bike before storing and have it checked by a
specialized bicycle mechanic.
•Remember to deactivate the system by turning off the main switch.
•Even though the bicycle can be used in rain and poor weather, the bicycle
must be stored under a roof preventing moisture from affecting the
electrical parts and the motor.
•Remember to protect the bike against theft.
•Remember to charge the battery every month, when the eBike is
stored.

16
Introduction
Thank you for choosing to buy our eBike. The electric bike is designed to
make cycling and transportation easier and funnier.
We have combined the best materials within motor vehicles and bicycles.
Your new eBike is built with you in mind with emphasis on an easy ride and
maintenance.
Have a nice ride…

17
Technical data
eBike / Battery
Weight
21 – 25,5 kg
Max speed
<25 km/h
Max capacity
<120 kg
Driving distance per charge
50 km*
*Standard conditions: New battery, average temperature (25 °C), plain and dry road, no wind.
Charger
Charging time
4 – 6 hours
Power supply
220-230V / 50-60 Hz
Watt
60 W
Battery
Type
Lithium type. Activated by
Panasonic
Capacity
11,6 Ah – 417 watt time
Voltage
36 V
Motor
Type
Bafang – Modest – 36V/250W crank
drive motor
Effect continuous
250 W
Voltage
36 V
Max torque
80 Nm
Efficiency level
>80%

18
Features
Our 3D design follows ergonomic principles. Technology and materials
guarantee the best riding abilities.
The unique design has been carefully selected, along with our quality
components to provide a safe and optimum ride.
Our lithium battery is eco-friendly and up-to-date securing more energy. The
bicycle frame is made of aluminum, which is lighter than steel and extremely
durable.
The braking system is carefully selected to provide a quick response and
better control/stop for the driver. The speed of the electronic system is
limited to a maximum of 25 km/h. It meets European eBike legislation.
50 km driving distance per charge can be achieved. But be aware that factors
such as wind, terrain, weight, air in the tires and own help influence the
driving distance.

19
Distances
•Driving distances (fully charged): 60-100 km at standard conditions
•Weight of eBike < 25 kg: Load < 120 kg
•Consumption per. battery charge: <0.5 km/h
Display
Battery capacity
Front and rear lights and background light
Total distance
Odometer
1. Press the on/off switch to turn on the bike. Select the motor assist level
by using the up or down or the +/- keys.
2. Press and hold the "up arrow" or the +-key to choose between maximum
speed or average speed.
3. Press and hold the "down arrow" or -key to use the walk function. The
speed is 5 km/h.
4. The light is turned on by pressing the + key for 2-3 seconds.
Note: The display light turns on together with the bike.

20
Riding
•Accelerate slowly after starting. This saves battery capacity. Increase
driving speed by using your own muscle power. Especially when starting
and riding in terrain.
•If the battery is not charged, the automatic safety function shows "low
voltage" in the display. Recharge the battery immediately.
•The electric assist stops automatically if the speed exceeds 25 km/h. It
also stops if you stop pedaling (according to the law).
•If the electric assist stops, try turning the bike off and on again. If the
problem persists, contact the store where the bike was purchased.
•Your eBike is equipped with a shimano gear system.
Parking
•Turn off the display and then the battery by pressing the on/off button.
•Remember to lock the eBike.
