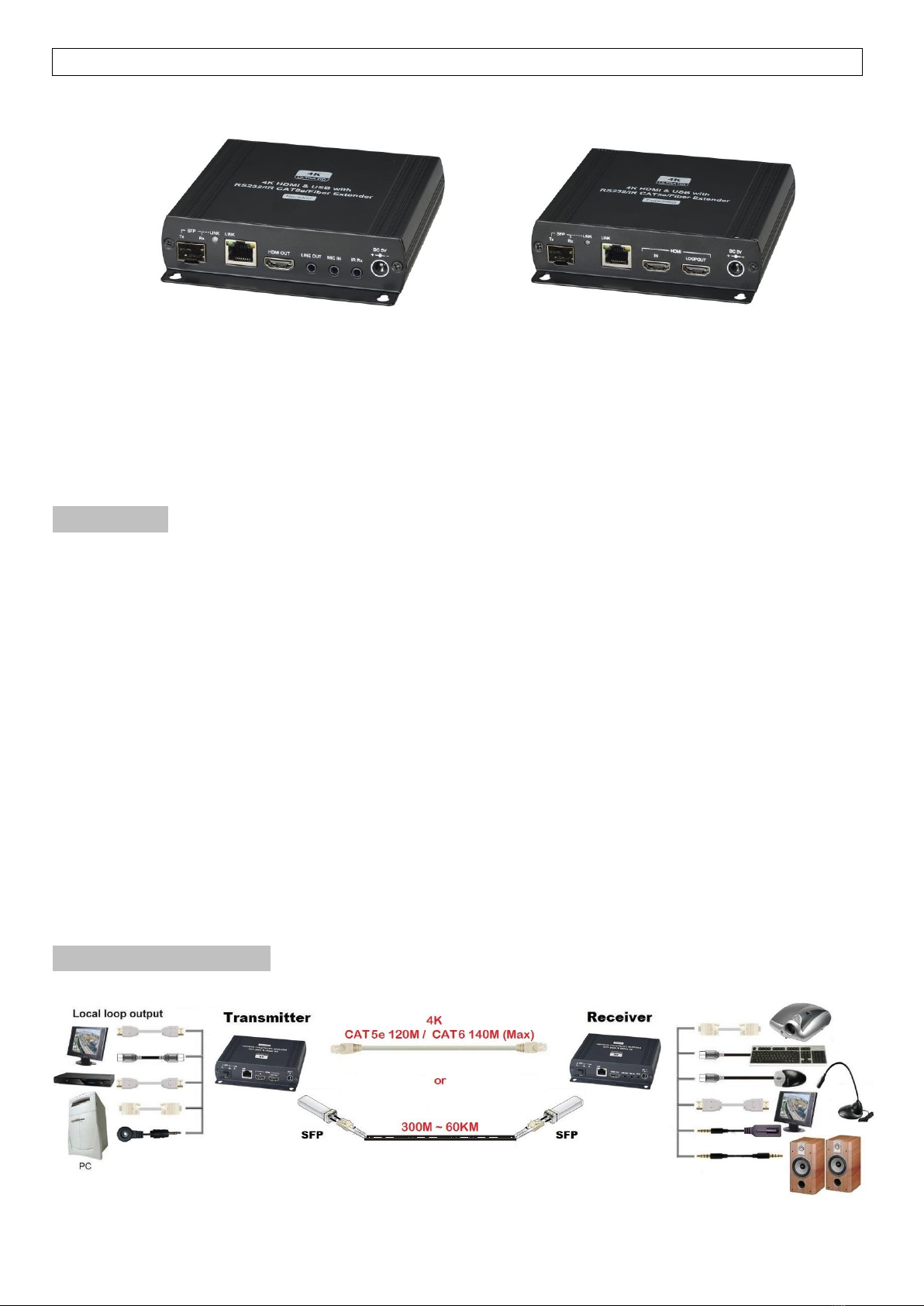

Wizard-tk HKM01-4K User manual

4K HDMI & USB/AUDIO/RS232/IR CAT5e Extender
ITEM NO: HKM01-4K HDMI & USB/ Audio/RS232/IR CAT5e Extender
The HKM01-4K HDMI & USB with Analog audio, RS232, and IR CAT5e extender design for
extend all signals over one CAT56 up to 140 meters, transmitter unit with local HDMI monitor
output. It provides superior video quality up to 4K resolutions, and using cost effective CAT5e
cable, instead of HDMI, RS232 cables, for an easy, neater and reliable installation. It is
optimized for applications at broadcasting system, multimedia display and multi-data sharing,
digital signage, home network integration, and industrial control, hospital, education, security
and system control over RS232 and equipment control over IR.
Features:
Extend 4K UHD HDMI, USB, RS232, IR and Audio signals over one CAT5e/CAT6 cable.
Transmission range up to 140M over CAT6, 120M over CAT5e.
HDMI video resolutions up to 4K@30Hz, 1080p Full HD and 1920 x 1200@ 60Hz.
HKM01T-4K transmitter unit with HDMI local loop output.
HDMI audio support up to LPCM 7.1@192Khz.
HDMI 1.4 and HDCP 1.4 compliant.
Built in Bi-directional analog audio extender function.
Support USB 2.0 and compatible with 1.0, 1.1.
Support Bi-directional RS232.
Support one way IR extention, IR carrier 20-60 KHz.
Built in EDID copy and integration.
Support external SFP optical transceiver, over Fiber extender.
Receiver unit with 4 ports USB 2.0 devices, to extend USB 2.0 peripheral devices, such as
flash drive, hard drive, mass storage device, keyboard, mouse, etc.
Optional model:
SR01 signal repeater for longer distance application.
IR-CR01: IR receiver cable.
Perfect for control remote machines and security monitoring systems, digital signage
application.
Installation View:

2
Optional Model: SR01 Signal Repeater (order separately)
Extend data signal for an additional 120meters.
Application for HKM01-4K signals for extra-long range transmission.
Ability to cascade connection with multiple SR01 for long range transmission
Built in LED status indication.
External power required.
Plug and play for easy installation.
Work with HKM01-4K CAT5e Extender:
Panel View:
LED Indication Status:
Position
LED Color
Instruction
Power
Green
Power on/off
LINK
Blue
TX and RX Linked
LINK
Green
SFP Fiber linking indication
RJ45
Green
UTP RJ45 linking indication

3
Switch & Button:
HKM01T-4K
Switch
/Button
Function
↓
↑
1
Group
0
1
2
RS232
Normal
Reserve
3
Normal
Reserve
4
EDID
Management
4 5
↓↓= Use default 1080p LPCM 2CH EDID
↑↓= Use RX monitor EDID
↓↑= Use TX loop out monitor EDID
↑↑= Integrate RX monitor and TX loop out monitor EDID
5
6
Reserve Function
Normal
Reserve
Button
Copy EDID
Based on Switch 4 & 5 setting to do EDID copy
HKM01R-4K
Switch
/Button
Function
↓
↑
1
Group
0
1
2
RS232
Normal
Reserve
Button 1
Function Switch
MAC, IP, Baud rate, Updated EDID(Reserve)
Button 2
Baud rate setting
115200, 57600, 38400, 19200, 14400, 9600, 4800, 2400, 1200
RS232 Baud Rate Setting:
RS232 Default Baud rate is 115200bps. If change date rate, press button1（switch）at the receiver unit
to select Baud rate menu. Then press button 2 to select the data rate and press button 1 again to
confirm and completed the Baud rate setting.
Analog Audio：
1. When the transmitter is plugged into the analog input (LINE IN) or receiver microphone input (MIC
IN), it will be turn off HDMI audio.
2. When the transmitter analog input (LINE IN) and receiver microphone input (MIC IN) are not used ,
the receiver's analog output (LINE OUT) can output HDMI audio ( only LPCM 2-channel audio
supported)
3. When the receiver's analog output (LINE OUT) is connected, it will be turn off HDMI audio.
Rotary Switch:
HKM01-4K built in rotary switch for pairing devices and the rotary switch can be used
to switch 0-F channel pairing with group setting of switch 1. The channel number and
group setting of the transmitter and receiver must be same to be connected each
other, total up to 32 (16 for each group) pairs could be setup at one switch.
RJ45 Pin Define:
Link Cable (use TIA/EIA-568-B)
1. Orange-white Data 1 +
2. Orange Data 1 -
3. Green-white Data 2 +
4. Blue Data 3 +
5. Blue-white Data 3 -
6. Green Data 2 -
7. Brown-white Data 4 +
8. Brown Data 4 –

4
Cable:
Link cable recommend use high quality CAT5e,CAT6 UTP/STP/FTP cable. The max working distance is
140M (Max) over CAT6. Poor quality cable or network connection or improper construction will
cause unstable connection, video or sound disruptions, picture noise appears.
For longer distance application could be use model no: SR01 for extend longer distance or add a Gigabit
Switch.
The fiber-optic transmission interface uses standard SFP fiber modules, and the transmission distance
depends on the specifications and performance of the fiber module and fiber-optic cable.
Trouble Shooting:
1. HKM01-4K transmission data rate up to 850Mbps Max.
2. Do not recommend to connect general LAN to avoid large video data transmission slow down other
LAN devices. 。
3. Do not connect UTP and SFP optic fiber at same time to avoid any problem.
4. Default EDID is 1080p LPCM 7.1 CH., you could copy remote/loop out monitor EDID from TX.
5. When external IR receiver cable connect to RX, the front panel IR will be disabled.
6. When analog audio input/output connected, HDMI audio will be disabled.
7. RX analog audio input (MIC IN) is mono for microphone use only.
Package Include:
HKM01T-4K Transmitter x 1
HKM01R-4K Receiver x 1
USB A to B cable x 1
IR emitter cable x 1
DC 5V 2Amp power adapter x 2
Specification:
ITEM NO.
HKM01T-4K
HKM01R-4K
Support Resolution
Up to 4K UHD 4:4:4 @ 30Hz
Transmission Distance
CAT5e：120M / CAT6：140M (Max)
HDMI Connector
HDMI Type A x 2
HDMI Type A x 1
USB Connector
USB Type B x 1
USB Type A x 4
RS232 Connector
DB9 (Female) x 1
DB9 (Male) x 1
RS232 not support hardware handshake
Link Connector
RJ45 x 1
Analog Audio connector
Input: Line In, 3.5mm Stereo
Phone Jack
Output: 3.5mm Stereo Phone
Jack (Ext)
Input: Mic In, 3.5mm Mono
Phone Jack Output:
3.5mm Stereo Phone Jack (Ext)
IR Connector
3.5 mm Phone Jack x 1
IR Receiver
x
20-60Khz / ± 45° / 5M
3.5mm Stereo Phone Jack (Ext)
IR Emitter
20-60Khz / ± 45° / 5M
3.5mm Stereo Phone Jack (Ext)
x
Fiber
SFP
Power Supply
DC 5V 2A
Power Consumption
1200mA (Max)
400mA (Max, No USB Device)
Temperature
Operation:-20 to 60℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimensions mm
125 x 140 x 30
Weight g
380
Rev.A
