Wiznet WIZ110SR User manual

WIZ110SR User’s Manual
(Version2.0)
© 2008 WIZnet Co., Ltd. All Rights Reserved.
☞For more information, visit our website at http://www.wiznet.co.kr

Copyright © WIZnet All Rights Reserved
WIZ110SR | 2 page

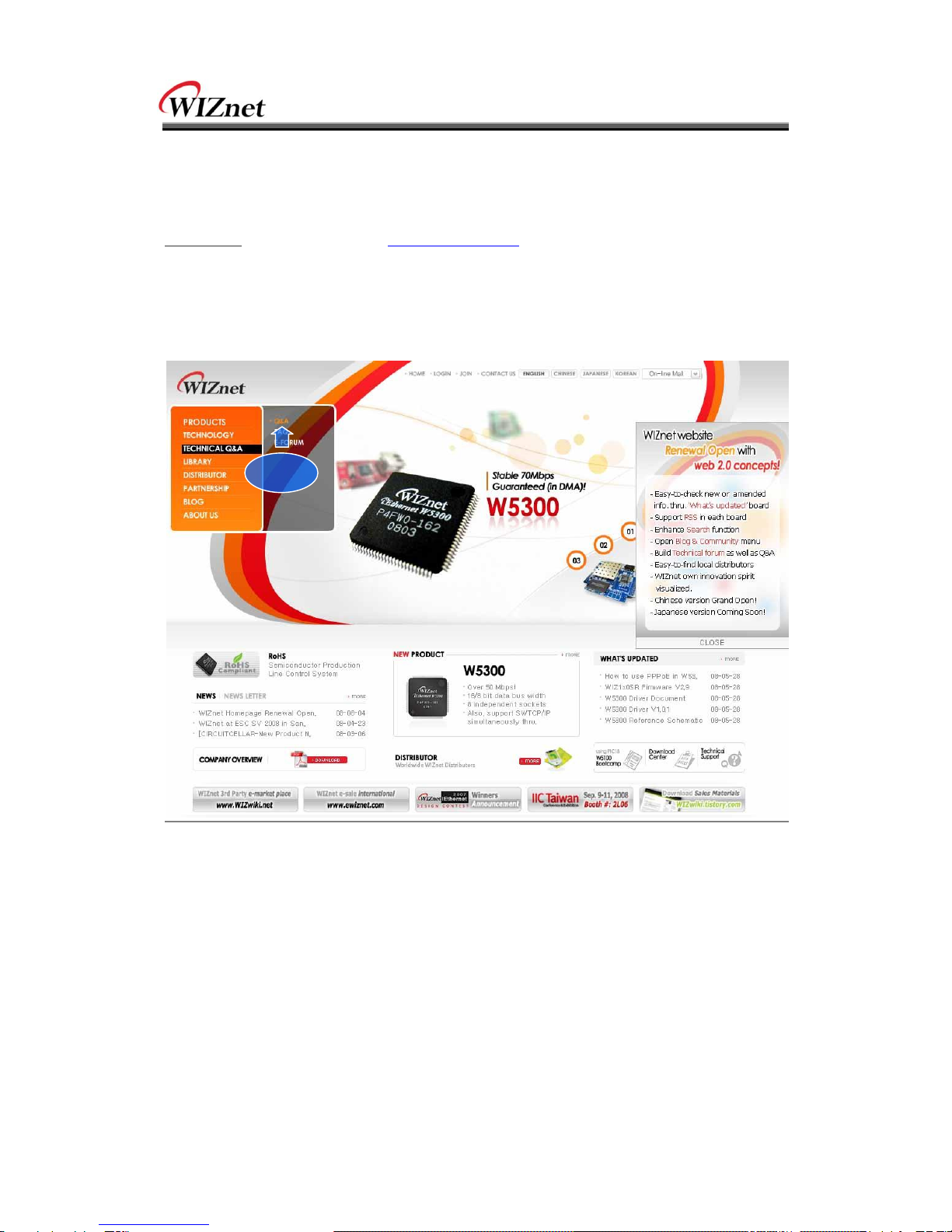

WIZnet’s Online Technical Support
If you have something to ask about WIZnet products, write down your question on
Q&A Board in WIZnet website (www.wiznet.co.kr). WIZnet will give an answer as soon
as possible.
C
CL
LI
IC
CK
K

Copyright © WIZnet All Rights Reserved
WIZ110SR | 3 page
COPYRIGHT NOTICE
Copyright 2008WIZnet, Inc.All Rights Reserved.
Technical Support: support@wiznet.co.kr
Sales & Distribution: sales@wiznet.co.kr
For more information, visit our website at http://www.wiznet.co.kr

Copyright © WIZnet All Rights Reserved
WIZ110SR | 4 page
Table of Contents
1. INTRODUCTION.......................................................................................... 6
1.1. KEY FEATURES ..........................................................................................6
1.2. SPECIFICATION ..........................................................................................6
1.3. PRODUCTS CONTENTS ..................................................................................7
2. WIZ110SR BOARD ....................................................................................... 8
2.1. BLOCK DIAGRAM ........................................................................................8
2.2. CONFIGURATION TOOL ..................................................................................9
3. FIRMWARE UPLOAD ................................................................................... 19
4. SERIAL CONFIGURATION.............................................................................. 21
4.1. SERIAL COMMAND FORMAT ............................................................................ 21
4.2. WIZ110SR CONFIGURATION WITH SERIAL COMMAND ................................................. 24
5. DEMONSTRATION AND TEST ......................................................................... 26
5.1. HARDWARE INTERFACE ................................................................................ 26
5.2. TESTING SERIAL TO ETHERNET FUNCTION ............................................................. 26
6. WIZ110SR HARDWARE SPECIFICATION ............................................................ 28
6.1. PARAMETERS .......................................................................................... 28
6.2. SPECIFICATION ........................................................................................ 28
6.3. BOARD DIMENSIONS AND PIN ASSIGNMENT............................................................. 28
7. WARRANTY .............................................................................................. 30

Copyright © WIZnet All Rights Reserved
WIZ110SR | 5 page
FIGURES
Figure 1. Block Diagram...........................................................................8
Figure 2. Configuration Tool (Network Config) ...............................................9
Figure 3. PPPoE Connection Process in Serial Console................................... 10
Figure 4. TCP Server mode..................................................................... 11
Figure 5. TCP Client mode...................................................................... 12
Figure 6. UDP mode.............................................................................. 13
Figure 7. Configuration Tool (Serial Config.) ................................................. 15
Figure 8. Configuration Tool (Option Config.) ................................................ 16
Figure 9. Option Mode for Password Configuration......................................... 18
Figure 10. Board Search Window.............................................................. 19
Figure 11. Open dialog box for uploading..................................................... 20
Figure 12. Firmware uploading window ....................................................... 20
Figure 13. Complete Uploading ................................................................ 20
Figure 14. WIZ110SR Interface................................................................. 26
Figure 15. Device Terminal...................................................................... 27
Figure 16. WIZ110SR Dimension ................................................................ 28
Figure 17. RJ-45 PIN Assignment.............................................................. 29
Tables
Table 1. Specification...............................................................................7
Table 2. Products Contents .......................................................................7
Table 3. Serial Configuration Frame Format.................................................. 21
Table 4. Serial Configuration Reply Frame Format.......................................... 21
Table 5. Serial Configuration STX & ETX..................................................... 21
Table 6. Serial Configuration Reply Code..................................................... 21
Table 7. Serial Configuration Command Code............................................... 23
Table 8. Serial Configuration Testing Process................................................ 25
Table 9. Testing Environment of WIZ110SR.................................................. 26
Table 10. RS-232 PIN Assignment............................................................. 29

Copyright © WIZnet All Rights Reserved
WIZ110SR | 6 page
1. Introduction
WIZ110SR is a gateway module that converts RS-232 protocol into TCP/IP protocol. It enables
remote gauging, managing and control of a device through the network based on Ethernet and
TCP/IP by connecting to the existing equipment with RS-232 serial interface. In other words,
WIZ110SR is a protocol converter that transmits the data sent by serial equipment as TCP/IP
data type and converts back the TCP/IP data received through the network into serial data to
transmit back to the equipment.
1.1. Key Features
-Direct Connection to the Serial Device
Adding Network Function Simply and Quickly
Providing Firmware Customization
-System Stability and Reliability by using W5100 Hardware Chip
-Supports PPPoE Connection
-Supports Serial Configuration –with Simple and Easy command
-Supports Password for the Security
-Configuration Tool Program
-10/100 Ethernet Interface and max 230Kbps Serial Interface
-RoHS Compliant
1.2. Specification
ITEM
Description
MCU
8051 compliant
(having internal 62K Flash, 16K SRAM, 2K EEPROM)
TCP/IP
W5100 (Ethernet MAC & PHY Embedded)
Protocol
TCP, UDP, IP, ARP, ICMP, MAC, DHCP, PPPoE, DNS
Network Interface
10/100 Mbps(Auto detection), RJ-45 Connector
Serial Interface
RS232(DB9)
Serial Signal
TXD, RXD, RTS, CTS, GND
Serial Parameters
Parity : None, Even, Odd
Data Bits : 7,8
Flow Control : None, RTS/CTS, XON/XOFF
Speed : up to 230Kbps

Copyright © WIZnet All Rights Reserved
WIZ110SR | 7 page
Input Voltage
DC 5V
Power Consumption
Under 180mA
Temperature
0C ~ 80C (Operation), -40C ~ 85C (Storage)
Humidity
10 ~ 90%
Table 1. Specification
1.3. Products Contents
WIZ110SR Board
CD (Optional / including Configuration Tool
Program, Firmware and Manual)
LAN Cable (Optional)
5V Power Adaptor (Optional)
Table 2. Products Contents
☞If there is any missing item, contact to the shop where you purchased.
☞The optional items should be purchased separately.

Copyright © WIZnet All Rights Reserved
WIZ110SR | 8 page
2. WIZ110SR Board
2.1. Block Diagram
Figure 1. Block Diagram
WIZ110SR is a protocol converter that transmits the data sent by serial equipment to Ethernet
and converts back the TCP/IP data received through the network into serial data to transmit
back to the equipment. When the data is received from serial port, it is sent to W5100 by
MCU. If any data is transmitted from Ethernet, it is received to the internal buffer of W5100,
and sent to the serial port by MCU. MCU in the module controls the data according to the
configuration value that user defined.

Copyright © WIZnet All Rights Reserved
WIZ110SR | 9 page
2.2. Configuration Tool
2.2.1. Network Configuration
Figure 2. Configuration Tool (Network Config)
ⓐVersion : Displays firmware version.
You can use PPPoE, Serial Command, Password function from firmware Ver.2.5.
ⓑEnable Serial Debug Mode : If this mode is checked, you can monitor the status and
socket message of WIZ110SR (listen OK, connect fail etc.) through serial terminal. If Debug
mode is on, debug message can cause abnormal operation of the serial device. Therefore,
just use this mode only for Debug mode.
ⓒBoard List : If you click “Search” button, all the MAC addresses on a same subnet, will be
displayed.
ⓖ
ⓙ
ⓕ
ⓐ
ⓑ
ⓒ
100
ⓓ
ⓔ
ⓗ
ⓜ
ⓛ
ⓚ
ⓘ
ⓝ
ⓞ
ⓟ
ⓠ

Copyright © WIZnet All Rights Reserved
WIZ110SR | 10 page
ⓓIP Configuration Method: Select IP setting mode, you can select among Static, DHCP,
PPPoE mode.
Static: “Static” is the option for setting WIZ110SR with static IP address. First select MAC
address that you want to set it as static IP in „board list‟. Then, the “Local IP, Subnet,
Gateway boxes are enabled. Input Static IP address and click “setting” button. Then IP is set
as you want. (PPPoE ID, Password box will be disabled)
DHCP: Set this option to use DHCP mode. First, check „DHCP‟ and click „Setting‟ button. If IP
address is successfully acquired from DHCP server, the MAC address will be displayed on the
board list. (It takes some time to acquire IP address from DHCP server)
When a module on the board list is selected, IP address, Subnet mask and Gateway are
displayed. If module could not acquire network information from DHCP server, IP address,
Gateway Address and Subnet mask will be initialized to 0.0.0.0.
PPPoE : WIZ110SR supports PPPoE for ADSL user. When you select PPPoE in “IP Configuration
Method” PPPoE ID and Password box will be enabled.
1. To set PPPoE, connect PC to WIZ110SR directly and execute Configuration Tool program on
PC. (Configuration Tool version should be 2.1 or above)
2. Select „PPPoE‟ of the “IP Configuration Method” tab and input ID & Password.
3. Click “setting” button to apply.
4. Connect Module to ADSL Line.
5. If “Enable Serial Debug Mode” is selected, you can see PPPoE access status
via Serial console.

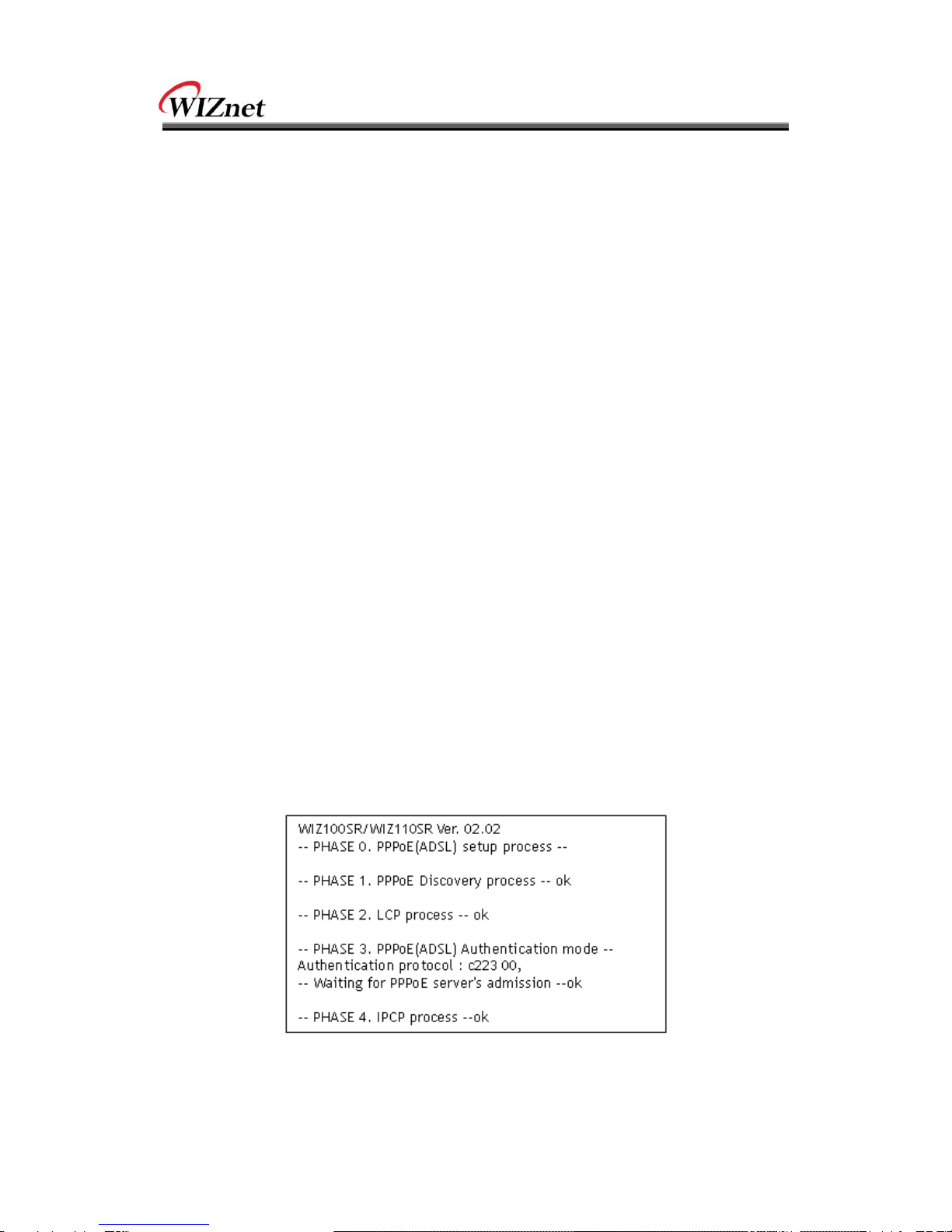

Figure 3. PPPoE Connection Process in Serial Console

Copyright © WIZnet All Rights Reserved
WIZ110SR | 11 page
ⓔLocal IP/Port : WIZ110SR‟s IP address and Port number for network connection
☞
Be sure to input correct network information. If you input incorrect IP address, it can
cause network collision or mal-function.
ⓕSubnet : WIZ110SR‟s subnet mask
ⓖGateway : WIZ110SR‟s Gateway address
ⓗPPPoE ID/Password : If you select „PPPoE‟ mode, input ID/Password which you received
from ISP company.
ⓘServer IP/Port : When WIZ110SR is set as “Client mode” or Mixed mode”, server IP and
port should be set. WIZ110SR attempts to connect this IP address.
ⓙNetwork mode :
client/server/mixed : This is to select the communication method based on TCP. TCP is the
protocol to establish the connection before data communication, but UDP just processes the
data communication without connection establishment.
The Network mode of WIZ110SR can be divided into TCP Server, TCP Client and Mixed
mode according to the connection establishing method. At the TCP server mode, WIZ110SR
operates as server on the process of connection, and waits for the connection trial from the
client. WIZ110SR operates as client at the TCP Client mode on the process of connection,
and tries to connect to the server’s IP and Port. Mixed modes supports both of Server and
Client. The communication process of each mode is as below.
<TCP server mode>
Figure 4. TCP Server mode
At the TCP Server mode, WIZ110SR waits for the connection requests.

Copyright © WIZnet All Rights Reserved
WIZ110SR | 12 page
TCP Server mode can be useful when the monitoring center tries to connect to the device
(where WIZ110SR is installed) in order to check the status or provide the commands. In
normal time WIZ110SR is on the waiting status, and if there is any connection request (SYN)
from the monitoring center, the connection is established(ESTABLISH), and data
communication is processed (Data Transaction). Finally connection is closed (FIN).
In order to operate this mode, Local IP, Subnet, Gateway Address and Local Port Number
should be configured first.
As illustrated in the above figure, data transmission proceeds as follows,
1. The host connects to the WIZ110SR which is configured as TCP Server mode.
2. As the connection is established, data can be transmitted in both directions –from the host
to the WIZ110SR, and from the WIZ110SR to the host
<TCP client mode>
Figure 5. TCP Client mode
If WIZ110SR is set as TCP Client, it tries to establish connection to the server.
To operate this mode, Local IP, Subnet, Gateway Address, Server IP, and Server port number
should be set. If server IP had domain name, use DNS function.
In TCP Client mode, WIZ110SR can actively establish a TCP connection to a host computer
when power is supplied.
As illustrated in the above figure, data transmission proceeds as follows:
1. As power is supplied, WIZ110SR board operating as TCP client mode actively establishes a
connection to the server.
2. If the connection is complete, data can be transmitted in both directions –from the host to
the WIZ110SR and from WIZ110SR to the host

Copyright © WIZnet All Rights Reserved
WIZ110SR | 13 page
<Mixed mode>
In this mode, WIZ110SR normally operates as TCP Server and waits for the connection request
from the peer. However, if WIZ110SR receives data from the serial device before connection is
established, it changes to the client mode and sends the data to the server IP. Therefore, at
the mixed mode, the server mode is operated prior to the client mode.
As like TCP Server mode, the Mixed mode is useful for the case that the monitoring center
tries to connect to the serial device (in which WIZ110SR is used) to check device status. In
addition to this, if any emergency occurs in the serial device, the module will change to
Client mode to establish the connection to the server and deliver the emergency status of the
device.
.
ⓚUse UDP mode
Figure 6. UDP mode
At the UDP mode, the connection establishment is not defined. Just set the IP address and
port number of the peer and send the data.
ⓛUse DNS : If DNS function is needed, check this option and input the domain name of DNS
server. DNS(Domain Name System) is the database system having information about IP address
and corresponding domain name. When connecting to domain name, you can use DNS function
of WIZ110SR. Input IP address of DNS server provided by ISP in DNS Server IP, and domain
name in the Server (Domain)
If server has dynamic IP address, but domain name, if you use DNS function, you do not need
to configure server IP address whenever it‟s changed.
.
ⓜDirect IP Search
Direct IP Search can be used for searching WIZ110SR not installed in the same subnet.
If the Direct IP search is checked, the configuration tool use the TCP instead UDP broadcast to

Copyright © WIZnet All Rights Reserved
WIZ110SR | 14 page
search modules. Therefore, network information of the module such as IP address, subnet
mask and gateway is required for the search.
If you check Direct IP search, the field in which IP address is input, will be activated. In this
field, input IP address of the module, and click “Search” button.
☞
If module does not have valid network information, Direct IP search is not available.
Check if module is connected to the NAT or private network. If so, it is not possible to
connect to the module from outside.
ⓝSearch
The Search function is used to search all modules existing on the same LAN. By using UDP
broadcast, all modules on the same subnet will be searched.
The searched module is displayed as MAC address in the “Board list”.
ⓞSetting
This function is to complete the configuration change.
If you select the MAC address from the “Board list”, the default configuration value of the
module will be displayed. Change the configuration and click “Setting” button to complete
the configuration. The module will re-initialize with the changed configuration. Changed
value is saved in the EEPROM of the module. Thus, the value is not removed even though
power is disconnected.
The configuration value can be changed in below steps.
①Select the MAC address of which configuration value should be changed in the “Board list.
The values configured will be displayed.
②Change the value
③ Click “Setting” button. The configuration change will be complete.
④The module will be initialized to the changed values (re-booting is processed)
⑤To check configuration result, click „Search‟ button.
ⓟUpload
Firmware will be uploaded through network
☞After uploading the firmware, 20~30 seconds are required for initialization.
ⓠExit : Close the configuration tool program.

Copyright © WIZnet All Rights Reserved
WIZ110SR | 15 page
2.2.2. Serial configuration
Figure 7. Configuration Tool (Serial Config.)
ⓡSerial
Serial Configuration value of selected module is displayed.
In order to change the serial configuration of WIZ110SR, this menu can be used.
☞By clicking the “Setting” button, changed value can be applied.
ⓡ

Copyright © WIZnet All Rights Reserved
WIZ110SR | 16 page
2.2.3. Option configuration
Figure 8. Configuration Tool (Option Config.)
ⓢInactivity time
After the connection is established, if there is not data transmission within the time defined
in Inactivity time, the connection is closed automatically.
The default value is „0‟. If „0‟ is set, this function is not activated. In this default setting, the
connection is maintained even though there is no data transmission. In order to close the
connection, the „Close‟ command should be given.
This function can be used for more than two or more systems to connect to a WIZ110SR
module. If one system holds the connection to the WIZ110SR, other systems can not connect
to the module. If there is no data transmission during the time defined in Inactivity time, the
connection will be closed for other system to be connected.
ⓢ
ⓣ
ⓤ
ⓥ

Copyright © WIZnet All Rights Reserved
WIZ110SR | 17 page
Inactivity Time also can be useful for the case when the server system is unexpectedly shut
down. In this status, if there is not any data communication during the time defined in the
Inactivity time, WIZ110SR will close the connection and enter into waiting status.
ⓣData Packing Condition
You can designate how the serial data can be packed to send to the Ethernet.
In default mode, WIZ110SR checks the serial buffer and sends any received data to Ethernet
without any standard. Therefore, the data can be regarded as error data due to inconsistent
data length. In order to solve this problem, the data from serial can be packed according to
the specified condition before sending to Ethernet. The condition is as below.
Time: If there is not any new data during designated time, all data in the serial buffer is
converted to Ethernet packet. If new data is received, the time is re-calculated and the
received data is saved in the serial buffer. Time condition can be utilized when the
serial data size is variable and has no ending character, but needs to be delivered in
frame unit. (If the value is „0‟, option is not used)
Size: When data is collected as much as the defined size in the serial buffer, it is transmitted
to Ethernet (If the value is „0‟, option is not used)
Character: The data is collected in the serial buffer until specified character is received, and
transmitted to Ethernet. The character can be specified in Hex formation. (The value is
„0‟, this option is not used)
Any one of three conditions is satisfied, the data is transmitted to the Ethernet.
Ex) Delimiter: Size=10, Char=0x0D
Serial data : 0123456789abc
Ethernet data : 0123456789
☞“abc” data remains in the serial buffer of module.
ⓤPassword
„Password‟ function is for blocking client‟s access which is not allowed.
‟Password‟ function can be operated only in „TCP Server‟ mode. When „password‟ function
operates, clients should input password to access.
1. Execute Configuration Tool program.(Configuration Tool version should be 2.1 or above)
2. Select „Server‟ of “Operation Mode”.

Copyright © WIZnet All Rights Reserved
WIZ110SR | 18 page
Figure 9. Option Mode for Password Configuration
3. As shown in Figure 8, select Option tab and check 'Enable' combo box of "Password" menu.
4. Input password.
5. Click "Setting" button to apply password setting
6. When any client accesses the module, client should send 'password' to server module first,
and then access will be allowed.
ⓥSerial Configuration:
This function is for module configuration not through network with Configuration tool but
through serial communication. When you want to set via serial communication, check
“enable”. Please detail about serial configuration refers to “4. Serial Configuration”.
.

Copyright © WIZnet All Rights Reserved
WIZ110SR | 19 page
3. Firmware Upload
①Run „WIZ100SR/WIZ110SR Configuration Tool‟ program, and click “Search” button.
②If the module is properly connected to the network, “Complete Searching” message and
MAC address will be displayed on the “Board List” as shown below Figure.
Figure 10. Board Search Window
③Select a module shown in “Board list”, and click “Upload” button.
☞Before uploading through Ethernet, you should set the network information of
WIZ110SR first by Configuration Tool program as shown above Fig 10. By using Ping test,
④When the window as shown below Figure is displayed, select file for upload and click
“Open” button.

Copyright © WIZnet All Rights Reserved
WIZ110SR | 20 page
Figure 11. Open dialog box for uploading
☞Do not upload any other files except for WIZ110SR application firmware file.
⑤A dialogue box titled “Processing” will be displayed as below.
Figure 12. Firmware uploading window
⑥When uploading is complete, a message box with “Complete Uploading” will be
Figure 13. Complete Uploading
Other manuals for WIZ110SR
1
Table of contents
Other Wiznet Media Converter manuals
Popular Media Converter manuals by other brands

Avermedia
Avermedia AVerKey550 user manual

Synergy
Synergy 452T manual

TC Communications
TC Communications TC3301 user manual

Renishaw
Renishaw FORTiS-S Functional Safety installation guide and safety manual

Speaka Professional
Speaka Professional 1274945 operating instructions

Siko
Siko WV36M/SSI User information
