WMV-DRESDEN 45-0266 User manual
• Assembly
• Operation
• Maintenance
• Parts
PRINTED IN U.S.A. FORM NO. 4 05 (Rev. 11/9 )
CAUTION:
Read Rules for
Safe Operation
and Instructions
Carefully
OWNERS
MANUAL
Model No.
45-0266
DISK CULTIVATOR
(SLEEVE HITCH)
Digitally signed by WMV-Dresden
DN: cn=WMV-Dresden, c=DE,
o=WMV-Dresden,
Date: 2017.01.26 13:00:37 +01'00'
WMV-
Dresden
2
TABLE OF CONTENTS

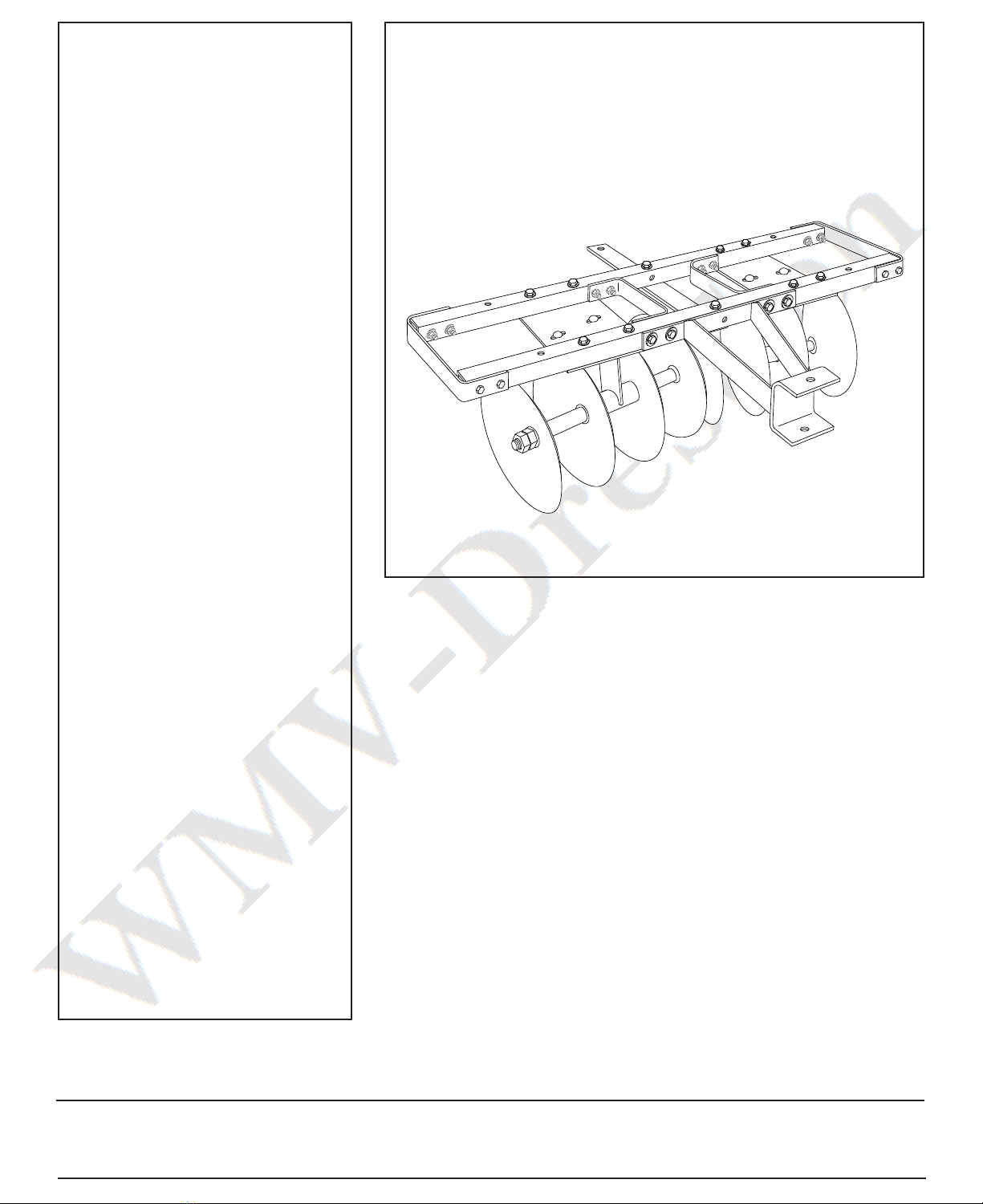

CARTON CONTENTS
1. Frame Tube
2. Middle Frame Brace (2)
3. End Frame Brace (2)
4. Hitch Assembly
5. Disk Mounting Plate (2)
6. Hitch Bar
. Disk Blade (8)
8. Hex Bolt, 3/4" x 16" (2)
9. Bearing Hanger Bracket (2)
Hardware Package (see next page)
SAFETY RULES ............................................................. 2
CARTON CONTENTS .................................................... 2
HARDWARE CHART (FULL SIZE) ................................. 3
ASSEMBLY INSTRUCTIONS ......................................... 4
OPERATION ................................................................... 6
MAINTENANCE .............................................................. 6
REPAIR PARTS ..............................................................
Any power equipment can cause injury if operated improperly or if the user does not understand how to operate
the equipment. Exercise caution at all times, when using power equipment.
1
2
34
567
9
8
SAFETY
Look for this symbol to point out important safety precautions. It means--Attention!!
Become alert!! Your safety is involved.
1. Read this owners manual and your vehicle and sleeve
hitch owners manuals before using this equipment.
2. Do not allow children to operate vehicle or disk
cultivator.
3. Do not allow adults to operate vehicle or disk cultiva-
tor without proper instructions.
4. Do not allow anyone to ride on the disk cultivator.
5. Before lowering and operating the disk cultivator, be
sure no one is near the area of operation.
6. Lower disk cultivator when leaving vehicle unattended.
. Wear substantial footwear when using disk cultivator.
The disk edges are sharp!
8. Vehicle braking and stability may be affected with the
attachment of this equipment. Drive slowly when disk
cultivator is in transport position. Stay off of steep
slopes.
9. Stop and inspect for damage after striking an object.
Repair any damage before continuing operation.
10.Keep all nuts and bolts tight and be sure that the
equipment is in safe operating condition.
11.Lock tractor lift handle in down position when attach-
ing or removing disk cultivator from sleeve hitch.
1
2
34
567
9
8
3
HARDWARE PACKAGE CONTENTS
REF. QTY. DESCRIPTION
A 26 Hex Bolt, 3/8" x 2-1/2" Lg.
B 1 Hex Bolt, 1/2" x 1-1/2" Lg.
C 4 Carriage Bolt, 3/8" x 1" Lg.
D 22 Hex Nut, 3/8"
E 8 Hex Lock Nut, 3/8"
F 1 Hex Lock Nut, 1/2"
REF. QTY. DESCRIPTION
G 4 Hex Nut, 3/4"
H 16 Flat Washer, 3/4"
I 30 Lock Washer, 3/8"
J 26 Flat Washer, 3/8"
K 2 Bearing Sleeve
L 4 Spacer

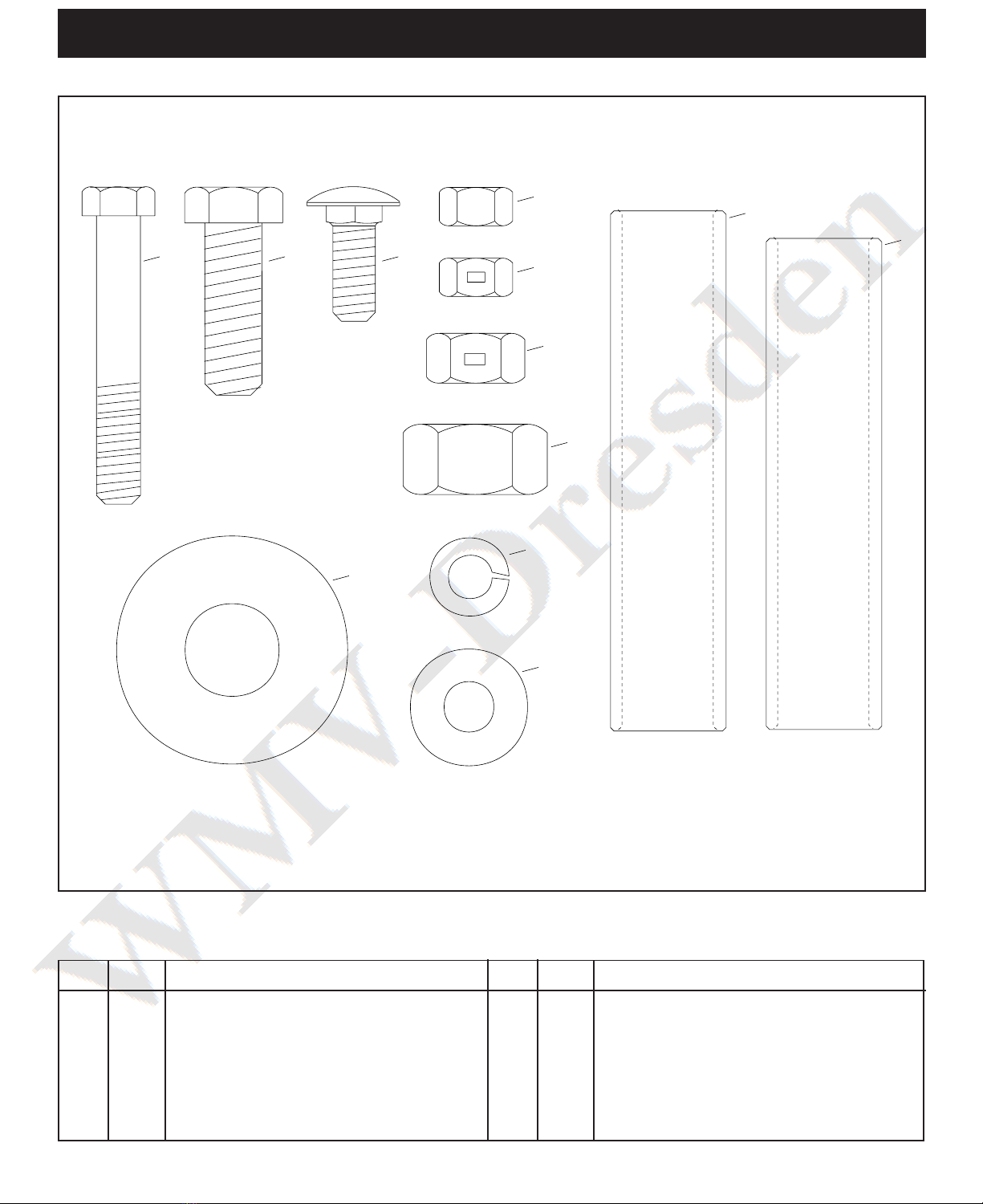

HARDWARE PACKAGE CONTENTS - SHOWN ACTUAL SIZE
A B C
D
E
F
G
H
I
J
L
K
4
ASSEMBLY
TOOLS REQUIRED FOR ASSEMBLY
(2) 9/16" Wrenches
(2) 3/4" Wrenches
(2) 1-1/8" Wrenches or 10" Adjustable Wrenches
(1) Grease Gun
3/8" x 2-1/2"
HEX BOLT
3/8" LOCK
WASHER
3/8"
HEX
NUT
MIDDLE FRAME BRACE
FRAME
TUBE
HITCH
ASSEMBLY
3/8" FLAT WASHER

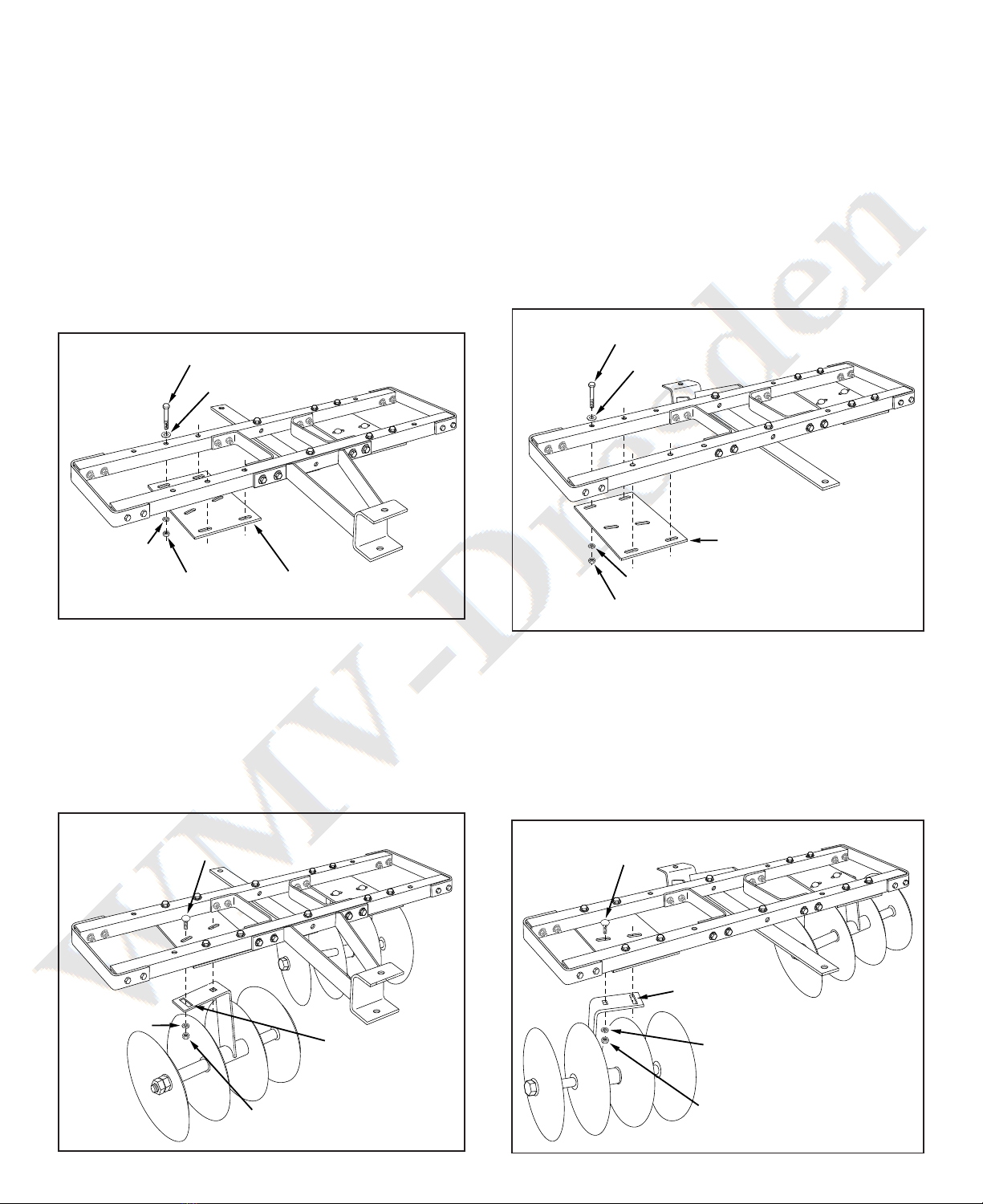

FIGURE 2
4. Assemble a frame tube to the rear of the middle frame
braces using four 3/8" x 2-1/2" hex bolts, 3/8" flat
washers, 3/8" lock washers and 3/8" hex nuts. Do not
tighten yet. See figure 3.
FIGURE 5
3/8" LOCK
WASHER
3/8" HEX NUT
3/8" x 2-1/2"
HEX BOLT
3/8" FLAT WASHER
HITCH BAR
FIGURE 3
3/8" x 2-1/2"
HEX BOLT
3/8" LOCK
WASHER
3/8" HEX NUT
FRAME
TUBE
3/8" FLAT
WASHER
MIDDLE
FRAME
BRACE
CAUTION: Disk blades have sharp edges. Use
care in handling and assembly. Wear gloves for
extra protection against cuts.
Remove loose parts and hardware package from the
carton. Lay out and identify as shown on pages 2 and 3.
1. Assemble four disks to each bearing hanger bracket
using a bearing sleeve (unplated), a 3/4" x 16" hex
bolt, eight 3/4" flat washers, two spacers and two 3/4"
hex nuts. Be sure the disks face the same direction
relative to the hanger bracket as shown in the figure
1. Tighten the first hex nut and then tighten the
second hex nut against the first.
2. Lubricate the bearings through the grease fittings in
the bearing hanger bracket assemblies until grease is
forced out through the bearings.
FIGURE 1
3. Assemble the middle frame braces, a frame tube and
the hitch assembly together using four 3/8" x 2-1/2"
hex bolts, 3/8" lock washers, 3/8" flat washers and
3/8" hex nuts. Do not tighten yet. See figure 2.
6. For tandem cultivators only. Assemble the hitch
bar to the cultivator frame using two 3/8" x 2-1/2" hex
bolts, 3/8" flat washers, 3/8" lock washers and 3/8" hex
nuts. Tighten. See figure 5.
5. Assemble a frame end brace over each end of the
frame tubes using eight 3/8" x 2-1/2" hex bolts, 3/8"
flat washers, 3/8" lock washers and 3/8" hex nuts.
See figure 4. Tighten all bolts at this time.
FIGURE 4
3/8" x 2-1/2"
HEX BOLT
3/8" LOCK WASHER
3/8" HEX NUT
FRAME
END BRACE
3/8" FLAT
WASHER
SPACER
BEARING SLEEVE
3/4" x 16"
HEX BOLT
DISK BLADE
3/4" HEX NUTS
3/4" FLAT WASHER
BEARING HANGER
BRACKET SPACER
5
FIGURE 7 FIGURE 9
3/8" x 1"
CARRIAGE BOLT
3/8" LOCK
WASHER
3/8" HEX NUT
ANGLE
ADJUSTMENT
SLOT
3/8" x 1"
CARRIAGE BOLT
3/8" LOCK
WASHER
3/8" HEX NUT
ANGLE
ADJUSTMENT
SLOT
ASSEMBLY OF SINGLE OR FRONT CULTIVATOR
The following instructions describe the disk arrangement
commonly used. The disks can also be mounted farther
apart by using the outer holes in the frame or they can be
angled toward the front center by reversing the disk mount-
ing plates as seen in the tandem instructions. The dished
(concave) side of the disks should always face forward.
. Assemble the two disk mounting plates to the frame
using eight 3/8" x 2-1/2" hex bolts, 3/8" flat washers
(placed under bolt heads), 3/8" lock washers and 3/8"
hex lock nuts. The middle slots in the plates should
angle toward the rear center of the frame. Do not
tighten yet. See figure 6.
ASSEMBLY OF REAR TANDEM CULTIVATOR
The following instructions are for the assembly of the rear
cultivator in a tandem arrangement. (Requires purchase of
a second cultivator.) The rear cultivator is towed by the hitch
bar instead of the hitch assembly. The dished (concave)
side of the disks should always face forward.
9. Assemble the two disk mounting plates to the frame
using eight 3/8" x 2-1/2" hex bolts, 3/8" flat washers
(placed under bolt heads), 3/8" lock washers and 3/8"
hex lock nuts. The middle slots in the plates should
angle toward the rear corners of the frame. Do not
tighten yet. See figure 8.
10.Assemble the disk assemblies to the disk mount
plates using four 3/8" x 1" carriage bolts, 3/8" lock
washers and 3/8" hex nuts. With the inside disks
spaced 8" to 10" apart, swivel the disk assemblies
until the angle adjustment slot is centered on the
carriage bolt. This positions the disks at a 15 degree
angle. Tighten all bolts. See figure 9.
3/8" x 2-1/2" HEX BOLT
3/8" FLAT WASHER
3/8" LOCK WASHER
3/8" HEX LOCK NUT
DISK
MOUNTING
PLATE
FIGURE 8
FIGURE 6
8. Assemble the disk assemblies to the disk mount
plates using four 3/8" x 1" carriage bolts, 3/8" lock
washers and 3/8" hex nuts. With the inside disks
almost touching, swivel the disk assemblies until the
angle adjustment slot is centered on the carriage
bolt. This positions the disks at a 15 degree angle.
Tighten all bolts. See figure .
3/8" x 2-1/2" HEX BOLT
3/8" FLAT WASHER
3/8" LOCK
WASHER 3/8" HEX
LOCK NUT
DISK
MOUNTING PLATE
6
CAUTION: Lock tractor lift handle in down
position when attaching or removing the disk
cultivator from sleeve hitch.
ATTACHING CULTIVATOR TO TRACTOR
Refer to your sleeve hitch owners manual.
1. Remove the stabilizer bolts from the tractor's sleeve
hitch as shown in figure 9 to allow side to side motion
of the disk cultivator.
2. Attach the disk cultivator to the sleeve hitch on your
tractor using the sleeve hitch pin.
4. Adjust the sleeve hitch so that the disk cultivator is
free to lower below ground level but can still be raised
an adequate distance above ground for transport.
OPERATION
1. Check for loose bolts after each use.
2. Clean the disks and lightly oil any exposed metal after
each use.
3. Remove all dirt and rust and touch up with paint
before storing.
4. Store inside a dry area.
The disk cultivator is used to break up clods of dirt in plowed
soil. It can also be used to cultivate between rows of young
plants.
1. Before starting make sure the soil is dry enough by
squeezing some in your hand. If it forms a ball that
doesn't crumble then the soil is too wet for disking. Wet
soil will pack between the disk blades.
2. Adjust the disks to the desired angle setting. The angle
can be varied from 10 to 20 degrees. Start with a setting
of 15 degrees (the carriage bolt centered in the angle
adjustment slot in the bearing hanger bracket). The
greater the angle, the greater the disking action.
3. To break up dirt clods in plowed soil, start disking slowly
at first. As the clods are broken up the speed may be
gradually increased. Disk the soil using a crisscross
pattern for best results.
4. To use two cultivators in tandem, the disk assemblies
should be positioned as shown in figure 11, with the
inside disks almost touching on the front cultivator and
8" to 10" apart on the rear cultivator. With this arrange-
ment the front cultivator will throw the dirt to the outside
and the rear cultivator will throw the dirt back to the
inside.
5. To cultivate young crops by straddling the rows, move
the disks to the maximum width setting. To throw the dirt
to the outside, away from the row, mount the disks to
angle rearward in the center. To throw dirt to the inside,
to smother young weeds in the crop row, mount the disks
to angle forward in the center.
6. Up to 100 lbs. of weight may be added to help increase
penetration. Concrete blocks or other weight may be tied
or strapped to the cultivator frame. The cultivator should
be attached to the tractor's sleeve hitch in the down
position before adding weight.
MAINTENANCE
FIGURE 11
1/2" x 1-1/2"
HEX BOLT
1/2" HEX
LOCK NUT
8"-10"
CAUTION: Do not attempt to raise the tractor
sleeve hitch when connected to disk cultivators
in tandem arrangement.
ATTACHING TANDEM CULTIVATORS
1. Attach the front cultivator as instructed above.
2. Attach the rear cultivator to the front cultivator by fasten-
ing the hitch bars together using a 1/2" x 1-1/2" hex bolt
and a 1/2" hex lock nut. Do not completely tighten the
bolt, allowing a slight amount of play between the hitch
bars. See figure 11.
FIGURE 10
STABILIZER BOLTS
(REMOVE)
TRACTOR SLEEVE HITCH
PARTS

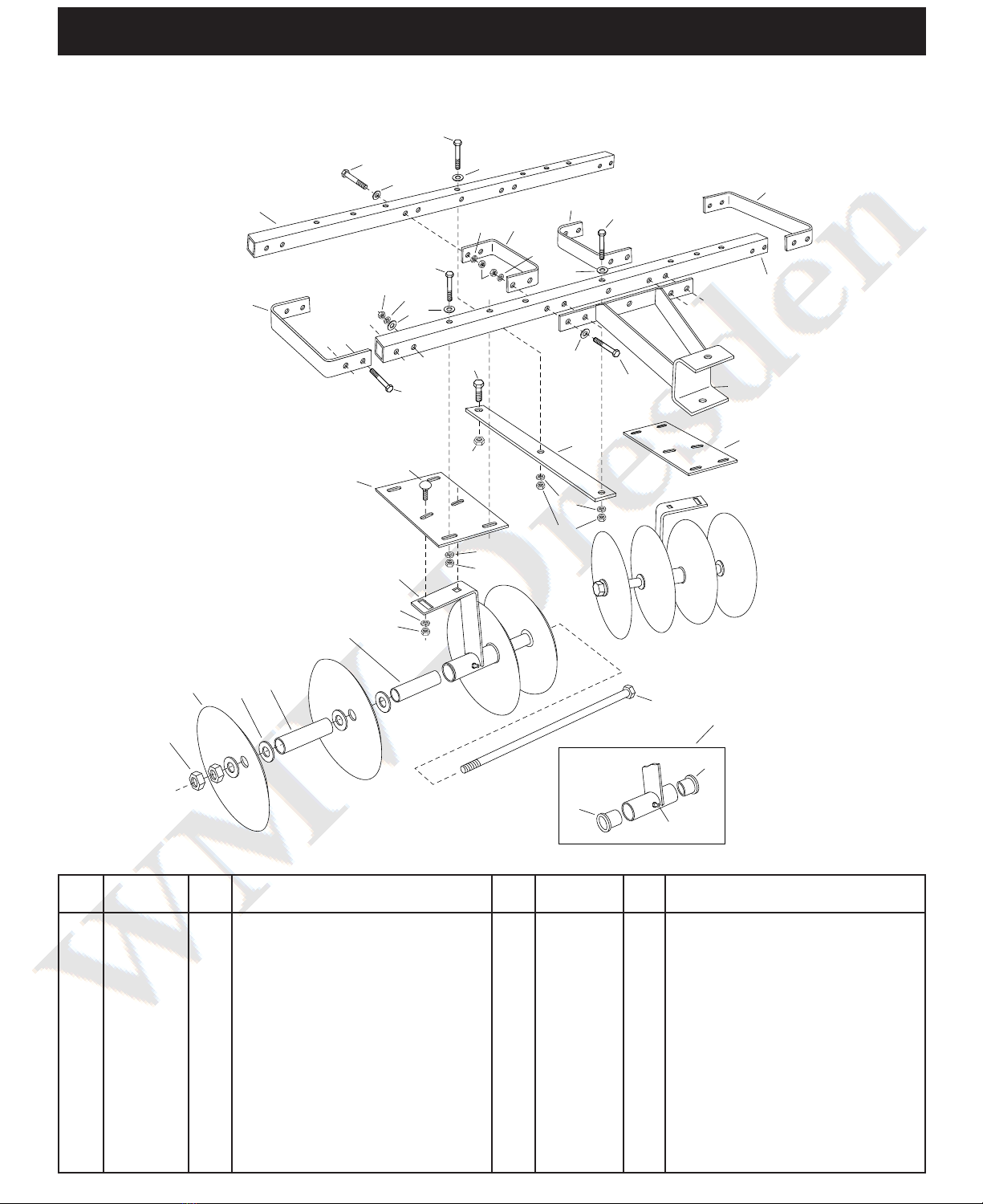

REPAIR PARTS FOR MODEL 45-0266 - DISK CULTIVATOR
REF. PART QTY. DESCRIPTION
NO. NO.
13 46859 4 Spacer, 3/4" I.D. x 4-1/4" Lg.
14 1540-162RM 16 Flat Washer, 3/4" Std. Wrt.
15 46860 4 Hex Nut, 3/4-10 Thread
16 43350 4 Carriage Bolt, 3/8-16 x 1" Lg.
1 430 0 26 Washer, 3/8" Std. Wrt.
18 43003 30 Lock Washer, 3/8"
19 43015 22 Hex Nut, 3/8-16 Thread
20 43082 8 Hex Lock Nut, 3/8-16 Thread
21 43432 26 Hex Bolt, 3/8-16 x 2-1/2" Lg.
22 43020 1 Hex Bolt, 1/2-13 x 1-1/2" Lg.
23 43262 1 Hex Lock Nut, 1/2-13 Thread
4 05 1 Owners Manual
REF. PART QTY. DESCRIPTION
NO. NO.
1 63656 1 Hitch Assembly.
2 46848 2 Frame Tube
3 24223 2 Frame Brace (End)
4 24224 2 Frame Brace (Middle)
5 46856 8 Blade Disk
6 63510 2 Bearing Hanger Brkt. Assembly.
44488 4 Bearing (Included in #63510)
8 46858 2 Grease Fitting (Included in #63510)
9 4685 2 Hex Bolt, 3/4-10 x 16" Lg.
10 24226 2 Disk Mounting Plate
11 24241 1 Hitch Bar
12 24240 2 Bearing Sleeve
1
2
3
3
4
21
19 18
17
A
A
18
5
7
7
8
6
12
9
10
10
11
13
15
6
19
18
20
18
16
21
21
18
19
21
14
17
22
23
21
17
2
17
21
18
19
4
17
8
REPAIR PARTS
303 West Raymond
Sullivan, IL. 61951
21 - 28-8388
Other WMV-DRESDEN Tiller manuals
