WobbleWorks 3 Doodler Create+ User manual

Getting the most out of your
Holen Sie das Meiste heraus aus Ihrem
Tirez le meilleur de votre
Aprovecha al máximo tu
Come utilizzare al meglio la
Haal het meeste uit je
Hello Bienvenue Bienvenido
Willkommen Benvenuti Hallo
Please do not throw these instructions away.
(We worked really hard to make sure they were as useful and
readable as possible!)
Merci de ne pas jeter ces instructions.
(Nous avons fait en sorte qu’elles soient aussi utiles et
compréhensibles que possible!)
No tires estas instrucciones.
(Nos hemos esforzado para que sean lo más útiles y amenas
posible).
Bitte werfen Sie diese Anleitung nicht weg.
(Wir haben uns wirklich sehr angestrengt, um sie so nützlich
und lesbar wie möglich zu machen!)
Conservare queste istruzioni.
(La realizzazione di questo manuale ha richiesto un intenso
lavoro al ne di orire la massima utilità e comprensione).
Gooi deze instructies niet weg aub. (We hebben hard gewerkt
om deze zo gebruiksvriendelijk en leesbaar mogelijk te
maken.
EN
FR
ES
DE
IT
NL
P.1
P.13
P.26
P.39
P.52
P.66
Revised: May 11, 2018
SLOW
FAST
the3Doodler.com
#WhatWillYouCreate?

21

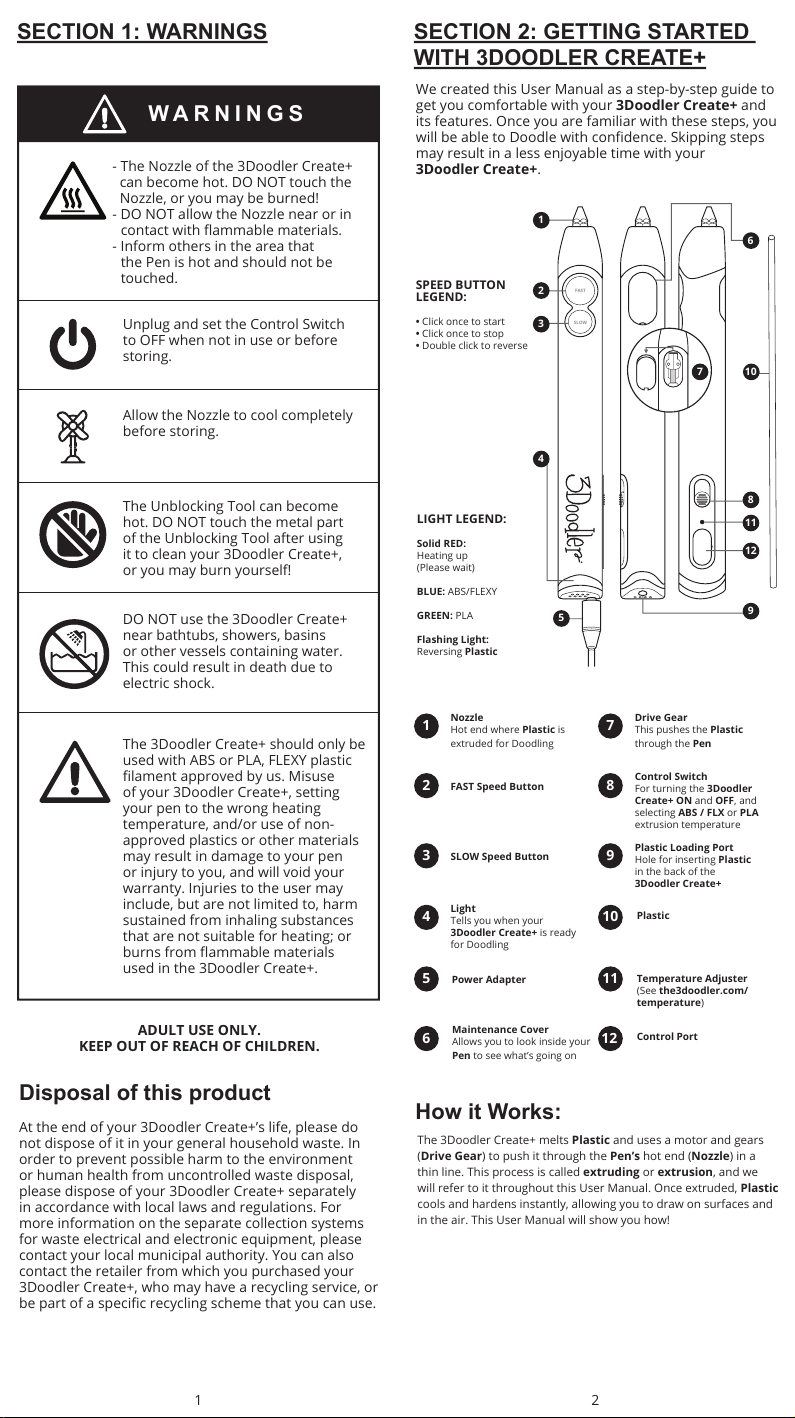

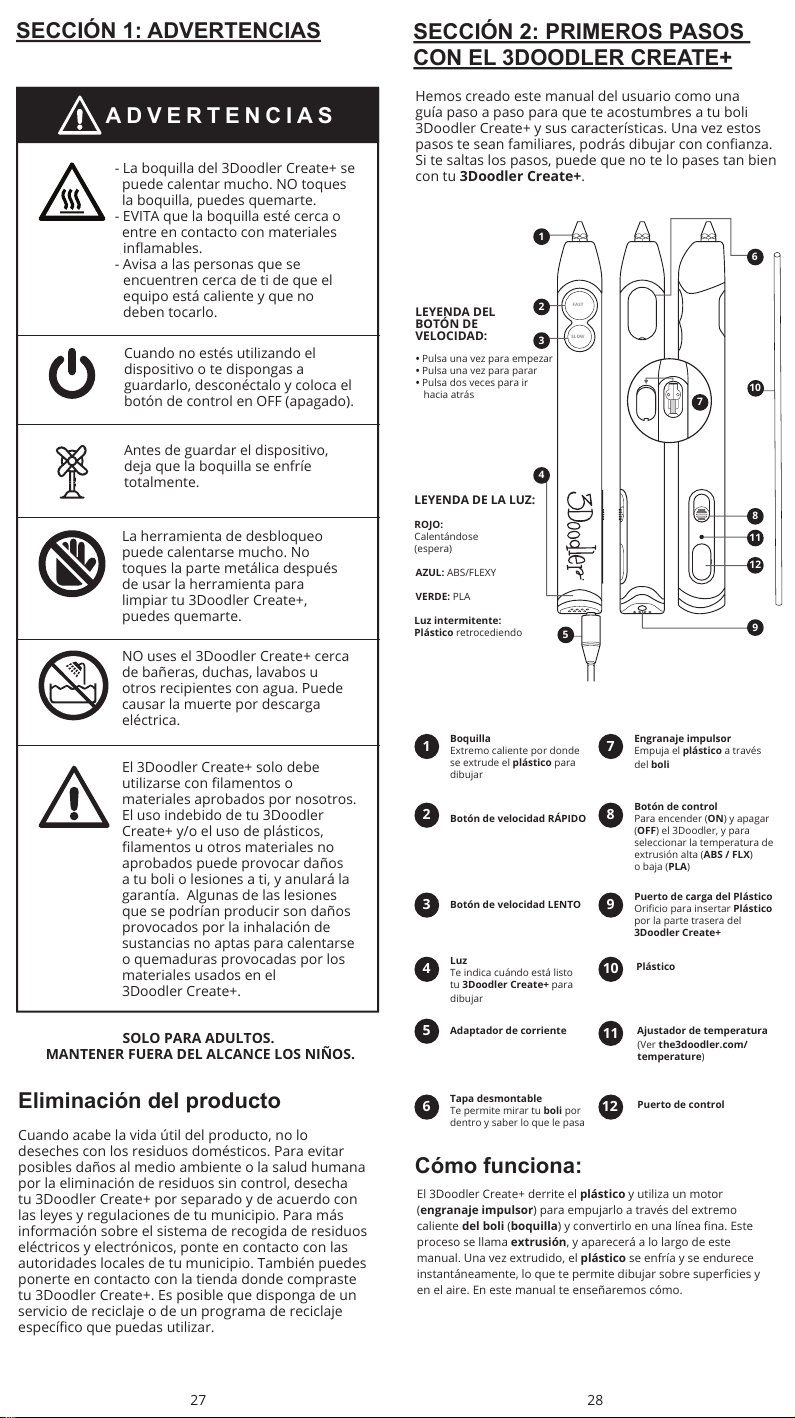

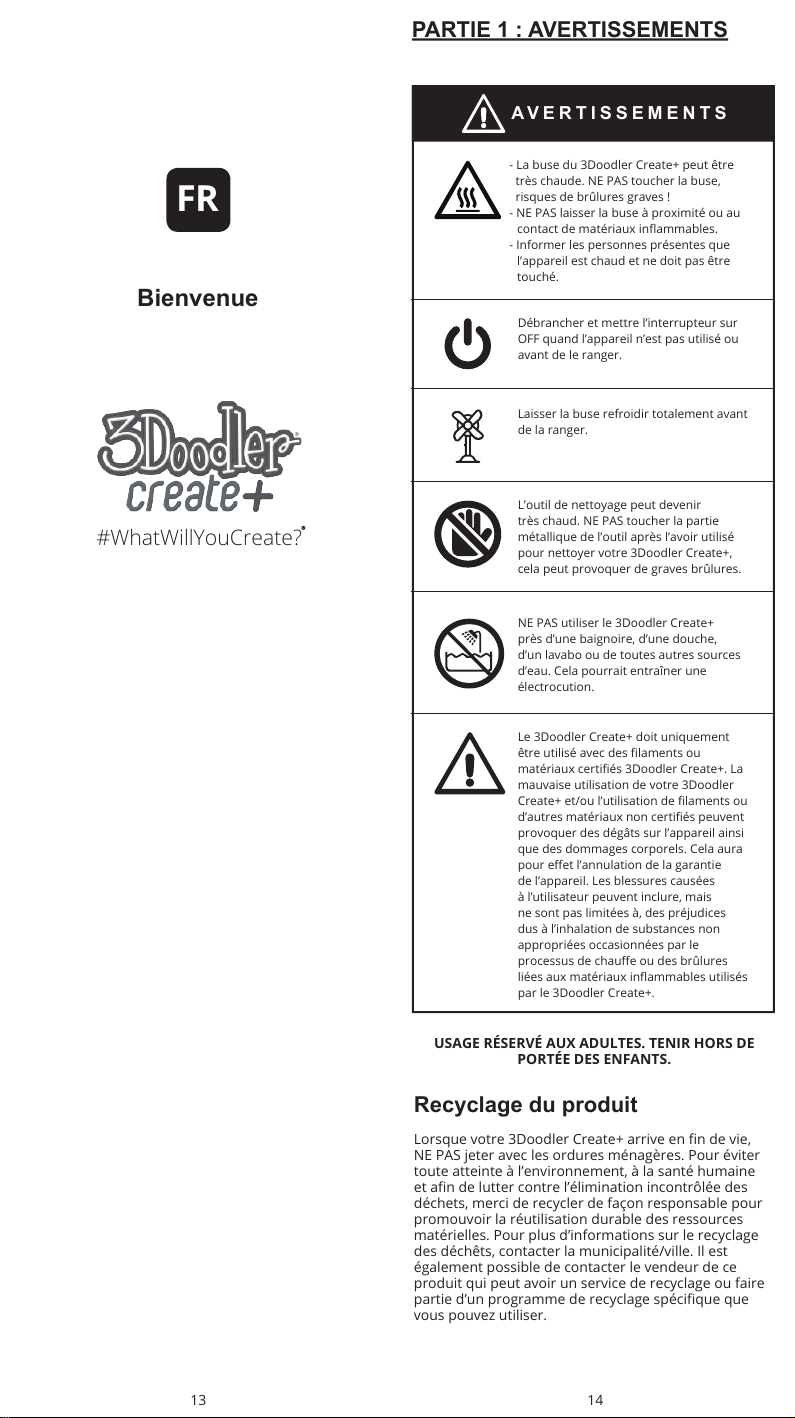

SECTION 1: WARNINGS
Disposal of this product
At the end of your 3Doodler Create+’s life, please do
not dispose of it in your general household waste. In
order to prevent possible harm to the environment
or human health from uncontrolled waste disposal,
please dispose of your 3Doodler Create+ separately
in accordance with local laws and regulations. For
more information on the separate collection systems
for waste electrical and electronic equipment, please
contact your local municipal authority. You can also
contact the retailer from which you purchased your
3Doodler Create+, who may have a recycling service, or
be part of a specic recycling scheme that you can use.
- The Nozzle of the 3Doodler Create+
can become hot. DO NOT touch the
Nozzle, or you may be burned!
- DO NOT allow the Nozzle near or in
contact with ammable materials.
- Inform others in the area that
the Pen is hot and should not be
touched.
Unplug and set the Control Switch
to OFF when not in use or before
storing.
Allow the Nozzle to cool completely
before storing.
The Unblocking Tool can become
hot. DO NOT touch the metal part
of the Unblocking Tool after using
it to clean your 3Doodler Create+,
or you may burn yourself!
DO NOT use the 3Doodler Create+
near bathtubs, showers, basins
or other vessels containing water.
This could result in death due to
electric shock.
The 3Doodler Create+ should only be
used with ABS or PLA, FLEXY plastic
lament approved by us. Misuse
of your 3Doodler Create+, setting
your pen to the wrong heating
temperature, and/or use of non-
approved plastics or other materials
may result in damage to your pen
or injury to you, and will void your
warranty. Injuries to the user may
include, but are not limited to, harm
sustained from inhaling substances
that are not suitable for heating; or
burns from ammable materials
used in the 3Doodler Create+.
ADULT USE ONLY.
KEEP OUT OF REACH OF CHILDREN.
WARNINGS

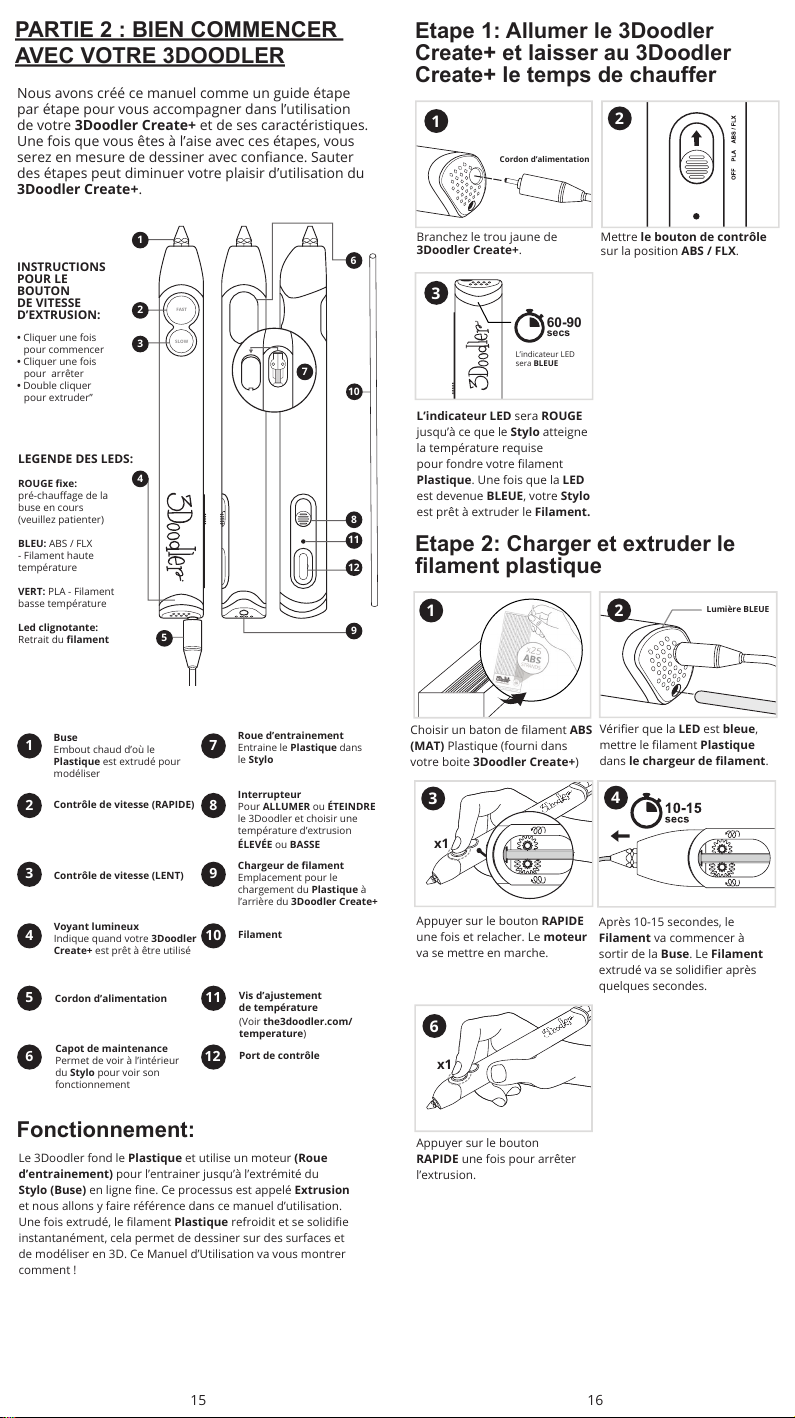

SECTION 2: GETTING STARTED
WITH 3DOODLER CREATE+
How it Works:
The 3Doodler Create+ melts Plastic and uses a motor and gears
(Drive Gear) to push it through the Pen’s hot end (Nozzle) in a
thin line. This process is called extruding or extrusion, and we
will refer to it throughout this User Manual. Once extruded, Plastic
cools and hardens instantly, allowing you to draw on surfaces and
in the air. This User Manual will show you how!
We created this User Manual as a step-by-step guide to
get you comfortable with your 3Doodler Create+ and
its features. Once you are familiar with these steps, you
will be able to Doodle with condence. Skipping steps
may result in a less enjoyable time with your
3Doodler Create+.
LIGHT LEGEND:
Solid RED:
Heating up
(Please wait)
BLUE: ABS/FLEXY
GREEN: PLA
Flashing Light:
Reversing Plastic
• Click once to start
• Click once to stop
• Double click to reverse
SLOW
FAST
Plastic
Plastic Loading Port
Hole for inserting Plastic
in the back of the
3Doodler Create+
Temperature Adjuster
(See the3doodler.com/
temperature)
Control Switch
For turning the 3Doodler
Create+ ON and OFF, and
selecting ABS / FLX or PLA
extrusion temperature
Control Port
Drive Gear
This pushes the Plastic
through the Pen
Nozzle
Hot end where Plastic is
extruded for Doodling
FAST Speed Button
SLOW Speed Button
Light
Tells you when your
3Doodler Create+ is ready
for Doodling
Power Adapter
Maintenance Cover
Allows you to look inside your
Pen to see what’s going on
SPEED BUTTON
LEGEND:
1
2
3
4
6
107
8
11
12
9
1 7
2 8
3 9
4 10
5 11
6 12
5

3 4
Slide Control Switch to
ABS / FLX.
Light will glow RED while the Pen is reaching the temperature
required to melt your Plastic. Once Light has turned BLUE,
your Pen is ready to extrude Plastic.
Step 1: Turn on your 3Doodler
Create+ and wait for it to heat up
Plug in the yellow hole of
3Doodler Create+.
Power Adapter
Light to BLUE
60-90
secs
Step 2: Load and extrude Plastic
Making sure the Light is still
BLUE, push the Plastic through
the Plastic Loading Port.
BLUE Light
Select one strand of ABS
(MATTE) Plastic (provided in
your 3Doodler Create+ box).
Click FAST button once and
release. You will hear the
Drive Gear start.
After 10-15 seconds, Plastic
will begin extruding from the
Nozzle. Extruded Plastic will
harden after a few seconds.
Press the FAST button once to
stop extruding.
x1
1
x1
34
3
2
2
5
x1

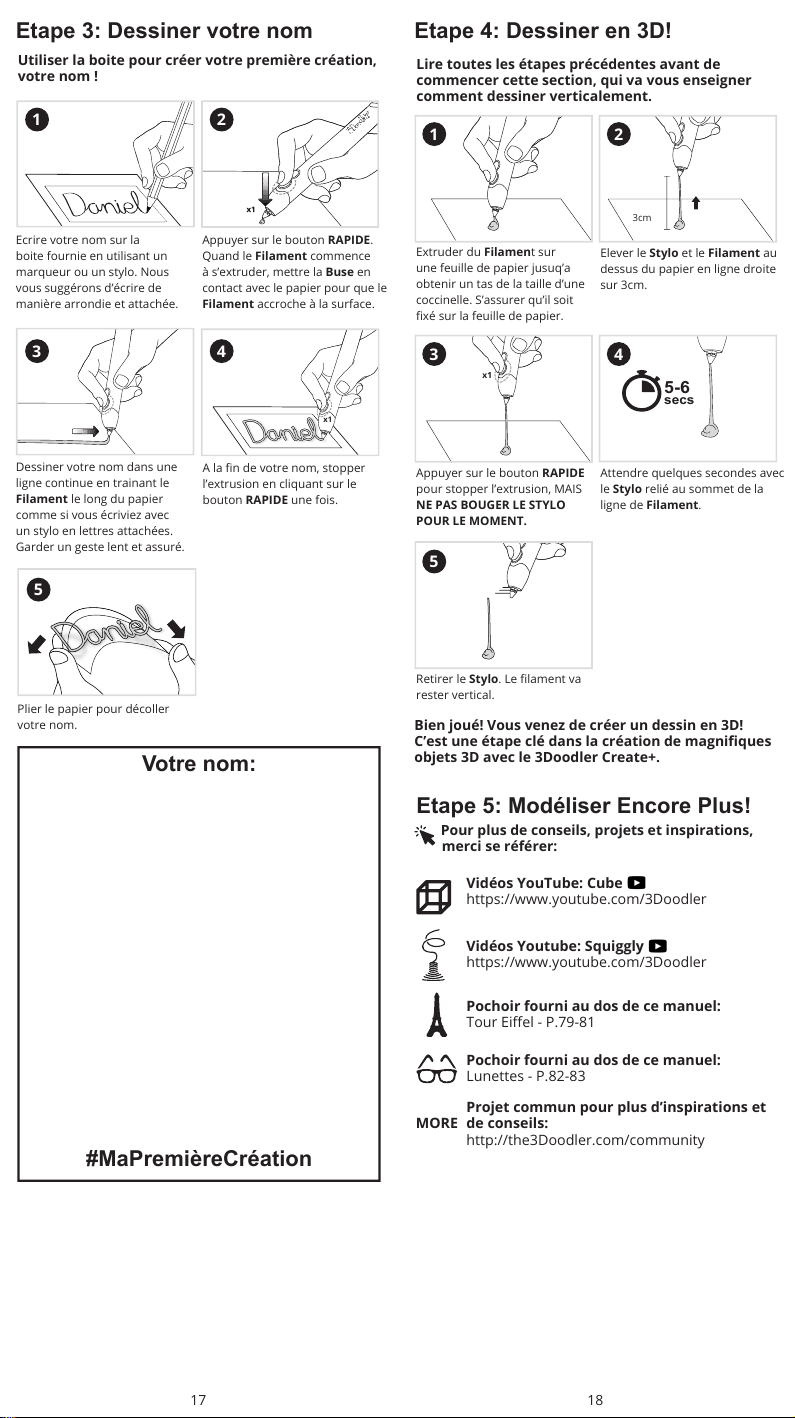

Step 3: Doodle your name
Use box below to create your rst Doodle -
your name!
Write your name in the box
provided using marker, pen,
pencil, or any other writing
utensil of your choice. We
suggest cursive, or block with
the letters connected.
Doodle your name in a
continuous unbroken Doodle
by dragging the Plastic along
the paper as if you were
writing with a pencil, with all
letters connected. Keep your
movement slow and steady.
Bend the paper outwards to
pop your Doodled name o.
Click FAST button once. When
Plastic starts extruding, push
Nozzle down into paper to get
Plastic to stick to surface.
When you reach the end of your
name, stop extruding by clicking
the FAST button once again.
Your Name:
#MyFirstDoodle
1
3
5
2
4
1

5 6
x1
Step 4: Doodle in the air!
Please read all steps below before you begin
this section, which will teach you how to Doodle
vertically in the air.
Extrude Plastic onto a piece
of paper until you have a blob
about the size of a ladybug.
Make sure it is anchored into
the paper.
Click the FAST button to stop
extruding, BUT DO NOT MOVE
PEN YET.
Lift Pen and Plastic up o the
paper in a straight line for 1.5 in.
1.5-in
Wait a few seconds with the Pen
still connected to the top of your
Plastic line.
5-6
secs
Pull the Pen away. The line will
remain vertical.
Well done! You just Doodled in the air! This is
a crucial stepping stone to making all kinds of
wonderful three dimensional objects with your
3Doodler Create+.
Step 5: Doodle Even More!
For further guides, projects and inspiration,
please refer to:
YouTube videos: Cube
https://www.youtube.com/3Doodler
YouTube videos: Squiggly
https://www.youtube.com/3Doodler
Stencils provided at the back of this manual:
Glasses - P.82-83
Stencils provided at the back of this manual:
Eiel tower - P.79-81
Community projects for further inspiration
and guidance:
http://the3Doodler.com/community
MORE
Step 6: Reverse and Remove
Plastic
Once Plastic stops reversing,
it is safe to remove it from the
Pen by gently pulling on the
back of the strand.
With Pen set to ABS / FLX, wait
for BLUE Light to come on.
Double click either Speed
Button. Light will start ashing
to signal Plastic reversing.
x2
Flashing
BLUE
5.3
inches
Plastic that is shorter than 5.3 inches cannot be reversed.
You should feed it all the way through your 3Doodler Create+ and
use it up. (Alternatively, you can push Plastic out the back - see
Section 3, Step 3B.)
NOTE:
Before we continue, it’s time you learned about the dierent
types of Plastic you can use with the 3Doodler Create+
(and which settings to use for each type).
ABS (MATTE):
Temp: ABS / FLX Temp
Light: BLUE
Feature: Great for drawing in the air.
How to tell: Plastic has white
semi-circle ends.
PLA (GLOSSY / CLEAR /
METALLIC / SPARKLE ):
Temp: PLA Temp
Light: GREEN
Feature: Gossy and making it perfect
for artistic creations.
How to tell: Very rigid, no white
semi-circle ends.
Now that you’ve Doodled with ABS Plastic, we want
to show you everything you need to know about
changing Plastic and introduce you to the dierent
types of Plastic.
FLEXY:
Temp: ABS / FLX Temp
Light: BLUE
Feature: Make exible,
bendable Doodles.
How to tell: Plastic is very exible.

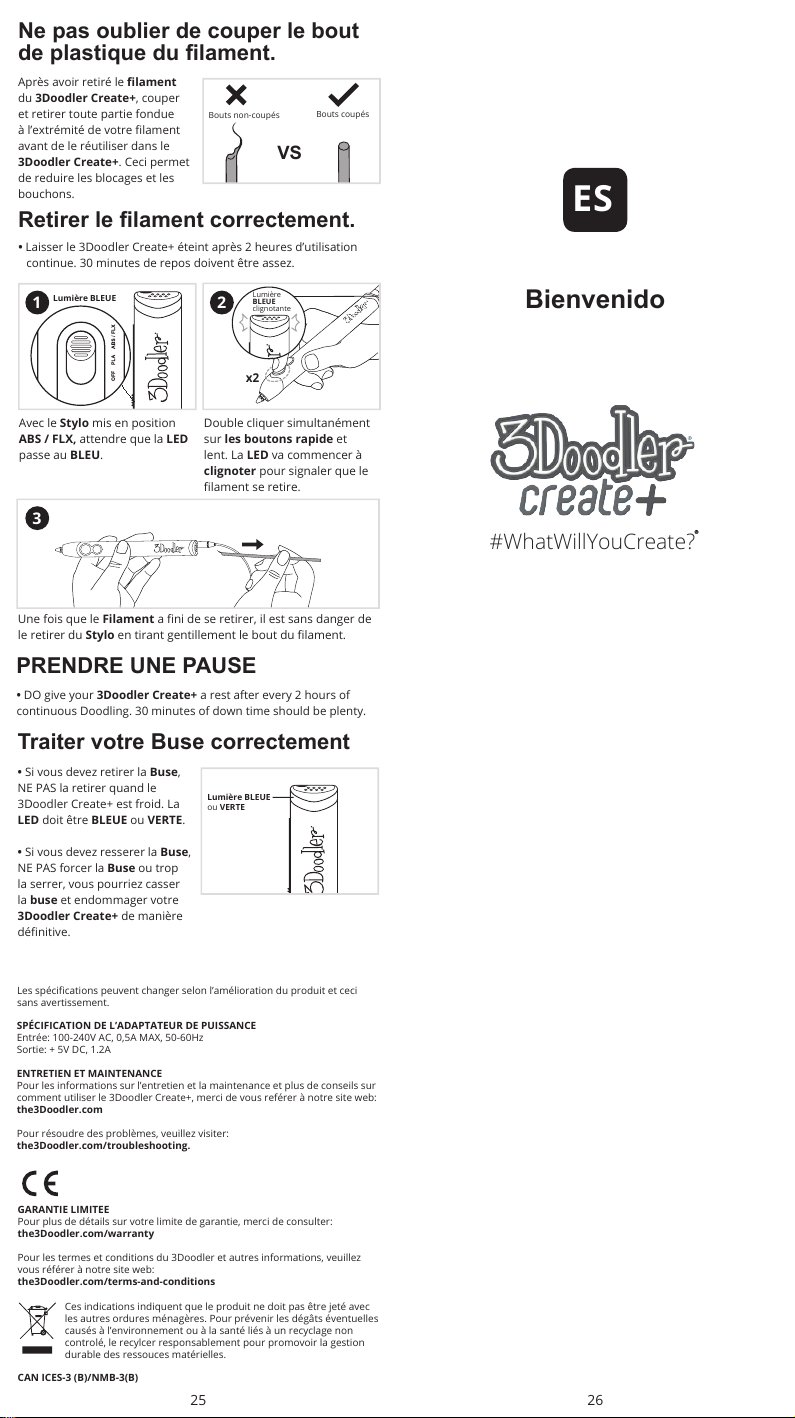

After removing a Plastic strand
from the 3Doodler Create+,
cut and remove any partially
melted material at the end of
your strand before re-feeding
it into the 3Doodler Create+.
This will reduce blockages and
clogging issues.
SNIP THOSE ENDS!
TIP
PLASTIC TYPES AND SETTINGS.
TIP
1
3
5
2
43
2
BLUE Light
1

78
x1
x1
Step 7: Let’s Switch to PLA Plastic!
With Pen on ABS / FLX, load a
new strand of PLA Plastic into
Plastic Loading Port. Use a
dierent color to the ABS you
were using before.
PLA Plastic
ABS Plastic
The color of the Plastic will
change once the PLA starts
extruding. It will appear mixed
at rst. STOP extrusion by
pushing either button once.
SLOW
FAST
Light to RED
Light to GREEN
Click FAST or SLOW once to
continue extruding the PLA
Plastic and Doodle as you wish.
Switch Pen to PLA setting. Wait
for Light to turn GREEN.
Step 8: Power Down
Remove all Plastic from the
Pen using the Reverse feature
(double click any Speed
Button). Friendly reminder to
snip those ends!
Move the Control Switch
to OFF.
Allow your 3Doodler Create+
to cool completely
before storing.
We recommend powering down and giving your 3Doodler
Create+ a 30 minutes break after every 2 hours of
continuous use.
After 5 minutes of inactivity, the 3Doodler Create+’s heating
system will automatically power down. You will need to press one
of the Speed Buttons OR toggle the Control Switch OFF and then
ON again to continue use.
NOTE:

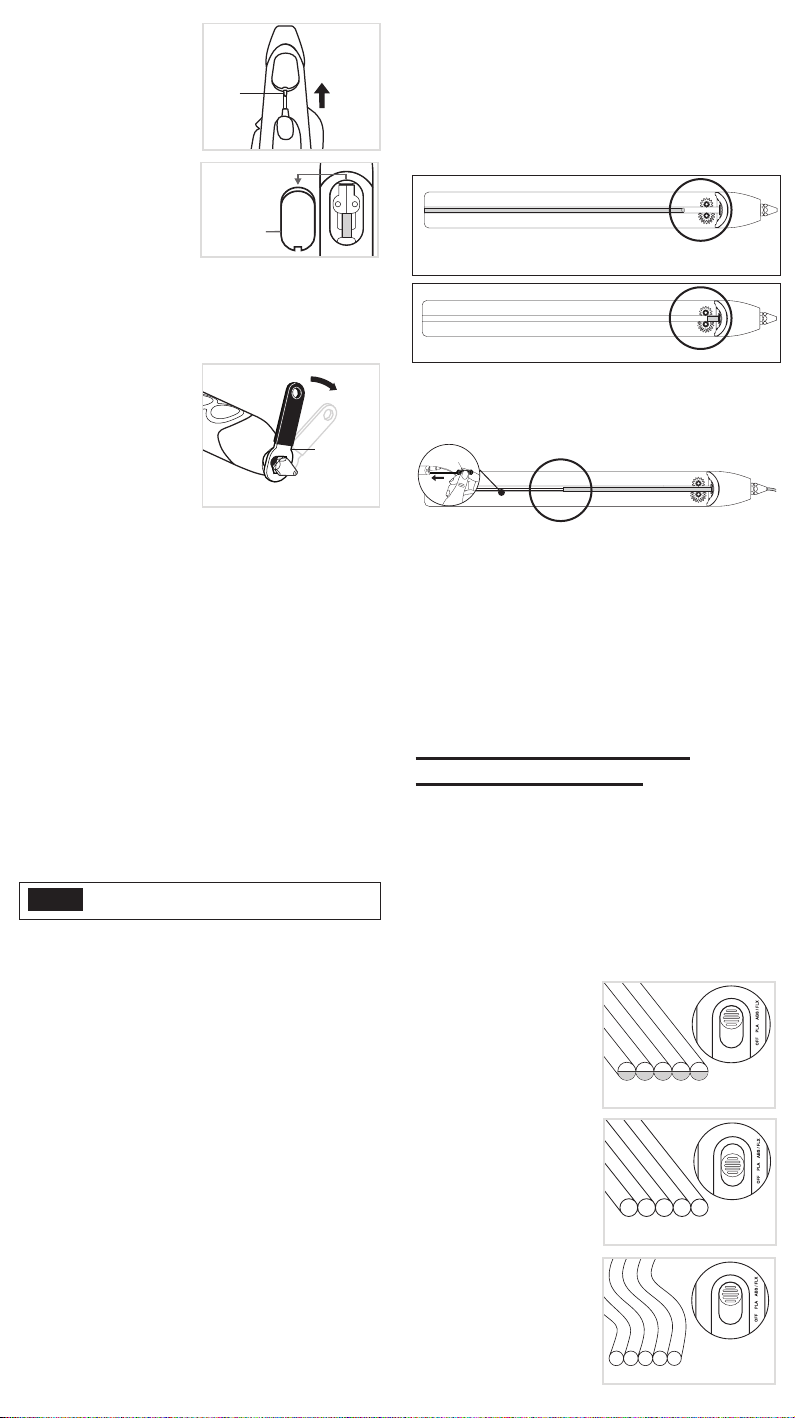

SECTION 3: TROUBLESHOOTING

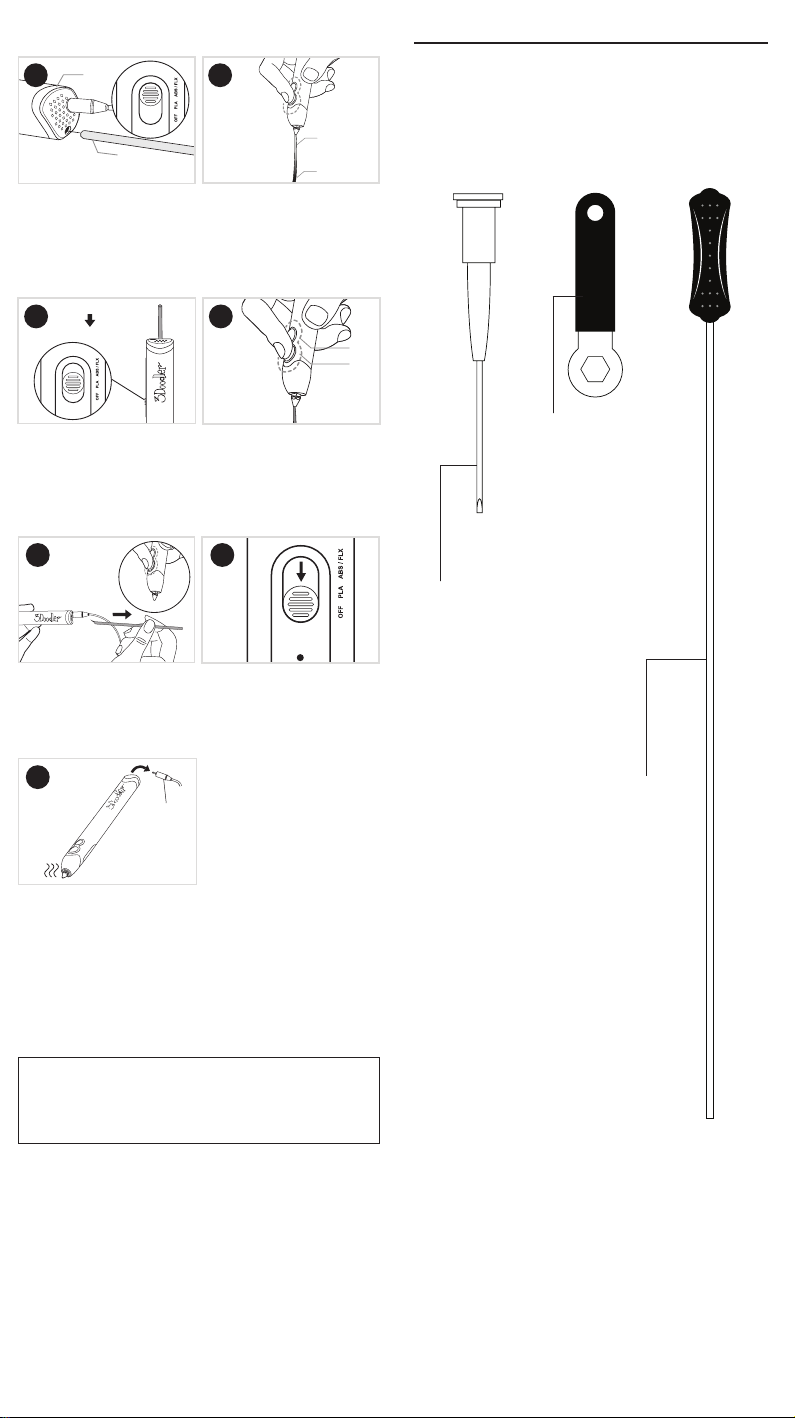

Tools (Provided in Box)
Before showing you how to troubleshoot issues
with your 3Doodler Create+, we want to introduce
you to three handy tools provided in your box:
Mini Spanner
Used for tightening and
removing the Nozzle.
Do not remove Nozzle
when Pen is cold.
Do not overtighten the
Nozzle, as you may
break it.
Unblocking Tool
Used for pushing short
pieces of Plastic down
into the Drive Gear to
help with extrusion
from Pen.
Mini Screwdriver
Keep this handy
for removing the
Maintenance Cover.
Keep this handy
for removing the
Maintenance Cover
or rotating the
Temperature Adjuster
(See the3doodler.com/
temperature)
With those introductions over, it’s time to look
at the dierent issues that may arise with your
3Doodler Create+ and steps to get back
to Doodling.
TAKE A BREAK:
Power Adapter
x2
BLUE
light
PLA
Plastic
12
4
3
1
3
2
