Wolck 1GE+1FE+WiFi+CATV User manual

Chapter1: Overview
1.1 Product Description
1GE+1FE+WiFi+CATV dual mode ONU meets telecom operators FTTO (office), FTTD(Desk),
FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other
requirements and design an GPON/GEPON Gigabit Ethernet products. It is based on mature
GPON and Gigabit EPON technology, and has high ratio of performance to price, stable,
cost-effective, high reliability, easy management, configuration flexibility and good quality of service
(QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T
G.984.x, IEEE802.3ah and technical requirement of EPON Equipment from China Telecom. Dual
mode ONU can detect and exchange PON mode automatically.
Figure 1 1GE+1FE+WiFi+CATV Dual Mode ONU

1.2 Application Chart
Figure 2 Application Chart
1.3 Technical Parameters
Technical item
1GE+1FE+WiFi+CATV
Interface
1 WDM, SC/APC connector or 1 PON SC/UPC+CATV SC/APC
connector, single/double fiber.
GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric
1.25Gbps.
Wavelength
PON Tx1310nm,Rx 1490nm, CATV 1550nm.
LAN interface
1x 10/100/1000Mbps Auto-negotiation Ethernet interfaces.
1x10/100Mbps Auto-negotiation Ethernet interfaces.
Wireless
Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R, 2 external antenna.
CATV
SCTE type F
LED
7, For Status of POWER、LOS、PON、LAN、WiFi、CATV.
Operating
condition
Temperature: -5℃～55℃
Humidity: 10%～90%（non-condensing）
Storing
condition
Temperature :-30℃～60℃
Humidity :10%～90%（non-condensing）
Power supply
DC 12V/1A
Power
consumption
≤7W
Dimension
185mm×120mm×34mm（L×W×H）
Net weight
0.3Kg
Table 1 Technical Parameters

P01.030385
1.4 Equipment List
Table 2 Equipment List
1.5 Certification Card
Chapter2: Installation
2.1 Installation Requirements
To avoid equipment damage caused by improper use and personal injury, please observe the
following precautions:
Do not place the device near water or in damp places, in order to prevent water or
moisture from entering the device.
Do not place the device in an unstable place, avoid falling damage to equipment.
Make sure that the supply voltage of the device matches the required voltage value.
Do not open the equipment chassis without permission.
Unplug before cleaning the power plug; prohibit the use of liquid cleaning.
Installation Environment Requirements
ONU equipment must be installed in the interior, and to ensure the following conditions:
Confirmation at the ONU installation at sufficient space to facilitate cooling machine.
ONU suitable operating temperature of -5℃~ 55 ℃,humidity 10% to 90%.
Electromagnetic Environment
ONU equipment in use can be affected by external electromagnetic interferences, such as
radiation and conduction through the impact on the device, this should note the following:
Device workplace should avoid radio transmitters, radar stations, and high-frequency
interference from power equipment.
Contents
Quantity
ONU
1 pcs
Power adapter
1 pcs
User manual
1 pcs

Users cable typically require alignment indoors if outdoor lightning traces measures
should.
Equipment Installation
ONU product is a fixed configuration cassette equipment, site equipment installation is
relatively simple. Simply install the device on a specified place, connecting the upstream fiber
subscriber line connections, connect the power cable. Actual operation is as follows:
1. Installed on the desktop
Place the machine on a clean bench, this installation is relatively simple, you can observe the
following operation:
Ensure the smooth workbench.
Around the device enough space for heat dissipation.
Do not place objects on the device.
2. Mounted on the wall
Observation ONU equipment chassis two cruciform recess, in accordance with the
position of the groove, installed two screws in the wall.
The original selected two mounting screws gently snap into recesses aligned.
Slowly let go, so that the device under the support of the screw hanging on the wall.
2.2 Panel Lights
LED
Mark
Status
Description
Power
POWER
On
The device is powered up.
Off
The device is powered down.
Optical signal
loss
LOS
Blink
Device does not receive optical signals.
Off
Device has received optical signal.
Registration
REG
On
The device is registered to the PON system.
Off
Device is not registered to the PON system.
Blink
Device registration is incorrect.
Interface
LINK/A
CT
On
Port is connected properly (LINK).
Off
Port connection exception or not connected.
Blink
Port is sending or/and receiving data (ACT).
WiFi
WiFi
On
WiFi is working
Off
WiFi is not working
CATV
CATV
On
CATV is working
Off/
Blink
CATV signal is abnormal
Table 3 Panel Lights

2.3 LAN Port Connection Definition
Table 4 FE/GE Connection Definition
Chapter3:Web Management
1GE+1FE+WiFi+CATV dual mode ONU provides simple Web management functions,
including Device Information , WAN connection, Lan management IP address, Loid,
Password, Configuration File , Backup, Upload, Restore, Firmware upgrade etc.
NOTE:
More ONU detail configurations should be configured via ONU web.
3.1 Default configuration
The following is the default device configuration information.
Local (LAN access) Username: admin , Password: admin
LAN port management IP address: 192.168.1.1/24
3.2 Basic Configuration
Figure 3 Web login
Grade
No.
Function
direction
FE
GE
FE
GE
1
RX+( receive data +)
BI_D0+( Bi-directional Data+)
input
Input/output
2
RX-(receive data -)
BI_D0- (Bi-directional Data-)
input
Input/output
3
TX+ (send data +)
BI_D1+( Bi-directional Data+)
output
Input/output
4
NC(null)
BI_D2+( Bi-directional Data+)
-
Input/output
5
NC(null)
BI_D2- (Bi-directional Data-)
-
Input/output
6
TX- (send data -)
BI_D1-( Bi-directional Data-)
output
Input/output
7
NC(null)
BI_D3+( Bi-directional Data+)
-
Input/output
8
NC(null)
BI_D3- (Bi-directional Data-)
-
Input/output
Web login default username: admin,
password: admin

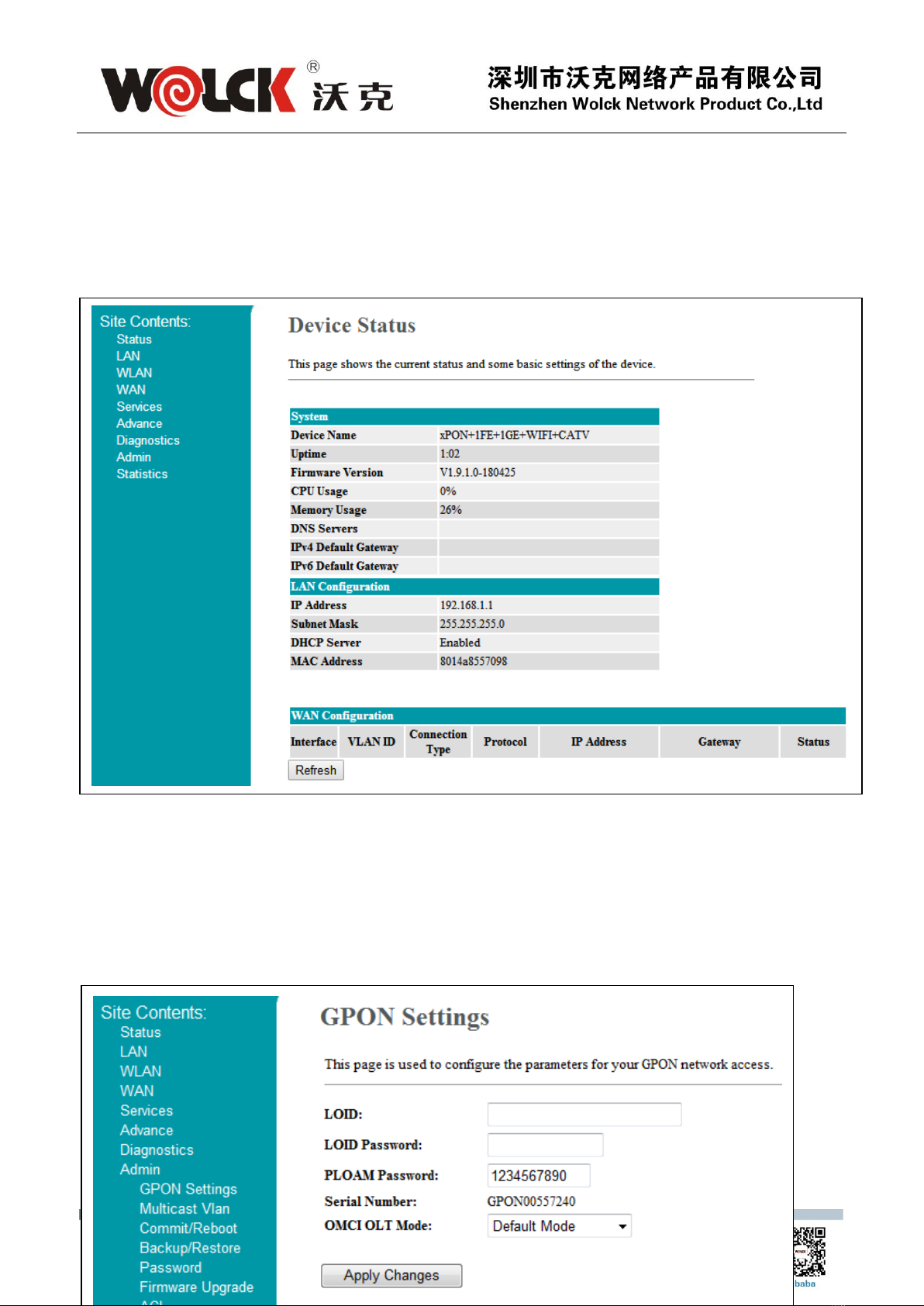

Figure 4 Device Information
Figure 5 PON settings
Status Menu displays the current device base information, LAN information, WAN
information, PON information and so on.
Note:
All the device information may be changed, the received device shall prevail.

Figure 6 WAN Configuration
Figure 7 Backup and Restore settings
This page is used to configure LOID and its password, and other PON parameters such as
PLOAM password, SN, OMCI mode for GPON and LLID MAC mapping for EPON.
Loid: 0-24 bytes.
Password: fixed 10 bytes.
Note: All the changes take effect in the equipment after the restart.
WAN configuration: to configure ONU WAN parameters, including WAN mode, VLAN, IP
address and so on.

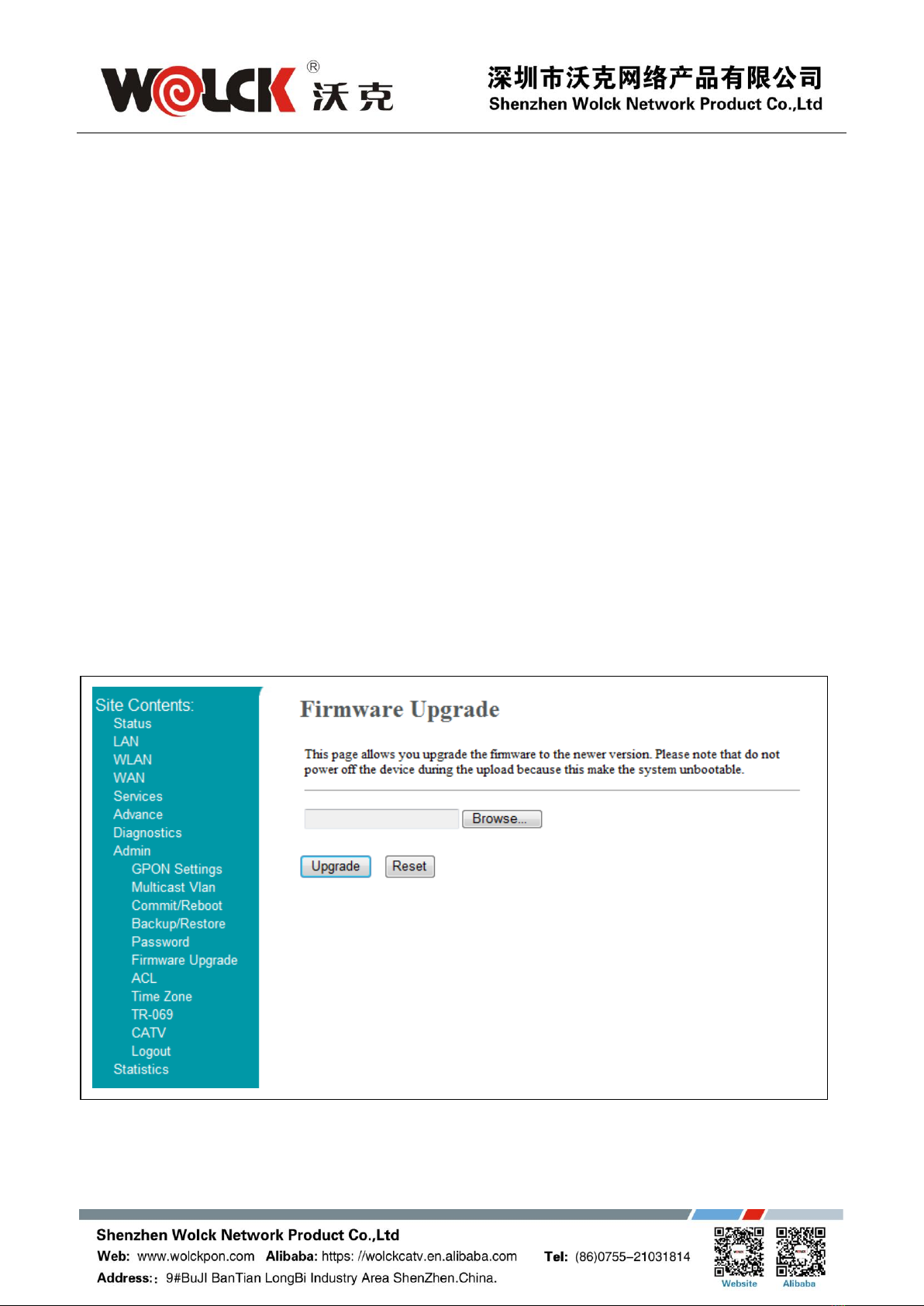

Figure 8 Upgrade
This page is used to back up and restore settings; reset device to factory default.
Backup: to backup configuration from the device.
Restore: to restore configuration from a configuration file.
Reset: to reset device to factory default.
Upgrade Menu displays the current equipment upgrades related information.

Chapter4: Troubleshooting
1. After power all the lights are lit？
Reasons:
1) Power connection errors;
2) Power is not normal.
Solution:
1) Check that the power cable is connected;
2) The rear panel of the power supply is turned on.
2. GE / FE led does not light?
Reasons:
1) Network cable is damaged or loose connection;
2) Cable type error;
3) Long lines outside the allowable range.
Solution:
1) Replace the network cable, and pay attention to the standard Ethernet cable must be
parallel or crossing lines.
3. After working for some time to stop working?
Reasons:
1) Power supply is not working properly;
2) The equipment from overheating.
Solution:
1) Check if there is contact with abnormal voltage is too high or too low;
2) Check the ambient conditions, vents are normal ventilation.
4. LOS led flashes?
Reasons:
1) Fiber failure;
2) Central office equipment failure.
Solution:
1) Inspect fiber is connected properly, is connected to the correct connector, optical power is
normal;
2) Contact your operator.
5. PON led flashes?
Reasons:
1) Fiber optic connector is loose;
2) Central office equipment failure;
3) Fiber optic connectors are dust.
Solution:
1) Inspect fiber is connected properly;

2) Cotton ball with alcohol swabbing fiber optic connectors;
3) Contact your operator.
