Wolf TYG48C User manual

Item #_____________ C.S.I. Section 11420
Wolf Range Company
Division of ITW Food Equipment Group LLC
[phone]
www.wolfrange.com
F-39077 (04-07)
BASIC MODEL:
TYG48C 49⁵₈" wide x 29³₈" deep.
TYG60C 60⁵₈" wide x 29³₈" deep.
KEY FEATURES:
➤Stainless steel front and sides.
➤¾" thick, 24" deep highly polished steel griddle plate.
➤3" wide stainless steel grease trough drains into large
capacity grease collector.
➤One 30,000 BTU/hr. ring burner with pilot ignition system.
Manual control valve.
➤¾" rear gas connection with gas pressure regulator.
➤One year limited parts and labor warranty.
➤³₈" side backsplash.
OPTIONAL FEATURES:
➤Stainless steel stand with undershelf.
DESCRIPTION:
Gas Teppan-Yaki griddle, Wolf Model No. ________. Stain-
less steel exterior. ¾" thick highly polished steel griddle plate
measures _____"w x 24"d. 3" wide stainless steel grease trough
drains into large capacity grease collector. One 30,000 BTU/hr.
ring burner with pilot ignition system. Manual control valve.
¾" gas connection with gas pressure regulator.
Exterior dimensions: 49⁵₈"w x 29³₈"d x 9⁷₈"h.
MODEL: TYG Gas Teppan-Yaki Griddle
Approved by_______________________
Date: _____________________________
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
TYG48C on Stand
CSA Design Certified.
NSF Listed.

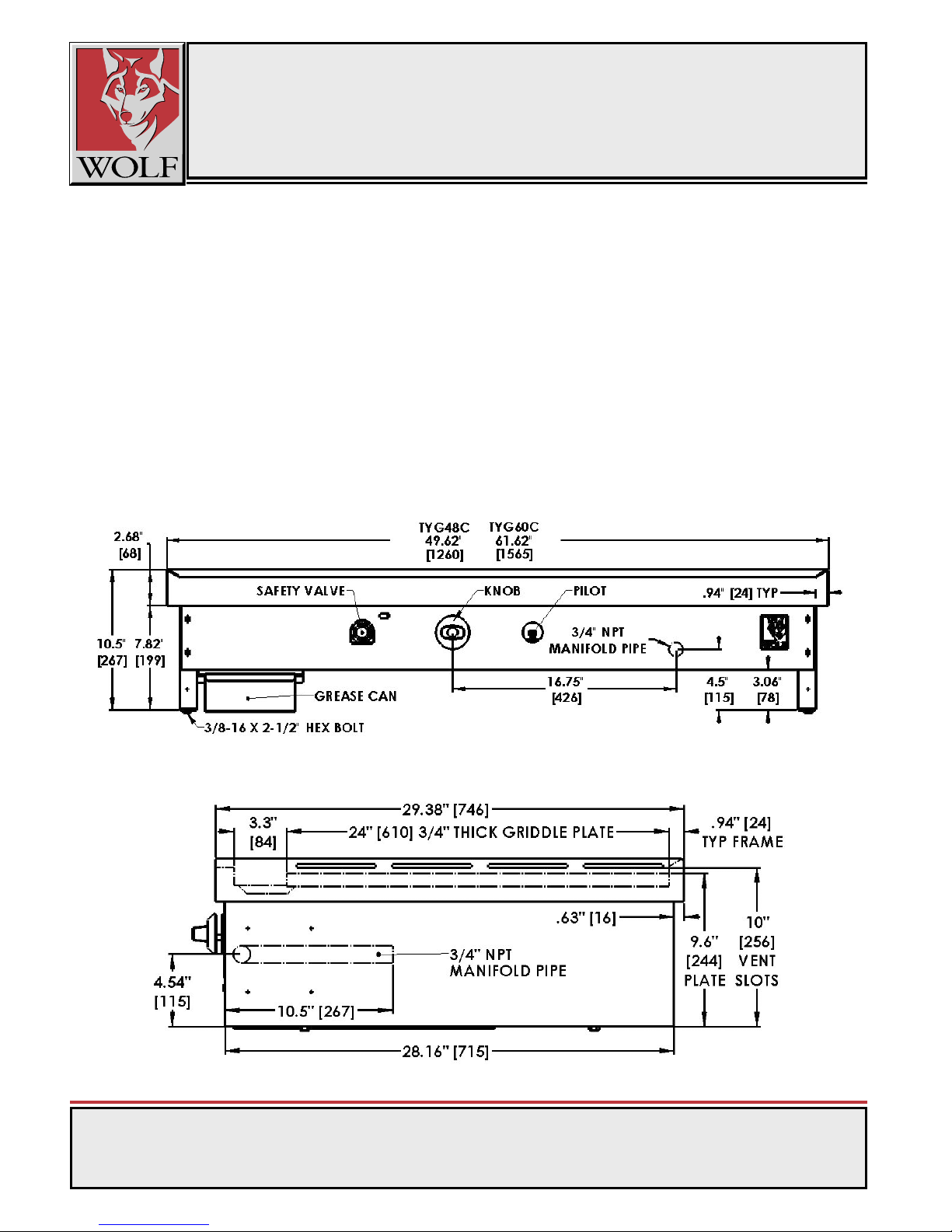

MODEL: TYG
GAS TEPPAN-YAKI GRIDDLE

NOTE: In line with its policy to continually improve its product, Wolf Range Company
reserves the right to change materials and specifications without notice.
This appliance is manufactured for commercial use only and is not intended for home use.
F-39077 (04-07)
MODEL: TYG
GAS TEPPAN-YAKI GRIDDLE
INSTALLATION REQUIREMENTS:
1. A gas pressure regulator sized for this unit is included.
Natural Gas 5.0" W.C. Propane Gas 10.0" W.C.
2. Gas line connecting to appliance must be ¾" diameter or
larger. If flexible connectors are used, the inside diameter
must be the same as the ¾" iron pipe.
3. Leveling bolts at bottom of chassis must be adjusted for
proper grease drainage.
4. Ventilation slots around side and back perimeter must be
located above the counter surface for sufficient ventilation
and proper combustion.
5. These units are manufactured for installation in accordance
with National Fuel Gas Code, ANSI-Z223.1/NFPA #54 (lat-
est edition). Copies may be obtained from The American
Gas Association, Accredited Standards Committee Z223
@ 400N. Capital St. NW, Washington, DC 20001, or the
Secretary Standards Council, NFPA, 1 Batterymarch Park,
Quincy, MA 02169-7471.
NOTE: In the Commonwealth of Massachusetts
All gas appliances vented through a ventilation hood or
exhaust system equipped with a damper or with a power
means of exhaust shall comply with 248 CMR.
