Wolf W362210I Instructions for use

Planning Information
Models W362210I(R) and W362210(R) Pro Wall Hoods
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
1
Model W362210I
Internal Blower
Model W362210IR
Internal Blower – Rail Option
Model W362210
Model W362210R
Rail Option
Classic stainless
steel finish
Backdraft damper
Stainless steel
baffle filters
Infinite speed
blower control
Welded seams
and hemmed edges
Halogen lighting
Hand finished
craftsmanship
Recessed easy
access controls
Decorative rail
(optional)
Wolf Pro wall hoods provide the ultimate in ventila-
tion. With standard elements like heat sentry and dual
setting halogen lighting, Wolf elevates the need for
ventilation to an enjoyable perk.
This 22" (559) deep model is the low-profile version,
36" (914) wide and available in the classic stainless
steel finish. You also have the option of a decorative
rail. While a classic stainless steel rail is standard on (R)
models, a platinum or brass rail is available as a sales
accessory.
For optimal performance, a Pro 27" (686) deep wall
hood is recommended for use with ranges and range-
tops that contain a charbroiler or griddle.
Wolf Pro low-profile wall hoods are
10" (254) high by 22" (559) deep and
come in the classic stainless steel finish.
Rail option hoods (R) include a classic
stainless steel decorative rail and stand-
offs. Optional platinum or brass rails
match dual fuel range bezels. Model
W362210I(R) has a 600 CFM internal
blower. Model W362210(R) is sold as a
shell only; internal, in-line and remote
blower options are available.
Model W362210R shown with standard classic stainless steel
decorative rail, platinum or brass rail available as a sales accessory

10"(254)
OVERALL
HEIGHT
36" (914)
OVERALL WIDTH
4"(102)
36" (914)
OVERALL WIDTH
22" (559)
OVERALL DEPTH
12"
(305)
10"(254)
OVERALL
HEIGHT
4"(102)
22" (559)
OVERALL DEPTH
12"
(305)
2"
(51)
3/4" (19)
DIAMETER
OF RAIL
OVERALL DIMENSIONS
FEATURES
Low-profile ventilation hood with classic
stainless steel finish
Rail option hoods (R) come with a classic
stainless steel decorative rail and stand-offs –
optional platinum or brass rail available as a
sales accessory
600 CFM internal blower included with
Models W362210I and 362210IR
Internal, in-line and remote blower options
with Models W362210 and 362210R
Heavy-duty 16-gauge brushed stainless steel
construction
Stainless steel enclosed liner
Continually welded seams, hemmed edges
and sides and hand finished craftsmanship
Recessed easy-access controls
Infinite-speed blower control
Heat sentry feature automatically turns unit
on when heat is sensed and automatically
adjusts blower speed
Halogen lighting with two settings
Removable, dishwasher-safe, restaurant-
grade stainless steel baffle filters
Transition with backdraft damper included
UL listed to US and Canadian safety
standards
UL approved for covered outdoor applications
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
Planning Information
Models W362210I(R) and W362210(R) Pro Wall Hoods
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
2
Models W362210I / W362210
Models W362210IR / W362210R with Rail

Planning Information
Models W362210I(R) and W362210(R) Pro Wall Hoods
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
BLOWER OPTIONS
600 CFM Internal Blower 807614
600 CFM In-Line Blower 808331
600 CFM Remote Blower 801640
900 CFM Remote Blower 801641
Refer to the Pro Ventilation
Recommendations chart at the end
of this section.
ACCESSORIES
Platinum or brass decorative rail
and stand-offs
38" (965) high stainless steel
backsplash
38" (965) high stainless steel
backsplash with warming rack
6" (152) and 12" (305) duct
covers
Recirculating kit
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
SPECIFICATIONS
Overall Width of Hood 36" (914)
Overall Height of Hood 10" (254)
Overall Depth of Hood – W362210I 22" (559)
W362210IR (including rail) 24" (610)
Overall Depth of Hood – W362210 22" (559)
W362210R (including rail) 24" (610)
Duct Size 8" (203) Round
Discharge – W362210I(R) Vertical
Discharge – W362210(R) Vertical or Horizontal
Electrical Supply Requirements 110 / 120 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight (shell only) 44 lbs (20 kg)
For optimal performance, a Pro 27" (686) deep wall hood is
recommended for use with ranges and rangetops that contain a
charbroiler or griddle..
Specifications are subject to change without notice.

Planning Information
Models W362210I(R) and W362210(R) Pro Wall Hoods
Dimensions in parentheses are in
millimeters unless otherwise specified.
4

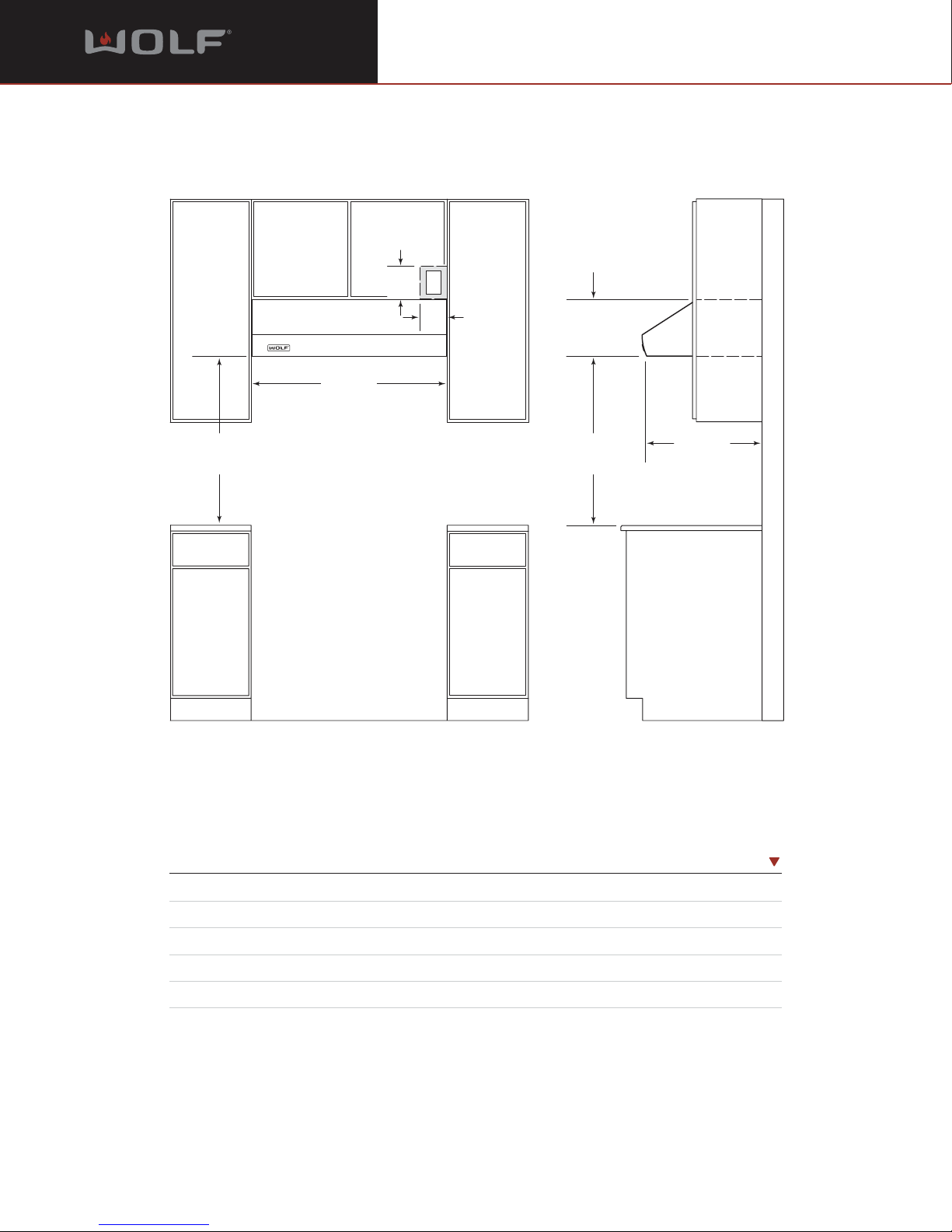

INSTALLATION SPECIFICATIONS
22" (559)
DEPTH OF HOOD
36" (914)
WIDTH OF HOOD
E
6"
(152)
5"
(127)
LOCATION OF
ELECTRICAL
30" TO 36"
(762–914)
TO COUNTERTOP
30" TO 36"
(762–914)
TO COUNTERTOP
10" (254)
HEIGHT
OF HOOD
DIMENSIONS
Overall Width of Hood 36" (914)
Overall Height of Hood 10" (254)
Overall Depth of Hood (excluding rail) 22" (559)
Countertop to Bottom of Hood 30" (762) to 36" (914)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
NOTE: Model W362210I is vertical discharge only. Model W362210 can be vertical or horizontal
discharge, except with WBLOWER-60INT or BLOWER-60IL which require vertical discharge.
For optimal performance, a Pro 27" (686) deep wall hood is recommended for use with ranges
and rangetops that contain a charbroiler or griddle.

Planning Information
Models W362210I(R) and W362210(R) Pro Wall Hoods
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions and installation specifics.
For optimal performance, a Pro 27" (686)
deep wall hood is recommended for use with
ranges and rangetops that contain a charbroiler
or griddle.
The hood should be as least as wide as the
cooking surface. It is recommended that the
hood overlap the cooking surface by 3" (76) on
either side.
Installation of all Pro wall hoods should be
30" (762) to 36" (914) from the bottom of the
hood to the countertop. Follow the dimensions
shown in the Installation illustration.
Models W362210I and W362210IR come
with a 600 CFM internal blower, all other low-
profile wall hoods are shipped without the
blower assembly. Internal, in-line and remote
blower assemblies are available. Blower options
also vary with the volume of air that needs to
be moved and the length of the duct run. Refer
to the end of this section for Pro ventilation
recommendations and blower options.
IMPORTANT NOTE: Install this ventilation hood
only with a Wolf blower.
Pro wall hoods require a separate, grounded
110/120 V AC, 60 Hz power supply. The service
should have its own 15 amp circuit breaker.
Placement of the electrical supply is not critical,
as long as you provide a minimum of 6" (152)
of 120 V AC, 60 Hz power cable. Locate electri-
cal within the shaded area shown in the Instal-
lation illustration. Note that the location of the
electrical supply will differ between vertical and
horizontal discharge blowers.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
Vertical or horizontal discharge is applicable
on the low-profile wall hoods except for Models
W362210I and W362210IR with internal
blowers have a vertical discharge only.
Refer to the installation instructions shipped
with each Wolf product for detailed specifica-
tions. This information can also be found on
our website, wolfappliance.com.

Planning Information
Models W362210I(R) and W362210(R) Pro Wall Hoods
6
Dimensions in parentheses are in
millimeters unless otherwise specified.
Ducting considerations for
Pro low-profile wall
hoods.
DUCTWORK INSTALLATION
THROUGH ROOF
22" (559)
DEPTH OF HOOD
8" ROUND DUCT
SOFIT OR CABINET
OR DUCT COVER
REMOTE BLOWER
*HORIZONTAL DISCHARGE APPLICABLE ON LOW-PROFILE WALL HOODS
(EXCLUDING W302210I AND W362210I) USING A REMOTE BLOWER. LOW-PROFILE
WALL HOODS WITH AN INTERNAL BLOWER MUST USE VERTICAL DISCHARGE.
DUCTWORK INSTALLATION
THROUGH WALL
DISCHARGE COLLAR
HORIZONTAL
DISCHARGE*
VERTICAL DISCHARGE
TRANSITION
173/4"W x 41/4"D TO 8" ROUND
93/8"H (INCLUDING FLANGES)
30" TO 36"
(762–914)
COUNTERTOP
TO BOTTOM OF
VENTILATION HOOD
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
10" (254)
HEIGHT OF HOOD
WALL HOOD
ROOF CAP OR REMOTE BLOWER –
TRANSITION FROM 8" (203) TO 10" (254) DUCT
REQUIRED FOR REMOTE BLOWER
DUCTING CONSIDERATIONS
Models W302210I and W362210I come with
internal blowers, all other Wolf Pro low-profile
wall hoods are shipped without the blower
assembly. Internal, in-line or remote blower
assemblies are available. The remote blower can
be mounted on the roof or an exterior wall. Refer
to the illustration below for ducting options.
Pro low-profile wall hoods have an adjustable
discharge location that can run vertically or
horizontally. Horizontal discharge is applicable on
low-profile wall hoods (excluding Models
W302210I and W362210I) using a remote
blower.
Refer to the Pro ventilation charts at the end of
this section for recommendations and blower
options.

Planning Information
Wolf Ventilation Recommendations
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
7

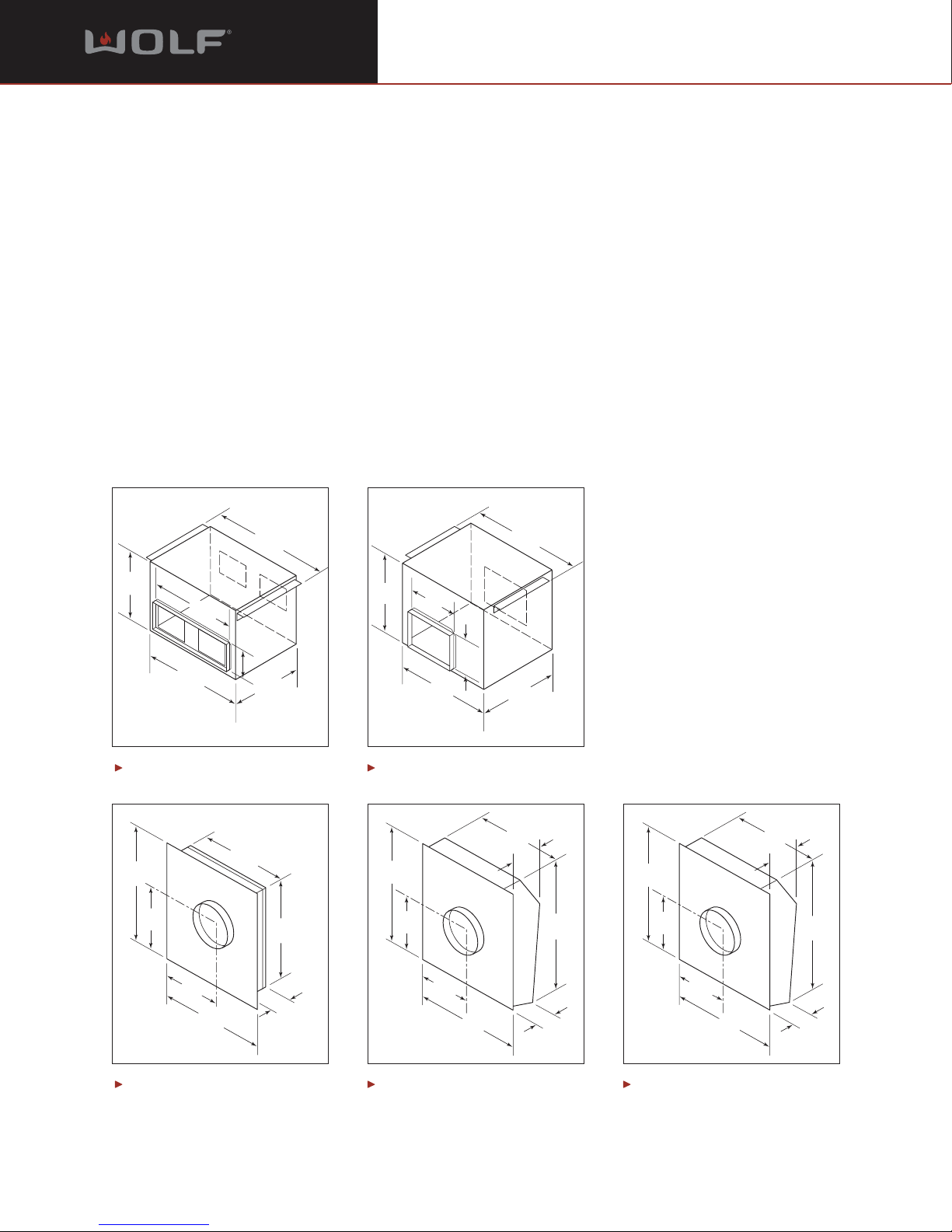

241/2"
(622)
151/2"
(394)
281/4"
(718)
203/4"
(527)
243/4"
(629)
14"
(356)
43/4"
(121)
10" (254)
Diameter
143/4"
(375)
291/2"
(749)
291/2"
(749)
18" (457)
22"
(559)
101/8"
(257)
71/4"
(184)
10"
(254)
10" (254)
Diameter
Remote BLOWER-60REM and
BLOWER-90REM
143/4"
(375)
291/2"
(749)
291/2"
(749)
21" (533)
25"
(635)
103/8"
(264)
71/4"
(184)
10"
(254)
10" (254)
Diameter
WOLF BLOWER ASSEMBLIES
A ventilation system must include a blower
assembly. With a few exceptions where internal
blowers are included, Wolf ventilation hoods and
downdrafts are shipped without the blower
assembly. An internal, in-line or remote blower
assembly must be selected to accommodate the
cooking appliance, CFM requirements and home-
owner preferences. Internal, in-line and remote
blower assemblies are available as sales acces-
sories through your Wolf dealer.
Wolf internal, in-line and remote blowers are for
use with Wolf cooktop hoods, downdraft
systems and Pro ventilation hoods and hood
liners.
IMPORTANT NOTE: Use only a Wolf blower
with all Wolf ventilation products.
Internal blowers are mounted inside the hood
canopy or downdraft blower box. In-line blowers
are mounted in between the hood and the
exterior of the home. Remote blowers can be
mounted on the roof or in some cases, on an
exterior wall. Refer to the illustrations below for
dimensions of Wolf in-line and remote blowers.
Ventilation recommendation charts on the
following pages provide minimum CFM recom-
mendations according to the cooking appliance
and ventilation system used and blower options
for each specific ventilation hood or downdraft.
Remote BLOWER-120REM Remote BLOWER-150REM
113/4"
(298)
211/2"
(546)
243/8"
(619)
181/2"
(470)
121/4"
(311)
41/2"
(114)
18"
(457)
22"
(559)
247/8"
(632)
12"
(305)
18"
(457)
8"
(203)
In-line BLOWER-60IL In-line BLOWER-110IL

Planning Information
Wolf Ventilation Recommendations
8
Dimensions in parentheses are in
millimeters unless otherwise specified.
PRO VENTILATION CFM RECOMMENDATIONS
Pro Low-Profile Wall Hoods
W302210I W362210(I) W422210 W482210
DF304 / R304 / SRT304 600 600
DF366 / R366 / SRT366 / RT366 900 900
DF364 / R364 / SRT364 / RT364 900 900
RT362 900 900
DF484 / R484 / SRT484 / RT484 900
R482 / RT482 900
NOTE: For optimal performance, a Pro 27" (686) deep wall hood is recommended for use with ranges and rangetops that contain a
charbroiler or griddle.
Model numbers for dual fuel ranges, gas ranges, sealed burner rangetops and gas rangetops indicate width and number of surface
burners. Features such as a charbroiler, griddle and/or French Top will vary.
CFM recommendations are based on total Btu/hr output. Wolf recommends 1 CFM per 100 Btu/hr (.03 kW). Additional CFM may be
required for long duct runs.
PRO VENTILATION BLOWER OPTIONS
Pro Low-Profile Wall Hoods
Blower Description Blower Number Wall Hood Models
600 CFM Internal* Included with (I) Models W302210I / W362210I
600 CFM Internal* WBLOWER-60INT (807614) W362210 / W422210
600 CFM In-Line* BLOWER-60IL (808331) W362210 / W422210 / W482210
600 CFM Remote BLOWER-60REM (801640) W362210 / W422210 / W482210
900 CFM Remote BLOWER-90REM (801641) W362210 / W422210 / W482210
*Vertical discharge with 8" (203) round duct. Remote blowers are adjustable discharge with 8" (203) round duct. NOTE: For optimal
performance, a Pro 27" (686) deep wall hood is recommended for use with ranges and rangetops that contain a charbroiler or griddle.
Wall hood models without decorative rail listed; blower options are the same for (R) models. Transition with backdraft damper included
with all wall hoods. Blower configurations are for reference only. Refer to minimum CFM recommendations for your specific cooking
product. Always consult a qualified HVAC Engineer for specific applications.
