Wolfen Timed Flow 9508240 User manual

INSTALLATION
MANUAL
9508240 Wolfen Timed Flow Basin Mixer (6*)
9508241 Wolfen Timed Flow Basin Tap (Cold) (6*)
9508242 Wolfen Timed Flow Basin Tap (Warm) (6*)
9508243 Wolfen Timed Flow Bib Tap 65 (Cold) (6*)
9508244 Wolfen Timed Flow Bib Tap 65 (Warm) (6*)
9508245 Wolfen Timed Flow Bib Tap 95 (Cold) (6*)
9508246 Wolfen Timed Flow Bib Tap 95 (Warm) (6*)
Installation Details | Warranty
TM

2
Intro 03
Technical Information 04
Installation Instructions 08
Cleaning 12
Warranty 14
CONTENTS
TM

33
Delivering unrivalled quality
Designed for absolute performance, Wolfen’s commercial timed-flow tapware sets
new standards in quality and durability. Ergonomic design combined with precision
engineering ensures that every Wolfen product is easy-to-use and made to last. Here
are just some of the many innovative features that make Wolfen timed-flow tapware
the smart solution.
Commercial durability features
• Solid brass body
• In-built water-hammer prevention
Installation and servicing
• Interchangeable head for easy
maintenance
Usage features
• Patented cartridge technology for
reliable timed-flow
Anti-vandal features
• Anti-vandal, non-turnable button
• Anti-vandal aerator
Application
• Schools
• Sporting Venues
• Gyms & Swimming Centres
• Train Stations & Airports
• Service Stations
• Public Washrooms
TM
TM
WMKA20010
AS/NZS 3718
The more
stars the more
water efficient
WATER R ATI NG
www.waterrating.gov.au
In accordance with AS/NZS 6400
Licence No. 0025
Reece Limited
3.0 litres per
minute
The more
stars the more
water efficient
WATER R ATI NG
www.waterrating.gov.au
In accordance with AS/NZS 6400
Licence No. 0025
Reece Limited
3.5 litres per
minute

4
WOLFEN INSTALLATION MANUAL | Technical Information
WOLFEN INSTALLATION MANUAL | Wolfen Timed-Flow Tapware

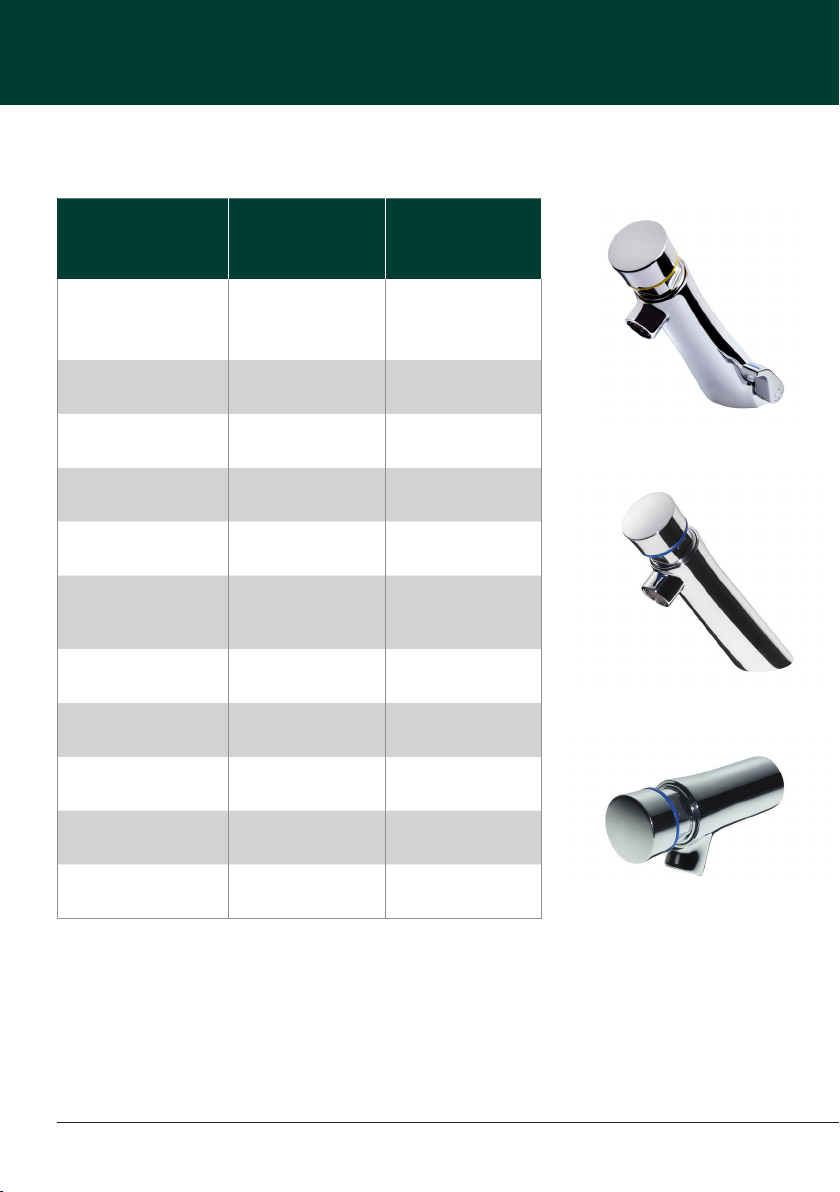

Model
Wolfen Timed-
Flow Mixer (6*)
Wolfen Timed-
Flow Taps (6*)
Product Code 9508240
9508241 9508242
9508243 9508244
9508245 9508246
Product Type Basin Mixer Basin/Bib Tap
Colour Chrome Chrome
Finish Polished Polished
Material Brass Brass
Cartridge Type Timed-Flow Timed-Flow
Min Continuous Flow
Working Pressure 100kPa 100kPa
Max Continuous Flow
Working Pressure 500kPa 500kPa
Min Continuous
Working Temperature 2°C 2°C
Max Continuous
Working Temperature 50°C 50°C
WELS 6 Star Rating
3.0 Litres Per Minute
6 Star Rating
3.5 Litres Per Minute
TECHNICAL INFORMATION

5
TM
0
0.5
1
1.5
2
2.5
3
3.5
4
0 100 200 300 400 500 600
L/min
kPa
WOLFEN �med-flow mixer
Wolfen Timed-Flow Mixer
0
0.5
1
1.5
2
2.5
3
3.5
4
0 100 200 300 400 500 600
L/min
kPa
WOLFEN �med-flow taps
Wolfen Timed-Flow Taps

6
WOLFEN INSTALLATION MANUAL | Technical Information
WOLFEN INSTALLATION MANUAL | Wolfen Timed-Flow Tapware
TECHNICAL INFORMATION

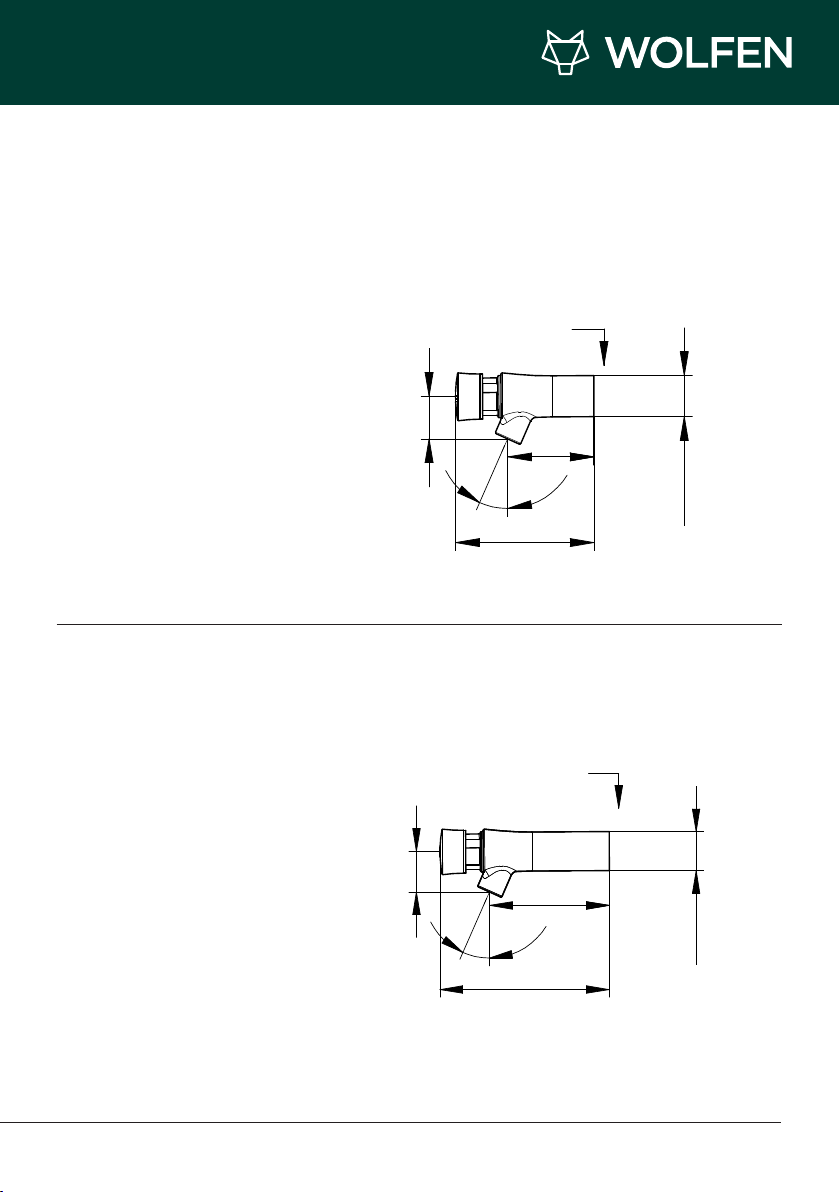

74
91
51°
109
138
Wolfen Timed-Flow Basin Mixer (6*)
9508240
Wolfen Timed-Flow Basin Tap (Warm) (6*)
9508242
49°
134
120
70
100
45
G1/2"
Wolfen Timed-Flow Basin Tap (Cold) (6*)
9508241

7
TM
104
Ø
31
24°
65
G1/2
32
Wolfen Timed Flow Bib Tap 65 (Cold) (6*)
9508243
Wolfen Timed Flow Bib Tap 95 (Warm) (6*)
9508246
24°
95
134
G1/2
Ø
31
32
Wolfen Timed-Flow Bib Tap 95 (Cold) (6*)
9508245
Wolfen Timed Flow Bib Tap 65 (Warm) (6*)
9508244

8WOLFEN INSTALLATION MANUAL | Wolfen Timed-Flow Tapware
INSTALLATION INSTRUCTIONS
1. Please flush out new pipe work prior to
connecting the new Timed-Flow Basin Mixer.
2. This tap has a recommended continuous flow
working pressure of 100kPa to 500kPa
3. Ensure that line strainers are fitted.
4. All mixers should be installed with isolating
stop cocks (Arco).
Important Note
The product must be installed to the requirements of AS/NZS 3500 by a qualified plumber. The product
comes to you already factory assembled and tested. We do not recommend the dismantling of any internal
part of the product. The products are factory tested and sealed so as to give the best performance.
WOLFEN INSTALLATION MANUAL | Installation Instructions
Wolfen Timed-Flow Basin Mixer (6*)
9508240
3

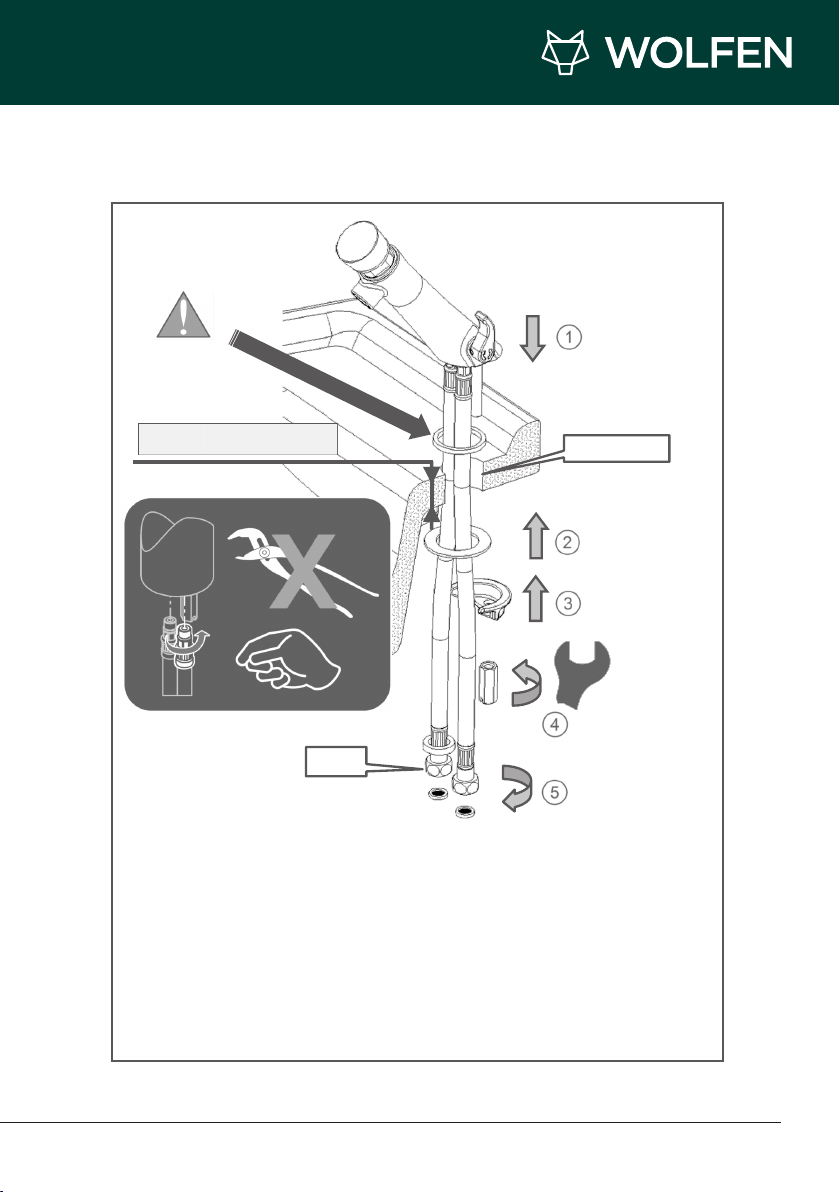

2 - Dimensions
3 - Installation

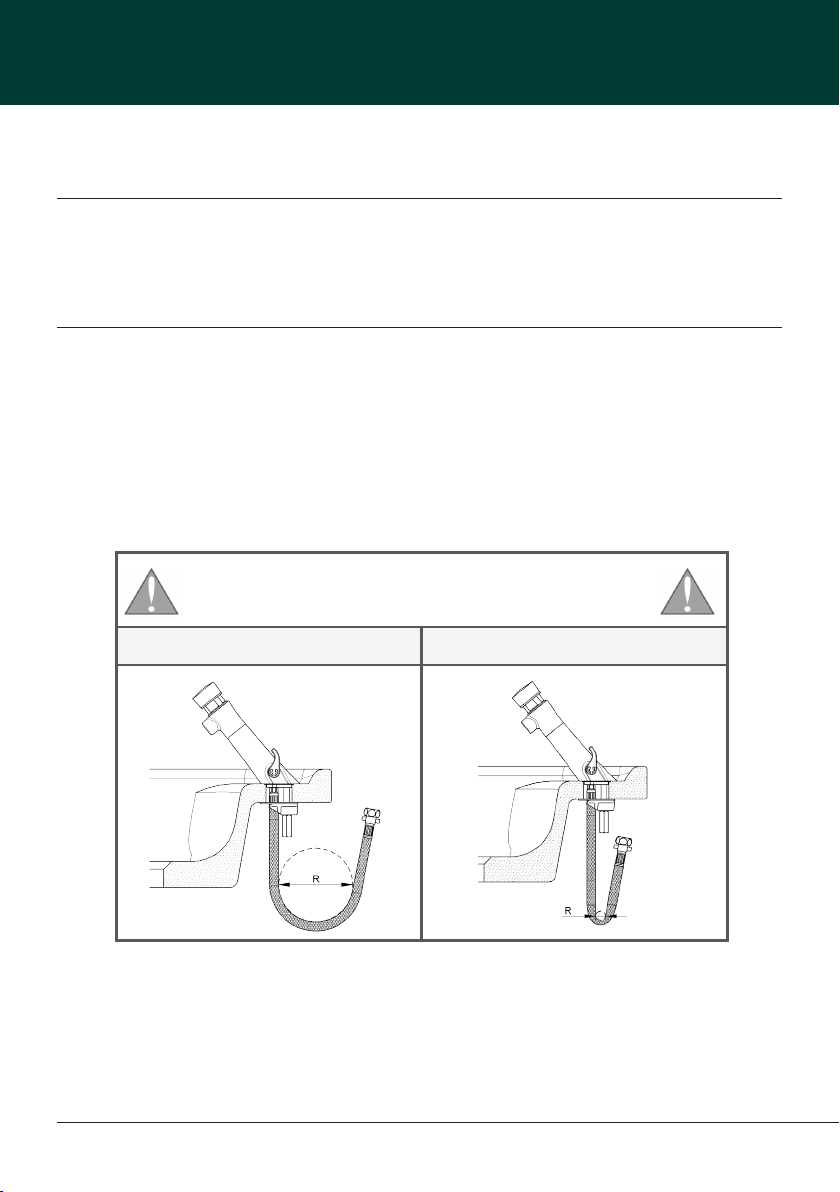

Attention
R > Ø100mm = OK R < Ø100mm = NOT OK

9
TM
4
Ø35mm
2 N.m
25 mm max.
12
G1/2˝

10 WOLFEN INSTALLATION MANUAL | Wolfen Timed-Flow Tapware
WOLFEN INSTALLATION MANUAL | Installation Instructions
INSTALLATION INSTRUCTIONS
6
4-3 Installation of the temperature limiter
Attention
Cold water 15°C / 300 kPa + hot water 60°C / 300 kPa = 38°C
Obtain the correct inlet pressures and adjust them to 300 kPa : ΔP < 40kPa
To ensure anti-scalding on the mixers, install athermostatic valve.
B
A
2.5
2 N.m

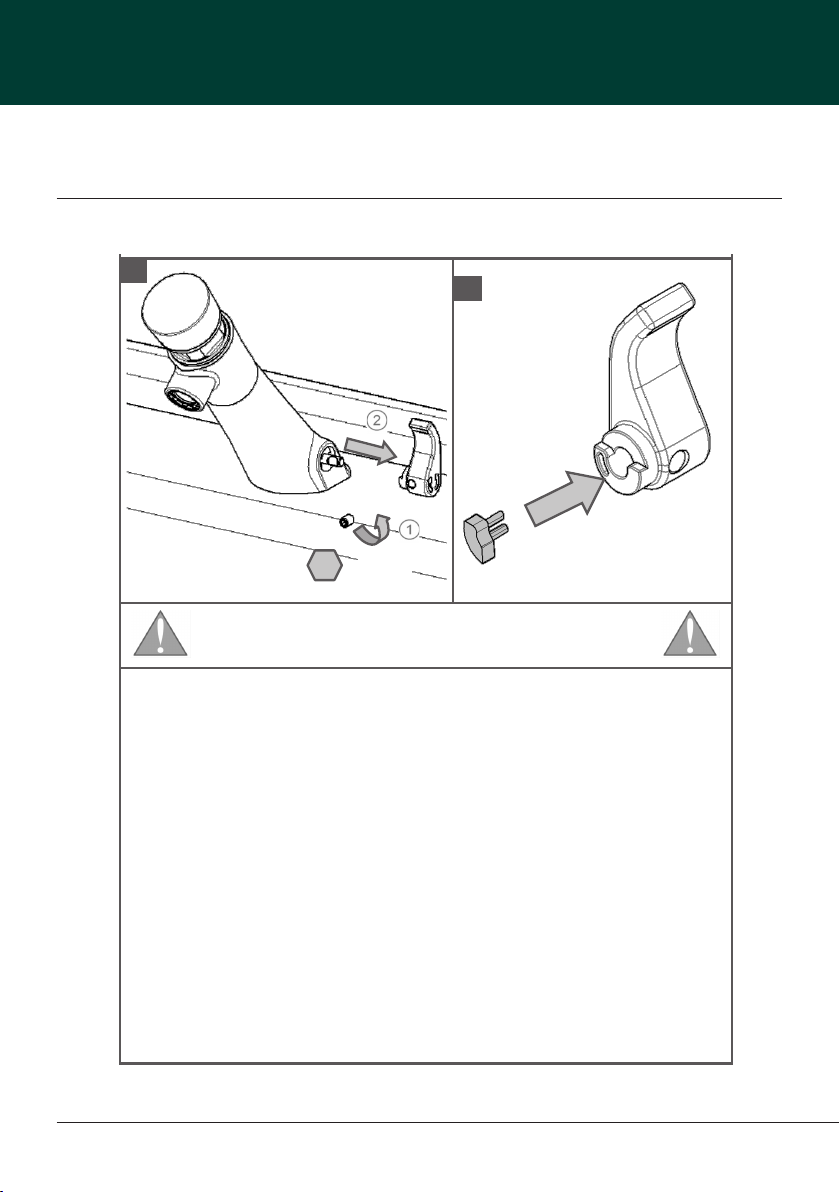

Installation of the temperature limiter
WOLFEN INSTALLATION MANUAL | Installation Instructions
