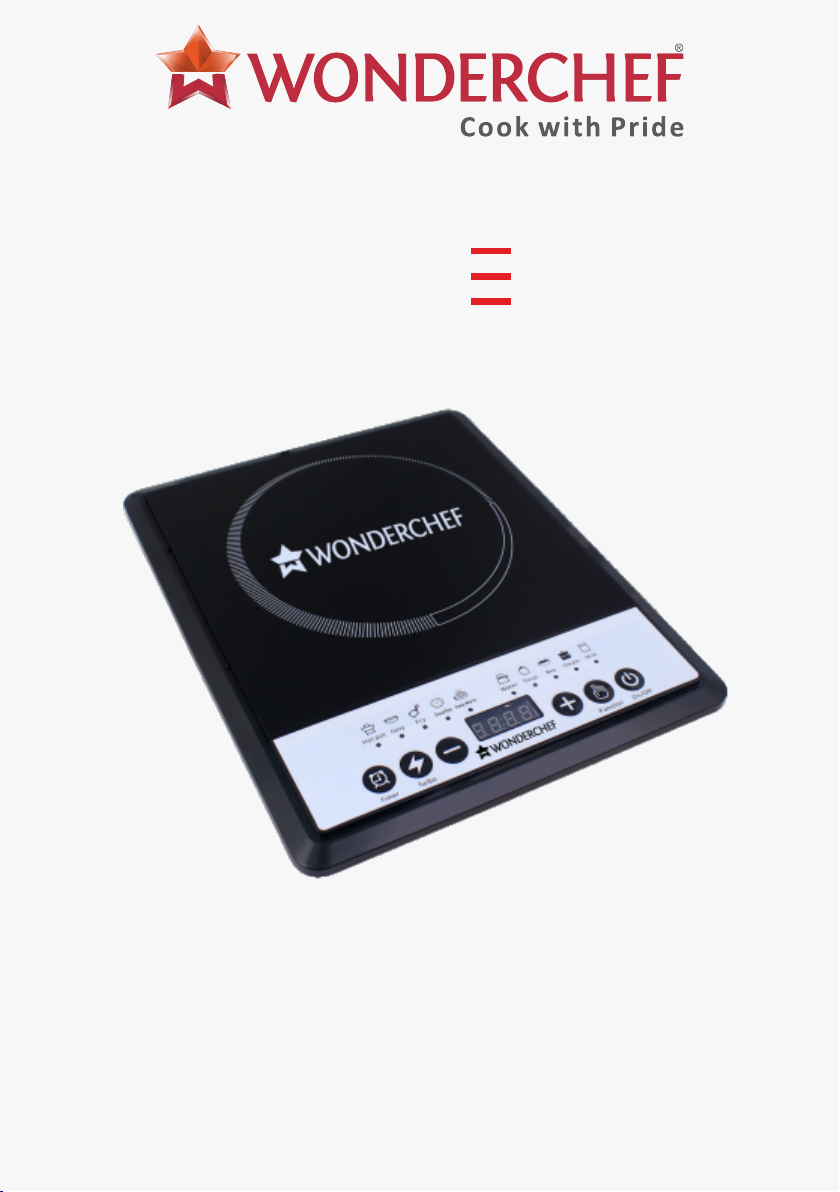

WonderChef Power 63153379 User manual

www.wonderchef.com
USER MANUAL
Model Code: WCINC02W180001
220V~50Hz, 1800W
INDUCTION PLATE
POW R

FEATURES OF
• Energy efficient
Safer than traditional gas and electric cookers•
preset cooking options• 11
• 11 levels of manual temperature setting: 50 - 270°C
• Overheat protection via auto off feature
• Easy to clean
KNOW YOUR PRODUCT
Cooktop
Control panel
Power cord
and plug
Air Ventilation
Please read this instruction manual carefully before using and keep it cautiously for your future
reference.
Induction Cooker working principle
Generating a large amount of thermal energy
Eddy current formed at the bottom
Having magnetic field
Generating variable magnetic field
Current going through the wire coil

ITEM IN THE BOX
1. Induction cooktop : 1No.
2. User Manual : 1No.
OPERATION PANEL EXPLAINED
1. Automatic function include: Keep warm, Rice, Milk, Water, Soup selecting any one of them will
start the induction cooktop on a preset mode of temperate appropriate for the specified food
item.
The functions are controlled by intelligent technology and uses dynamic control. According to
the food it adjusts that heat, and there is no intervention required.
2. Adjustable Function Include: Dosa/Roti, Fry. Selecting any one of them will start the induction
cooktop on a timing mode. These functions are allowed to change the temperature or wattage
during cooking as needed.
3. Curry has both the features of automatic function and adjustable function. When select curry,
the default mode is automatic function. If change temperature during cooking, it will cook food
at the setting temperature until switch off.
INSTRUCTION FOR USING
1. Place suitable cooking utensils in the centre of the top plate.
2. Insert the plug into a wall socket, the screen shows “----“, touch ON/OFF to switch on,
then touch function buttons to select different cooking functions, setting and adjustments.
3. To switch off, touch ON/OFF again the plug out to shut off power supply.
WARNING
1. Overheat protection: The unit is equipped with overheat protection. If the pot or pan gets too
hot, the unit will switch off automatically, and an alarm will sound. After few minutes, the
appliance will be ready for use again.
2. This appliance is liable to get hot during usage.

SUITABLE COOKWARE
1. Usable pans:
Steel, cast iron, enameled iron, stainless steel, flat-bottom pan / pots with diameter
form 12 to 26 cm.
2. Non-usable pans
Heat – resistance glass ceramic container, copper, aluminum pans / pots with bottom
measuring less than 12 cm.
Iron or Enameled
Iron Pot Castiron Pan Iron Pot Deep-Fry Pan Stainless Steel Pot Iron Plate
Enameled Iron
Pot
Rounded Bottom
Pot Aluminum
Copper Pot Bottom Measuring
less than 12cm Pot with Stands Ceramic Pot Heat-Resistant
Glass Pot
TIPS
IMPORTANT SAFETY INSTRUCTION
When using an electrical appliance, basic precaution should always be followed,
including the following.
1. Choose compound pans as the device won't function with thinner pots.
2. You cannot reset power and timer after selecting the automatic function.
3. To avail the preset functions, it is advised to cook suitable amount of food.
1. Unplug when not in use and before servicing.
2. To reduce the risk of electric shock, do not use near or on wet surfaces.
3. Use the appliance only as described in the manual.
4. Do not use the appliance if cord or plug is damaged or worn out. Replace the damaged cord or
plug immediately.
5. Do not try to service the appliance on your own. Send it to an authorized service centre only.
6. Keep cord away from heated surfaces.
7. Do not unplug the appliance by pulling the cord. Always unplug by pulling the plug and not the
cord.
8. To avoid electric shocks, do not use the appliance with wet hands.
9. Turn all controls off before unplugging.
10. This appliance is suitable for indoor use only.
11. Keep away from children.
12. The appliance is not designed to be used by people, who are physically or mentally disabled or
mentally handicapped or lack relevant experience and knowledge, unless a person, responsible
for their safety, is present, responsible for their safety is present for supervision or guidance.

CLEANING & MAINTENANCE
PRECAUTIONS
1. Do not disassemble, repair or alter the machine on your own. It may cause appliance failure
or breakdown.
2. The input voltage must not exceed the rating; it might damage the appliance.
3. Unplug before cleaning / moving the appliance.
4. Do not use the appliance with damaged power cord or plug.
5. If power cord is damaged, replace it with a genuine spare.
6. Do not install the machine near any heat source, e.g., heater.
7. If the appliance is not in use for a longer time, unplug it.
8. Do not sit on, stand on or shake the appliance.
9. Do not use the appliance when it is in an inclined position.
1. Disconnect plug and wait until the unit is cooled down completely. Clean after using every
time.
2. If the pot/pan is used without being cleaned, discoloration or cooked on stains may be
caused.
3. Do not use benzine, thinner, scrubbing brush or polishing powder to clean the induction
cooker.
4. Wipe using damp cloth.
5. Use vacuum cleaner to suck up dirt from the air intake and exhaust vent.
6. Never run water over the unit (Water gets inside may cause malfunction).

TROUBLESHOOTING
TROUBLE CODE POSSIBLE REASONS SOLUTION
E1
E2
E3
E4
E5
E6
E7
E8
Plate surface temperature sensor is
not connected well.
Please restart (OFF/ON) the unit If the
error still exists, please contact the
qualified service centre.
The Heat sensor of radiator (IGBT)
is not connected well,
or short-circuited.
Please restart (OFF/ON) the unit If the
error still exists, please contact the
qualified service centre.
Supply voltage is too high
(More than 275V)
Check power supply. Power on after
power supply is back to normal.
Supply voltage is too low
(less than 85V)
Check power supply. Power on
after power supply is back to normal.
Plate surface temperature sensor
is short-circuited.
Please restart (OFF/ON) the unit If the
error still exists, please contact the
qualified service centre.
The temperature of plate surface
is too high Please wait for few minutes until
the unit cools down.
The heat sensor of heat sink or
IGBT is over heated.
Check for air exhaust block or
fan stuck.
The wire of heading coil doesn't
connect well.
Change the suitable pot / pan, or
contact the qualified service centre.
There is no pot/pan or unsuitable
pot/pan on induction cooker.
Change the suitable pot / pan, or
contact the qualified service centre.
TECHNICAL SPECIFICATIONS
Wonderchef Home Appliances Pvt Ltd.
Unit No. 303, 3rd Floor, B Wing, Supreme Business Park, Hiranandani Gardens, Powai, Mumbai - 400 076,
Maharashtra, India.
Please Contact: | Email Id: [e-mail] | www.wonderchef.com
18602660788*
*Standard charges apply.
Product Name
SKU Code
Net Weight
Input Power supply
Total power consumption
Temperature adjustment
Dimensions (mm)
Power Induction Plate
63153379
1.96Kg
single phase 220 V, Ac 50 Hz.
1800W
50°C - 270°C
350 (L) X 280 (W) x 56 (H)
