WONDOM ICP3 User manual

How to realize APP control of APM2/JAB3
with WONDOM ICP3?
ICP3
In-Circuit Programmer with Bluetooth BLE for APP Control
Miumax

Various Applications Required Products and Instructions
Function
PRODUCT LIST WITH DSP
INTEGRATED ICP PRODUCTS Software INSTRUCTION VIDEO
Programming with
SigmaStudio APM2 + APM3
JAB3 - 160
JAB3 - 1100
JAB3 - 230
JAB3 - 250
ICP1
SigmaStudio How to Program APM2 with WONDOM ICP
How to Program JAB3 with WONDOM ICP
How To Re-Program DSP To Get More Functions
ICP3
How To Reprogram DSP Function of Amplifier Board With
DSP
APP Control ICP3 Miumax (APP) How to Realize APP Control with WONDOM ICP How To Use APP To Change DSP Settings Of Your
Amplifier?
ICP5
PC UI Control ICP5 Miumax (PC UI) How to Realize PC UI Control with WONDOM ICP Video
Note: The products and documentation in red are processing and will be released soon.

Open Source Files for APP CONTROL
Products Function Version File
APM2
Demonstration of Signal Flow Chart APM2_APPCtrl.dspproj - Download
Restoring Program APM2_APPCtrl_V1.0.Hex
V1.0 (For Miumax V1.0)
Download
APM2_APPCtrl_V2.0.Hex
V2.0 (For Miumax V2.0)
Download
JAB3 - Mono
Demonstration of Signal Flow Chart JAB3_APPCtrl_MONO.dspproj - Download
Restoring Program
JAB3_APPCtrl_MONO_E2Prom_V1.0.Hex
V1.0 (For Miumax V1.0)
Download
JAB3_APPCtrl_MONO_E2Prom_V2.0.Hex
V2.0 (For Miumax V2.0)
Download
JAB3 - Stereo
Demonstration of Signal Flow Chart JAB3_APPCtrl_STEREO.dspproj - Download
Restoring Program
JAB3_APPCtrl_STEREO_E2Prom_V1.0.Hex
V1.0 (For Miumax V1.0)
Download
JAB3_APPCtrl_STEREO_E2Prom_V2.0.Hex
V2.0 (For Miumax V2.0)
Download
ICP3 Demonstration of Signal Flow Chart
ICP3
-DB-
DP11224_CtrlFirmware_V1.0.hex
V1.0 (For Miumax) Download
ICP3
-DB-
DP11224_CtrlFirmware_V2.0.hex
V2.0 (For Miumax V2.0)
Download
ICP5 - - - -
Version Update Declaration
V1.0 Supporting APP - Miumax V1.0
V2.0 Supporting APP - Miumax V2.0
NOTES:
1. All the "Demonstration of Signal Flow Chart" files are just for signal flow chart demonstration and customers can not use
the
m as running programming. If customers
want JAB3 or APM2 to be recognized by PC UI or APP, please burn in the corresponding "Restoring Program" documentation we pro
vide;
2. We will provide the ICP3_Ctrl.hex and ICP5_Ctrl.hex for customers but we will not provide C source code and support in the
programming. If customers want to
program, please use Microchip Kit3/Kit4.
3. The products in red are processing and will be released soon.

WONDOM ICP3 is an in-circuit programmer inheriting all functions of ICP1. We had implemented firmware upgrade
and control data transmission from Bluetooth BLE, this means, with ICP3, customers can adjust the basic parameters
like volume, gain, EQ through APP.
With Bluetooth integrated, customers can control audio system with DSP through APP (Miumax), which is a quick and
simple start for customers who are not familiar with SigmaStudio™ software. This document is used as guide for how
to realize APP control of whole audio system built with WONDOM APM2/JAB3 via WONDOM ICP3.

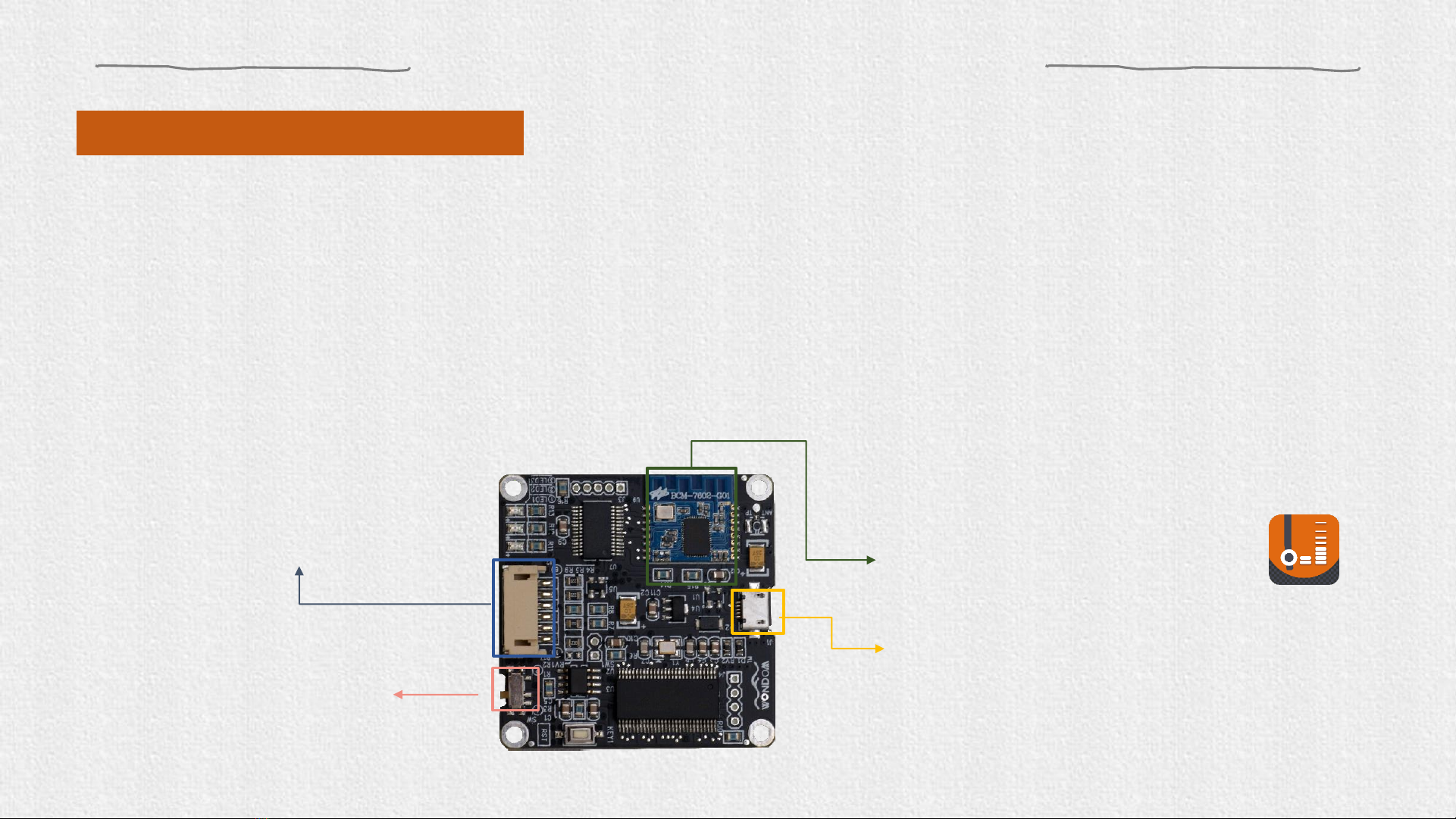

Overview
For programming ADAU1701
with SigmaStudio™
Bluetooth BLE for communication with
APP (Miumax) to control audio system
Control switch between
hardware and software
For connection with APM2/JAB3
with a 6-pin cable
Function: Programming + APP Control

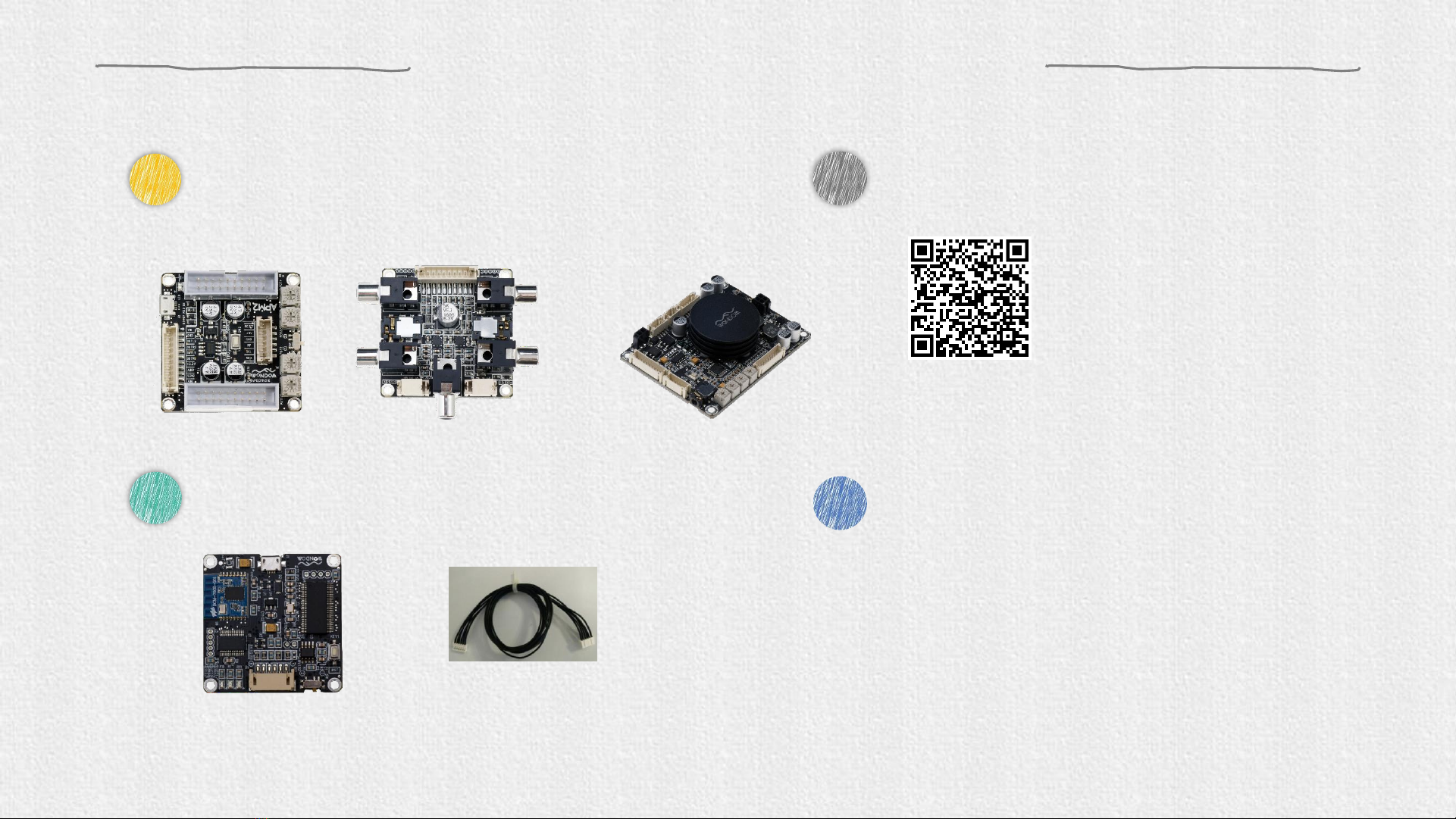

Before starting, please make sure you have the following items on hand.
Checklist
Android iOS
1WONDOM APM2+Extension Kit (APM3)/JAB3
2WONDOM ICP3 with a 6-pin cable
3‘Miumax’APP
4Accessories
Speakers
Cables
Phone
…
OR
+
Please go to App Store and
search “Miumax”.

Product List
Model
SKU Description
Basic Cables Included
ICP1 DB-DP11219 In-circuit Programmer for ADAU1701 Digital Signal 6Pin cable x 1
ICP3 DB-DP11224 WONDOM In-circuit Programmer with BLE Bluetooth for APP control 6Pin cable x 1
APM2 AA-AP23122 ADAU1701 Audio Digital Signal Processor Kernel Board -
APM3 AA-AA11428 ADAU1701 Audio Digital Signal Processor Interface Extension Kit 10Pin cable x 1
JAB3-1100 AA-JA31181 1x 100 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-1100
Power cable x 1
Speaker cable x 1
3.5mm AUX IN cable x 1
JAB3-160 AA-JA31211 1 x 60 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-160
JAB3-250 AA-JA32172 2 x 50 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-250
JAB3-230 AA-JA32473 2 x 30 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-230
Notes:
- Represents no basic cable

CONTENTS
BUILD AN AUDIO SYSTEM WITH
APM2/JAB3
APP CONTROL
13 42
CONNECT ICP3 AND POWER UP APPLICATION NOTES
5
TROUBLE SHOOTING

AUDIO SYSTEM
Audio Source JAB3 Speakers
19VDC Power Supply
Build an audio system with WONDOM JAB3
WONDOM provides two solution for DSP,
- APM2 + Extension Kit (APM3) + Amplifier
- JAB3, an audio amplifier with ADAU1701 integrated
Audio Source APM2+
APM3 Speakers
5VDC Power
Supply
Amplifier
Power Supply
Build an audio system with WONDOM APM2
Power up the audio system after connection is done.
ICP3 ICP3

CONNECT ICP3
1. Connect ICP3 to the APM2/JAB3 through the programming port with
a 6-pin cable.
1RST
2VIN
3GND
4WP
5SCL
6SDA
Programming
Port of DSP/JAB3
RST 1
2
+5V
3
GND
4
5
6
WP
SCL
SDA
Pin to Pin
Note:
When ICP3 is connected to APM2/JAB3 pin to pin, it will
be powered by APM2/JAB3 directly. No extra power
supply is needed.

CONNECT ICP3
State of SW on ICP3
Function
PROGRAM
REMOTE

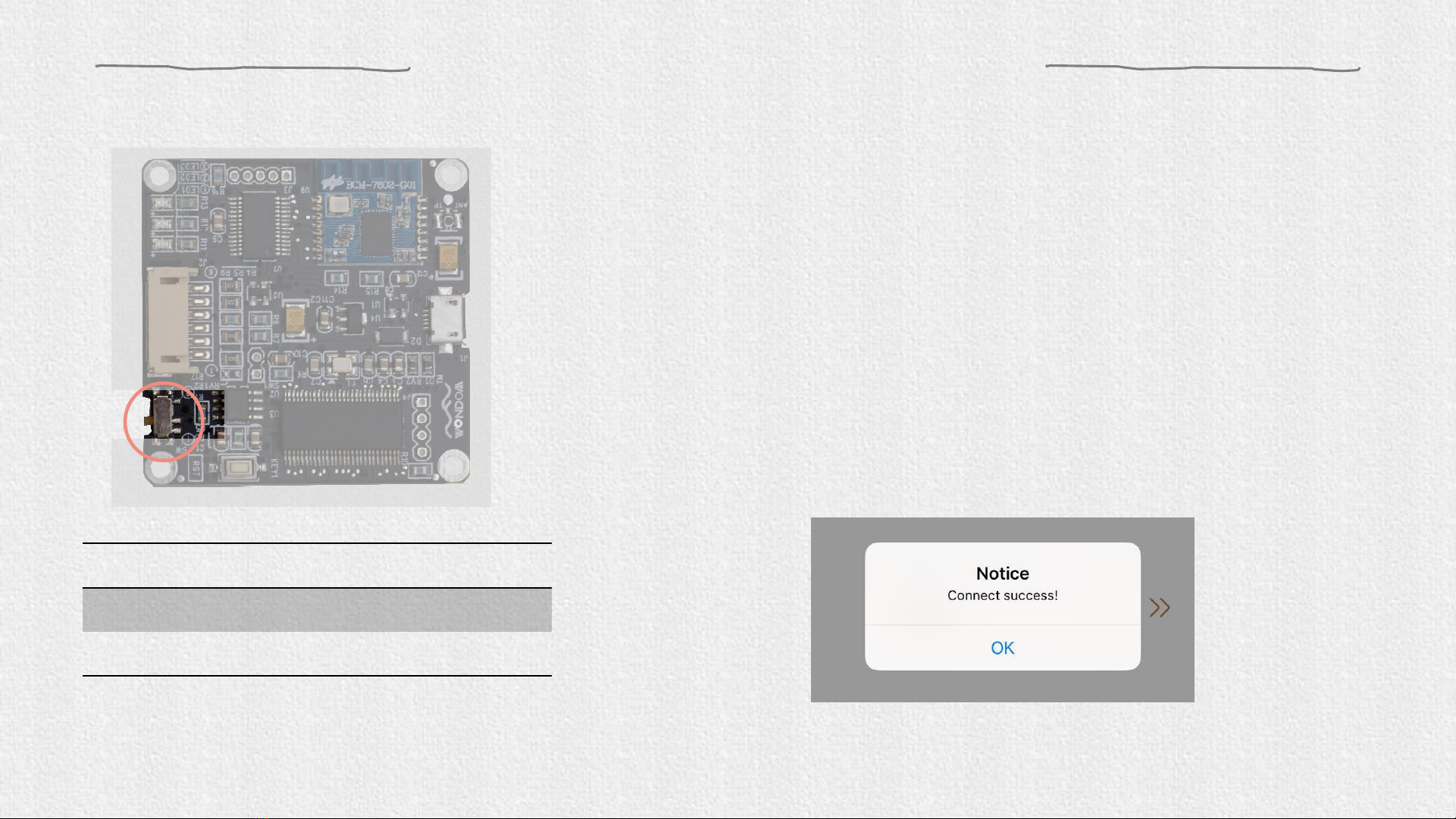

2. Set switch of ICP3 at ‘REMOTE’ before running ‘Miumax’APP.
3. Make sure the Bluetooth of your device is on and click ‘Miumax’
APP and they will pair automatically within several seconds. When
the connection succeeds, you can see the prompt box.
4. Click “OK” and choose your operation mode to start.

APP CONTROL
Play music and choose your deivce to start
Choose the corresponding items for adjustment
✓VOLUME
✓CHANNEL GAIN
✓CHANNEL FILTER
✓PHASE DEGREE
✓EQ SET

Application Notes
Power-off Memory Function of ICP3
Power-off Memory Function is integrated in ICP3
for APP control, which means the last setting of
your APP control will be saved in ICP3 and it will be
employed automatically next time you use ICP3 for
APP control.
Please be noticed that it only works with JAB3.

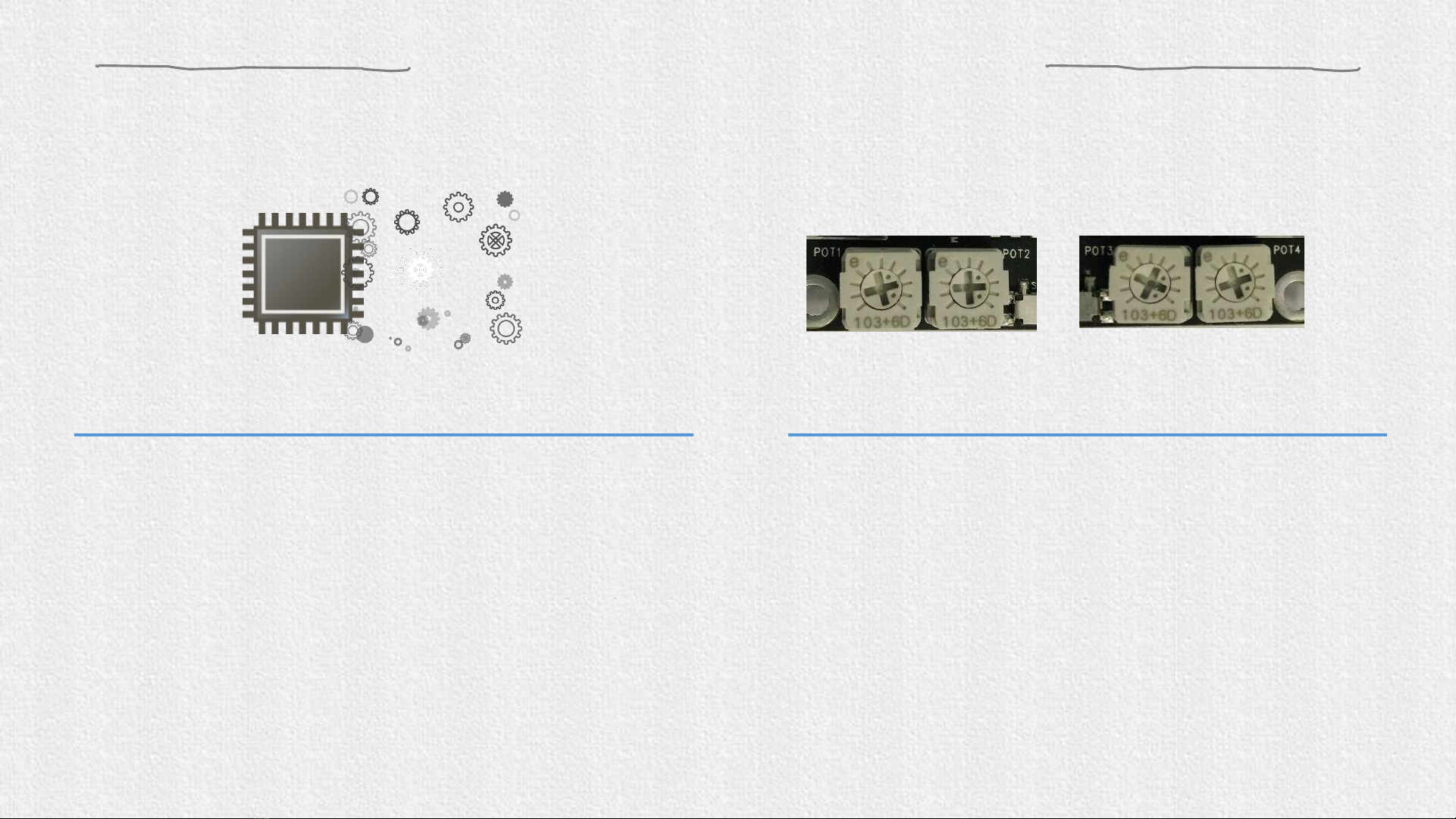

When customers want to switch to hardware
control (potentiometers on board) from APP control
mode, please do as follows.
Disconnect ICP3 with APM2/JAB3
Press the Reset switch on APM2/JAB3
Switch to hardware control

1
2
3
Please make sure the Bluetooth of your device is on and the SW of ICP3
is set at REMOTE before clicking APP.
Connection
The adjustment through APP control is irreversible. Please pay attention
to the limitation of your devices in case of permanent damage.
When switching from APP control to potentiometer control, do not forget
to press the reset switch on APM2/JAB3.
Control Switch
Adjustment
POINTS OF ATTENTION

PROGRAM

REMOTE
Setting of SW on ICP3

RUN

PROGRAM
Setting of SW1on APM2
Make sure the SW1on APM2 is
set at (RUN) when playing
music.

The connection between ICP3 and
APP is unsuccessful or the APP
control malfunctions.
Firstly, check the following items.
1. Switch of ICP3 is set at (Remote)
2. Bluetooth of your device is on
If all settings are OK but there is still problem
with connection, please try as follows.
1. Press the RST switch on ICP3
2. Restart the APP
TROUBLE SHOOTING
The ICP3 and APP disconnect in use.
When the ICP3 and the APP disconnect in use, a
prompt box for reminding of reconnection
appears. Press OK for reconnection and it will
repair immediately.
