Wooblue CameraMator User manual

CameraMator User Manual
version 1.3
INTRODUCTION
Item Check List
CameraMator device
USB Cable
Charging Cable
Quick Start Guide
Quick Start
1. Press the power button on the
CameraMator device
2. Connect device to camera's USB port
using the USB cable included
3. Set camera to JPEG or RAW+JPEG
mode
4. Download the CameraMator app
(available in App Store)
5. Go to "Settings" on your mobile device
(iPhone or iPad)
6. Select "CameraMator" from the list of Wi-
Fi networks
7. Open your CameraMator app to begin
using your device

GETTING STARTED
Recharging the battery
1. Plug the smaller end of the Charging
Cable into the right side of the
CameraMator device.
2. Attach the USB end of the Charging
Cable into the USB port of your laptop or
any USB charger.
The device should now begin charging
(indicated by the amber LED on the top right-
hand side).
Power Switch
Turn on the device using the power switch on
the right side of the device. The CameraMator
logo will appear on the LCD screen, and after a
few seconds the device will be ready to use.
Connecting the device
1. Plug the larger end of the USB cable into
the port on the left side of the device.
2. Attach the smaller end of the USB cable
to the USB port of your camera.
3. Turn the camera on and the device will
identify the camera.
4. Make sure your camera is in JPEG or
RAW+JPEG mode
Standalone Wi-Fi Setup
1. Go to the Settings app on your iPad or
iPhone.
2. Under Wi-Fi, select the "CameraMator"

Wi-Fi network. After selecting the Wi-Fi,
the activity indicator may continue to
spin. However, you can confirm the
connection by tapping on the blue arrow
and making sure that the IP address and
subnet mask is assigned.
3. Open the CameraMator app. Under the
“Remote Camera” option on the home
screen, you should see the name of your
camera and the “Network Settings”
option.
The blue blinking LED light on the top left corner
of the device indicates network activity.
Using existing Wi-Fi Network
1. Under the “Remote Camera” option on
the home screen, select “Network
Settings.”
2. Select "On" under Join Known Networks.
3. Select your Wi-Fi network from the list of
available networks.
4. Enter the password for your network
when prompted and select “Done.”
5. The CameraMator device will reboot and
join your Wi-Fi network. The LCD screen
on top will display its IP address.
!
! !

BASIC OPERATION
Home Screen Menu
Remote Camera – Shows the camera
connected to the device. Tapping on the camera
name starts the camera control session (see the
“Controlling the Camera” section below).
Network Settings allow you to change your
connection and Wi-Fi preferences.
Session Preview – Camera Controls are
disabled and the iPad receives images as
photos are taken with the camera.
Local Folders – Review albums of photos you
have already taken. Albums are organized by
sessions by date and time.

CAMERA CONTROL
Photos are taken by tapping the camera icon
located on the ride side menu of the Camera
Control Screen. After capturing the image the
image will appear on the main screen as well as
the filmstrip at the bottom of the screen. Photos
can be displayed on the main screen by tapping
on the thumbnail in the filmstrip.
Information about the image (such as settings,
file name, and the image histogram) will also be
displayed on the bottom right hand corner.
Photos are stored on your mobile device under a
local folder in the CameraMator app.
Image Viewing Gestures
Use the pinch gesture to change the zoom on
the image
A single finger tap will switch between the

different image aspect ratios.
A two-finger double-tap toggles the full-screen
mode.
Camera Control Icons
Home – takes you back to home
screen.
Share – allows you to save your
image into the “Photos” app on your
iPad or iPhone.
Time-lapse photography – allows you
to take sequential photos captured
over an interval of time.
High Dynamic Range (HDR) – allows
greater dynamic range between the
light and dark areas of the image.
Self-Timer - allows you to delay the
shutter release
Live View – allows you to see the
live viewfinder image. Tap this
button again to exit live view mode.

Camera Settings
ISO Speeds
Aperture
Shutter Speed
White Balance
Extended Features
The time-lapse option allows you to adjust your
time duration and shutter release intervals:

The HDR option allows you to take images over
a wide range of exposure values:
The self-timer option allows you to adjust the
number of frames, time intervals, and delay
before shutter release:

SESSION PREVIEW
In this mode, the ability to control the camera
from the iPad is disabled. The CameraMator app
automatically receives photos for viewing as
they are taken. Previous photos can be viewed
by tapping on them in the filmstrip. Although
capturing functions are disabled in this mode,
the “Share” option (to save to Photos app) is still
available.

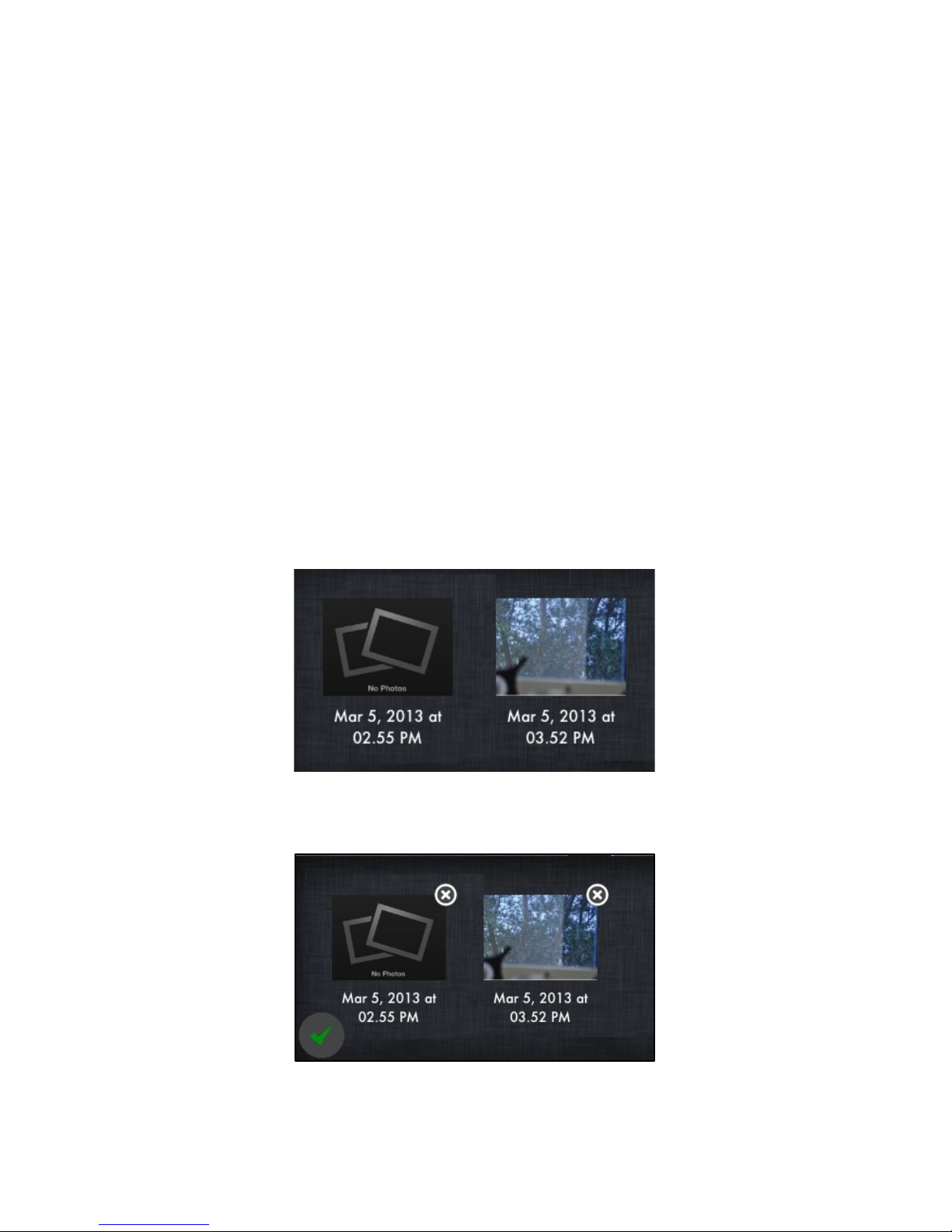

LOCAL FOLDERS
In this mode, you can browse through albums
from previous sessions. Tap on the album
thumbnail to browse the images in that album.
Press and hold an album folder to delete
albums:

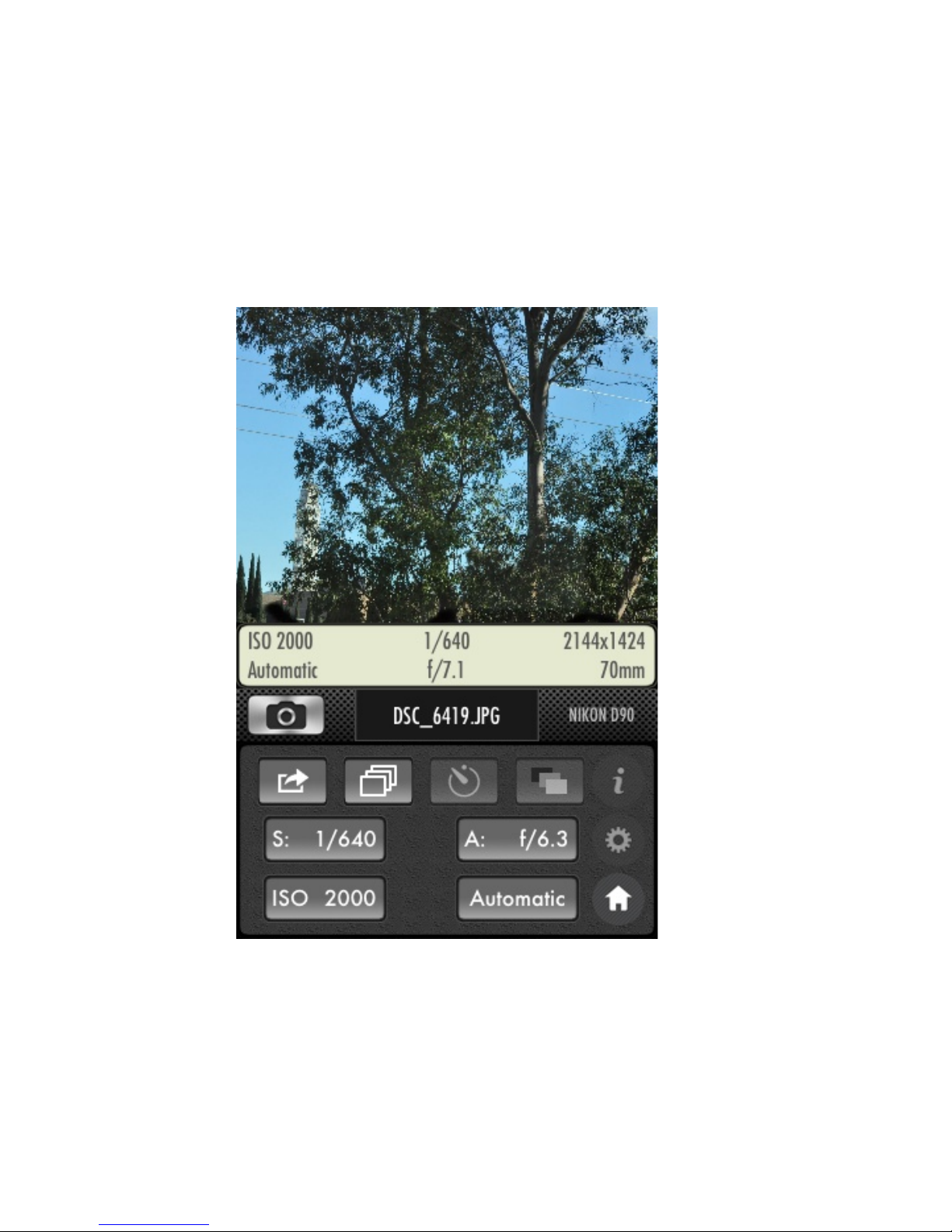

iPhone Application
The iPhone application allows you to capture
images. Remote Control allows you to change
camera settings and take pictures. Images can
be reviewed individually by selecting file name.

SUPPORTED CAMERAS
Canon 1Ds Mark III
Canon 1D X
Canon 5D Mark II
Canon 5D Mark III
Canon 7D
Canon 40D
Canon 50D
Canon 60D
Canon T2i
Canon T3
Canon T3i
Canon T4i
Nikon D2X
Nikon D3
Nikon D3S
Nikon D4
Nikon D80
Nikon D90
Nikon D200
Nikon D300
Nikon D300S
Nikon D600
Nikon D700
Nikon D800/D800E
Nikon D3000
Nikon D3100
Nikon D5000
Nikon D5100
Nikon D7000
For the latest list of supported cameras, please
visit the website at www.cameramator.com.

DEVICE SPECS!
Screen
Mono 132 x 32 px LCD
Ports
1 x High Speed 480 Mbps USB
Wireless
20 Mbps, WiFi 802.11 b/g/N Access Point, Ad-
Hoc, and Infrastructure Mode
Memory
4GB Built-In Buffer for continuous shooting
Software
CameraMator App for iPhone, iPad, and Mac
Battery
3300mAh Rechargeable Li-Poly Battery. Up to 8
hours battery life
Power
10W (5V, 2A) via standard USB port. 5~7 hours
to full charge
Size
3.31" x 2.83" x 1.46"
(84 x 72 x 37 mm)
Weight
3.14 oz. (89 g)!
!
