Woodbridge BID21 User manual

R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
2020411 REV. 1
R
WOODBRIDGE
Customer Service Phone: [phone]. (Monday - Friday 9 AM - 5 PM Pacific Time)
Or Email: [email protected]
INSTALLATION MANUAL BID21
www.woodbridgebath.com
NON-ELECTRONIC BIDET SEAT
Thank you for choosing our Quiet-close toilet seat.
We will try our effort to offer you the best service.
Our craftsmanship offers you arare combination
of water-saving，intelligent，hygiene sanitary and
graceful appearance that will satisfy you in future
use .The quality and dependability of our toilet seat
will surpass your highest expectations.We’re very
proud of our products and we know you will be too.
Please take a few minutes to study this manual.Pay
special attention to the Care and Cleaning instructions.
All in formation in this manual is based upon the latest
product information available at the time of publication.
We constantly strive to improve the quality of our
products. We reserve the right to make changes in
product characteristics，packaging or availability at
any time without notice.
Water pressure range:
Minimum water pressure 0.07MPa(20L/min.flowing
pressure).
Maximum water pressure 0.8MPa(Hydrostatic pressure)
Woodbridg ereserves the right to change marked dimensions without prior notice.
Reference Value 1"
19 1/4"
17 1/8"–18 1/4"
11 3/8"
14 1/8"
8 1/4"
5 1/4"– 6 1/2"

R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
1
R
WOODBRIDGE
www.woodbridgebath.com
DISASSEMBLY
Disassembling of seat cover
Quick-release button
Inlet filter cleaning
1.Shut off water supply valve and remove water supply hose.
2.Remove the filter. Use the brush to clean the filter.
3.Put the filter back into inlet after cleaning.Then connect the water supply pipe.
Remove the filter
Use the brush to
clean the filter
Care and Cleaning
Press quick-release button, and take out the
seat cover by hands as the drawing.

R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
1
R
WOODBRIDGE
www.woodbridgebath.com

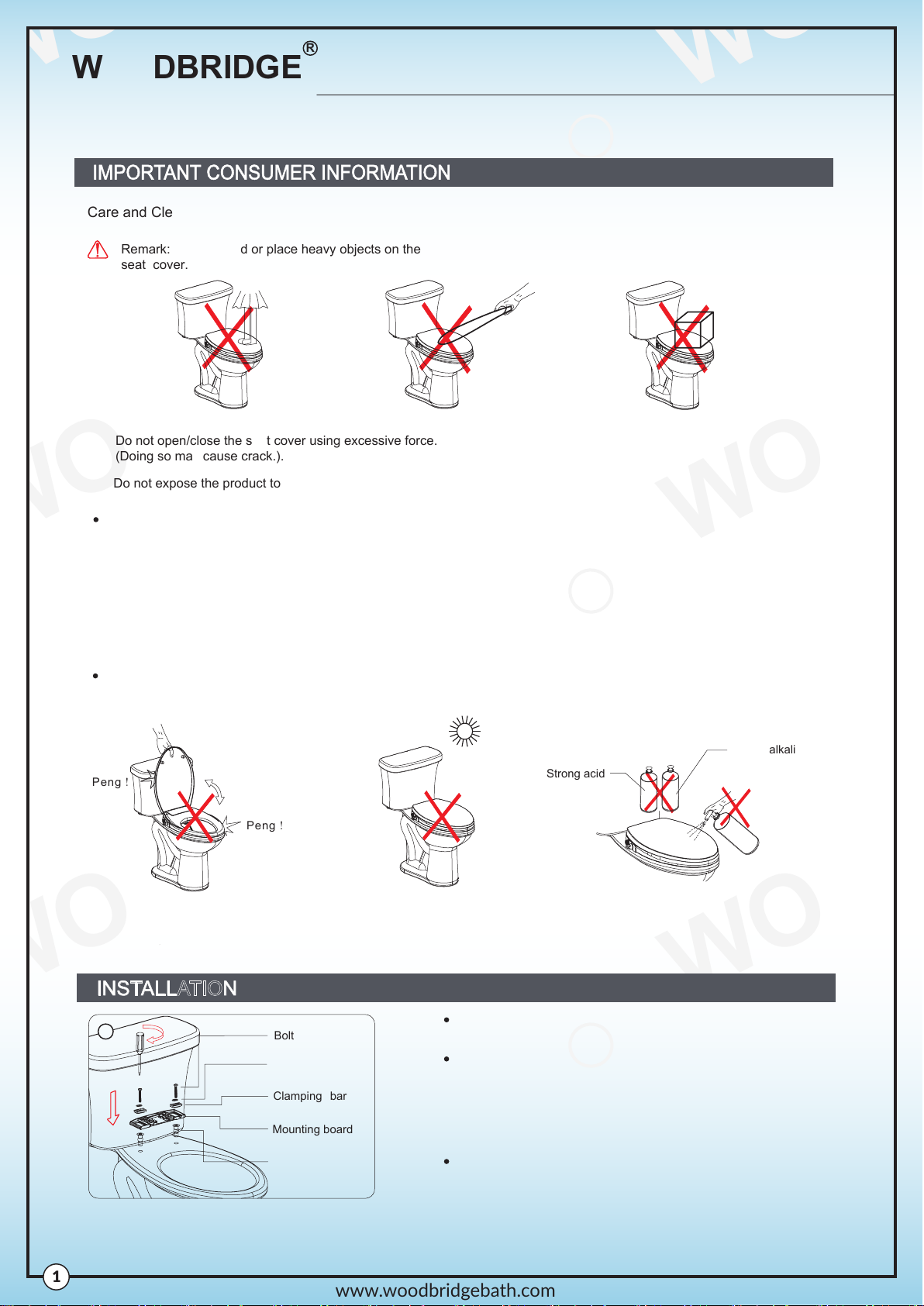

Care and Cleaning
Strong alkali
Strong acid
Peng！
Peng！
INSTALLATION
Bolt
Clamping bar
Mounting board
Remark: Do not stand or place heavy objects on the
seat cover.
Do not open/close the seat cover using excessive force.
(Doing so may cause crack.).
Do not expose the product to direct sunlight.
Clean the outside surface of your toilet seat with mild
soap and warm water. Wipe the entire surface
completely dry with a clean,soft cloth.You may use
soft abrasive cleaners when necessary to clean your
toilet seat.Do not use strong abrasive cleaners, as
they will scratch and dull the surface.Wipe any
surfaces of cleaner solutions from plastic or plated
surfaces immediately.
The toilet seat may be completely removed for
a complete cleaning. Refer to the “Toilet Seat
Operation” section for detailed information.
Insert rubber expansion nuts into bowl bolt holes, then
install mounting board,clamping bar, metal washer and
bolt into hinge holes. Using screwdriver to tighten the bolt
into rubber expansion nuts.
The distance from the front of mounting board to the front
of toilet is about 420mm.
Installation of mounting board.
1
metal washer
Rubber xpansion

R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
R
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
WOODBRIDGE
1
R
WOODBRIDGE
www.woodbridgebath.com
Hose
INSTRUCTION
" ",
" ",
Retain these installaon instrucons for future reference!
Thank you for using WoodBridge products!
Customer Service Phone: [phone]. (Monday - Friday 9 AM - 5 PM Pacific Time)
Or Email: [email protected]
Installation of seat cover.
Place the seat cover on the surface of toilet, then push
mounting board as the drawing, until the seat cover
fasten into mounting board.
If the seat cover is not assembled in the correct position, please
disassemble the seat cover and adjust the mounting board.
Installation of hose.
According to the drawing, connect three-way valve to the
water filling hole,then connect the hose with three-way valve.
Feminine cleaning: Rotate the button to
adjust the button angle to appropriate flushing.
Rear cleaning: Rotate the button to
adjust the button angle to appropriate flushing.
Stop: When the button is at the horizontal position,
the seat cover stops.
Feminine cleaning
Rotary button
Rear cleaning
Mounting board
Seat cover
Water filling hole
Three-way valve
Angle valve
2
3
