WOODCO Nova 2 User manual

2
TECHNICAL
MANUAL
NOVA 2
VACUUM UNIT

1/04/17 Rev:1.0.0
3
• Type: automatic feed system for biomass boilers
• Model: Nova 2
• Version 1.0.0
Line
NOVA 2
INSTRUCTION MANUAL
1 GENERAL INFORMATION 5
1.1 How to use the manual 5
1.2 Description of the vacuum unit 5
2 TECHNICAL DATA 6
3 CONSTRUCTION FEATURES 8
3.1 Set 9
4 SAFETY FEATURES 10
4.1 IP protection degree 11
4.2 Electrical insulation degree 11
4.3 Declaration of absence of dangerous substances 11
4.4 Fixed closure guards safety 11
4.5 Movable closure guards safety 12
4.6 Identification plate 12
5 AUTHORIZED USE OF THE VACUUM CLEANER 13
6 UNAUTHORIZED USE OF THE VACUUM CLEANER 13

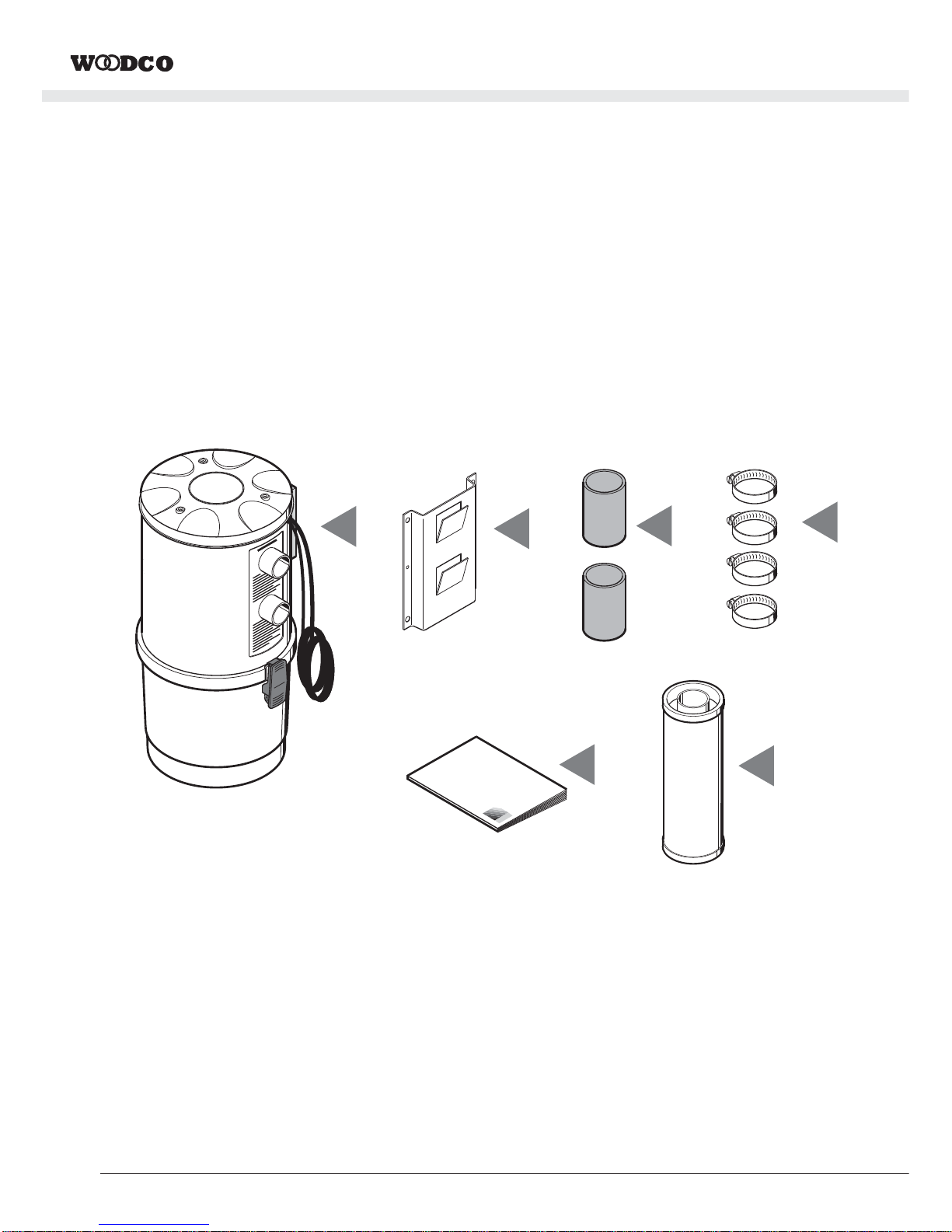

7 EQUIPMENT AND ACCESSORIES 14
8 INSTALLATION 15
8.1 Preliminary operations 15
8.2 Place of installation 15
8.3 Positioning of the vacuum cleaning unit 16
8.4 Fixing the system to the wall 16
8.5 Connection to pipes (see appendix A) 17
8.6 Instructions to install Woodco systems 18
9 STARTING THE VACUUM UNIT 19
9.1 Electrical connection 19
10 USE OF THE VACUUM UNIT 20
11 MAINTENANCE 21
11.1 Programmed routine maintenance 21
11.2 Emptying the dust bin 22
11.3 Dust collection, transfer and disposal 23
11.4 Filter cartridge maintenance 23
12 REPAIRS AND SPARE PARTS 24
12.1 Intervention criteria 24
12.2 Recommended spare parts 24
INDEX

1/04/17 Rev:1.0.0
In order to reach the best results, we recommend to use only WOODCO original spare parts.
• Type: automatic feed system for biomass boilers
• Model: Nova 2
• Version 1.0.0
INSTRUCTION MANUAL
Line
NOVA 2
4
INTRODUCTION
Dear Customer,
We would like to thank you for having
chosen Nova 2 vacuum unit, the new vacuum cleaner that will meet your requirements.
Nova unit has been designed and produced in strict compliance with the Machinery Directive
2006/42/CE (transposed into Italian Legislation by Decree Law 17/10), Low Tension Directive 2006/95/
CE, and Electromagnetic Compatibility Directive 2004/108/CE. The system has been manufactured
with top quality materials and with particular care paid to reduction of injury risk as much as possible.
Therefore we have written this manual in order to provide adequate instructions for the correct use and
maintenance of the system which are crucial to ensure the user’s safety, the correct functioning and the
long working life of the vacuum cleaning unit.
Please read the entire manual carefully, follow the instructions precisely, and above all, for safe-
ty reasons, do not intervene in any way if not specifically indicated.
12.3 Putting the suction unit out of service 24
13 Sound emission 25
14 IDEAL LOCATION OF THE UNIT TO REDUCE SOUND EMISSION 25
15 VIBRATIONS 25
16 TROUBLE SHOOTING 26
17 WARRANTY 27
APPENDIX A Installation examples with Nova 2 vacuum unit 29
INDEX

OUT
C
C
A-P
A-P
A
C
A
A
C
12
67
3
45
8
OUT
C
C
A-P
A-P
A
C
A
A
C
123
4
5
1/04/17 Rev:1.0.0
5
English
1 - GENERAL INFORMATION
1.1 How to use the manual
The instruction manual has been written by the manufacturer and is an integral part of the
product, it doesn’t substitute but it completes the application field specific rules and the general
safety rules for people, animals and objects. (EN 60204-1)
If the system is resold, given or hired out to others, the manual must be handed over to the
new user or owner.
We recommend to use and store it carefully for the entire working life of the vacuum cleaner.
This manual explains how to use the equipment correctly in order to obtain the best performan-
ce with optimal working and safety conditions.
It is strictly forbidden to reproduce, copy or disclose any part of this document by any means
without prior written consent of the Producer.
The Producer reserves the right to upgrade or modify this manual or the vacuum cleaner itself
at anytime without giving any prior notice to third parties.

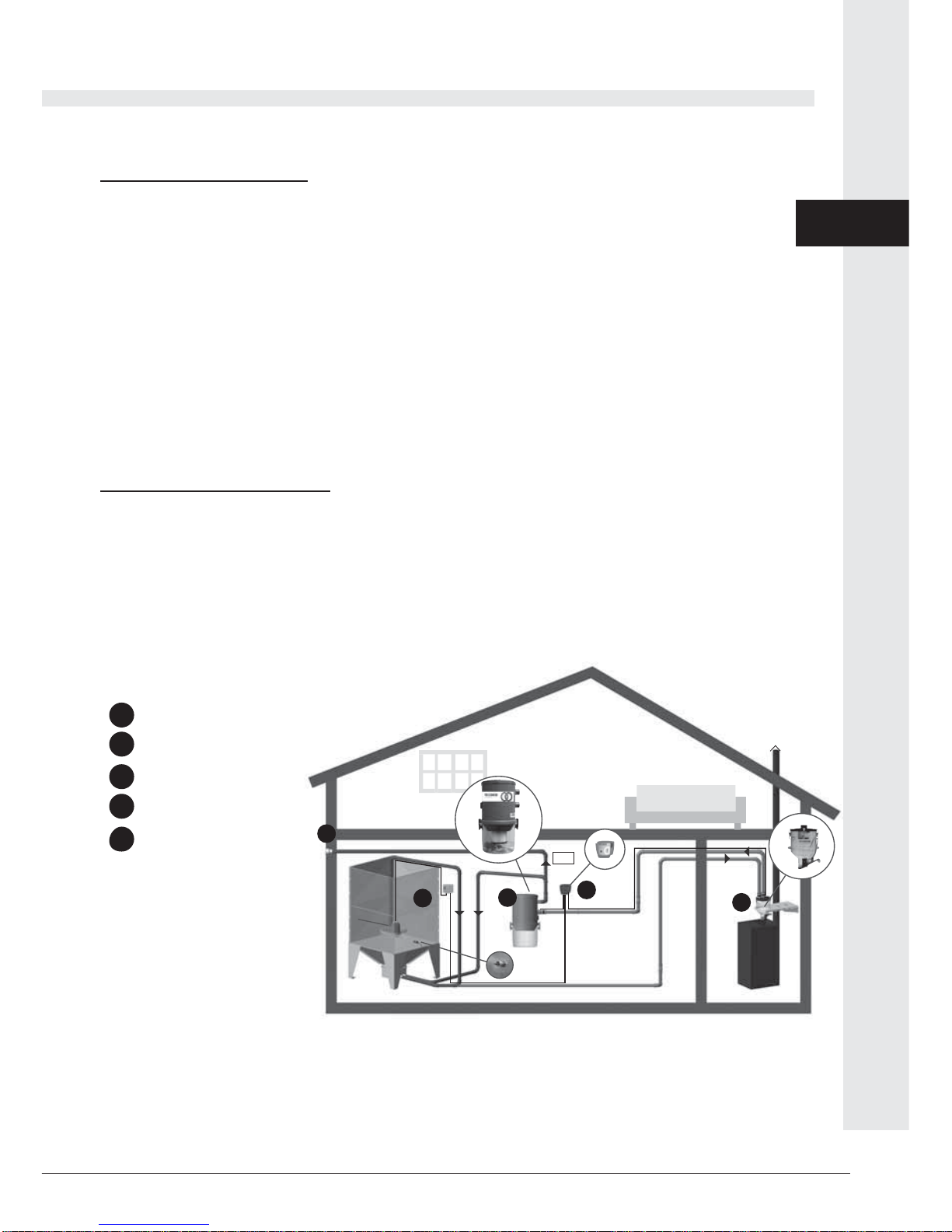

1.2 Description of the system
Nova vacuum units have been produced after constant research, applied to automatic systems
for pellet transport.

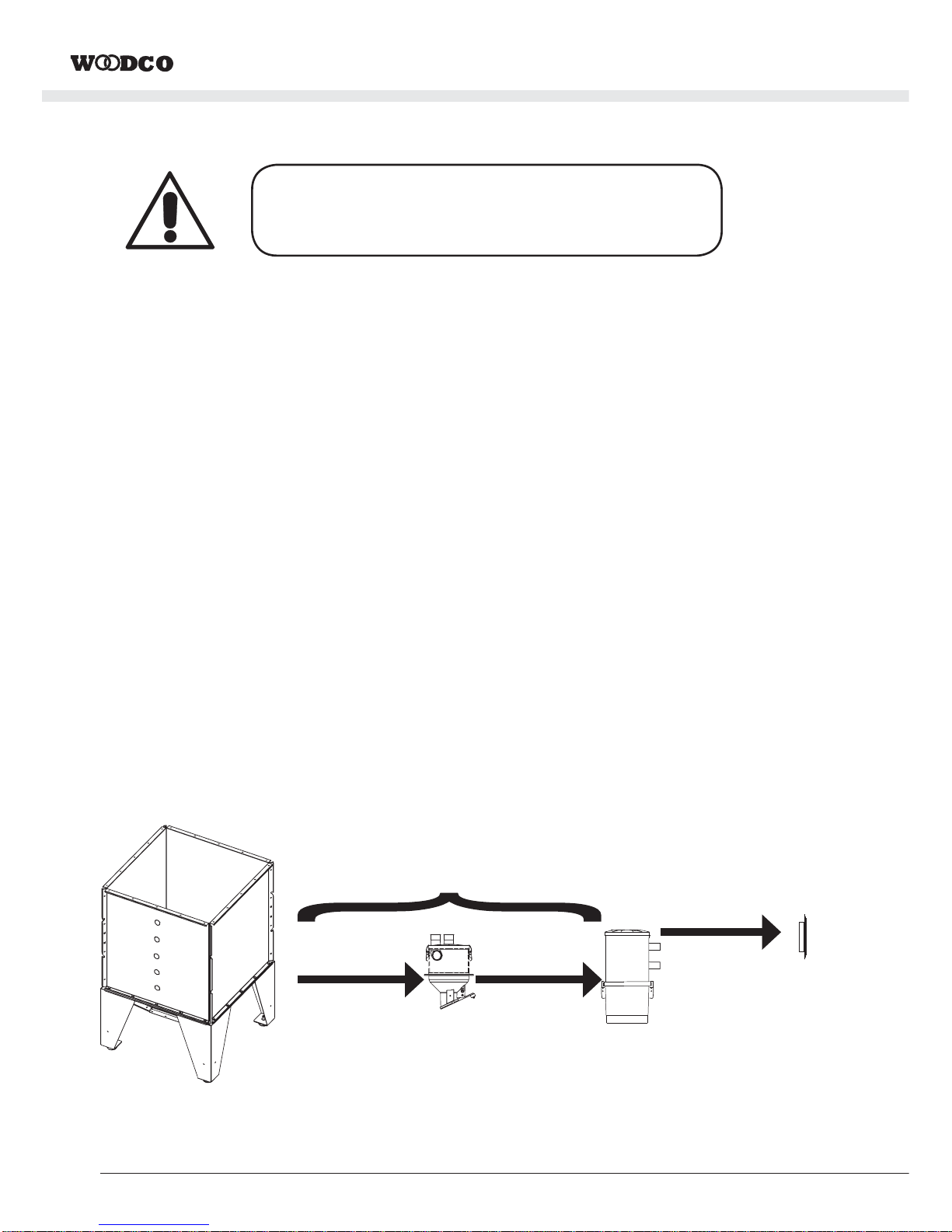

Woodco system consists of a network of pipes with three main elements: the vacuum unit, the
Dispenser and the stock container.
It is easy to install, universal, it is a complete system that makes more convenient and cheaper
the use of biomass boilers.
1vacuum unit
2control panel
3 Dispenser
4stock tank
5air vent

Instructions manual NOVA 2 vacuum unit
1/04/17 Rev:1.0.0
6

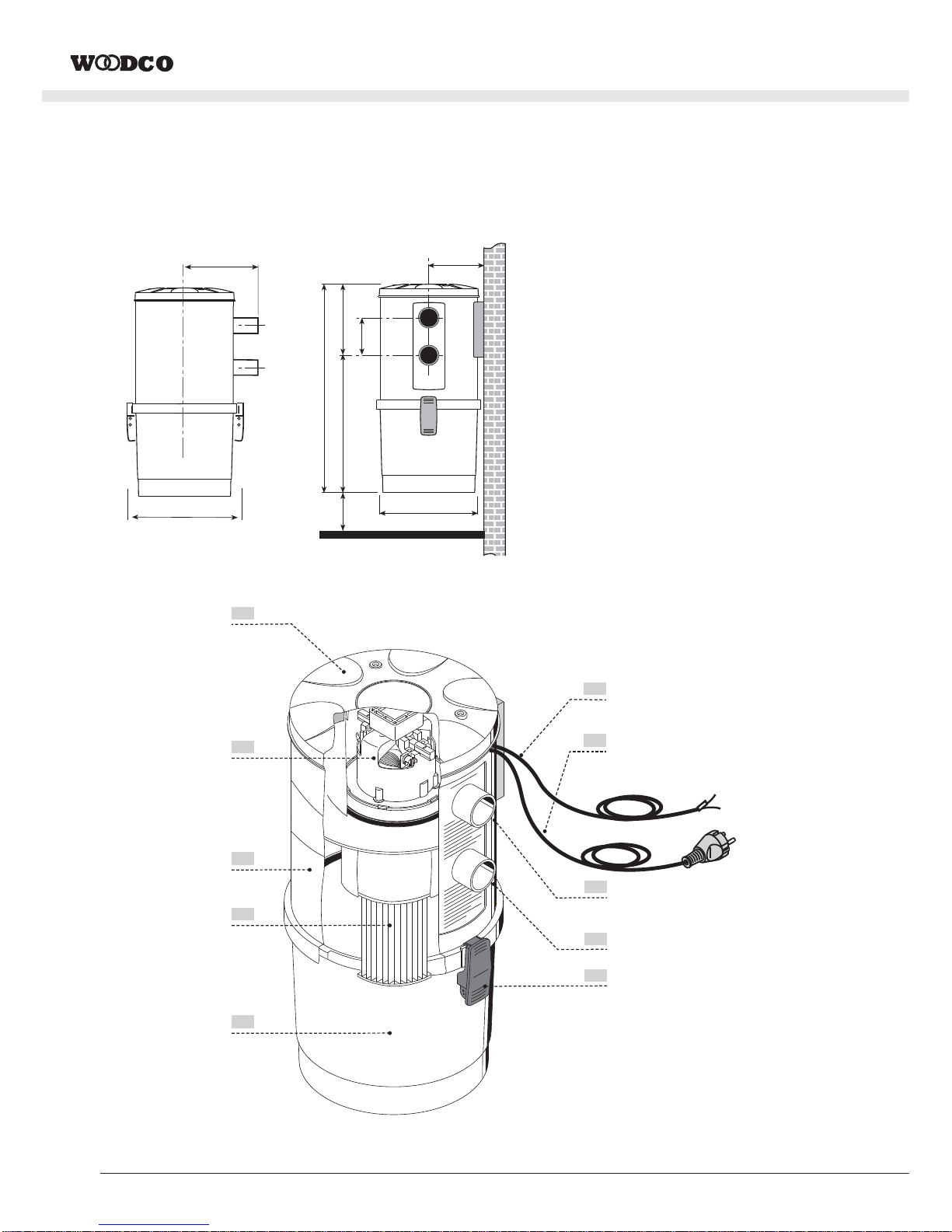

2- TECHNICAL DATA
Nova 2
G
HF
A
B
CLD
E
Sound-absorbing dome
Motor group
Body
Filter cartridge
Bin (dust container)
1
2
3
4
5
Power supply cable
Switch-on signal cable (Micro line)
6
7
Air venting
Dust inlet
9
8
Handle and closing hook
10

7
English
1/04/17 Rev:1.0.0
Nova
Model
Article
Nova 2
770305
Dust inlet Ø mm 50
Air exhaust Ø mm 50
Protection Degree IP 44
Power supply V ac 230
Frequency Hz 50/60
Motor power kW 1,35
Absorption A 5,6
Inlets power V dc 12
Maximum air ow m3/h 234
Filtering surface cm26700
Dust bin capacity l 18
Air exhaust YES
Silencer (Ø 50 mm) YES
Weight kg 7
Size A mm 160
Size B mm 110
Size C mm 210
Size D mm 395
Size E mm 605
Size F mm 270
Size G mm 175
Size H mm 310
Size L (min) mm 180
Size M mm 100
Sound level below dB(A) < 70
N. B: nominal sound levels. They can vary according to environment and installation

Instructions manual NOVA 2 vacuum unit
1/04/17 Rev:1.0.0
8
3 - CONSTRUCTION CHARACTERISTICS
Nova 2 is made in plastic materials, polypropylene andABS, in order to resist atmospheric agents. They
have been designed and manufactured in compliance with all the criteria imposed by the current regula-
tions and the European directives while carefully paying attention to crucial elements like performance,
power and operating capacity.
The main technical characteristics are as follows:
• Plastic material cylindrical body.
• Large capacity dust container (18 l).
• Soundproofed motor compartment (max. sound level below 70 dBA).
• Motor-rotor group, equipped with direct-cooling single-phase electric brush motors.
• Overcurrent and overvoltage double protection printed circuit board.
• 12 V dc power supply of the vacuum inlets.
• Polyester M-Class filter cartridge, water washable.
• IP44 Protection Degree.
The vacuum cleaner features a Class 2 insulation level.
Model Article Dust bin capacity
(l)
Filtering surface
(cm2)
Power supply
(V ac)
Motor power
(kW)
Maximum air ow
(m
3
/h)
Nova 2 770305 18 6700 120 1,35 234

9
English
1/04/17 Rev:1.0.0

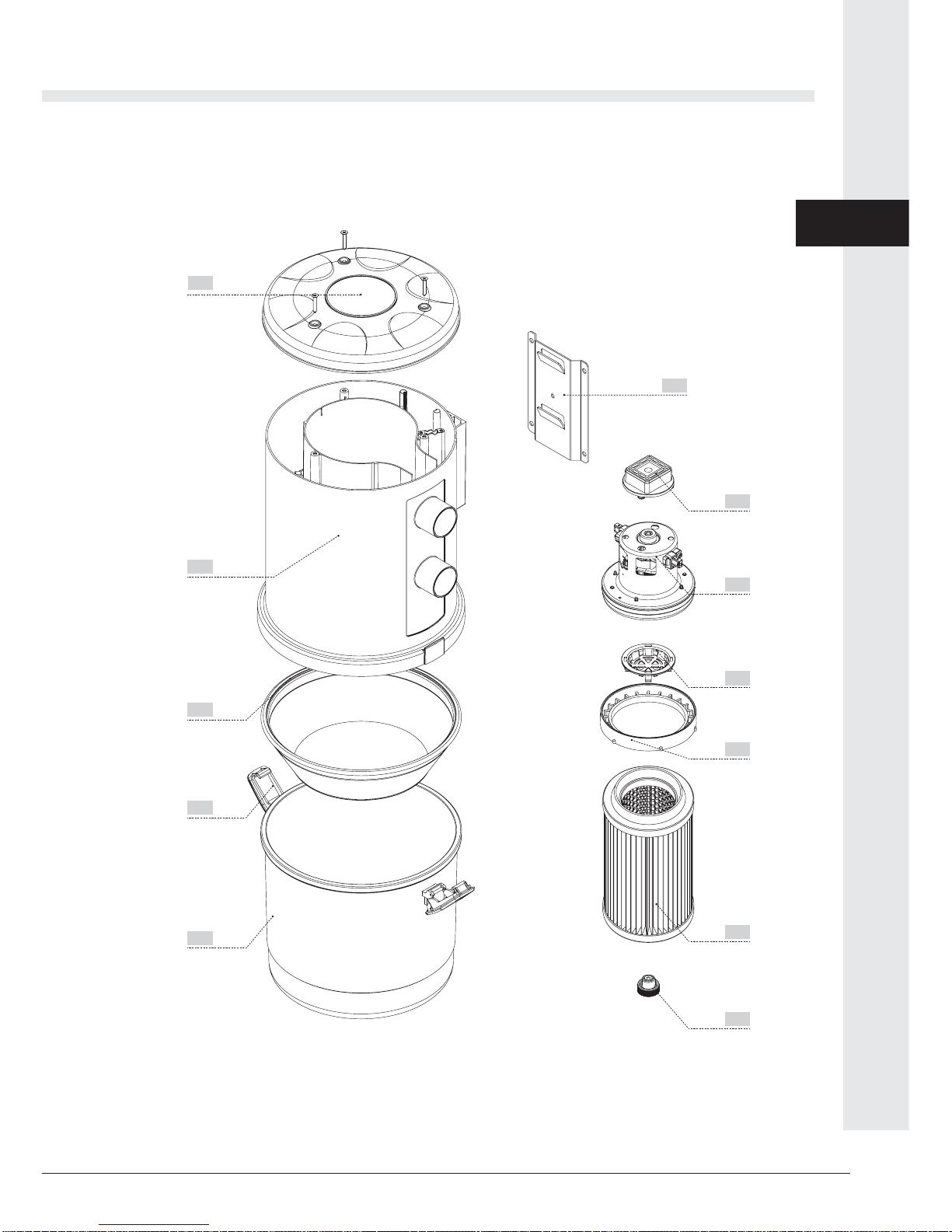

3.1 Set Nova 2
Filter knob
Filter
cartridge
Motor
Protection
grid
Lower motor
gasket
Upper motor
gasket
Fixing plate
2
3
4
5
Body
Bin gasket
support
Handle and
closing hook
Dust
container
12
11
8
9
10
7
6
1
Cover

Instructions manual NOVA 2 vacuum unit
1/04/17 Rev:1.0.0
10
4 SAFETY FEATURES
In compliance with safety regulations detailed in the Machinery Directive 2006/42/CE (transposed into
the Italian Legislation by Decree Law 17/10), in the Low Voltage Directive 2006/95/CE, and in the
Electromagnetic Compatibility Directive 2004/108/CE, Nova 1 vacuum unit complies with the standard
established for electrical appliances for household and similar purposes EN 60335-1 (2008) and with
the Regulation C EN 60335-2-2 (2011), specially conceived for vacuum cleaners for household and
similar purposes with rated voltage not exceeding 250 V.
It is recommended to read carefully all the installation, use and maintenance instructions
detailed in this manual.
Furthermore, the following WARNINGS should always be observed:
• Never use the machine for unauthorized purposes.
• Keep children away from the vacuum cleaner while in function. Children should not play with the ma-
chine nor with the suction sockets.
• This equipment should not be used by persons (including children) with reduced psychic, sensory
or mental capacities or by persons with no experience nor knowledge of the system, unless they are
under the guidance or instructed in the use of the machine by persons responsible for their safety.
• Children must always be supervised to ensure they do not play with the machine.
• Switch off the power supply immediately if:
- the electric cable is damaged or worn.
- the vacuum cleaner has been exposed to rain or excessive humidity.
- the vacuum cleaner has been knocked or the outer cover has been damaged in any way.
- you think the system requires maintenance or repair.
• Wear protective gloves and mask to carry out maintenance, to empty the dust bin or replace and clean
the filter.
• Only use original spare parts and accessories.
• Do not use the system without a filter cartridge.
• Do not block the exhaust air pipes or the motor cooling intakes.
• Do not leave the system switched on when not using it and disconnect it from power supply when the
system is not to be used for a long period of time.
Finally, remind that pictograms or danger and warning signals can be found on those parts of the
equipment where, if not strictly followed, potential risky situations may occur.

11
English
1/04/17 Rev:1.0.0
WARNING: Manufacturer declines any form of responsibility or guarantee if the purchaser,
or anyone in his stead, makes even the slightest modification or adjustment to the purchased
product. The unit has been designed to satisfy at best the present needs both in terms of quality
and operating capacity.
All materials and components used to manufacture this product comply with CE safety regula-
tions. All relevant certifications are held at the offices of the Manufacturer.
The realization of the system and Woodco components installation must satisfy security
rules according the type of rooms they are installed in.
4.1 Protection Degree
IP 44: The appliance features a protection against solid objects having a size exceeding 1
mm and it is protected against water spray.
4.2 Electrical insulation degree
CLASSE II: the appliance features double electrical insulation. It doesn’t need a connection to
the ground circuit through the main electric circuit.
4.3 Declaration of absence of dangerous substances
The Manufacturer declares that its products and appliances have been manufactured with
materials
which comply with the restrictions established by the health and environment protection re-
gulations in force and do not contain SVHC-classified substances (Substance of Very High
Concern) in compliance with CE regulation 1907/2006 (REACH: i.e. Registration, Evaluation,
Authorization and Restriction of Chemical Substances).
Although these substances have not been used during the processing cycles of raw materials
and during the manufacturing cycles of our products, their presence in p.p.m. (parts per million)
cannot be completely excluded due to micro-pollution of raw materials.
4.4 Fixed closure guards safety
The vacuum cleaner is delivered to the Customer with its main body completely assembled.
Moving
parts (suction motor turbine blades) are protected by a protection grid directly assembled on
the inlet of the suction motor compartment. This protection grid cannot be accessed by the ope-
rator. The operator also does not have access to the electrically-operated parts of the appliance
which are protected by a cover which can only be removed by unscrewing the Torsen screws
used to fix the soundproofing dome of the housing where the suction motors are assembled.
Every intervention on the control board and on the motors must be carried out by qualified
personnel
only after disconnecting the electrical power supply.
IP44

Instructions manual NOVA 2 vacuum unit
1/04/17 Rev:1.0.0
12
....................................
.........................................................................
IP44
Model:
P/N: S/N:
4.5 Movable closure guards safety
There are no movable closure guards assembled on the appliance. Every guard assembled is consi-
dered a fixed guard and is fastened with special screws. The Manufacturer reminds that it is absolutely
forbidden to replace the screws used for the design and manufacture the appliances with screws with
feature different characteristics.
The Manufacturer will immediately suspend the product guarantee in case of machine tampering
carried out by the Customer.

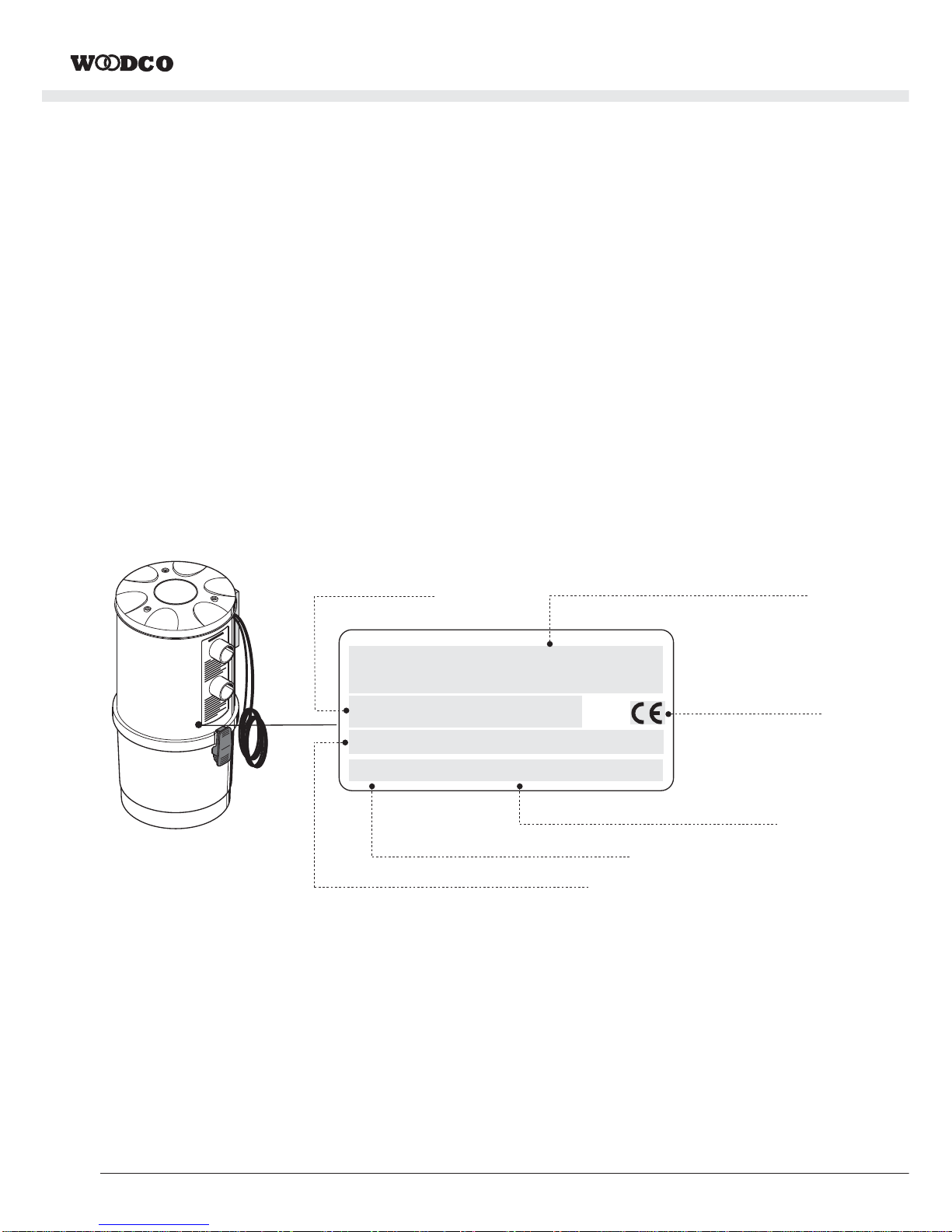

4.6 Identification plate
The CE identification plate is assembled on the side of the connection to the piping network. This should
not be removed or damaged.
Model Manufacturer Identification
CE Conformity
marking
Technical data of the electrical motor
Serial number
Article number

13
English
1/04/17 Rev:1.0.0
5 - AUTHORIZED USE OF THE VACUUM CLEANER
Nova 2 vacuum cleaner has been designed for Woodco installations.
It can be used for installations with these features:
• Piping network realized with Ø 50 mm pipe
• 200/240 V ac power supply
• Suitable for installation in domestic spaces such as store rooms, boiler rooms, garages and balco-
nies (protected from the elements).
6 - UNAUTHORIZED USE OF THE VACUUM CLEANER
It is very important DO NOT USE the unit in these circumstances, because they are dangerous
and improper.
Furthermore the system has not been designed to be used in environments with risk of explo-
sion, and therefore:
• it is forbidden to vacuum clean materials with high explosion risk (gunpowder) or materials which are
individually inert but that, once collected and mixed in the dust bin, could provoke dangerous chemi-
cal reactions.
• It is absolutely forbidden to use the vacuum cleaner in explosive atmosphere or outside the standard
temperature, pressure and humidity levels.
Any use of the appliance other than those specified above is forbidden.
Any change or modification made to the system in order to vacuum clean a particular type of
material must obtain the prior written approval of the manufacturer.
The use of the system for purposes other than those for which it was manufactured, represents
an irregular condition which can cause damage to the product and seriously compromise the
operator’s safety.

Instructions manual NOVA 2 vacuum unit
1/04/17 Rev:1.0.0
14
Manuale Tecnico
per centrali aspiranti civili
7- EQUIPMENT AND ACCESSORIES
Together with the unit, delivered with this instruction manual, the following accessories are supplied in
the packaging as follows:
1) N° 1 vacuum unit
2) N°1 metal bracket to fix the unit to the wall
3) N°2 rubber sleeves for the connection to the vacuum pipe network
4) N°4 metal clamps to fix the sleeves
5) N°1 installation, use and maintenance manual
6) N°1 plastic silencer for air discharge.
Check that the system, the accessories and the kit correspond to the products ordered and that they
have not been evidently damaged during transport.
In case of problems contact your Retailer immediately.
1234
56

15
English
1/04/17 Rev:1.0.0
8 - INSTALLATION
- WARNING -
THESE PROCEDURES MUST BE CARRIED
OUT BY QUALIFIED PERSONNEL
8.1 Preliminary operations
The suction system is shipped to the customer completely assembled and packed.
Before switching the machine on, the following checks are advisable:
• Check that the packaging is intact.
• Check that the appliance has not been damaged in any way and in particular check that all the
protruding parts are intact.
• Check that the filter cartridge is correctly installed.
• Using the equipment list and the kit and accessories list, check that the equipment and the kit
have been exactly and completely delivered.
If any damage or irregularity is found or if any accessory is missing, do not install the appliance and
contact your Retailer..
8.2 Place of installation
The use of the vacuum cleaner requires a suction piping network installed by qualified personnel
who has already selected the most suitable location.
Below you will find the main indications to be followed for a correct installation:
• Install the system in service rooms away from bad weather, dampness and excessive temperatu-
re variations.
• Choose a place far from heat sources
• Make sure that there is sufficient space around the system and that the surrounding area is well lit
to facilitate the interventions for maintenance and repairs.

Instructions manual NOVA 2 vacuum unit
1/04/17 Rev:1.0.0
16
8.3 Positioning of the vacuum cleaning unit
For a correct use and to facilitate maintenance it is advisable to keep a minimum distance of 60 cm on
three sides around the appliance (excluding the side on which it is fixed to the wall).
2
Trace the drilling position using the template provided
(drilling template); if this has already been done, proceed to
the next step.
Drill the holes
8.4 Fixing the vacuum cleaner to the wall
The vacuum cleaner must be securely and permanently fixed to a solid wall using the bracket provided
and the suitable wall anchors or plugs taking into account that the total weight to be supported can be
seven/eight times that of the system itself.
The system should be positioned high enough off the ground to allow the dust collection bin to be
emptied and the filter to be replaced in a simple way.
To do this follow the instructions detailed below:
Height from the ground is detailed in the table below:
500
1
Nova
Model
Article
Nova 2
770305
Measurement X (min.) mm 500

17
English
1/04/17 Rev:1.0.0

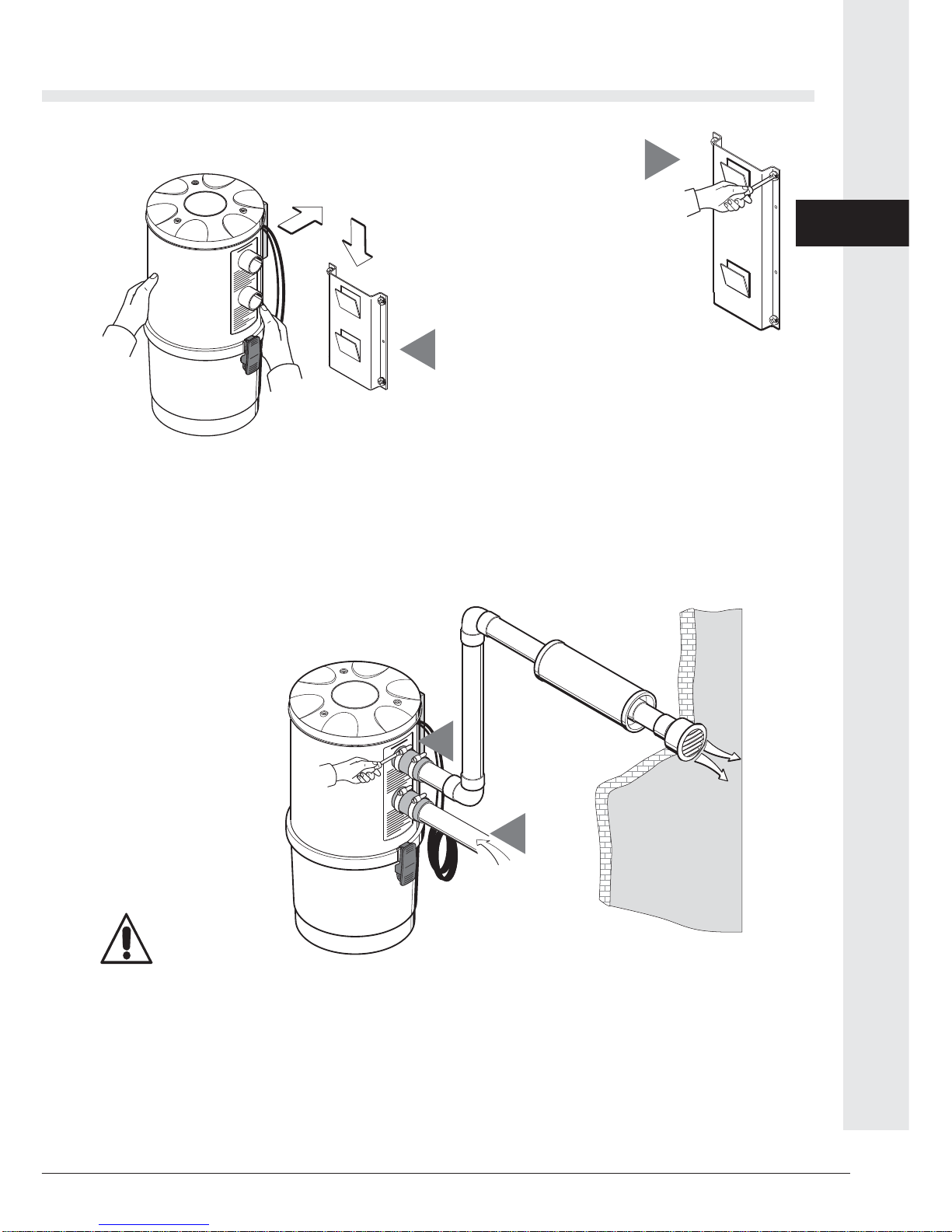

Tighten the screws in the wall plugs
and check that the bracket is well
anchored to the wall. 3
Hook the vacuum cleaner to the an-
choring bracket by lifting it, leaning it
against the wall and allowing it to slide
down until it fits into the fixing plate.
4
8.5 Connection to the piping network (see also appendix A)
1. Using the sleeve, connect the dust inlet coupling of the vacuum cleaner, identified with (B) in the
picture, to the suction pipe from the piping network.
2. Using the sleeve, connect the venting air coupling of the central vacuum cleaner, identified with (C),
3. Place the silencer on the air discharge pipe.
C
B
Do not glue the pipe end of the network pipe to the dust inlet coupling or to the air exhaust coupling,
always use the sleeves provided. In case of air expulsion to the outside, please follow the
instructions below:
Discharge pipe Max length 5 meters
SEE APPENDIX FOR COMPLETE USES OF VACUUM UNITS WITH AUTOMATIC FEED SYSTEM
FOR BOILERS WITH SOLID FUELS AND RELATED WARNINGS.

Instructions manual NOVA 2 vacuum unit
1/04/17 Rev:1.0.0
18
8.6 Instructions for Woodco systems installation
Pipe network
Pipe lengths, allowed between the different components of the vacuum unit, are indicative and pro-
visional.
To do Woodco systems it is necessary to use strong and long-lasting installation material, available
in antistatic zync-coated pipes Ø 50 mm, or PVC installation material.
All connections must be watertight, in order to grant the maximum performance .
It is better to realize the pipe network in a straight line, because with many direction changes it is
necessary to realize a shorter pipe network.
Avoid networks with positive or negative traps.
For some connections it is possible to use spiral pipe, in antistatic plastic material, with smooth
internal walls. Radius of curvature for installation made with flexible hose cannot be under 30 cm.
It is better to reduce to the minimum sections realized in flexible hose, to optimize installation per-
formances. All pipes must be fixed to walls or strong supports every 150 cm. Horizontal sections
must be made with spirit level, while vertical sections cannot be over 3,5 meters.
In case of connection between rigid steel pipes and flexible pipes, the spiral inside the flexible hose
must be connected to the steel pipe, to grant antistatic properties.
To avoid electrostatic charges, pipe network must be grounded, in accordance with current rules.
Warning
We recommend using only original pipes, connections and accessories as they have been realized
on this purpose.
Before installing and using Woodco system, we recommend to read this manual carefully and, in
case of doubts, please contact qualified person.
Construction and installation of systems must be made according to safety rules related
to the place they are installed in.
WARNING: the system installation must be
made by qualified personnel only.
Fuel
MAX m 25
MAX m 5
Ø50 mm
Dusts
Air
Air vent

19
English
1/04/17 Rev:1.0.0

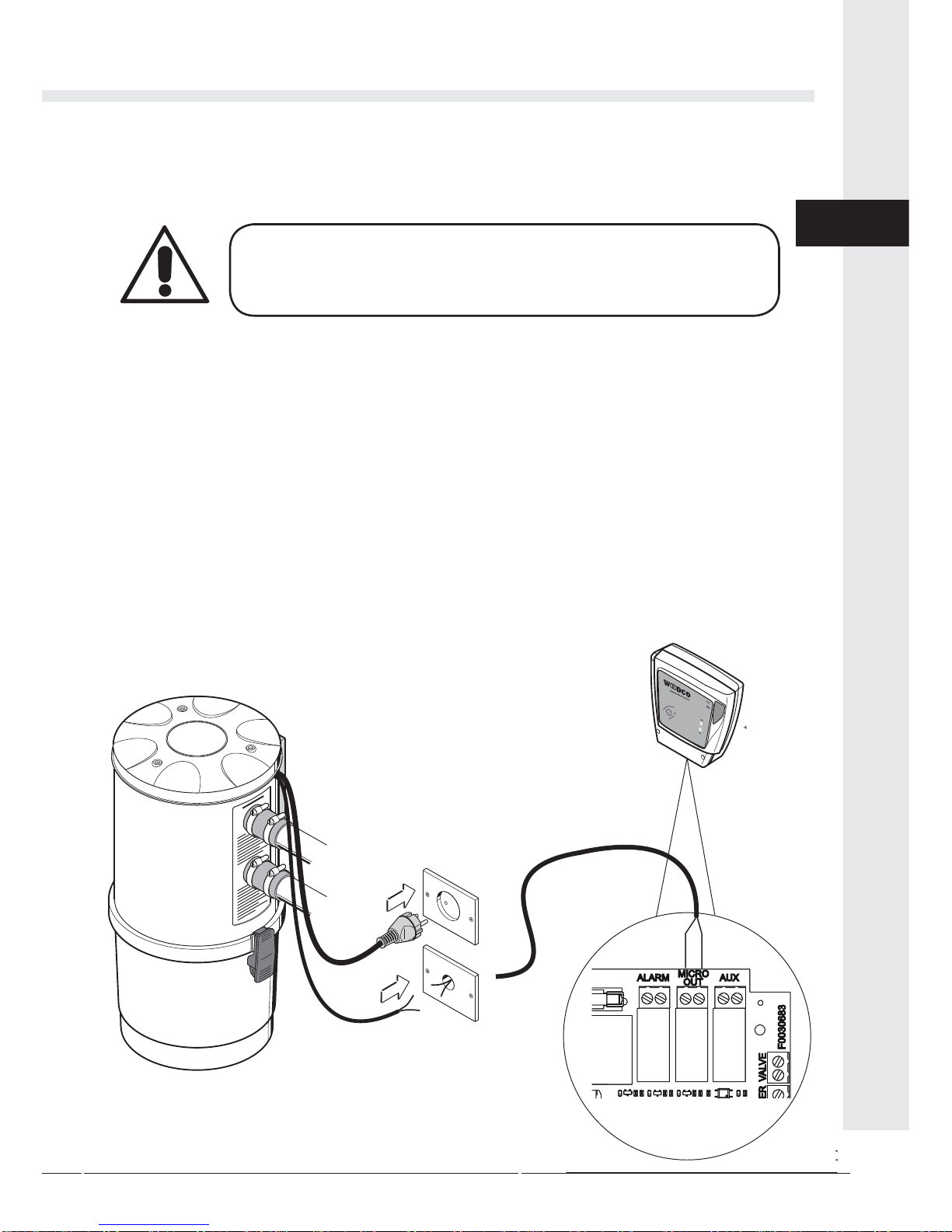

9.1 Electrical connection
Before connecting the system to the electrical power supply check that the supply voltage correspon-
ds to the required by the vacuum cleaner (see the identification plate).
The manufacturer declines any responsibility for damages to persons and/or objects due to a con-
nection to a non-complying electric wiring.
Follow the instructions (see picture page 22) detailed below to carry out the operation:
• Connect the input signal cable (MICRO LINE) to the Woodco Control Panel Micro Out (see ma-
nual)
• Insert the plug of the power supply cable from the central system in the electric inlet.
• Check that the electrical wiring of the house has been set up in compliance with the electrical
regulations in force.
• Do not power the system with supply voltage from provisional or temporary switchboards (for
example construction sites switchboards) to avoid possible damage to the electronic parts.
WARNING: the electrical connection must be carried
out by qualified personnel ONLY.
9 STARTING THE VACUUM CLEANER
.
120 V
12 V
Micro Line
120 V ac
3
1
0
OFF
OFF
ON
F0030683
ALARM MICRO
OUT AUX
REED
MICRO
IN TIMER VALVE
SENSOR A SENSOR B
- + PNP NPN - + PNP NPN
POT
RELAY
SWITCHING
AC/DC
FUSE
RELAY RELAY
L
N
F0030683
ALARM MICRO
OUT AUX
REED
MICRO
IN TIMER VALVE
SENSOR A SENSOR B
- + PNP NPN - + PNP NPN
POT
RELAY
SWITCHING
AC/DC
FUSE
RELAY RELAY
L
N
F0030683
ALARM MICRO
OUT AUX
REED
MICRO
IN
ER VALVE
SENSOR A SENSOR B
- + PNP NPN - + PNP NPN
L
N
REED
MICRO
IN
SENSOR A SENSOR B
- + PNP NPN - + PNP NPN
L
N
1
F0030683
ALAR
M
MICR
O
OU
T
AU
X
ER
VA
LV
E

Instructions manual NOVA 2 vacuum unit
1/04/17 Rev:1.0.0
20
10 USE OF THE CENTRAL UNIT
When Nova 2 vacuum unit is connected to the power supply, it can be started every time the
Control Panel asks for it or when a flexible hose is plugged into any of the vacuum inlets, after the
section valve for manual division has been closed.
This is made by an electric contact inside the electric board of the Control Panel, or inside the
vacuum inlet, that lights up the motor of the vacuum unit.
Routine maintenance involves the dust bin to be emptied and the filter cartridge to be regularly
cleaned.
3
1
2
0
OFF
OFF
ON
3
1
2
0
OFF
OFF
ON

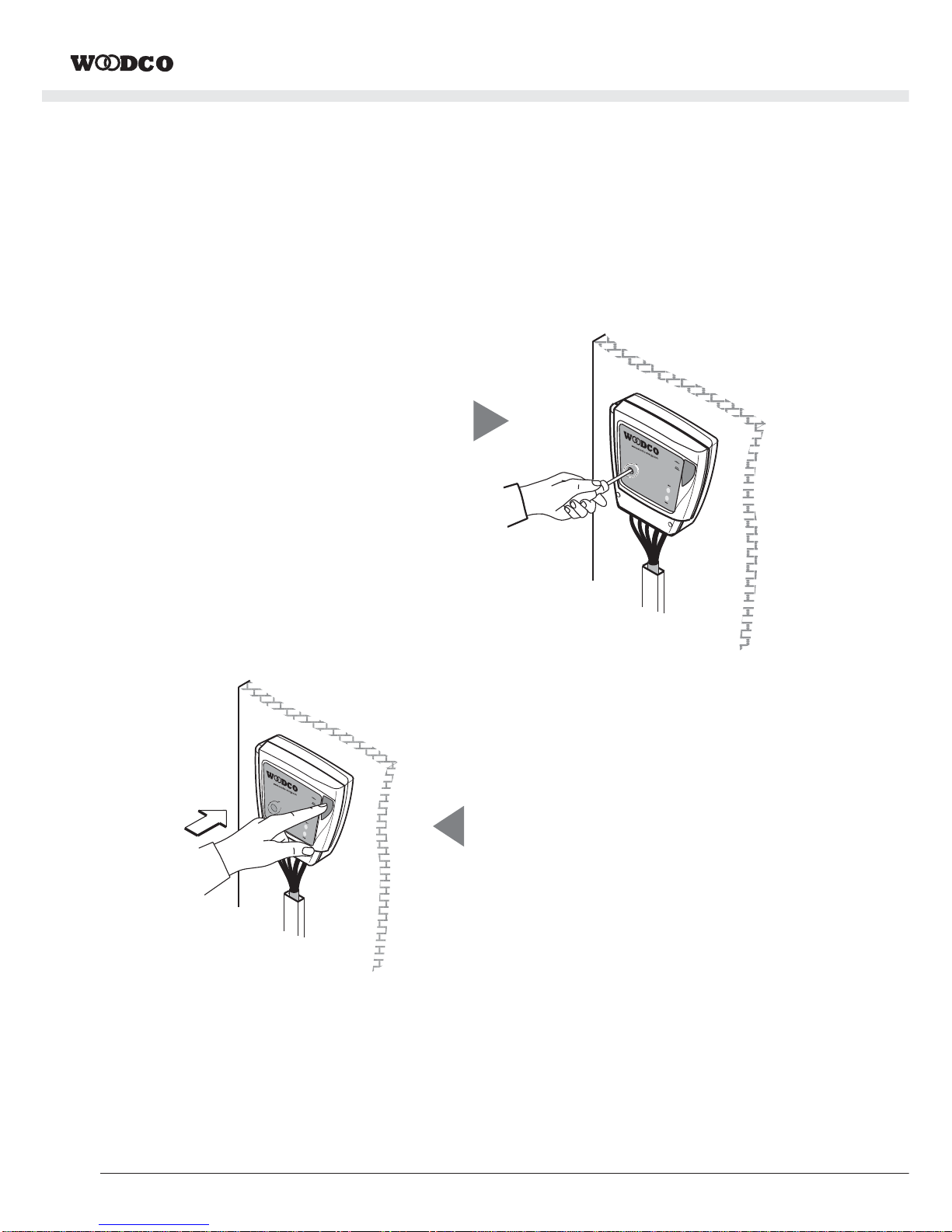

Turn right the regulator to increase the va-
cuuming time to transport the fuel from the
stock tank to the Dispenser (see Control
Panel manual).
1
Press the power button, the
Power led lights up and the
fuel transport system starts.
2
