WOOX R5077 User manual

User manual P1
Handbuch P23
Manuel utilisateur P43
Manuale utente P64
Manual de usuario P84
Version: 1.0 20190403
R5077

1
EN
General information
Thank you for purchasing the Woox home Wi-Fi
Smart Light Bulb.
For the proper installation and use of this
product, please read these instructions carefully.
Overview
2
1

2
EN
1LED Bulb
2GU10 Fitting
LED bulb status
LED bulb Device status
Solid on Connected
Blinks twice per
second
Setup in EZ mode
Blinks once per two
seconds
Setup in AP mode
System requirements
• Smartphone/Tablet with at least iOS 8.0 or
Android 5.0
• WLAN-enabled router (2.4 GHz)
• Woox home app

3
EN
Setting up the Smart Light Bulb
via the Woox home app
1. Connect your smartphone to the same WiFi
network that you want to connect the Smart
Light Bulb to.
2. Install the Woox home app . Search
"Woox home" or scan the QR code to download
the app from the Google Play Store (for Android
devices) or the App Store (for iPhone).
3. Creating a profile
- Open the Woox home app.

4
EN
- Tap Register.
- Tap Agree to accept the privacy policy.
- Choose your region by selecting the Country
Code.
- Enter your email address or phone number
and Tap Continue.
- Enter the confirmation code sent to the email
address or phone number you provided, and
assign a password.
- Tap Add Home.
- Enter your Home Name to assign a name to

5
EN
your location.
- Select your Family Location to define the
location of your devices.
- Choose a room (e.g. Bedroom) in which you
want to use the device.
- Tap Done to complete creating the profile.

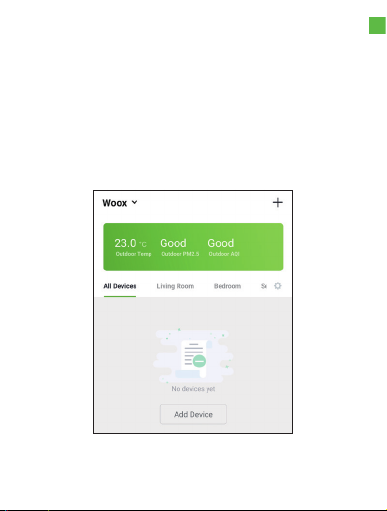

4. Setting up the Smart Light Bulb
- Tap Add Device or Tap the +symbol in the
top right corner of the app.

6
EN
- Tap on the Lighting device option.
- Ensure the LED indicator is flashing.
If the Smart Light Bulb isn't flashing, turn ON/OFF
wall switch 3 times until the LED bulb starts to flash.
There are two methods of WiFi
connection: EZ mode (LED rapidly flashes twice
per second) and AP mode (LED slowly flashes
once every 2 seconds). The default setting of this
product is EZ mode.
To switch between EZ mode and AP mode, turn
ON/OFF wall switch 3 times. The LED status will
then switch pattern.

7
EN
EZ mode (default method)
- Tap to Confirm if the indicator flashes
rapidly.
Only 2.4GHz wifi is supported.
- Enter the WiFi password and confirm.
- The app will now search for the Smart Light
Bulb and register it to your account.
-Assign a name to the Smart Light Bulb and
Tap Save to confirm.
- Allocate the Smart Light Bulb to a room
(optional).
- Tap Done to complete connecting the Smart
Light Bulb.
Congratulations you have now setup the
Smart Light Bulb for use with the app.

8
EN
AP mode (alternitive method)
- Tap Confirm if the indicator flashes slowly.
Only 2.4GHz wifi is supported.
- Enter the WiFi password and confirm.
- Tap Connect Now and select the Smart Light
Bulb's hotspot "Woox-xxxx" to connect.

9
EN
- Back to the App and it will now search for
the Smart Light Bulb and register it to your
account.
-Assign a name to the Smart Light Bulb and
Tap Save to confirm.
- Allocate the Smart Light Bulb to a room
(optional).
- Tap Done to complete connecting the Smart
Light Bulb.
Congratulations you have now setup the
Smart Light Bulb for use with the app.
If the installation is not successful,
restart the app and try again.

10
EN
Connect Smart Light Bulb to
Amazon Alexa

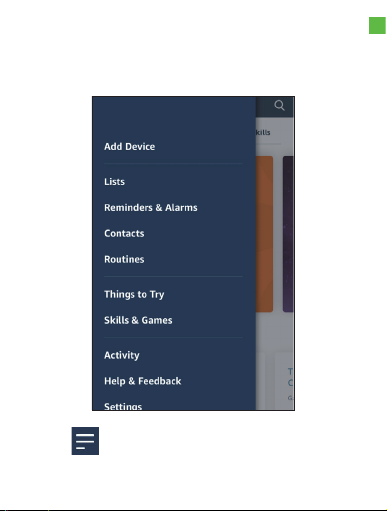

- Start the Alexa app.
- Click button in the top-left corner.
- Click Skills & Games.

11
EN
- Search for the Woox home skill.
- Tap on the Woox home skill.
- Tap Enable.
- Enter your Woox home app account and
password, then tap Link Now.

12
EN
- Tap Authorise.
- Now your Woox home account is linked to
Amazon alexa.
- Tap DISCOVER DEVICES to link Smart Light
Bulb to Alexa.
Now you can say "Alexa, turn on Smart Light
Bulb."

13
EN
Connect Smart Light Bulb to
Google Assistant
- Start the Google Home app .
- Tap button.
- Tap Settings.
- Tap Assistant and Home control.
- Tap button in the bottom-right.
- Search Woox home action and tap it.

14
EN
- Enter your Woox home app account and
password, then tap Link Now.

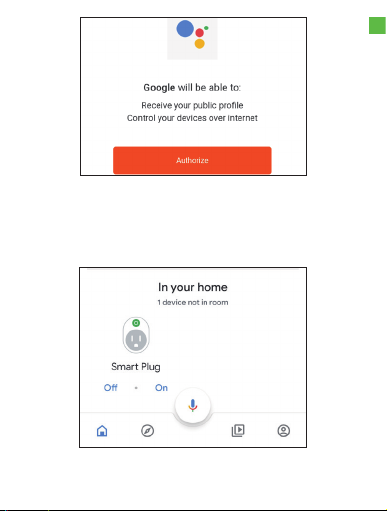

- Tap Authorise.

15
EN
- Now your Woox home account is linked to
Google Assistant. All the smart devices in your
Woox home account will now also be in the
Google Home app.
Now you can say "Hey google, turn on Smart
Light Bulb."

16
EN
Connect to IFTTT
Woox Smart Light Bulb is compatible
with the Smart Life service in IFTTT.
- Start IFTTT app.
- Search for the Smart life service.
- Choose Smart Life.
- Enter your Woox home app account and
password and tap Link Now to link your
Woox home account.
You can now use IFTTT with your Smart Light
Bulb.

17
EN
Troubleshooting
1. Setting Up
• Please make sure the Smart Light Bulb is
in configuration mode. TheLED indicator
should be blinking.
• Please make sure your network is 2.4GHz.
If you router has both 2.4GHz and 5GHz,
try to disable 5GHz whilst setting up the
smat plug. After setup you can enable 5GHz
again.
• If Smart Light Bulb is in EZ mode, please try
it with AP mode.
• Enable router's broadcasting funtion.
• Configure the router WiFi authorization
method as WPA2-PSK and encryption type
as AES, or set both as auto.
• Router wireless mode can not be set to
802.11n only.
• Restart the smart plug and set up it again.
2. Smart Light Bulb is offline.

18
EN
• Please restore the plug and set it up again.
3. Alexa can not find the Smart Light Bulb.
• Please try to disable Woox home skill and
enable it again.
Tech support: suppor[email protected]
Restore factory settings
- Select the Smart Light Bulb in the device list.
- Tap the button to open the settings menu
for the Smart Light Bulb.
- Tap Restore Manufacturer Defaults and tap
Confirm in the pop-up.
- When the factory settings have been restored,
the status LED will flash. The Smart Light Bulb
has now been reset and is ready to be
connected to a network again.

19
EN
Hazard information:
Do not open the device. It does not contain any
parts that can be maintained by the user. There is
a risk of electric shock if the device is opened.
Do not use the device if there are signs of
damage. If you have any doubt have the device
checked by an expert.
The device is for indoor use only.
The device is not a toy; do not allow children to
play with it.
Do not exceed the capacity specified for the
device.
The device should only be connected to an
easily accessible power socket.
Only use the device with properly installed
