WorkPro LightMouse LM-5 User manual

User Manual
Rev. 12.03.01

INDEX
Before Starting 3
Contents of the package 3
Cautions 3
Information 3
Introduction 4
Features 5
Technical data
Setup and Use 6
WokNet Mode
Art-Net Mode 6
OSC Mode 7
Front Panel
Rear panel
Worknet mode configuration 10
ArtNet mode configuration 10
Web Server 11
1 User Manual
5
6
8
9

Use & Programming 20
Program 20
Live 22
Execute 24
OSC Commands Implementation 25
DMX Control 26
Edit 36
Play 47
Reply Messages
2 User Manual
59
About ouchOsc 14
LM-5 Layouts & TouchOsc 15
Copying Layouts
Linking TouchOsc & LM-5
15
17
Considerations about TouchOSC
and LM 5 58

BEFORE STARTING
Contents of the package
•1 x LightMouse LM-5
•1 x External power supply DC 5V 500mA
•1 x User manual
Cautions
•
•
•
•
•
Information
To reduce the risk of electric shock or fire, do not expose this appliance to rain or moisture.
Do not spill water or other liquids on the unit.
Turn off the unit immediately, in case to detect malfunctions. If you detect smoke or unusual
odor from the equipment, stop using and unplug it.
Do not open the unit. Thre are not serviciable elements inside. Do not dismantle or modify
the unit, it will void the warranty
Do not try to repair it. Repairs by unqualified persons may cause damage or malfunction.
Contact an authorized service
•
humidity levels. The internal oxidation, can cause damage.
• Do not hit the unit. This product may malfunction, if subject to severe hits and vibrations.
• Keep away from strong magnetic fileds. Not use or place unit near equipment generating
strong electromagnetic radiation or magnetic fields. Heavy loads of these fields as radio
emitters, may interfere with or affect the internal circuitry of the product.
• Cleaning. Because of the smoke residue or dust, clean the outside of the required units.
Use a conventional glass cleaner and a soft cloth.
• Copyright. No section of this manual may be reproduced, transmitted, transcribed, stored in
any system or translated into any language deninguna form or medium without permission.
Keep the unit dry. This product is not water resistant and can malfunction if exposed to high
3 User Manual

INTRODUCTION
The LM-5 LightMouse of WORK makes the lighting control at events and facilities, may finally
be something accessible to everyone, not just a territory restricted to people with technical
training in lighting.
Thanks to it can be controlled through open protocol OSC (Open Sound Control), the LM-5
LightMouse allows end users to design their own lighting console appropriate to their needs, in
order to control the installation using WIFI connection through your iPhone or Android device.
This means that the user can generate a console adapted both installation requirements as to
their knowledge level, eliminating technique barriers techniques, democratizing the lighting control
and making it accessible to everyone.
In addition, the LM-5 LightMouse as close a "Swiss army knife" for lighting controlling. Not only
has ArtNet Node (Ethernet to DMX interface) butcan also be controlled by OSC server to create
DMX data, has an internal memory capable of storing Cues and Cue DMX-lists, with its own
stand and fade time, and allows using 512 DMX channels with 100 scenes and shows.
4 User Manual

Features
-Allows to control and program through WIFI connections up to 512 DMX channels from an
iOS or Android device.
-Memory with up to 100 scenes and 24 shows.
- Save and edit scenes and shows in the internal LM-5 memory.
- It allows to customize the control interface, adapting it to user needs on each facility.
-It works as ArtNet Node -2 compliant at all times.
Technical Data
- Compatible with LM-3E.
- Art-Net 2 node.
- Support OSC protocol.
- Ethernet-DMX Plug & Play receiver.
- Customizable interface.
-Dimensions (W x H x D): 80 x 45 x 80 mm.
-Mains supply: 5V 500mA
- Provides a better feedback of actions, editing and recording scenes and shows
- Makes it possible to integrate lighting control with audio edition and visual production programs
live.
5 User Manual

SETUP AND USE
WorkNet Mode
Art-Net Mode
In WorkNet mode, the LM-5 operates as a receiver of information sent DMX by the device
LM-3E (issuer). Therefore, in this operation mode, the LM-5 always be used in combination
with a LM-3E, and both devices mustconfigured in the same group (or DMX Universe). In this
way, and generalized to more of a receiving device, the information sent by a LM-3E will be
received by LM-5 those configured in the same group as the LM-3E issuer.
Note: Only LM-3E device can be associated with one or more devices LM-5.
WorkNet is a proprietary protocol that runs on any standard network TCP / IP. The protocol is
unicast, in order not to decrease the efficiency of network.
Both the LM-3E as the LM-5 is configured automatically, and need no network configuration. The
IP address and Subnet Mask is obtained automatically, so that both devices are in the same
subnet and and can communicate with each.
In Art-Net mode, LM-5 operates as an Art-Net node itself, receiving all information sent by an
Art-Net emitter. In this case the concept group is replaced by universe, further including the
concept of Subnet, such as specified in Art-Net protocol.
The LM-5 is a plug and play device and requires no network configuration, this is set automatically
obtaining an IP address 2.x.x.x and a subnet mask of 255.0.0.0 as specified by Art-Net protocol.
This mode is enabled and configured using the switches on the rear panel, This point will be
explained later on.
6 User Manual

OSC Mode
In OSC mode (Open Sound Control) LM-5 operates as a lighting console able to store and
playback up to 100 scenes and 24 shows. The LM-5 is a plug and play device, because by
using Zeroconf allows users without experience, in computer networks, to connect the LM-5
with his device quickly and easily.
You just have to configure the input and output ports. It is further explained how to do it.
If the LM-5 is playing a show and suffers a power failure electricity, this will run the show again
automatically supplying again.
If the LM-5 is playing a show stored and receives Art-Net signal, this signal will priority on the
show. This is very useful in installations where it is needed to control timely illumination from a
lighting console.
In this way the configuration of the switches in the rear side does not affect.
Note: If you encounter connection problems between your device iPhone, iPad ... and LM-5,
make sure that our network supports Multicast sending (sending information on a network to
multiple destinations simultaneously), specifically to address 224.0.0.251, in addition to open
port 5353.
If not possible to open the 5353 port, LM-5 did not "discover" automatically, however, you can
connect to it using its IP directly. Contact your Network administrator for more information.
7 User Manual

Panel Frontal
1. LED Power: This red LED lits when the unit has power supply.
2. PLUG IN connector Using the included external power supply (5V, 500 mA) it is posible the
feed the unit. Note: It you use this connections, the Terminal Block
(5) must no be used.
3. ACT LED This green LED flicks when the Ethernet port is connected and emitting
or receiving datas.
4. LINK LED: This green LED lits when the Ethernet LAN port is connected
5. Terminal Block Using an external power supply (5V, 500 mA) it is posible the feed the
unit. Note: It you use this connections, the PLUG IN connection
(2) must no be used.
6. Selector Under WORKNET protocol, this selector allows to select up to 16
reception groups (0-F). Each group disposes its own LM-3E emitter,
configured in the same receivers group.
Under Art-Net protocol this selector allows to select one of the 16 DMX
universes inside configurated Subnet.
7. DMX OUT: This XLR-5 connector sends DMX signal to a control line with DMX
compatible devices like moving heads, scanners, RGB drivers, etc.
8. LAN: RJ 45 connector which allows the LM-5 connection to a Ethernet
8 User Manual

Rear Panel
SubNet Value Switch 2 Switch 3 Switch 4 Switch 5
0 OFF OFF OFF OFF
1 ON OFF OFF OFF
2 OFF ON OFF OFF
3 ON ON OFF OFF
4 OFF OFF ON OFF
5 ON OFF ON OFF
6 OFF ON ON OFF
7 ON ON ON OFF
8 OFF OFF OFF ON
9 ON OFF OFF ON
10 OFF ON OFF ON
11 ON ON OFF ON
12 OFF OFF ON ON
13 ON OFF ON ON
14 OFF ON ON ON
15 ON ON ON ON
9. Operating Mode Selector / Subnet switcher
This dip-switch has two functions:
- Select, with the dip number 1, the operating mode (WorkNet (OFF position) or Art-Net
(ON position).
- Only in Art-Net operating mode, the dips number 2,3,4,5 allow to select Subnet, with values
from 0 to 15 (16 positions). The black colour numbers (1,2,4,8) indicate the value taken by the
dip when the ON position, in OFF position the value is 0. The final value of the Subnet is the
sum of the four dips. the following table shows the position in which the dips are positioned
for each Subnet value:
9 User Manual

WorkNet mode configuration
ArtNet mode configuration
1. Select the WORKNET protocol using the dip number 1 (OFF position) in the dip-switch block
on the rear panel.
2. In the group selector (UNIV) placed in the front panel, select one of the 16 positions.
It is necessary, at least one LM-3E emitter configured in the same group, and connected to the
LAN.
3. Connect a standard cable RJ45 between Ethernet LAN connector and the network.
4. Connect a DMX cable in the DMX OUT connector to feed the devices in the line with DMX
signal
5. Supply the unit with 5 V DC, 500 mA for either samples intended to purpose (or Plug-in
Terminal Block).
6. Now, it is possible to receive DMX information sent by the control console. The ACT LED
flashes when the unit emitts or receives Ethernet network data.
1. Select the Art-Net protocol using the dip number 1 (ON position) of the dip-switch on
the rear panel.
2. Select the Subnet using dips 2,3,4,5 in dip-switch block on the rear panel (up to 16 different
positions). This value must be the same as the value of Subnet configurated in the DMX console.
3. In the group selector (Universe) on the front panel, select one of the 16 positions (0-F) for
the DMX universe.
4. Connect a standard RJ45 cable between Ethernet LAN connector and the network.
5. Connect a cable DMX in the DMX OUT connector to feed the devices in the line with DMX
signal
6. Supply the unit with 5 V DC, 500 mA for either samples intended to purpose (or Plug-in
Terminal Block).
7. Now, it is possible to receive DMX information sent by the control console. The ACT LED
flashes when the unit emitts or receives Ethernet network data.
block
10 User Manual

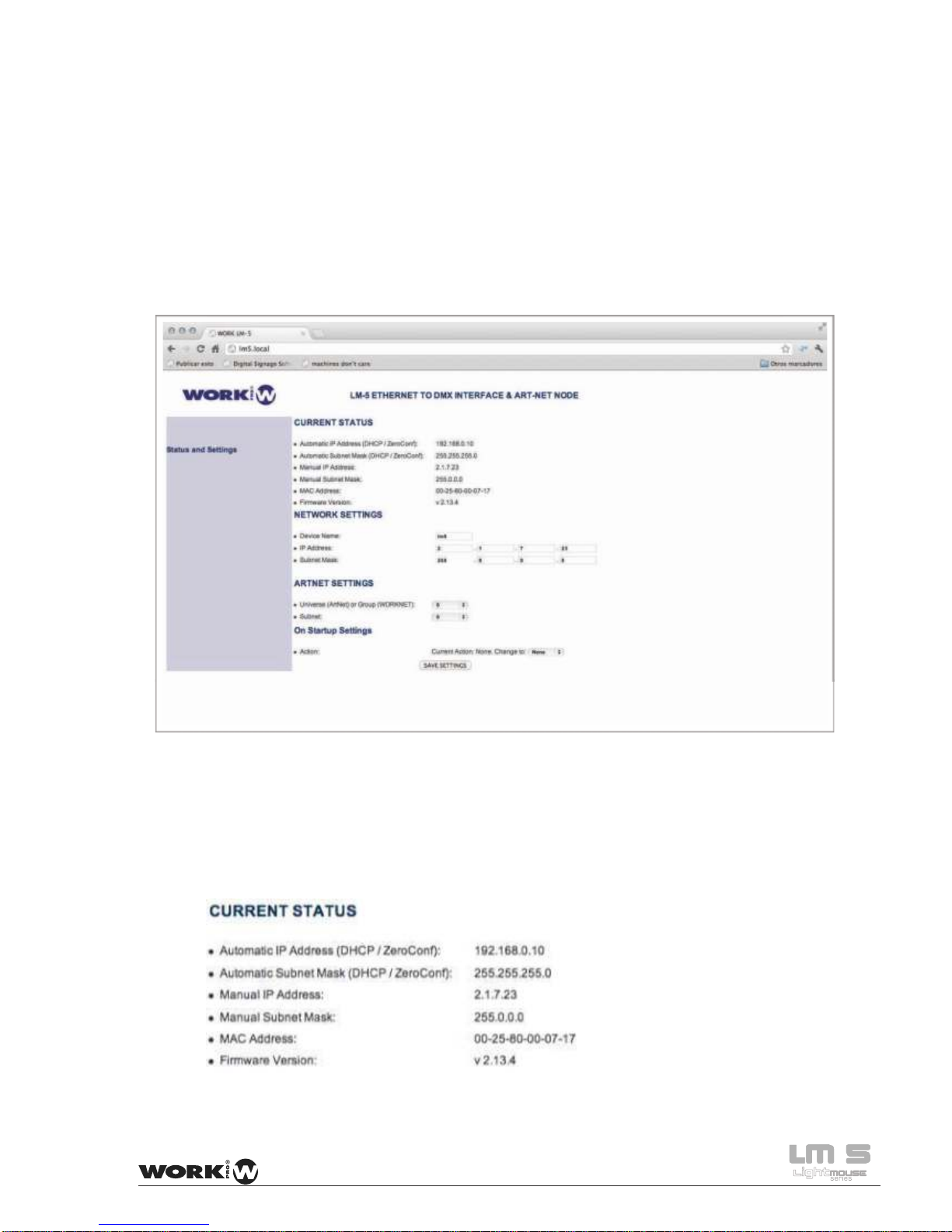

Web Server
Although LM-5 is plug & play, the device has a web management interface for advanced
configuration properties. To connect to the web interface we must open the web browser and
enter lm5.local in the address bar.
Once the connection to the LM-5 we can see all information about the device and their status.
11 User Manual

Since N we can adjust the IP address of LM-5 and its net mask, besides being
able to change the name of our device.
etwork Setting
Note: If you want to rename, you should not use spaces, if used must be taken into account that the space is replaced
by an underscore. If the name is changed, it is important remember the new name assigned, so that we can connect
to the device the next time you want to access the Web interface.
From ArtNet Setting we can adjust the Art-Net Universe and the Subnet
12 User Manual

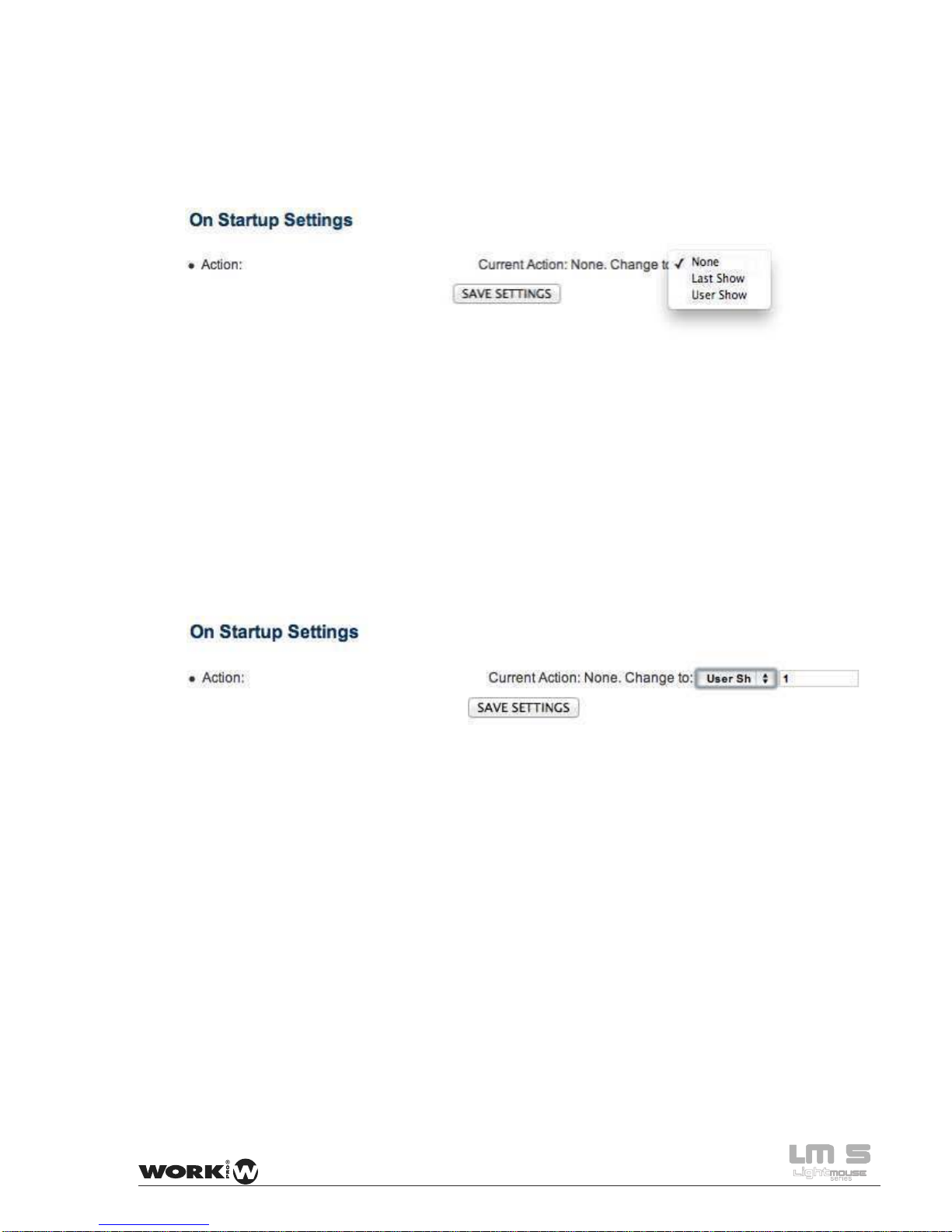

On Startup Settings Since we can select the boot configuration of LM-5, and may choose
between 3 modes: None, Last show and User Show.
In None mode to start the LM-5 does not take any action, standing waiting to receive orders.
In Last Show mode to start the LM-5 will automatically run the show that was playing when
turned off.
In Show User Mode to start the LM-5 will run the show we choose (between 1 and 24).
Once the desired changes must save and restart the LM-5 to take effect.
13 User Manual

ABOUT TOUCHOSC
- Faders
- Rotary Controls
-Pushers
-Toggles
- XY areas
-Multi-faders
-Multi-toggles
-LEDs
-Encoders
The layouts provided by Equipson are designed to TouchOSC. This is an IOS and Android
devices application that lets you send and receive Open Sound Control over Wi-Fi messages
using the UDP protocol.
The application supports remote control and receive feedback from software and hardware
which implement OSC protocol as much as LM-5, Pure Data, Max / MSP / Jitter, OSCulator,
VDMX, Resolume Avenue 3, Plogue Bidule, Reaktor, Quartz Composer, and others.
The interface provides several different controls to send and receive messages:
Supports multi-touch gestures and can use up to five controls at once Layouts currently can only
be used in IOS devices.
TouchOSC App can be downloaded from AppStore
14 User Manual

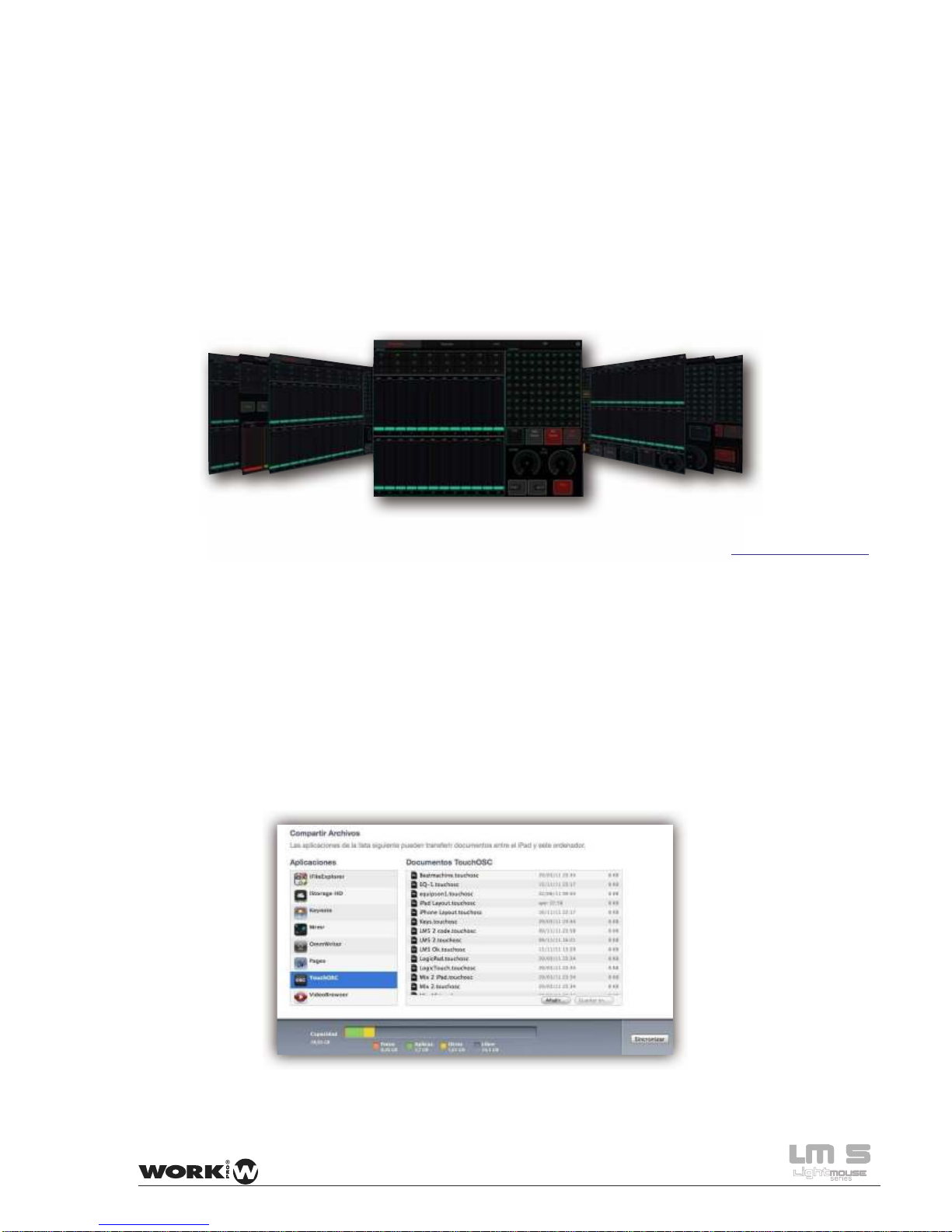

LM5 LAYOUTS & TOUCHOSC
Copying Layouts:
Equipson offers a layouts set designed to control the LM-5, with them it is posible to control
from a RGB facility to an event with up to 24 channels.
The layouts are available for download on the official website of Equipson.
The Layouts process load in TouchOSC is explaining following. in this, open iTunes program,
select the device and we move to the tab applications, select the app TouchOSC and "click"
on add.
www.equipson.es
15 User Manual

We start TouchOsc.app on our device, and we move to the Layout menu and select the
layout that we have loaded from iTunes:
When the Layout is selected, the window will return to previous menu
16 User Manual

Linking TouchOSC & LM-5
The connection between the LM-5 and TouchOSC is very simple, you only need a WiFi AP
to connect them.
Once all the connections are finished, proceed to connect the LM-5 to electric network.
Before Start TouchOSC proceed to link the IOS device with AP Wifi network which has
connected the LM-5. Once they are linked, we start the App.
.1 º- Enter in the Connections Menu> Osc
17 User Manual

-Port ( outgoing ) : 8000
-Port ( incoming ) : 9000
2º- Activate the OSC connection and adjust the input and output ports:
3 º- Under "Hosts Found" section, select the entry "LM-5" that appears:
18 User Manual
